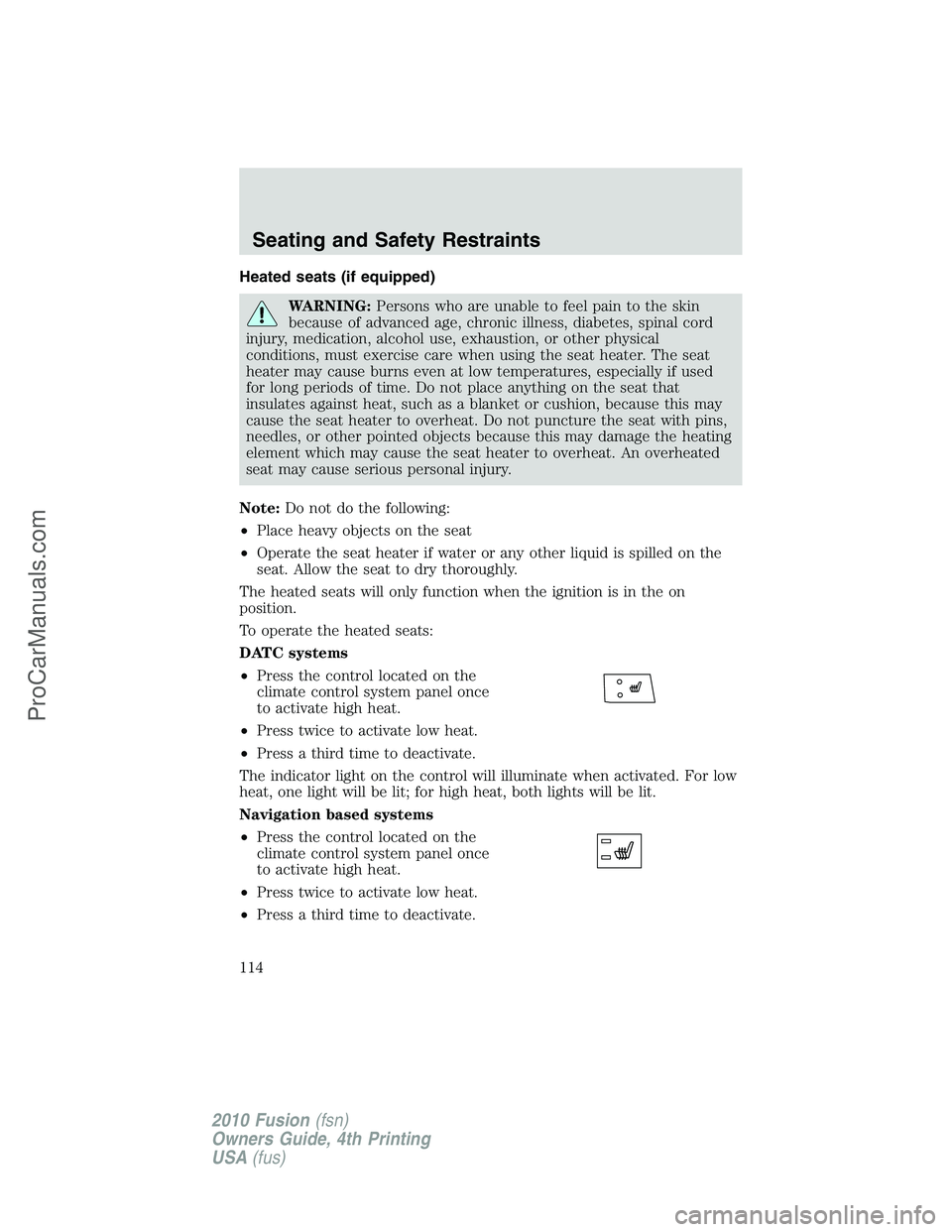

Heated seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The heated seats will only function when the ignition is in the on
position.
To operate the heated seats:
DATC systems
•Press the control located on the
climate control system panel once
to activate high heat.
•Press twice to activate low heat.
•Press a third time to deactivate.
The indicator light on the control will illuminate when activated. For low
heat, one light will be lit; for high heat, both lights will be lit.
Navigation based systems
•Press the control located on the
climate control system panel once
to activate high heat.
•Press twice to activate low heat.
•Press a third time to deactivate.
Seating and Safety Restraints
114
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the trunk, provides a
video image which appears in the
rear view mirror or on the
navigation screen (if equipped), of
the area behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display in the rear view mirror or on the navigation screen (if
equipped). The area displayed on the screen may vary according to the
vehicle orientation and/or road condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as
they move from the green zone to the yellow or red zones.
Use the side mirrors and rear view mirror to get better coverage on both
sides and rear of the vehicle.
Image delay if displayed through the rear view mirror:
When shifting out of R (Reverse) and into any other gear, the image in
the rear view mirror will remain on for a few seconds before it shuts off
to assist in parking or trailer hookup.
Image delay if displayed through the navigation screen:
After shifting out of R (Reverse) and into any gear other than P (Park),
the image in the navigation screen will remain until the vehicle speed
reaches 5 mph (8 km/h), only if the rear camera delay feature is on, or
until any navigation radio button is pressed.
Note:The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen to set the rear camera
delay feature to on or off. Refer to theNavigation Systemsupplement
for more information.
Driving
221
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lamps
10 15A Backlighting, Puddle lamps
11 10A AWD module
12 7.5A Power outside mirrors
13 5A SYNCmodule
14 10A Electronic finish panel (EFP)
radio and climate control buttons
module, Navigation display, Center
information display, GPS module
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Heated seats
19 25A Amplifier
20 15A On-board diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park
lamps, License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
Roadside Emergencies
241
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

Mirrors ...................................80–81
automatic dimming rearview
mirror ........................................80
heated ........................................81
side view mirrors (power) .......81
Moon roof ....................................85
Motorcraftparts ..............274, 320
N
Navigation system .......................44
O
Octane rating ....................300–301
Oil (see Engine oil) ..................281
P
Parking brake ............................204
Parts (see Motorcraft
parts) .........................................320
Passenger Occupant
Classification Sensor .................121
Power distribution box (see
Fuses) ........................................242
Power door locks ........................89
Power mirrors .............................81
Power point .................................77
Power steering ..................209–210
fluid, checking and adding ....309
fluid, refill capacity ................321
fluid, specifications .................321
Power Windows ...........................78
R
Radio ............................................28Rear-view camera system .........221
Recommendations for
attaching safety restraints for
children ......................................152
Relays ........................................239
Remote entry system .................95
illuminated entry ................97, 99
locking/unlocking doors .....95–96
opening the trunk .....................96
panic alarm ...............................96
replacement/additional
transmitters ...............................97
replacing the batteries .............97
Reverse sensing system ...........219
Roadside assistance ..................236
S
Safety belts (see Safety
restraints) ..........120, 123, 125–127
Safety Canopy ...........................143
Safety defects, reporting ..........266
Safety restraints ...............120, 123,
125–127
Belt-Minder...........................129
extension assembly ................128
for adults .........................125–127
for children .............................149
Occupant Classification
Sensor ......................................121
warning light and chime ........128
Safety restraints - LATCH
anchors ......................................160
Safety seats for children ..........154
Safety Compliance
Certification Label ....................326
Satellite Radio .............................28
Satellite Radio Information ........41
