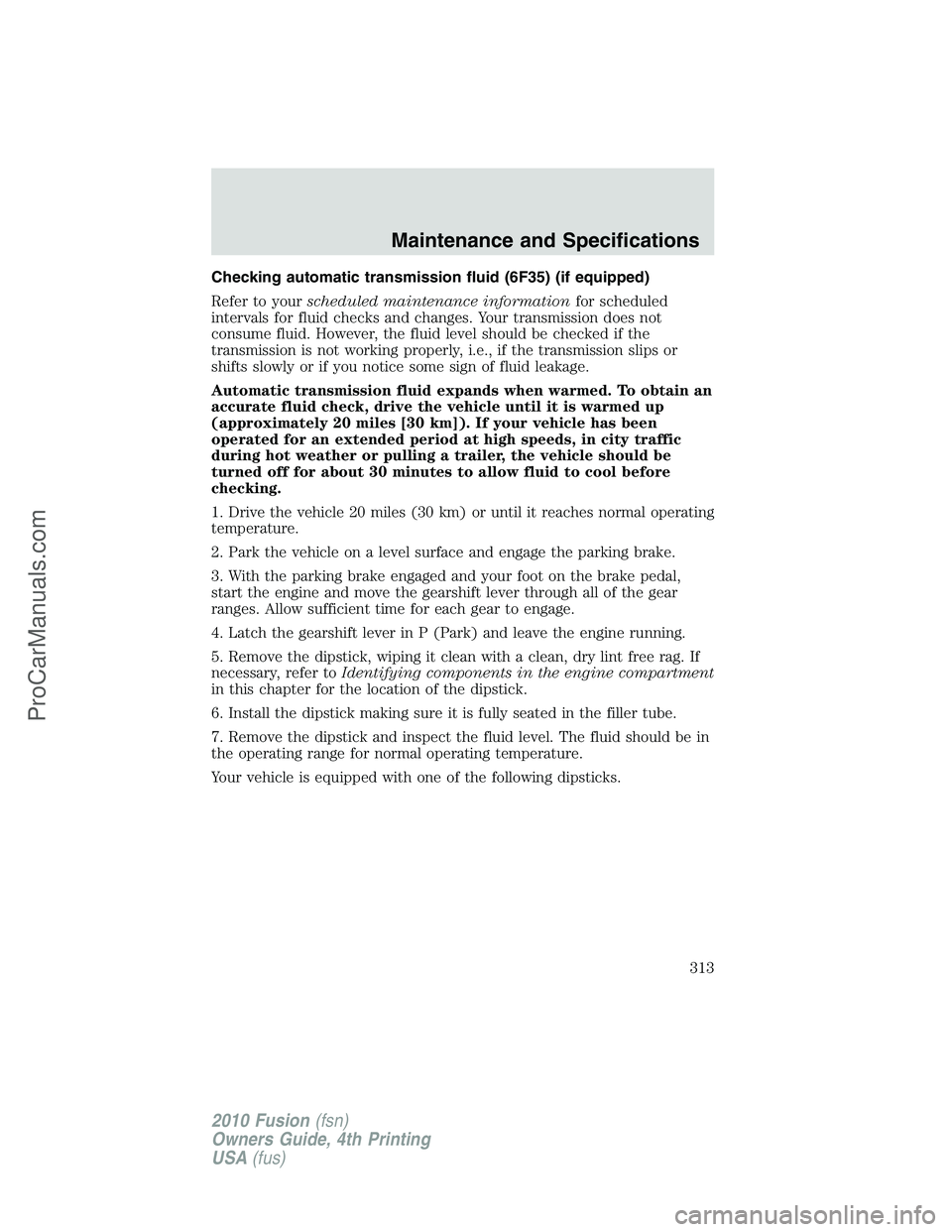

Checking automatic transmission fluid (6F35) (if equipped)
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the operating range for normal operating temperature.
Your vehicle is equipped with one of the following dipsticks.
Maintenance and Specifications
313
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

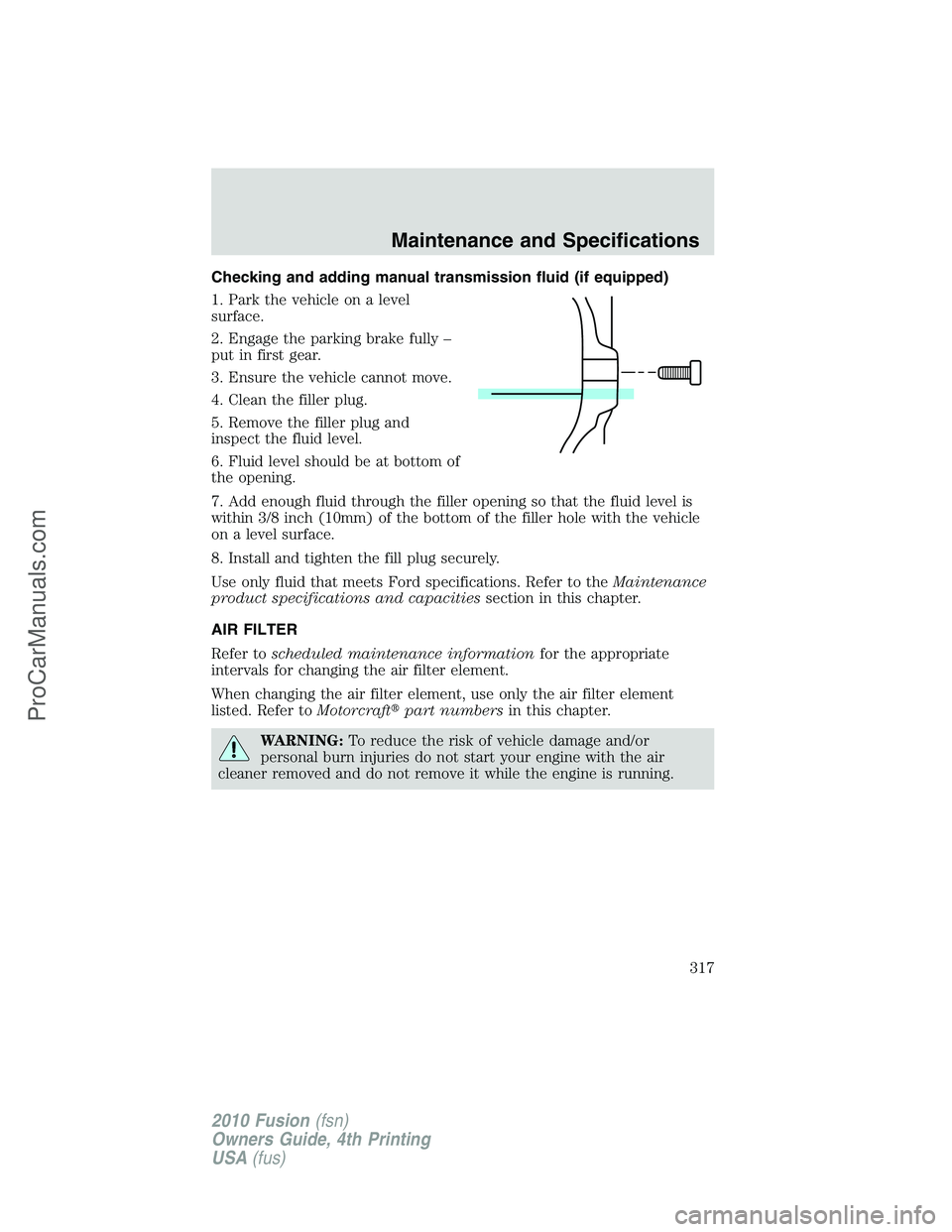

Checking and adding manual transmission fluid (if equipped)
1. Park the vehicle on a level
surface.
2. Engage the parking brake fully –
put in first gear.
3. Ensure the vehicle cannot move.
4. Clean the filler plug.
5. Remove the filler plug and
inspect the fluid level.
6. Fluid level should be at bottom of
the opening.
7. Add enough fluid through the filler opening so that the fluid level is
within 3/8 inch (10mm) of the bottom of the filler hole with the vehicle
on a level surface.
8. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer to theMaintenance
product specifications and capacitiessection in this chapter.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraftpart numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Maintenance and Specifications
317
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

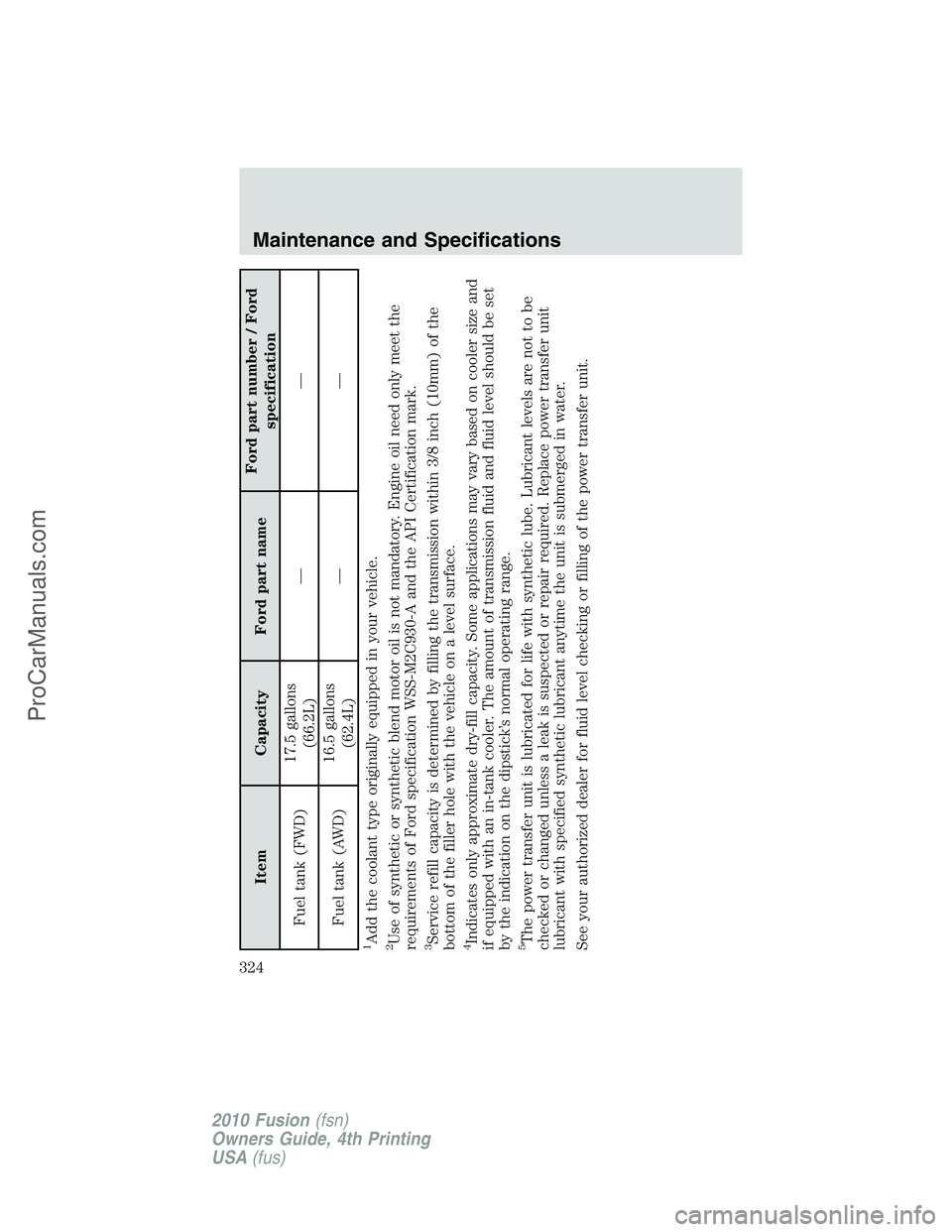

Item Capacity Ford part nameFord part number / Ford
specification
Fuel tank (FWD)17.5 gallons
(66.2L)——
Fuel tank (AWD)16.5 gallons
(62.4L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Service refill capacity is determined by filling the transmission within 3/8 inch (10mm) of the
bottom of the filler hole with the vehicle on a level surface.4Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.5The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
See your authorized dealer for fluid level checking or filling of the power transfer unit.
Maintenance and Specifications
324
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

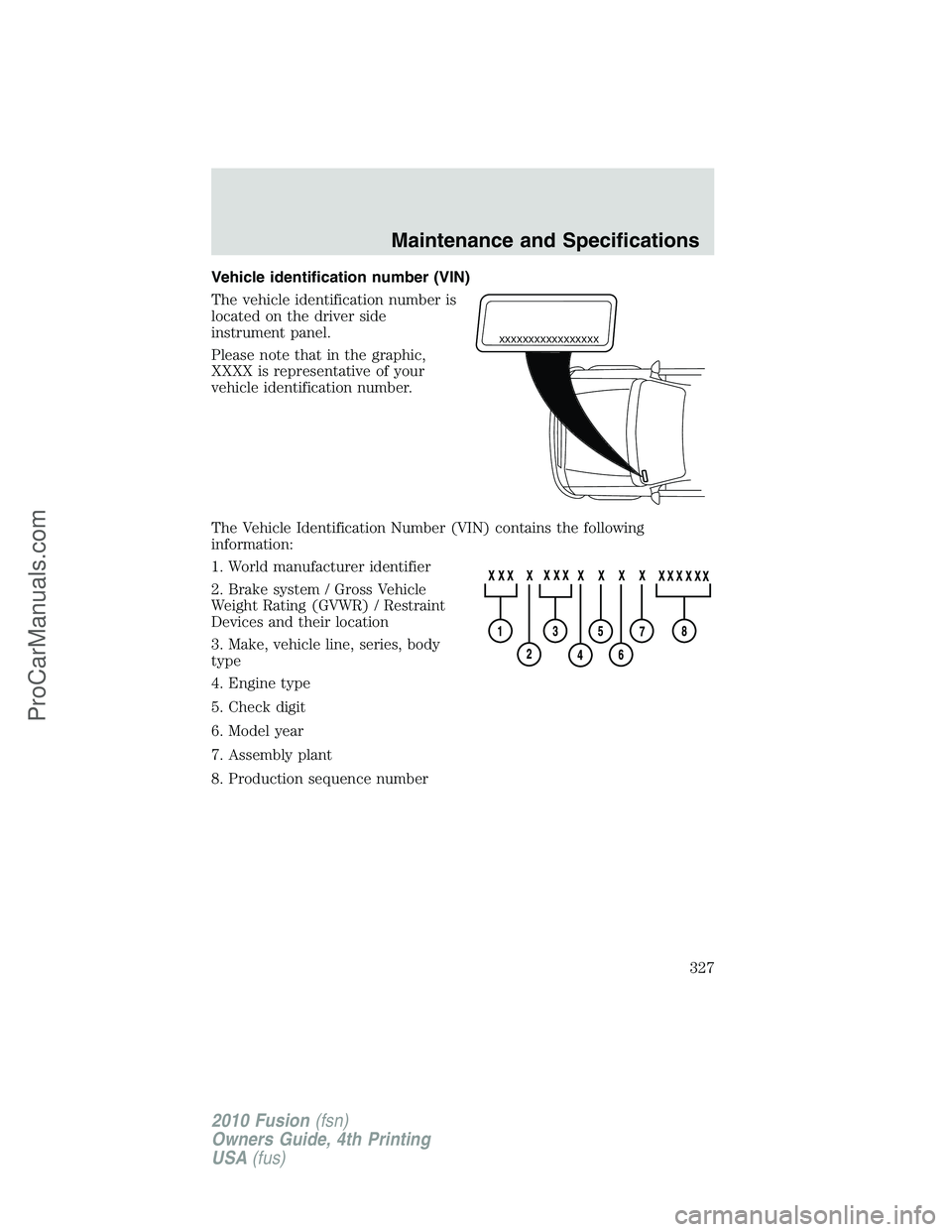

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
327
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

A
Accessory delay ..........................79
AdvanceTrac ..............................205
Air cleaner filter .......317–318, 320
Air conditioning
automatic temperature
control system ....................47, 50
Airbag supplemental restraint
system ........................134, 143, 146
and child safety seats ............136
description ..............134, 143, 146
disposal ....................................149
driver airbag ....134, 136, 144, 147
indicator light .........142, 145, 148
operation .........134, 136, 144, 147
passenger airbag ....134, 136, 144,
147
side airbag ...............................143
All Wheel Drive (AWD),
driving off road .........................229
Ambient mood/lighting ...............60
AM/FM .........................................28
Antifreeze (see Engine
coolant) .....................................289
Anti-lock brake system
(see Brakes) ......................203–204
Anti-theft system ..............101, 105
arming the system ..................105
disarming a triggered
system .....................................106
triggering .................................106
Audio system
6-CD in dash .............................28
Single CD ..................................28
Audio system (see Radio) .........28Automatic transmission
driving an automatic
overdrive .........................212, 214
fluid, adding ....................310, 317
fluid, checking ................310, 317
fluid, refill capacities ..............321
fluid, specification ..................321
Selectshift (SST) ....................215
Auxiliary input jack (Line in) ....36
Axle
lubricant specifications ..........321
B
Battery .......................................287
acid, treating emergencies .....287
jumping a disabled battery ....253
maintenance-free ....................287
replacement, specifications ...320
servicing ..................................287
Belt-Minder.............................129
Blind Spot Information
System .......................................223
Booster seats .............................165
Brakes ........................................203
anti-lock ...........................203–204
anti-lock brake system (ABS)
warning light ...........................204
fluid, checking and adding ....310
fluid, refill capacities ..............321
fluid, specifications .................321
lubricant specifications ..........321
parking ....................................204
shift interlock ..........................210
Break-in period .............................5
Bulbs ............................................60
Index
334
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

C
Capacities for refilling fluids ....321
CD ................................................28
Cell phone use ..............................8
Changing a tire .........................246
Child safety seats ......................154
attaching with tether straps ..162
in front seat ............................155
in rear seat ..............................155
LATCH .....................................160
recommendations ...................152
Child safety seats - booster
seats ...........................................165
Cleaning your vehicle
engine compartment ..............269
instrument panel ....................271
interior .....................................272
plastic parts ............................270
washing ....................................267
waxing .....................................268
wheels ......................................268
wiper blades ............................271
Climate control (see Air
conditioning or Heating) ......47, 50
Clutch
fluid ..........................................310
operation while driving ..........217
recommended shift speeds ....217
Compass, electronic ....................74
calibration .................................75
set zone adjustment .................75
Console ........................................76
overhead ....................................74
Controls
power seat ...............................112
steering column ........................84Coolant
checking and adding ..............289
refill capacities ................293, 321
specifications ..........................321
Cross Traffic Alert ....................223
Cruise control (see Speed
control) ........................................81
Cupholder(s) .............................120
Customer Assistance ................236
Ford Extended Service
Plan ..........................................331
Getting assistance outside the
U.S. and Canada .....................264
Getting roadside assistance ...236
Getting the service you
need .........................................260
Ordering additional owner’s
literature .................................265
Utilizing the
Mediation/Arbitration
Program ...................................264
D
Daytime running lamps (see
Lamps) .........................................56
Defrost
windshield .................................50
Dipstick
automatic transmission
fluid ..................................310, 313
engine oil .................................281
Driving under special
conditions ..................216, 230, 232
sand .........................................231
snow and ice ...........................233
through water .................231, 234
Index
335
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................253
running out of fuel .........252, 302
Emission control system ..........306
Engine ........................................325
cleaning ...................................269
coolant .....................................289
fail-safe cooling .......................294
idle speed control ...................287
lubrication specifications .......321
refill capacities ........................321
service points ..................277–279
starting after a collision .........238
Engine block heater .................201
Engine oil ..................................281
change oil soon warning,
message center .......................281
checking and adding ..............281
dipstick ....................................281
filter, specifications ........286, 320
recommendations ...................286
refill capacities ........................321
specifications ..........................321
Event data recording ....................7
Exhaust fumes ..........................201
F
Fail safe cooling ........................294
Flexible Fuel Vehicle (FFV) ....295
Fluid capacities .........................321
Fog lamps ....................................56
Four-Wheel Drive vehicles
driving off road .......................229
Fuel ............................................295calculating fuel
economy ............................20, 303
cap ...........................................298
capacity ...................................321
choosing the right fuel ...........300
comparisons with EPA fuel
economy estimates .................306
detergent in fuel .....................302
filler funnel .............................302
filling your vehicle
with fuel ..................295, 298, 303
filter, specifications ........295, 320
fuel pump shut-off ..................238
fuel pump shut-off switch .....238
improving fuel economy ........303
octane rating ...........300–301, 325
quality ......................................301
running out of fuel .........252, 302
safety information relating to
automotive fuels .....................295
Fuel - flex fuel vehicle
(FFV) .........................295, 300–301
Fuel pump shut-off switch .......238
Fuses ..................................239–240
G
Gas cap (see Fuel cap) ............298
Gas mileage (see Fuel
economy) ...................................303
Gauges .........................................16
H
Hazard flashers .........................237
Headlamps ...................................55
aiming ........................................58
autolamp system .......................55
bulb specifications ....................61
daytime running lights .............56
Index
336
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

Mirrors ...................................80–81
automatic dimming rearview
mirror ........................................80
heated ........................................81
side view mirrors (power) .......81
Moon roof ....................................85
Motorcraftparts ..............274, 320
N
Navigation system .......................44
O
Octane rating ....................300–301
Oil (see Engine oil) ..................281
P
Parking brake ............................204
Parts (see Motorcraft
parts) .........................................320
Passenger Occupant
Classification Sensor .................121
Power distribution box (see
Fuses) ........................................242
Power door locks ........................89
Power mirrors .............................81
Power point .................................77
Power steering ..................209–210
fluid, checking and adding ....309
fluid, refill capacity ................321
fluid, specifications .................321
Power Windows ...........................78
R
Radio ............................................28Rear-view camera system .........221
Recommendations for
attaching safety restraints for
children ......................................152
Relays ........................................239
Remote entry system .................95
illuminated entry ................97, 99
locking/unlocking doors .....95–96
opening the trunk .....................96
panic alarm ...............................96
replacement/additional
transmitters ...............................97
replacing the batteries .............97
Reverse sensing system ...........219
Roadside assistance ..................236
S
Safety belts (see Safety
restraints) ..........120, 123, 125–127
Safety Canopy ...........................143
Safety defects, reporting ..........266
Safety restraints ...............120, 123,
125–127
Belt-Minder...........................129
extension assembly ................128
for adults .........................125–127
for children .............................149
Occupant Classification
Sensor ......................................121
warning light and chime ........128
Safety restraints - LATCH
anchors ......................................160
Safety seats for children ..........154
Safety Compliance
Certification Label ....................326
Satellite Radio .............................28
Satellite Radio Information ........41
Index
338
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
