WARNING LIGHTS AND CHIMES
Standard instrument cluster shown; metric, optional and manual
transmission clusters similar
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system warning light for additional information.
Service engine soon:The service
engine soon indicator light
illuminates when the ignition is first
turned to the on position to check
the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. Normally, the service engine soon
light will stay on until the engine is cranked, then turn itself off if no
malfunctions are present. However, if after 15 seconds the service engine
soon light blinks eight times, it means that the vehicle is not ready for
I/M testing. See theReadiness for Inspection/Maintenance (I/M)
testingin theMaintenance and Specificationschapter.
Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
Instrument Cluster
12
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 62 of 340
Replacing interior bulbs
Check the operation of all bulbs frequently.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing headlamp bulbs (2.5L/3.0L engines)
High beam/low beam bulb replacement
For driver side replacement of this bulb, do the following:
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
1. Release the clamps that secure the air filter housing cover. See
Changing the air filter elementin theMaintenance & Specifications
section for more information.
2. Carefully separate the two halves of the air filter housing.
3. Locate the mass air flow sensor electrical connector on the air outlet
tube. This connector will need to be unplugged.
4. Remove the air filter assembly.
5. Remove the rubber headlamp bulb access cover.
High beam
Lights
62
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 77 of 340
INSTRUMENT PANEL STORAGE COMPARTMENT
The storage compartment may be
used to secure sunglasses or similar
sized objects. Press the button to
open the storage compartment.
AUXILIARY POWER POINT (12V DC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•On the instrument panel
•In the center console utility compartment
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point is not
working, a fuse may have blown. Refer toFuses and relaysin the
Roadside Emergencieschapter for information on checking and
replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
Driver Controls
77
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 203 of 340
become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater will use .4 to 1.0 kilowatt-hours of energy per hour of use. Your
factory installed block heater system does not have a thermostat;
however, maximum temperature is attained after approximately three
hours of operation. Block heater operation longer than three hours will
not improve system performance and will unnecessarily use additional
electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and
chimesin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an anti-lock braking system (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. The ABS operates by detecting the
onset of wheel lockup during brake application and compensates for this
tendency. Noise from the ABS pump motor and brake pedal pulsation
may be observed during ABS braking; any pulsation or mechanical noise
you may feel or hear is normal. In addition, the ABS performs a
self-check after you start the engine and begin to drive away. A brief
mechanical noise may be heard during this test. This is normal.
P!
BRAKE
Driving
203
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 206 of 340
WARNING:If a failure has been detected within the
AdvanceTracsystem, the stability control light will illuminate
steadily, and you may hear a chime. If equipped with a message center,
the vehicle will also indicate a failure with the brake system. Have the
system serviced by an authorized dealer immediately.
The AdvanceTracsystem automatically enables each time the engine is
started. All features of the AdvanceTracsystem (TCS and ESC) are
active and monitor the vehicle from start-up. However, the system will
only intervene if the driving situation requires it.
The AdvanceTracsystem includes
a stability control switch on the
instrument panel, a stability control
light and a stability control off light
in the instrument cluster. Both the
stability control light and the
stability control off light in the instrument cluster will illuminate
temporarily during start-up as part of a normal system self-check. The
stability control light may illuminate (flash) during certain driving
situations which cause the AdvanceTracsystem to operate. If the
stability control light illuminates steadily, have the system serviced by an
authorized dealer immediately. If equipped with a message center, the
vehicle will also indicate a failure with the AdvanceTracsystem.
When AdvanceTracperforms a normal system self-check, some drivers
may notice a slight movement of the brake, and/or a rumble, grunting, or
grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracyou may experience
the following:
•A slight deceleration of the vehicle
•The stability control light will flash.
•If your foot is on the brake pedal, a vibration in the pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction control system (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Driving
206
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 208 of 340
Switching off AdvanceTrac
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTracsystem may be
beneficial because the wheels are allowed to spin. This will restore full
engine power and will enhance momentum through the obstacle.
To switch off the AdvanceTrac
system, press the stability control
switch. Full features of the
AdvanceTracsystem can be
restored by pressing the switch
again or by turning off and
restarting the engine.
When the AdvanceTracsystem is
off, the stability control off light will
illuminate steadily. Pressing the
stability control switch again will
turn off the stability control off
light.
In R (Reverse), ABS and the engine and brake traction control features
will continue to function; however, ESC is disabled.
AdvanceTracFeatures
Control
switch
functionsStability
control
light
Stability
control off
light
ESCTraction
control
Default at
start-upIlluminated
during bulb
checkIlluminated
during bulb
checkEnabled Enabled
Control switch
pressed
momentarilyNot
illuminatedIlluminated
solidEnabled Disabled
Control switch
pressed again
after
deactivationNot
illuminatedNot
illuminatedEnabled Enabled
OFF
Driving
208
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 232 of 340

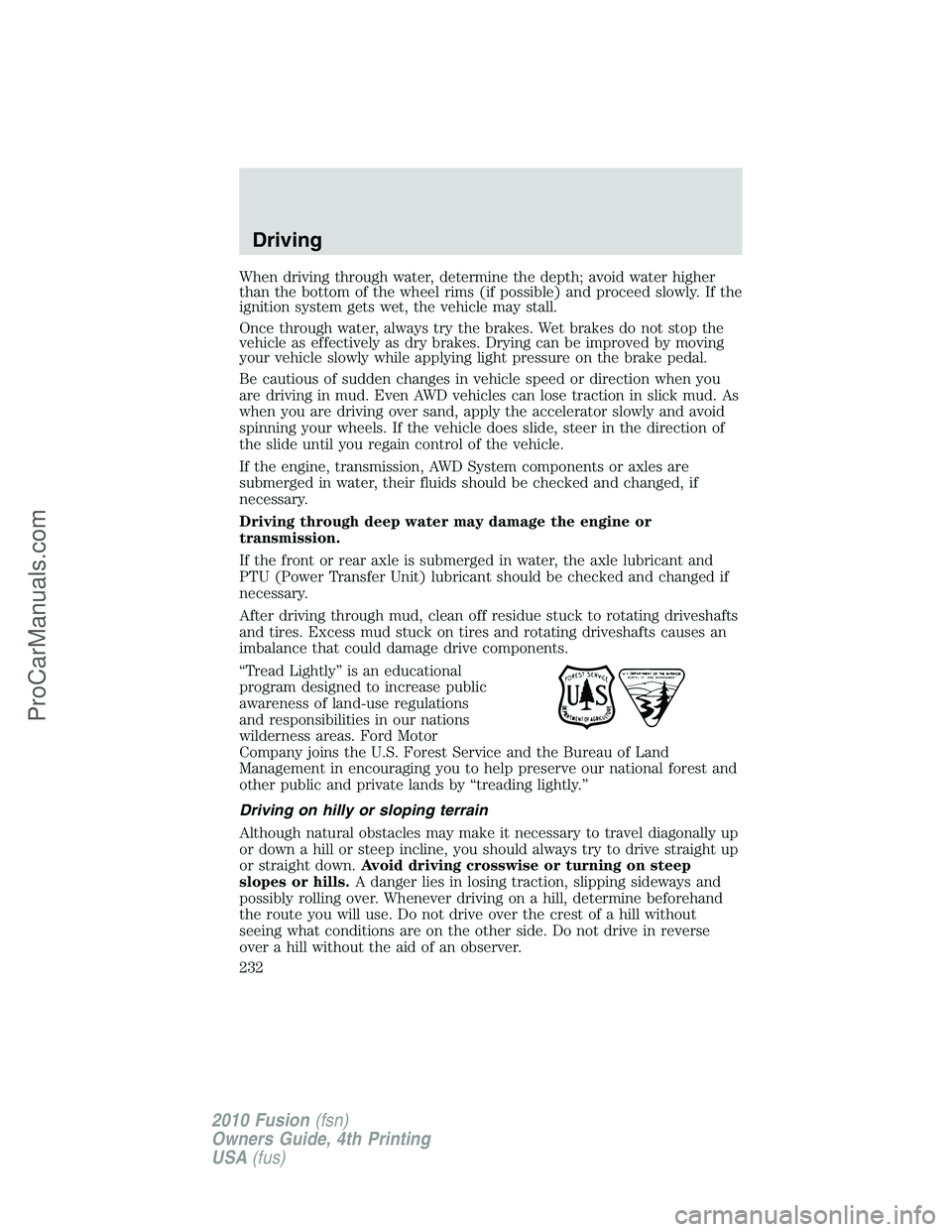

When driving through water, determine the depth; avoid water higher
than the bottom of the wheel rims (if possible) and proceed slowly. If the
ignition system gets wet, the vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even AWD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the engine, transmission, AWD System components or axles are
submerged in water, their fluids should be checked and changed, if
necessary.
Driving through deep water may damage the engine or
transmission.
If the front or rear axle is submerged in water, the axle lubricant and
PTU (Power Transfer Unit) lubricant should be checked and changed if
necessary.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving on hilly or sloping terrain
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.Avoid driving crosswise or turning on steep
slopes or hills.A danger lies in losing traction, slipping sideways and
possibly rolling over. Whenever driving on a hill, determine beforehand
the route you will use. Do not drive over the crest of a hill without
seeing what conditions are on the other side. Do not drive in reverse
over a hill without the aid of an observer.
Driving
232
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 334 of 340

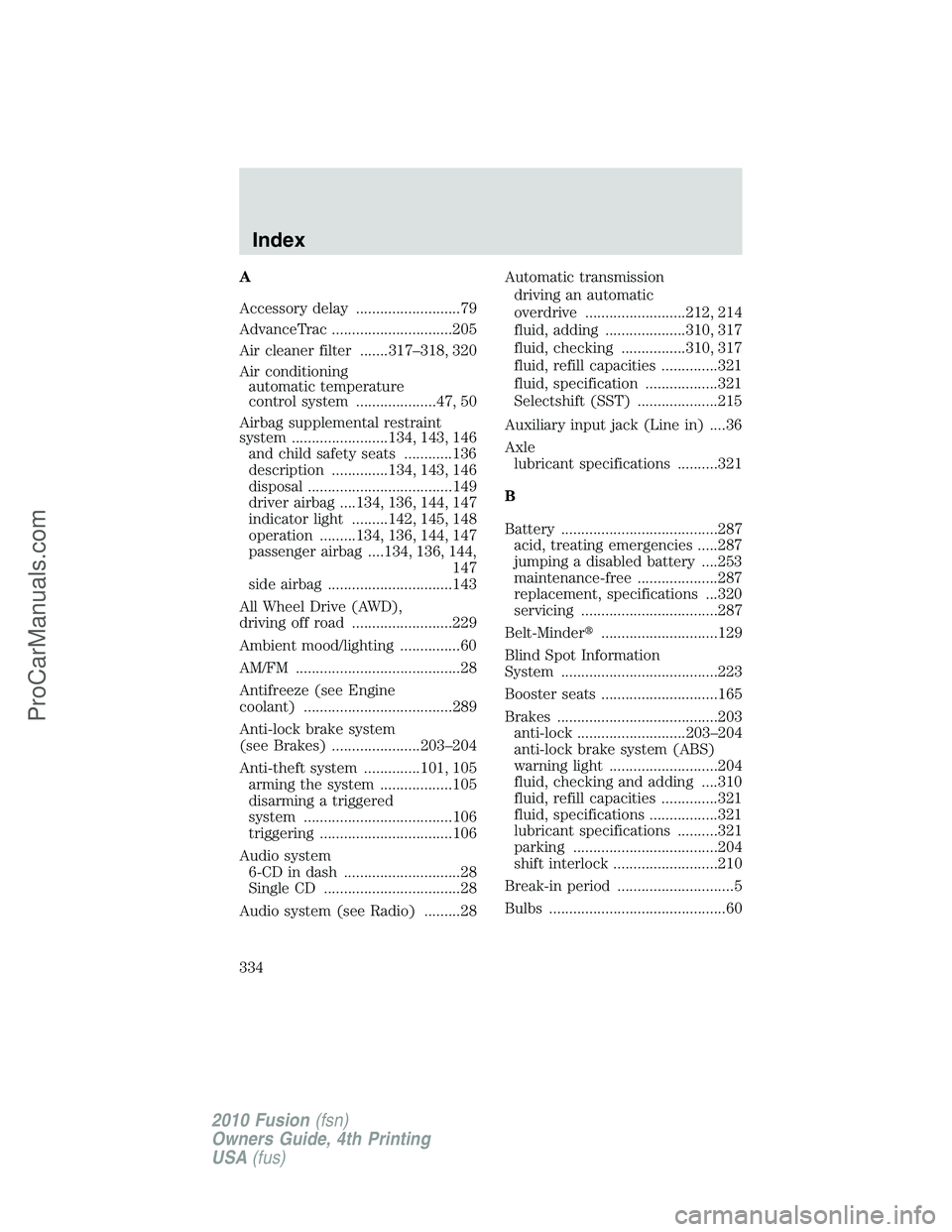

A
Accessory delay ..........................79
AdvanceTrac ..............................205
Air cleaner filter .......317–318, 320
Air conditioning
automatic temperature
control system ....................47, 50
Airbag supplemental restraint
system ........................134, 143, 146
and child safety seats ............136
description ..............134, 143, 146
disposal ....................................149
driver airbag ....134, 136, 144, 147
indicator light .........142, 145, 148
operation .........134, 136, 144, 147
passenger airbag ....134, 136, 144,
147
side airbag ...............................143
All Wheel Drive (AWD),
driving off road .........................229
Ambient mood/lighting ...............60
AM/FM .........................................28
Antifreeze (see Engine
coolant) .....................................289
Anti-lock brake system
(see Brakes) ......................203–204
Anti-theft system ..............101, 105
arming the system ..................105
disarming a triggered
system .....................................106
triggering .................................106
Audio system
6-CD in dash .............................28
Single CD ..................................28
Audio system (see Radio) .........28Automatic transmission
driving an automatic
overdrive .........................212, 214
fluid, adding ....................310, 317
fluid, checking ................310, 317
fluid, refill capacities ..............321
fluid, specification ..................321
Selectshift (SST) ....................215
Auxiliary input jack (Line in) ....36
Axle
lubricant specifications ..........321
B
Battery .......................................287
acid, treating emergencies .....287
jumping a disabled battery ....253
maintenance-free ....................287
replacement, specifications ...320
servicing ..................................287
Belt-Minder.............................129
Blind Spot Information
System .......................................223
Booster seats .............................165
Brakes ........................................203
anti-lock ...........................203–204
anti-lock brake system (ABS)
warning light ...........................204
fluid, checking and adding ....310
fluid, refill capacities ..............321
fluid, specifications .................321
lubricant specifications ..........321
parking ....................................204
shift interlock ..........................210
Break-in period .............................5
Bulbs ............................................60
Index
334
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 336 of 340
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................253
running out of fuel .........252, 302
Emission control system ..........306
Engine ........................................325
cleaning ...................................269
coolant .....................................289
fail-safe cooling .......................294
idle speed control ...................287
lubrication specifications .......321
refill capacities ........................321
service points ..................277–279
starting after a collision .........238
Engine block heater .................201
Engine oil ..................................281
change oil soon warning,
message center .......................281
checking and adding ..............281
dipstick ....................................281
filter, specifications ........286, 320
recommendations ...................286
refill capacities ........................321
specifications ..........................321
Event data recording ....................7
Exhaust fumes ..........................201
F
Fail safe cooling ........................294
Flexible Fuel Vehicle (FFV) ....295
Fluid capacities .........................321
Fog lamps ....................................56
Four-Wheel Drive vehicles
driving off road .......................229
Fuel ............................................295calculating fuel
economy ............................20, 303
cap ...........................................298
capacity ...................................321
choosing the right fuel ...........300
comparisons with EPA fuel
economy estimates .................306
detergent in fuel .....................302
filler funnel .............................302
filling your vehicle
with fuel ..................295, 298, 303
filter, specifications ........295, 320
fuel pump shut-off ..................238
fuel pump shut-off switch .....238
improving fuel economy ........303
octane rating ...........300–301, 325
quality ......................................301
running out of fuel .........252, 302
safety information relating to
automotive fuels .....................295
Fuel - flex fuel vehicle
(FFV) .........................295, 300–301
Fuel pump shut-off switch .......238
Fuses ..................................239–240
G
Gas cap (see Fuel cap) ............298
Gas mileage (see Fuel
economy) ...................................303
Gauges .........................................16
H
Hazard flashers .........................237
Headlamps ...................................55
aiming ........................................58
autolamp system .......................55
bulb specifications ....................61
daytime running lights .............56
Index
336
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
Page 338 of 340
Mirrors ...................................80–81
automatic dimming rearview
mirror ........................................80
heated ........................................81
side view mirrors (power) .......81
Moon roof ....................................85
Motorcraftparts ..............274, 320
N
Navigation system .......................44
O
Octane rating ....................300–301
Oil (see Engine oil) ..................281
P
Parking brake ............................204
Parts (see Motorcraft
parts) .........................................320
Passenger Occupant
Classification Sensor .................121
Power distribution box (see
Fuses) ........................................242
Power door locks ........................89
Power mirrors .............................81
Power point .................................77
Power steering ..................209–210
fluid, checking and adding ....309
fluid, refill capacity ................321
fluid, specifications .................321
Power Windows ...........................78
R
Radio ............................................28Rear-view camera system .........221
Recommendations for
attaching safety restraints for
children ......................................152
Relays ........................................239
Remote entry system .................95
illuminated entry ................97, 99
locking/unlocking doors .....95–96
opening the trunk .....................96
panic alarm ...............................96
replacement/additional
transmitters ...............................97
replacing the batteries .............97
Reverse sensing system ...........219
Roadside assistance ..................236
S
Safety belts (see Safety
restraints) ..........120, 123, 125–127
Safety Canopy ...........................143
Safety defects, reporting ..........266
Safety restraints ...............120, 123,
125–127
Belt-Minder...........................129
extension assembly ................128
for adults .........................125–127
for children .............................149
Occupant Classification
Sensor ......................................121
warning light and chime ........128
Safety restraints - LATCH
anchors ......................................160
Safety seats for children ..........154
Safety Compliance
Certification Label ....................326
Satellite Radio .............................28
Satellite Radio Information ........41
Index
338
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
