spark plugs FORD FUSION 2010 Owners Manual

4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the air filter housing cover and secure the clamps. Be sure
that the air cleaner cover tabs are engaged into the slots of the air
cleaner housing.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 2.5L I4
Engine3.0L V6 Engine 3.5L V6 Engine
Air filter
elementFA-1785 FA-1786 FA-1884
Battery BXT-96-R BXT-96-R BXT-96-R
Oil filter FL-910 FL-500-S FL-500-S
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
320
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

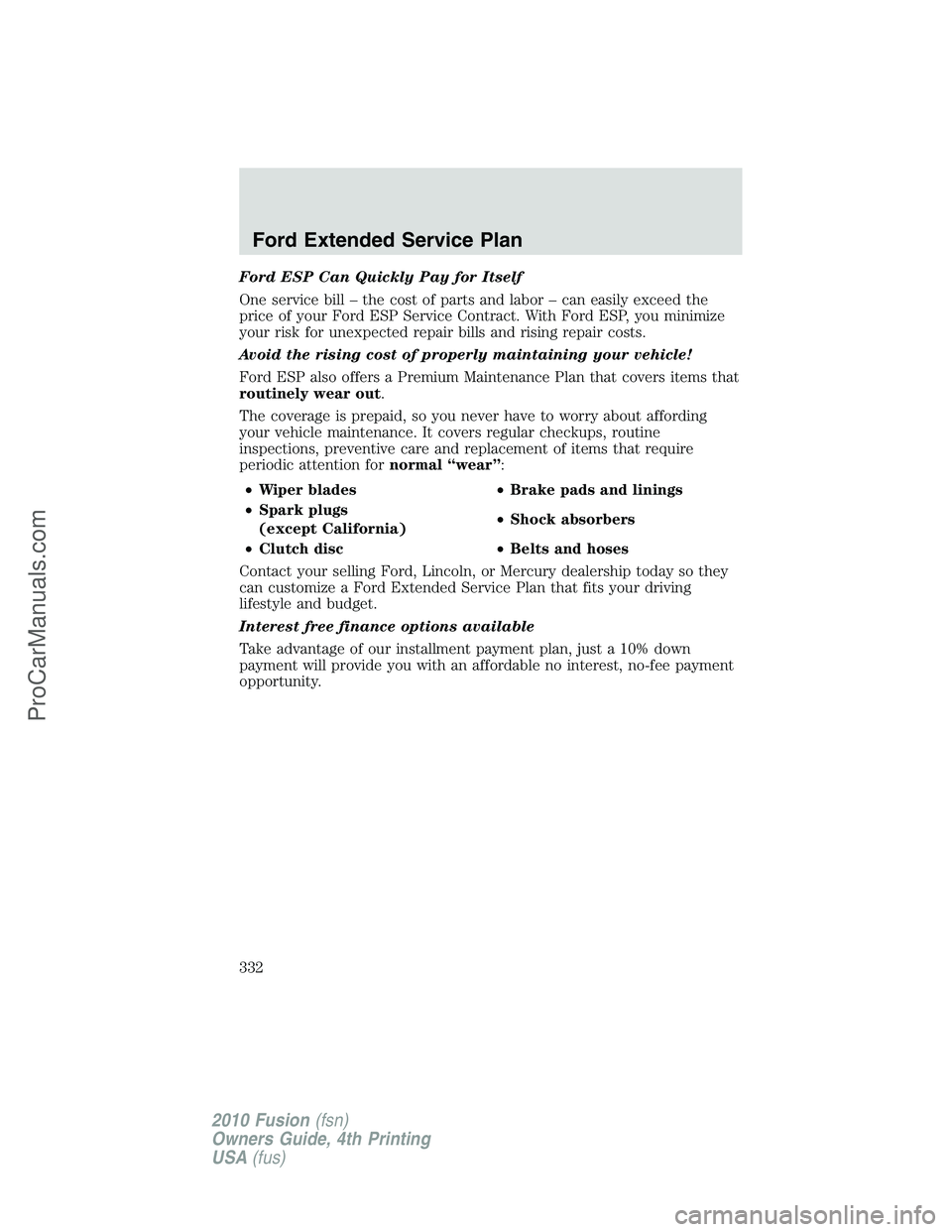

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs
(except California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
332
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com

Seats ..........................................107
child safety seats ....................154
front seats ...............................110
heated ......................................114
SecuriCode keyless entry
system ........................................100
SecuriLock passive anti-theft
system ........................................101
Servicing your vehicle ..............275
Side air curtain .........................146
SOS Post Crash Alert ...............149
Spark plugs,
specifications .....................320, 325
Specification chart,
lubricants ...................................321
Speed control ..............................81
Starting your vehicle .......198–199,
201
jump starting ..........................253
Steering
speed sensitive .......................210
Steering wheel
controls ......................................84
tilting .........................................73
Stereo
CD-MP3 .....................................28
SYNC..........................................44
T
Tilt steering wheel ......................73
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....184
Tires ...........................169–170, 246
alignment ................................177
care ..........................................173changing ..................................246
checking the pressure ............173
inflating ...................................171
label .........................................183
replacing ..................................175
rotating ....................................177
safety practices .......................176
sidewall information ...............178
snow tires and chains ............189
spare tire .................................246
terminology .............................170
tire grades ...............................170
treadwear ........................169, 174
Towing .......................................195
recreational towing .................195
trailer towing ..........................195
wrecker ....................................258
Transmission .............................212
brake-shift interlock (BSI) ....210
fluid, checking and adding
(automatic) .............................313
fluid, checking and adding
(manual) .........................313, 317
fluid, refill capacities ..............321
lubricant specifications ..........321
manual operation ....................217
Trunk ...........................................93
remote release ....................87, 96
Turn signal ..................................59
U
USB port ......................................38
V
Vehicle Identification Number
(VIN) ..........................................327
Vehicle loading ..........................190
Ventilating your vehicle ...........201
Index
339
2010 Fusion(fsn)
Owners Guide, 4th Printing
USA(fus)
ProCarManuals.com
