stop start FORD FUSION 2018 Service Manual

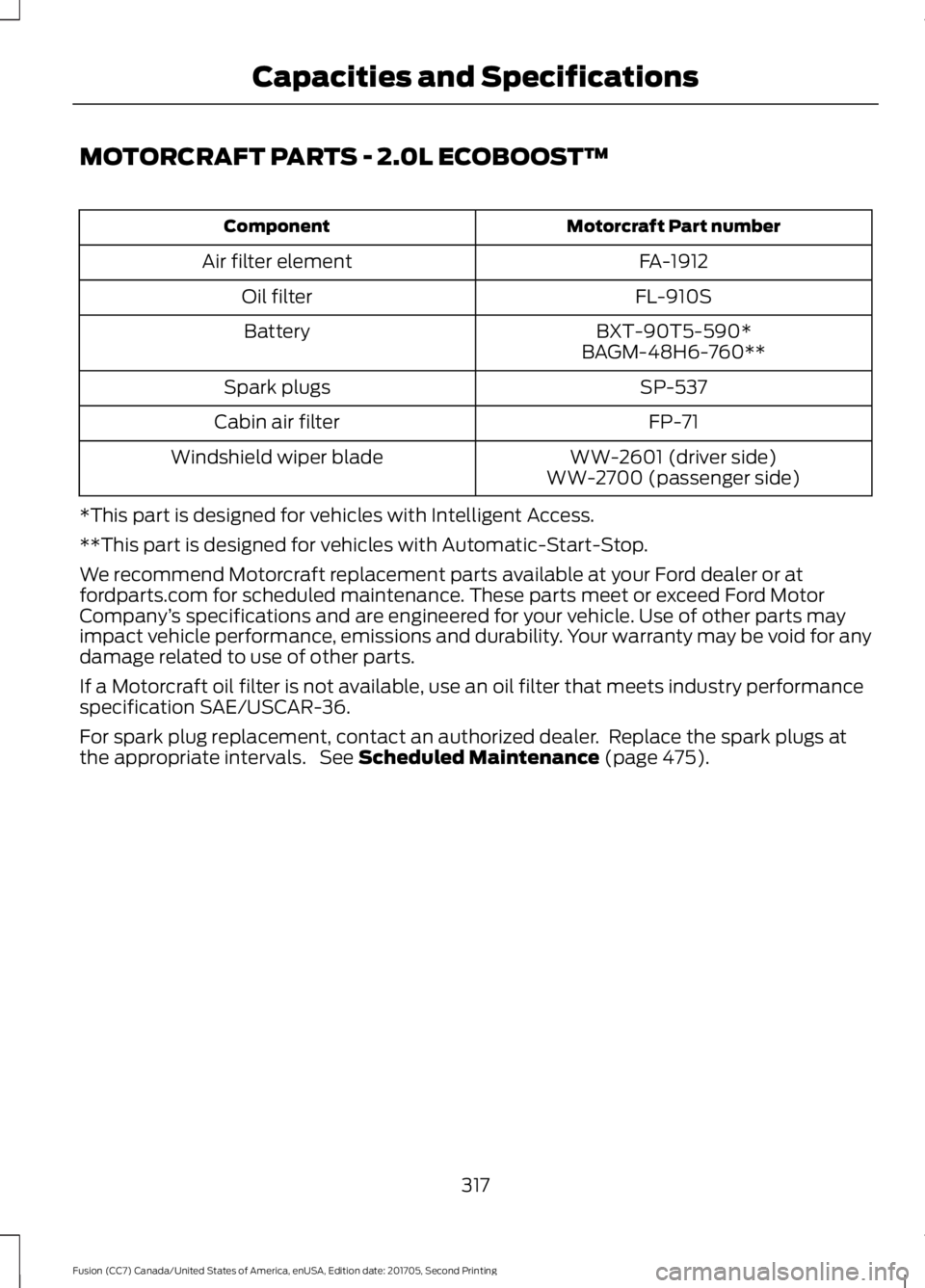

MOTORCRAFT PARTS - 2.0L ECOBOOST™
Motorcraft Part number
Component
FA-1912
Air filter element
FL-910S
Oil filter
BXT-90T5-590*
Battery
BAGM-48H6-760**
SP-537
Spark plugs
FP-71
Cabin air filter
WW-2601 (driver side)
Windshield wiper blade
WW-2700 (passenger side)
*This part is designed for vehicles with Intelligent Access.
**This part is designed for vehicles with Automatic-Start-Stop.
We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company ’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at
the appropriate intervals. See Scheduled Maintenance (page 475).
317
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing Capacities and Specifications

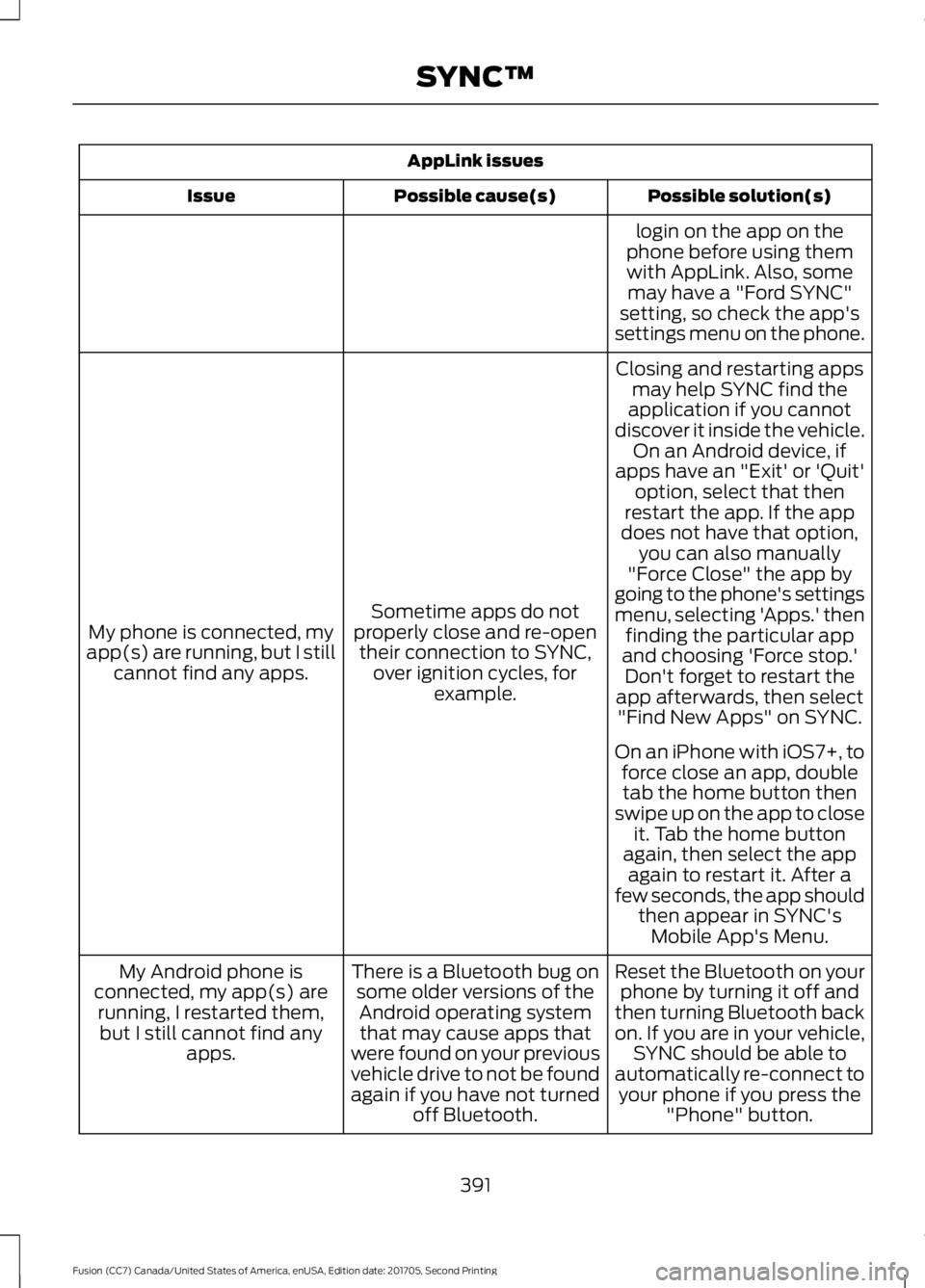

AppLink issues
Possible solution(s)
Possible cause(s)
Issue
login on the app on the
phone before using them with AppLink. Also, some may have a "Ford SYNC"
setting, so check the app's
settings menu on the phone.
Closing and restarting apps may help SYNC find the
application if you cannot
discover it inside the vehicle. On an Android device, if
apps have an "Exit' or 'Quit'
Sometime apps do not
properly close and re-open their connection to SYNC, over ignition cycles, for example.
My phone is connected, my
app(s) are running, but I still cannot find any apps. option, select that then
restart the app. If the app
does not have that option, you can also manually
"Force Close" the app by
going to the phone's settings
menu, selecting 'Apps.' then finding the particular app
and choosing 'Force stop.' Don't forget to restart the
app afterwards, then select "Find New Apps" on SYNC.
On an iPhone with iOS7+, to force close an app, doubletab the home button then
swipe up on the app to close it. Tab the home button
again, then select the app again to restart it. After a
few seconds, the app should then appear in SYNC'sMobile App's Menu.
Reset the Bluetooth on your phone by turning it off and
then turning Bluetooth back
on. If you are in your vehicle, SYNC should be able to
automatically re-connect to your phone if you press the "Phone" button.
There is a Bluetooth bug on
some older versions of theAndroid operating systemthat may cause apps that
were found on your previous
vehicle drive to not be found
again if you have not turned off Bluetooth.
My Android phone is
connected, my app(s) are running, I restarted them,but I still cannot find any apps.
391
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing SYNC™

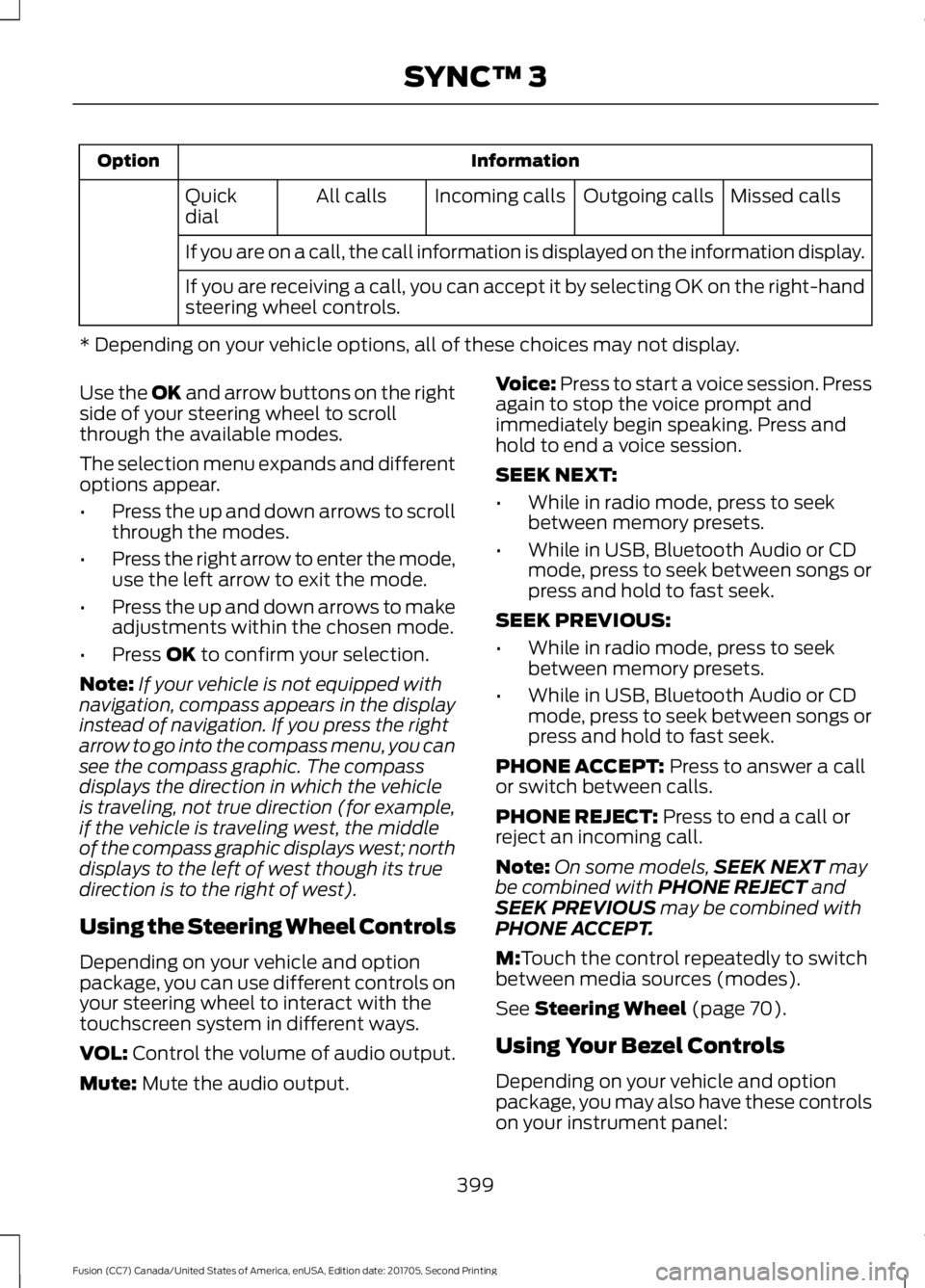

Information
Option
Missed calls
Outgoing calls
Incoming calls
All calls
Quick
dial
If you are on a call, the call information is displayed on the information display.
If you are receiving a call, you can accept it by selecting OK on the right-hand
steering wheel controls.
* Depending on your vehicle options, all of these choices may not display.
Use the OK and arrow buttons on the right
side of your steering wheel to scroll
through the available modes.
The selection menu expands and different
options appear.
• Press the up and down arrows to scroll
through the modes.
• Press the right arrow to enter the mode,
use the left arrow to exit the mode.
• Press the up and down arrows to make
adjustments within the chosen mode.
• Press
OK to confirm your selection.
Note: If your vehicle is not equipped with
navigation, compass appears in the display
instead of navigation. If you press the right
arrow to go into the compass menu, you can
see the compass graphic. The compass
displays the direction in which the vehicle
is traveling, not true direction (for example,
if the vehicle is traveling west, the middle
of the compass graphic displays west; north
displays to the left of west though its true
direction is to the right of west).
Using the Steering Wheel Controls
Depending on your vehicle and option
package, you can use different controls on
your steering wheel to interact with the
touchscreen system in different ways.
VOL:
Control the volume of audio output.
Mute:
Mute the audio output. Voice:
Press to start a voice session. Press
again to stop the voice prompt and
immediately begin speaking. Press and
hold to end a voice session.
SEEK NEXT:
• While in radio mode, press to seek
between memory presets.
• While in USB, Bluetooth Audio or CD
mode, press to seek between songs or
press and hold to fast seek.
SEEK PREVIOUS:
• While in radio mode, press to seek
between memory presets.
• While in USB, Bluetooth Audio or CD
mode, press to seek between songs or
press and hold to fast seek.
PHONE ACCEPT:
Press to answer a call
or switch between calls.
PHONE REJECT:
Press to end a call or
reject an incoming call.
Note: On some models, SEEK NEXT
may
be combined with PHONE REJECT and
SEEK PREVIOUS may be combined with
PHONE ACCEPT.
M:
Touch the control repeatedly to switch
between media sources (modes).
See
Steering Wheel (page 70).
Using Your Bezel Controls
Depending on your vehicle and option
package, you may also have these controls
on your instrument panel:
399
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing SYNC™ 3

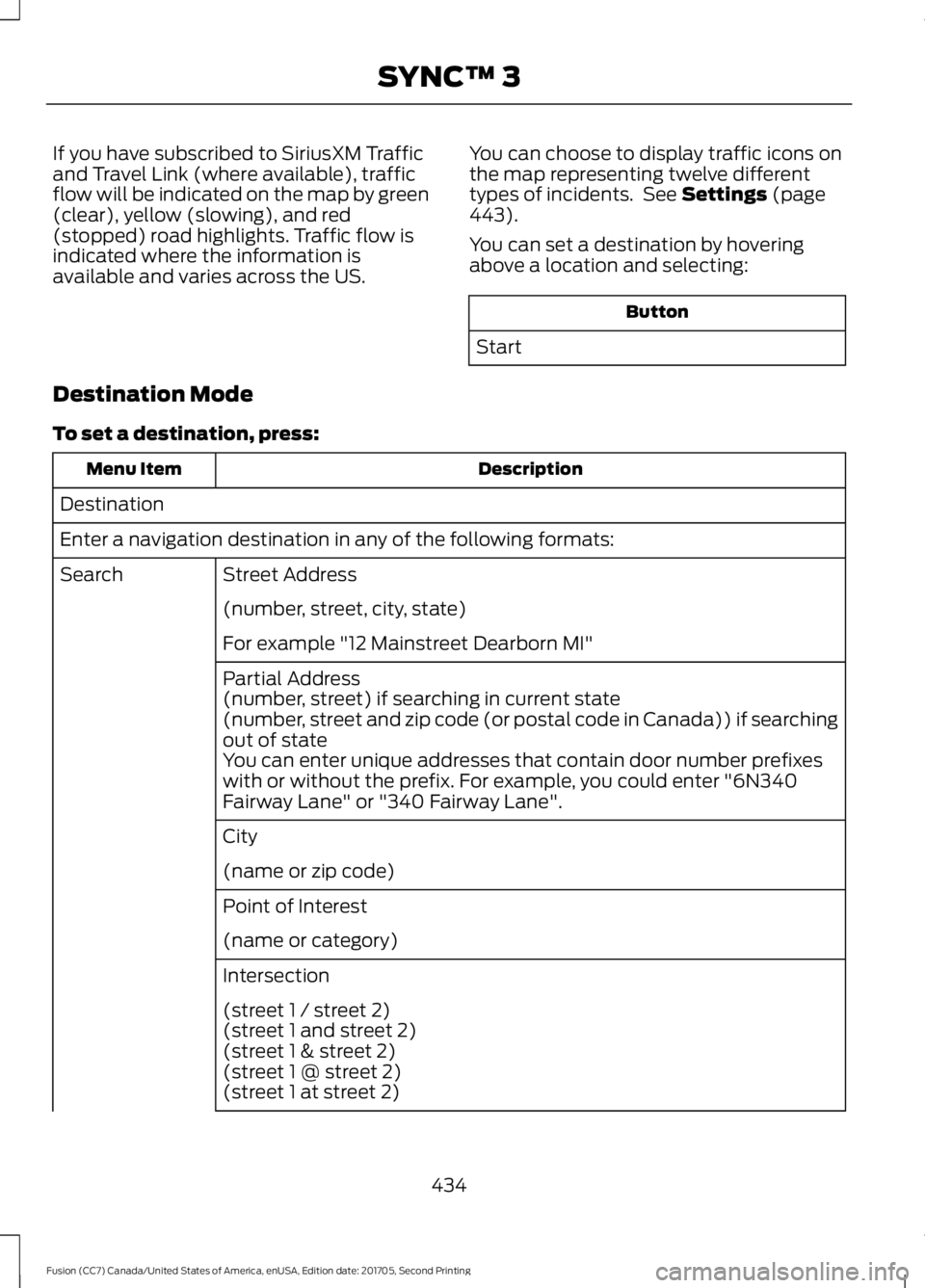

If you have subscribed to SiriusXM Traffic
and Travel Link (where available), traffic
flow will be indicated on the map by green
(clear), yellow (slowing), and red
(stopped) road highlights. Traffic flow is
indicated where the information is
available and varies across the US.
You can choose to display traffic icons on
the map representing twelve different
types of incidents. See Settings (page
443).
You can set a destination by hovering
above a location and selecting: Button
Start
Destination Mode
To set a destination, press: Description
Menu Item
Destination
Enter a navigation destination in any of the following formats: Street Address
Search
(number, street, city, state)
For example "12 Mainstreet Dearborn MI"
Partial Address
(number, street) if searching in current state
(number, street and zip code (or postal code in Canada)) if searching
out of state
You can enter unique addresses that contain door number prefixes
with or without the prefix. For example, you could enter "6N340
Fairway Lane" or "340 Fairway Lane".
City
(name or zip code)
Point of Interest
(name or category)
Intersection
(street 1 / street 2)
(street 1 and street 2)
(street 1 & street 2)
(street 1 @ street 2)
(street 1 at street 2)
434
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing SYNC™ 3

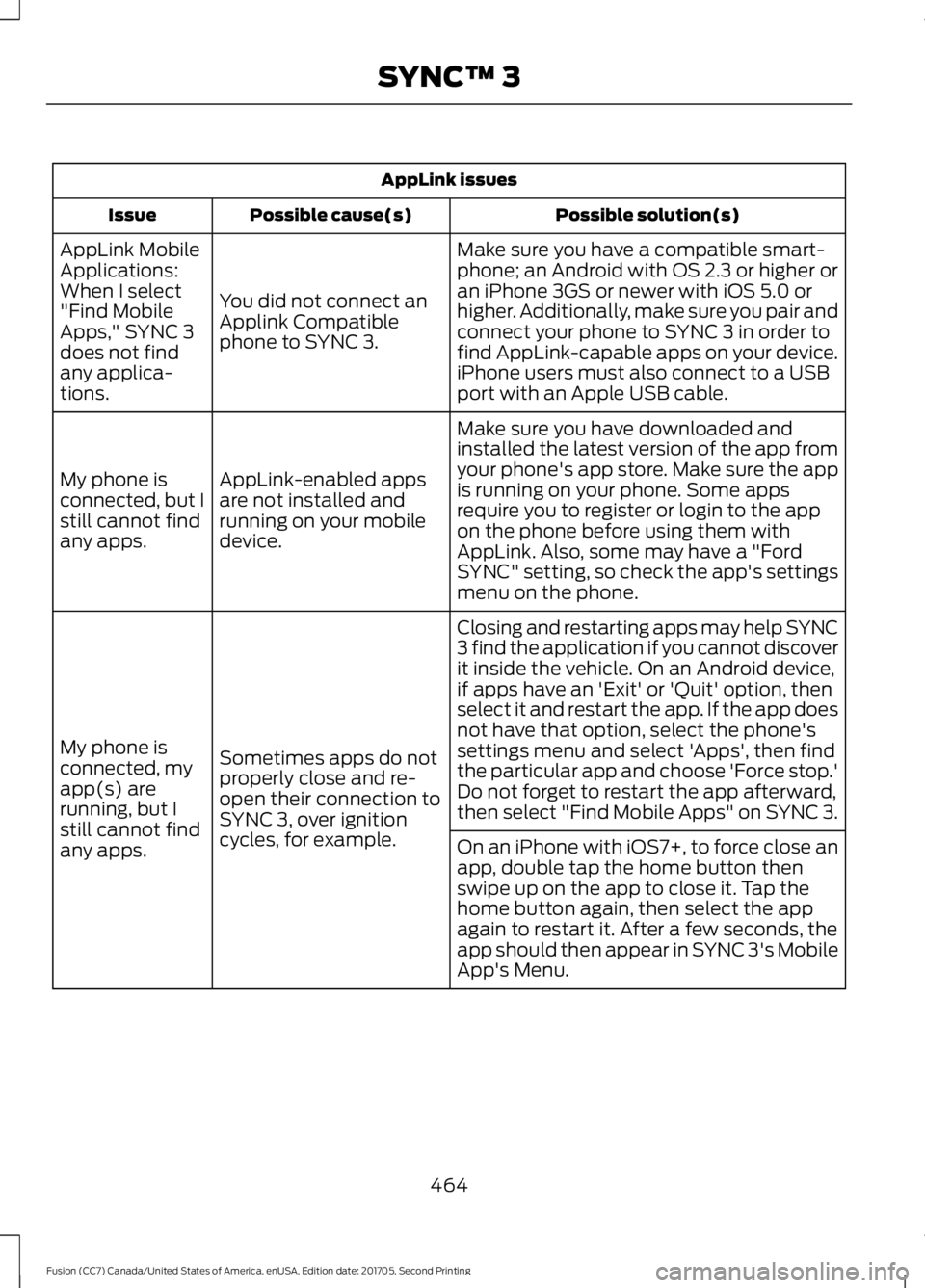

AppLink issues
Possible solution(s)
Possible cause(s)
Issue
Make sure you have a compatible smart-
phone; an Android with OS 2.3 or higher or
an iPhone 3GS or newer with iOS 5.0 or
higher. Additionally, make sure you pair and
connect your phone to SYNC 3 in order to
find AppLink-capable apps on your device.
iPhone users must also connect to a USB
port with an Apple USB cable.
You did not connect an
Applink Compatible
phone to SYNC 3.
AppLink Mobile
Applications:
When I select
"Find Mobile
Apps," SYNC 3
does not find
any applica-
tions.
Make sure you have downloaded and
installed the latest version of the app from
your phone's app store. Make sure the app
is running on your phone. Some apps
require you to register or login to the app
on the phone before using them with
AppLink. Also, some may have a "Ford
SYNC" setting, so check the app's settings
menu on the phone.
AppLink-enabled apps
are not installed and
running on your mobile
device.
My phone is
connected, but I
still cannot find
any apps.
Closing and restarting apps may help SYNC
3 find the application if you cannot discover
it inside the vehicle. On an Android device,
if apps have an 'Exit' or 'Quit' option, then
select it and restart the app. If the app does
not have that option, select the phone's
settings menu and select 'Apps', then find
the particular app and choose 'Force stop.'
Do not forget to restart the app afterward,
then select "Find Mobile Apps" on SYNC 3.
Sometimes apps do not
properly close and re-
open their connection to
SYNC 3, over ignition
cycles, for example.
My phone is
connected, my
app(s) are
running, but I
still cannot find
any apps.
On an iPhone with iOS7+, to force close an
app, double tap the home button then
swipe up on the app to close it. Tap the
home button again, then select the app
again to restart it. After a few seconds, the
app should then appear in SYNC 3's Mobile
App's Menu.
464
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing SYNC™ 3

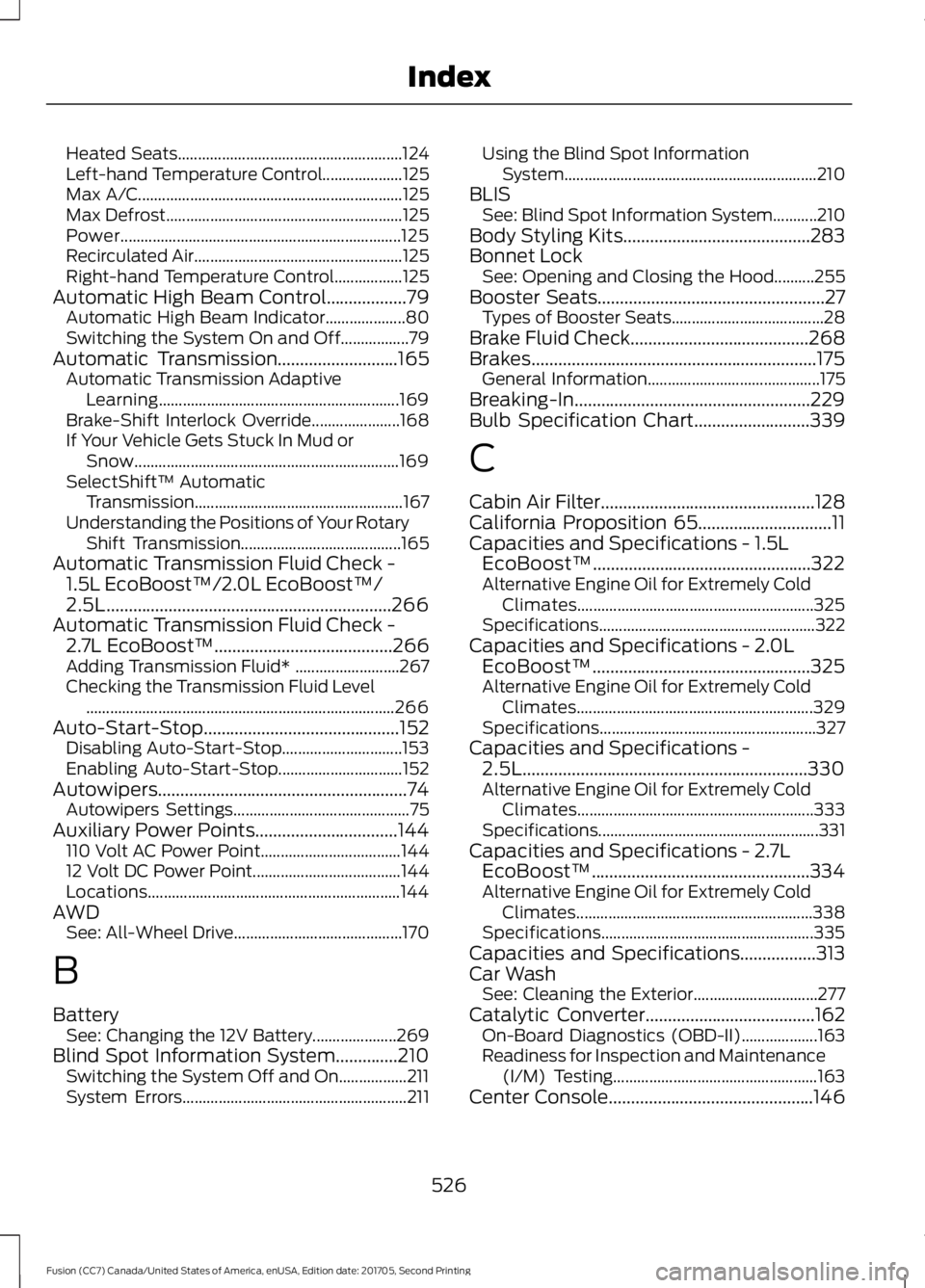

Heated Seats........................................................
124
Left-hand Temperature Control.................... 125
Max A/C.................................................................. 125
Max Defrost........................................................... 125
Power...................................................................... 125
Recirculated Air.................................................... 125
Right-hand Temperature Control.................125
Automatic High Beam Control..................79 Automatic High Beam Indicator.................... 80
Switching the System On and Off.................79
Automatic Transmission...........................165
Automatic Transmission Adaptive
Learning............................................................ 169
Brake-Shift Interlock Override...................... 168
If Your Vehicle Gets Stuck In Mud or Snow.................................................................. 169
SelectShift™ Automatic Transmission.................................................... 167
Understanding the Positions of Your Rotary Shift Transmission........................................ 165
Automatic Transmission Fluid Check - 1.5L EcoBoost™/2.0L EcoBoost™/
2.5L................................................................266
Automatic Transmission Fluid Check - 2.7L EcoBoost™........................................266
Adding Transmission Fluid* .......................... 267
Checking the Transmission Fluid Level ........................................................................\
..... 266
Auto-Start-Stop
............................................152
Disabling Auto-Start-Stop.............................. 153
Enabling Auto-Start-Stop............................... 152
Autowipers........................................................74 Autowipers Settings............................................ 75
Auxiliary Power Points................................144 110 Volt AC Power Point................................... 144
12 Volt DC Power Point..................................... 144
Locations............................................................... 144
AWD See: All-Wheel Drive.......................................... 170
B
Battery See: Changing the 12V Battery..................... 269
Blind Spot Information System
..............210
Switching the System Off and On.................211
System Errors........................................................ 211Using the Blind Spot Information
System............................................................... 210
BLIS See: Blind Spot Information System...........210
Body Styling Kits
..........................................283
Bonnet Lock See: Opening and Closing the Hood..........255
Booster Seats
...................................................27
Types of Booster Seats...................................... 28
Brake Fluid Check........................................268
Brakes................................................................175 General Information........................................... 175
Breaking-In.....................................................229
Bulb Specification Chart
..........................339
C
Cabin Air Filter
................................................128
California Proposition 65..............................11
Capacities and Specifications - 1.5L EcoBoost™.................................................322
Alternative Engine Oil for Extremely Cold Climates........................................................... 325
Specifications...................................................... 322
Capacities and Specifications - 2.0L EcoBoost™.................................................325
Alternative Engine Oil for Extremely Cold Climates........................................................... 329
Specifications...................................................... 327
Capacities and Specifications - 2.5L................................................................330
Alternative Engine Oil for Extremely Cold Climates........................................................... 333
Specifications....................................................... 331
Capacities and Specifications - 2.7L EcoBoost™.................................................334
Alternative Engine Oil for Extremely Cold Climates........................................................... 338
Specifications..................................................... 335
Capacities and Specifications
.................313
Car Wash See: Cleaning the Exterior............................... 277
Catalytic Converter
......................................162
On-Board Diagnostics (OBD-II)................... 163
Readiness for Inspection and Maintenance (I/M) Testing................................................... 163
Center Console..............................................146
526
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing Index

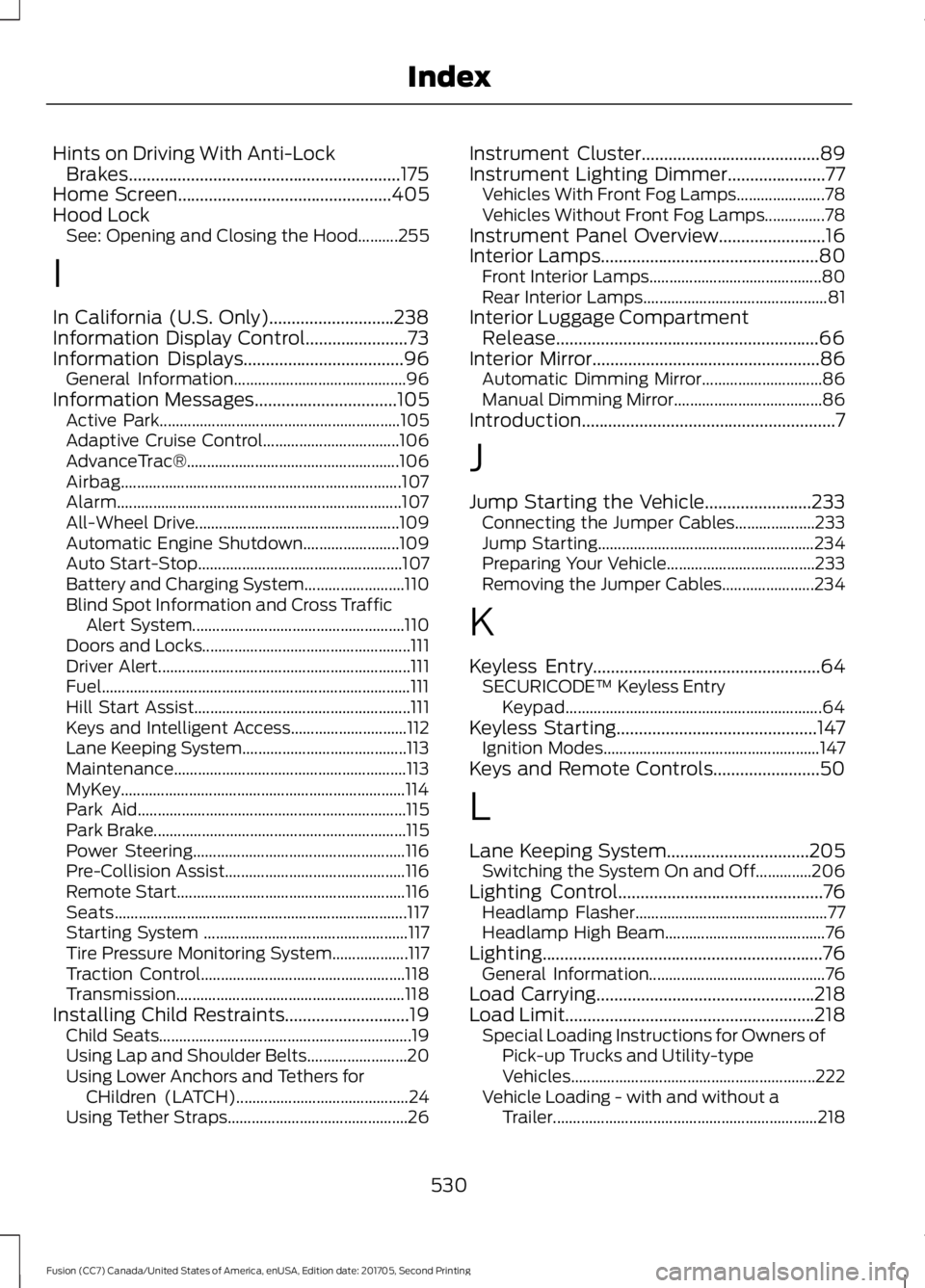

Hints on Driving With Anti-Lock
Brakes.............................................................175
Home Screen................................................405
Hood Lock See: Opening and Closing the Hood..........255
I
In California (U.S. Only)............................238
Information Display Control
.......................73
Information Displays....................................96 General Information........................................... 96
Information Messages
................................105
Active Park............................................................ 105
Adaptive Cruise Control.................................. 106
AdvanceTrac®..................................................... 106
Airbag...................................................................... 107
Alarm....................................................................... 107
All-Wheel Drive................................................... 109
Automatic Engine Shutdown........................ 109
Auto Start-Stop................................................... 107
Battery and Charging System......................... 110
Blind Spot Information and Cross Traffic Alert System..................................................... 110
Doors and Locks.................................................... 111
Driver Alert............................................................... 111
Fuel........................................................................\
..... 111
Hill Start Assist...................................................... 111
Keys and Intelligent Access............................. 112
Lane Keeping System......................................... 113
Maintenance.......................................................... 113
MyKey....................................................................... 114
Park Aid................................................................... 115
Park Brake............................................................... 115
Power Steering..................................................... 116
Pre-Collision Assist............................................. 116
Remote Start......................................................... 116
Seats........................................................................\
. 117
Starting System ................................................... 117
Tire Pressure Monitoring System................... 117
Traction Control................................................... 118
Transmission......................................................... 118
Installing Child Restraints............................19 Child Seats............................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 24
Using Tether Straps............................................. 26Instrument Cluster
........................................89
Instrument Lighting Dimmer......................77 Vehicles With Front Fog Lamps...................... 78
Vehicles Without Front Fog Lamps...............78
Instrument Panel Overview........................16
Interior Lamps
.................................................80
Front Interior Lamps........................................... 80
Rear Interior Lamps.............................................. 81
Interior Luggage Compartment Release...........................................................66
Interior Mirror
...................................................86
Automatic Dimming Mirror.............................. 86
Manual Dimming Mirror..................................... 86
Introduction.........................................................7
J
Jump Starting the Vehicle........................233 Connecting the Jumper Cables.................... 233
Jump Starting...................................................... 234
Preparing Your Vehicle..................................... 233
Removing the Jumper Cables....................... 234
K
Keyless Entry
...................................................64
SECURICODE™ Keyless Entry
Keypad................................................................ 64
Keyless Starting
.............................................147
Ignition Modes...................................................... 147
Keys and Remote Controls........................50
L
Lane Keeping System
................................205
Switching the System On and Off..............206
Lighting Control
..............................................76
Headlamp Flasher................................................ 77
Headlamp High Beam........................................ 76
Lighting...............................................................76 General Information............................................ 76
Load Carrying.................................................218
Load Limit........................................................218 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 222
Vehicle Loading - with and without a Trailer.................................................................. 218
530
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing Index

Satellite Radio...............................................351
Satellite Radio Electronic Serial Number
(ESN)................................................................. 352
Satellite Radio Reception Factors...............352
SiriusXM Satellite Radio Service.................. 352
Troubleshooting................................................. 353
Scheduled Maintenance Record
...........483
Scheduled Maintenance...........................475
Seatbelt Extension
........................................39
Seatbelt Height Adjustment......................36
Seatbelt Reminder.........................................37 Belt-Minder™......................................................... 37
Seatbelts...........................................................32 Principle of Operation......................................... 32
Seatbelt Warning Lamp and Indicator Chime..............................................................36
Conditions of operation..................................... 37
Seats
.................................................................130
Security..............................................................68
Settings...........................................................443 911 Assist.............................................................. 448
Ambient Lighting............................................... 455
Bluetooth.............................................................. 445
Clock....................................................................... 445
Display................................................................... 456
General.................................................................. 453
Media Player....................................................... 444
Mobile Apps.......................................................... 451
Navigation............................................................ 449
Phone..................................................................... 445
Radio...................................................................... 448
SiriusXM................................................................ 449
Sound..................................................................... 443
Valet Mode........................................................... 457
Vehicle................................................................... 455
Voice Control....................................................... 456
Wi-Fi & Hotspot................................................. 453
Side Airbags
.....................................................45
Side Sensing System..................................185 Obstacle Distance Indicator.......................... 186
Sitting in the Correct Position..................130
Snow Chains See: Using Snow Chains................................. 299
Spare Wheel See: Changing a Road Wheel....................... 304
Special Notices................................................12 New Vehicle Limited Warranty......................... 12On Board Diagnostics Data Link
Connector............................................................ 13
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance...............................................481
Exceptions............................................................ 482
Speed Control See: Cruise Control............................................ 196
Stability Control
.............................................181
Principle of Operation........................................ 181
Starting a Gasoline Engine.......................148 Automatic Engine Shutdown........................ 149
Failure to Start..................................................... 148
Guarding Against Exhaust Fumes...............150
Important Ventilating Information..............150
Starting Your Vehicle......................................... 148
Stopping the Engine When Your Vehicle is Moving............................................................... 149
Stopping the Engine When Your Vehicle is Stationary......................................................... 149
Starting and Stopping the Engine..........147 General Information........................................... 147
Steering............................................................214 Electric Power Steering.................................... 214
Steering Wheel................................................70
Storage Compartments
.............................146
Sunroof See: Moonroof....................................................... 87
Sun Visors
.........................................................87
Illuminated Vanity Mirror................................... 87
Supplementary Restraints System..........41 Principle of Operation......................................... 41
Symbols Glossary
.............................................7
SYNC™ 3........................................................393
General Information......................................... 393
SYNC™ 3 Troubleshooting......................457
SYNC™ Applications and Services
........371
911 Assist................................................................. 371
SYNC Mobile Apps............................................ 373
SYNC™............................................................355 General Information......................................... 355
SYNC™ Troubleshooting.........................385
T
Technical Specifications See: Capacities and Specifications.............313
533

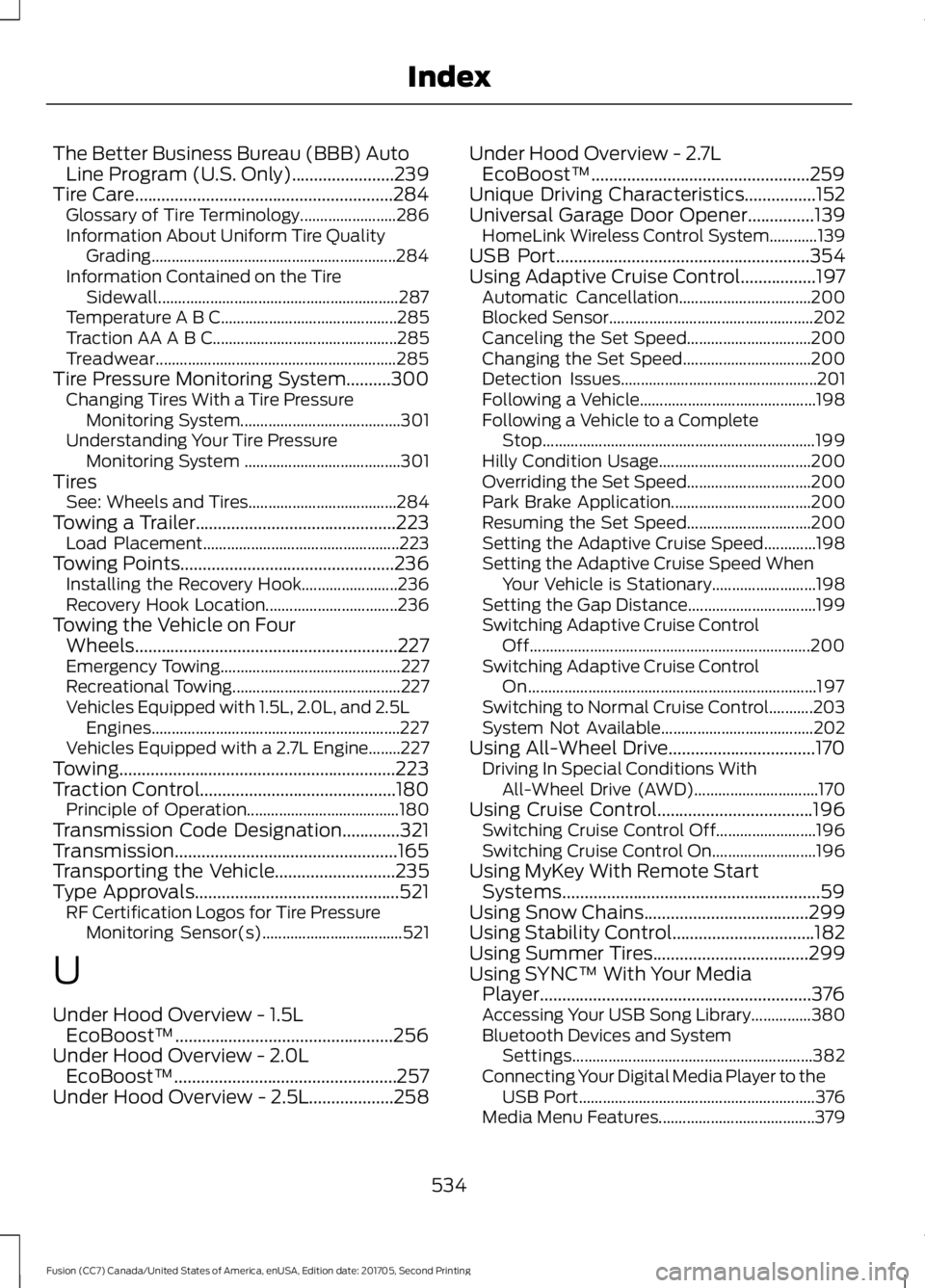

Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing Index

The Better Business Bureau (BBB) Auto
Line Program (U.S. Only).......................239
Tire Care..........................................................284
Glossary of Tire Terminology........................ 286
Information About Uniform Tire Quality Grading............................................................. 284
Information Contained on the Tire Sidewall............................................................ 287
Temperature A B C............................................ 285
Traction AA A B C.............................................. 285
Treadwear............................................................ 285
Tire Pressure Monitoring System..........300 Changing Tires With a Tire Pressure
Monitoring System........................................ 301
Understanding Your Tire Pressure Monitoring System ....................................... 301
Tires See: Wheels and Tires..................................... 284
Towing a Trailer.............................................223 Load Placement................................................. 223
Towing Points................................................236 Installing the Recovery Hook........................ 236
Recovery Hook Location................................. 236
Towing the Vehicle on Four Wheels...........................................................227
Emergency Towing............................................. 227
Recreational Towing.......................................... 227
Vehicles Equipped with 1.5L, 2.0L, and 2.5L Engines.............................................................. 227
Vehicles Equipped with a 2.7L Engine........227
Towing..............................................................223
Traction Control............................................180 Principle of Operation...................................... 180
Transmission Code Designation.............321
Transmission..................................................165
Transporting the Vehicle
...........................235
Type Approvals..............................................521
RF Certification Logos for Tire Pressure
Monitoring Sensor(s)................................... 521
U
Under Hood Overview - 1.5L EcoBoost™.................................................256
Under Hood Overview - 2.0L EcoBoost™..................................................257
Under Hood Overview - 2.5L
...................258 Under Hood Overview - 2.7L
EcoBoost™.................................................259
Unique Driving Characteristics
................152
Universal Garage Door Opener...............139
HomeLink Wireless Control System............139
USB Port
.........................................................354
Using Adaptive Cruise Control.................197 Automatic Cancellation................................. 200
Blocked Sensor................................................... 202
Canceling the Set Speed............................... 200
Changing the Set Speed................................ 200
Detection Issues................................................. 201
Following a Vehicle............................................ 198
Following a Vehicle to a Complete Stop.................................................................... 199
Hilly Condition Usage...................................... 200
Overriding the Set Speed............................... 200
Park Brake Application................................... 200
Resuming the Set Speed............................... 200
Setting the Adaptive Cruise Speed.............198
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary.......................... 198
Setting the Gap Distance................................ 199
Switching Adaptive Cruise Control Off...................................................................... 200
Switching Adaptive Cruise Control On........................................................................\
197
Switching to Normal Cruise Control...........203
System Not Available...................................... 202
Using All-Wheel Drive.................................170 Driving In Special Conditions With
All-Wheel Drive (AWD)............................... 170
Using Cruise Control...................................196 Switching Cruise Control Off......................... 196
Switching Cruise Control On.......................... 196
Using MyKey With Remote Start Systems..........................................................59
Using Snow Chains.....................................299
Using Stability Control................................182
Using Summer Tires
...................................299
Using SYNC™ With Your Media Player.............................................................376
Accessing Your USB Song Library...............380
Bluetooth Devices and System Settings............................................................ 382
Connecting Your Digital Media Player to the USB Port........................................................... 376
Media Menu Features....................................... 379
534
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing Index

Media Voice Commands.................................
377
USB 2...................................................................... 382
Voice Commands for Audio Sources.........383
Using SYNC™ With Your Phone............359 Accessing Features through the Phone
Menu................................................................. 364
Accessing Your Phone Settings.................... 367
Bluetooth Devices............................................. 368
Making Calls........................................................ 363
Pairing a Phone for the First Time..............360
Pairing Subsequent Phones........................... 361
Phone Options during an Active Call.........363
Phone Voice Commands................................. 361
Receiving Calls.................................................... 363
System Settings................................................. 369
Text Messaging................................................... 365
Using Traction Control...............................180 Switching the System Off............................... 180
System Indicator Lights and Messages......................................................... 180
Using a Switch.................................................... 180
Using the Information Display Controls............................................................ 180
Using Voice Recognition............................357 Audio Voice Commands................................. 407
Climate Voice Commands............................ 408
Initiating a Voice Session................................ 357
Mobile App Voice Commands........................ 411
Navigation Voice Commands........................ 410
Phone Voice Commands............................... 409
SiriusXM Traffic and Travel Link Voice Commands...................................................... 412
System Interaction and Feedback..............358
Voice Settings Commands............................. 412
Utilizing the Mediation/Arbitration Program (Canada Only)........................240
V
Vehicle Care....................................................277
General Information.......................................... 277
Vehicle Certification Label
.......................320
Vehicle Identification Number.................319
Vehicle Storage
............................................282
Battery................................................................... 283
Body........................................................................\
282
Brakes.................................................................... 283
Cooling system................................................... 283Engine....................................................................
282
Fuel system.......................................................... 282
General.................................................................. 282
Miscellaneous..................................................... 283
Removing Vehicle From Storage.................283
Tires........................................................................\
283
Ventilation See: Climate Control......................................... 120
VIN See: Vehicle Identification Number.............319
Voice Control
....................................................72
W
Warning Lamps and Indicators..................91 Adaptive Cruise Control..................................... 92
Anti-Lock Braking System................................ 92
Auto Start-stop..................................................... 92
Battery...................................................................... 92
Blind Spot Monitor............................................... 92
Brake System......................................................... 92
Cruise Control........................................................ 92
Direction Indicator................................................ 92
Door Ajar.................................................................. 93
Electric Park Brake............................................... 93
Engine Coolant Temperature.......................... 93
Engine Oil................................................................ 93
Fasten Seatbelt.................................................... 93
Front Airbag............................................................ 93
Front Fog Lamps.................................................. 93
Grade Assist........................................................... 93
Heads Up Display................................................. 93
High Beam.............................................................. 93
Hood Ajar................................................................ 93
Lane Keeping System Lamp............................ 93
Low Fuel Level....................................................... 93
Low Tire Pressure Warning............................... 94
Parking Lamps...................................................... 94
Powertrain Fault................................................... 94
Service Engine Soon........................................... 94
Sport Mode............................................................ 94
Stability Control................................................... 94
Stability Control Off............................................ 94
Trunk Ajar................................................................ 94
Washer Fluid Check....................................269
Washers See: Cleaning the Exterior............................... 277
See: Wipers and Washers.................................. 74
535
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201705, Second Printing Index
