display FORD FUSION 2020 Owners Manual

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated.
If you operate your vehicle
occasionally
under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician. Perform the services shown in the
following tables when specified or within
3,000 mi (4,800 km)
of the message
appearing in the information display
prompting you to change your oil.
• Example 1: The message comes on at
28,751 mi (46,270 km)
. Perform the
30,000 mi (48,000 km) automatic
transmission fluid replacement.
• Example 2
: The message has not
come on, but the odometer reads
30,000 mi (48,000 km) (for example,
the Intelligent Oil-Life Monitor was
reset at
25,000 mi (40,000 km)).
Perform the engine air filter
replacement. Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Inspect rear axle and U-joints (All-Wheel Drive only).
Inspect frequently, service
as required
Change automatic transmission fluid.
Every
30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km) Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
(Such as Delivery, Taxi, Patrol Car or Livery)
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Replace cabin air filter.
Inspect frequently, service
as required
Replace engine air filter.
Change automatic transmission fluid.
Every
30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km)
439
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Scheduled Maintenance

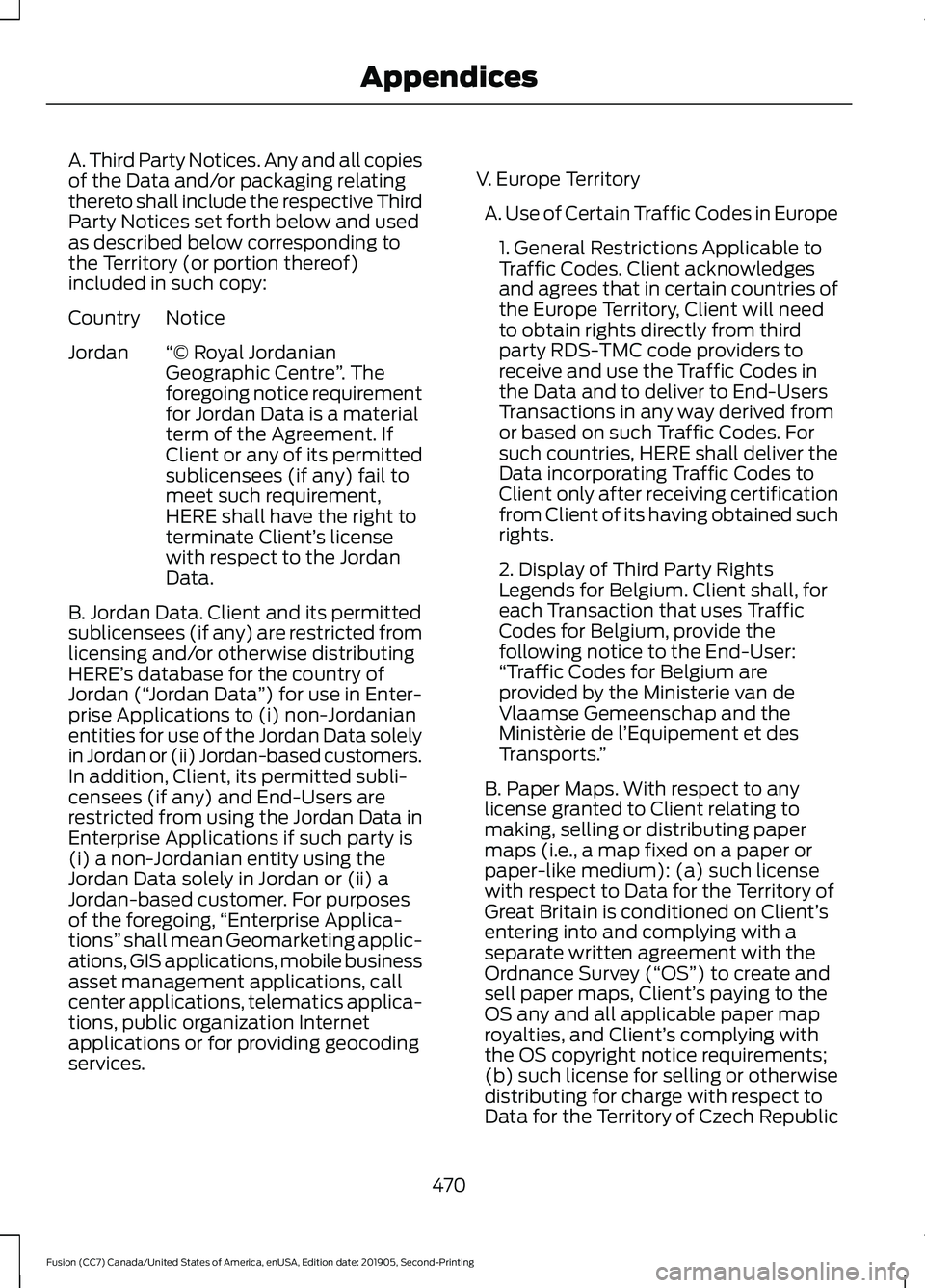

A. Third Party Notices. Any and all copies
of the Data and/or packaging relating
thereto shall include the respective Third
Party Notices set forth below and used
as described below corresponding to
the Territory (or portion thereof)
included in such copy:
Notice
Country
“© Royal Jordanian
Geographic Centre ”. The
foregoing notice requirement
for Jordan Data is a material
term of the Agreement. If
Client or any of its permitted
Jordan
sublicensees (if any) fail to
meet such requirement,
HERE shall have the right to
terminate Client’ s license
with respect to the Jordan
Data.
B. Jordan Data. Client and its permitted
sublicensees (if any) are restricted from
licensing and/or otherwise distributing
HERE’ s database for the country of
Jordan (“ Jordan Data ”) for use in Enter-
prise Applications to (i) non-Jordanian
entities for use of the Jordan Data solely
in Jordan or (ii) Jordan-based customers.
In addition, Client, its permitted subli-
censees (if any) and End-Users are
restricted from using the Jordan Data in
Enterprise Applications if such party is
(i) a non-Jordanian entity using the
Jordan Data solely in Jordan or (ii) a
Jordan-based customer. For purposes
of the foregoing, “Enterprise Applica-
tions” shall mean Geomarketing applic-
ations, GIS applications, mobile business
asset management applications, call
center applications, telematics applica-
tions, public organization Internet
applications or for providing geocoding
services. V. Europe Territory
A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges
and agrees that in certain countries of
the Europe Territory, Client will need
to obtain rights directly from third
party RDS-TMC code providers to
receive and use the Traffic Codes in
the Data and to deliver to End-Users
Transactions in any way derived from
or based on such Traffic Codes. For
such countries, HERE shall deliver the
Data incorporating Traffic Codes to
Client only after receiving certification
from Client of its having obtained such
rights.
2. Display of Third Party Rights
Legends for Belgium. Client shall, for
each Transaction that uses Traffic
Codes for Belgium, provide the
following notice to the End-User:
“Traffic Codes for Belgium are
provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l ’Equipement et des
Transports. ”
B. Paper Maps. With respect to any
license granted to Client relating to
making, selling or distributing paper
maps (i.e., a map fixed on a paper or
paper-like medium): (a) such license
with respect to Data for the Territory of
Great Britain is conditioned on Client’ s
entering into and complying with a
separate written agreement with the
Ordnance Survey (“OS ”) to create and
sell paper maps, Client’ s paying to the
OS any and all applicable paper map
royalties, and Client’ s complying with
the OS copyright notice requirements;
(b) such license for selling or otherwise
distributing for charge with respect to
Data for the Territory of Czech Republic
470
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Appendices

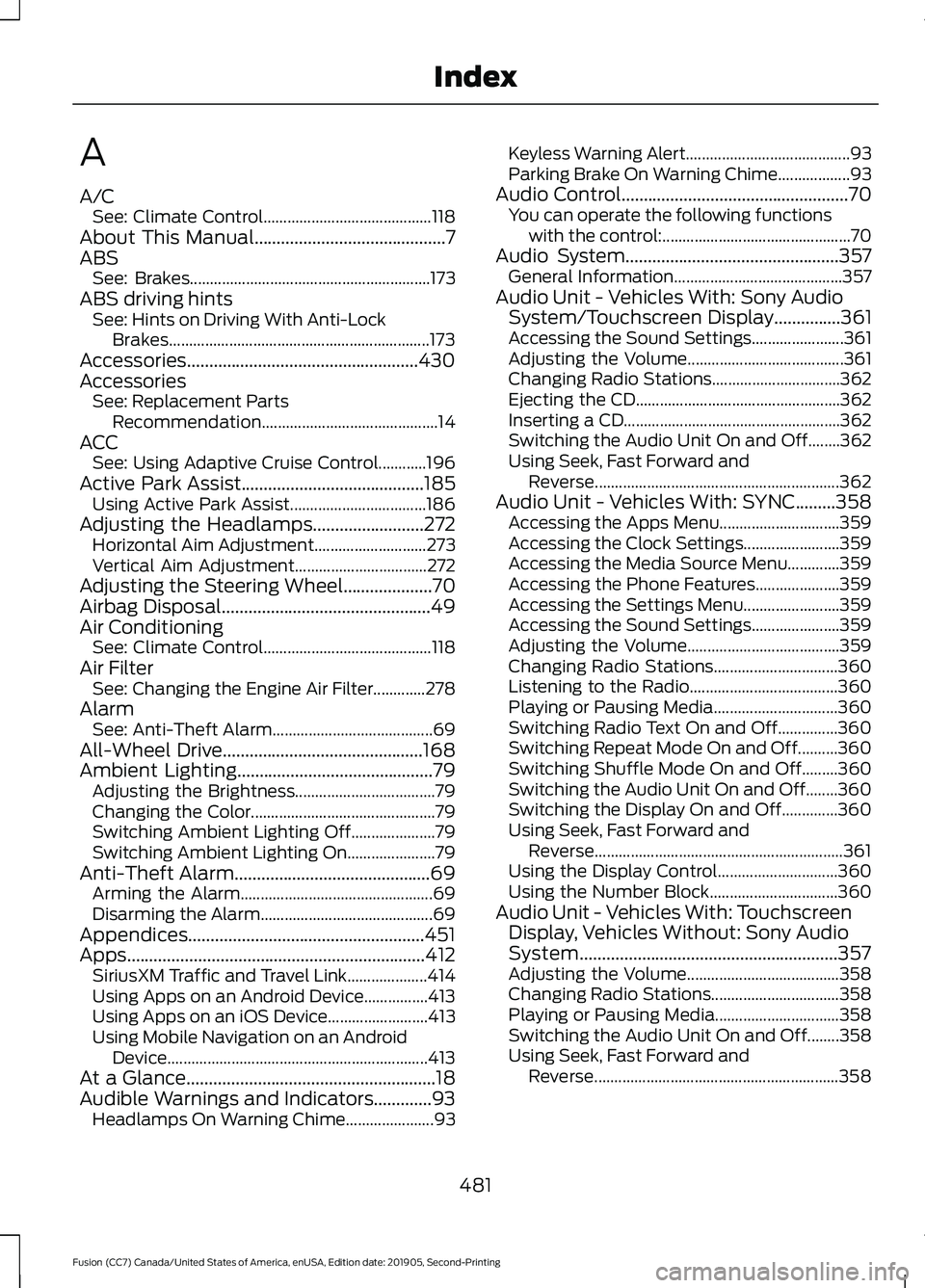

A
A/C
See: Climate Control.......................................... 118
About This Manual...........................................7
ABS See: Brakes............................................................ 173
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 173
Accessories....................................................430
Accessories See: Replacement Parts
Recommendation............................................ 14
ACC See: Using Adaptive Cruise Control............196
Active Park Assist
.........................................185
Using Active Park Assist.................................. 186
Adjusting the Headlamps
.........................272
Horizontal Aim Adjustment............................ 273
Vertical Aim Adjustment................................. 272
Adjusting the Steering Wheel....................70
Airbag Disposal
...............................................49
Air Conditioning See: Climate Control.......................................... 118
Air Filter See: Changing the Engine Air Filter.............278
Alarm See: Anti-Theft Alarm........................................ 69
All-Wheel Drive.............................................168
Ambient Lighting............................................79 Adjusting the Brightness................................... 79
Changing the Color.............................................. 79
Switching Ambient Lighting Off..................... 79
Switching Ambient Lighting On...................... 79
Anti-Theft Alarm............................................69 Arming the Alarm................................................ 69
Disarming the Alarm........................................... 69
Appendices.....................................................451
Apps...................................................................412 SiriusXM Traffic and Travel Link.................... 414
Using Apps on an Android Device................413
Using Apps on an iOS Device......................... 413
Using Mobile Navigation on an Android Device................................................................. 413
At a Glance........................................................18
Audible Warnings and Indicators.............93 Headlamps On Warning Chime...................... 93Keyless Warning Alert.........................................
93
Parking Brake On Warning Chime.................. 93
Audio Control...................................................70 You can operate the following functions
with the control:............................................... 70
Audio System................................................357 General Information.......................................... 357
Audio Unit - Vehicles With: Sony Audio System/Touchscreen Display
...............361
Accessing the Sound Settings....................... 361
Adjusting the Volume....................................... 361
Changing Radio Stations................................ 362
Ejecting the CD................................................... 362
Inserting a CD...................................................... 362
Switching the Audio Unit On and Off........362
Using Seek, Fast Forward and Reverse............................................................. 362
Audio Unit - Vehicles With: SYNC.........358 Accessing the Apps Menu.............................. 359
Accessing the Clock Settings........................ 359
Accessing the Media Source Menu.............359
Accessing the Phone Features..................... 359
Accessing the Settings Menu........................ 359
Accessing the Sound Settings...................... 359
Adjusting the Volume...................................... 359
Changing Radio Stations............................... 360
Listening to the Radio..................................... 360
Playing or Pausing Media............................... 360
Switching Radio Text On and Off...............360
Switching Repeat Mode On and Off..........360
Switching Shuffle Mode On and Off.........360
Switching the Audio Unit On and Off........360
Switching the Display On and Off..............360
Using Seek, Fast Forward and Reverse.............................................................. 361
Using the Display Control.............................. 360
Using the Number Block................................ 360
Audio Unit - Vehicles With: Touchscreen Display, Vehicles Without: Sony Audio
System..........................................................357
Adjusting the Volume...................................... 358
Changing Radio Stations................................ 358
Playing or Pausing Media............................... 358
Switching the Audio Unit On and Off........358
Using Seek, Fast Forward and Reverse............................................................. 358
481
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

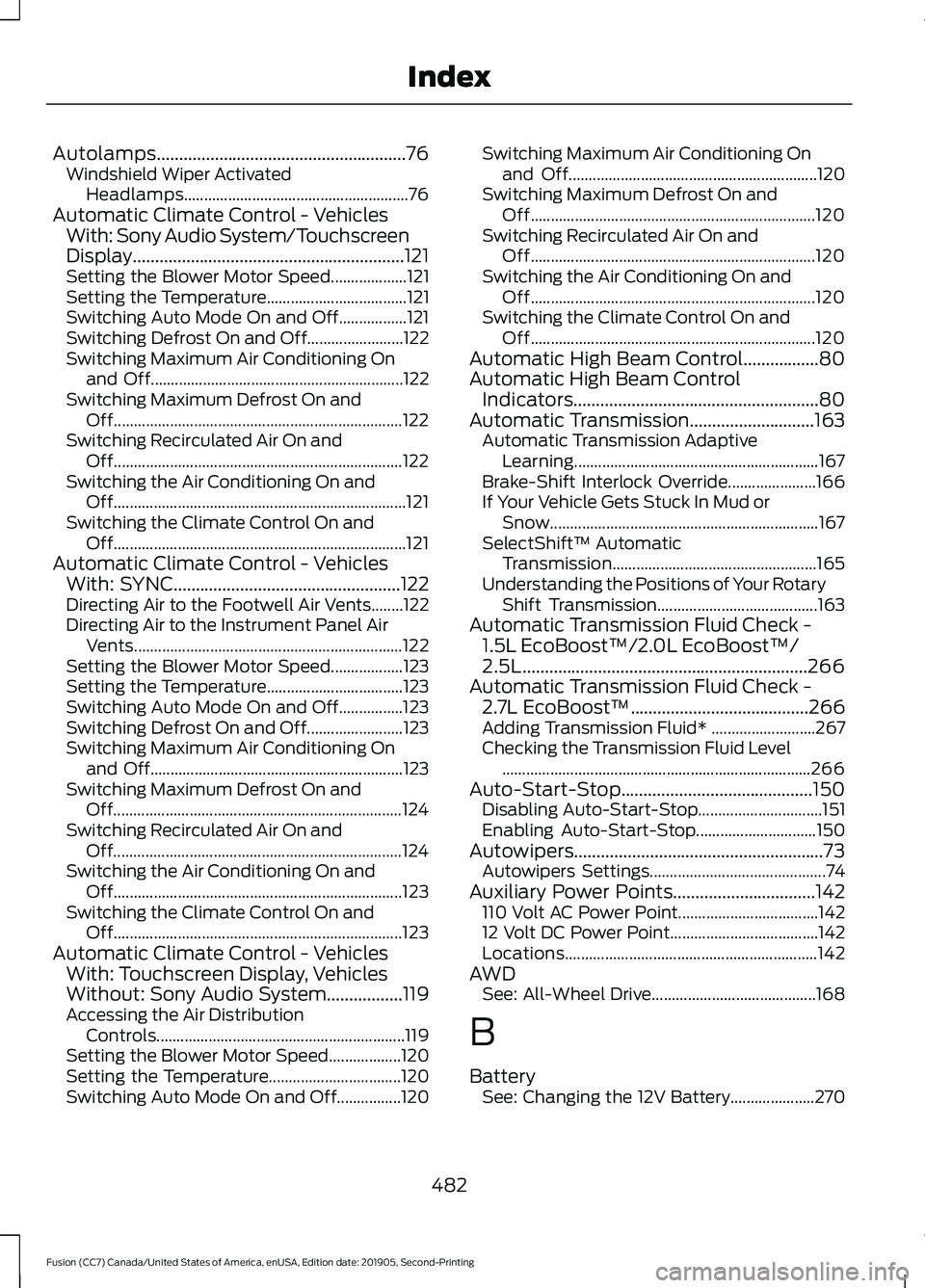

Autolamps........................................................76
Windshield Wiper Activated
Headlamps........................................................ 76
Automatic Climate Control - Vehicles With: Sony Audio System/Touchscreen
Display.............................................................121
Setting the Blower Motor Speed................... 121
Setting the Temperature................................... 121
Switching Auto Mode On and Off.................121
Switching Defrost On and Off........................ 122
Switching Maximum Air Conditioning On and Off............................................................... 122
Switching Maximum Defrost On and Off........................................................................\
122
Switching Recirculated Air On and Off........................................................................\
122
Switching the Air Conditioning On and Off........................................................................\
. 121
Switching the Climate Control On and Off........................................................................\
. 121
Automatic Climate Control - Vehicles With: SYNC...................................................122
Directing Air to the Footwell Air Vents........122
Directing Air to the Instrument Panel Air
Vents................................................................... 122
Setting the Blower Motor Speed.................. 123
Setting the Temperature.................................. 123
Switching Auto Mode On and Off................123
Switching Defrost On and Off........................ 123
Switching Maximum Air Conditioning On and Off............................................................... 123
Switching Maximum Defrost On and Off........................................................................\
124
Switching Recirculated Air On and Off........................................................................\
124
Switching the Air Conditioning On and Off........................................................................\
123
Switching the Climate Control On and Off........................................................................\
123
Automatic Climate Control - Vehicles With: Touchscreen Display, Vehicles
Without: Sony Audio System.................119
Accessing the Air Distribution Controls.............................................................. 119
Setting the Blower Motor Speed.................. 120
Setting the Temperature................................. 120
Switching Auto Mode On and Off................120 Switching Maximum Air Conditioning On
and Off.............................................................. 120
Switching Maximum Defrost On and Off....................................................................... 120
Switching Recirculated Air On and Off....................................................................... 120
Switching the Air Conditioning On and Off....................................................................... 120
Switching the Climate Control On and Off....................................................................... 120
Automatic High Beam Control.................80
Automatic High Beam Control Indicators.......................................................80
Automatic Transmission............................163 Automatic Transmission Adaptive
Learning............................................................. 167
Brake-Shift Interlock Override...................... 166
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 167
SelectShift™ Automatic Transmission................................................... 165
Understanding the Positions of Your Rotary Shift Transmission........................................ 163
Automatic Transmission Fluid Check - 1.5L EcoBoost™/2.0L EcoBoost™/
2.5L................................................................266
Automatic Transmission Fluid Check - 2.7L EcoBoost™........................................266
Adding Transmission Fluid* .......................... 267
Checking the Transmission Fluid Level ........................................................................\
..... 266
Auto-Start-Stop
...........................................150
Disabling Auto-Start-Stop............................... 151
Enabling Auto-Start-Stop.............................. 150
Autowipers........................................................73 Autowipers Settings............................................ 74
Auxiliary Power Points
................................142
110 Volt AC Power Point................................... 142
12 Volt DC Power Point..................................... 142
Locations............................................................... 142
AWD See: All-Wheel Drive......................................... 168
B
Battery See: Changing the 12V Battery..................... 270
482
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

Ford Protect....................................................431
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 432
Ford Protect Extended Service Plans (U.S. Only)................................................................... 431
Front Fog Lamps.............................................77 Front Fog Lamp Indicator.................................. 78
Switching the Front Fog Lamps On or Off........................................................................\
.. 77
Front Parking Aid..........................................182
Object Distance Indicator................................ 183
Front Passenger Sensing System............43
Fuel and Refueling.......................................152
Fuel Consumption
.......................................158
Advertised Capacity.......................................... 158
Calculating Fuel Economy.............................. 158
Fuel Filler Funnel Location........................153
Fuel Filter
........................................................269
Fuel Quality.....................................................152
Choosing the Right Fuel................................... 152
Fuel Shutoff...................................................232
Fuses
................................................................244
Fuse Specification Chart..........................244
Passenger Compartment Fuse
Panel................................................................. 250
Power Distribution Box.................................... 244
G
Garage Door Opener
....................................137
Garage Door Opener See: Universal Garage Door Opener............137
Gauges................................................................87 Engine Coolant Temperature Gauge............88
Fuel Gauge............................................................. 88
Information Display............................................. 87
Left Information Display................................... 89
Type 1 and 2............................................................ 87
Type 3....................................................................... 89
Gearbox See: Transmission.............................................. 163
General Information on Radio Frequencies...................................................50
Intelligent Access................................................. 50
General Maintenance Information........433 Multi-Point Inspection..................................... 435
Owner Checks and Services.......................... 434
Protecting Your Investment........................... 433Why Maintain Your Vehicle?..........................
433
Why Maintain Your Vehicle at Your Dealership?..................................................... 433
Getting Assistance Outside the U.S. and Canada.........................................................240
Getting the Services You Need...............237 Away From Home.............................................. 237
Global Opening and Closing
......................83
Closing the Windows.......................................... 83
Opening the Windows....................................... 83
H
Hazard Flashers............................................232
Headlamp Adjusting See: Adjusting the Headlamps...................... 272
Headlamp Exit Delay....................................76
Headlamp Removal See: Removing a Headlamp.......................... 274
Headrest See: Head Restraints......................................... 128
Head Restraints
.............................................128
Adjusting the Head Restraint......................... 129
Tilting Head Restraints .................................... 130
Heated Exterior Mirrors
...............................126
Heated Rear Window..................................126
Heated Seats..................................................135
Heated Steering Wheel.................................71
Heating See: Climate Control.......................................... 118
Hill Start Assist
..............................................175
Switching the System On and Off................176
Using Hill Start Assist........................................ 176
Hints on Controlling the Interior Climate - Vehicles With: Automatic
Temperature Control................................124
Defogging the Side Windows in Cold Weather............................................................. 125
General Hints........................................................ 124
Quickly Cooling the Interior............................. 125
Quickly Heating the Interior............................ 125
Recommended Settings for Cooling...........125
Recommended Settings for Heating...........125
Hints on Controlling the Interior Climate - Vehicles With: Manual Temperature
Control...........................................................125

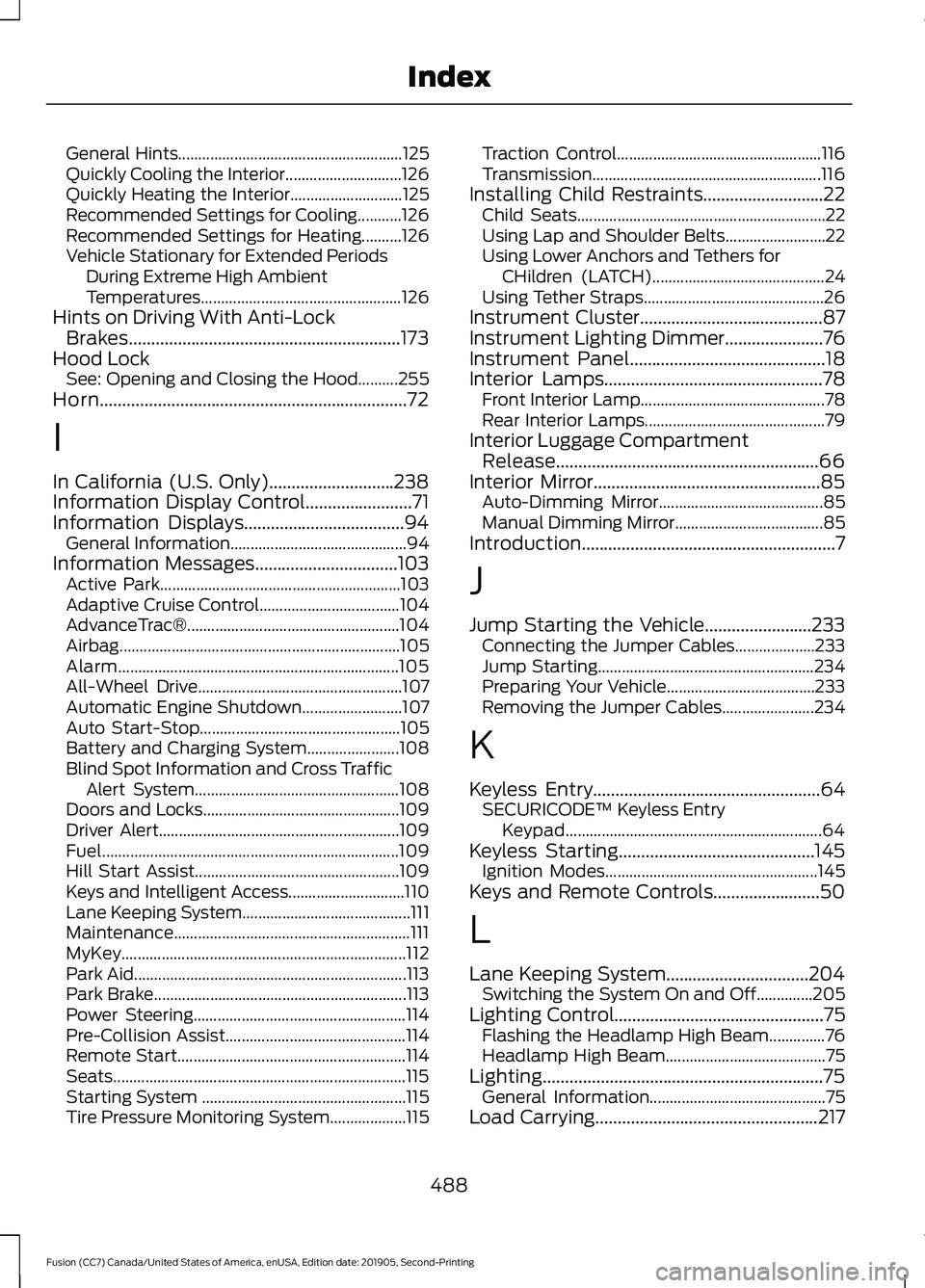

Defogging the Side Windows in Cold Weather............................................................. 126
487
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

General Hints........................................................
125
Quickly Cooling the Interior............................. 126
Quickly Heating the Interior............................ 125
Recommended Settings for Cooling...........126
Recommended Settings for Heating..........126
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................. 126
Hints on Driving With Anti-Lock Brakes.............................................................173
Hood Lock See: Opening and Closing the Hood..........255
Horn.....................................................................72
I
In California (U.S. Only)............................238
Information Display Control........................71
Information Displays
....................................94
General Information............................................ 94
Information Messages
................................103
Active Park............................................................ 103
Adaptive Cruise Control................................... 104
AdvanceTrac®..................................................... 104
Airbag...................................................................... 105
Alarm...................................................................... 105
All-Wheel Drive................................................... 107
Automatic Engine Shutdown......................... 107
Auto Start-Stop.................................................. 105
Battery and Charging System....................... 108
Blind Spot Information and Cross Traffic Alert System................................................... 108
Doors and Locks................................................. 109
Driver Alert............................................................ 109
Fuel........................................................................\
.. 109
Hill Start Assist................................................... 109
Keys and Intelligent Access............................. 110
Lane Keeping System.......................................... 111
Maintenance........................................................... 111
MyKey....................................................................... 112
Park Aid.................................................................... 113
Park Brake............................................................... 113
Power Steering..................................................... 114
Pre-Collision Assist............................................. 114
Remote Start......................................................... 114
Seats........................................................................\
. 115
Starting System ................................................... 115
Tire Pressure Monitoring System................... 115Traction Control...................................................
116
Transmission......................................................... 116
Installing Child Restraints...........................22 Child Seats.............................................................. 22
Using Lap and Shoulder Belts......................... 22
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 24
Using Tether Straps............................................. 26
Instrument Cluster.........................................87
Instrument Lighting Dimmer
......................76
Instrument Panel............................................18
Interior Lamps.................................................78
Front Interior Lamp.............................................. 78
Rear Interior Lamps............................................. 79
Interior Luggage Compartment Release...........................................................66
Interior Mirror...................................................85 Auto-Dimming Mirror......................................... 85
Manual Dimming Mirror..................................... 85
Introduction.........................................................7
J
Jump Starting the Vehicle........................233 Connecting the Jumper Cables.................... 233
Jump Starting...................................................... 234
Preparing Your Vehicle..................................... 233
Removing the Jumper Cables....................... 234
K
Keyless Entry
...................................................64
SECURICODE™ Keyless Entry
Keypad................................................................ 64
Keyless Starting............................................145 Ignition Modes..................................................... 145
Keys and Remote Controls........................50
L
Lane Keeping System................................204 Switching the System On and Off..............205
Lighting Control
...............................................75
Flashing the Headlamp High Beam..............76
Headlamp High Beam........................................ 75
Lighting...............................................................75 General Information............................................ 75
Load Carrying
..................................................217
488
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

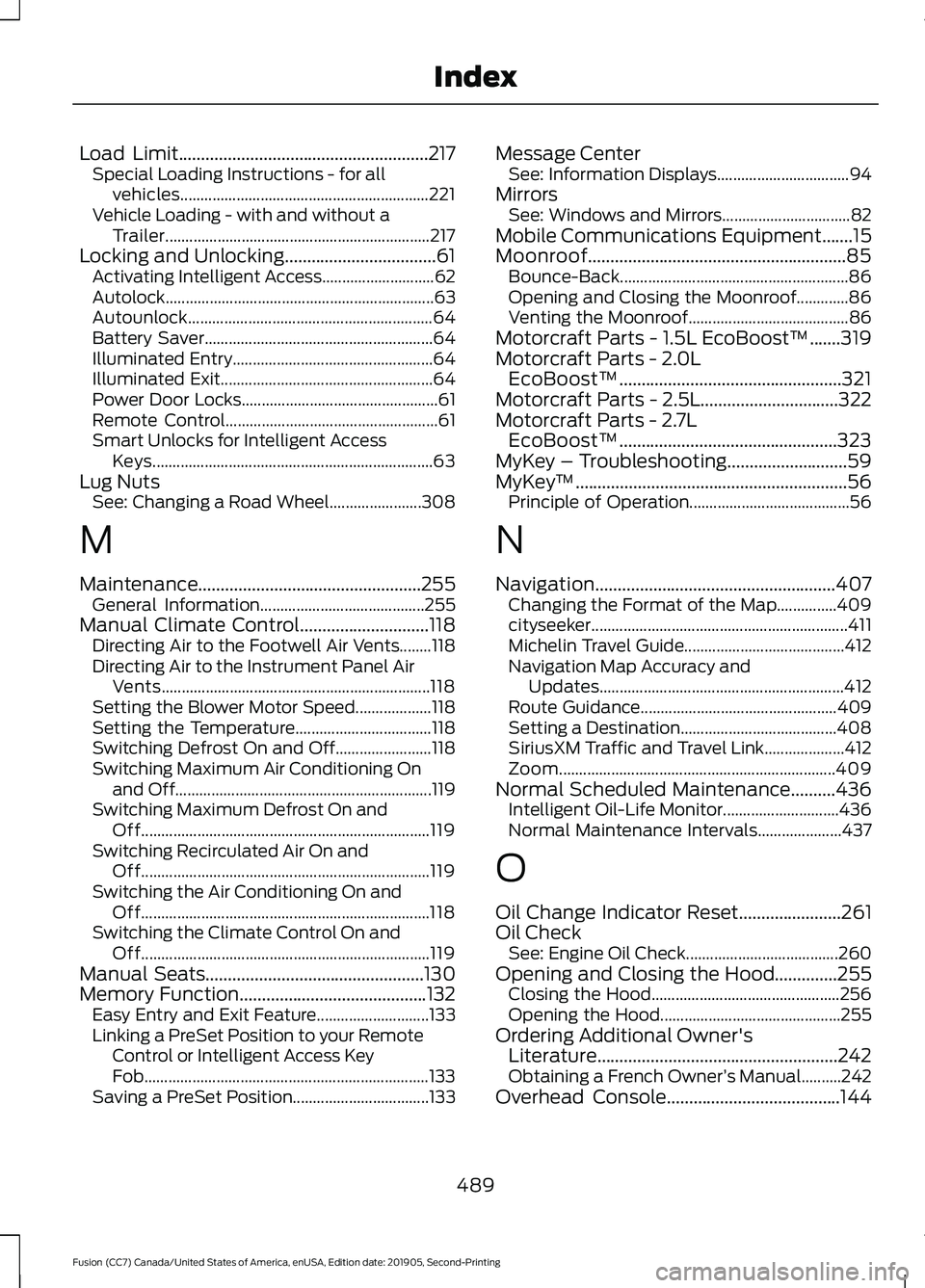

Load Limit........................................................217
Special Loading Instructions - for all
vehicles.............................................................. 221
Vehicle Loading - with and without a Trailer.................................................................. 217
Locking and Unlocking..................................61 Activating Intelligent Access............................ 62
Autolock................................................................... 63
Autounlock............................................................. 64
Battery Saver......................................................... 64
Illuminated Entry.................................................. 64
Illuminated Exit..................................................... 64
Power Door Locks................................................. 61
Remote Control..................................................... 61
Smart Unlocks for Intelligent Access Keys...................................................................... 63
Lug Nuts See: Changing a Road Wheel....................... 308
M
Maintenance..................................................255 General Information......................................... 255
Manual Climate Control.............................118
Directing Air to the Footwell Air Vents........118
Directing Air to the Instrument Panel Air
Vents................................................................... 118
Setting the Blower Motor Speed................... 118
Setting the Temperature.................................. 118
Switching Defrost On and Off........................ 118
Switching Maximum Air Conditioning On and Off................................................................ 119
Switching Maximum Defrost On and Off........................................................................\
119
Switching Recirculated Air On and Off........................................................................\
119
Switching the Air Conditioning On and Off........................................................................\
118
Switching the Climate Control On and Off........................................................................\
119
Manual Seats
.................................................130
Memory Function..........................................132
Easy Entry and Exit Feature............................ 133
Linking a PreSet Position to your Remote Control or Intelligent Access Key
Fob....................................................................... 133
Saving a PreSet Position.................................. 133Message Center
See: Information Displays................................. 94
Mirrors See: Windows and Mirrors................................ 82
Mobile Communications Equipment.......15
Moonroof..........................................................85 Bounce-Back......................................................... 86
Opening and Closing the Moonroof.............86
Venting the Moonroof........................................ 86
Motorcraft Parts - 1.5L EcoBoost™.......319
Motorcraft Parts - 2.0L EcoBoost™..................................................321
Motorcraft Parts - 2.5L...............................322
Motorcraft Parts - 2.7L EcoBoost™.................................................323
MyKey – Troubleshooting...........................59
MyKey ™
.............................................................56
Principle of Operation........................................ 56
N
Navigation......................................................407 Changing the Format of the Map...............409
cityseeker................................................................ 411
Michelin Travel Guide........................................ 412
Navigation Map Accuracy and Updates............................................................. 412
Route Guidance................................................. 409
Setting a Destination....................................... 408
SiriusXM Traffic and Travel Link.................... 412
Zoom..................................................................... 409
Normal Scheduled Maintenance
..........436
Intelligent Oil-Life Monitor............................. 436
Normal Maintenance Intervals..................... 437
O
Oil Change Indicator Reset
.......................261
Oil Check See: Engine Oil Check...................................... 260
Opening and Closing the Hood
..............255
Closing the Hood............................................... 256
Opening the Hood............................................. 255
Ordering Additional Owner's Literature......................................................242
Obtaining a French Owner ’s Manual..........242
Overhead Console
.......................................144
489
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

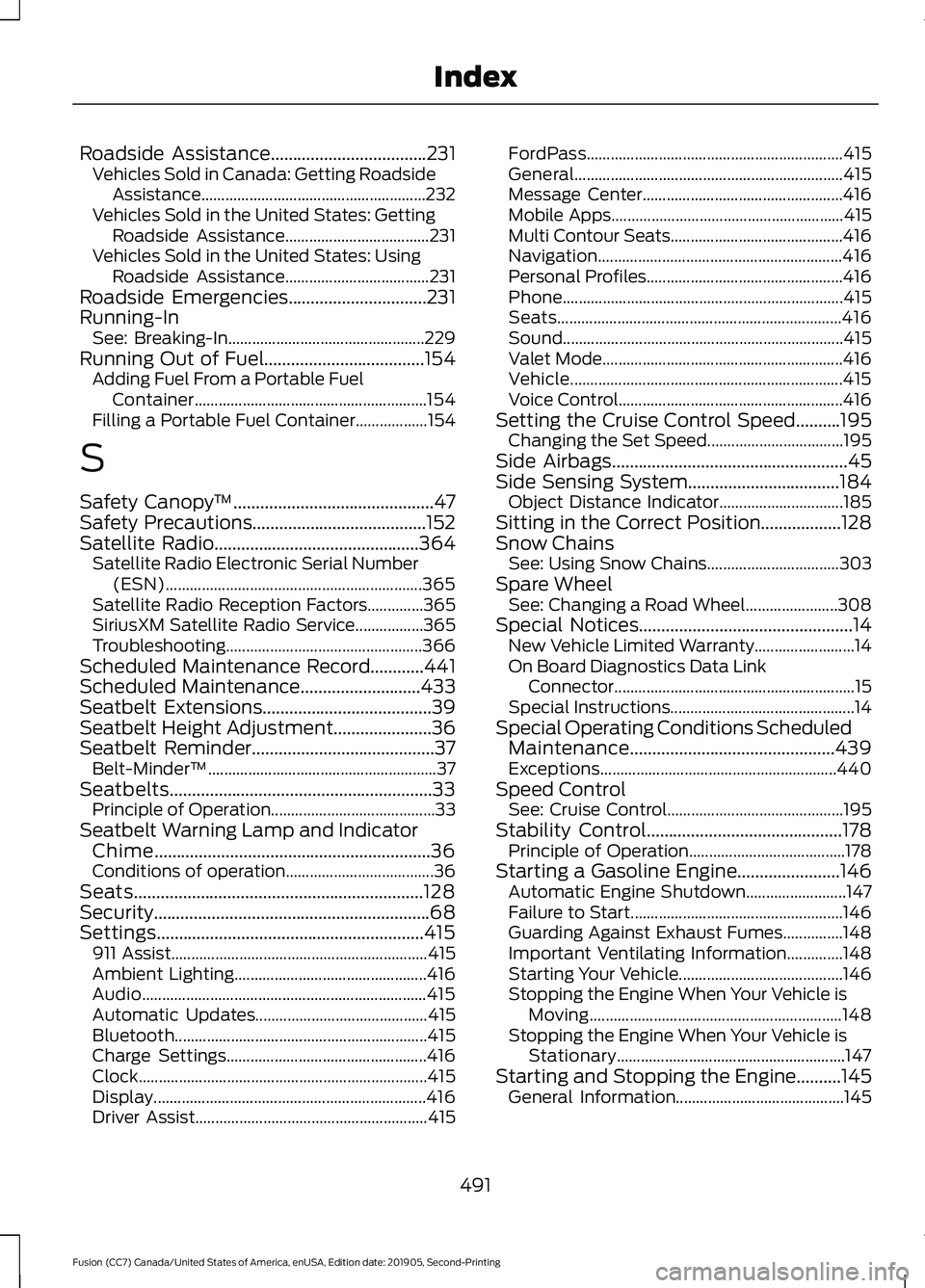

Roadside Assistance...................................231
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 232
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 231
Vehicles Sold in the United States: Using Roadside Assistance.................................... 231
Roadside Emergencies
...............................231
Running-In See: Breaking-In................................................. 229
Running Out of Fuel....................................154 Adding Fuel From a Portable Fuel
Container.......................................................... 154
Filling a Portable Fuel Container.................. 154
S
Safety Canopy ™
.............................................47
Safety Precautions.......................................152
Satellite Radio..............................................364 Satellite Radio Electronic Serial Number
(ESN)................................................................ 365
Satellite Radio Reception Factors..............365
SiriusXM Satellite Radio Service.................365
Troubleshooting................................................. 366
Scheduled Maintenance Record
............441
Scheduled Maintenance...........................433
Seatbelt Extensions......................................39
Seatbelt Height Adjustment......................36
Seatbelt Reminder.........................................37 Belt-Minder™......................................................... 37
Seatbelts...........................................................33 Principle of Operation......................................... 33
Seatbelt Warning Lamp and Indicator Chime..............................................................36
Conditions of operation..................................... 36
Seats
.................................................................128
Security..............................................................68
Settings............................................................415 911 Assist................................................................ 415
Ambient Lighting................................................ 416
Audio....................................................................... 415
Automatic Updates........................................... 415
Bluetooth............................................................... 415
Charge Settings.................................................. 416
Clock........................................................................\
415
Display.................................................................... 416
Driver Assist.......................................................... 415FordPass................................................................
415
General................................................................... 415
Message Center.................................................. 416
Mobile Apps.......................................................... 415
Multi Contour Seats........................................... 416
Navigation............................................................. 416
Personal Profiles................................................. 416
Phone...................................................................... 415
Seats....................................................................... 416
Sound...................................................................... 415
Valet Mode............................................................ 416
Vehicle.................................................................... 415
Voice Control........................................................ 416
Setting the Cruise Control Speed..........195 Changing the Set Speed.................................. 195
Side Airbags
.....................................................45
Side Sensing System..................................184 Object Distance Indicator............................... 185
Sitting in the Correct Position..................128
Snow Chains See: Using Snow Chains................................. 303
Spare Wheel See: Changing a Road Wheel....................... 308
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
On Board Diagnostics Data Link Connector............................................................ 15
Special Instructions.............................................. 14
Special Operating Conditions Scheduled Maintenance..............................................439
Exceptions........................................................... 440
Speed Control See: Cruise Control............................................ 195
Stability Control
............................................178
Principle of Operation....................................... 178
Starting a Gasoline Engine.......................146 Automatic Engine Shutdown......................... 147
Failure to Start..................................................... 146
Guarding Against Exhaust Fumes...............148
Important Ventilating Information..............148
Starting Your Vehicle......................................... 146
Stopping the Engine When Your Vehicle is Moving............................................................... 148
Stopping the Engine When Your Vehicle is Stationary......................................................... 147
Starting and Stopping the Engine..........145 General Information.......................................... 145
491
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

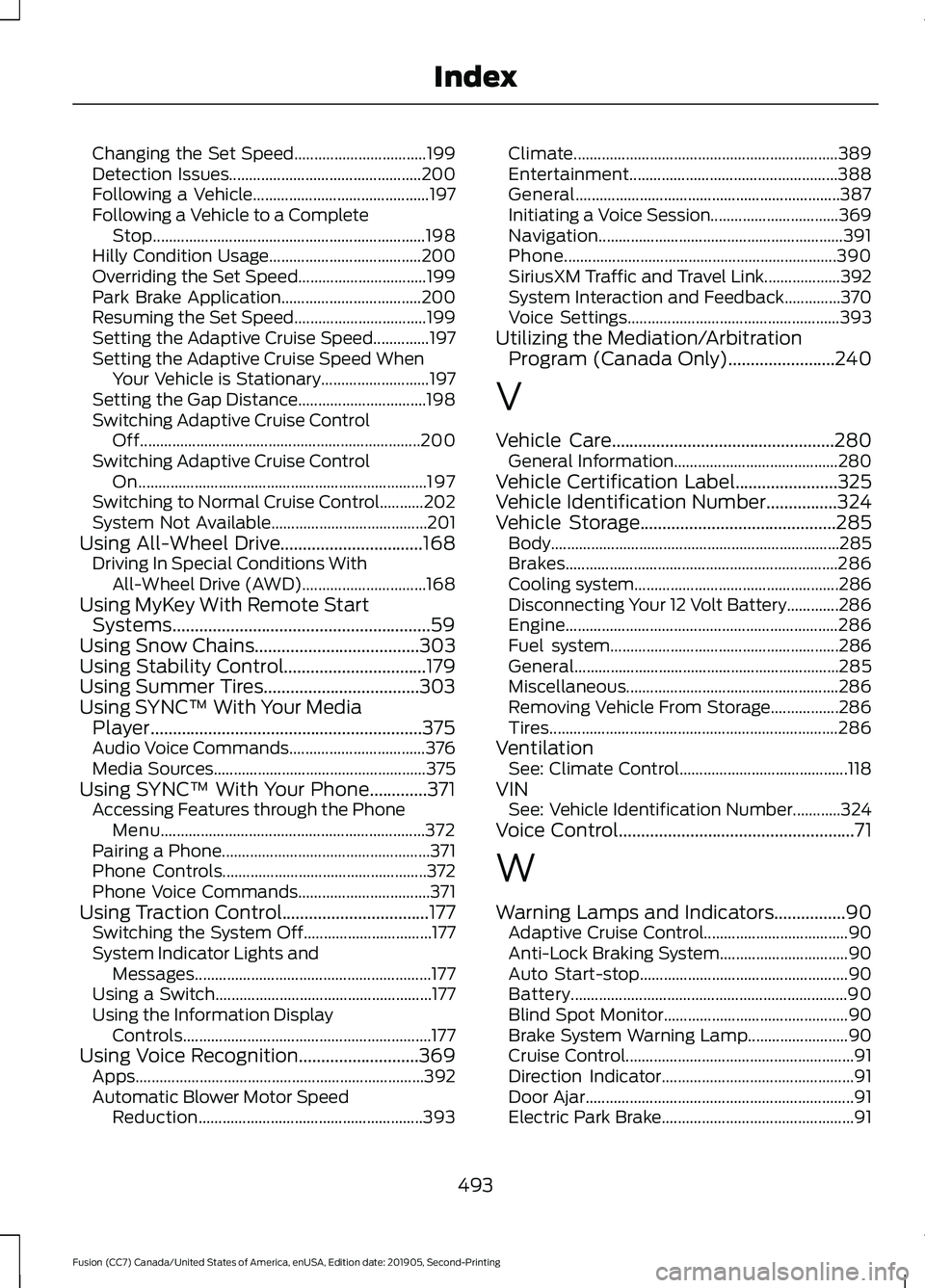

Changing the Set Speed.................................
199
Detection Issues................................................ 200
Following a Vehicle............................................ 197
Following a Vehicle to a Complete Stop.................................................................... 198
Hilly Condition Usage...................................... 200
Overriding the Set Speed................................ 199
Park Brake Application................................... 200
Resuming the Set Speed................................. 199
Setting the Adaptive Cruise Speed..............197
Setting the Adaptive Cruise Speed When Your Vehicle is Stationary........................... 197
Setting the Gap Distance................................ 198
Switching Adaptive Cruise Control Off...................................................................... 200
Switching Adaptive Cruise Control On........................................................................\
197
Switching to Normal Cruise Control...........202
System Not Available....................................... 201
Using All-Wheel Drive................................168 Driving In Special Conditions With
All-Wheel Drive (AWD)............................... 168
Using MyKey With Remote Start Systems..........................................................59
Using Snow Chains.....................................303
Using Stability Control................................179
Using Summer Tires...................................303
Using SYNC™ With Your Media Player.............................................................375
Audio Voice Commands.................................. 376
Media Sources..................................................... 375
Using SYNC™ With Your Phone.............371 Accessing Features through the Phone
Menu.................................................................. 372
Pairing a Phone.................................................... 371
Phone Controls................................................... 372
Phone Voice Commands................................. 371
Using Traction Control.................................177 Switching the System Off................................ 177
System Indicator Lights and Messages........................................................... 177
Using a Switch...................................................... 177
Using the Information Display Controls.............................................................. 177
Using Voice Recognition
...........................369
Apps........................................................................\
392
Automatic Blower Motor Speed Reduction........................................................ 393Climate..................................................................
389
Entertainment.................................................... 388
General.................................................................. 387
Initiating a Voice Session................................ 369
Navigation............................................................. 391
Phone.................................................................... 390
SiriusXM Traffic and Travel Link................... 392
System Interaction and Feedback..............370
Voice Settings..................................................... 393
Utilizing the Mediation/Arbitration Program (Canada Only)........................240
V
Vehicle Care
..................................................280
General Information......................................... 280
Vehicle Certification Label.......................325
Vehicle Identification Number................324
Vehicle Storage
............................................285
Body........................................................................\
285
Brakes.................................................................... 286
Cooling system................................................... 286
Disconnecting Your 12 Volt Battery.............286
Engine.................................................................... 286
Fuel system......................................................... 286
General.................................................................. 285
Miscellaneous..................................................... 286
Removing Vehicle From Storage.................286
Tires........................................................................\
286
Ventilation See: Climate Control.......................................... 118
VIN See: Vehicle Identification Number............324
Voice Control
.....................................................71
W
Warning Lamps and Indicators
................90
Adaptive Cruise Control.................................... 90
Anti-Lock Braking System................................ 90
Auto Start-stop.................................................... 90
Battery..................................................................... 90
Blind Spot Monitor.............................................. 90
Brake System Warning Lamp......................... 90
Cruise Control......................................................... 91
Direction Indicator................................................ 91
Door Ajar................................................................... 91
Electric Park Brake................................................ 91
493
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index

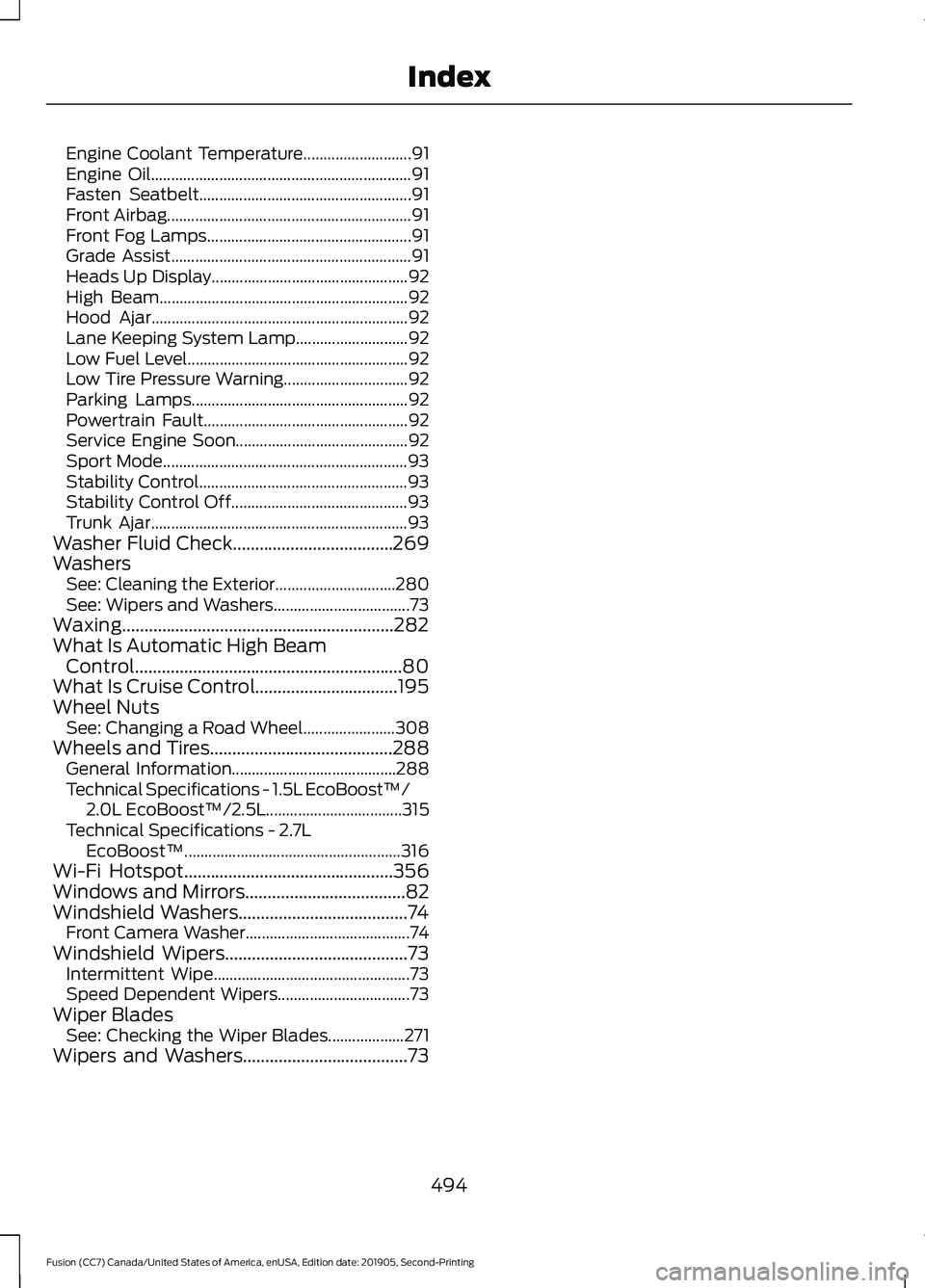

Engine Coolant Temperature...........................
91
Engine Oil................................................................. 91
Fasten Seatbelt..................................................... 91
Front Airbag............................................................. 91
Front Fog Lamps................................................... 91
Grade Assist............................................................ 91
Heads Up Display................................................. 92
High Beam.............................................................. 92
Hood Ajar................................................................ 92
Lane Keeping System Lamp............................ 92
Low Fuel Level....................................................... 92
Low Tire Pressure Warning............................... 92
Parking Lamps...................................................... 92
Powertrain Fault................................................... 92
Service Engine Soon........................................... 92
Sport Mode............................................................. 93
Stability Control.................................................... 93
Stability Control Off............................................ 93
Trunk Ajar................................................................ 93
Washer Fluid Check....................................269
Washers See: Cleaning the Exterior.............................. 280
See: Wipers and Washers.................................. 73
Waxing.............................................................282
What Is Automatic High Beam Control............................................................80
What Is Cruise Control................................195
Wheel Nuts See: Changing a Road Wheel....................... 308
Wheels and Tires.........................................288
General Information......................................... 288
Technical Specifications - 1.5L EcoBoost™/ 2.0L EcoBoost™/2.5L.................................. 315
Technical Specifications - 2.7L EcoBoost™...................................................... 316
Wi-Fi Hotspot...............................................356
Windows and Mirrors
....................................82
Windshield Washers......................................74
Front Camera Washer......................................... 74
Windshield Wipers
.........................................73
Intermittent Wipe................................................. 73
Speed Dependent Wipers................................. 73
Wiper Blades See: Checking the Wiper Blades................... 271
Wipers and Washers.....................................73
494
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Index
