fuse box FORD FUSION 2020 Owners Manual

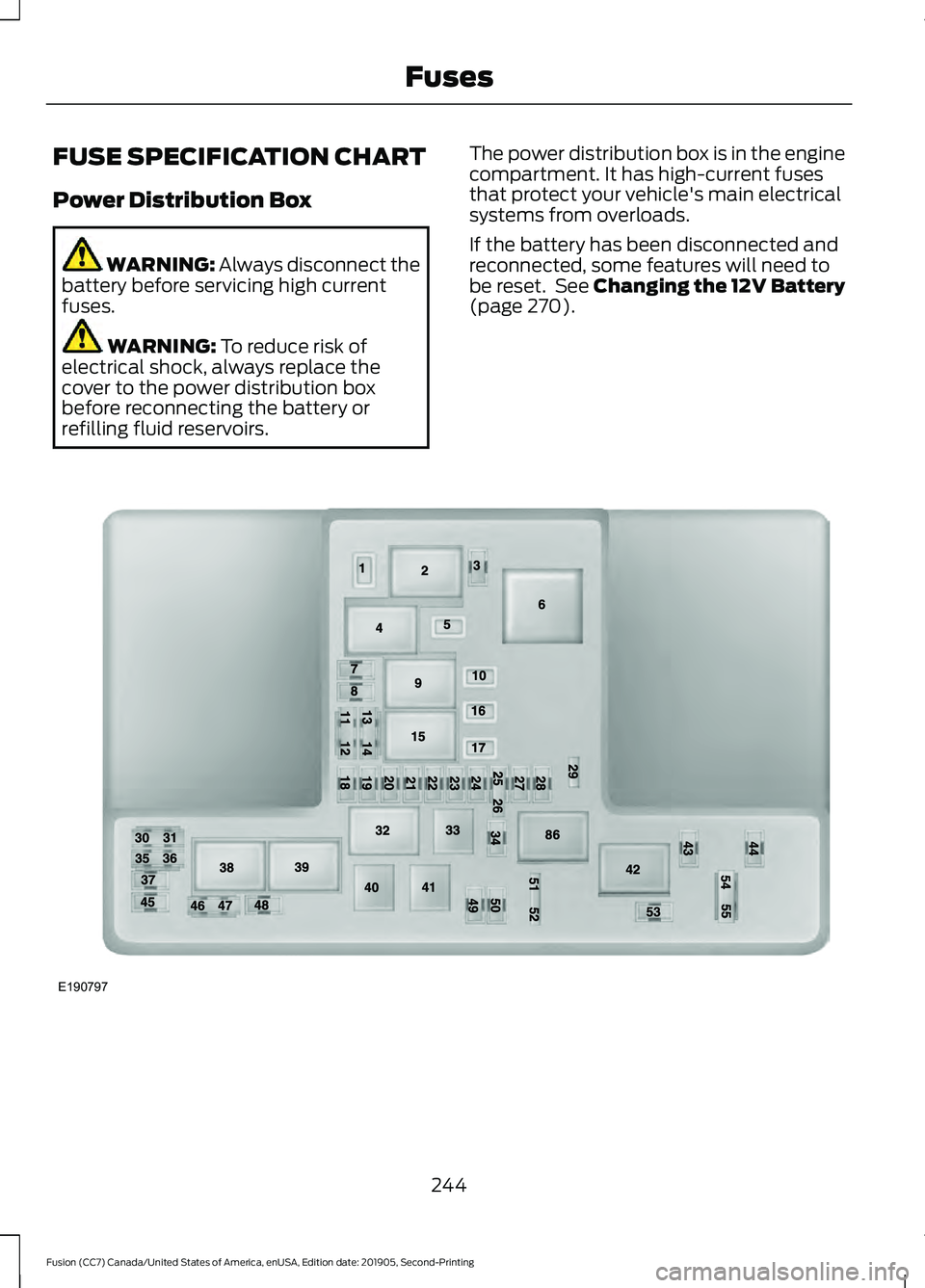

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page
270).
244
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE190797

Protected Component
Fuse Rating
Fuse or Relay
Number
Horn relay.
—
40
Not used.
—
41
Fuel pump coil relay.
—
42
Not used.
—
43
Left hand side headlamp ballast.
20A 3
44
Not used (spare).
5A 3
45
Not used.
—
46
Not used.
—
47
Not used.
—
48
Not used (spare).
10A 3
49
Horn.
20A 3
50
Not used.
—
51
Not used.
—
52
Not used (spare).
10A 3
53
Brake on off switch.
10A 2
54
ALT sensor.
10A 2
55
Not used (spare).
30A
86
1 Micro 2 fuse.
2 Micro 3 fuse.
3 M case fuse.

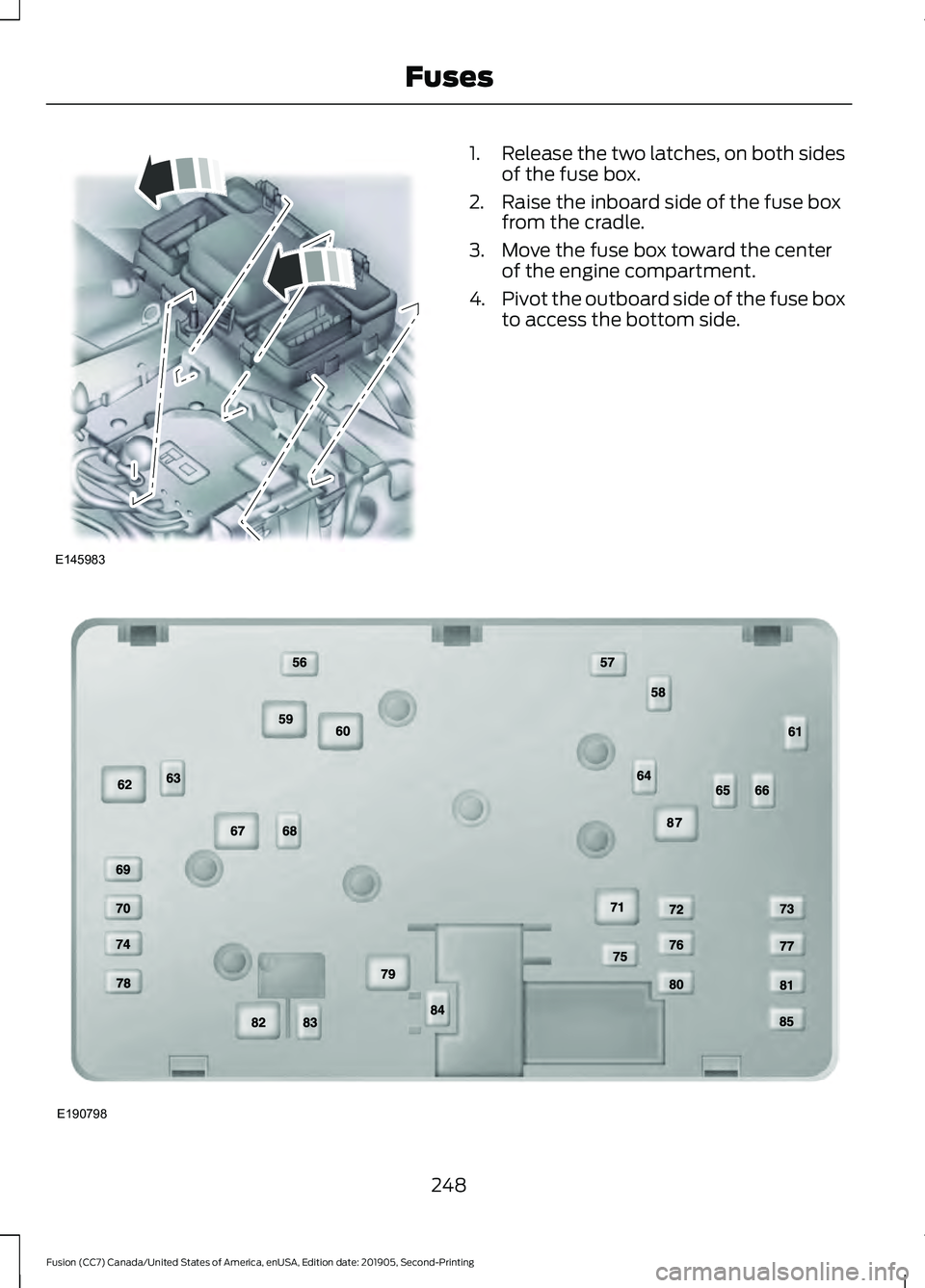

Power Distribution Box - Bottom
There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:
247
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

1.
Release the two latches, on both sides
of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side. 248
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145983 E190798

Engine coolant reservoir. See Engine Coolant Check (page 262).
A
Engine oil filler cap. See
Engine Oil Check (page 260).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 260).
C
Brake fluid reservoir. See
Brake Fluid Check (page 268).
D
Battery. See
Changing the 12V Battery (page 270).
E
Engine compartment fuse box. See
Fuses (page 244).
F
Air filter. See
Changing the Engine Air Filter (page 278).
G
Windshield washer reservoir.
See Washer Fluid Check (page 269).
H

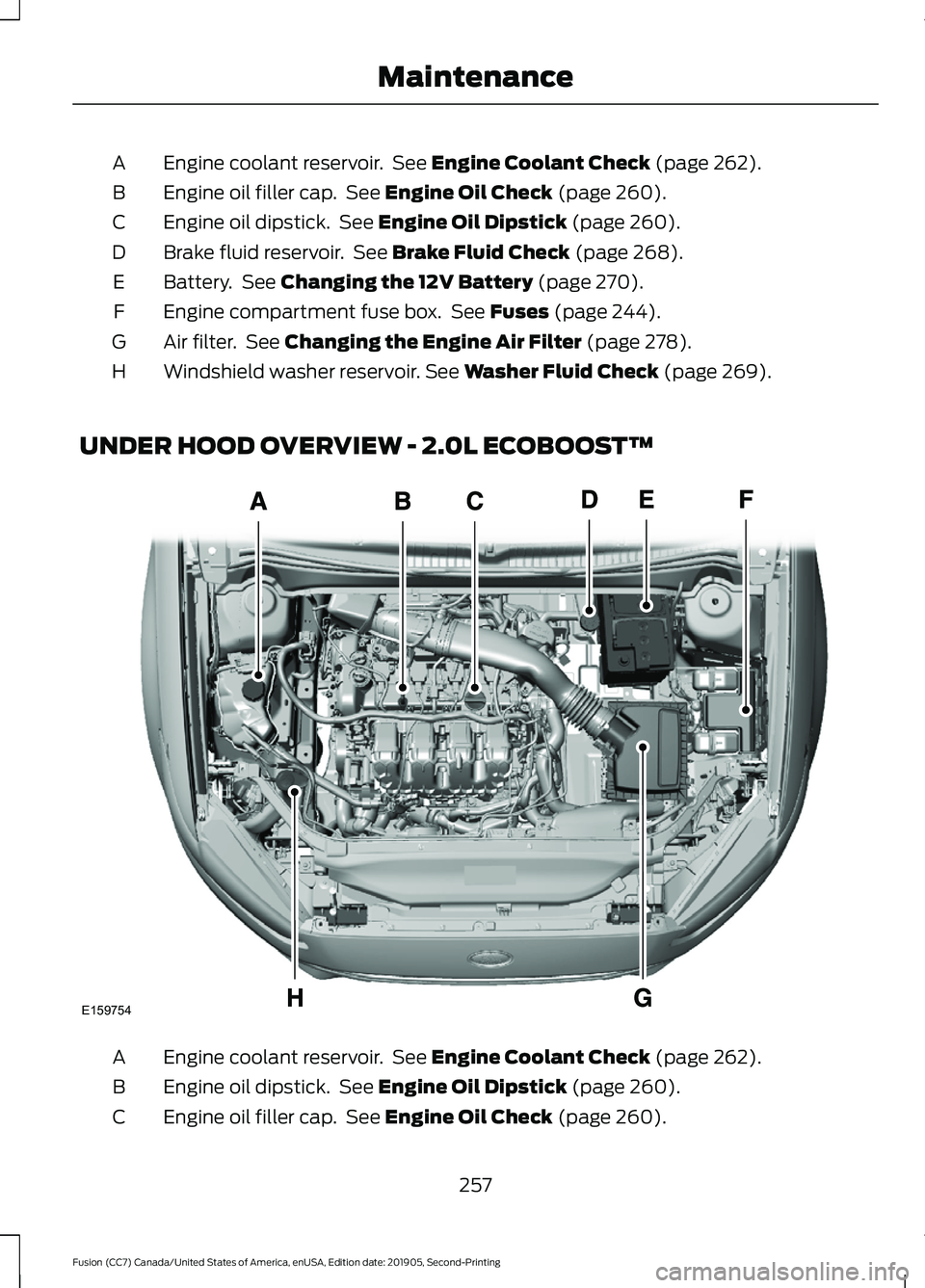

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™ Engine coolant reservoir. See
Engine Coolant Check (page 262).
A
Engine oil dipstick. See
Engine Oil Dipstick (page 260).
B
Engine oil filler cap. See
Engine Oil Check (page 260).
C
257
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing MaintenanceE159754

Brake fluid reservoir. See Brake Fluid Check (page 268).
D
Battery. See
Changing the 12V Battery (page 270).
E
Engine compartment fuse box. See
Fuses (page 244).
F
Air filter. See
Changing the Engine Air Filter (page 278).
G
Washer system fluid reservoir. See
Washer Fluid Check (page 269).
H

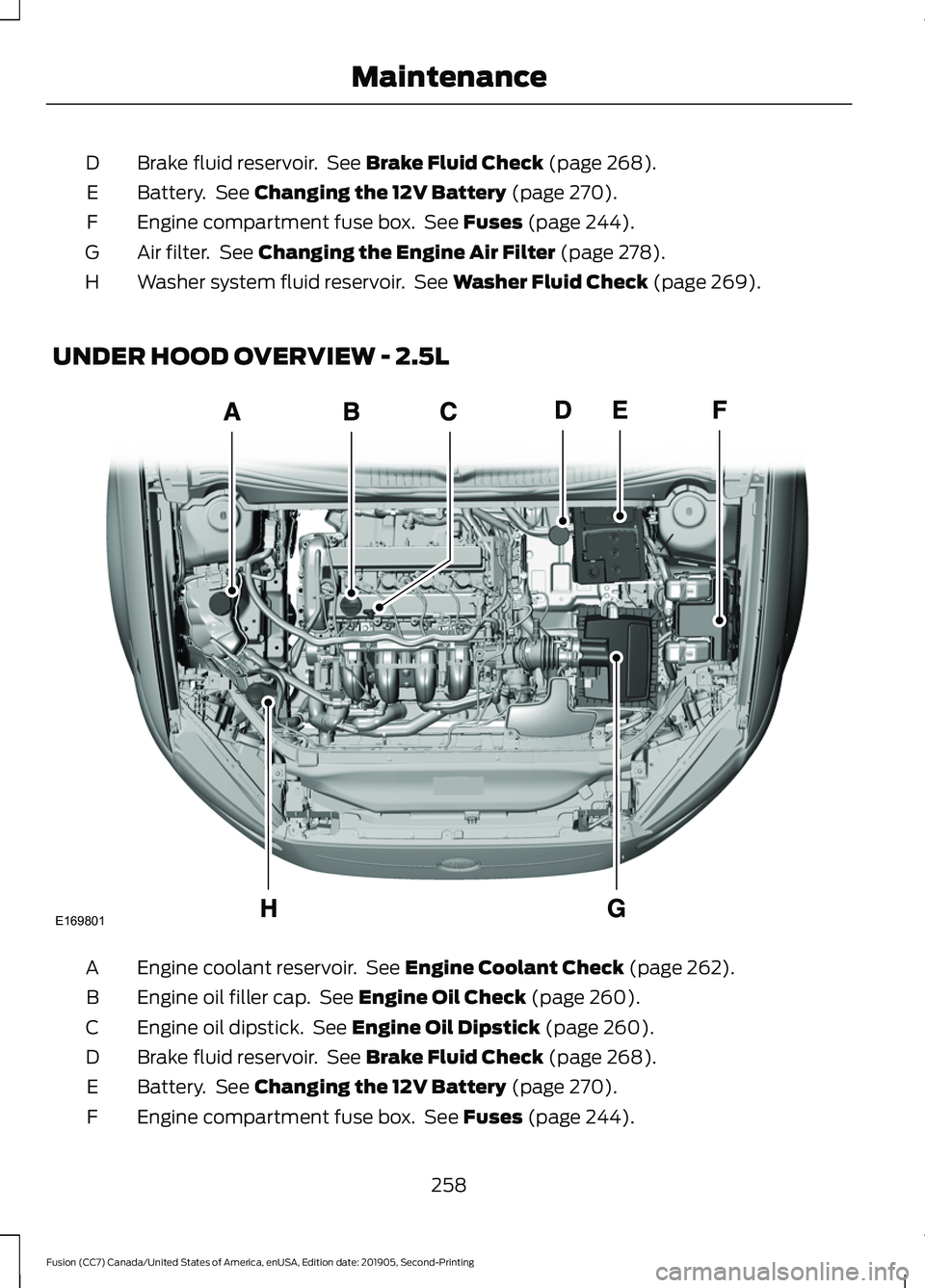

UNDER HOOD OVERVIEW - 2.5L Engine coolant reservoir. See
Engine Coolant Check (page 262).
A
Engine oil filler cap. See
Engine Oil Check (page 260).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 260).
C
Brake fluid reservoir. See
Brake Fluid Check (page 268).
D
Battery. See
Changing the 12V Battery (page 270).
E
Engine compartment fuse box. See
Fuses (page 244).
F
258
Fusion (CC7) Canada/United States of America, enUSA, Edition date: 201905, Second-Printing MaintenanceE169801

Air filter. See Changing the Engine Air Filter (page 278).
G
Washer system fluid reservoir. See
Washer Fluid Check (page 269).
H

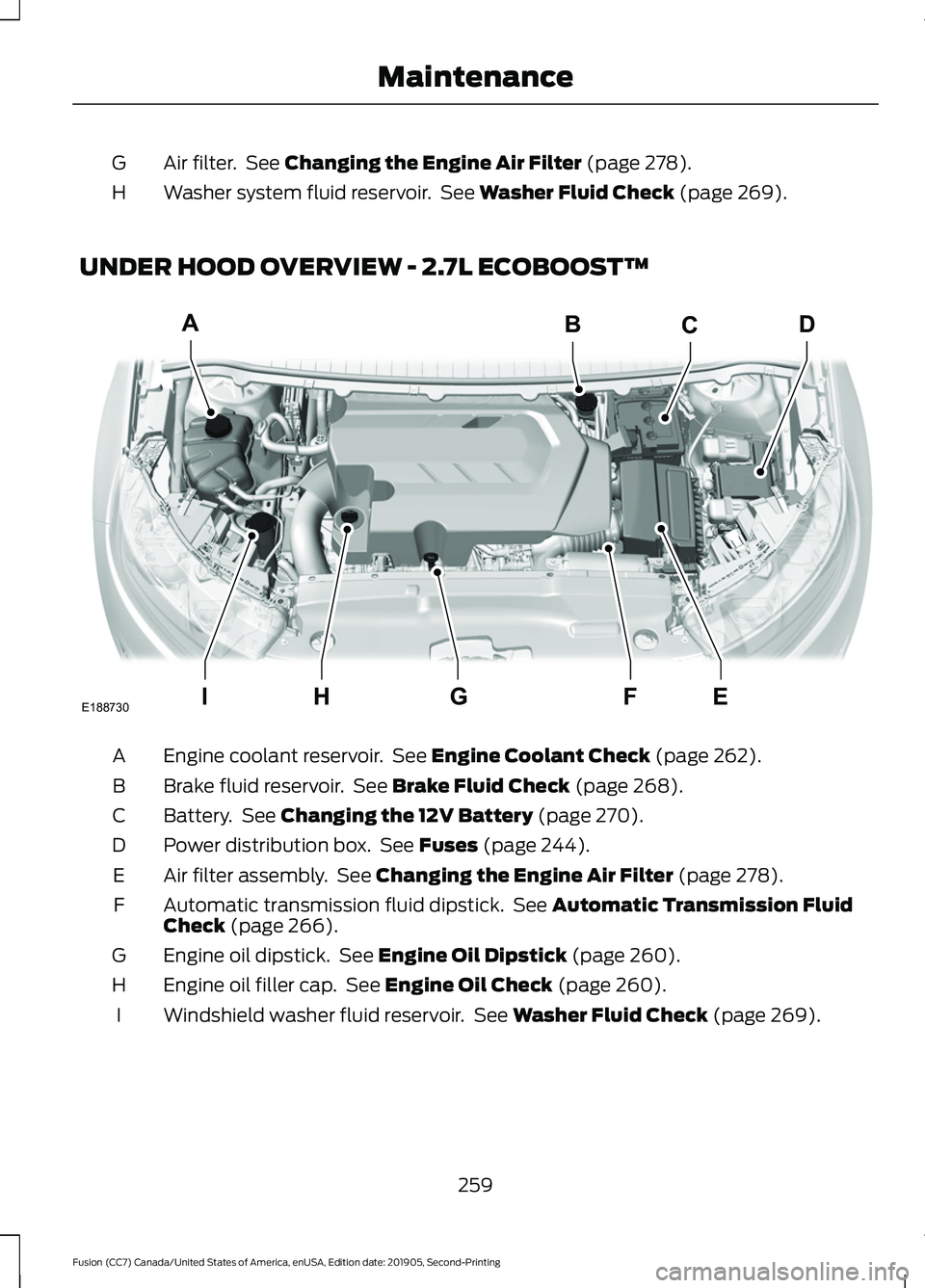

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine coolant reservoir. See
Engine Coolant Check (page 262).
A
Brake fluid reservoir. See
Brake Fluid Check (page 268).
B
Battery. See
Changing the 12V Battery (page 270).
C
Power distribution box. See
Fuses (page 244).
D
Air filter assembly. See
Changing the Engine Air Filter (page 278).
E
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 266).
F
Engine oil dipstick. See
Engine Oil Dipstick (page 260).
G
Engine oil filler cap. See
Engine Oil Check (page 260).
H
Windshield washer fluid reservoir. See
Washer Fluid Check (page 269).
I
259
