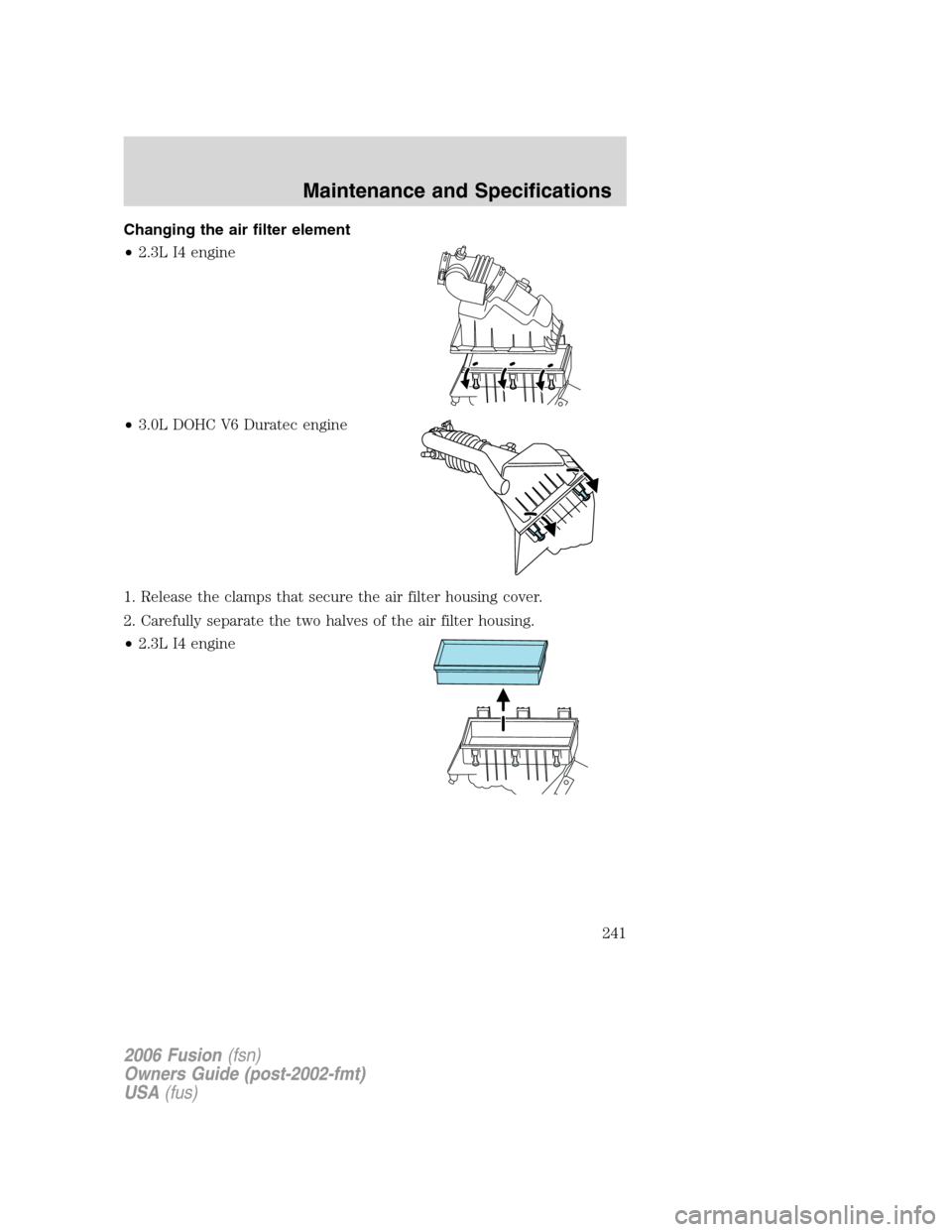

Changing the air filter element
•2.3L I4 engine
•3.0L DOHC V6 Duratec engine
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
•2.3L I4 engine
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
241
Page 242 of 264

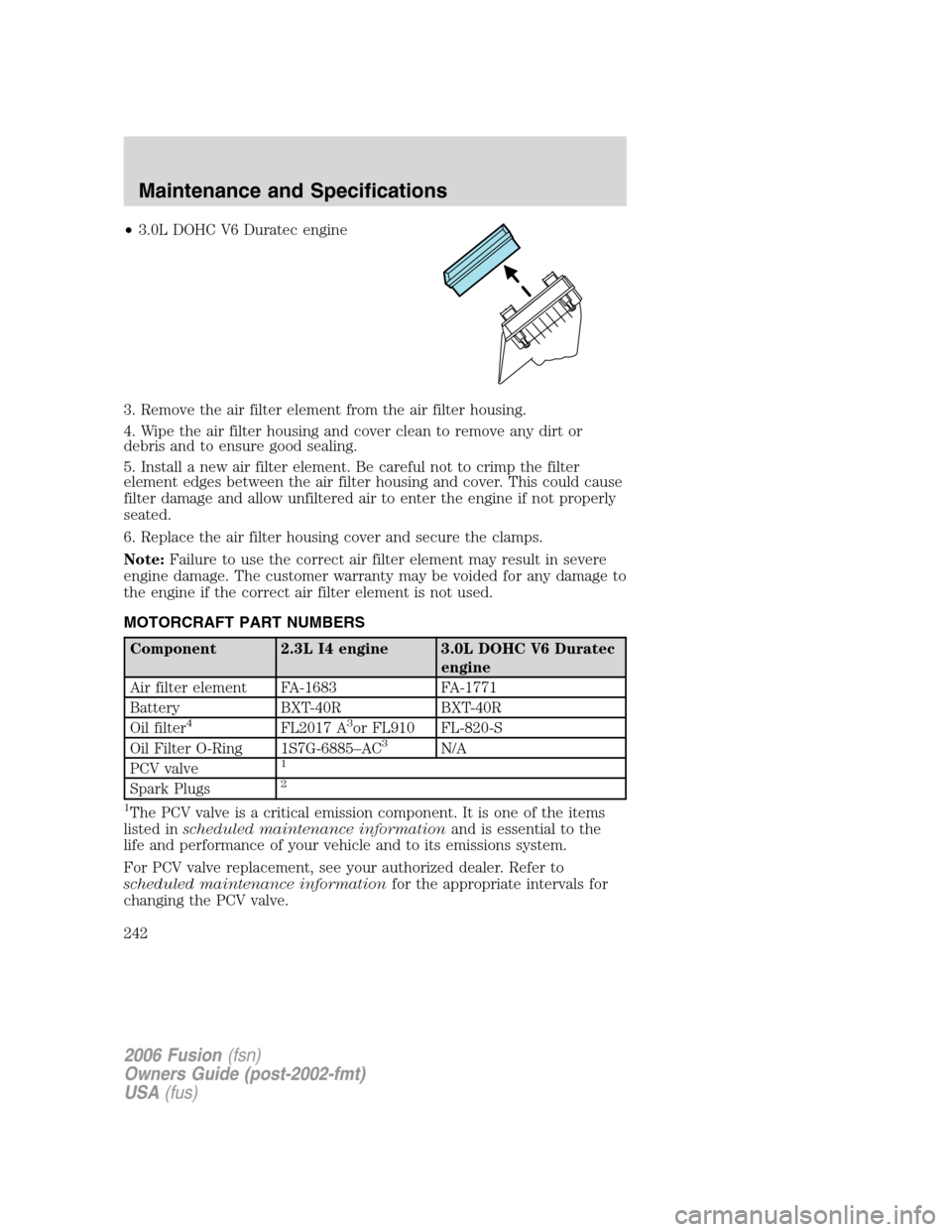

•3.0L DOHC V6 Duratec engine
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the air filter housing cover and secure the clamps.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be voided for any damage to
the engine if the correct air filter element is not used.
MOTORCRAFT PART NUMBERS
Component 2.3L I4 engine 3.0L DOHC V6 Duratec
engine
Air filter element FA-1683 FA-1771
Battery BXT-40R BXT-40R
Oil filter
4FL2017 A3or FL910 FL-820-S
Oil Filter O-Ring 1S7G-6885–AC3N/A
PCV valve1
Spark Plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
242
Page 243 of 264
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
3When changing oil filter, you must also replace the oil filter O-ring, part
number 1S7G-6885–AC.
4The 2.3L engine may be equipped with an FL2017 A, Eco-oil filter or an
FL910, spin on oil filter.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid (and
clutch fluid, if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill between Min
and Max on
reservoir
Engine oil
(including filter
change)
1
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)2.3L I4 engine 4.5 quarts
(4.25L)
3.0L V6 Duratec
engine6.0 quarts
(5.7L)
Fuel tank N/A All 17.5 gallons
(66.2L)
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
243
Page 244 of 264

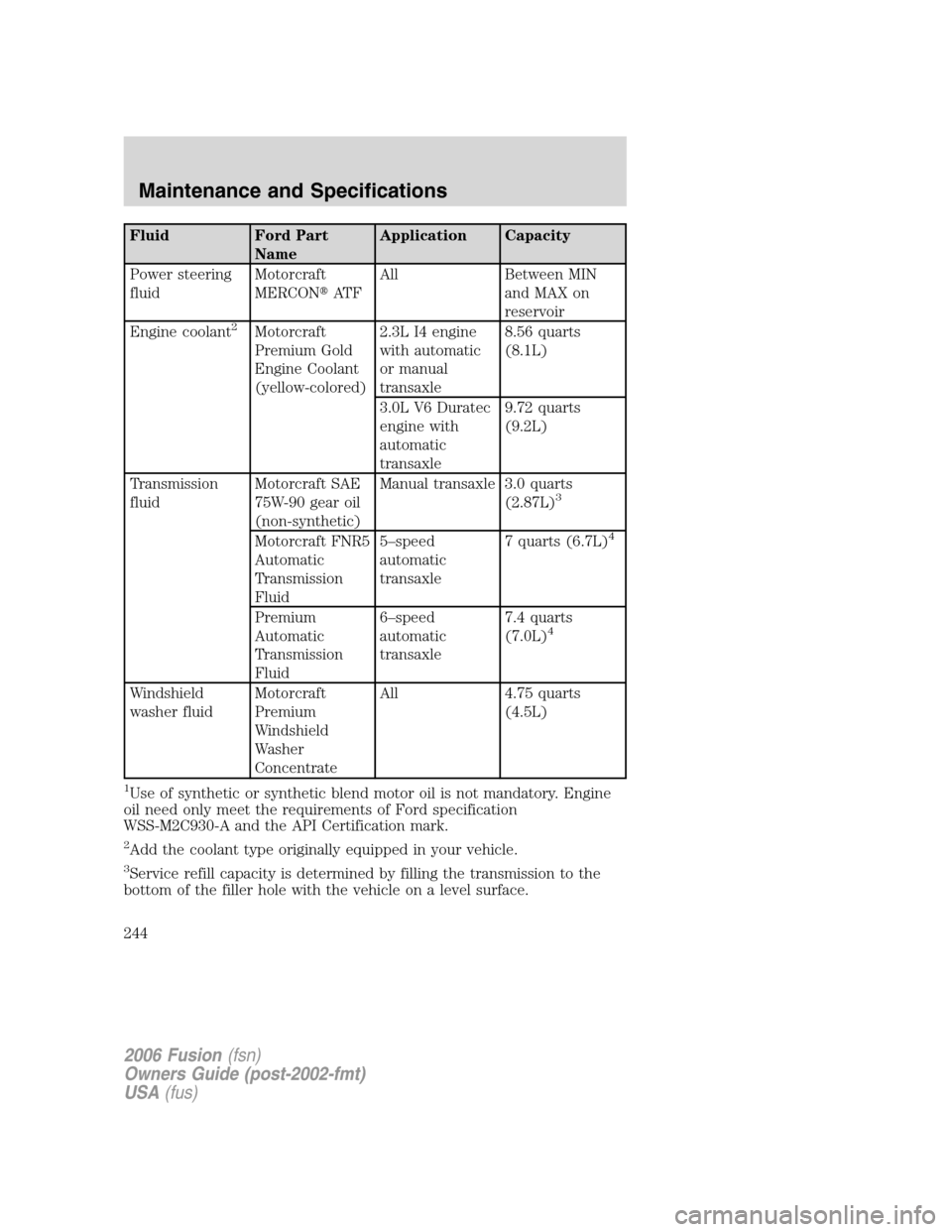

Fluid Ford Part
NameApplication Capacity
Power steering
fluidMotorcraft
MERCONAT FAll Between MIN
and MAX on
reservoir
Engine coolant
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)2.3L I4 engine
with automatic
or manual
transaxle8.56 quarts
(8.1L)
3.0L V6 Duratec
engine with
automatic
transaxle9.72 quarts
(9.2L)
Transmission
fluidMotorcraft SAE
75W-90 gear oil
(non-synthetic)Manual transaxle 3.0 quarts
(2.87L)
3
Motorcraft FNR5
Automatic
Transmission
Fluid5–speed
automatic
transaxle7 quarts (6.7L)4
Premium
Automatic
Transmission
Fluid6–speed
automatic
transaxle7.4 quarts
(7.0L)4
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.75 quarts
(4.5L)
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2Add the coolant type originally equipped in your vehicle.
3Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
244
Page 245 of 264
4Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.

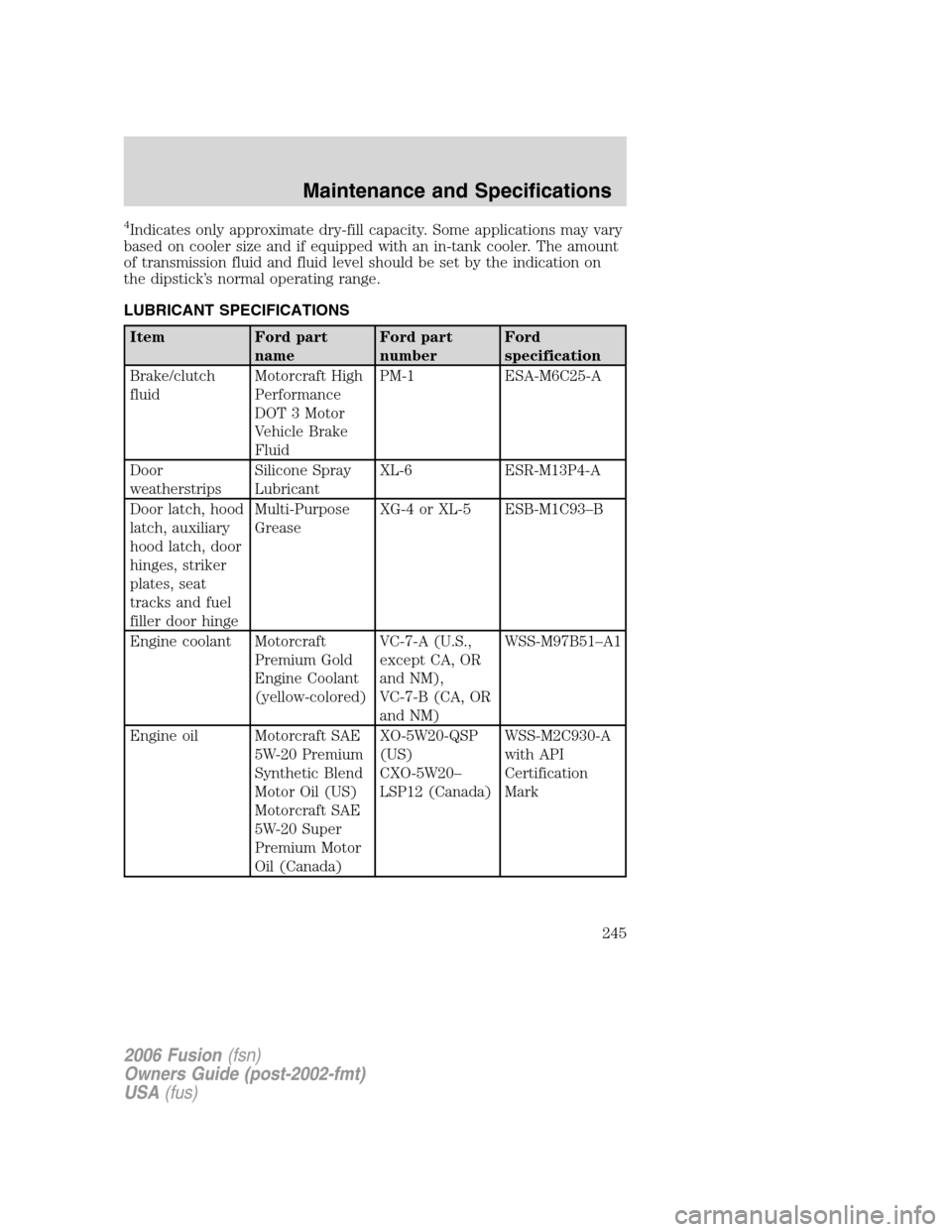

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake/clutch
fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
Door
weatherstripsSilicone Spray
LubricantXL-6 ESR-M13P4-A
Door latch, hood
latch, auxiliary
hood latch, door
hinges, striker
plates, seat
tracks and fuel
filler door hingeMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93–B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM),
VC-7-B (CA, OR
and NM)WSS-M97B51–A1
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–
LSP12 (Canada)WSS-M2C930-A
with API
Certification
Mark
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
245
Page 246 of 264
Item Ford part
nameFord part
numberFord
specification
Lock cylinders Motorcraft
Penetrating and
Lock LubricantXL-1 none
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Manual transaxle
fluidMotorcraft
75W-90 gear oil
(non-synthetic)F32Z-19C547-MA WSS-M2C203-A1
Automatic
transaxle fluid
5-SpeedMotorcraft FNR5
Automatic
Transmission
FluidXT-9-QMM5 MAZDA V (S)
Automatic
transaxle fluid
6-SpeedMotorcraft
Premium
Automatic
Transmission
FluidXT-8-QAW WSS-M2C924-A
Windshield
washer fluidPremium
Windshield
Washer
ConcentrateZC-32-A WSB-M8B16–A2
ENGINE DATA
Engine 2.3L I4 engine 3.0L DOHC V6
Duratec engine
Cubic inches 140 182
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35 mm)0.052–0.056 inch
(1.32–1.42 mm)
Compression ratio 9.7:1 10.0:1
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246
Page 247 of 264

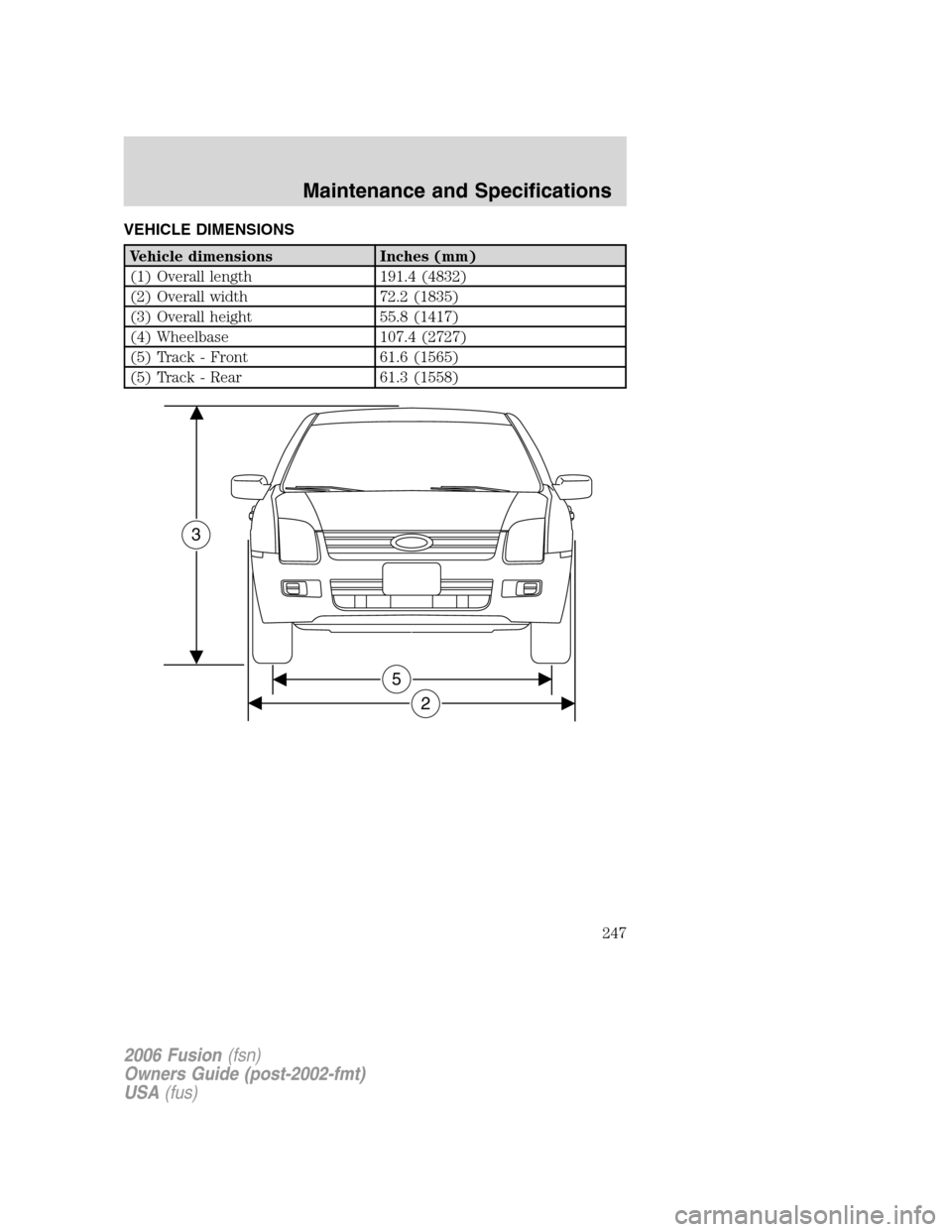

VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 191.4 (4832)
(2) Overall width 72.2 (1835)
(3) Overall height 55.8 (1417)
(4) Wheelbase 107.4 (2727)
(5) Track - Front 61.6 (1565)
(5) Track - Rear 61.3 (1558)
5
2
3
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
247
Page 248 of 264

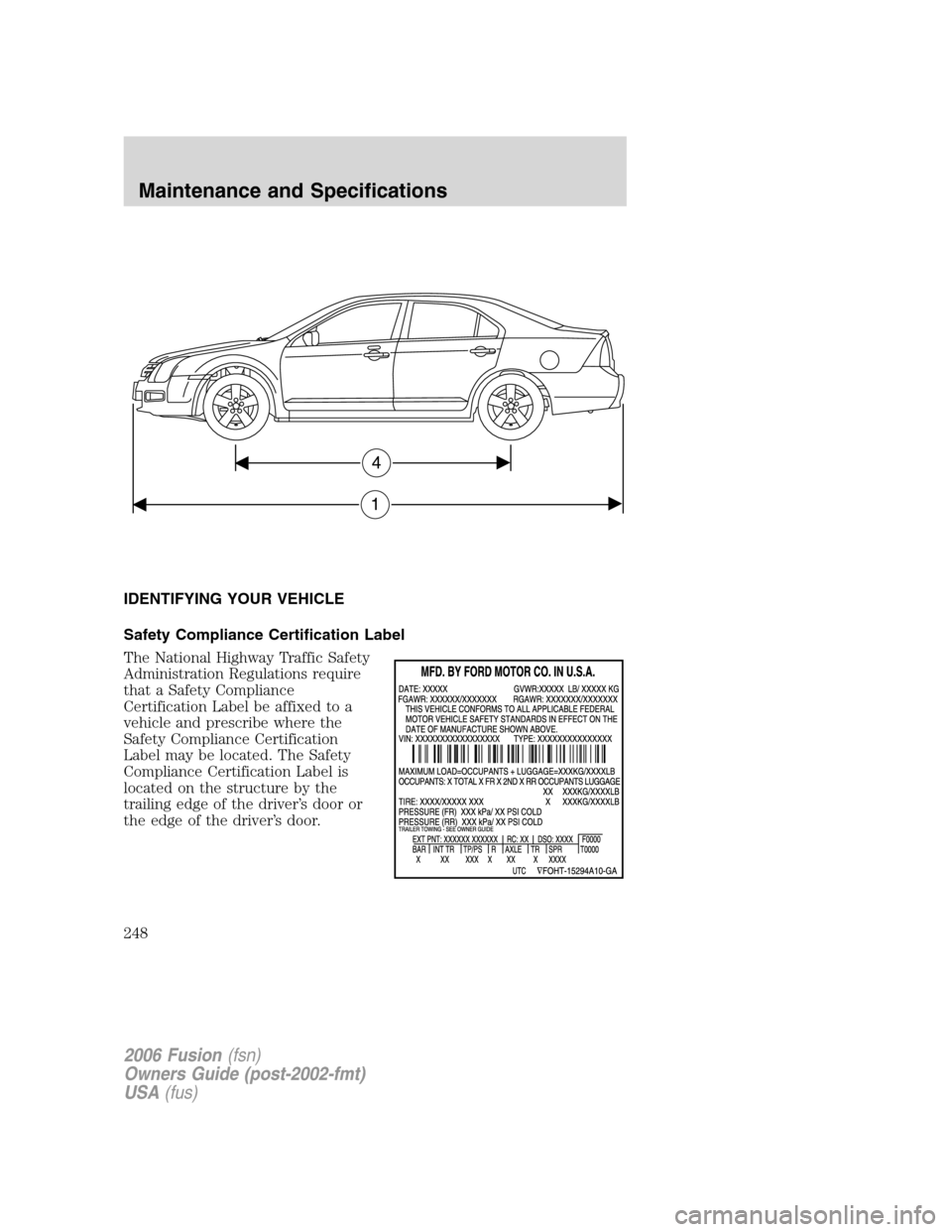

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
1
4
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
248
Page 249 of 264

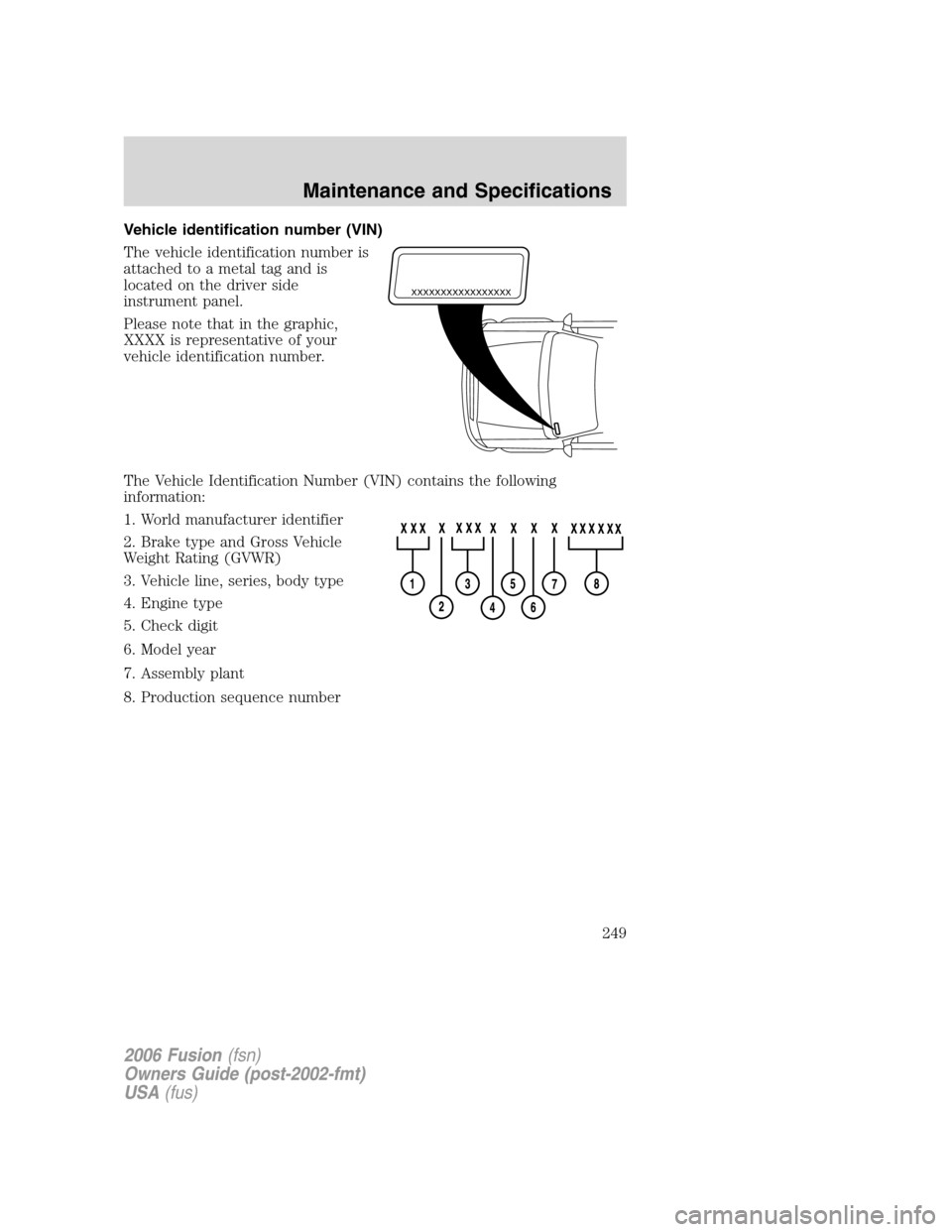

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
249
Page 250 of 264

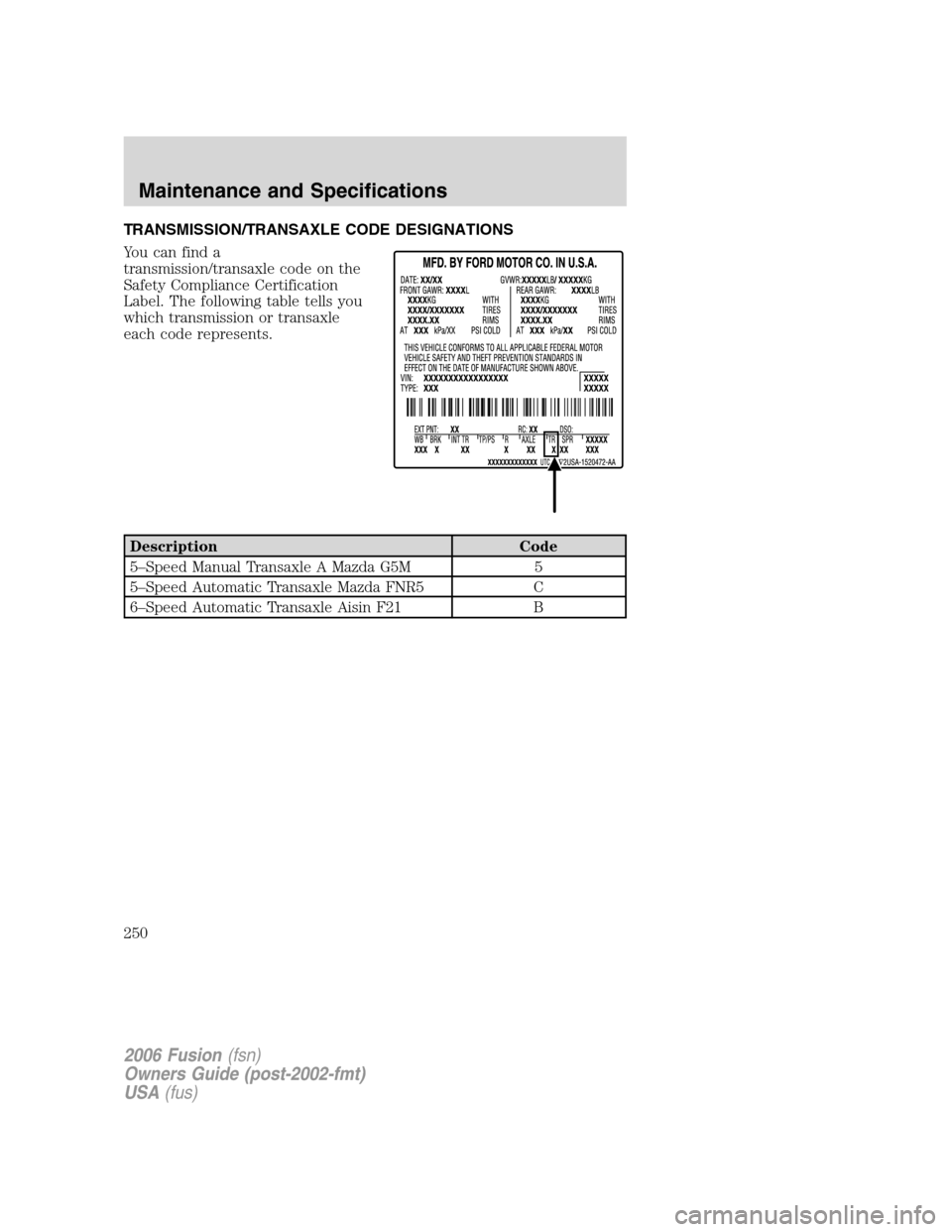

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
5–Speed Manual Transaxle A Mazda G5M 5
5–Speed Automatic Transaxle Mazda FNR5 C
6–Speed Automatic Transaxle Aisin F21 B
2006 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
250
