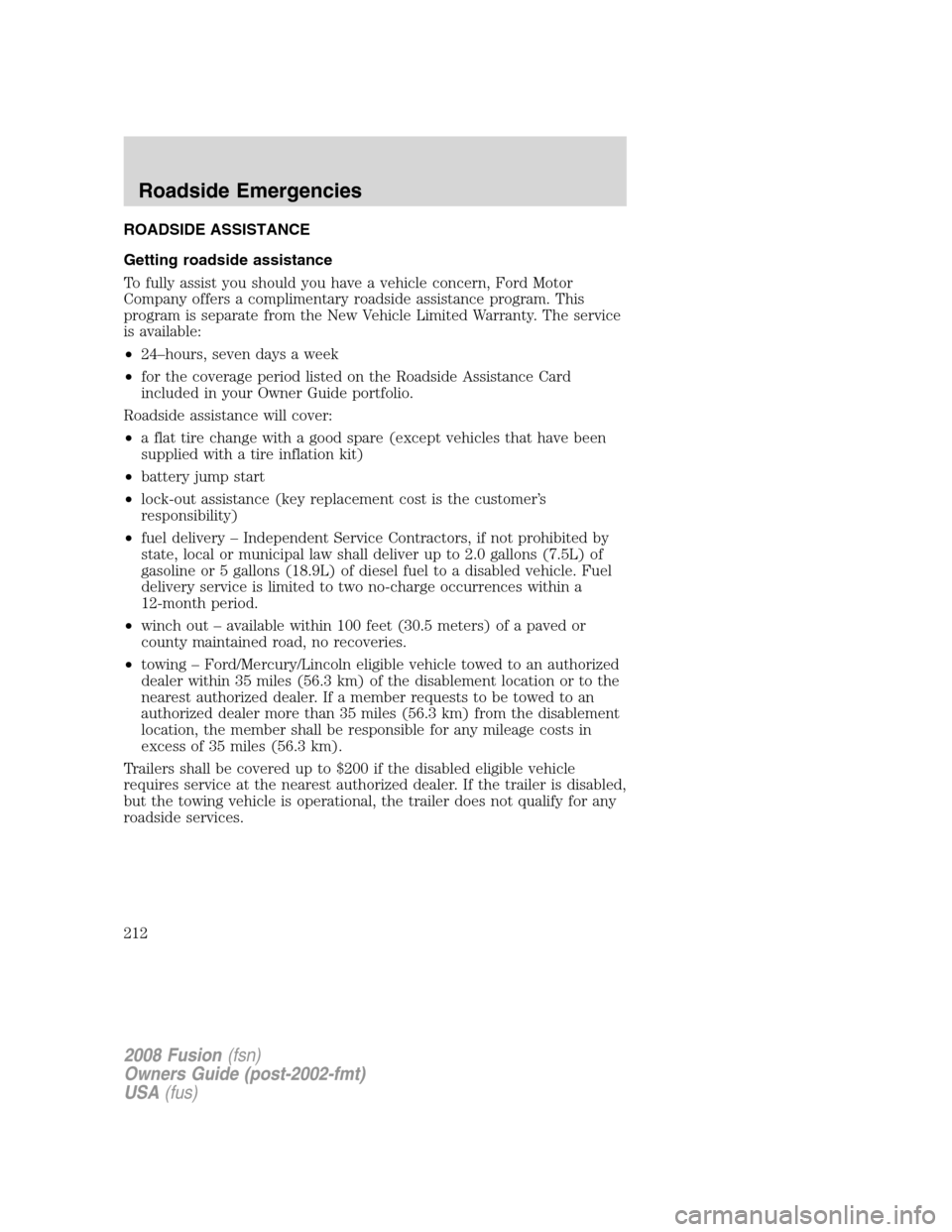

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56.3 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56.3 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56.3 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
212

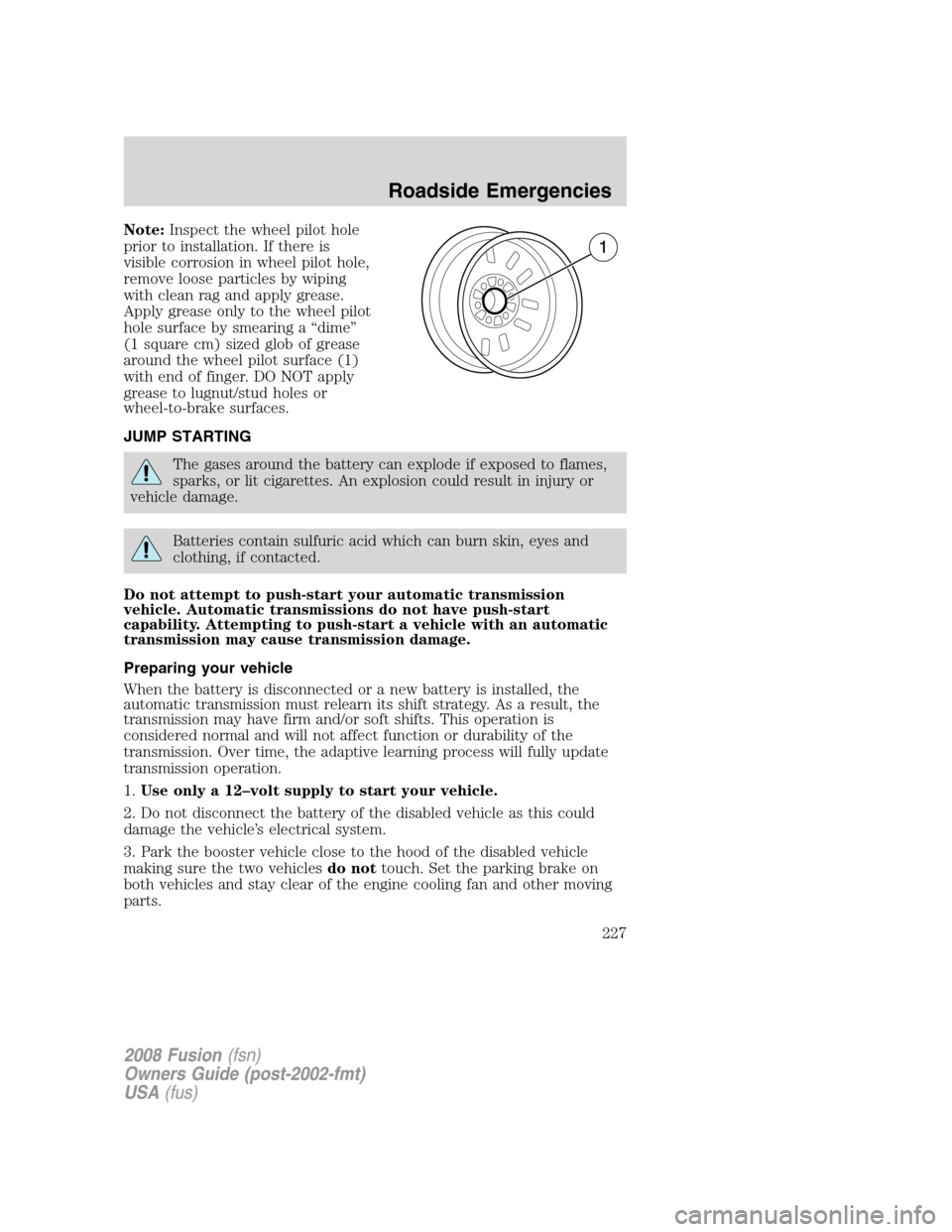

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
JUMP STARTING
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
Batteries contain sulfuric acid which can burn skin, eyes and
clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
227

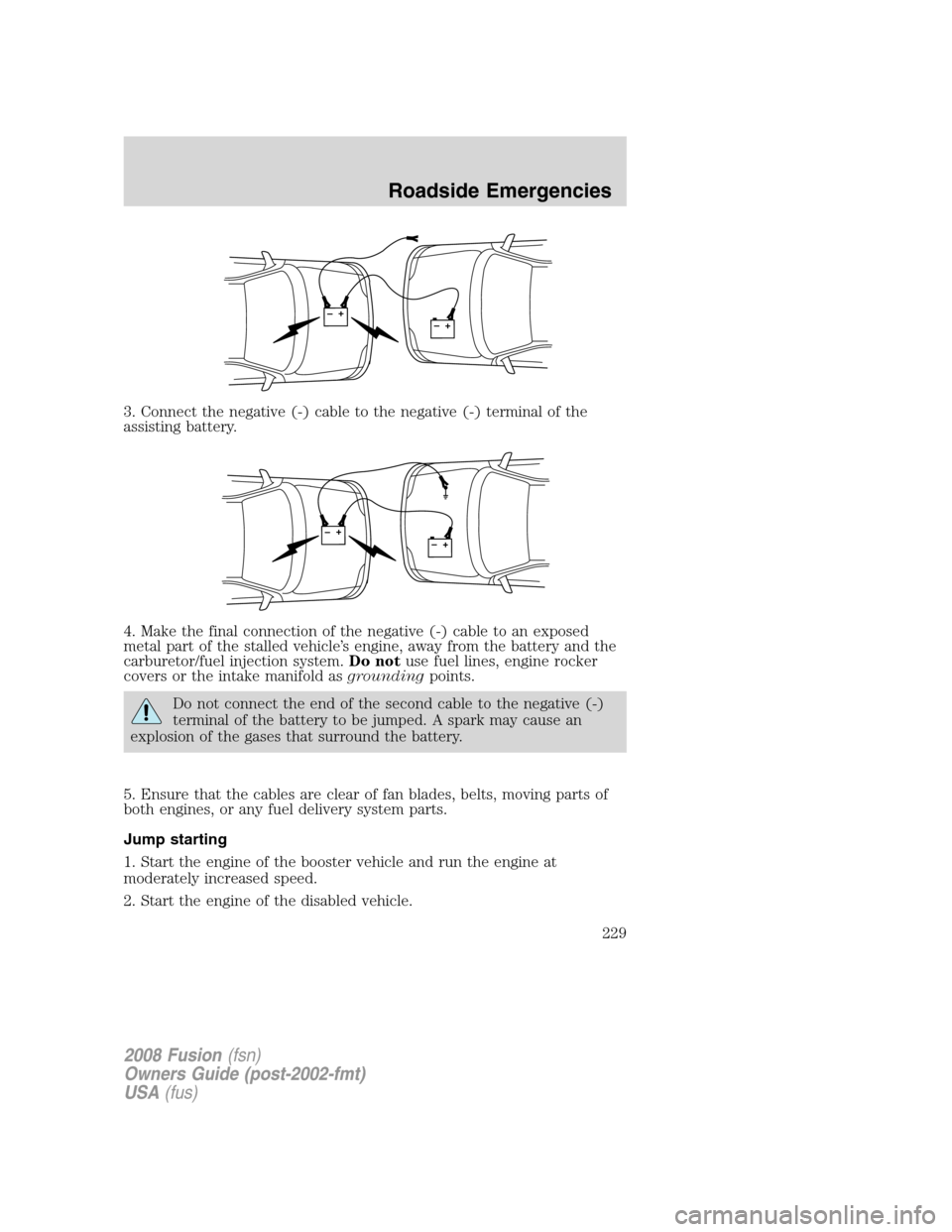

3. Connect the negative (-) cable to the negative (-) terminal of the
assisting battery.
4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel lines, engine rocker
covers or the intake manifold asgroundingpoints.
Do not connect the end of the second cable to the negative (-)
terminal of the battery to be jumped. A spark may cause an
explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
+–+–
+–+–
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
229

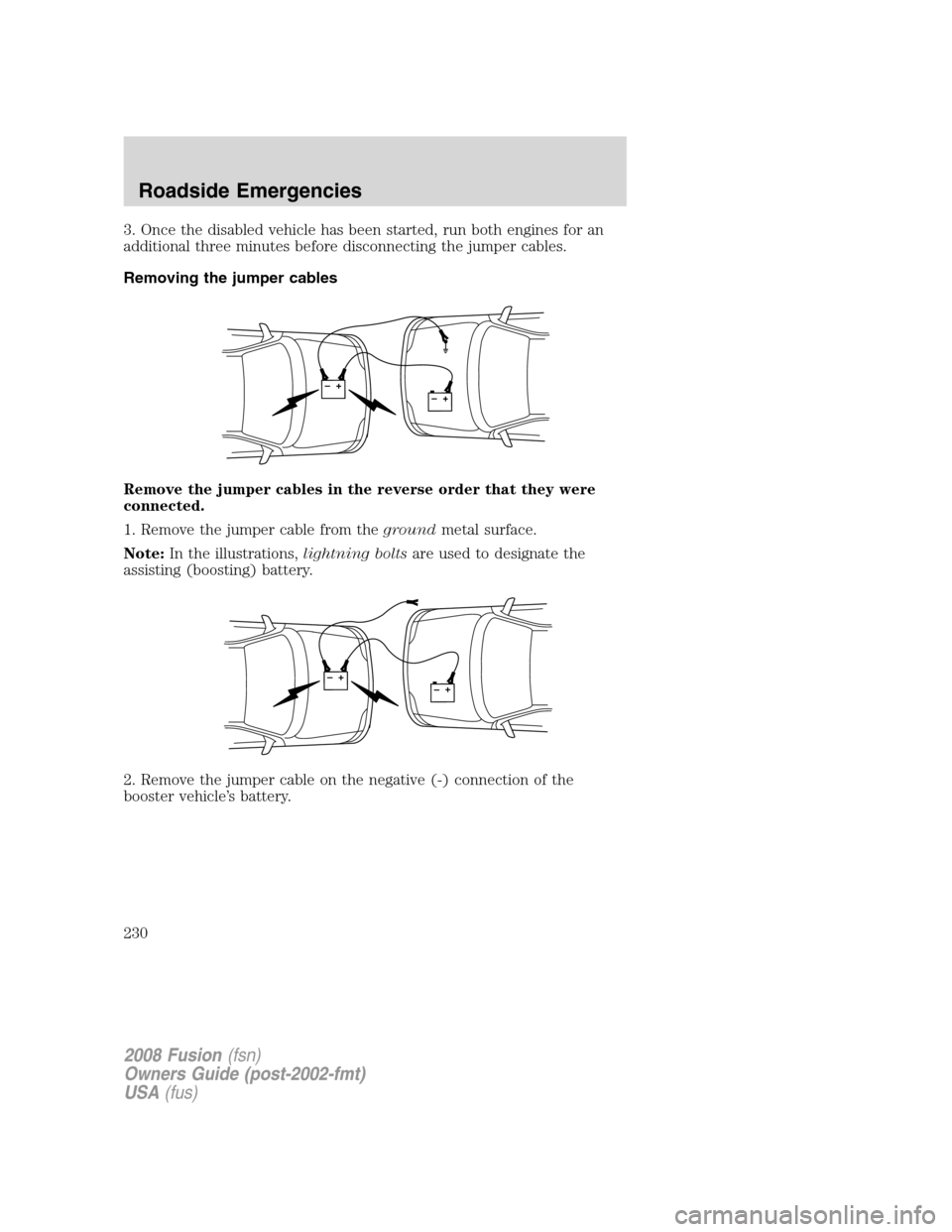

3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
1. Remove the jumper cable from thegroundmetal surface.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Remove the jumper cable on the negative (-) connection of the
booster vehicle’s battery.
+–+–
+–+–
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
230

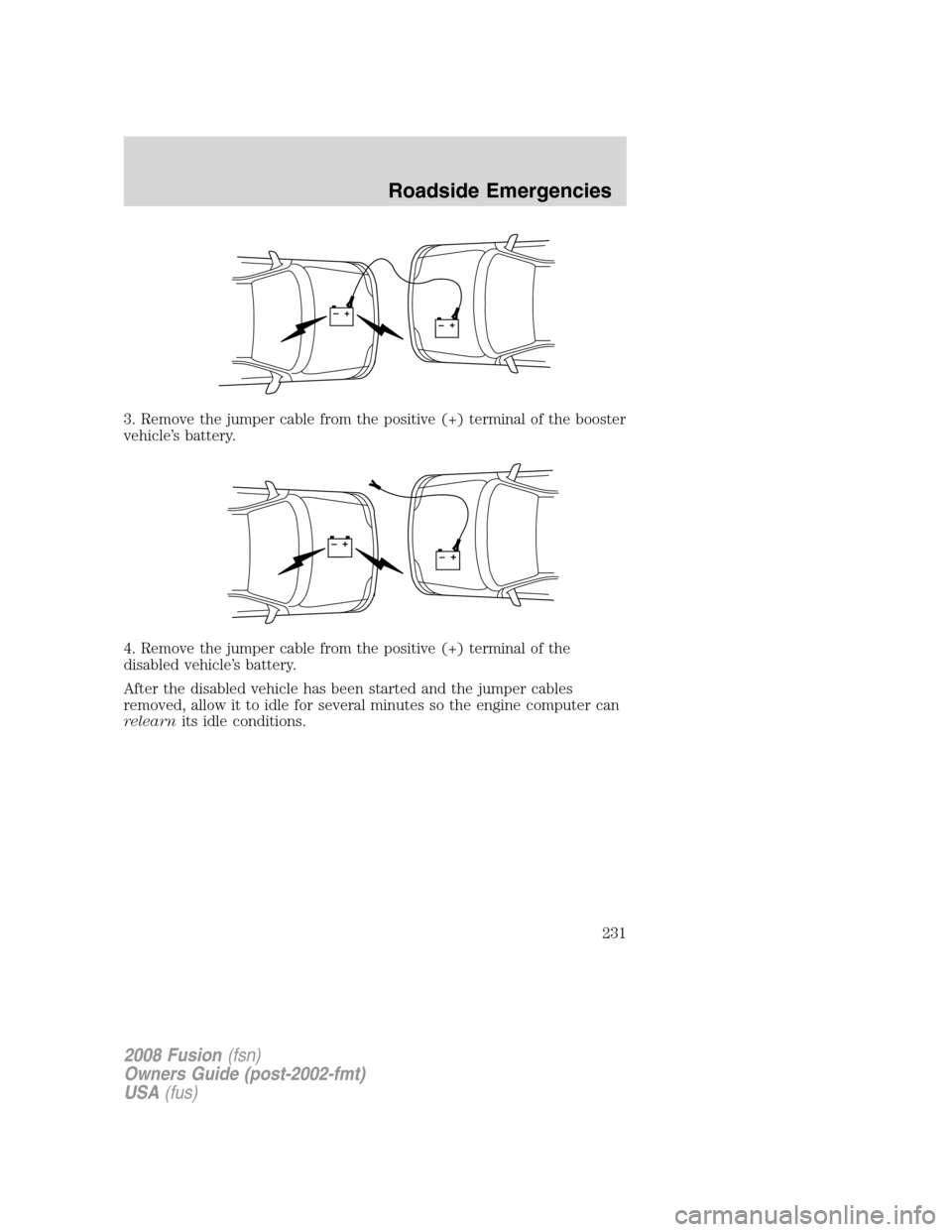

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
231

in front seat ............................155
in rear seat ..............................155
Child safety seats - booster
seats ...........................................151
Cleaning your vehicle
engine compartment ..............243
instrument panel ....................245
interior .....................................246
plastic parts ............................244
washing ....................................241
waxing .....................................242
wheels ......................................242
wiper blades ............................245
Climate control (see Air
conditioning or Heating) ......48, 50
Clock ............................................72
Clock adjust
6-CD in dash .............................31
AM/FM/CD .................................23
Clutch
fluid ..........................................279
operation while driving ..........202
recommended shift speeds ....203
Compass, electronic
set zone adjustment .................86
Console ........................................71
overhead ....................................71
Controls
power seat ...............................117
steering column ........................79
Coolant
checking and adding ..............261
refill capacities ................265, 288
specifications ..........................288
Cruise control
(see Speed control) ....................76
Cupholder(s) .............................121
Customer Assistance ................212Ford Extended Service
Plan ..........................................237
Getting assistance outside the
U.S. and Canada .....................238
Getting roadside assistance ...212
Getting the service you
need .........................................233
Ordering additional owner’s
literature .................................239
Utilizing the
Mediation/Arbitration
Program ...................................237
D
Daytime running lamps
(see Lamps) ................................55
Dipstick
automatic transmission
fluid ..................................279, 281
engine oil .................................254
Driving under special
conditions ..................201, 207, 209
sand .........................................208
snow and ice ...........................210
through water .................208, 211
E
Electronic message center .........83
Emergencies, roadside
jump-starting ..........................227
Emission control system ..........275
Engine ........................................291
cleaning ...................................243
coolant .....................................261
fail-safe cooling .......................266
idle speed control ...................259
lubrication specifications .......288
refill capacities ........................288
service points ..................251–252
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
297

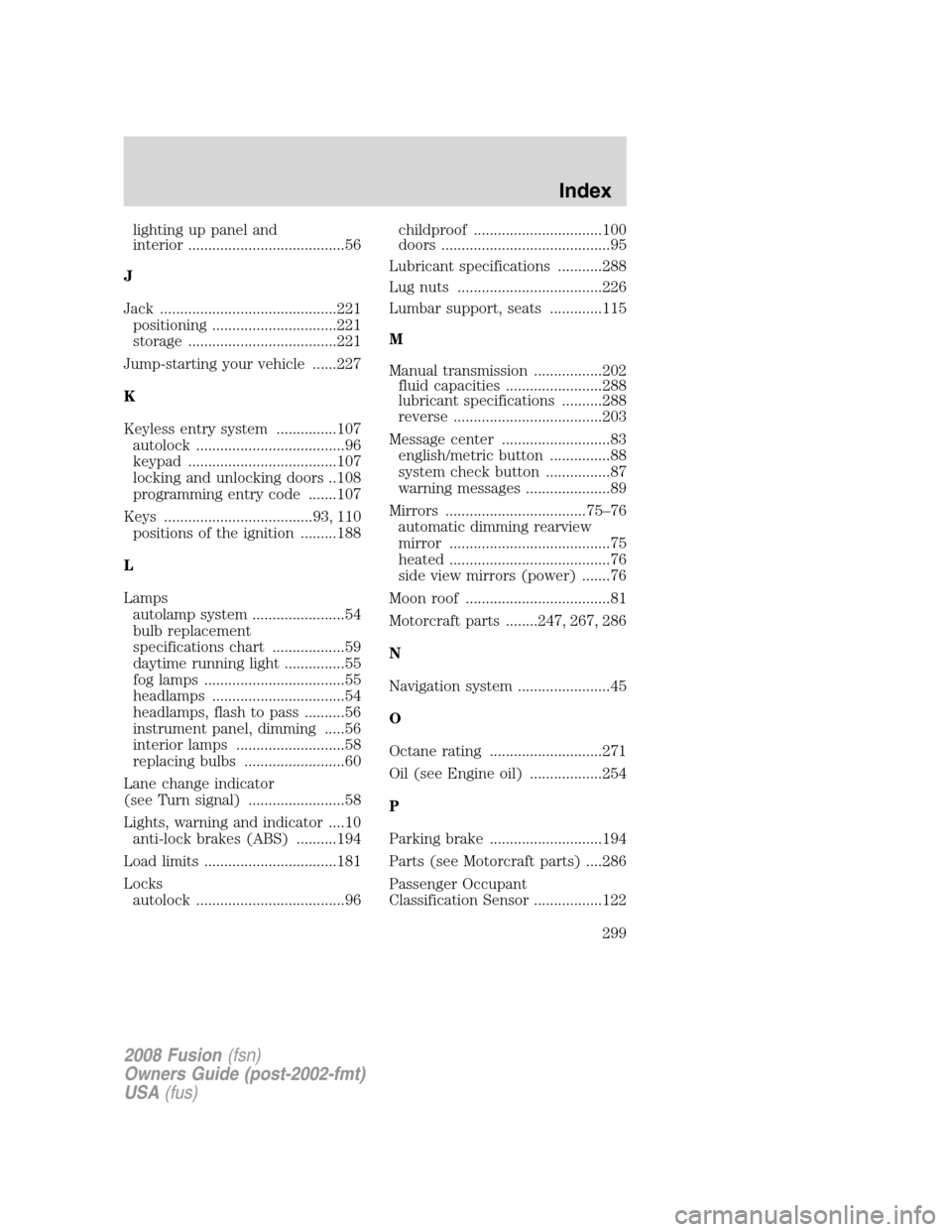

lighting up panel and
interior .......................................56
J
Jack ............................................221
positioning ...............................221
storage .....................................221
Jump-starting your vehicle ......227
K
Keyless entry system ...............107
autolock .....................................96
keypad .....................................107
locking and unlocking doors ..108
programming entry code .......107
Keys .....................................93, 110
positions of the ignition .........188
L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................59
daytime running light ...............55
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........56
instrument panel, dimming .....56
interior lamps ...........................58
replacing bulbs .........................60
Lane change indicator
(see Turn signal) ........................58
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........194
Load limits .................................181
Locks
autolock .....................................96childproof ................................100
doors ..........................................95
Lubricant specifications ...........288
Lug nuts ....................................226
Lumbar support, seats .............115
M
Manual transmission .................202
fluid capacities ........................288
lubricant specifications ..........288
reverse .....................................203
Message center ...........................83
english/metric button ...............88
system check button ................87
warning messages .....................89
Mirrors ...................................75–76
automatic dimming rearview
mirror ........................................75
heated ........................................76
side view mirrors (power) .......76
Moon roof ....................................81
Motorcraft parts ........247, 267, 286
N
Navigation system .......................45
O
Octane rating ............................271
Oil (see Engine oil) ..................254
P
Parking brake ............................194
Parts (see Motorcraft parts) ....286
Passenger Occupant
Classification Sensor .................122
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
299

Power distribution box
(see Fuses) ...............................218
Power door locks ........................95
Power mirrors .............................76
Power point .................................72
Power steering ..................196–197
fluid, checking and adding ....278
fluid, refill capacity ................288
fluid, specifications .................288
Power Windows ...........................73
R
Radio ................................17, 21, 29
Relays ........................................215
Remote entry system .......102–103
illuminated entry ............105–106
locking/unlocking doors .........103
opening the trunk ...................104
panic alarm .............................103
replacement/additional
transmitters .............................105
replacing the batteries ...........104
Reverse sensing system ...........204
Roadside assistance ..................212
S
Safety Belt Maintenance ..........129
Safety belts (see Safety
restraints) ..........121, 124, 126–129
Safety Canopy ...........................144
Safety defects, reporting ..239–240
Safety
restraints ...........121, 124, 126–129
Belt-Minder...........................130
extension assembly ................129
for adults .........................126–128for children .....................150–151
Occupant Classification
Sensor ......................................122
safety belt maintenance .........129
warning light and chime ........130
Safety seats for children ..........154
Safety Compliance
Certification Label ....................292
Satellite Radio Information ........42
Seats ..........................................114
child safety seats ....................154
front seats ...............114–115, 118
heated ........................................50
SecuriLock passive anti-theft
system ........................................109
Servicing your vehicle ..............249
Setting the clock
AM/FM/CD .................................23
AM/FM/In-dash 6 CD ................31
Side air curtain .........................147
Spark plugs,
specifications .....................286, 291
Specification chart,
lubricants ...................................288
Speed control ..............................76
Starting your
vehicle ........................188–189, 191
jump starting ..........................227
Steering
speed sensitive .......................197
Steering wheel
controls ......................................79
tilting .........................................70
T
Tilt steering wheel ......................70
2008 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Index
300
