airbag FORD FUSION (AMERICAS) 2009 1.G Owners Manual

FORD FUSION (AMERICAS) 2009 1.G Owners Manual https://www.carmanualsonline.info/img/11/5185/w960_5185-0.png FORD FUSION (AMERICAS) 2009 1.G Owners Manual

Page 2 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual Locks and Security 91
Keys 91
Locks 93
Anti-theft system 106
Seating and Safety Restraints 112
Seating 112
Safety restraints 121
Airbags 135
Child restraints 150
Tires, Wheels and Loading 166
Tire inf

Page 5 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the envi

Page 6 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by
your vehicle’s New Vehicle Limited Warranty, refer to theWarranty
Guide/Customer

Page 8 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAirbag - Front
Airbag - SideChild Seat Lower
Anchor
Child Seat Tet

Page 12 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle ch

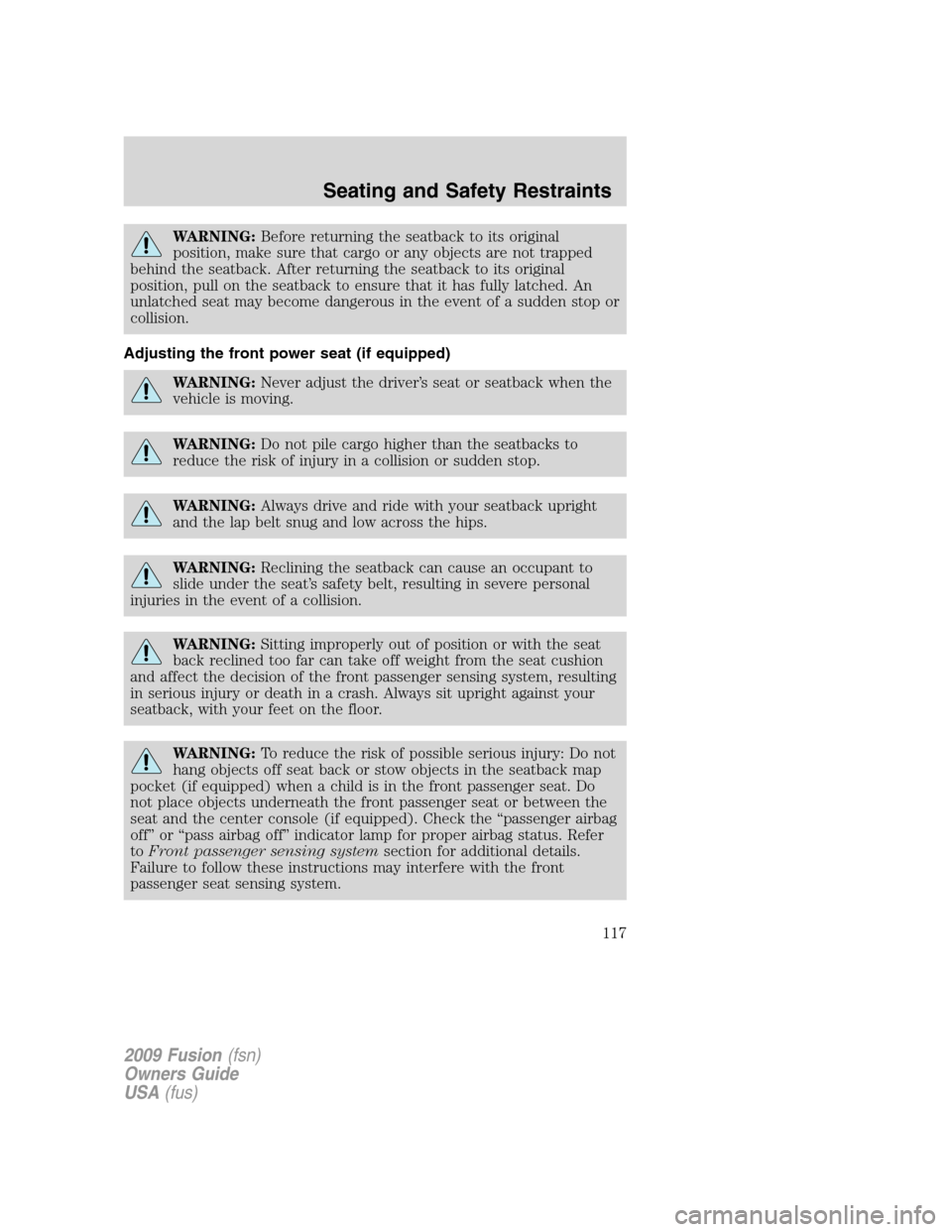

Page 117 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on

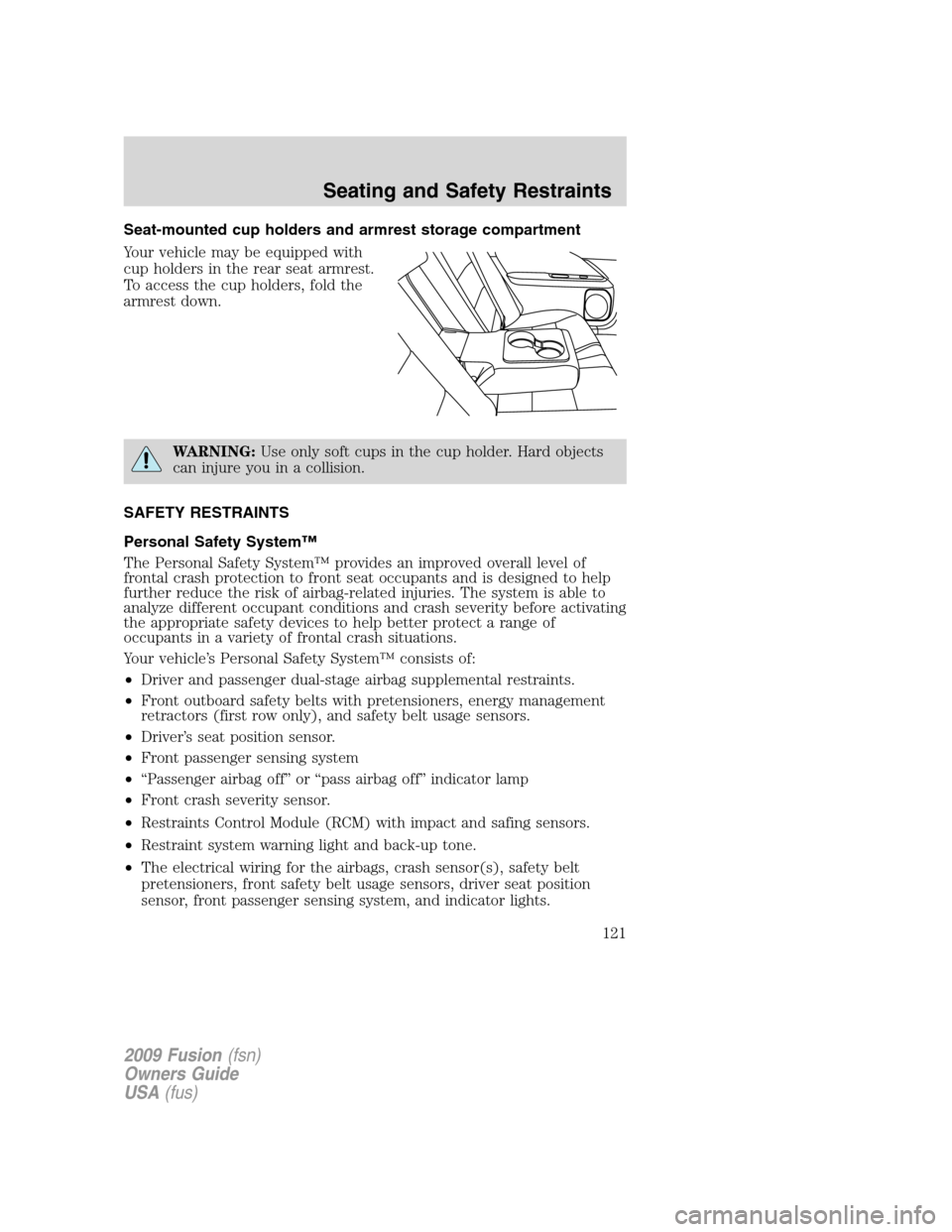

Page 121 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual Seat-mounted cup holders and armrest storage compartment
Your vehicle may be equipped with
cup holders in the rear seat armrest.
To access the cup holders, fold the
armrest down.
WARNING:Use only soft

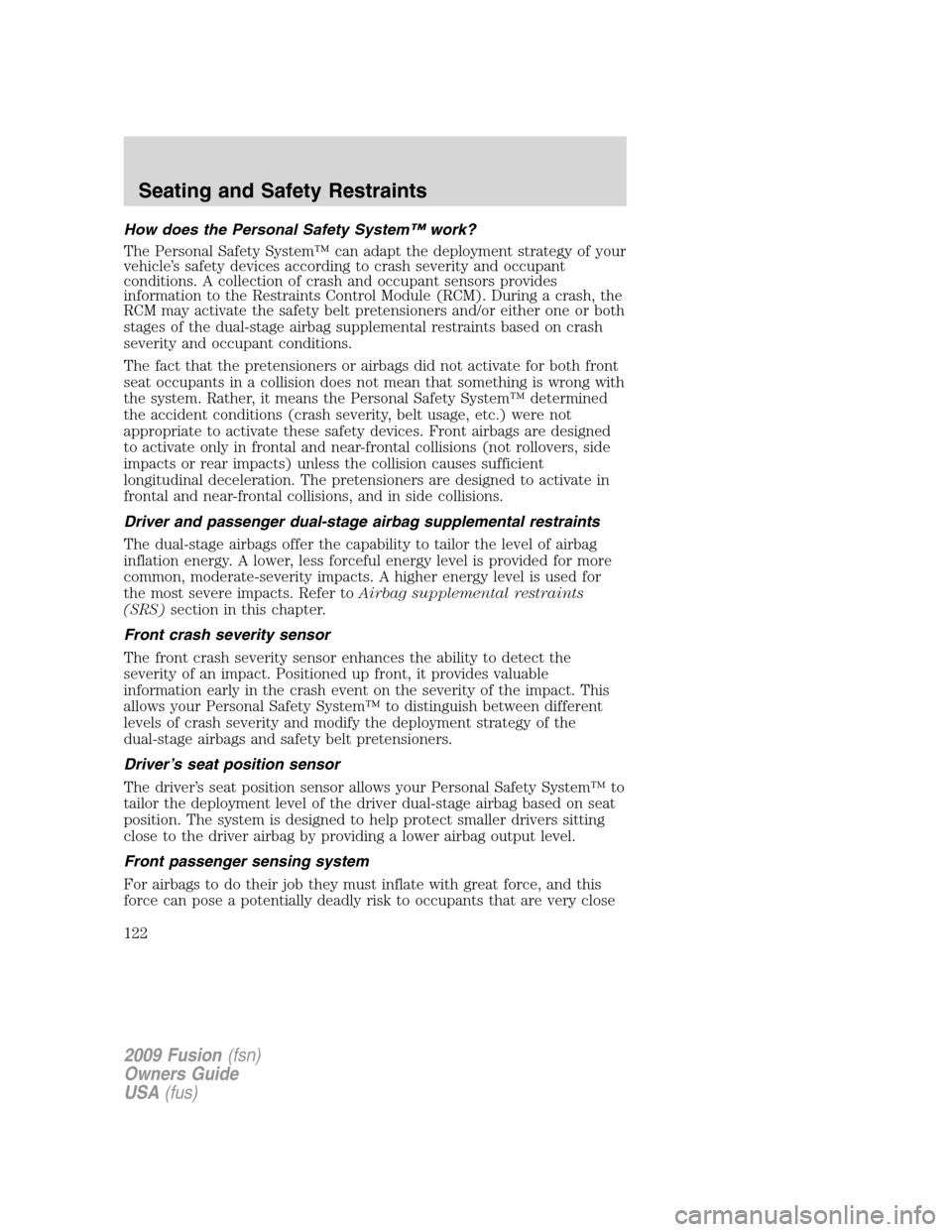

Page 122 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual How does the Personal Safety System™ work?
The Personal Safety System™ can adapt the deployment strategy of your
vehicle’s safety devices according to crash severity and occupant
conditions. A c

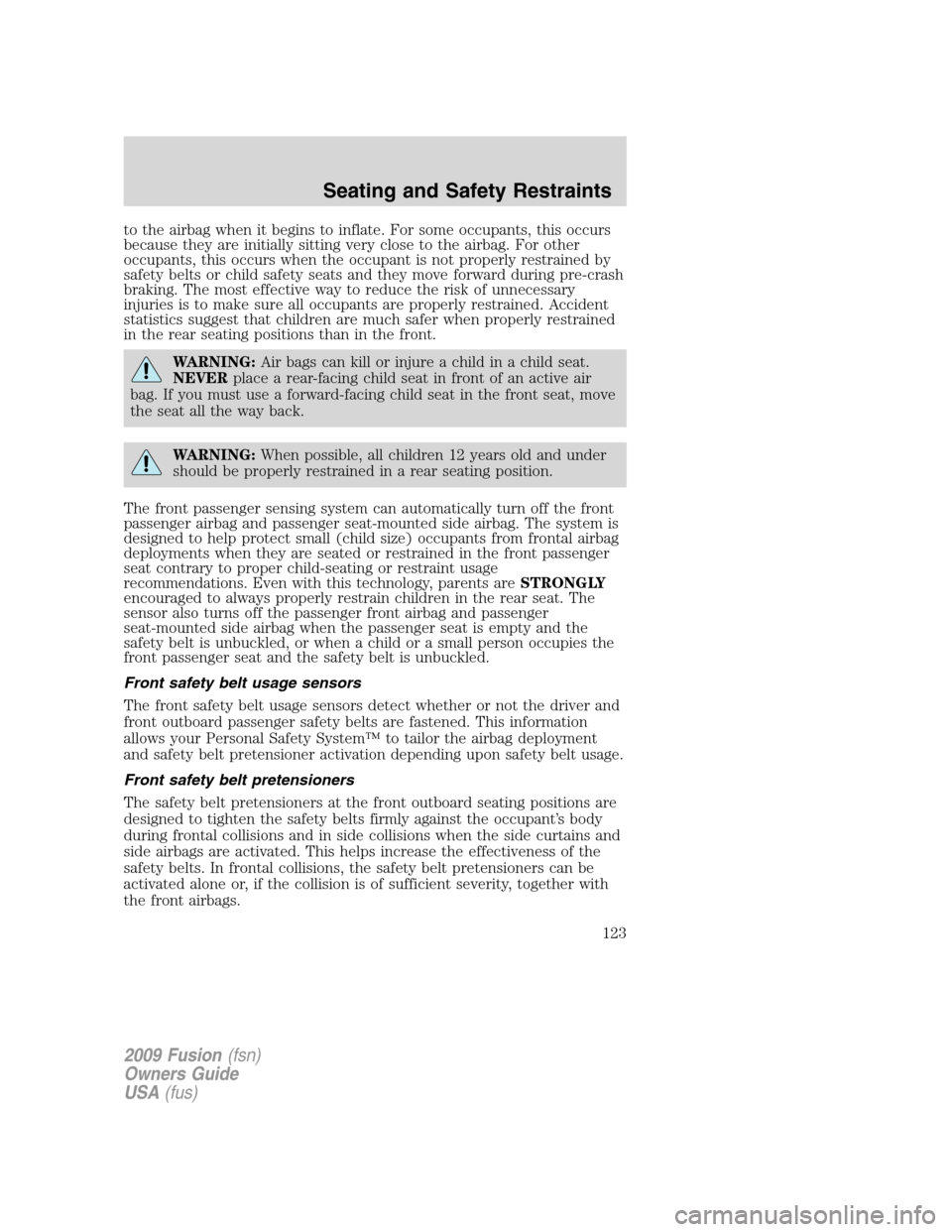

Page 123 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual to the airbag when it begins to inflate. For some occupants, this occurs
because they are initially sitting very close to the airbag. For other
occupants, this occurs when the occupant is not properly

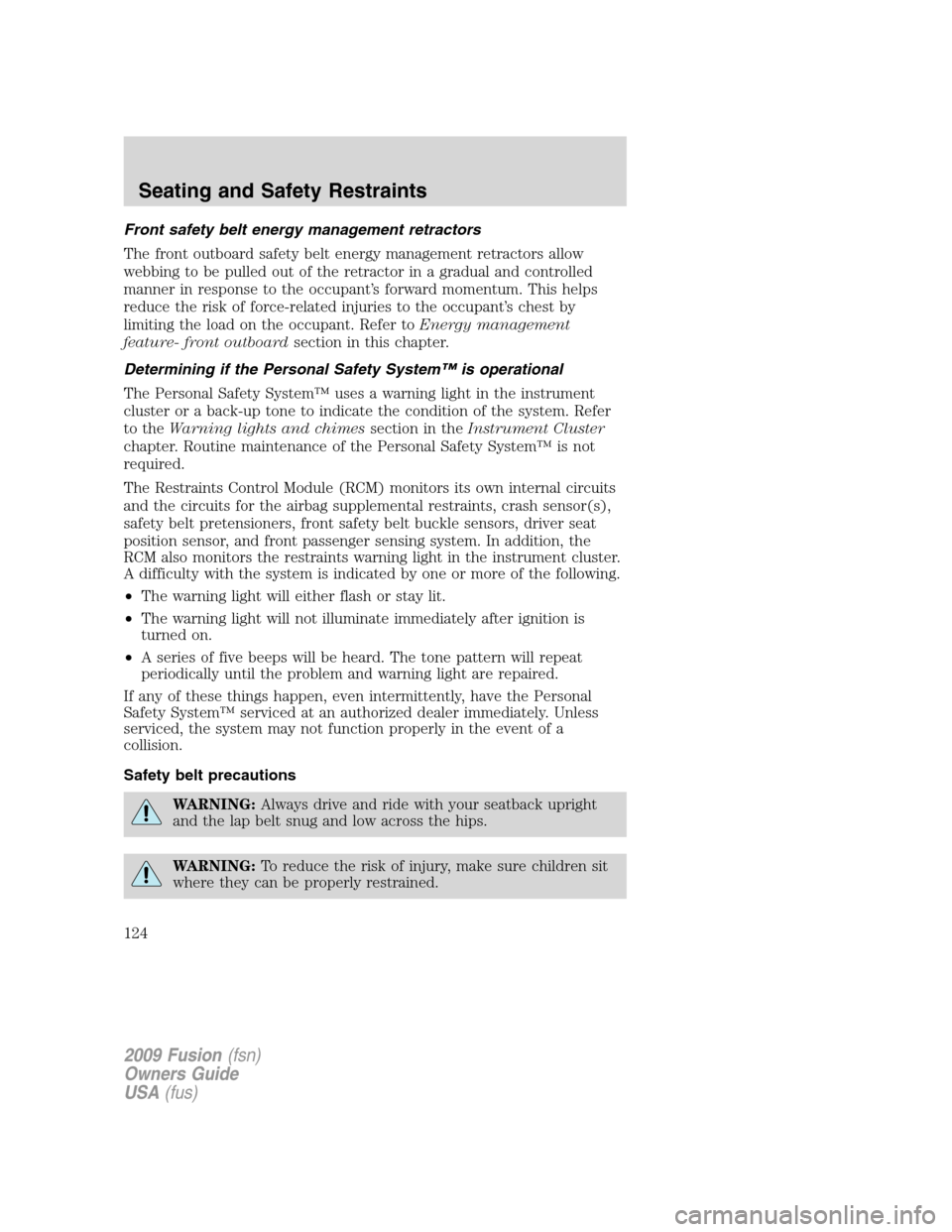

Page 124 of 312

FORD FUSION (AMERICAS) 2009 1.G Owners Manual Front safety belt energy management retractors
The front outboard safety belt energy management retractors allow
webbing to be pulled out of the retractor in a gradual and controlled
manner in respons
