FORD FUSION (AMERICAS) 2011 1.G Owners Manual

Extensive idling and/or low-speed driving for long distances as in heavy
commercial use such as delivery, taxi, patrol car or livery
As required– Change engine oil and filter as indicated by message
center and perform services listed in the Normal
Scheduled Maintenance chart (except Fiesta)
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 300 hours of engine
operation*– Change engine oil and filter (Fiesta)
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta and
vehicles equipped with a 6R80 transmission)
Every 60,000 miles (96,000 km)– Replace spark plugs
* Engine hour meter installation is recommended for these operating
conditions.
Perform the services noted in the preceding table at the specified
time/mileage (km) period either within 3,000 miles (4,800 km) of the
OIL CHANGE REQUIRED message appearing in the message center or
when the time/mileage (km) reading indicates service is due.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Scheduled Maintenance
361
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

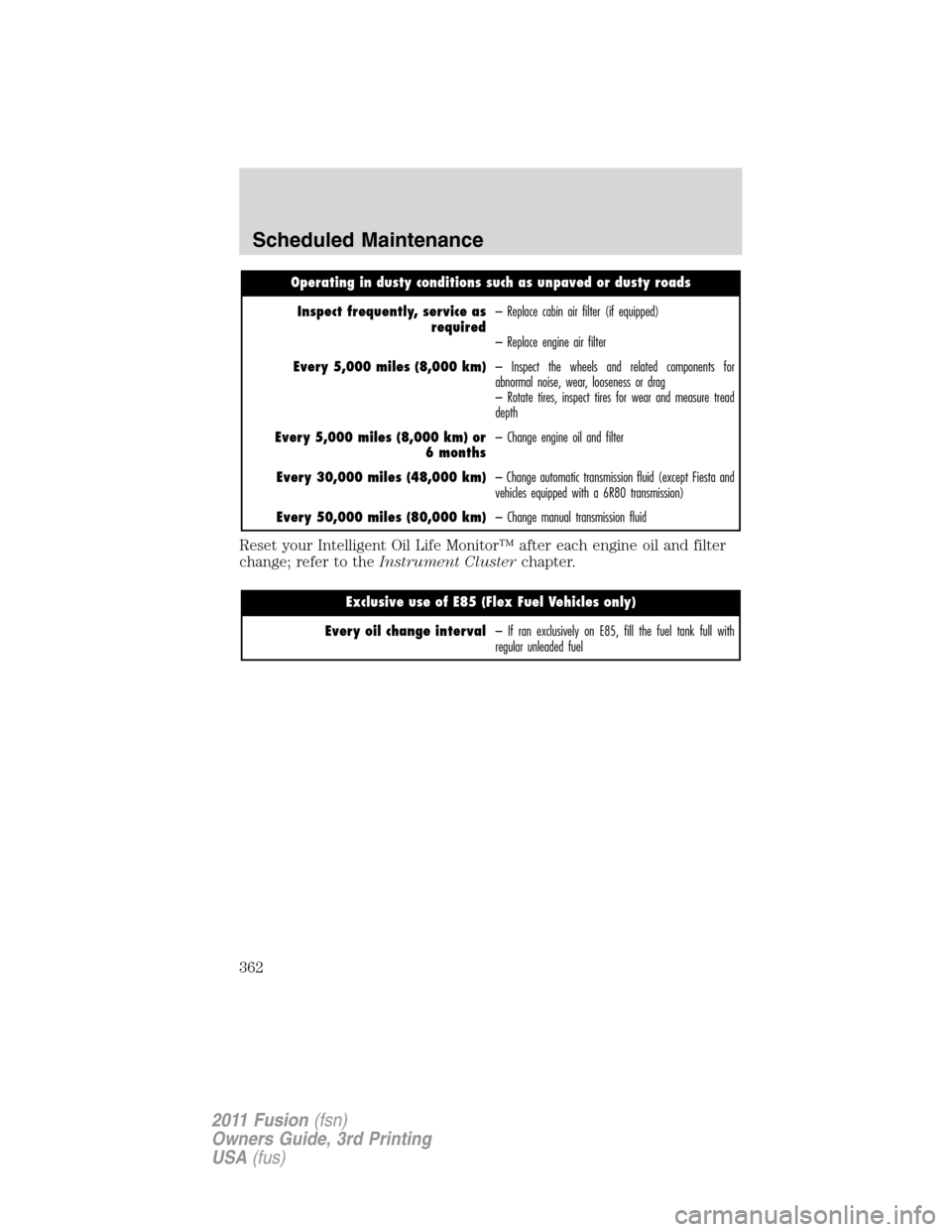

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently, service as
required– Replace cabin air filter (if equipped)
– Replace engine air filter
Every 5,000 miles (8,000 km)– Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
– Rotate tires, inspect tires for wear and measure tread
depth
Every 5,000 miles (8,000 km) or
6 months– Change engine oil and filter
Every 30,000 miles (48,000 km)– Change automatic transmission fluid (except Fiesta and
vehicles equipped with a 6R80 transmission)
Every 50,000 miles (80,000 km)– Change manual transmission fluid
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter.
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change interval– If ran exclusively on E85, fill the fuel tank full with
regular unleaded fuel
Scheduled Maintenance
362
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

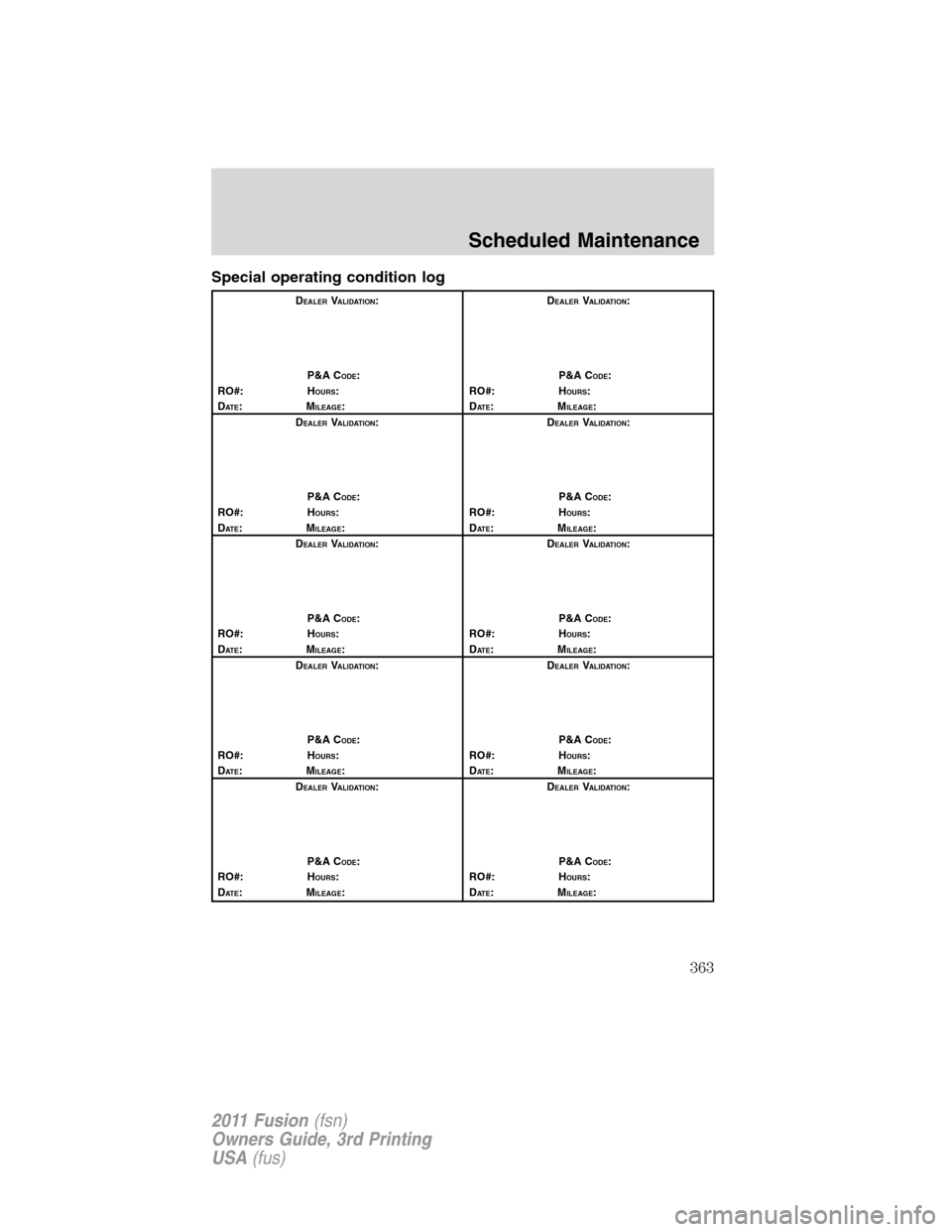

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
363
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

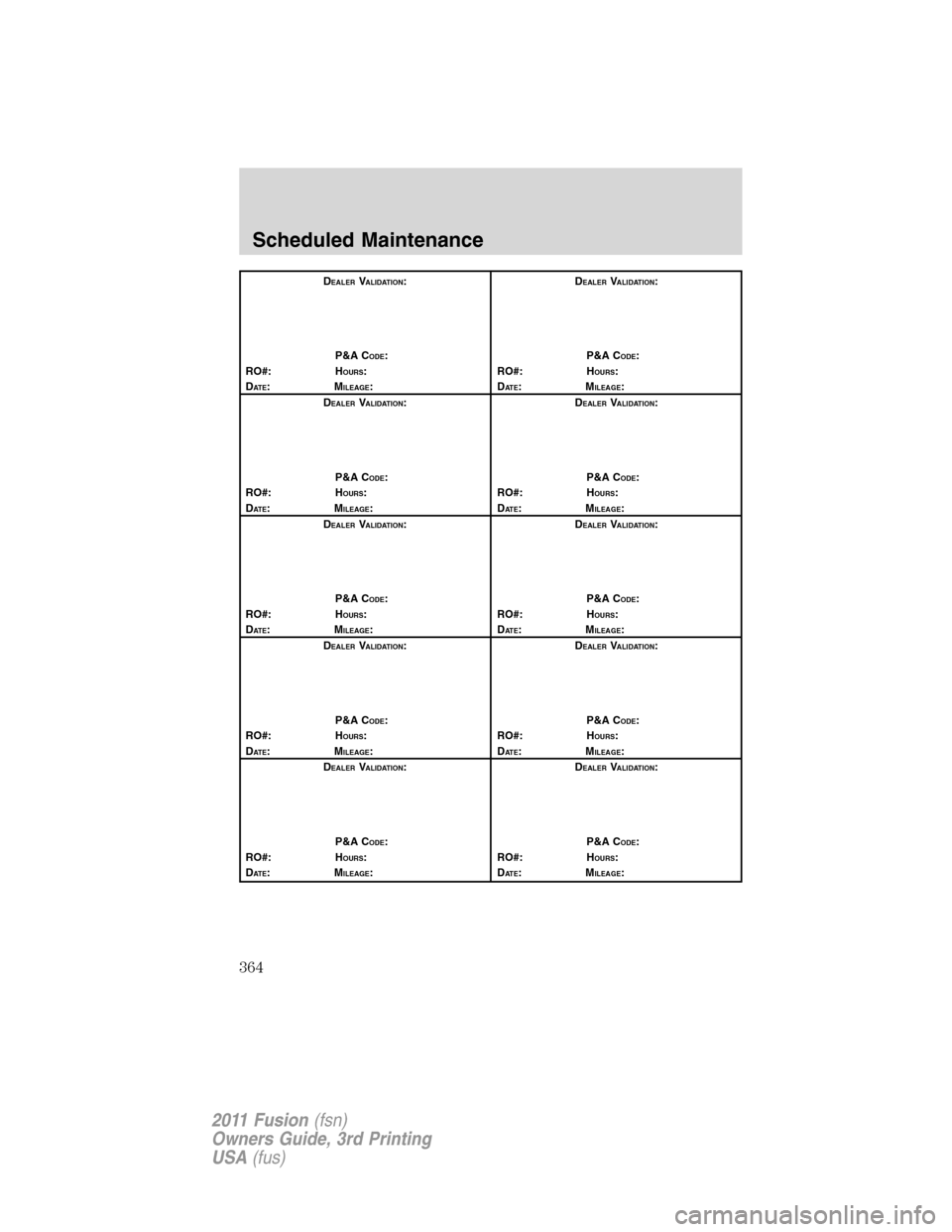

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
364
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

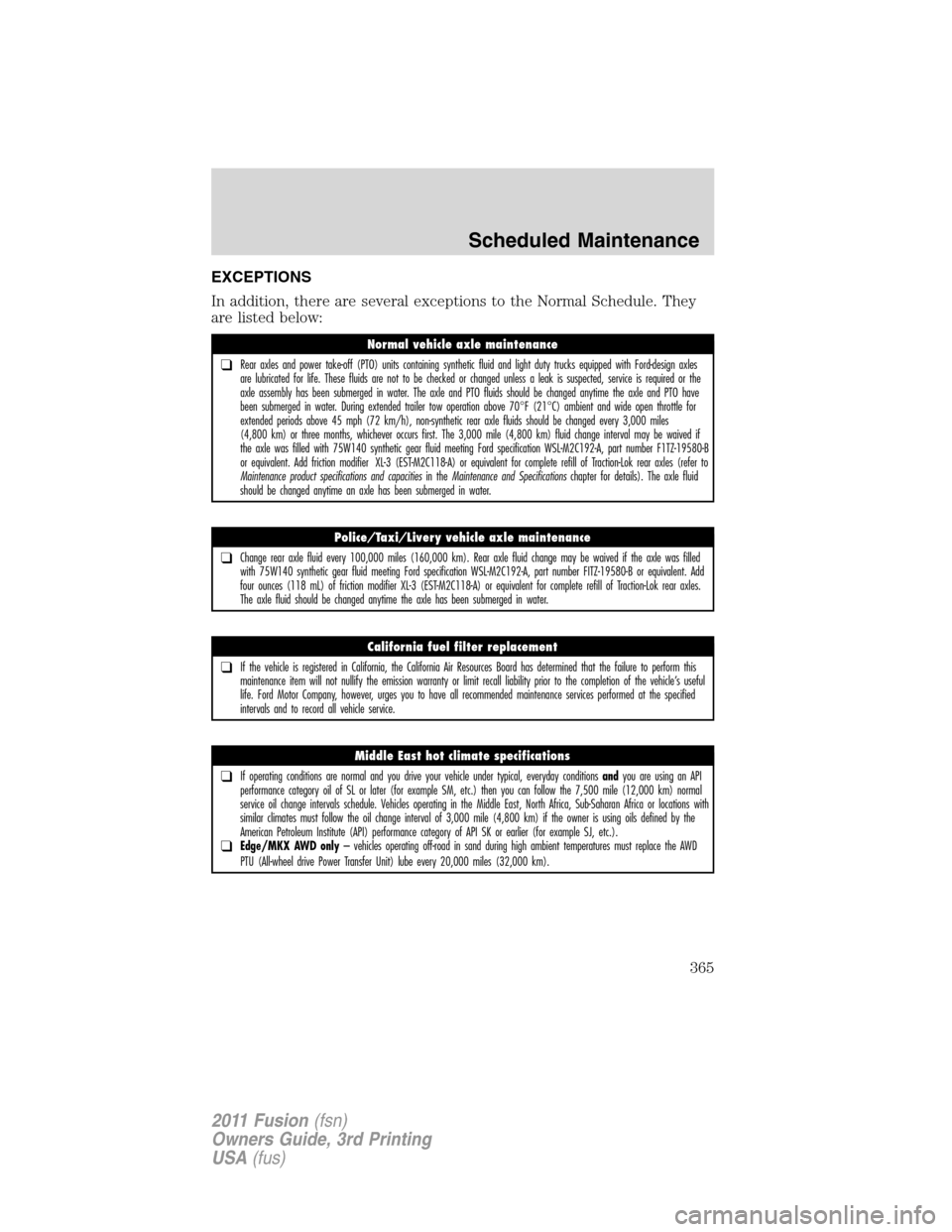

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles
are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle and PTO fluids should be changed anytime the axle and PTO have
been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open throttle for
extended periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be changed every 3,000 miles
(4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) fluid change interval may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number F1TZ-19580-B
or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles (refer to
Maintenance product specifications and capacitiesin theMaintenance and Specificationschapter for details). The axle fluid
should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Change rear axle fluid every 100,000 miles (160,000 km). Rear axle fluid change may be waived if the axle was filled
with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles.
The axle fluid should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If the vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this
maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful
life. Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified
intervals and to record all vehicle service.
Middle East hot climate specifications
❑If operating conditions are normal and you drive your vehicle under typical, everyday conditionsandyou are using an API
performance category oil of SL or later (for example SM, etc.) then you can follow the 7,500 mile (12,000 km) normal
service oil change intervals schedule. Vehicles operating in the Middle East, North Africa, Sub-Saharan Africa or locations with
similar climates must follow the oil change interval of 3,000 mile (4,800 km) if the owner is using oils defined by the
American Petroleum Institute (API) performance category of API SK or earlier (for example SJ, etc.).
❑Edge/MKX AWD only– vehicles operating off-road in sand during high ambient temperatures must replace the AWD
PTU (All-wheel drive Power Transfer Unit) lube every 20,000 miles (32,000 km).
Scheduled Maintenance
365
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

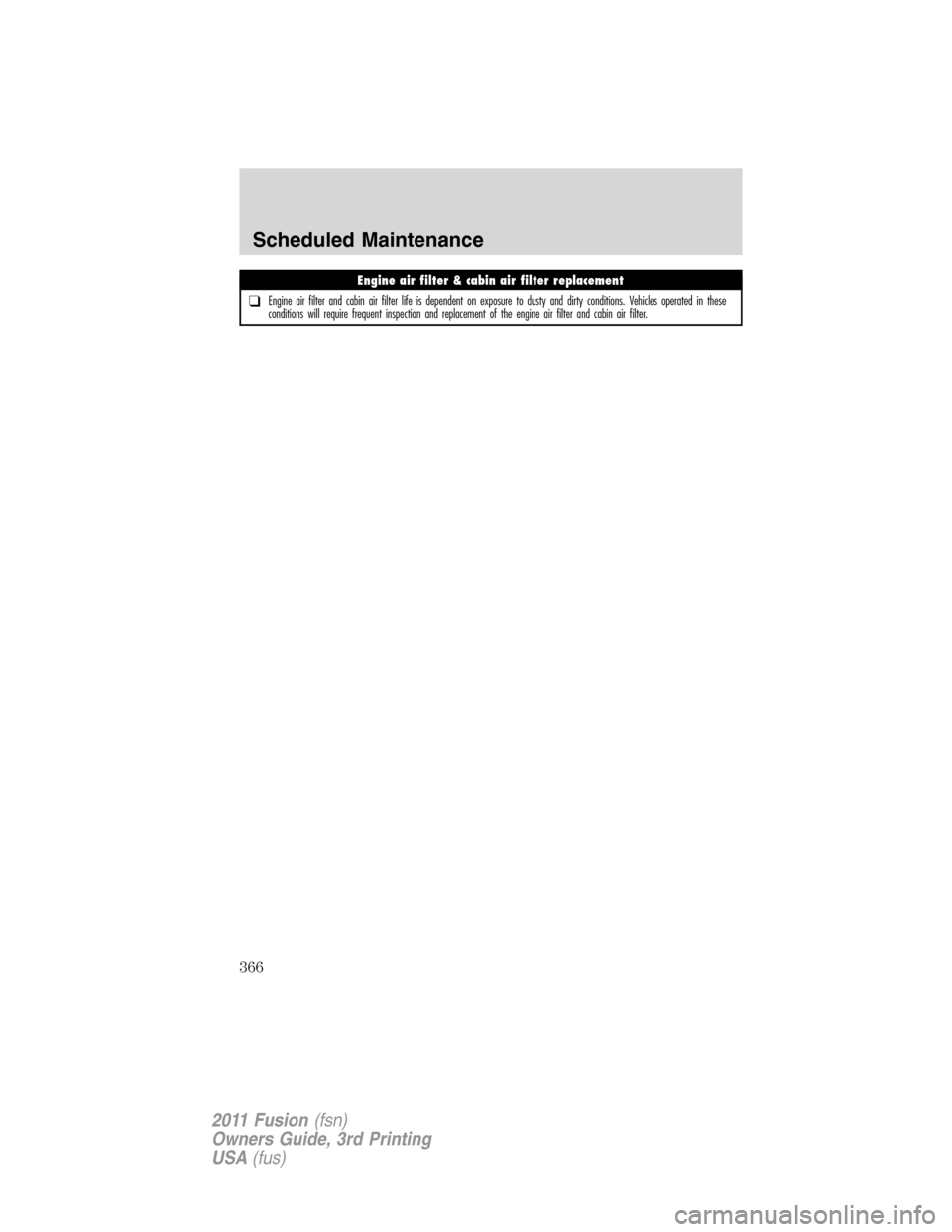

Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance
366
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

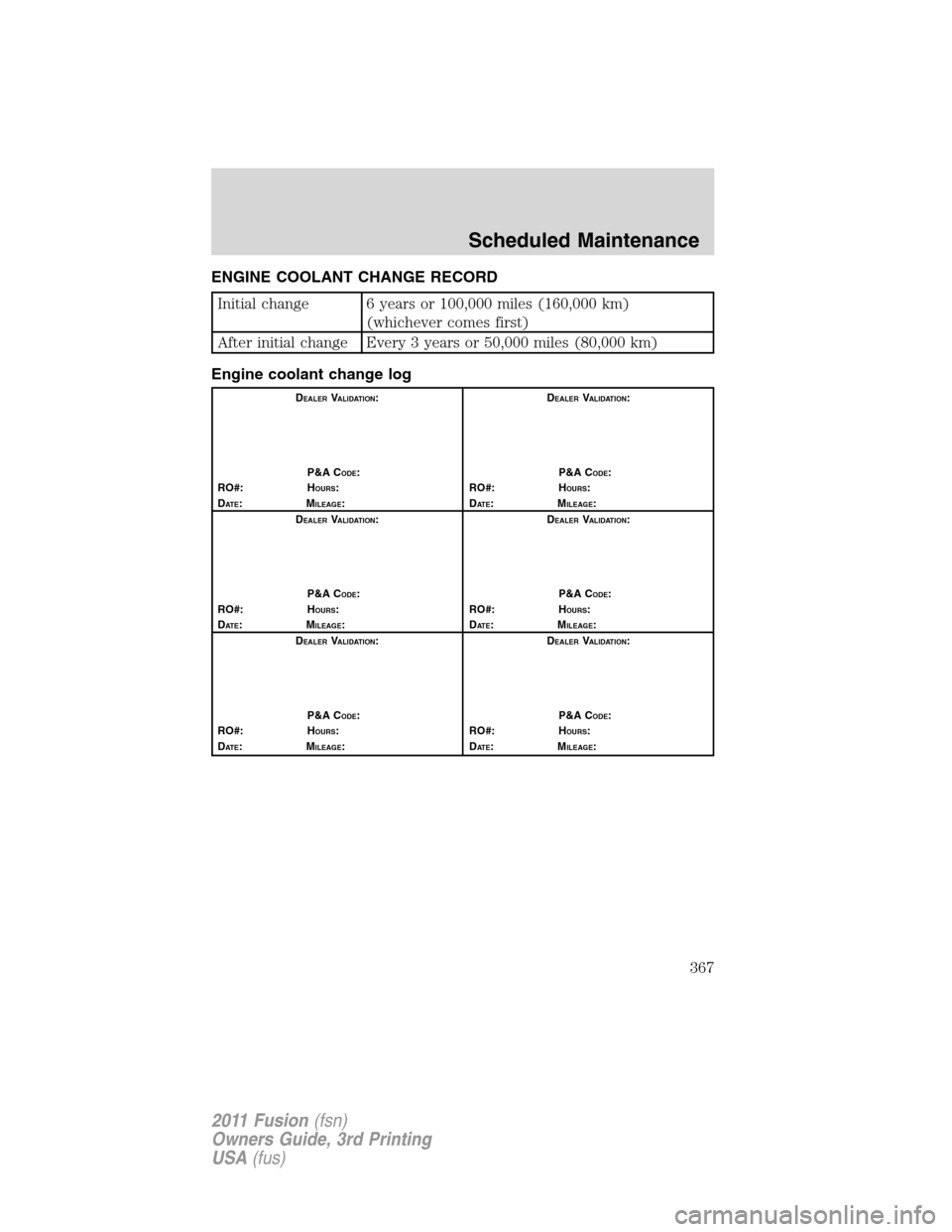

ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
367
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

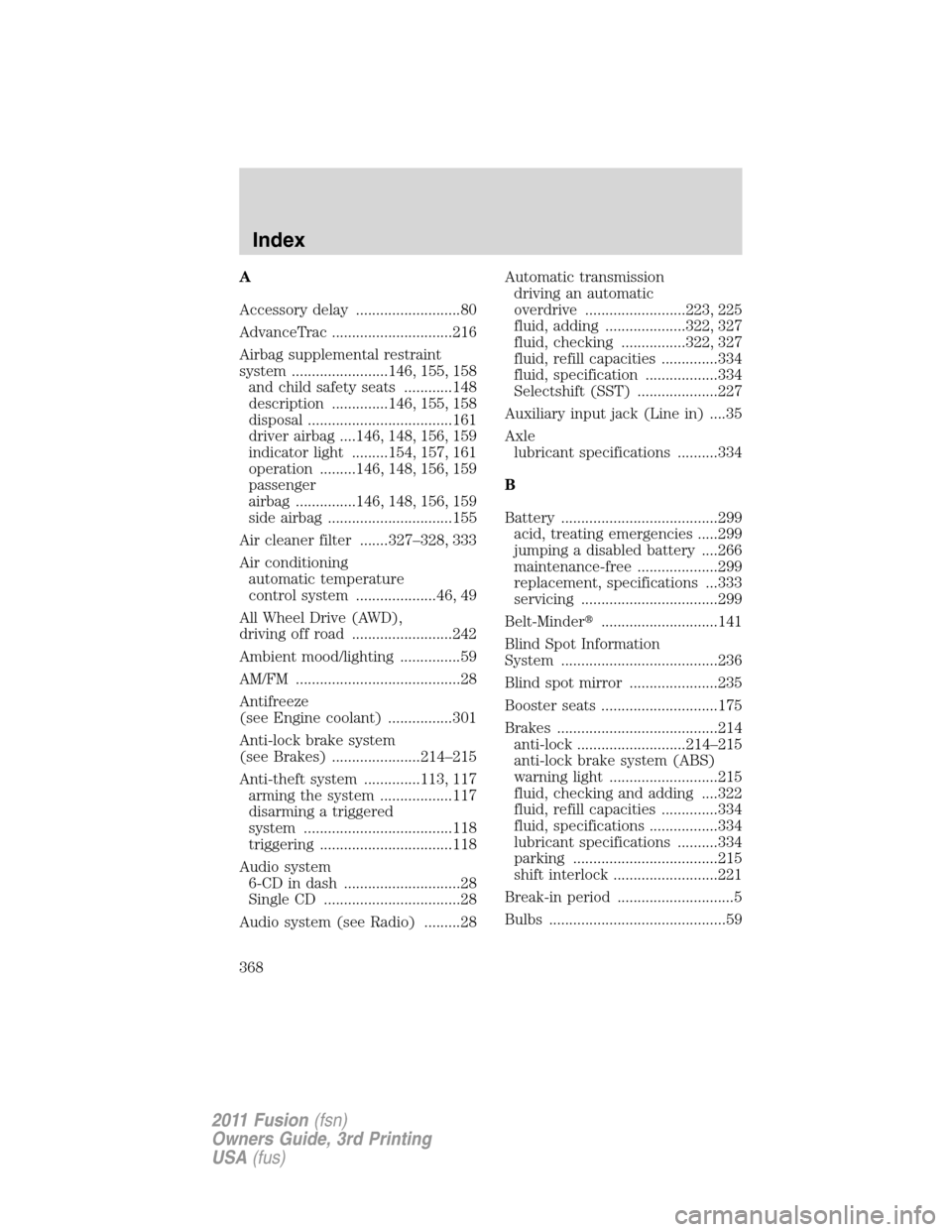

A
Accessory delay ..........................80
AdvanceTrac ..............................216
Airbag supplemental restraint
system ........................146, 155, 158
and child safety seats ............148
description ..............146, 155, 158
disposal ....................................161
driver airbag ....146, 148, 156, 159
indicator light .........154, 157, 161
operation .........146, 148, 156, 159
passenger
airbag ...............146, 148, 156, 159
side airbag ...............................155
Air cleaner filter .......327–328, 333
Air conditioning
automatic temperature
control system ....................46, 49
All Wheel Drive (AWD),
driving off road .........................242
Ambient mood/lighting ...............59
AM/FM .........................................28
Antifreeze
(see Engine coolant) ................301
Anti-lock brake system
(see Brakes) ......................214–215
Anti-theft system ..............113, 117
arming the system ..................117
disarming a triggered
system .....................................118
triggering .................................118
Audio system
6-CD in dash .............................28
Single CD ..................................28
Audio system (see Radio) .........28Automatic transmission
driving an automatic
overdrive .........................223, 225
fluid, adding ....................322, 327
fluid, checking ................322, 327
fluid, refill capacities ..............334
fluid, specification ..................334
Selectshift (SST) ....................227
Auxiliary input jack (Line in) ....35
Axle
lubricant specifications ..........334
B
Battery .......................................299
acid, treating emergencies .....299
jumping a disabled battery ....266
maintenance-free ....................299
replacement, specifications ...333
servicing ..................................299
Belt-Minder.............................141
Blind Spot Information
System .......................................236
Blind spot mirror ......................235
Booster seats .............................175
Brakes ........................................214
anti-lock ...........................214–215
anti-lock brake system (ABS)
warning light ...........................215
fluid, checking and adding ....322
fluid, refill capacities ..............334
fluid, specifications .................334
lubricant specifications ..........334
parking ....................................215
shift interlock ..........................221
Break-in period .............................5
Bulbs ............................................59
Index
368
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

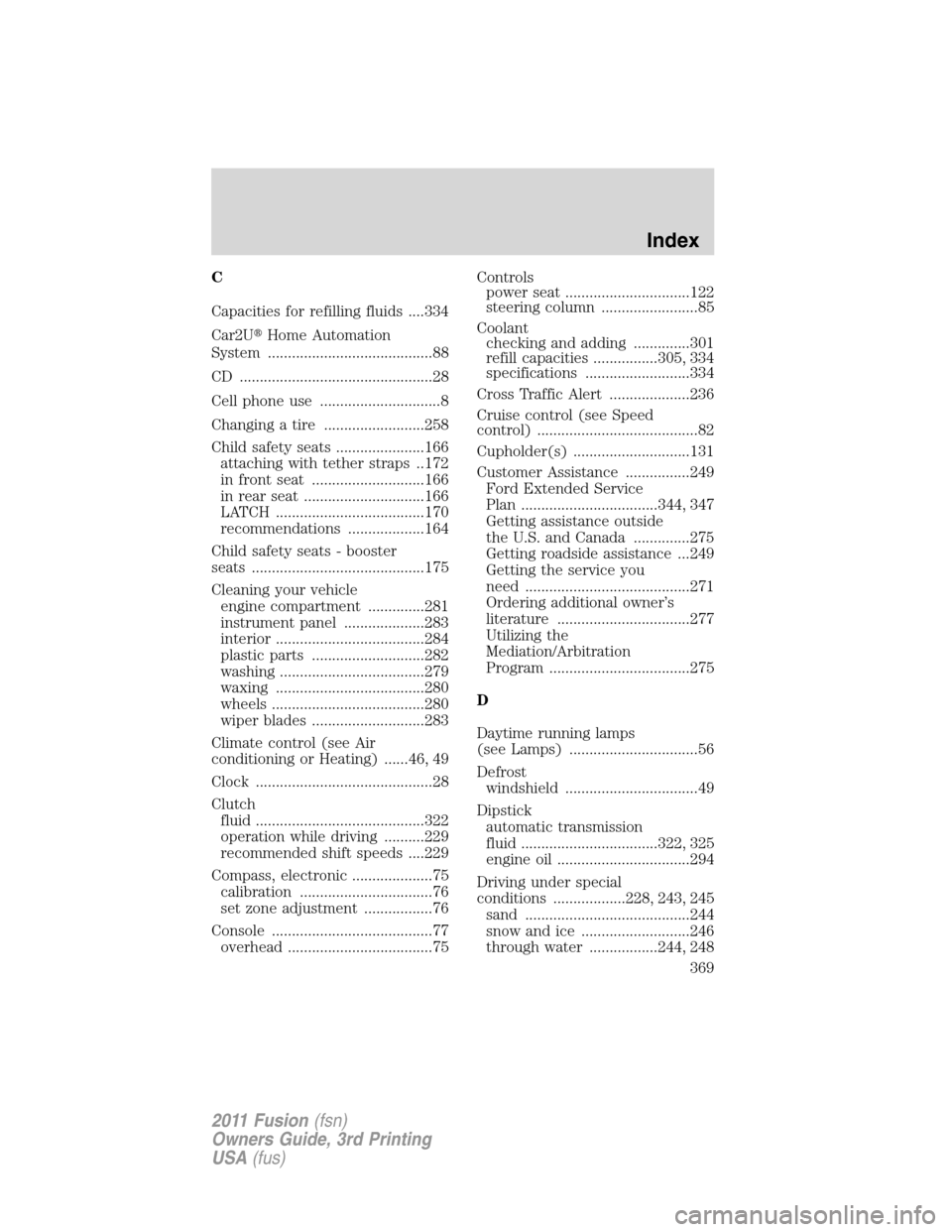

C
Capacities for refilling fluids ....334
Car2UHome Automation
System .........................................88
CD ................................................28
Cell phone use ..............................8
Changing a tire .........................258
Child safety seats ......................166
attaching with tether straps ..172
in front seat ............................166
in rear seat ..............................166
LATCH .....................................170
recommendations ...................164
Child safety seats - booster
seats ...........................................175
Cleaning your vehicle
engine compartment ..............281
instrument panel ....................283
interior .....................................284
plastic parts ............................282
washing ....................................279
waxing .....................................280
wheels ......................................280
wiper blades ............................283
Climate control (see Air
conditioning or Heating) ......46, 49
Clock ............................................28
Clutch
fluid ..........................................322
operation while driving ..........229
recommended shift speeds ....229
Compass, electronic ....................75
calibration .................................76
set zone adjustment .................76
Console ........................................77
overhead ....................................75Controls
power seat ...............................122
steering column ........................85
Coolant
checking and adding ..............301
refill capacities ................305, 334
specifications ..........................334
Cross Traffic Alert ....................236
Cruise control (see Speed
control) ........................................82
Cupholder(s) .............................131
Customer Assistance ................249
Ford Extended Service
Plan ..................................344, 347
Getting assistance outside
the U.S. and Canada ..............275
Getting roadside assistance ...249
Getting the service you
need .........................................271
Ordering additional owner’s
literature .................................277
Utilizing the
Mediation/Arbitration
Program ...................................275
D
Daytime running lamps
(see Lamps) ................................56
Defrost
windshield .................................49
Dipstick
automatic transmission
fluid ..................................322, 325
engine oil .................................294
Driving under special
conditions ..................228, 243, 245
sand .........................................244
snow and ice ...........................246
through water .................244, 248
Index
369
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)

E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................266
running out of fuel .........265, 313
Emission control system ..........318
Engine ........................................338
cleaning ...................................281
coolant .....................................301
fail-safe cooling .......................306
idle speed control ...................299
lubrication specifications .......334
refill capacities ........................334
service points ..................290–292
starting after a collision .........250
Engine block heater .................212
Engine oil ..................................294
checking and adding ..............294
dipstick ....................................294
filter, specifications ........298, 333
recommendations ...................298
refill capacities ........................334
specifications ..........................334
Event data recording ....................7
Exhaust fumes ..........................212
F
Fail safe cooling ........................306
Fleet MyKey programming ........96
Flexible Fuel Vehicle (FFV) ....307
Floor mats ...................................94
Fluid capacities .........................334
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................242
Fuel ............................................307calculating fuel
economy ............................21, 315
cap ...........................................310
capacity ...................................334
choosing the right fuel ...........311
detergent in fuel .....................313
filler funnel .............................313
filling your vehicle
with fuel ..................307, 310, 315
filter, specifications ........307, 333
fuel pump shut-off ..................251
fuel pump shut-off switch .....250
improving fuel economy ........315
octane rating ...................312, 338
quality ......................................312
running out of fuel .........265, 313
safety information relating
to automotive fuels ................307
Fuel - flex fuel vehicle
(FFV) .........................307, 311–312
Fuel pump shut-off switch .......250
Fuses ..........................................252
G
Garage door opener ....................88
Gas cap (see Fuel cap) ............310
Gas mileage (see Fuel
economy) ...................................315
Gauges .........................................17
H
Hazard flashers .........................250
Headlamps ...................................54
aiming ........................................57
autolamp system .......................54
bulb specifications ....................60
daytime running lights .............56
flash to pass ..............................56
Index
370
2011 Fusion(fsn)
Owners Guide, 3rd Printing
USA(fus)
