FORD FUSION ENERGI 2017 Owners Manual

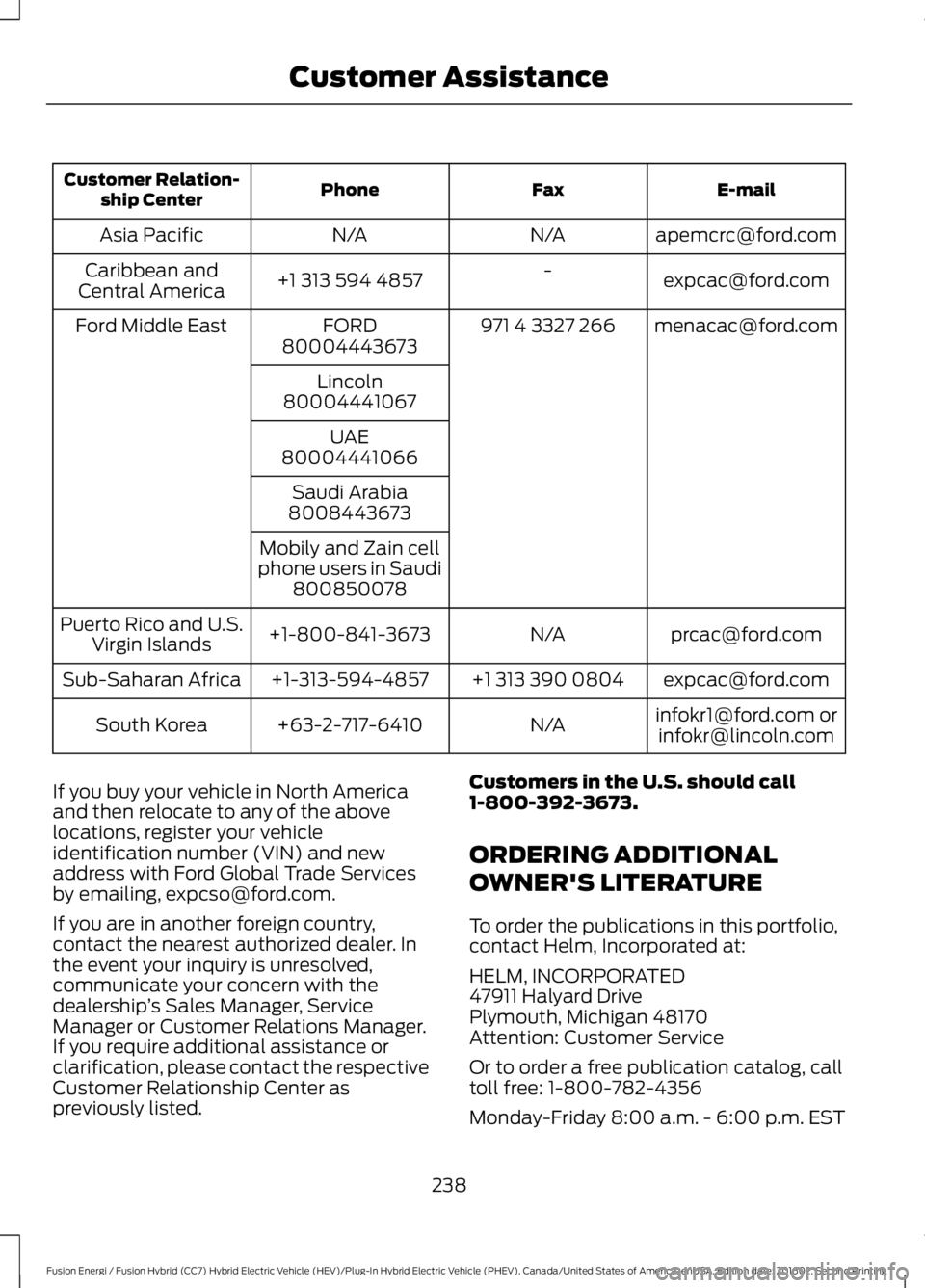

E-mailFaxPhoneCustomer Relation-ship Center
[email protected]/AN/AAsia Pacific
[email protected]+1 313 594 4857Caribbean andCentral America
[email protected] 4 3327 266FORDFord Middle East80004443673
Lincoln80004441067
UAE80004441066
Saudi Arabia8008443673
Mobily and Zain cellphone users in Saudi800850078
[email protected]/A+1-800-841-3673Puerto Rico and U.S.Virgin Islands
[email protected]+1 313 390 0804+1-313-594-4857Sub-Saharan Africa
[email protected] [email protected]/A+63-2-717-6410South Korea
If you buy your vehicle in North Americaand then relocate to any of the abovelocations, register your vehicleidentification number (VIN) and newaddress with Ford Global Trade Servicesby emailing, [email protected].
If you are in another foreign country,contact the nearest authorized dealer. Inthe event your inquiry is unresolved,communicate your concern with thedealership’s Sales Manager, ServiceManager or Customer Relations Manager.If you require additional assistance orclarification, please contact the respectiveCustomer Relationship Center aspreviously listed.
Customers in the U.S. should call1-800-392-3673.
ORDERING ADDITIONAL
OWNER'S LITERATURE
To order the publications in this portfolio,contact Helm, Incorporated at:
HELM, INCORPORATED47911 Halyard DrivePlymouth, Michigan 48170Attention: Customer Service
Or to order a free publication catalog, calltoll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
238
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Customer Assistance

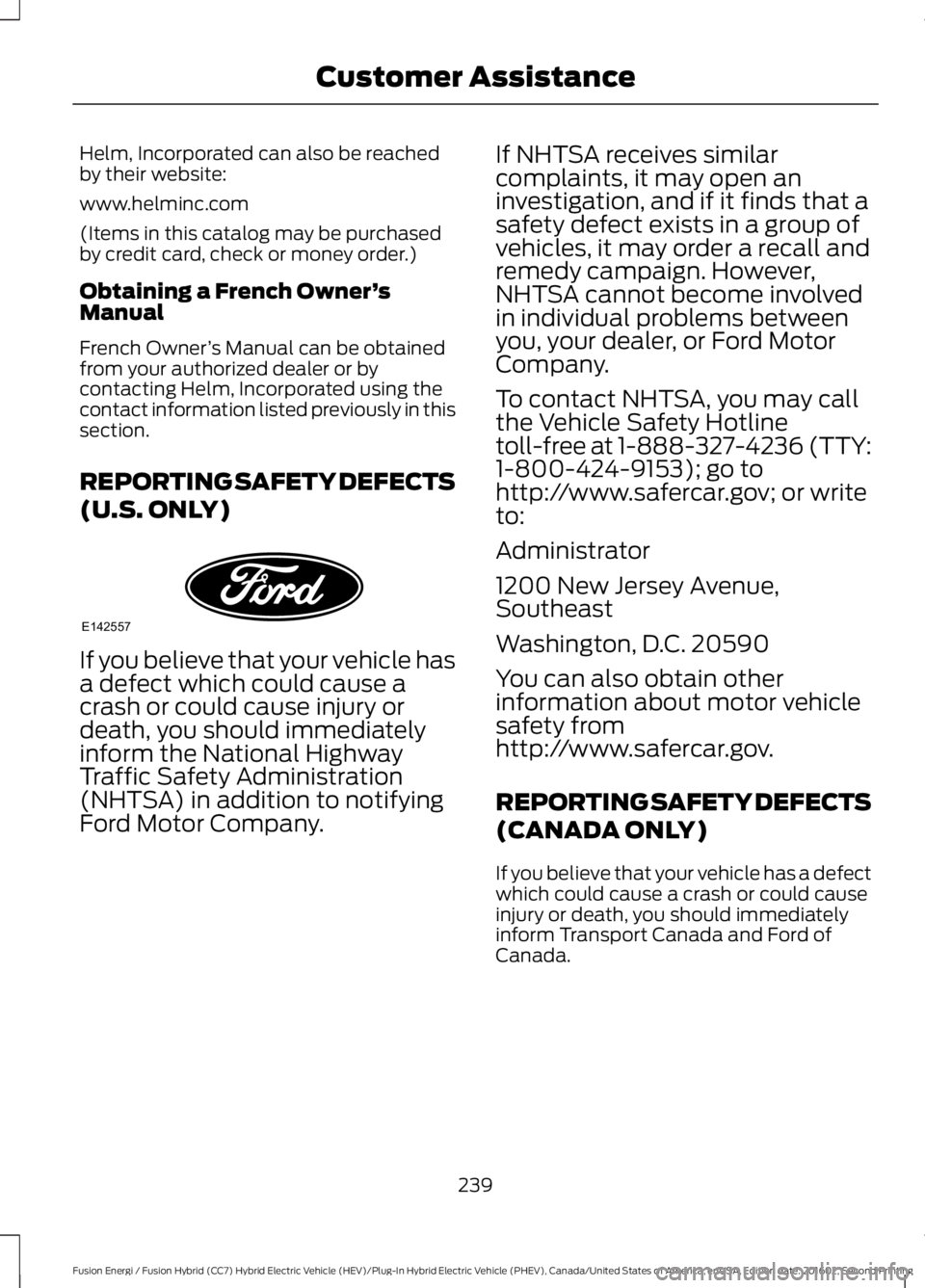

Helm, Incorporated can also be reachedby their website:
www.helminc.com
(Items in this catalog may be purchasedby credit card, check or money order.)
Obtaining a French Owner’sManual
French Owner’s Manual can be obtainedfrom your authorized dealer or bycontacting Helm, Incorporated using thecontact information listed previously in thissection.
REPORTING SAFETY DEFECTS
(U.S. ONLY)
If you believe that your vehicle hasa defect which could cause acrash or could cause injury ordeath, you should immediatelyinform the National HighwayTraffic Safety Administration(NHTSA) in addition to notifyingFord Motor Company.
If NHTSA receives similarcomplaints, it may open aninvestigation, and if it finds that asafety defect exists in a group ofvehicles, it may order a recall andremedy campaign. However,NHTSA cannot become involvedin individual problems betweenyou, your dealer, or Ford MotorCompany.
To contact NHTSA, you may callthe Vehicle Safety Hotlinetoll-free at 1-888-327-4236 (TTY:1-800-424-9153); go tohttp://www.safercar.gov; or writeto:
Administrator
1200 New Jersey Avenue,Southeast
Washington, D.C. 20590
You can also obtain otherinformation about motor vehiclesafety fromhttp://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a defectwhich could cause a crash or could causeinjury or death, you should immediatelyinform Transport Canada and Ford ofCanada.
239
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Customer AssistanceE142557

Transport Canada Contact Information
www.tc.gc.ca/eng/motorvehiclesafety/safevehicles-defectinvestigations-index-76.htm (English)Website
www.tc.gc.ca/fra/securiteautomobile/VehiculesSecuritaires-Enquetes-index-76.htm (French)Website
1–800–333–0510Phone
Ford of Canada Contact Information
www.ford.caWebsite
1–800–565-3673Phone
240
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Customer Assistance

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high current fuses.
To reduce risk of electrical shock,always replace the cover to thepower distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is located inthe engine compartment. It hashigh-current fuses that protect yourvehicle's main electrical systems fromoverloads.
If the battery has been disconnected andreconnected, some features will need tobe reset. See Changing the 12V Battery(page 260).
241
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
FusesE144783

Protected componentsFuse amp ratingFuse or relay number
Wiper motor 2.25A31
Not used.—2
Rain sensor.15A13
Blower motor relay.—4
Power point 3 - back of console.20A35
Not used.—6
Powertrain control module - vehicle power1.20A17
Powertrain control module power.
Powertrain control module - vehicle power2.20A18
Emission components.
Powertrain control module relay.—9
Power point 1 - driver front.20A310
Powertrain control module - vehicle power4.15A211
Ignition coils.
Powertrain control module - vehicle power3.15A212
Non-emission components.
Not used (spare).10A213
Not used (spare).10A214
Run-start relay.—15
Power point 2 - console.20A316
Not used (spare).20A317
Powertrain and hybrid powertrain controlmodule keep alive power.10A118
Battery module.
242
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Fuses

Protected componentsFuse amp ratingFuse or relay number
Run/start electronic power assist steering.10A119
Adaptive cruise control.10A120
Run-start transmission switch.15A121HEV inverter.
Not used (spare).5A122
Run-start: blind spot information system,Rear view camera, Adaptive cruise control,Heads-up display, shifter.
15A123
PHEV Run-start transmission oil pump.10A124
Run-start anti-lock brake system.10A225
Run-start powertrain control module.10A226
Fuel door solenoid.10A127
Not used (spare).20A128
Not used (spare).20A129
Not used.—30
Not used.—31
HEV/PHEV pulse width modulated fanrelay.—32
Not used.—33
Not used.—34
Charger fan.15A135
HEV battery electronic control module fan.15A136
Not used.—37
Vacuum pump #1 relay.—38
Vacuum pump #2 relay.—39
Fuel pump relay.—40
243
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Fuses

Protected componentsFuse amp ratingFuse or relay number
Horn relay.—41
Not used.—42
Not used (spare).10A143
Not used.—44
Vacuum pump monitor.5A145
Charge port light ring.10A246
Brake on-off switch.10A247
Horn.20A148
Air flow monitor.5A149
Hybrid content vehicle power 5.15A150Battery energy control module fan.
Hybrid content vehicle power 1.15A251Hybrid powertrain control module.
Hybrid content vehicle power 2.15A252Battery energy control module.
Not used (spare).10A153
Hybrid content vehicle power 3.10A254Coolant pump.
Hybrid content vehicle power 4.10A255Air conditioning compressor.Positive temperature coefficient heater(PHEV).Humidity sensor (PHEV).
1Micro fuse.2Dual micro fuse.3M-type fuse.
244
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Fuses

Power Distribution Box - BottomThere are fuses located on the bottom ofthe fuse box. To access the bottom of thefuse box, do the following:
1. Release the two latches, located onboth sides of the fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the centerof the engine compartment.
4.Pivot the outboard side of the fuse boxto access the bottom side.
245
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
FusesE145983

Protected componentsFuse amp ratingFuse or relay number
Fuel pump feed.30A156
Not used.—57
Not used.—58
Vacuum pump relay.40A159
Pulse width modulated fan.40A260
Not used.—61
Body control module 1.50A262
Not used.—63
PHEV charger.40A164
246
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
FusesE144949

Protected componentsFuse amp ratingFuse or relay number
Front heated seat.20A165
Not used.—66
Body control module 2.50A267
Heated rear window.40A168
Anti-lock brake system valves.30A169
Passenger seat.30A170
Not used.—71
Panoramic roof #1.30A172
Not used.—73
Driver seat module.30A174
Transmission oil pump (PHEV).20A175
e-Shifter (transmission range controlmodule).20A176
Front climate controlled seats.30A177
Not used.—78
Blower motor.40A279
Not used.—80
Inverter.40A181
Anti-lock brake system pump.60A282
Wiper motor 1.25A183
Not used.—84
Not used.—85
1 M-type fuse.2J-type fuse.
247
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201602, Second Printing
Fuses
