FORD FUSION ENERGI 2018 Owners Manual

Protected ComponentFuse RatingFuse or RelayNumber
Run/start electronic power assist steering.10A219
Adaptive cruise control.10A220
Run-start transmission switch.15A221Inverter (hybrid electric vehicle)
Not used (spare).5A222
Run-start: Blind spot information system,Rear view camera, Adaptive cruise control,Head-up display, Shifter.
15A223
Run-start transmission oil pump (plug inhybrid electric vehicle).10A224
Run-start anti-lock brake system.10A325
Run-start powertrain control module.10A326
Fuel door solenoid.10A227
Not used (spare).20A228
Not used (spare).20A229
Not used.—30
Not used.—31
Pulse width modulation fan relay (hybridelectric vehicle / plug in hybrid electricvehicle)
—32
Not used.—33
Not used.—34
Charger fan.15A235
Battery electronic control module fan(hybrid electric vehicle).15A236
Not used.—37
Vacuum pump #1 relay.—38
248
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Fuses

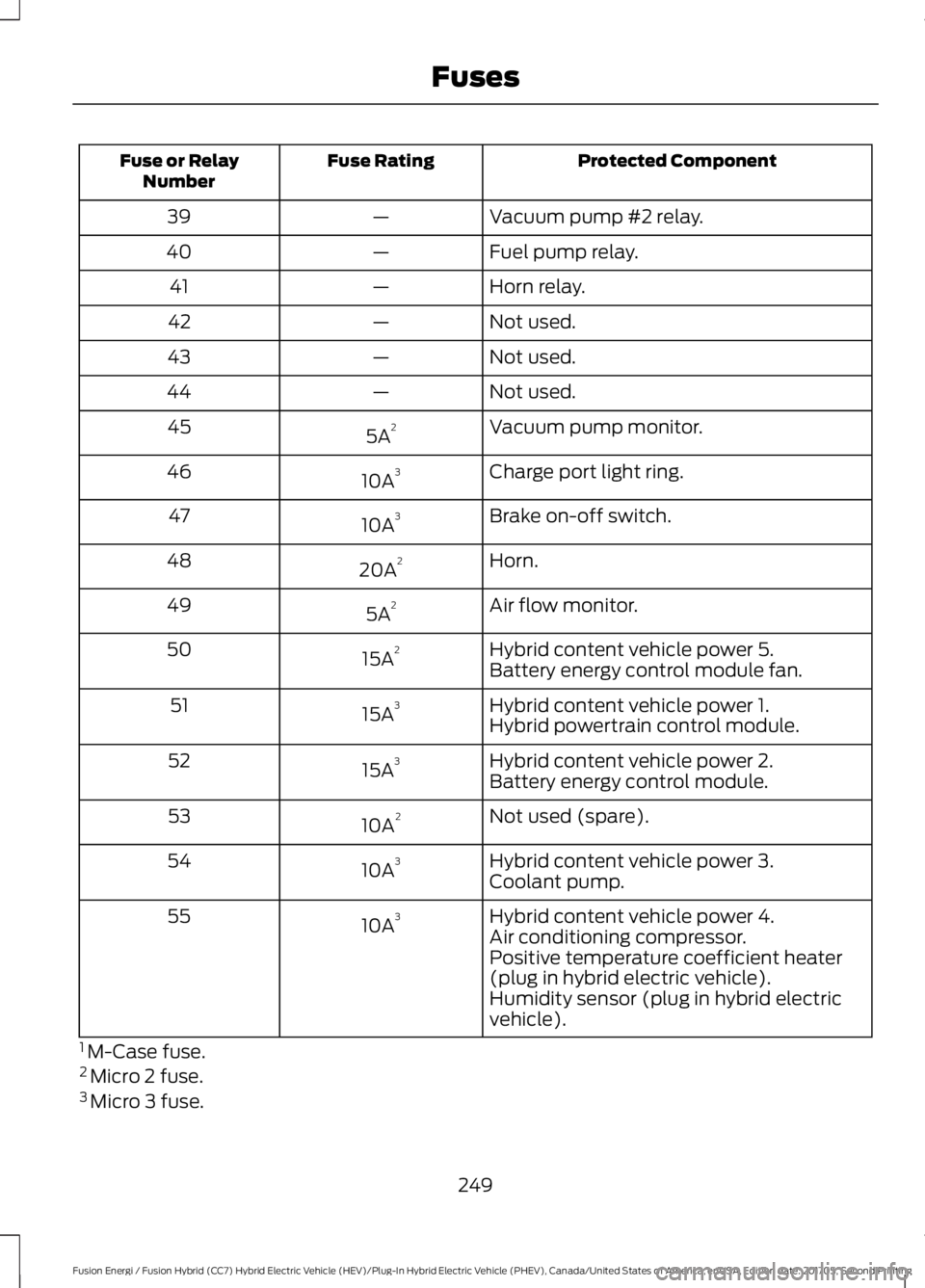

Protected ComponentFuse RatingFuse or RelayNumber
Vacuum pump #2 relay.—39
Fuel pump relay.—40
Horn relay.—41
Not used.—42
Not used.—43
Not used.—44
Vacuum pump monitor.5A245
Charge port light ring.10A346
Brake on-off switch.10A347
Horn.20A248
Air flow monitor.5A249
Hybrid content vehicle power 5.15A250Battery energy control module fan.
Hybrid content vehicle power 1.15A351Hybrid powertrain control module.
Hybrid content vehicle power 2.15A352Battery energy control module.
Not used (spare).10A253
Hybrid content vehicle power 3.10A354Coolant pump.
Hybrid content vehicle power 4.10A355Air conditioning compressor.Positive temperature coefficient heater(plug in hybrid electric vehicle).Humidity sensor (plug in hybrid electricvehicle).
1 M-Case fuse.2 Micro 2 fuse.3 Micro 3 fuse.
249
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Fuses

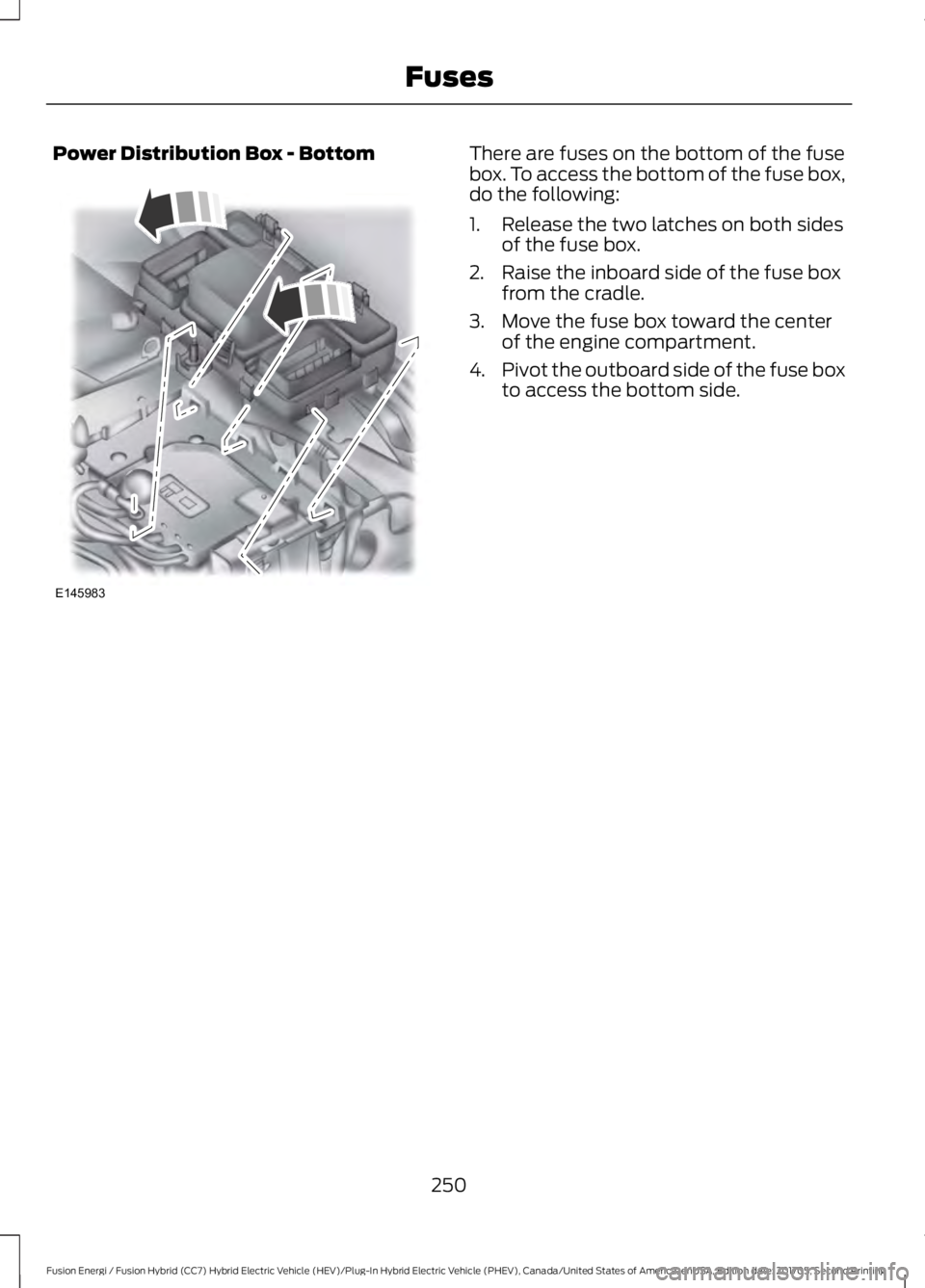

Power Distribution Box - BottomThere are fuses on the bottom of the fusebox. To access the bottom of the fuse box,do the following:
1. Release the two latches on both sidesof the fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the centerof the engine compartment.
4.Pivot the outboard side of the fuse boxto access the bottom side.
250
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
FusesE145983

Protected ComponentFuse RatingFuse or Relay Number
Fuel pump feed.30A156
Not used.—57
Not used.—58
Vacuum pump relay.40A159
Pulse width modulation fan.40A260
Not used.—61
Body control module 1.50A262
Not used.—63
Charger (plug in hybrid electricvehicle).40A164
251
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
FusesE144949

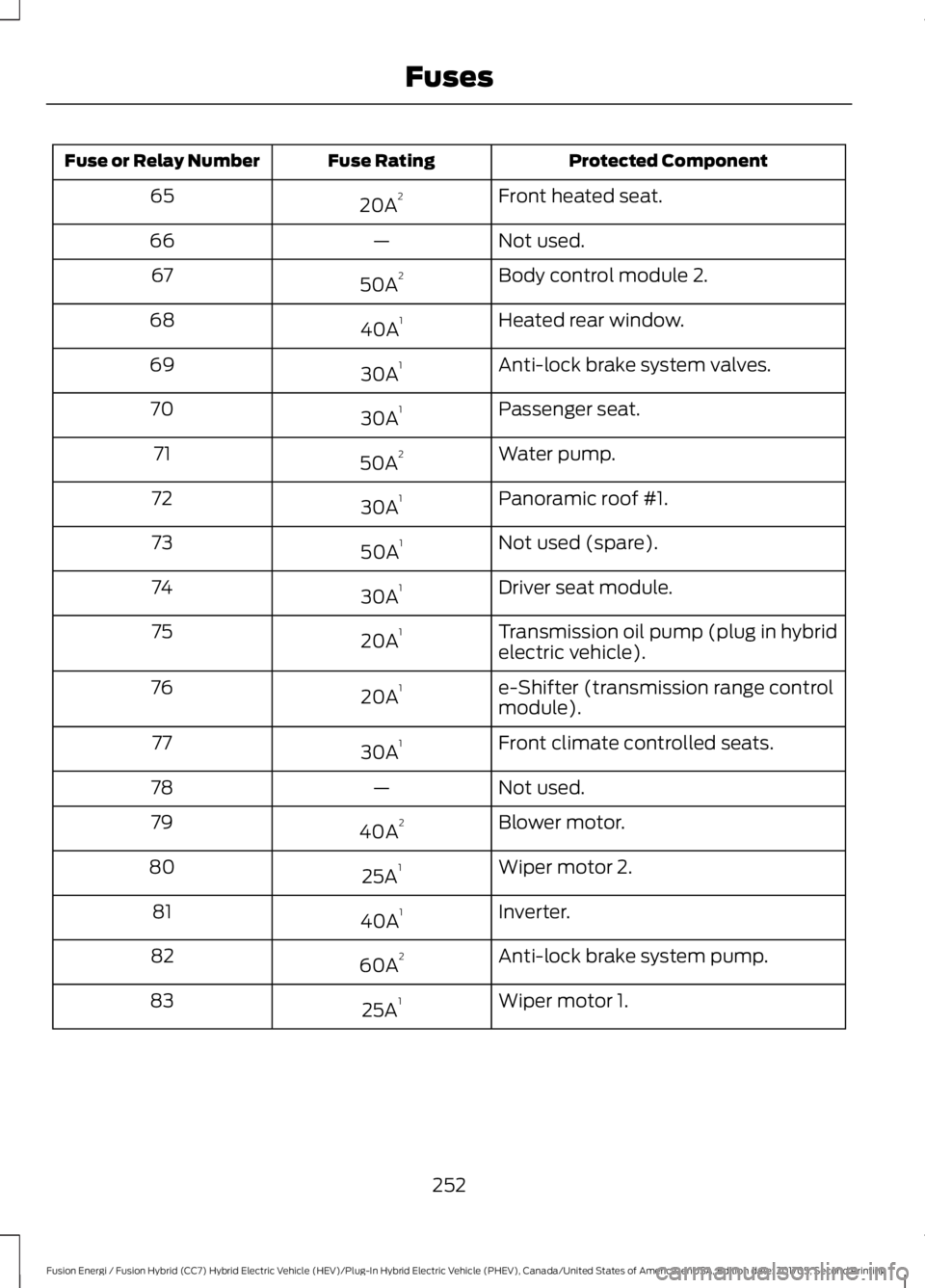

Protected ComponentFuse RatingFuse or Relay Number
Front heated seat.20A265
Not used.—66
Body control module 2.50A267
Heated rear window.40A168
Anti-lock brake system valves.30A169
Passenger seat.30A170
Water pump.50A271
Panoramic roof #1.30A172
Not used (spare).50A173
Driver seat module.30A174
Transmission oil pump (plug in hybridelectric vehicle).20A175
e-Shifter (transmission range controlmodule).20A176
Front climate controlled seats.30A177
Not used.—78
Blower motor.40A279
Wiper motor 2.25A180
Inverter.40A181
Anti-lock brake system pump.60A282
Wiper motor 1.25A183
252
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Fuses

Protected ComponentFuse RatingFuse or Relay Number
Not used.—84
Not used (spare).30A185
1 M Case fuse.2 J Case fuse.

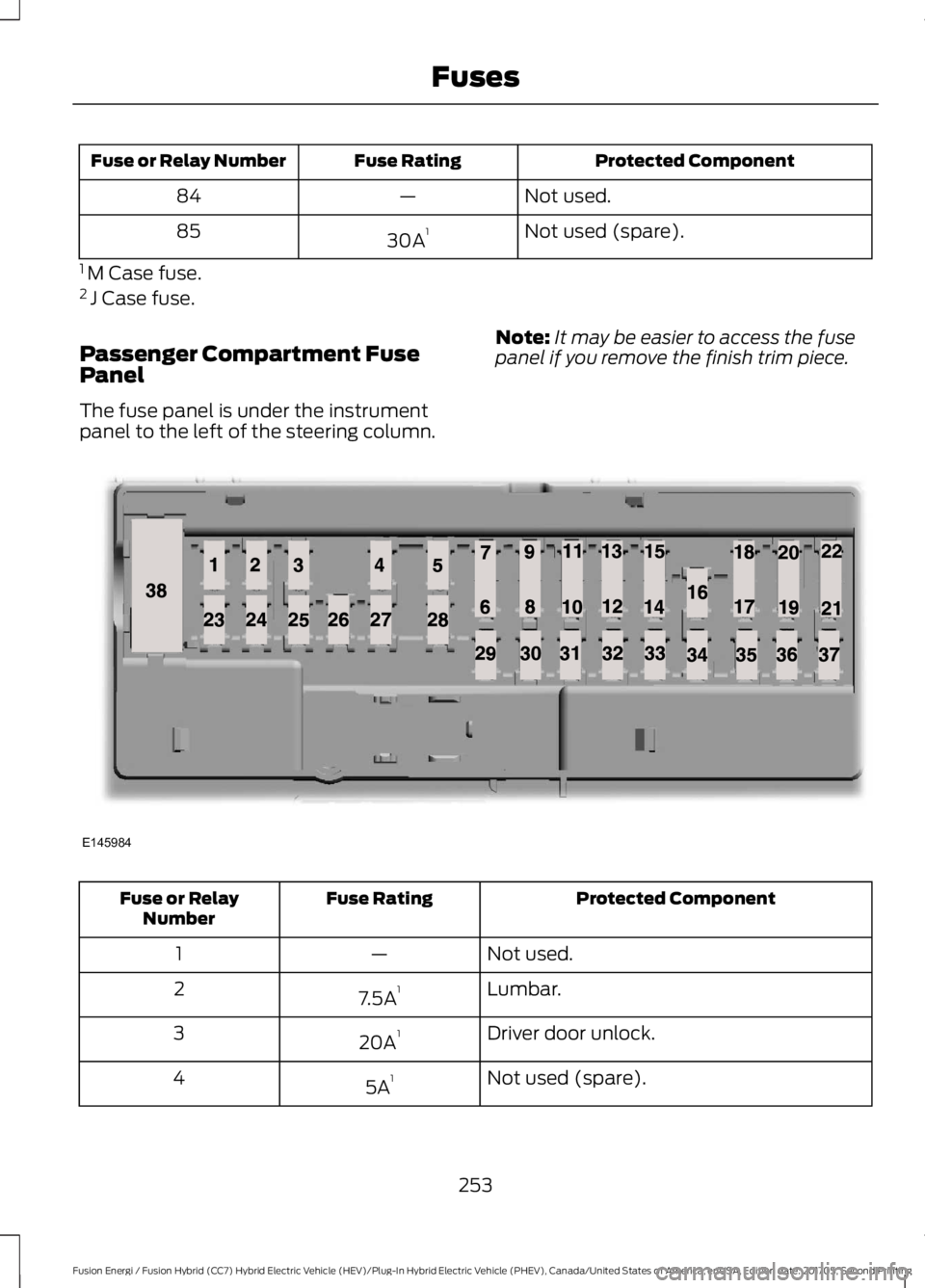

Passenger Compartment FusePanel
The fuse panel is under the instrumentpanel to the left of the steering column.
Note:It may be easier to access the fusepanel if you remove the finish trim piece.
Protected ComponentFuse RatingFuse or RelayNumber
Not used.—1
Lumbar.7.5A12
Driver door unlock.20A13
Not used (spare).5A14
253
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
FusesE145984

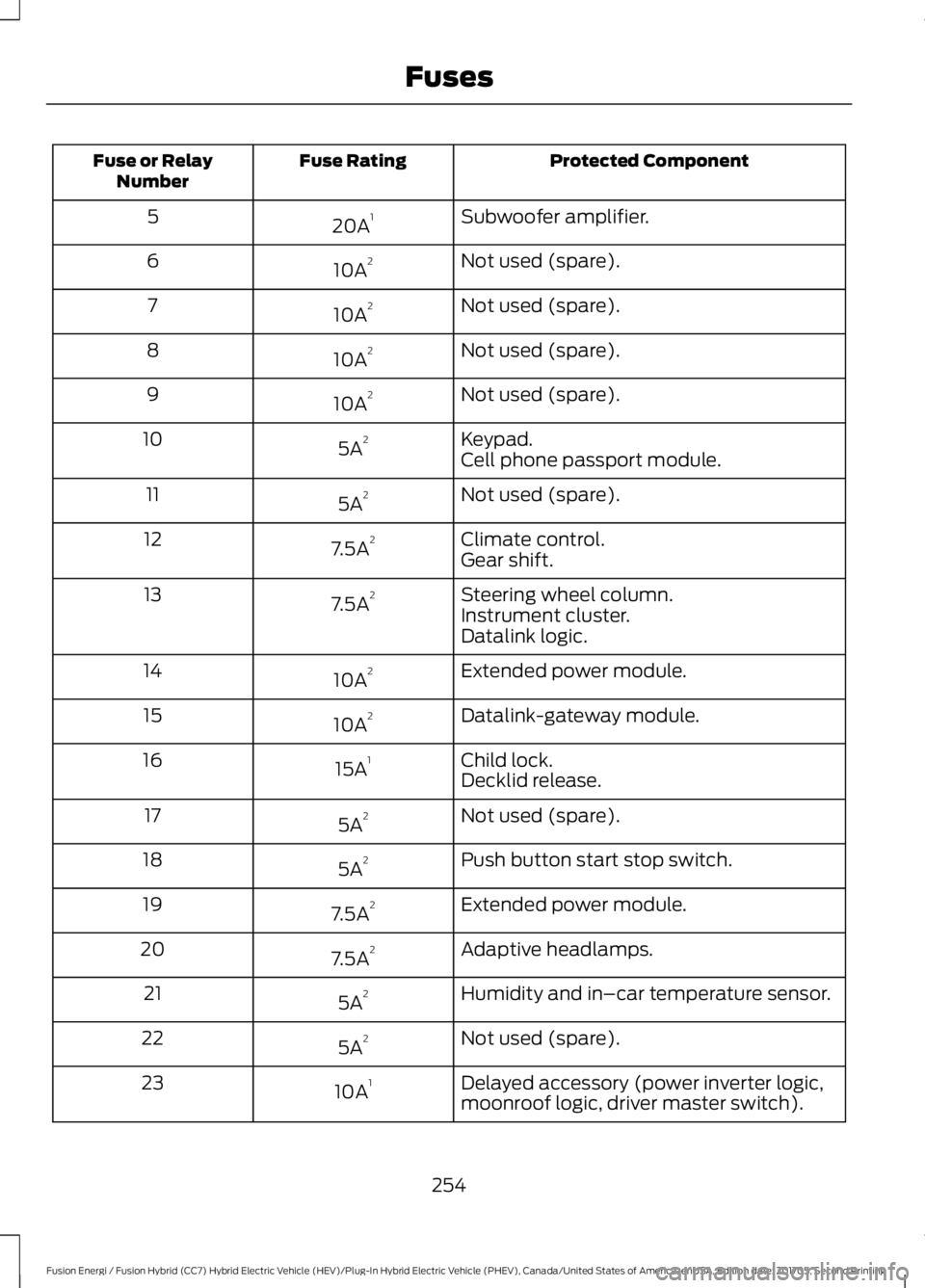

Protected ComponentFuse RatingFuse or RelayNumber
Subwoofer amplifier.20A15
Not used (spare).10A26
Not used (spare).10A27
Not used (spare).10A28
Not used (spare).10A29
Keypad.5A210Cell phone passport module.
Not used (spare).5A211
Climate control.7.5A212Gear shift.
Steering wheel column.7.5A213Instrument cluster.Datalink logic.
Extended power module.10A214
Datalink-gateway module.10A215
Child lock.15A116Decklid release.
Not used (spare).5A217
Push button start stop switch.5A218
Extended power module.7.5A219
Adaptive headlamps.7.5A220
Humidity and in–car temperature sensor.5A221
Not used (spare).5A222
Delayed accessory (power inverter logic,moonroof logic, driver master switch).10A123
254
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Fuses

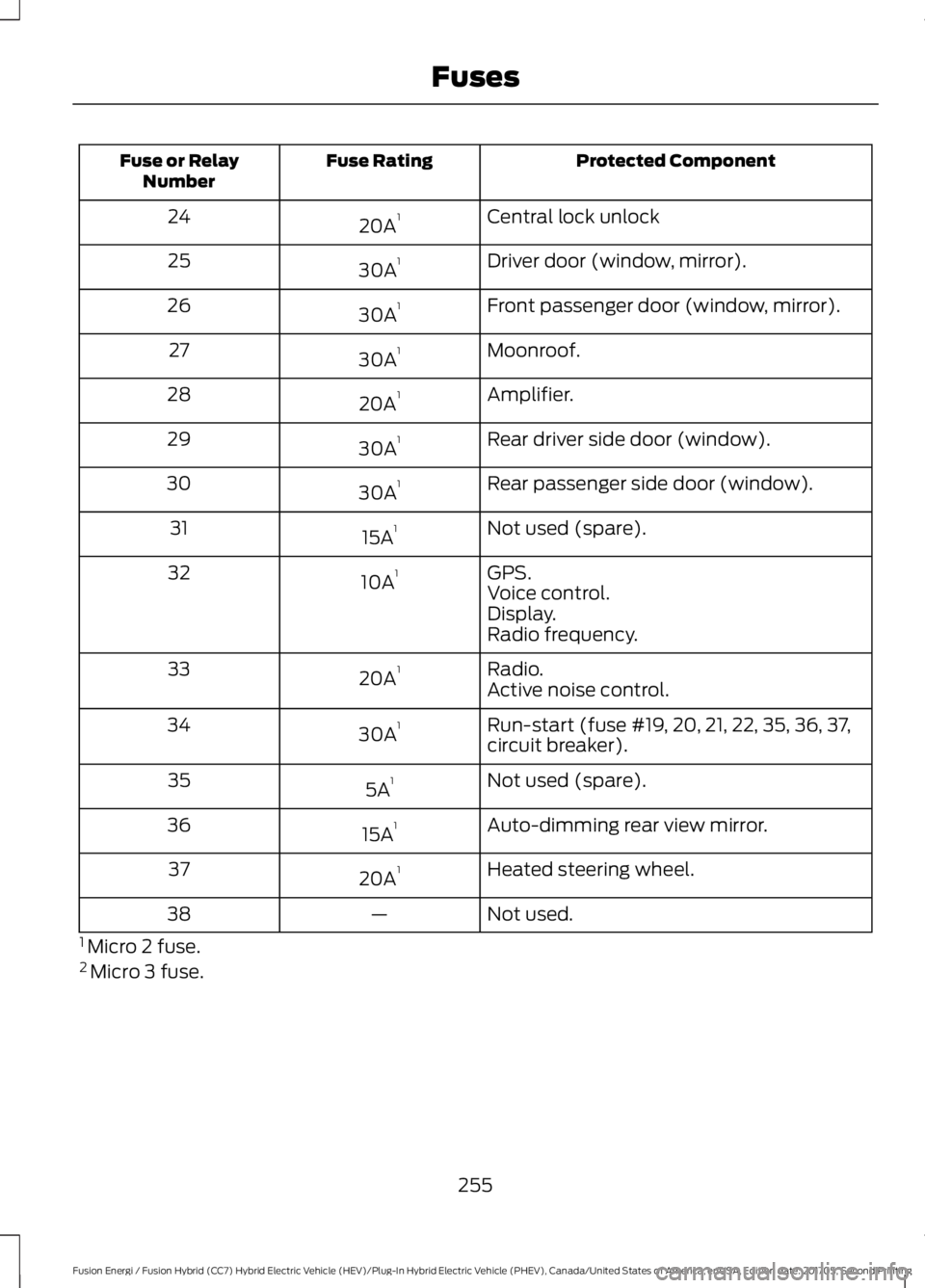

Protected ComponentFuse RatingFuse or RelayNumber
Central lock unlock20A124
Driver door (window, mirror).30A125
Front passenger door (window, mirror).30A126
Moonroof.30A127
Amplifier.20A128
Rear driver side door (window).30A129
Rear passenger side door (window).30A130
Not used (spare).15A131
GPS.10A132Voice control.Display.Radio frequency.
Radio.20A133Active noise control.
Run-start (fuse #19, 20, 21, 22, 35, 36, 37,circuit breaker).30A134
Not used (spare).5A135
Auto-dimming rear view mirror.15A136
Heated steering wheel.20A137
Not used.—38
1 Micro 2 fuse.2 Micro 3 fuse.
255
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Fuses

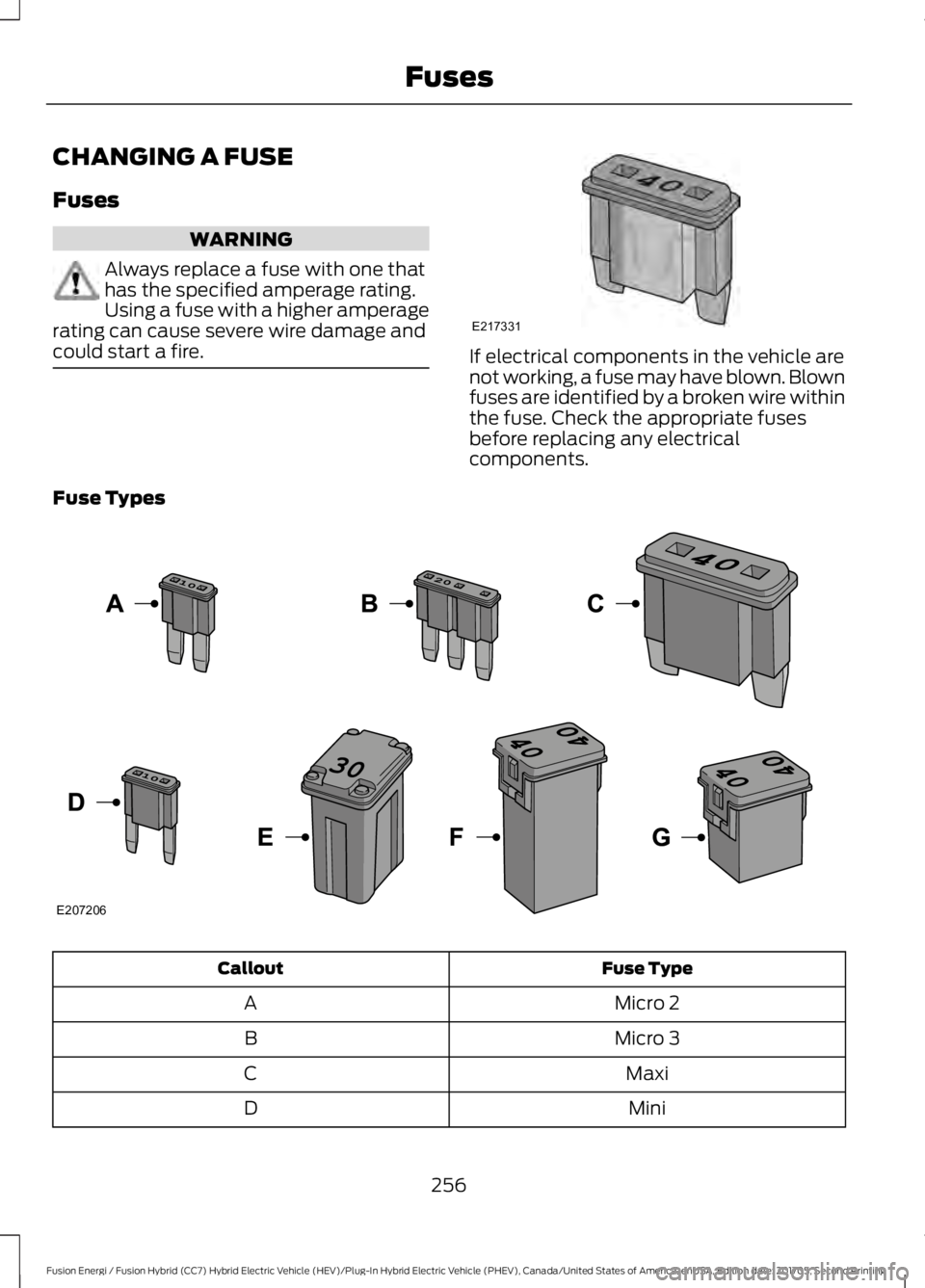

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperagerating can cause severe wire damage andcould start a fire.If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
MiniD
256
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
FusesE217331 E207206

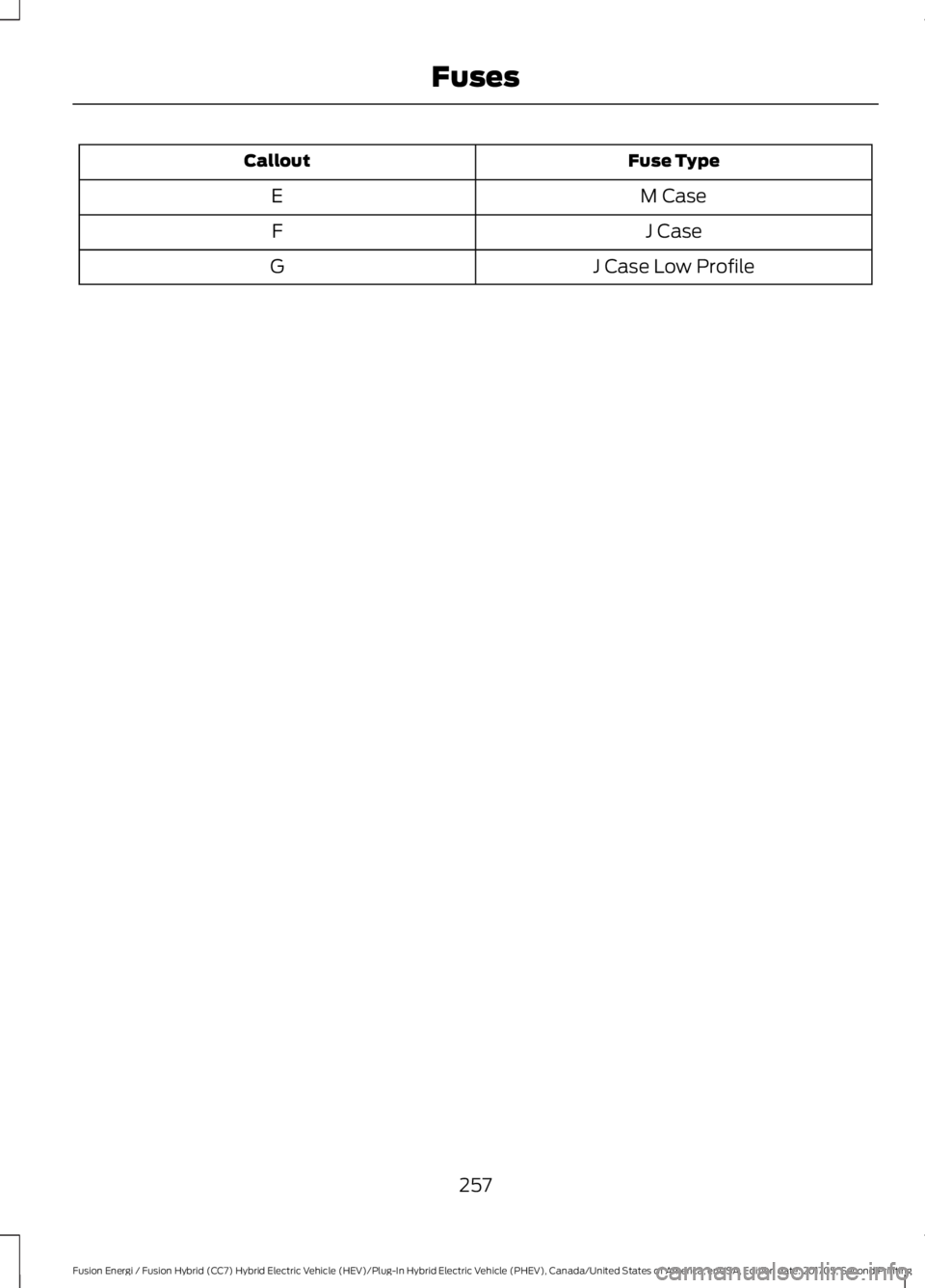

Fuse TypeCallout
M CaseE
J CaseF
J Case Low ProfileG
257
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
Fuses
