Company’s specifications, and we stand behind them. Maintenance parts
installed at your Ford or Lincoln Mercury dealership carry a nationwide,
12 months, 12,000 mile (20,000 km) parts and labor limited warranty.
Your dealer can give you details.
Value shopping for your vehicle’s maintenance needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your Ford and
Lincoln Mercury dealers can offer.
WHICH MAINTENANCE SCHEDULE SHOULD YOU FOLLOW?
Owner Checks and Services
Refer to Mileage Intervals for Additional Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this Owner’s
Guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Maximum Oil Change Interval
❑12 months, 10,000 miles (16,000 km) or 200 hours of engine operation.
Engine Coolant change interval
❑6 years or 100,000 miles (160,000 km) - change engine coolant (whichever comes first)❑After initial change - change engine coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Scheduled Maintenance Guide
311
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Multi-point Inspection
In order to keep your vehicle running right, it is important that you have
the systems on your vehicle checked regularly. This can help identify any
potential issue before there are any problems. Ford Motor Company
suggests the following multi-point inspection to be performed at every
scheduled maintenance as the way to ensure your vehicle keeps running
right.
NORMAL SCHEDULED MAINTENANCE AND LOG
The following section contains the “Normal Schedule”. This schedule is
presented at specific mileage (kilometer) intervals with exceptions
noted.
Additional information available on the Web at
www.genuineservice.com or www.ford.ca
To learn more about the importance of routine and dealer-performed
maintenance on your vehicle, please visit the Ford Customer Service
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, air bag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check low voltage (underhood) battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Multi-point inspection - Recommended at every visit
❑Check and top up fluid levels: brake, engine coolant recovery reservoir, motor/electronics reservoir and window washer.❑Inspect tires for wear and correct air pressure.
❑Check exhaust system for leaks, damage, loose parts and foreign materials.
❑Check low voltage (underhood) battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers and heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect half-shaft dust boots.
❑Check shocks, struts and other suspension components for leaks and damage.
Scheduled Maintenance Guide
312
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

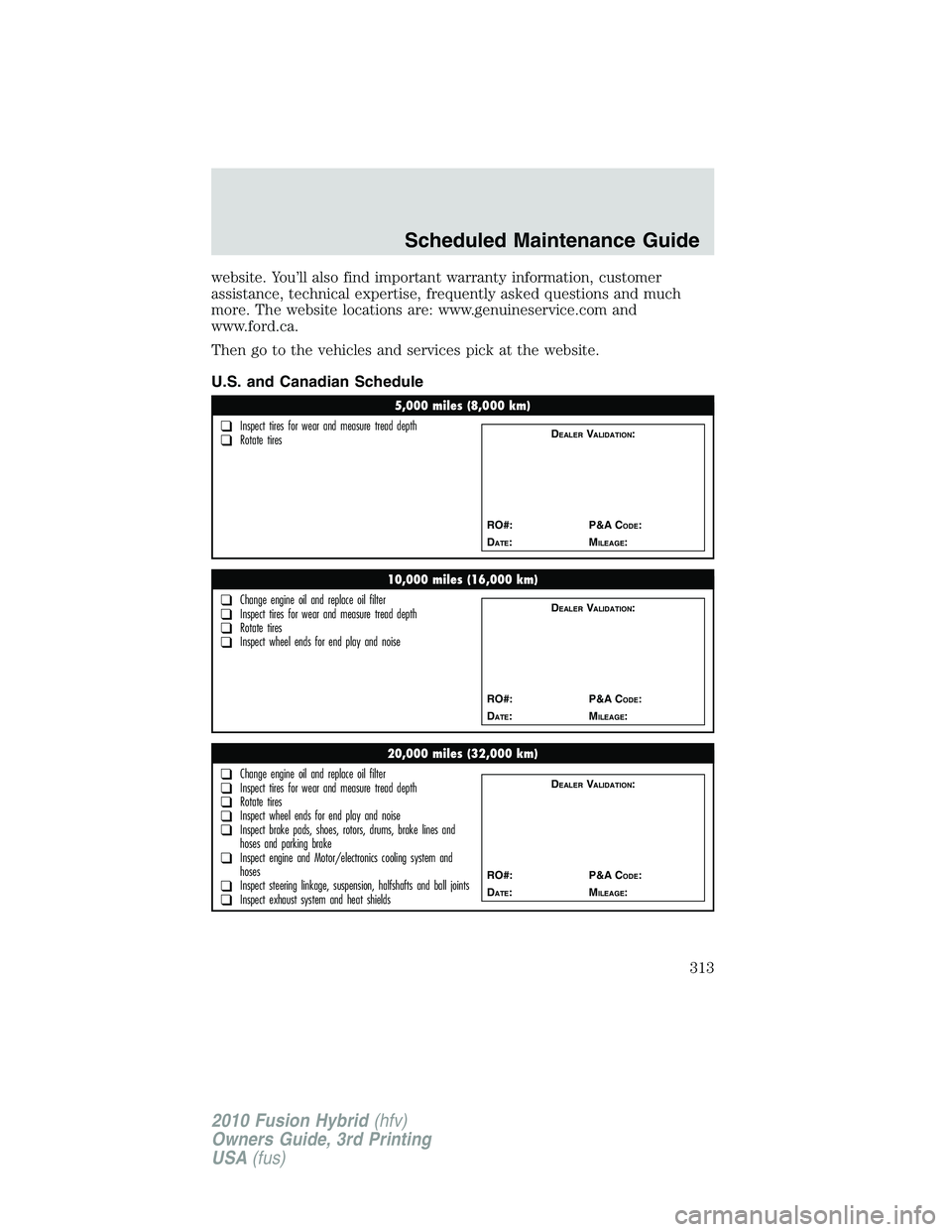

website. You’ll also find important warranty information, customer
assistance, technical expertise, frequently asked questions and much
more. The website locations are: www.genuineservice.com and
www.ford.ca.
Then go to the vehicles and services pick at the website.
U.S. and Canadian Schedule
5,000 miles (8,000 km)
❑Inspect tires for wear and measure tread depth❑Rotate tiresDEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
10,000 miles (16,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
20,000 miles (32,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
Scheduled Maintenance Guide
313
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

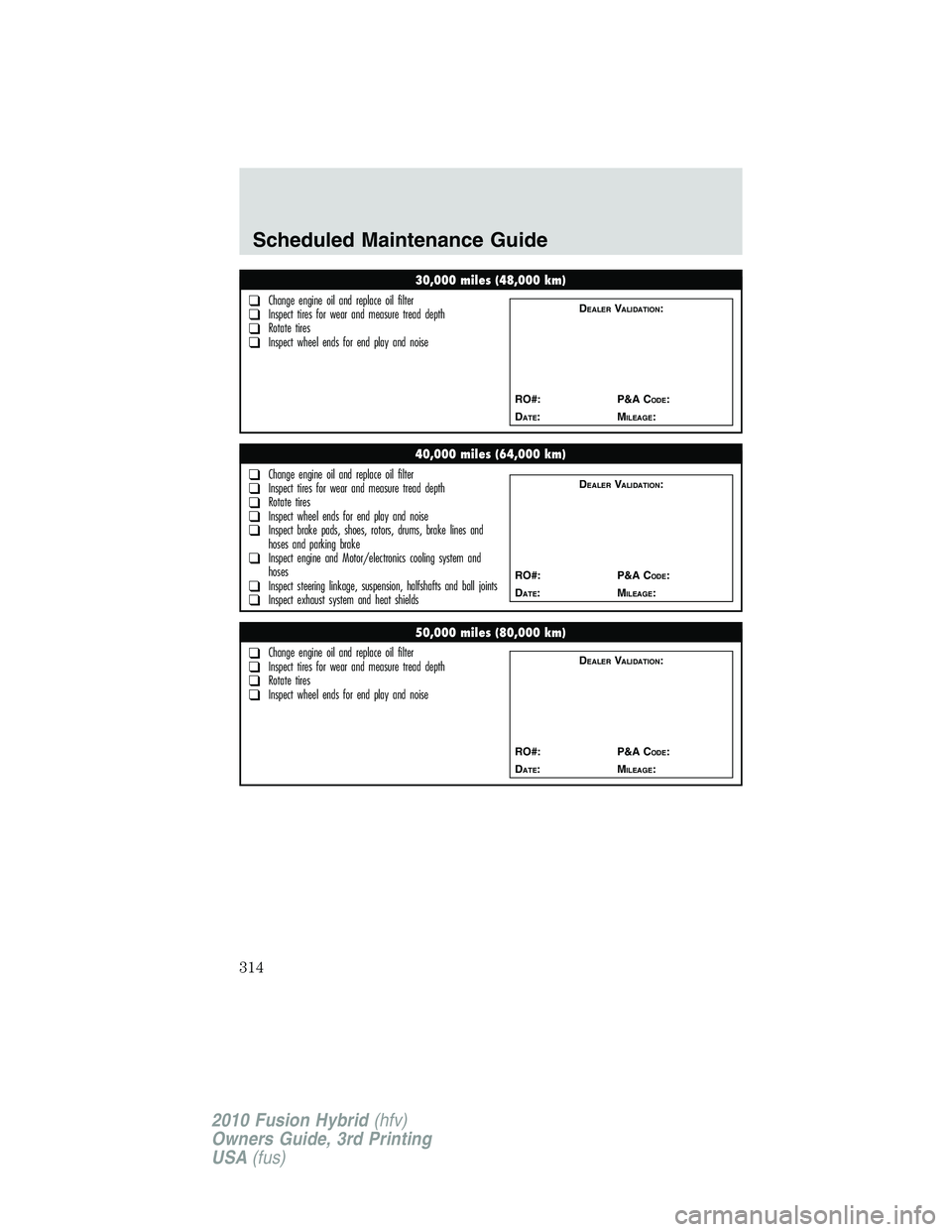

30,000 miles (48,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
40,000 miles (64,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
50,000 miles (80,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
Scheduled Maintenance Guide
314
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

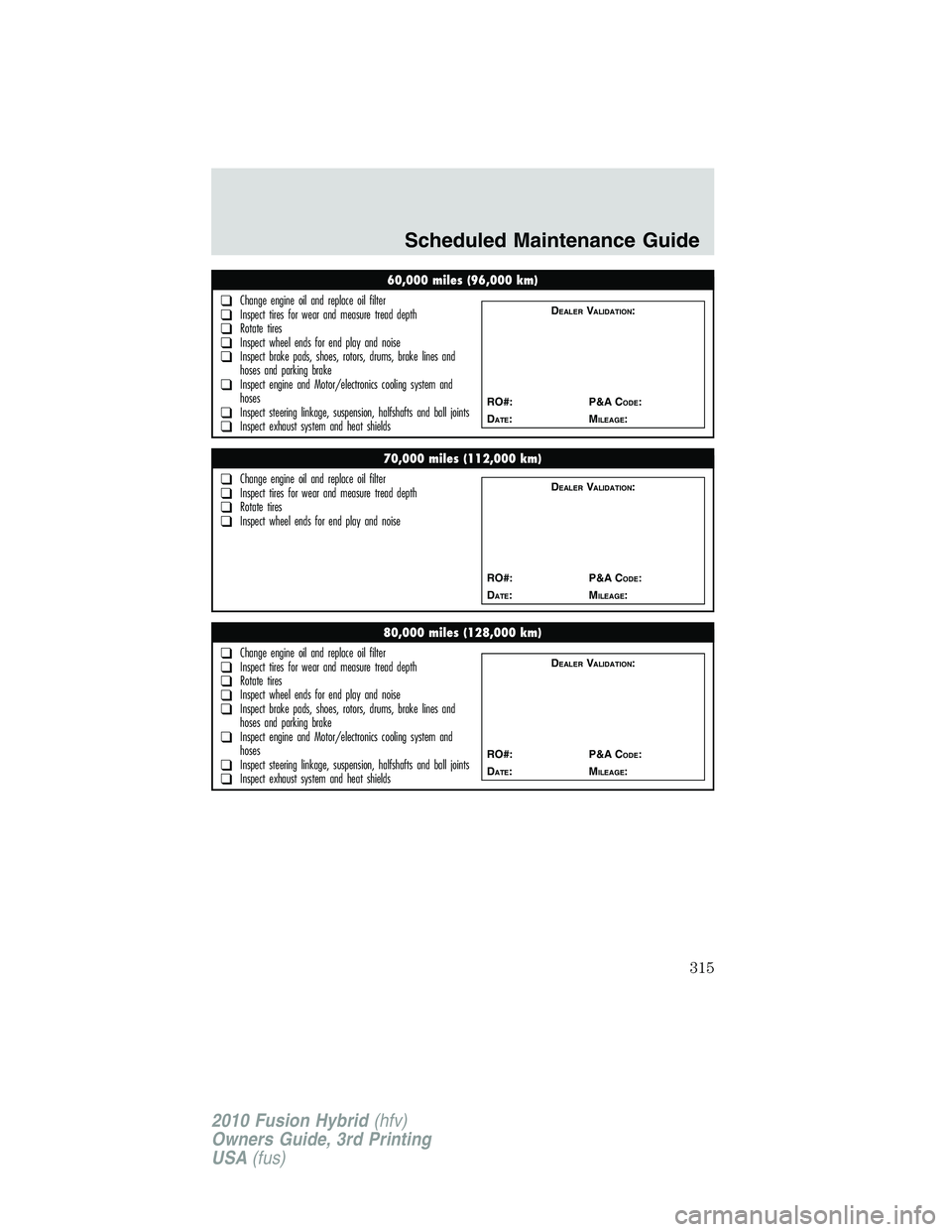

60,000 miles (96,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
70,000 miles (112,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
80,000 miles (128,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
Scheduled Maintenance Guide
315
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

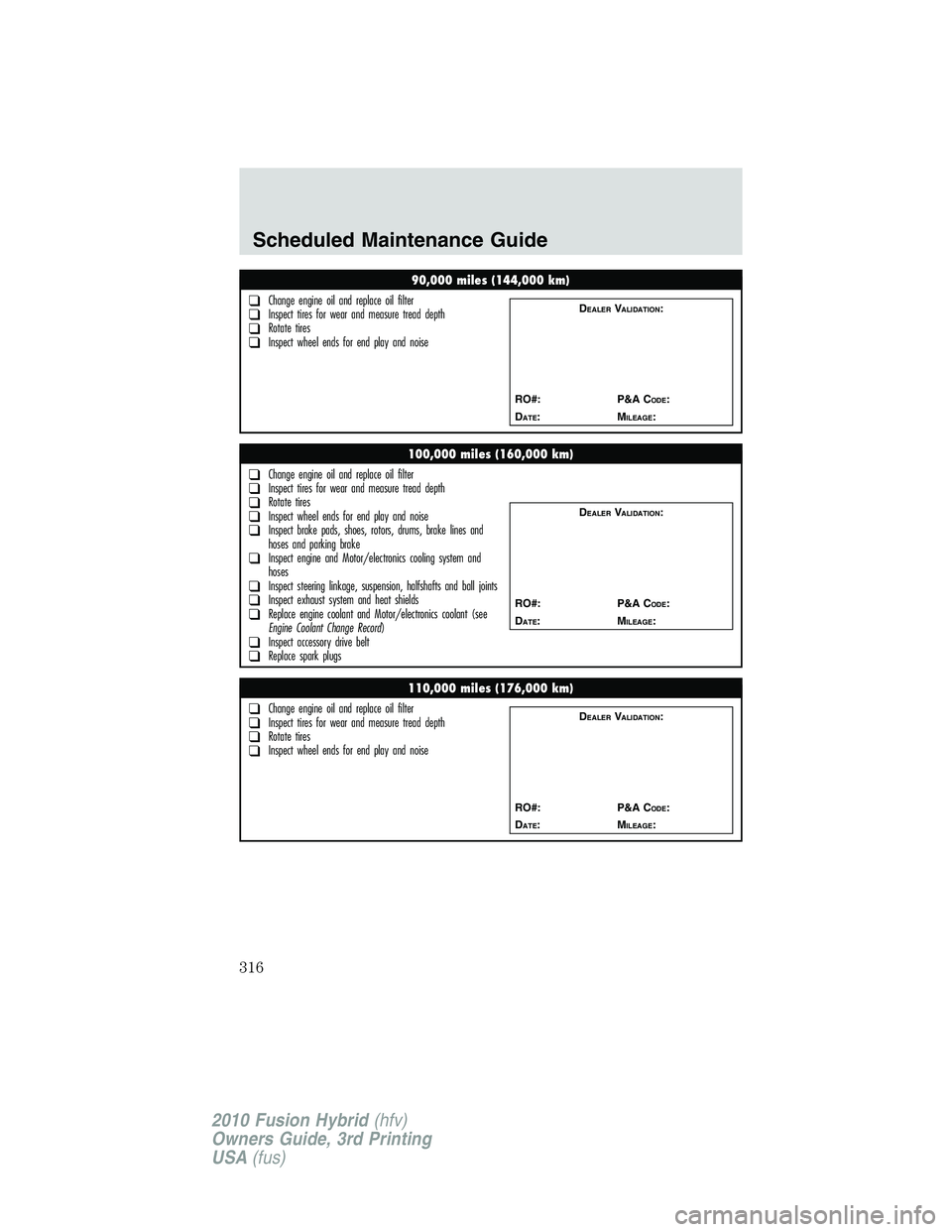

90,000 miles (144,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
100,000 miles (160,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields❑Replace engine coolant and Motor/electronics coolant (seeEngine Coolant Change Record)❑Inspect accessory drive belt❑Replace spark plugs
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
110,000 miles (176,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
Scheduled Maintenance Guide
316
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

120,000 miles (192,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
130,000 miles (208,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
140,000 miles (224,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Inspect brake pads, shoes, rotors, drums, brake lines and
hoses and parking brake
❑Inspect engine and Motor/electronics cooling system and
hoses
❑Inspect steering linkage, suspension, halfshafts and ball joints❑Inspect exhaust system and heat shields
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
Scheduled Maintenance Guide
317
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

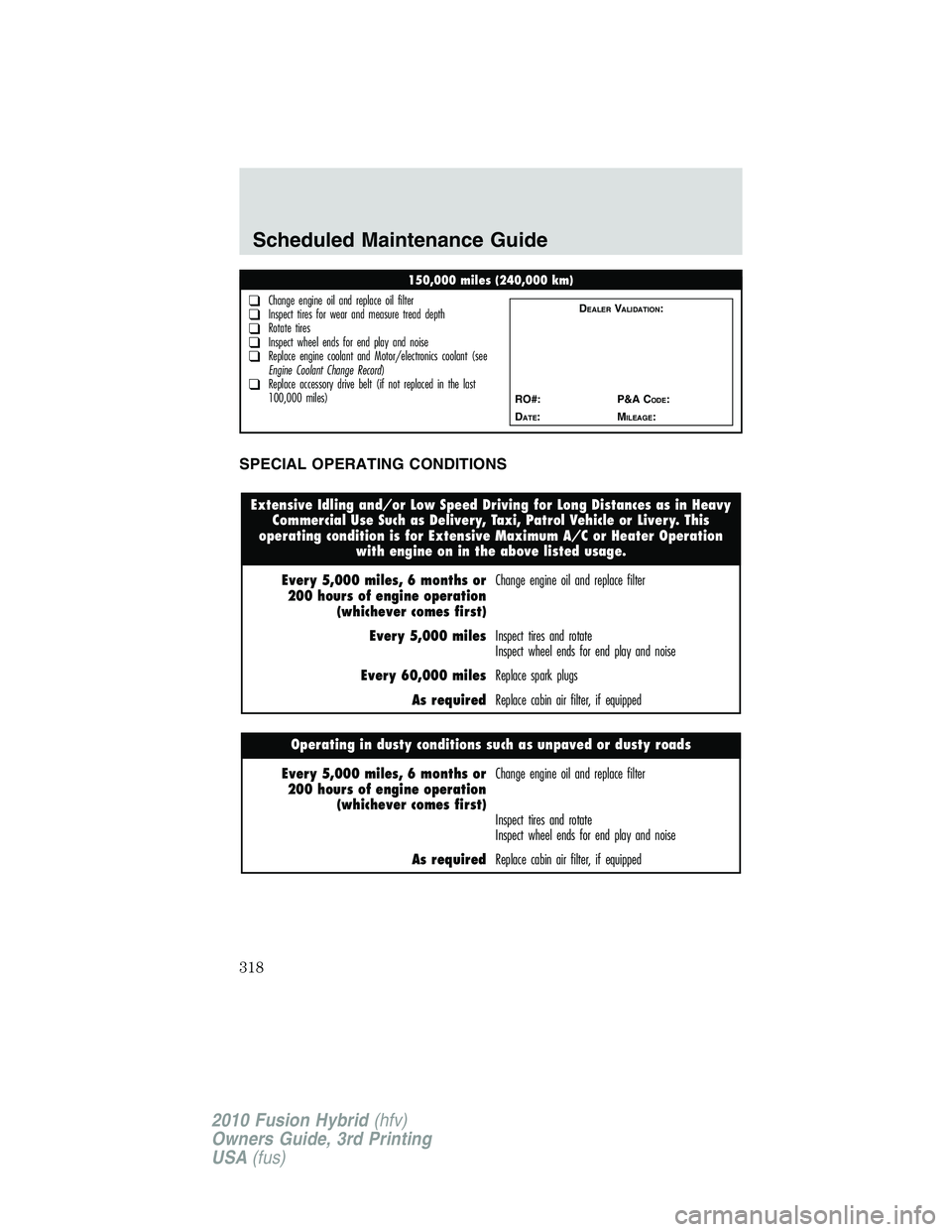

SPECIAL OPERATING CONDITIONS
Extensive Idling and/or Low Speed Driving for Long Distances as in Heavy
Commercial Use Such as Delivery, Taxi, Patrol Vehicle or Livery. This
operating condition is for Extensive Maximum A/C or Heater Operation
with engine on in the above listed usage.
Every 5,000 miles, 6 months or
200 hours of engine operation
(whichever comes first)Change engine oil and replace filter
Every 5,000 milesInspect tires and rotate
Inspect wheel ends for end play and noise
Every 60,000 milesReplace spark plugs
As requiredReplace cabin air filter, if equipped
Operating in dusty conditions such as unpaved or dusty roads
Every 5,000 miles, 6 months or
200 hours of engine operation
(whichever comes first)Change engine oil and replace filter
Inspect tires and rotate
Inspect wheel ends for end play and noise
As requiredReplace cabin air filter, if equipped
150,000 miles (240,000 km)
❑Change engine oil and replace oil filter❑Inspect tires for wear and measure tread depth❑Rotate tires❑Inspect wheel ends for end play and noise❑Replace engine coolant and Motor/electronics coolant (seeEngine Coolant Change Record)❑Replace accessory drive belt (if not replaced in the last
100,000 miles)
DEALERVALIDATION:
RO#: P&A C
ODE:
D
ATE:MILEAGE:
Scheduled Maintenance Guide
318
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
Engine Coolant Change Record
❑6 years or 100,000 miles (160,000 km) (whichever comes first) - change engine coolant and Motor/electrical coolant.
Refer toMaintenance product specifications and capacitiesin theMaintenance and Specificationschapter for the proper
coolant type.
❑After initial change - change coolant every 3 years or 50,000 miles (80,000 km)
Scheduled Maintenance Guide
319
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

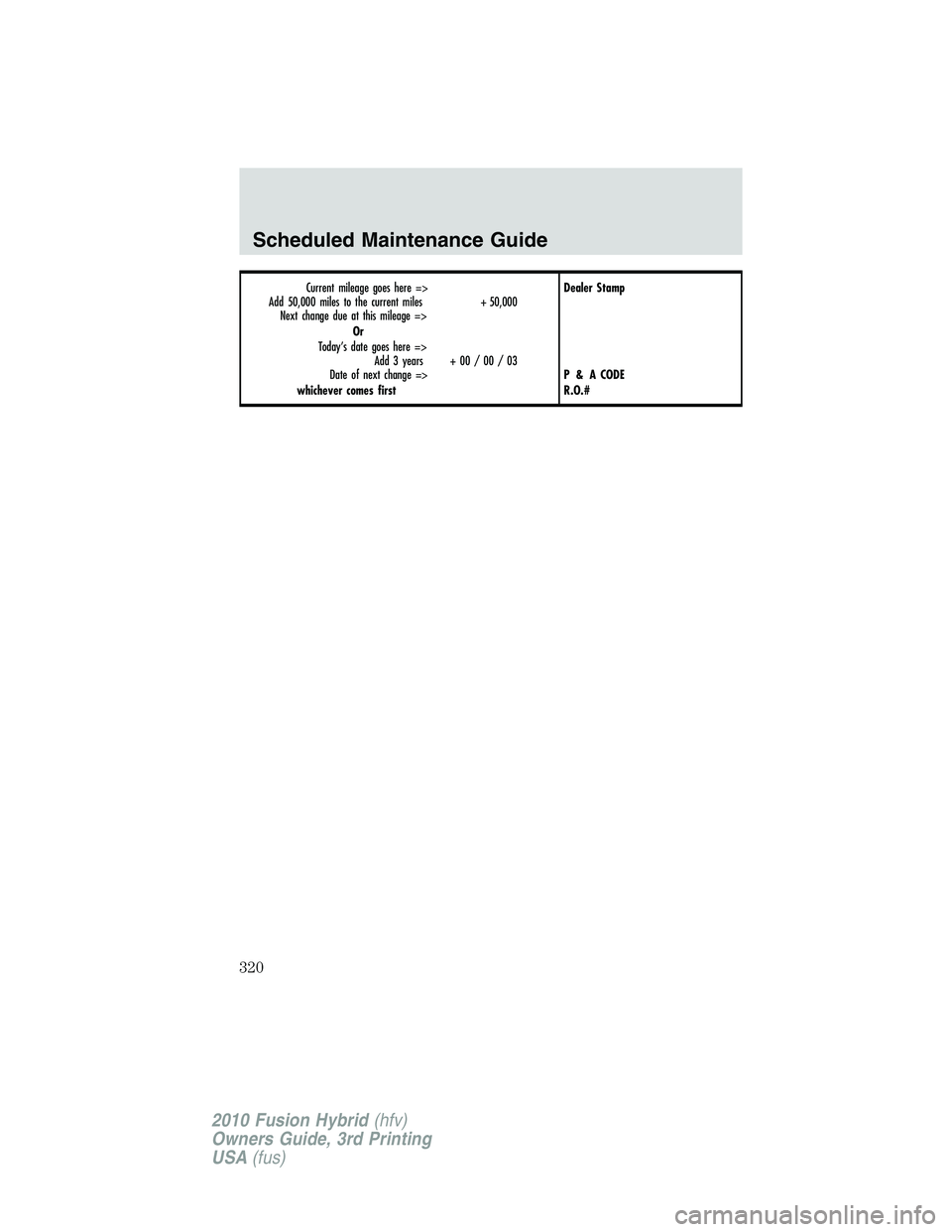

Current mileage goes here =>
Add 50,000 miles to the current miles + 50,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add 3 years + 00 / 00 / 03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
