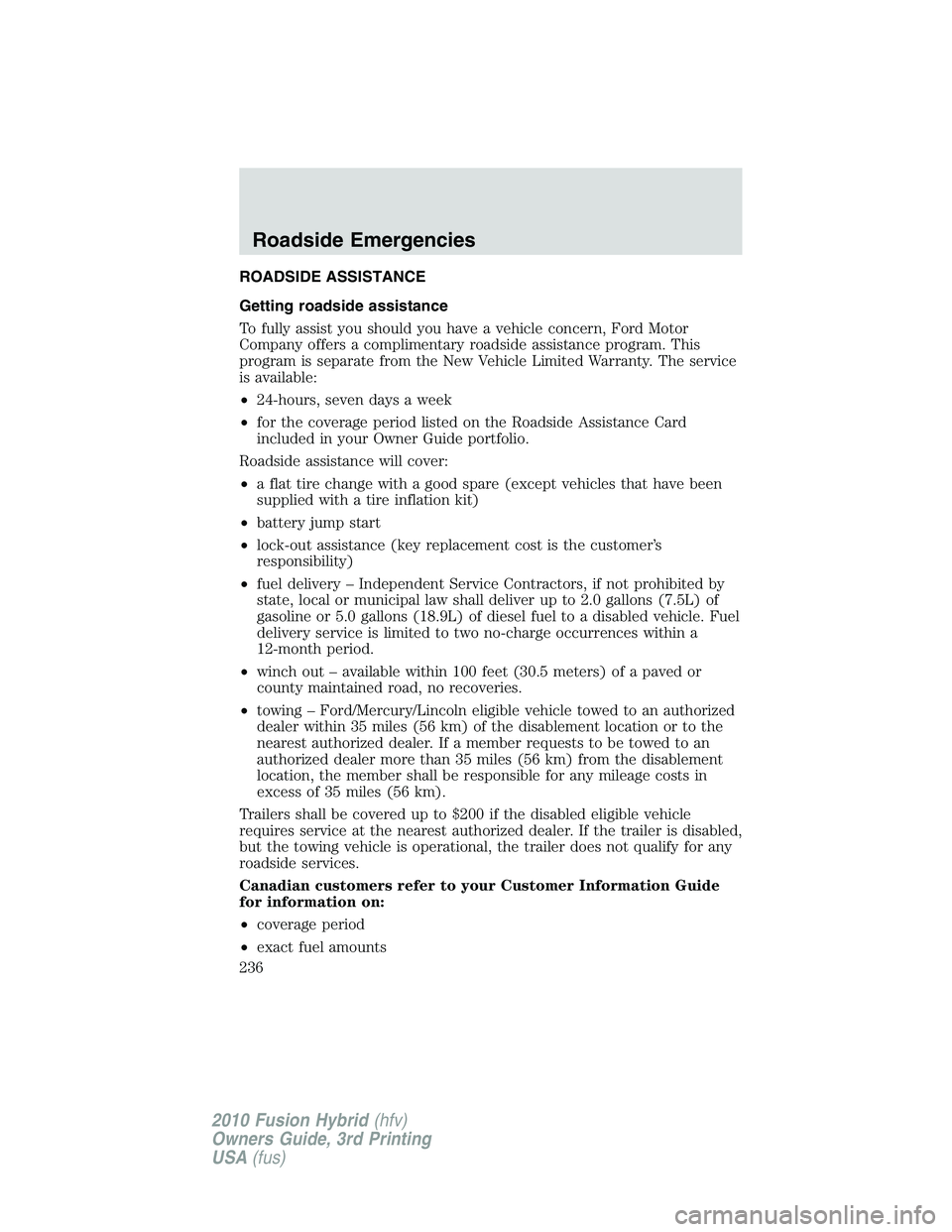

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
Roadside Emergencies
236
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

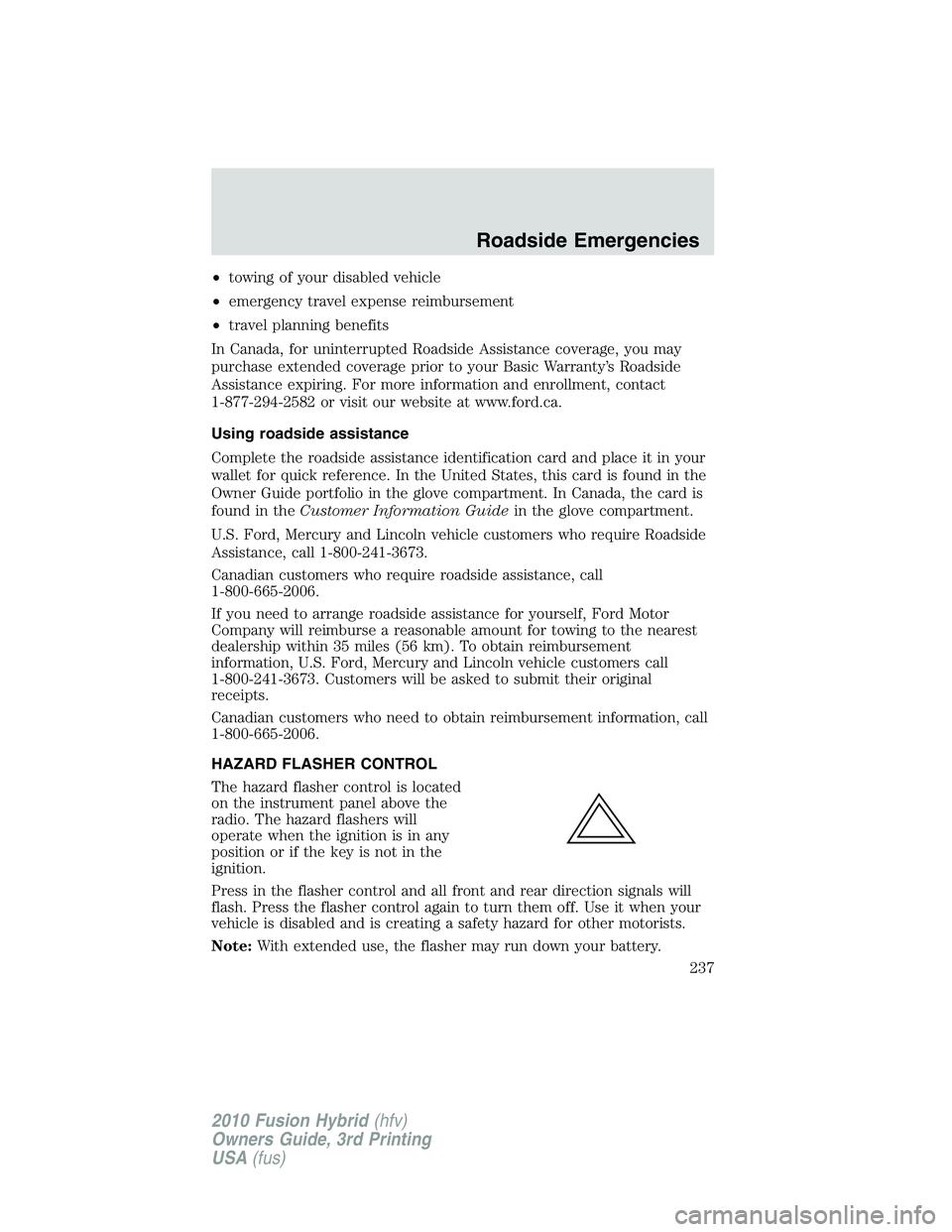

•towing of your disabled vehicle
•emergency travel expense reimbursement
•travel planning benefits
In Canada, for uninterrupted Roadside Assistance coverage, you may
purchase extended coverage prior to your Basic Warranty’s Roadside
Assistance expiring. For more information and enrollment, contact
1-877-294-2582 or visit our website at www.ford.ca.
Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theCustomer Information Guidein the glove compartment.
U.S. Ford, Mercury and Lincoln vehicle customers who require Roadside
Assistance, call 1-800-241-3673.
Canadian customers who require roadside assistance, call
1-800-665-2006.
If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount for towing to the nearest
dealership within 35 miles (56 km). To obtain reimbursement
information, U.S. Ford, Mercury and Lincoln vehicle customers call
1-800-241-3673. Customers will be asked to submit their original
receipts.
Canadian customers who need to obtain reimbursement information, call
1-800-665-2006.
HAZARD FLASHER CONTROL
The hazard flasher control is located
on the instrument panel above the
radio. The hazard flashers will
operate when the ignition is in any
position or if the key is not in the
ignition.
Press in the flasher control and all front and rear direction signals will
flash. Press the flasher control again to turn them off. Use it when your
vehicle is disabled and is creating a safety hazard for other motorists.
Note:With extended use, the flasher may run down your battery.
Roadside Emergencies
237
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mount stop lamp
3 15A HEV battery fan
4 30A 110V Inverter
5 10A Keypad illumination, Brake shift
interlock
6 20A Turn signal lamps, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lights
10 15A Backlighting, Puddle lamps
Roadside Emergencies
240
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty
Guide/Customer Information Guideto find out which parts and
services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Motorcraftparts are designed and built to
provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other burning material (such as cigarettes)
away from the battery and all fuel related parts.
High voltage information
WARNING:Exposure to high voltage may result in severe
personal injury or death. High voltage components must be
serviced by a trained service technician.
Your vehicle consists of various high voltage components and wiring. All
of the high voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange stripe tape. Do not come in contact with these components.
Working with the engine off
1. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
2. Turn off the engine and remove the key.
3. Block the wheels to prevent the vehicle from moving unexpectedly.
Working with the engine on
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
Maintenance and Specifications
274
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the service engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If the service engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer toOn-board
diagnostics (OBD-II)in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
Maintenance and Specifications
299
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

K
Keyless entry system
autolock ...................................103
keypad .....................................114
locking and unlocking doors ..115
programming entry code .......114
Keys ...................................102, 117
positions of the ignition .........209
L
Lamps
autolamp system .......................76
bulb replacement
specifications chart ..................82
daytime running light ...............77
fog lamps ...................................77
headlamps .................................76
headlamps, flash to pass ..........78
instrument panel, dimming .....78
interior lamps .....................80, 83
replacing bulbs .........................83
LATCH anchors .........................172
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........214
Load limits .................................201
Locks
autolock ...................................103
childproof ................................107
doors ........................................103
Lubricant specifications ...........302
Lug nuts ....................................252
Lumbar support, seats .............124
M
Message center ...........................35
system check button ................45
warning messages .....................46Mirrors ...................................95–96
automatic dimming rearview
mirror ........................................95
heated ........................................96
side view mirrors (power) .......96
Moon roof ....................................99
Motorcraftparts ..............273, 301
N
Navigation system .......................67
O
Octane rating ............................291
Oil (see Engine oil) ..................278
P
Parking brake ............................215
Parts (see Motorcraft
parts) .........................................301
Passenger Occupant
Classification Sensor .................133
Power distribution box
(see Fuses) ...............................242
Power door locks ......................103
Power mirrors .............................96
Power point .................................91
Power steering ..................220–221
Power Windows ...........................93
R
Radio ............................................51
Rear-view camera system .........227
Index
327
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Recommendations for
attaching safety restraints for
children ......................................164
Relays ................................238, 245
Remote entry system ...............109
illuminated entry ............111, 113
locking/unlocking
doors ................................109–110
opening the trunk ...................110
panic alarm .............................110
replacement/additional
transmitters .............................111
replacing the batteries ...........111
Reverse sensing system ...........224
Roadside assistance ..................236
S
Safety belts (see Safety
restraints) ..........132, 135, 137–139
Safety Canopy ...........................155
Safety defects, reporting ..........266
Safety restraints ...............132, 135,
137–139
Belt-Minder...........................141
extension assembly ................140
for adults .........................137–139
for children .............................161
Occupant Classification
Sensor ......................................133
warning light and chime ........140
Safety restraints - LATCH
anchors ......................................172
Safety seats for children ..........166
Safety Compliance
Certification Label ....................305
Satellite Radio .............................51Satellite Radio Information ........64
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............312
Special Operating
Conditions ...............................318
What Maintenance Schedule
Should You Follow? ................311
Seats ..........................................121
child safety seats ....................166
front seats ...............................124
heated ......................................127
SecuriCode keyless entry
system ........................................114
SecuriLock passive anti-theft
system ........................................115
Servicing your vehicle ..............274
Side air curtain .........................158
SOS Post Crash Alert ...............161
Spark plugs, specifications ......301,
304
Specification chart,
lubricants ...................................302
Speed control ..............................96
Starting your vehicle ........209, 211
jump starting ..........................253
Steering
speed sensitive .......................221
Steering wheel
controls ......................................98
tilting .........................................87
Stereo
CD-MP3 .....................................51
SYNC..........................................67
Index
328
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)
