check engine FORD FUSION HYBRID 2010 Owners Manual

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
17
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause extensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulbs work. If any light remains on after starting the vehicle, refer to the
respective system light explanation later in this section for additional
information.
Note:Some warning lights are reconfigurable telltale (RTT) indicators;
they will display in the message center and function the same as the
warning light, but they will not display on startup as regular warning
lights do.
Service engine soon:The service
engine soon light illuminates when
the ignition is turned to the on
position to check the bulb.
•Illuminates with key on, vehicle off:If the light illuminates, the
service engine soon light is working properly.
•Illuminates with key on, vehicle off, then starts to blink:The
light illuminates when the ignition is turned to the on position to
check the bulb and to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing. If after 15 seconds the service
engine soon light blinks eight times, it means that the vehicle is not
ready for Inspection/Maintenance (I/M) testing. This can occur if the
vehicle’s engine or transmission has just been serviced, or the battery
has recently run down or been disconnected. If the vehicle does not
need I/M testing, do nothing. The vehicle is designed to check the
Instrument Cluster
18
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Safety belt:The warning light
illuminates momentarily when the
ignition is turned to the on position.
Illuminates to remind you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you to fasten your safety belt. Refer to
theSeating and Safety Restraintschapter to activate/deactivate the
Belt-Minderchime feature.
Stop safely hazard warning
(RTT):Indicates Hybrid component
fault/failure that will cause the
vehicle to shutdown, fail to start or
enter into a limited operating mode. A message may also display in the
message center.
Note: If the vehicle is still running, the vehicle may soon
shutdown without further warning and should be stopped safely.
If this lamp is lit, stop the vehicle, shift to P (Park), turn the key to the
off position, and attempt to restart the vehicle. If the fault remains, the
vehicle may require refueling, jump starting or service. For information
regarding the low-voltage (12–volt) battery only, please refer toJump
starting (low voltage [underhood] battery only)in theRoadside
Emergencieschapter.
Ready to drive:Illuminates once
the vehicle has successfully started
and will remain lit throughout the
drive. Indicates the vehicle is ready
to drive even when you don’t hear
the gasoline engine running.
Ready to drive (RTT):Illuminates
briefly once the vehicle has
successfully started. Indicates that
the vehicle is ready to drive even
when you don’t hear the gasoline
engine running.
Charging system (RTT):
Illuminates when the low-voltage
(12-volt) battery is not charging
properly. The message center
displays CHECK CHARGING SYSTEM. If it stays on while the vehicle is
running (Ready to drive indicator is illuminated), there may be a
Instrument Cluster
21
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

malfunction with the charging system. Contact your authorized dealer as
soon as possible. This indicates a problem with the electrical system or a
related component.
Engine oil pressure (RTT):
Illuminates when the oil pressure
falls below the normal range. The
message center displays LOW OIL
PRESSURE when the engine oil level is low. Check the oil level and add
oil if needed. If the warning light or message stays on, even though the
oil level is correct, do not start the engine and contact your authorized
dealer as soon as possible. This indicates a problem with the engine or a
related component. Refer toEngine oilin theMaintenance and
Specificationschapter.
High engine or high motor
electronic coolant temperature
(RTT):Illuminates when the engine
coolant or motor electronics coolant temperature is high. The message
center displays HIGH ENGINE TEMPERATURE / HIGH MOTOR
TEMPERATURE when the engine coolant or motor electronics are
overheating. Stop the vehicle as soon as safely possible, turn off the
engine, and let it cool. Check the coolant and coolant level. If the light
and message stays on or continues to turn on after the vehicle warms
up, contact your authorized dealer as soon as possible. Continuing to
drive with an overheated engine can cause serious engine damage. This
indicates a problem with the engine or a related component. Refer to
Engine coolant and motor/electronics coolantin theMaintenance
and Specificationschapter.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
AdvanceTrac:Illuminates when
AdvanceTracis active. If the light
remains on, contact your authorized
dealer as soon as possible. Refer to
theDrivingchapter for more
information.
Instrument Cluster
22
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

Throttle Control/Powertrain
malfunction (RTT):Illuminates
when a powertrain fault has been
detected. If the indicator stays on or
continues to come on, contact your
authorized dealer as soon as possible.
Door ajar (RTT):Displays when
the ignition is in the on position and
any door is open. A message may
also display in the message center.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off, lock or accessory position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on warning chime:Sounds when the parking brake is
left on and the vehicle is driven. If the warning stays on after the park
brake is off, contact your authorized dealer as soon as possible.
Turn signal on warning chime:Sounds when the turn signal has been
left on for an extended period of time.
HEV Engine off reminder chime:Sounds for 10 seconds when the
PRNDL is in the P (Park) position and the Driver’s door is ajar (open)
while ignition is on. Always turn your ignition key to off and remove key
before leaving your vehicle. (The engine may be off when the vehicle is
stopped, yet the key is on, and the engine can turn on at any time)
Message center activation chime:Sounds when some messages
appear in the message center display for the first time.
Perimeter alarm warning chime:Sounds when using a key to unlock
the driver’s doors and the perimeter alarm is armed.
Instrument Cluster
24
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

•Set to 100%•Set to 90%
•Set to 20%•Set to 10%
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
Note:Oil life of 100% equals 10,000 miles (16,000 km) or 12 months.
For example, setting oil life to 60% sets the oil life value to 6,000 miles
(10,000 km) and 219 days.
See theMaintenance and Specificationschapter regarding engine oil
and change intervals.
System Check
Press SETUP to reach System
Check.
While System Check is highlighted,
press RESET to cycle the message
center through each of the systems
being monitored:
1. OIL LIFE 2. ELECTRIC DRIVE
3. CHARGING SYSTEM 4. DOORS CLOSED
5. TRUNK CLOSED 6. BLINDSPOT (if equipped)
7. CROSS TRAFFIC (if equipped) 8. BRAKE SYSTEM
9. FUEL LEVEL XXX mi (km)
Demo
The demo briefly displays each of
the gauge displays available.
Press SETUP to reach Demo.
While Demo is highlighted, press
RESET to start the demo. Pressing
INFO, SETUP or RESET will exit
the demo.
Instrument Cluster
45
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

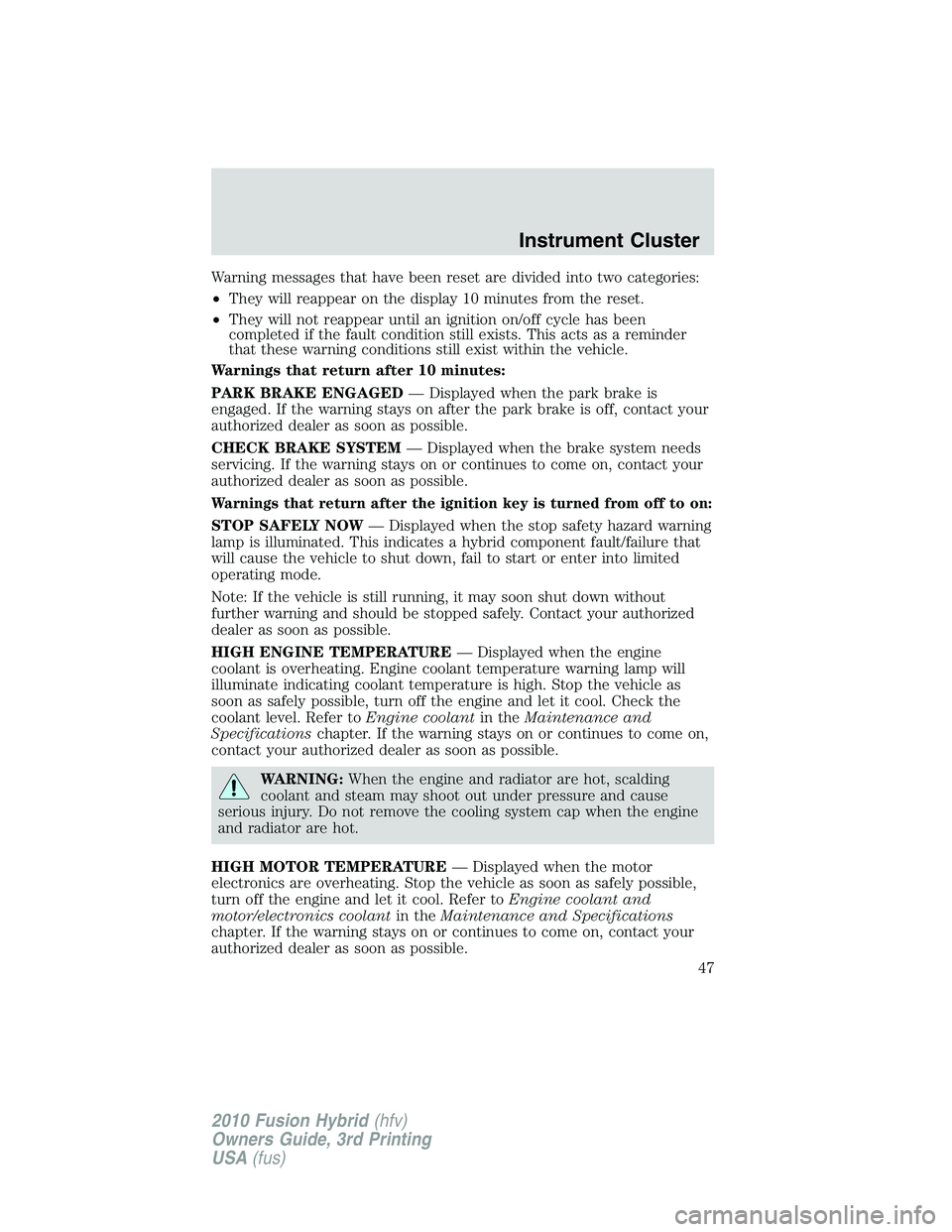

Warning messages that have been reset are divided into two categories:
•They will reappear on the display 10 minutes from the reset.
•They will not reappear until an ignition on/off cycle has been
completed if the fault condition still exists. This acts as a reminder
that these warning conditions still exist within the vehicle.
Warnings that return after 10 minutes:
PARK BRAKE ENGAGED— Displayed when the park brake is
engaged. If the warning stays on after the park brake is off, contact your
authorized dealer as soon as possible.
CHECK BRAKE SYSTEM— Displayed when the brake system needs
servicing. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
Warnings that return after the ignition key is turned from off to on:
STOP SAFELY NOW— Displayed when the stop safety hazard warning
lamp is illuminated. This indicates a hybrid component fault/failure that
will cause the vehicle to shut down, fail to start or enter into limited
operating mode.
Note: If the vehicle is still running, it may soon shut down without
further warning and should be stopped safely. Contact your authorized
dealer as soon as possible.
HIGH ENGINE TEMPERATURE— Displayed when the engine
coolant is overheating. Engine coolant temperature warning lamp will
illuminate indicating coolant temperature is high. Stop the vehicle as
soon as safely possible, turn off the engine and let it cool. Check the
coolant level. Refer toEngine coolantin theMaintenance and
Specificationschapter. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
WARNING:When the engine and radiator are hot, scalding
coolant and steam may shoot out under pressure and cause
serious injury. Do not remove the cooling system cap when the engine
and radiator are hot.
HIGH MOTOR TEMPERATURE— Displayed when the motor
electronics are overheating. Stop the vehicle as soon as safely possible,
turn off the engine and let it cool. Refer toEngine coolant and
motor/electronics coolantin theMaintenance and Specifications
chapter. If the warning stays on or continues to come on, contact your
authorized dealer as soon as possible.
Instrument Cluster
47
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

INSTRUMENT PANEL STORAGE COMPARTMENT
The storage compartment may be
used to secure sunglasses or similar
sized objects. Press the button to
open the storage compartment.
AUXILIARY POWER POINT (12V DC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•On the instrument panel
•In the center console utility compartment
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point is not
working, a fuse may have blown. Refer toFuses and relaysin the
Roadside Emergencieschapter for information on checking and
replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
Driver Controls
91
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

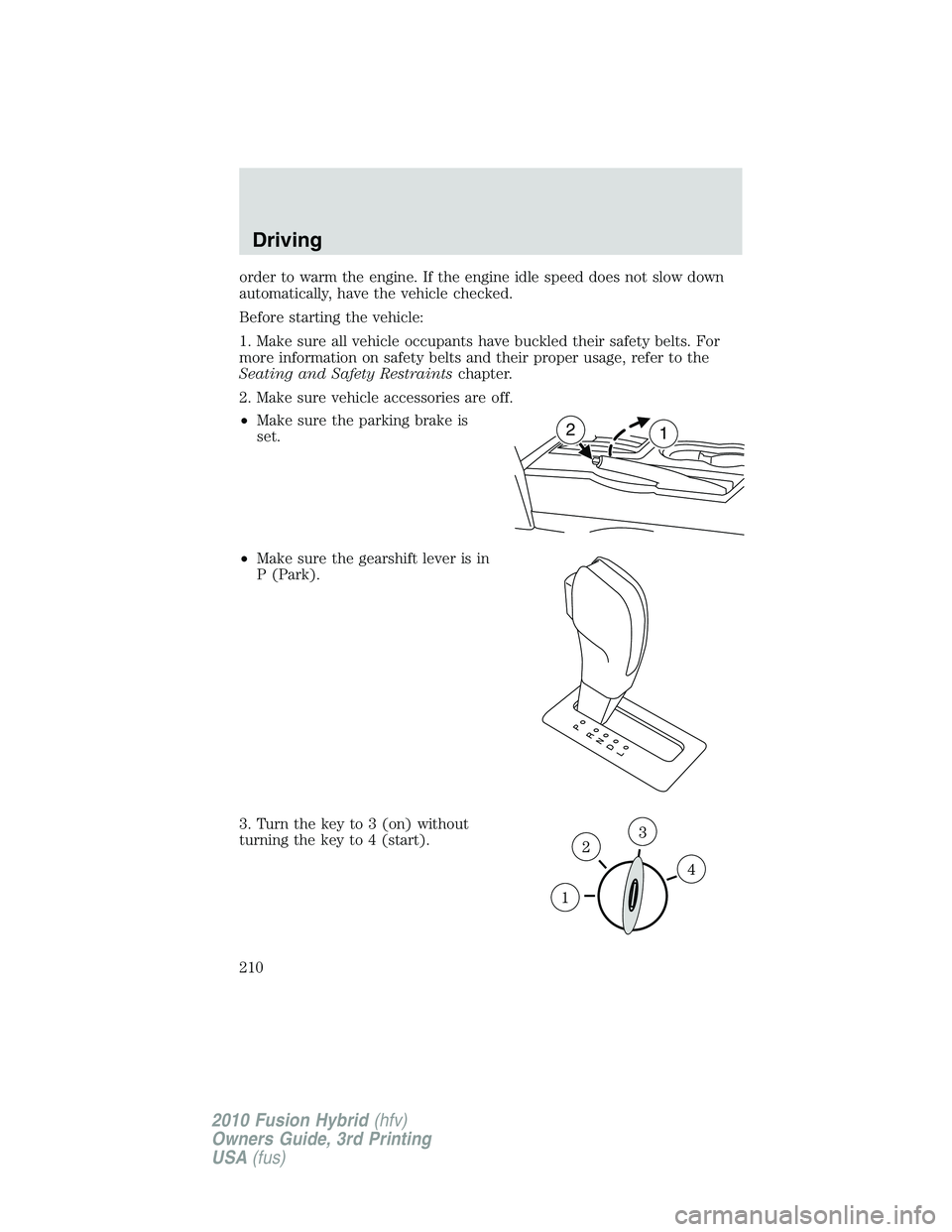

order to warm the engine. If the engine idle speed does not slow down
automatically, have the vehicle checked.
Before starting the vehicle:
1. Make sure all vehicle occupants have buckled their safety belts. For
more information on safety belts and their proper usage, refer to the
Seating and Safety Restraintschapter.
2. Make sure vehicle accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift lever is in
P (Park).
3. Turn the key to 3 (on) without
turning the key to 4 (start).
12
Driving
210
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

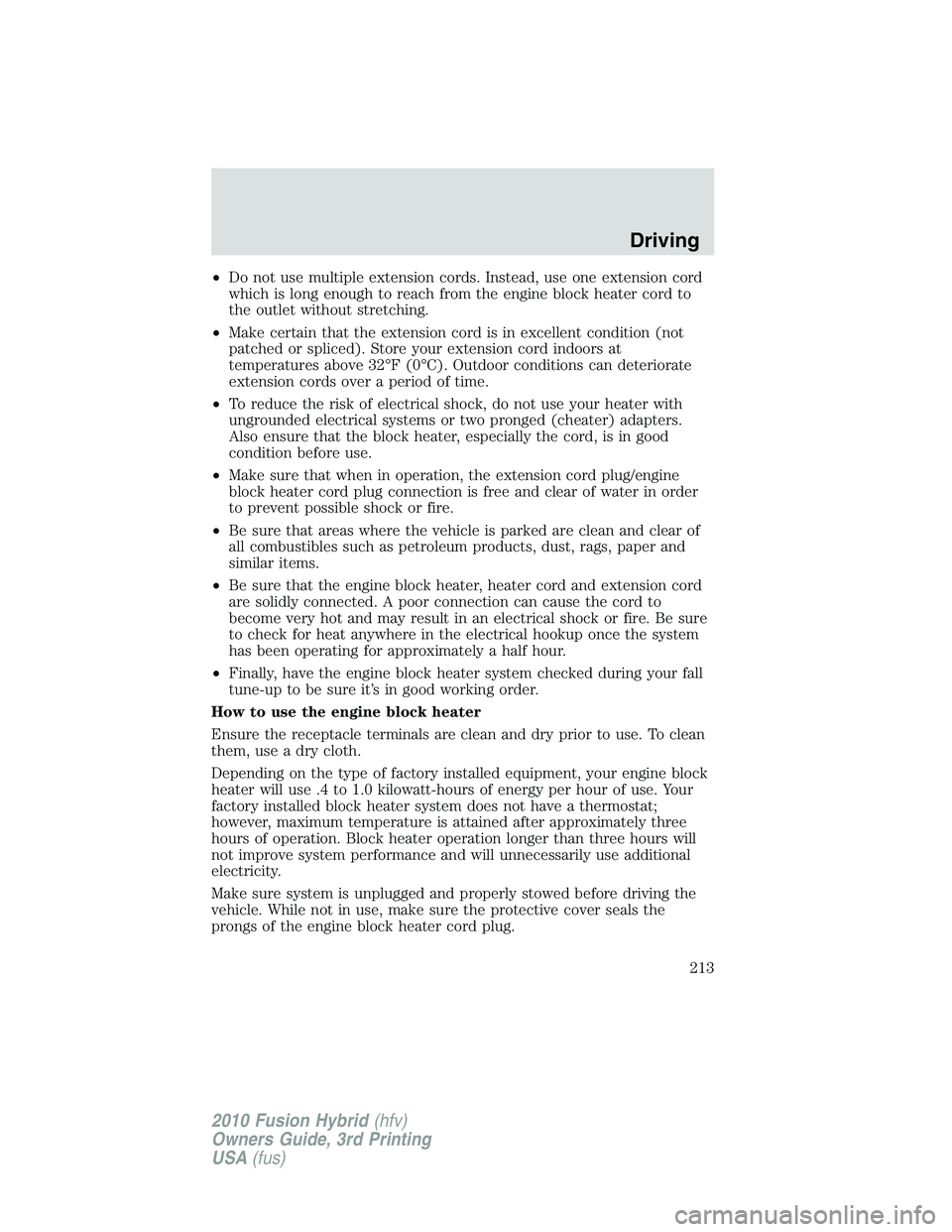

•Do not use multiple extension cords. Instead, use one extension cord
which is long enough to reach from the engine block heater cord to
the outlet without stretching.
•Make certain that the extension cord is in excellent condition (not
patched or spliced). Store your extension cord indoors at
temperatures above 32°F (0°C). Outdoor conditions can deteriorate
extension cords over a period of time.
•To reduce the risk of electrical shock, do not use your heater with
ungrounded electrical systems or two pronged (cheater) adapters.
Also ensure that the block heater, especially the cord, is in good
condition before use.
•Make sure that when in operation, the extension cord plug/engine
block heater cord plug connection is free and clear of water in order
to prevent possible shock or fire.
•Be sure that areas where the vehicle is parked are clean and clear of
all combustibles such as petroleum products, dust, rags, paper and
similar items.
•Be sure that the engine block heater, heater cord and extension cord
are solidly connected. A poor connection can cause the cord to
become very hot and may result in an electrical shock or fire. Be sure
to check for heat anywhere in the electrical hookup once the system
has been operating for approximately a half hour.
•Finally, have the engine block heater system checked during your fall
tune-up to be sure it’s in good working order.
How to use the engine block heater
Ensure the receptacle terminals are clean and dry prior to use. To clean
them, use a dry cloth.
Depending on the type of factory installed equipment, your engine block
heater will use .4 to 1.0 kilowatt-hours of energy per hour of use. Your
factory installed block heater system does not have a thermostat;
however, maximum temperature is attained after approximately three
hours of operation. Block heater operation longer than three hours will
not improve system performance and will unnecessarily use additional
electricity.
Make sure system is unplugged and properly stowed before driving the
vehicle. While not in use, make sure the protective cover seals the
prongs of the engine block heater cord plug.
Driving
213
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)
