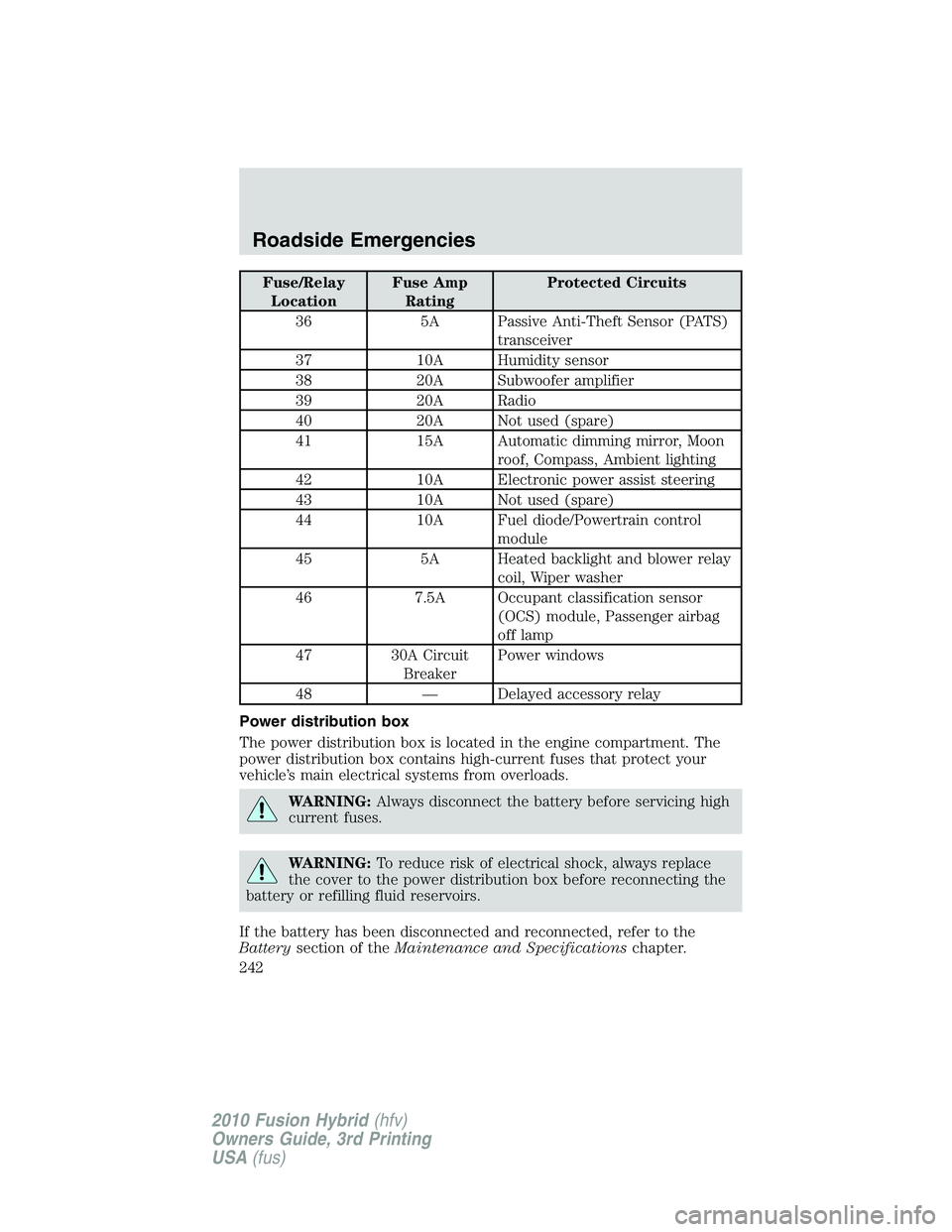

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
36 5A Passive Anti-Theft Sensor (PATS)
transceiver
37 10A Humidity sensor
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming mirror, Moon
roof, Compass, Ambient lighting
42 10A Electronic power assist steering
43 10A Not used (spare)
44 10A Fuel diode/Powertrain control
module
45 5A Heated backlight and blower relay
coil, Wiper washer
46 7.5A Occupant classification sensor
(OCS) module, Passenger airbag
off lamp
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
242
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

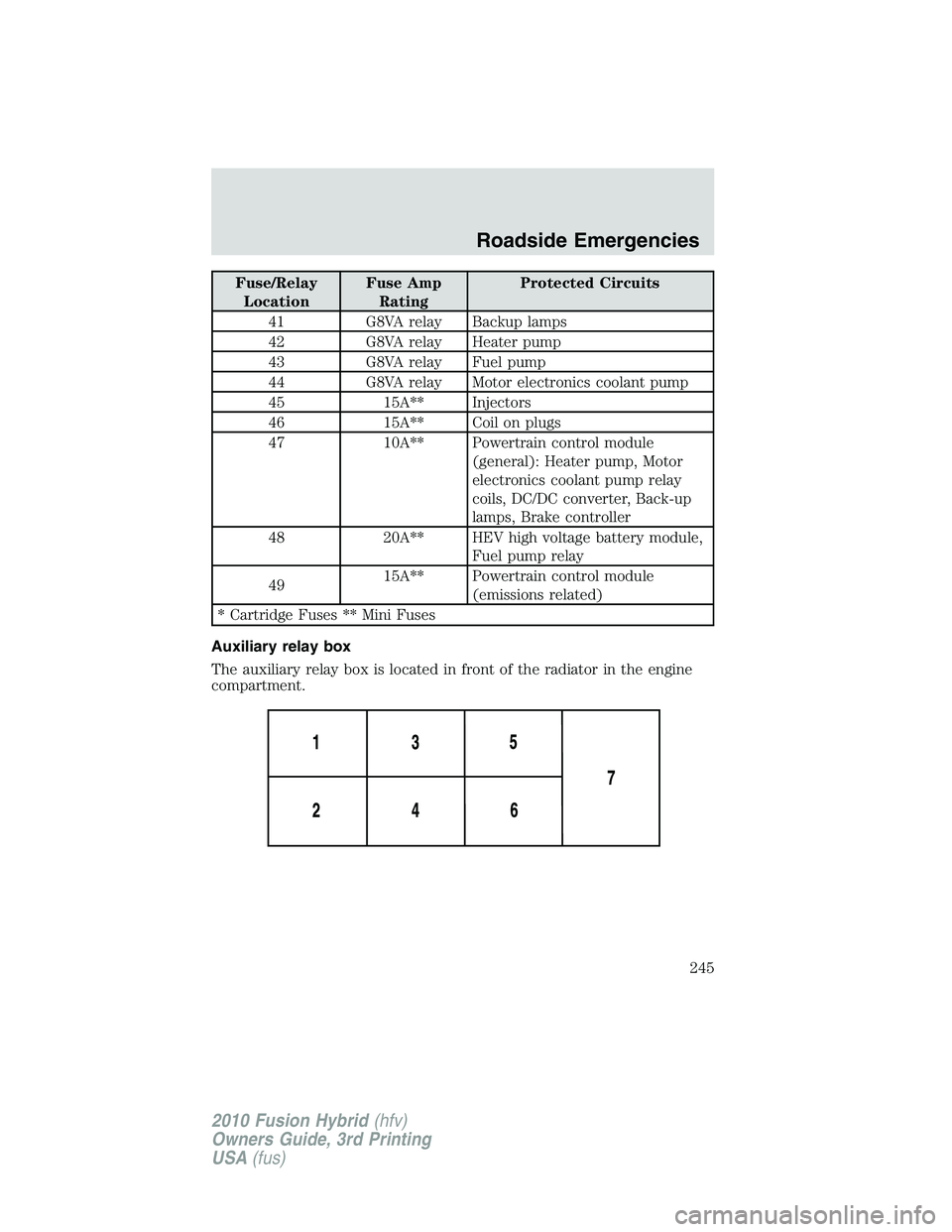

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
41 G8VA relay Backup lamps
42 G8VA relay Heater pump
43 G8VA relay Fuel pump
44 G8VA relay Motor electronics coolant pump
45 15A** Injectors
46 15A** Coil on plugs
47 10A** Powertrain control module
(general): Heater pump, Motor
electronics coolant pump relay
coils, DC/DC converter, Back-up
lamps, Brake controller
48 20A** HEV high voltage battery module,
Fuel pump relay
4915A** Powertrain control module
(emissions related)
* Cartridge Fuses ** Mini Fuses
Auxiliary relay box
The auxiliary relay box is located in front of the radiator in the engine
compartment.
Roadside Emergencies
245
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)

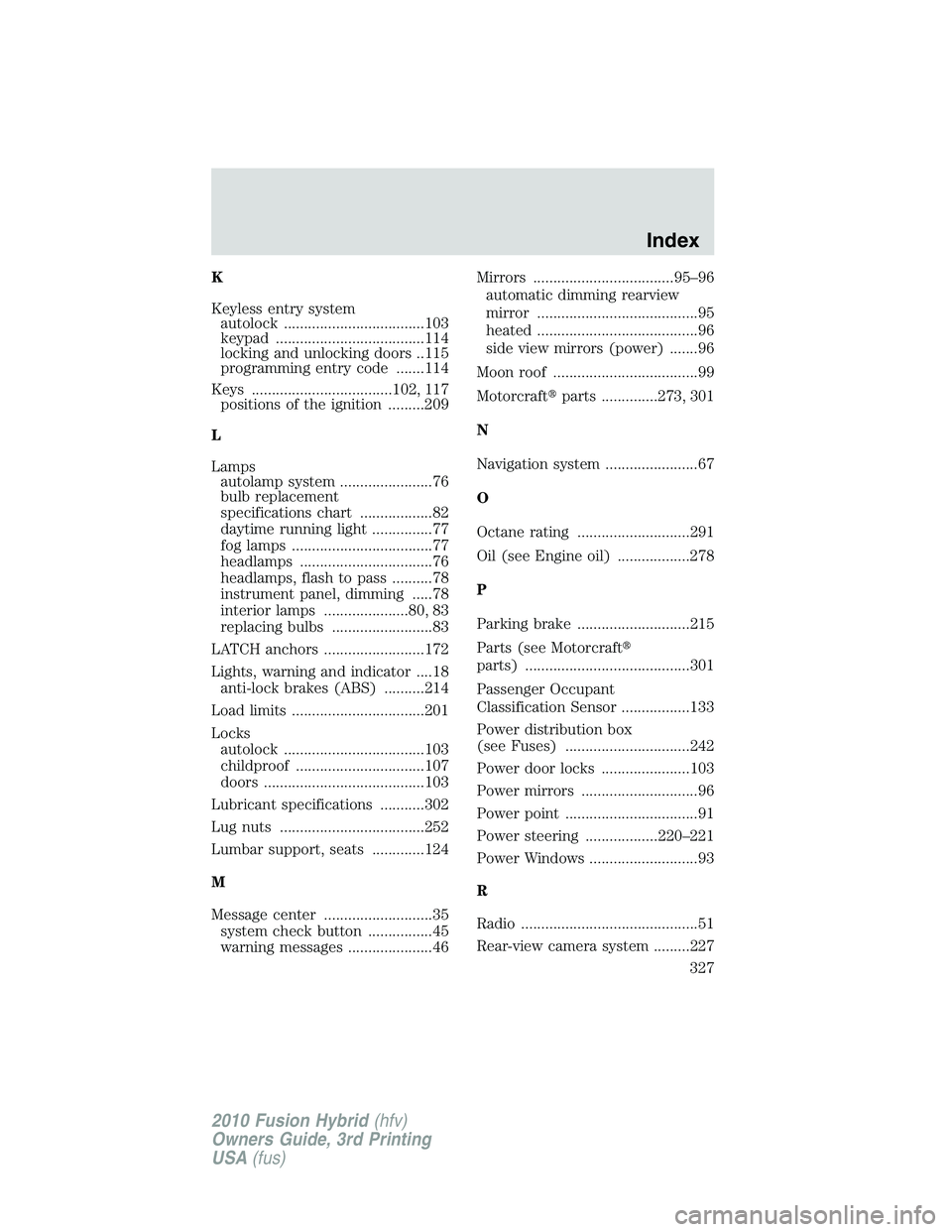

K
Keyless entry system
autolock ...................................103
keypad .....................................114
locking and unlocking doors ..115
programming entry code .......114
Keys ...................................102, 117
positions of the ignition .........209
L
Lamps
autolamp system .......................76
bulb replacement
specifications chart ..................82
daytime running light ...............77
fog lamps ...................................77
headlamps .................................76
headlamps, flash to pass ..........78
instrument panel, dimming .....78
interior lamps .....................80, 83
replacing bulbs .........................83
LATCH anchors .........................172
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........214
Load limits .................................201
Locks
autolock ...................................103
childproof ................................107
doors ........................................103
Lubricant specifications ...........302
Lug nuts ....................................252
Lumbar support, seats .............124
M
Message center ...........................35
system check button ................45
warning messages .....................46Mirrors ...................................95–96
automatic dimming rearview
mirror ........................................95
heated ........................................96
side view mirrors (power) .......96
Moon roof ....................................99
Motorcraftparts ..............273, 301
N
Navigation system .......................67
O
Octane rating ............................291
Oil (see Engine oil) ..................278
P
Parking brake ............................215
Parts (see Motorcraft
parts) .........................................301
Passenger Occupant
Classification Sensor .................133
Power distribution box
(see Fuses) ...............................242
Power door locks ......................103
Power mirrors .............................96
Power point .................................91
Power steering ..................220–221
Power Windows ...........................93
R
Radio ............................................51
Rear-view camera system .........227
Index
327
2010 Fusion Hybrid(hfv)
Owners Guide, 3rd Printing
USA(fus)
