language FORD FUSION HYBRID 2014 Owners Manual

The information contained in this publication was correct at the time of going to print. In the interest of
continuous development, we reserve the right to change specifications, design or equipment at any time
without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a
retrieval system or translated into any language in any form by any means without our written permission.
Errors and omissions excepted.
© Ford Motor Company 2013
All rights reserved.
Part Number: 20130517183634

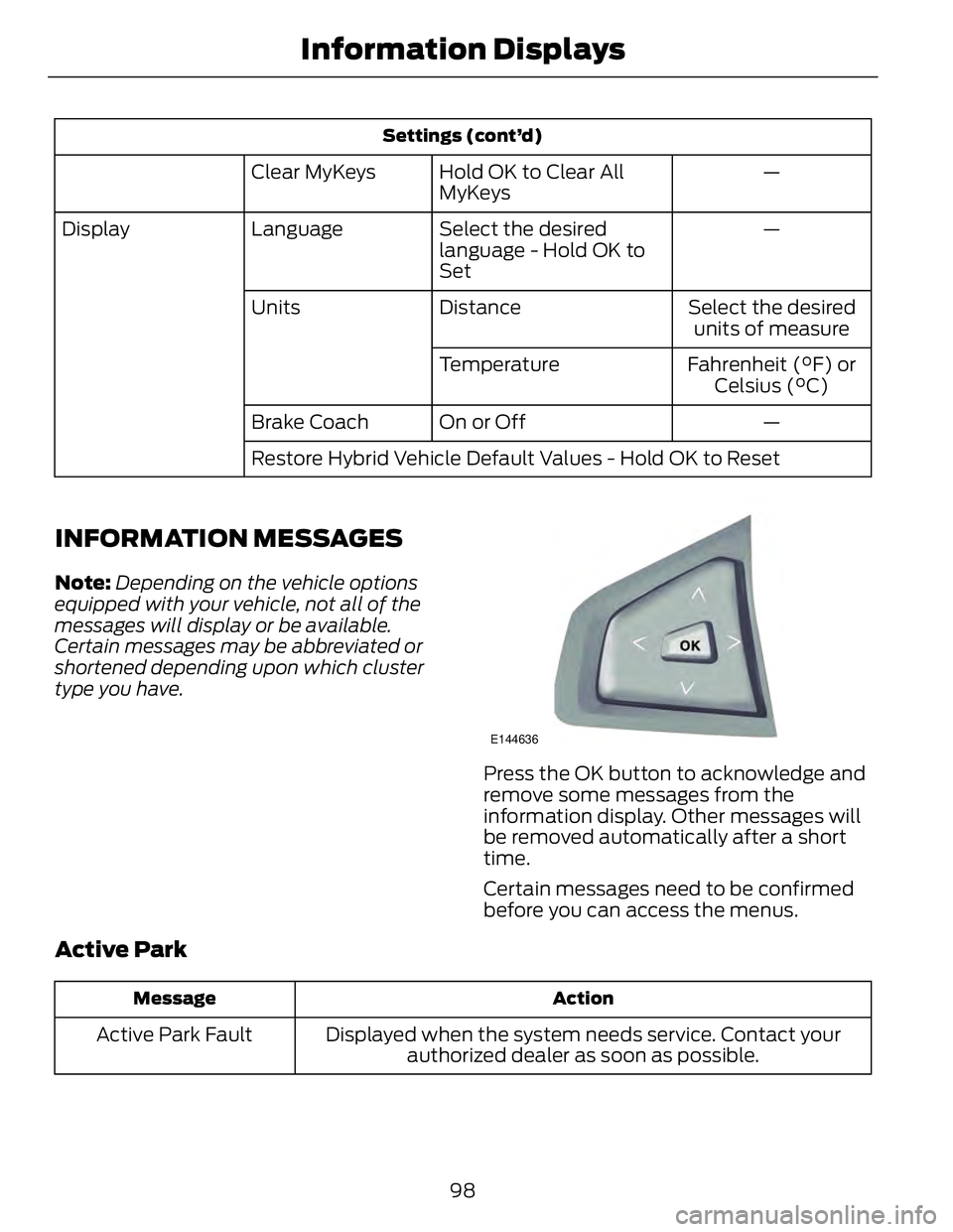

Settings (cont’d)
—Hold OK to Clear All
MyKeysClear MyKeys
—Select the desired
language - Hold OK to
SetLanguageDisplay
Select the desired
units of measureDistanceUnits
Fahrenheit (°F) or
Celsius (°C)Temperature
—On or OffBrake Coach
Restore Hybrid Vehicle Default Values - Hold OK to Reset
INFORMATION MESSAGES Note: Depending on the vehicle options
equipped with your vehicle, not all of the
messages will display or be available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have. E144636
Press the OK button to acknowledge and
remove some messages from the
information display. Other messages will
be removed automatically after a short
time.
Certain messages need to be confirmed
before you can access the menus.
Active Park ActionMessage
Displayed when the system needs service. Contact your
authorized dealer as soon as possible.Active Park Fault
98Information Displays

CD Settings
Select to scan all disc selections.Scan All
Select to scan all music in the current MP3 folder.Scan Folder
Select to bring soft and loud passages together for a more
consistent listening level.CD Compression Clock Settings
Select to set the time.Set Time
Select to set the calendar date.Set Date
Select to view clock time in a 12-hour mode or 24-hour
mode.24h Mode
Display Settings
Select to change display brightness.Dimming
Select to display the language in English, French or
Spanish.Language
Select to display the outside temperature in Fahrenheit
or Celsius.Temp. setting
DIGITAL AUDIO Note: HD Radio broadcasts are not
available in all markets.
HD Radio technology is the digital
evolution of analog AM/FM radio. Your
system has a special receiver that allows
it to receive digital broadcasts (where
available) in addition to the analog
broadcasts, it already receives. Digital
broadcasts provide a better sound quality than analog broadcasts with free,
crystal-clear audio and no static or
distortion. For more information, and a
guide to available stations and
programming, please visit
www.hdradio.com.
When HD Radio is on and you tune to a
station broadcasting HD Radio technology,
you may notice the HD Radio logo on your
screen. When this logo is available, you
may also see Title and Artist fields
on-screen.
307Audio System

You can:When you select:
Note: The system attempts to automatically re-download
your phonebook and call history each time your phone
connects to SYNC (if the auto download feature is on and
your Bluetooth-enabled cellular phone supports this
feature).
Access and call any contacts in your previously down-
loaded phonebook.Phonebook 1,2
1. Press OK to confirm and enter. If your phonebook has
fewer than 255 listings, they appear alphabetically in flat
file mode. If there are more than 255 entries, the system
organizes them into alphabetical categories.
2. Scroll until the desired contact appears, then press OK .
3. Press OK or the phone button.
Send, download and delete text messages.
Text Message 1
View your phone's status, set ring tones, select your
message notification, change phone book entries and
automatically download your cellular phone among other
features.Phone Settings 1
Access the SYNC Services portal where you can request
various types of information, traffic reports and directions.SYNC Services 3
Place an emergency call to a 911 operator for you after an
accident, when used properly.911 Assist 4
Create and receive a diagnostic report card on your vehicle.
Vehicle Health Report 3
Interact with SYNC-capable mobile applications on your
smartphone.Mobile Apps 3
Access Bluetooth Devices menu listings (Add, Connect,
Set as Primary, On and Off, Delete) as well as Advanced
menu listings (prompts, languages, defaults, master reset,
install application and system information).System Settings
Exit the phone menu by pressing OK.Exit Phone Menu 1
This is a phone-dependent feature. 2
This is a phone-dependent and speed-dependent feature. 3
This is an optional feature and available in the United States only. 4
This is an optional feature and available in the United States and Canada only.
328SYNC™

You can:If you select:
Press OK and scroll to toggle between On and Off. Make
a selection, and then press OK .
Setting Bluetooth to off disconnects all Bluetooth devices
and turns off all Bluetooth features.
Delete a paired phone.Delete Device
Press OK and scroll to select the device. Press OK to
confirm.
Delete all previously paired phones (and all information
originally saved with those phones).Delete All Devices
Press OK to select.
Exit the current menu.Return *
This is a speed-dependent feature. **
You can only connect one device at a time. When another phone is connected, the
previous one is disconnected.
Advanced
The Advanced menu allows you to access
and set prompts, languages, defaults,
perform a master reset, install an
application and view system information. 1. Press the phone button to enter the
phone menu
2. Scroll to System Settings. Press OK .
3. Scroll to Advanced. Press OK .
4. Scroll to select from the following
options: You can:If you select:
Get help from SYNC by using questions, helpful hints or
asking you for a specific action. To turn these prompts on
or off:Prompts
1. Press OK to select and scroll to select between On and
Off.
2. Press OK when the desired selection appears in the
display. SYNC takes you back to the Advanced menu.
Choose between English, Français and Español. Once
selected, all of the radio displays and prompts are in the
selected language.Languages
1. Press OK to select and then scroll through the languages.
333SYNC™

You can:If you select:
2. Press OK when the desired selection appears in the
display. If you change the language setting, the display
indicates that the system is updating. When complete,
SYNC takes you back to the Advanced menu.
Return to the factory default settings. This selection does
not erase your indexed information (phonebook, call
history, text messages and paired devices).Factory Defaults
1. Press OK to select and then press OK again when
Restore Defaults? appears in the display.
2. Press OK to confirm.
Completely erase all information stored on SYNC
(phonebook, call history, text messages and paired
devices) and return to the factory default settings.Master Reset
Press OK to select. The display indicates when complete
and SYNC takes you back to the Advanced menu.
Install applications you have downloaded.Install Application?
Press OK and scroll to select. Press OK to confirm.
Delete all previously paired phones (and all information
originally saved with those phones).Delete All Devices
Press OK to select.
Access the Auto Version number as well as the FDN
number.System Info
Press OK to select.
This is a Bluetooth component, which can further help
your phone with the exchange of text messages.MAP Profile
Exit the current menu.Return
334SYNC™

You can:When you select:
Access Bluetooth Device menu listings (Add, Connect, Set
as Primary, On and Off, Delete) as well as Advanced menu
listings (prompts, languages, defaults, master reset, install
application and system information).System Settings
Press OK to exit the media menu.Exit Media Menu 1
The time required to complete this depends on the size of the media the system needs
to index. If autoplay is on, you can listen to media processed during indexing. If autoplay
is off, you cannot listen to music until the system finishes indexing media. SYNC is capable
of indexing thousands of average size media and notifies you if it reaches the maximum
indexing file size. 2
If you have already connected a device to the USB port, you cannot access the line in
feature. Some digital media players require both USB and line in ports to stream data
and music separately. 3
Some digital media players require both USB and line in ports to stream data and music
separately 4
Indexing times can vary from device to device and with regard to the number of songs
the system needs to process.
Accessing Your Play Menu This menu allows you to select and play
your media by artist, album, genre, playlist,
track, similar music or even to explore what
is on your USB device.
Note: If your digital media player has a
power switch, make sure you switch it on
before plugging it in. 1. Press AUX and then MENU to enter
the media menu.
2. Scroll to Play. Press OK .
If there are no media files to access, the
display indicates there is no media. If there
are media files, you have the following
options:
You can:When you select:
Play all indexed media (tracks) from your playing device
in flat file mode, one at a time in numerical order.Play All
Press OK to select. The first track title appears in the
display.
Sort all indexed media by artist. Once selected, the system
lists and then play all artists and tracks alphabetically. If
there are fewer than 255 indexed artists, the system lists
them alphabetically in flat file mode. If there are more
than 255, the system categorizes them alphabetically.Artists
346SYNC™

You can:When you select:
Press OK to select.
Exit the current menu.Return *
This is a speed-dependent feature. **
Setting Bluetooth to off disconnects all Bluetooth devices and turns off all Bluetooth
features.
Advanced
The Advanced menu allows you to access
and set prompts, languages, defaults and
perform a master reset. 1. Press AUX and then MENU to enter
the media menu.
2. Scroll to System Settings. Press OK .
3. Scroll to Advanced. Press OK .You can:When you select:
Have SYNC guide you by asking questions, helpful hints
or ask you for a specific action.Prompts
1. Press OK to select and scroll to select between on or
off.
2. Press OK when the desired selection appears in the
display. SYNC takes you back to the Advanced menu.
Choose from English, Français or Español. The displays
and prompts are in the selected language.Languages
1. Press OK to select and then scroll through the languages.
2. Press OK when the desired selection appears in the
display.
3. If you change the language setting, the display indicates
that the system is updating. When complete, SYNC takes
you back to the Advanced menu.
Return to the factory default settings. This selection does
not erase your indexed information (phonebook, call
history, text messages and paired devices).Factory Defaults
1. Press OK to select.
2. Press OK again when Restore Defaults? appears in
the display.
3. Press OK to confirm.
349SYNC™

You can find more information on the rear
view camera in another chapter. See Rear
View Camera (page 181).
Enable Valet Mode
Note: If the system locks, and you need to
reset the PIN, enter 3681 and the system
unlocks.
Valet mode allows you to lock the system.
No information is accessible until the
system is unlocked with the correct PIN. E142607
1. Press the Settings icon > Vehicle >
Enable Valet Mode .
2. When prompted, enter a four-digit PIN.
After you press Continue , the system locks
until you enter the PIN again.
Charge Point Light Ring E142607
Press the Settings icon >
Vehicle > Charge Point Light
Ring , then select from the
following:
Charge point light ring
Illuminates when plugging in, opening doors, pressing the
unlock button on your remote, and while charging.On
Does not illuminate.Off
Cord Acknowledgement: Illuminates when plugging in.Limited
Charge Status: Illuminates when opening doors or
pressing the unlock button on your remote.
Note: Details on the charge port light ring
functions are in another chapter. See High
Voltage Battery (page 160).
Settings Access and adjust system settings, voice
features, as well as phone, navigation and
wireless settings. System E142607
Press the Settings icon >
Settings > System , then select
from the following:
System
Select to have the touchscreen display in English, Spanish
or French.Language
Select to display units in kilometers or miles.Distance
Select to display units in Celsius or Fahrenheit.Temperature
Adjust the volume of voice prompts from the system.System Prompt Volume
367MyFord Touch™ (If Equipped)

E142599
Press the voice icon on the
steering wheel. When prompted,
you can say:"BROWSE" within devices
"Browse" *
"Browse games" **
"Browse channels" **
"Browse SD card"
"Browse Sirius channel guide" **
"Browse USB"
"Help"*
If you only say, "Browse", you can then
say any commands in the following chart. **
This command is only usable if you have
an active subscription to SIRIUS satellite
radio. "BROWSE"
" Games" *
" channels" *
"SD card" **
"Sirius Channel Guide" *
"USB" **
"Help"*
This command is only usable if you have
an active subscription to SIRIUS satellite
radio. **
For more commands in SD card or USB
mode, see the "SD Card and USB Port"
section of this chapter. Your voice system allows you to change
audio sources with a simple voice
command. For example, if you are listening
to music on a USB device, then want to
switch to a satellite radio channel, simply
press the voice button on the steering
wheel controls and say the name of the
SIRIUS station (such as, "the Highway").
The following voice commands are
available at the top level of the voice
session no matter which current audio
source you are listening to (such as a USB
device or SIRIUS satellite radio).
Note: This is only available when your
MyFord Touch system language is set to
North American English. Sample commands
"<87.7-107.9"
"<530-1710>"
"" *
"AM <530-1710>"
"FM <87.7-107.9"
"Play [album] " **
"Play [artist] " **
"Play [genre] " **
"Play [playlist] " **
"Play [song] " **
"Play "
"Play by name>"
375MyFord Touch™ (If Equipped)
