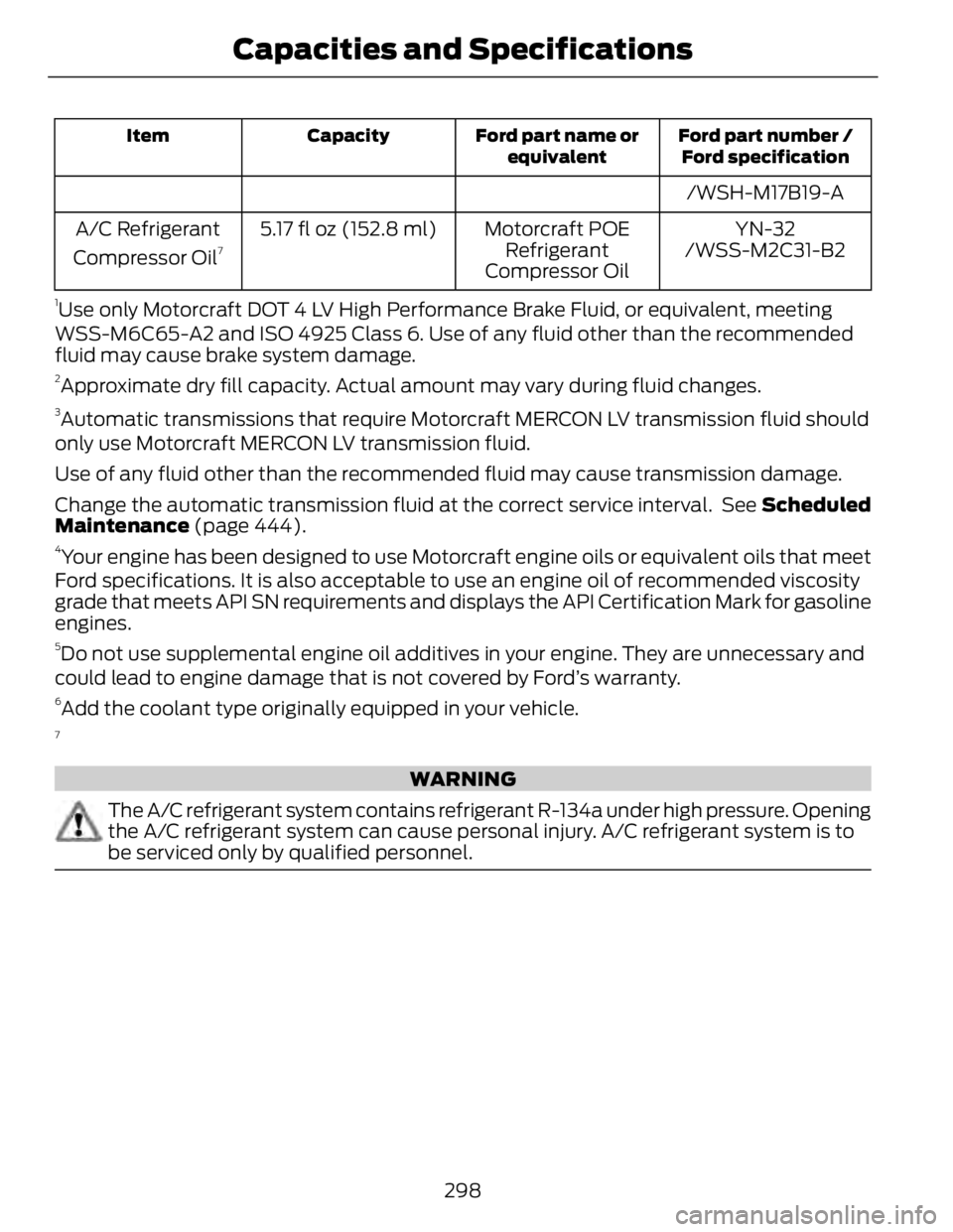

oil type FORD FUSION HYBRID 2014 Owners Manual

Ford part number /
Ford specificationFord part name or
equivalentCapacityItem
/WSH-M17B19-A
YN-32Motorcraft POE
Refrigerant
Compressor Oil5.17 fl oz (152.8 ml)A/C Refrigerant
Compressor Oil 7
/WSS-M2C31-B21
Use only Motorcraft DOT 4 LV High Performance Brake Fluid, or equivalent, meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended
fluid may cause brake system damage. 2
Approximate dry fill capacity. Actual amount may vary during fluid changes. 3
Automatic transmissions that require Motorcraft MERCON LV transmission fluid should
only use Motorcraft MERCON LV transmission fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.
Change the automatic transmission fluid at the correct service interval. See Scheduled
Maintenance (page 444).4
Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet
Ford specifications. It is also acceptable to use an engine oil of recommended viscosity
grade that meets API SN requirements and displays the API Certification Mark for gasoline
engines. 5
Do not use supplemental engine oil additives in your engine. They are unnecessary and
could lead to engine damage that is not covered by Ford’s warranty. 6
Add the coolant type originally equipped in your vehicle. 7
WARNING
The A/C refrigerant system contains refrigerant R-134a under high pressure. Opening
the A/C refrigerant system can cause personal injury. A/C refrigerant system is to
be serviced only by qualified personnel.
298Capacities and Specifications
