Page 9 of 200
Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire warning
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Introduction
9
Page 12 of 200
Door ajar:Illuminates when the
ignition is in the ON position and
any door, trunk or the engine cover
is ajar.
Turn signal: Illuminates when the
left or right turn signal or the hazard
lights are turned on. If the indicators
stay on or flash faster, check the tail lamps for proper function.
High beams: Illuminates when the
high beam headlamps are turned on.
Defrost: Illuminates when the rear
window defroster is turned on.
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver ’s door
is opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver ’s door is opened.
GAUGES
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be
outside the red section. If it enters
the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine cool.
DOOR
AJAR
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
12
Page 27 of 200
Mobile Communication Equipment includes, but is not limited to cellular
phones, pagers, portable email devices, in-vehicle communications
systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle.
The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to
operate Mobile Communications Equipment.
ELECTRIC DOOR RELEASE
To open the door, unlock (with the
remote entry transmitter) and push
the release button on the door.
Note: The vehicle doors may be
unlocked by using the remote entry
transmitter, however, in the event of
a low battery charge, the driver ’s
door can be manually unlocked and
opened by inserting the key into the
door lock cylinder and turning
counterclockwise.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driver Controls
27

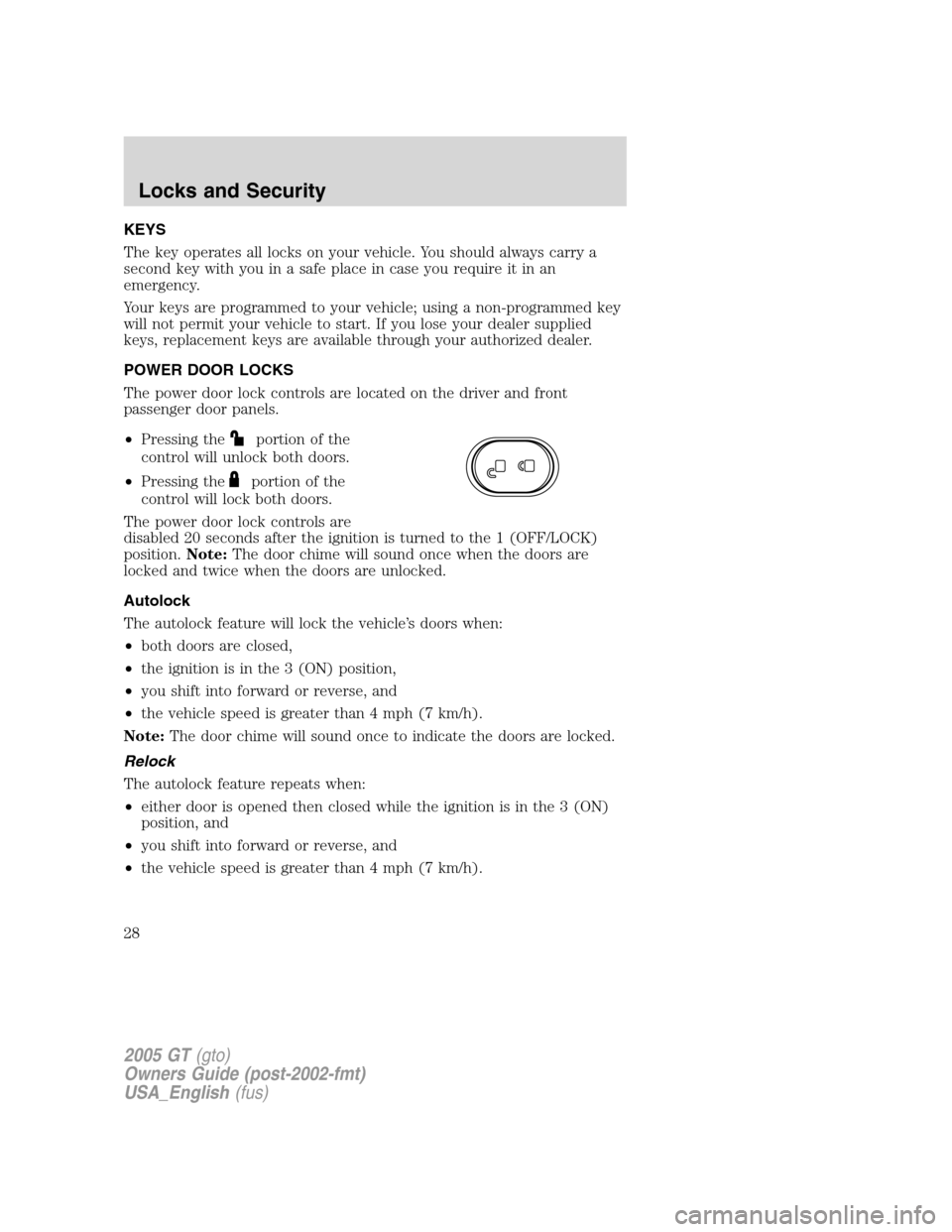

Page 28 of 200
KEYS
The key operates all locks on your vehicle. You should always carry a
second key with you in a safe place in case you require it in an
emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your dealer supplied
keys, replacement keys are available through your authorized dealer.
POWER DOOR LOCKS
The power door lock controls are located on the driver and front
passenger door panels.
•Pressing the
portion of the
control will unlock both doors.
• Pressing the
portion of the
control will lock both doors.
The power door lock controls are
disabled 20 seconds after the ignition is turned to the 1 (OFF/LOCK)
position. Note:The door chime will sound once when the doors are
locked and twice when the doors are unlocked.
Autolock
The autolock feature will lock the vehicle ’s doors when:
• both doors are closed,
• the ignition is in the 3 (ON) position,
• you shift into forward or reverse, and
• the vehicle speed is greater than 4 mph (7 km/h).
Note: The door chime will sound once to indicate the doors are locked.
Relock
The autolock feature repeats when:
• either door is opened then closed while the ignition is in the 3 (ON)
position, and
• you shift into forward or reverse, and
• the vehicle speed is greater than 4 mph (7 km/h).
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
Locks and Security
28
Page 29 of 200
To deactivate/reactivate the autolock feature using the power door
unlock control
You must complete steps 1-7 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.Note:The default setting for the autolock feature is
“ disabled. ”
1. Turn the ignition to the 3 (ON) position. Note:Both vehicle doors
must be closed during the activation/deactivation procedure.
2. Press the power door unlock control three times.
3. Turn the ignition from 3 (ON) position to the 1 (OFF/LOCK) position.
4. Press the power door unlock control three times.
5. Turn the ignition back to 3 (ON) position. The horn will chirp.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to the 1 (OFF/LOCK) position. The horn will chirp
once to confirm the procedure is complete.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
• weather conditions,
• nearby radio towers,
• structures around the vehicle, or
• other vehicles parked next to your vehicle.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
29

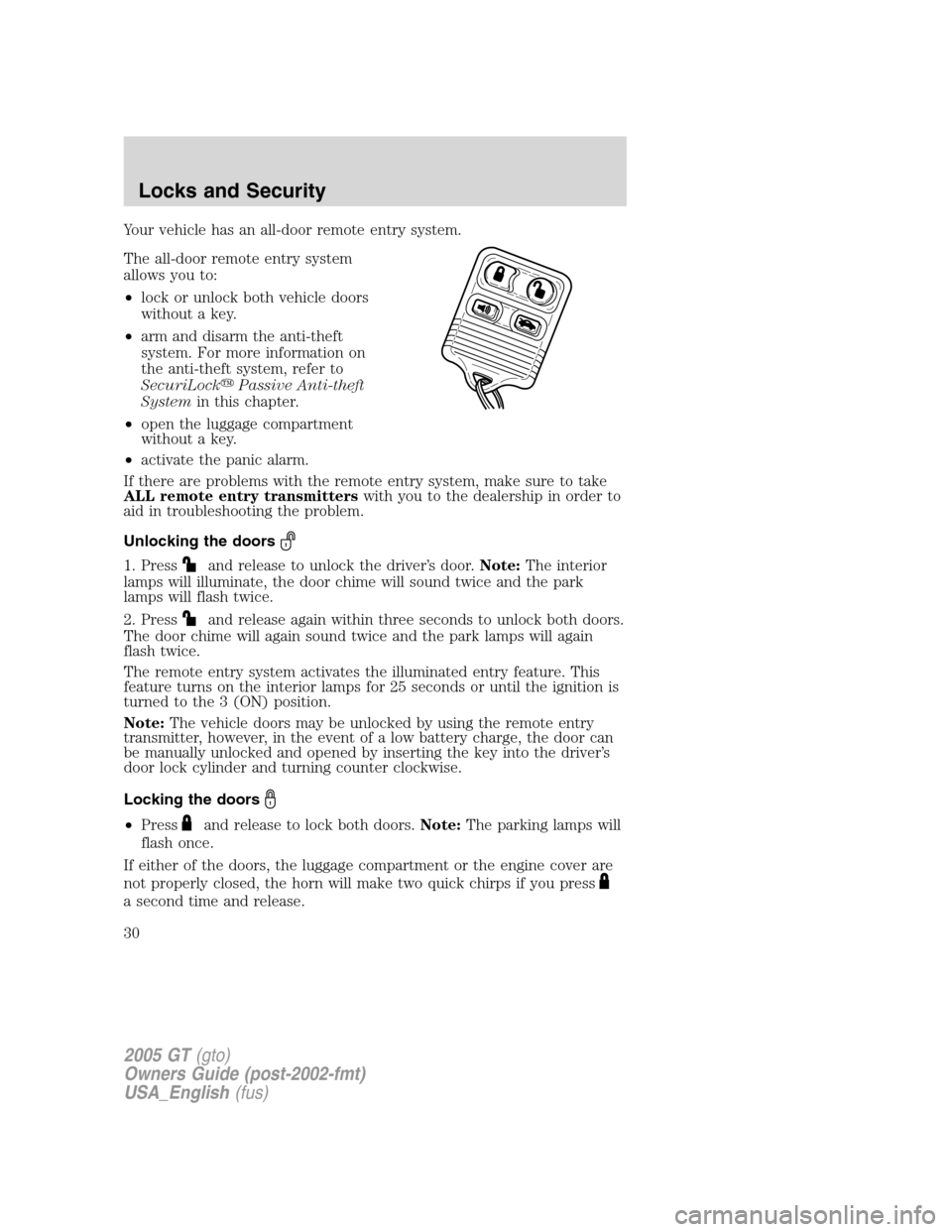

Page 30 of 200
Your vehicle has an all-door remote entry system.
The all-door remote entry system
allows you to:
•lock or unlock both vehicle doors
without a key.
• arm and disarm the anti-theft
system. For more information on
the anti-theft system, refer to
SecuriLock Passive Anti-theft
System in this chapter.
• open the luggage compartment
without a key.
• activate the panic alarm.
If there are problems with the remote entry system, make sure to take
ALL remote entry transmitters with you to the dealership in order to
aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver ’s door. Note:The interior
lamps will illuminate, the door chime will sound twice and the park
lamps will flash twice.
2. Press
and release again within three seconds to unlock both doors.
The door chime will again sound twice and the park lamps will again
flash twice.
The remote entry system activates the illuminated entry feature. This
feature turns on the interior lamps for 25 seconds or until the ignition is
turned to the 3 (ON) position.
Note: The vehicle doors may be unlocked by using the remote entry
transmitter, however, in the event of a low battery charge, the door can
be manually unlocked and opened by inserting the key into the driver ’s
door lock cylinder and turning counter clockwise.
Locking the doors
• Pressand release to lock both doors. Note:The parking lamps will
flash once.
If either of the doors, the luggage compartment or the engine cover are
not properly closed, the horn will make two quick chirps if you press
a second time and release.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
30

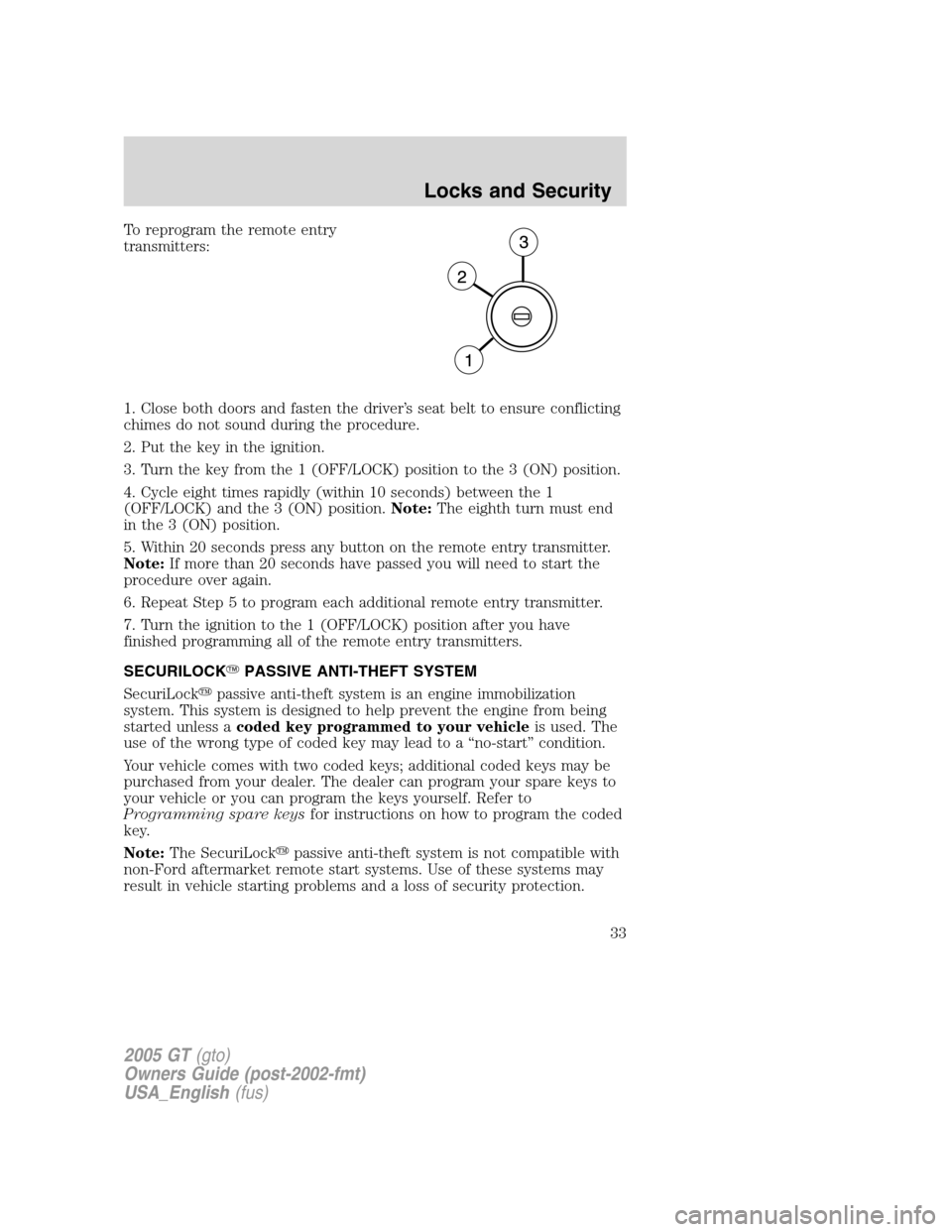

Page 33 of 200
To reprogram the remote entry
transmitters:
1. Close both doors and fasten the driver’s seat belt to ensure conflicting
chimes do not sound during the procedure.
2. Put the key in the ignition.
3. Turn the key from the 1 (OFF/LOCK) position to the 3 (ON) position.
4. Cycle eight times rapidly (within 10 seconds) between the 1
(OFF/LOCK) and the 3 (ON) position. Note:The eighth turn must end
in the 3 (ON) position.
5. Within 20 seconds press any button on the remote entry transmitter.
Note: If more than 20 seconds have passed you will need to start the
procedure over again.
6. Repeat Step 5 to program each additional remote entry transmitter.
7. Turn the ignition to the 1 (OFF/LOCK) position after you have
finished programming all of the remote entry transmitters.
SECURILOCK PASSIVE ANTI-THEFT SYSTEM
SecuriLock passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless a coded key programmed to your vehicle is used. The
use of the wrong type of coded key may lead to a “no-start ”condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keys for instructions on how to program the coded
key.
Note: The SecuriLock passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
33
Page 36 of 200
PERIMETER ALARM SYSTEM
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmitters are taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
• Press the
control on the remote entry transmitter.
• Lock the doors with the key in the key cylinder.
• Open a door and press the power door lock control to lock all the
doors, and then close the door.
Disarming the system
You can disarm the system by any of the following actions:
• Unlock the doors by pressing the
control on your remote entry
transmitter.
• Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
Triggering the anti-theft system
The armed system will be triggered if either door, the luggage
compartment or the engine cover is opened without using the remote
entry transmitter.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
36

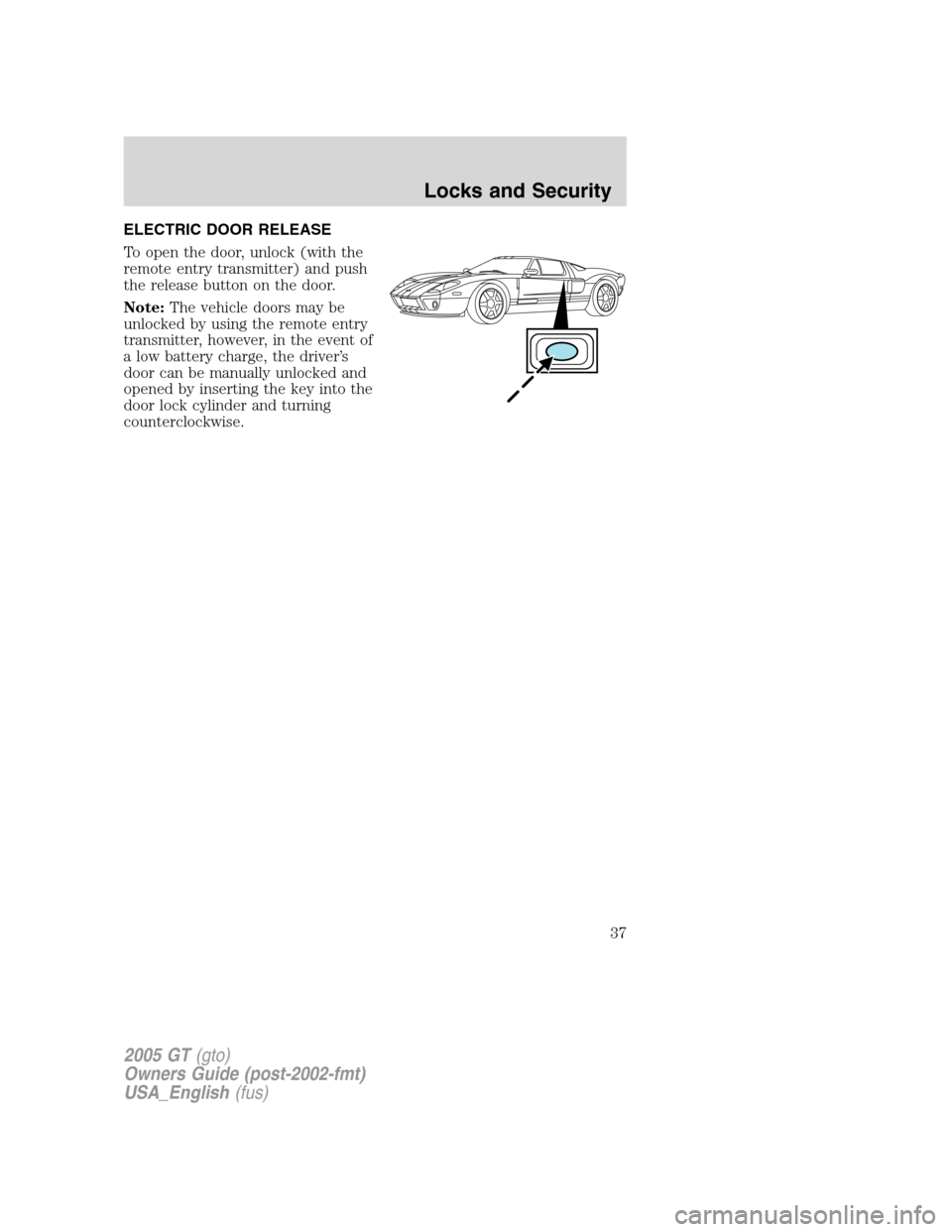

Page 37 of 200
ELECTRIC DOOR RELEASE
To open the door, unlock (with the
remote entry transmitter) and push
the release button on the door.
Note:The vehicle doors may be
unlocked by using the remote entry
transmitter, however, in the event of
a low battery charge, the driver ’s
door can be manually unlocked and
opened by inserting the key into the
door lock cylinder and turning
counterclockwise.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
37
Page 95 of 200
STARTING
Positions of the ignition
1. OFF/LOCK, shuts off the engine
and all electrical accessories except
the audio system and power
windows, which retain power for 10
minutes or until the door is ajar.
This position also locks the steering
wheel and allows key removal.
2. ACC, allows electrical accessories
to operate while the engine is not
running.
3. ON, all electrical circuits are operational and warning lights are
illuminated. Key position when driving.
Preparing to start your vehicle
Engine starting is controlled by the powertrain control system. This
system meets all Canadian Interference-Causing Equipment standard
requirements regulating the impulse electrical field strength of radio
noise.
When starting a fuel-injected engine, don’t press the accelerator before
or during starting. Only use the accelerator when you have difficulty
starting the engine. For more information on starting the vehicle, refer to
Starting the engine in this chapter.
Extended idling at high engine speeds can produce very high
temperatures in the engine and exhaust system, creating the risk
of fire or other damage.
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. See Guarding against exhaust fumes in
this chapter for more instructions.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driving
Driving
95
