Page 2 of 200
Tires, Wheels and Loading 66
Tire Information 67
Changing tires 71
Wheel lug nut torque 79
Vehicle loading 89
Driving 95
Starting 95
Brakes 99
Transmission operation 102
Roadside Emergencies 105
Getting roadside assistance 105
Hazard flasher switch 106
Fuel shut-off switch 106
Fuses and relays 107
Jump starting 115
Customer Assistance 123
Reporting safety defects (U.S. only) 131
Cleaning 132
Maintenance and Specifications 139
Engine compartment 144
Engine oil 147
Battery 150
Engine Coolant 152
Fuel information 156
Refill capacities 169
Lubricant specifications 170
Table of Contents
2
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)

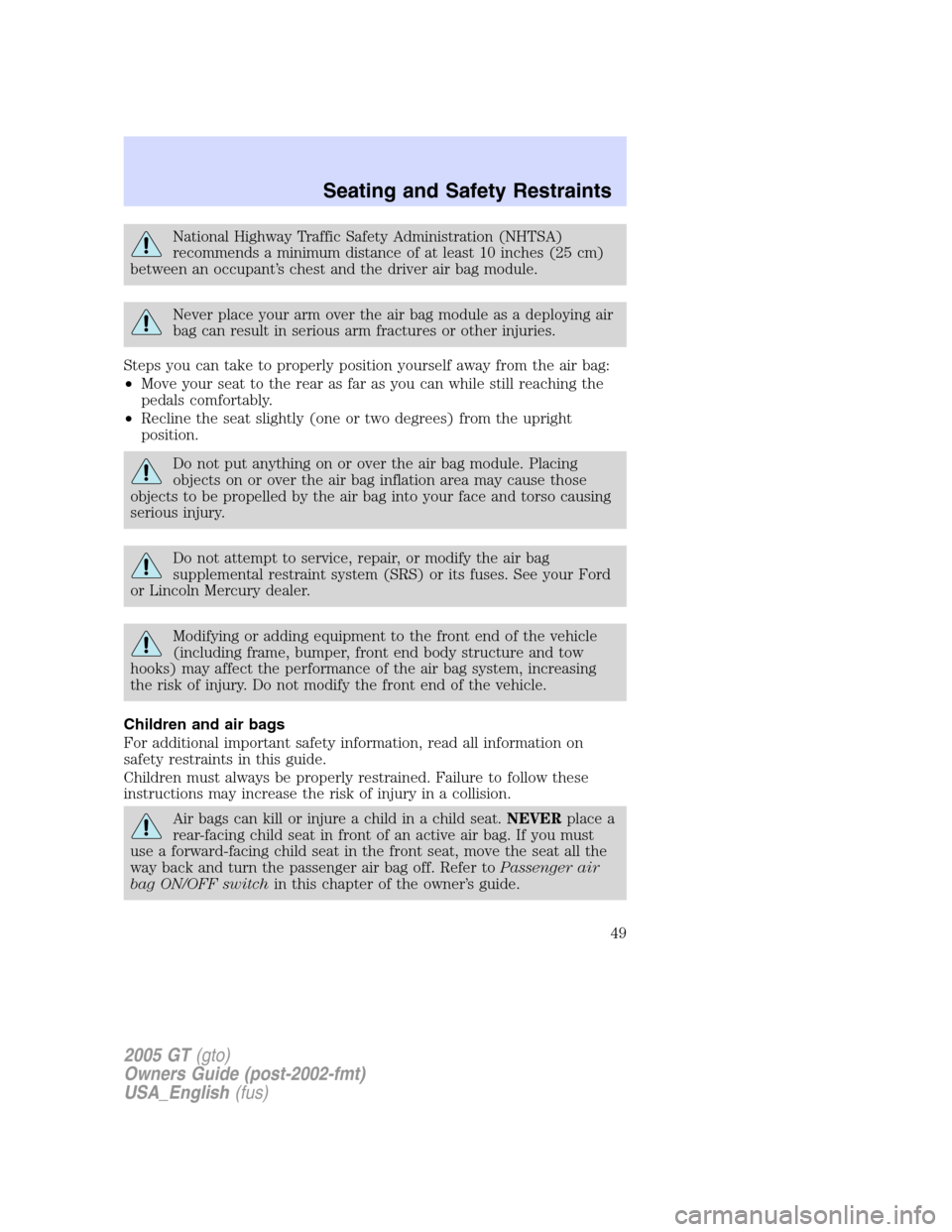

Page 49 of 200
National Highway Traffic Safety Administration (NHTSA)
recommends a minimum distance of at least 10 inches (25 cm)
between an occupant ’s chest and the driver air bag module.
Never place your arm over the air bag module as a deploying air
bag can result in serious arm fractures or other injuries.
Steps you can take to properly position yourself away from the air bag:
• Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
• Recline the seat slightly (one or two degrees) from the upright
position.
Do not put anything on or over the air bag module. Placing
objects on or over the air bag inflation area may cause those
objects to be propelled by the air bag into your face and torso causing
serious injury.
Do not attempt to service, repair, or modify the air bag
supplemental restraint system (SRS) or its fuses. See your Ford
or Lincoln Mercury dealer.
Modifying or adding equipment to the front end of the vehicle
(including frame, bumper, front end body structure and tow
hooks) may affect the performance of the air bag system, increasing
the risk of injury. Do not modify the front end of the vehicle.
Children and air bags
For additional important safety information, read all information on
safety restraints in this guide.
Children must always be properly restrained. Failure to follow these
instructions may increase the risk of injury in a collision.
Air bags can kill or injure a child in a child seat. NEVERplace a
rear-facing child seat in front of an active air bag. If you must
use a forward-facing child seat in the front seat, move the seat all the
way back and turn the passenger air bag off. Refer to Passenger air
bag ON/OFF switch in this chapter of the owner ’s guide.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Seating and Safety Restraints
49
Page 107 of 200
This switch has a red reset button
on top of it and is located in the
front passenger’s footwell, behind an
access panel and to the left of the
fuse panel. To access the switch, roll
back the floor mat and unscrew the
four release pins on the panel.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note: Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
107
Page 108 of 200

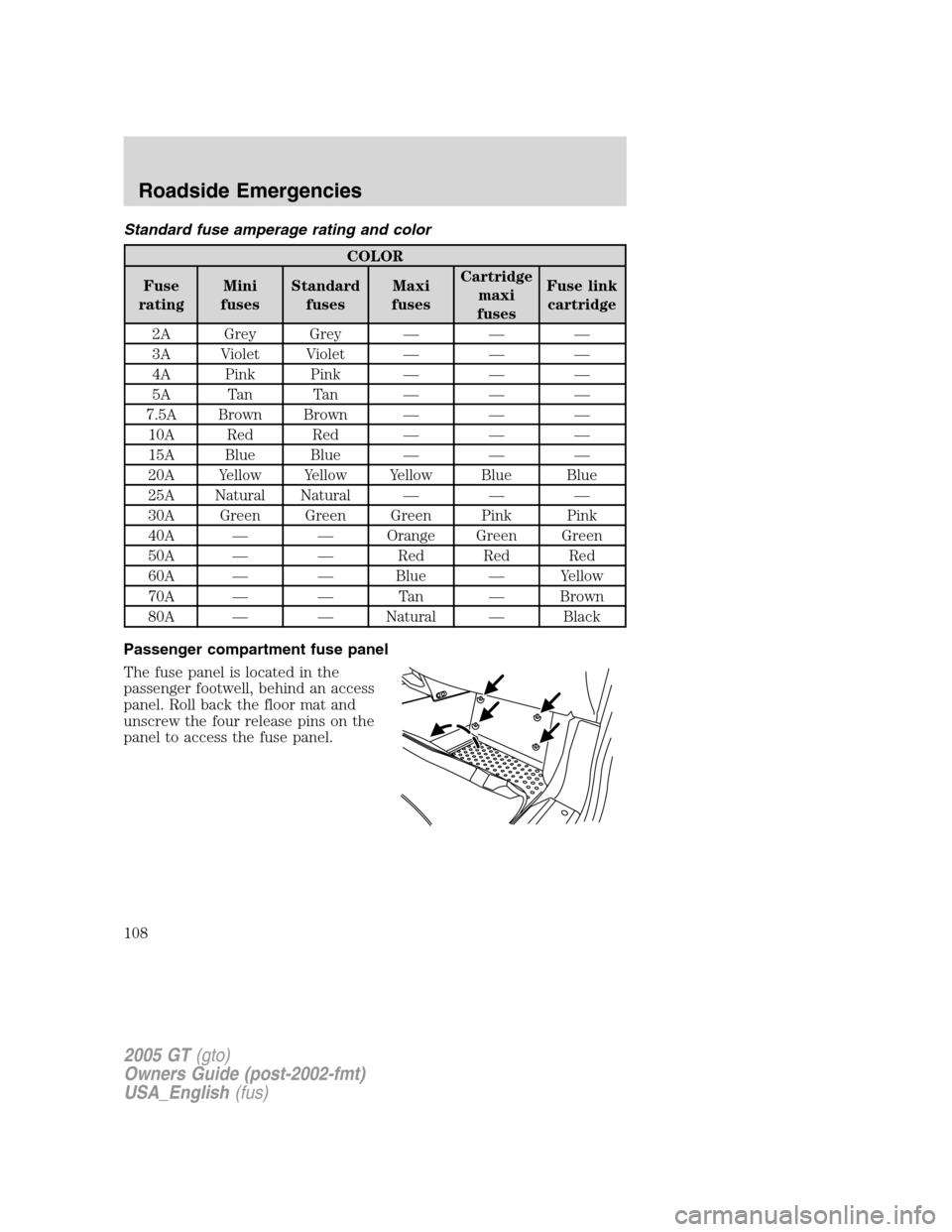

Standard fuse amperage rating and color
COLOR
Fuse
rating Mini
fuses Standard
fuses Maxi
fuses Cartridge
maxi
fuses Fuse link
cartridge
2A Grey Grey ———
3A Violet Violet ———
4A Pink Pink ———
5A Tan Tan ———
7.5A Brown Brown ———
10A Red Red ———
15A Blue Blue ———
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural ———
30A Green Green Green Pink Pink
40A —— Orange Green Green
50A —— Red Red Red
60A —— Blue—Yellow
70A —— Ta n—Brown
80A —— Natural—Black
Passenger compartment fuse panel
The fuse panel is located in the
passenger footwell, behind an access
panel. Roll back the floor mat and
unscrew the four release pins on the
panel to access the fuse panel.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
108
Page 109 of 200
The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Passenger Compartment Fuse
Panel Description
1 —Not used
2 —Not used
3 15A* Front and rear park lamps, License plate lamps, Side markers
4 10A* Ignition switch, Start relay, Cluster start signal, Start cut-out
relay
5 2A* Powertrain Control Module (PCM) relay coil, Injector relay coil
6 10A* Center High-Mounted Stop Lamp (CHMSL), Stop lamps
7 5A* Climate control module (if equipped), EPATS module
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)
Roadside Emergencies
109
Page 111 of 200
Fuse/RelayLocation Fuse Amp
Rating Passenger Compartment Fuse
Panel Description
33 15A* Restraint Control Module (RSM), Passenger Air bag Deactivation
(PAD) indicator lamp, ACS switch
34 5A* Anti-lock Brake System (ABS) Run/Acc Input
35 —Not used
* Mini fuse ** Cartridge fuse
Power distribution box
The power distribution box is
located in the front compartment.
The power distribution box contains
high-current fuses that protect your
vehicle ’s main electrical systems
from overloads.
Note: The luggage compartment liner must be removed to access the
power distribution box. Refer to Removing the luggage compartment
liner in the Maintenance and Specifications chapter.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)
Roadside Emergencies
111
Page 112 of 200
The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
1 40A** SJB (Instrument panel fuse panel)
2 40A** SJB (Instrument panel fuse panel)
3 30A** SJB (Instrument panel fuse panel)
4 40A** Anti-lock Brakes System (ABS) motor
5 30A** Blower motor
6 30A** Rear defroster, Park lamp fuse
7 40A** Powertrain Control Module (PCM) power fuse, Heated Exhaust Gas
Oxygen (HEGO) sensor fuse
8 40A** Cooling fan (High-speed fan #2)
9 40A** Cooling fan (High-speed fan #1)
10 40A** Cooling fan (Low-speed fan)
11 30A** Starter solenoid, Ignition switch, SJB (Instrument panel fuse panel)
Run/Start power
12 30A** Subwoofer (McIntosh audio only)
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
112
Page 193 of 200
Customer Assistance ................105Ford accessories for your
vehicle .....................................138
Ford Extended Service
Plan ..........................................125
Getting assistance outside
the U.S. and Canada ..............129
Getting roadside assistance ...105
Getting the service you
need .........................................123
Ordering additional owner ’s
literature .................................130
The Dispute Settlement
Board .......................................126
Utilizing the
Mediation/Arbitration
Program ...................................128
D
Dipstick engine oil .................................147
Doors lubricant specifications ..........170
Driving under special
conditions through water .........................103
E
Emergencies, roadside jump-starting ..........................115
Emergency Flashers .................106
Emission control system ..........163
Engine ........................................171 cleaning ...................................134
coolant .....................................152
idle speed control ...................150
lubrication
specifications ..................170 –171
refill capacities ........................169 service points ..........................144
starting after a collision .........106
Engine compartment -
opening ......................................140
Engine oil ..................................147 checking and adding ..............147
dipstick ....................................147
filter, specifications ........149, 168
recommendations ...................149
refill capacities ........................169
specifications ..................170 –171
Exhaust fumes ............................98
F
Fluid capacities .........................169
Foglamps .....................................21
Four-Wheel Drive vehicles preparing to drive your
vehicle .....................................101
Fuel ............................................156 calculating fuel economy .......160
cap ...........................................158
capacity ...................................169
choosing the right fuel ...........158
comparisons with EPA fuel
economy estimates .................163
detergent in fuel .....................160
filling your vehicle with
fuel ...........................156, 158, 160
filter, specifications ........160, 168
fuel pump shut-off switch .....106
improving fuel economy ........160
octane rating ...................159, 171
quality ......................................159
running out of fuel .................160
safety information relating to
automotive fuels .....................156
Fuel pump shut-off switch .......106
Fuses ..................................107 –108
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
193
Page 195 of 200
O
Octane rating ............................159
Oil (see Engine oil) ..................147
P
Parking brake ............................100
Parts (see Motorcraft parts) ....168
Power distribution box
(see Fuses) ...............................111
Power mirrors .............................26
Power point .................................25
Power steering ..........................101fluid, checking and adding ....165
fluid, refill capacity ................169
fluid, specifications .........170 –171
Power Windows ...........................26
Preparing to drive your
vehicle ........................................101
R
Radio ............................................15
Relays ........................................107
Remote entry system .................29 locking/unlocking doors ...........28
opening the trunk .....................31
Roadside assistance ..................105
S
Safety Belt Maintenance ............47
Safety belts
(see Safety restraints) .........39 –42
Safety defects, reporting ..........131 Safety restraints ....................39
–43
extension assembly ..................47
for adults .............................40 –42
for children .........................55 –56
safety belt maintenance ...........47
warning light and chime ..........43
Safety seats for children ............58
Scheduled Maintenance
Guide .........................................177 Coolant Change Record .........190
General Maintenance
Information .............................177
Normal Scheduled
Maintenance and Log .....180 –181
What Maintenance Schedule
Should You Follow? ................179
Seat belts
(see Safety restraints) ...............39
Seats ............................................38 child safety seats ......................58
cleaning ...................................137
front seats .................................38
Servicing your vehicle ..............139
Setting the clock AM/FM/CD .................................16
Spark plugs, specifications ......168, 171
Special notice ............................104
Specification chart,
lubricants ...........................170 –171
Starting your vehicle ......95 –96, 98
jump starting ..........................115
Steering wheel tilting .........................................25
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
195
