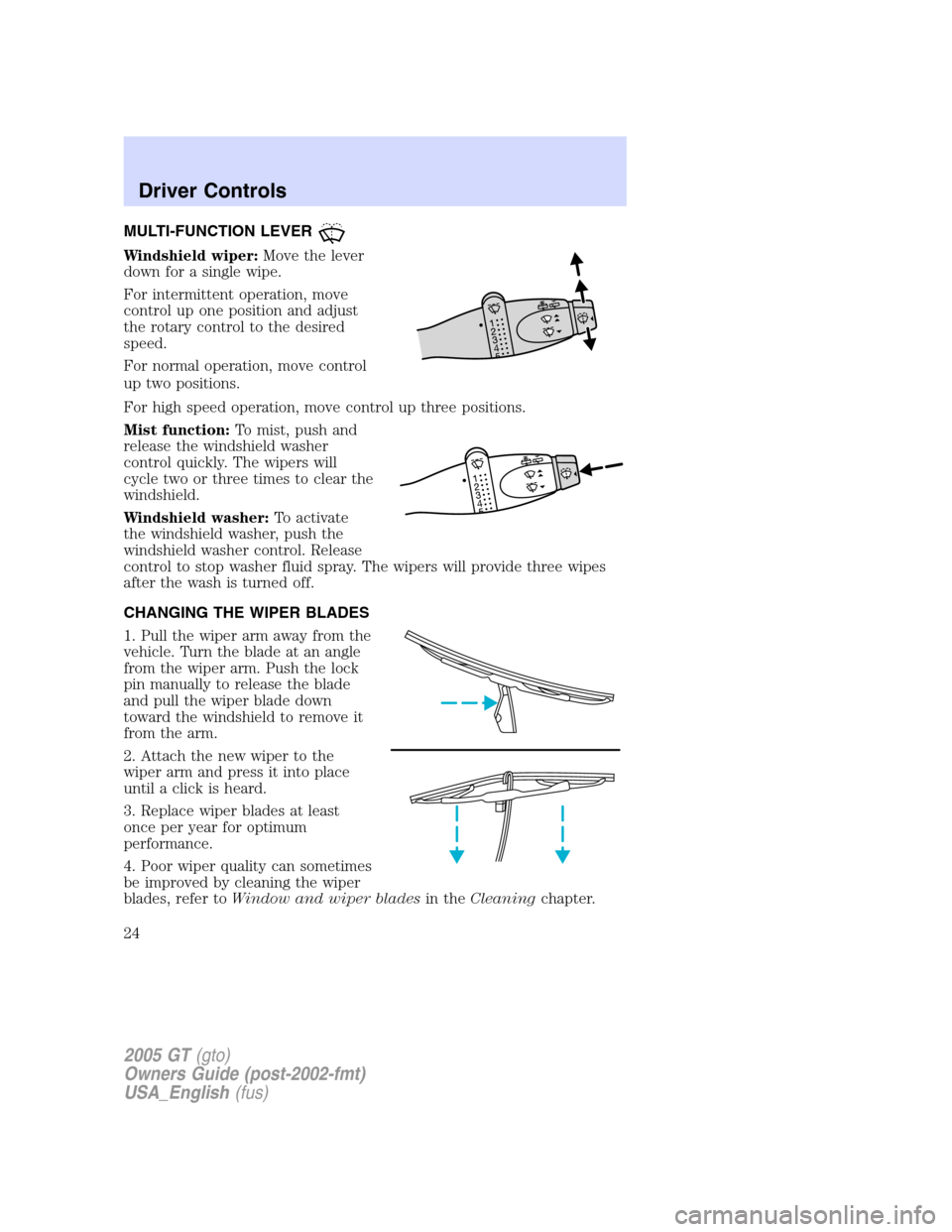

Page 24 of 200
MULTI-FUNCTION LEVER
Windshield wiper:Move the lever
down for a single wipe.
For intermittent operation, move
control up one position and adjust
the rotary control to the desired
speed.
For normal operation, move control
up two positions.
For high speed operation, move control up three positions.
Mist function: To mist, push and
release the windshield washer
control quickly. The wipers will
cycle two or three times to clear the
windshield.
Windshield washer: To activate
the windshield washer, push the
windshield washer control. Release
control to stop washer fluid spray. The wipers will provide three wipes
after the wash is turned off.
CHANGING THE WIPER BLADES
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Push the lock
pin manually to release the blade
and pull the wiper blade down
toward the windshield to remove it
from the arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
3. Replace wiper blades at least
once per year for optimum
performance.
4. Poor wiper quality can sometimes
be improved by cleaning the wiper
blades, refer to Window and wiper blades in theCleaning chapter.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driver Controls
Driver Controls
24

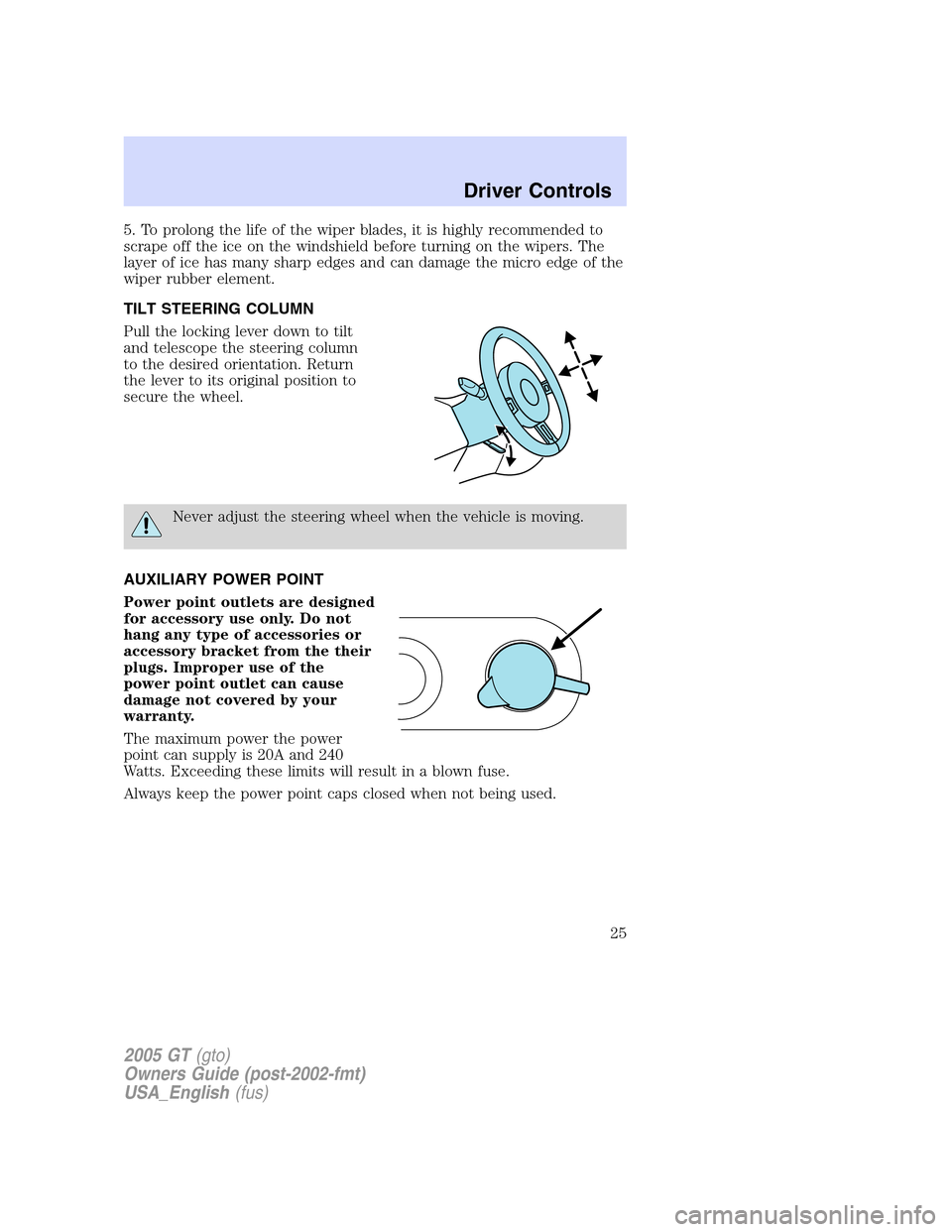

Page 25 of 200
5. To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
TILT STEERING COLUMN
Pull the locking lever down to tilt
and telescope the steering column
to the desired orientation. Return
the lever to its original position to
secure the wheel.
Never adjust the steering wheel when the vehicle is moving.
AUXILIARY POWER POINT
Power point outlets are designed
for accessory use only. Do not
hang any type of accessories or
accessory bracket from the their
plugs. Improper use of the
power point outlet can cause
damage not covered by your
warranty.
The maximum power the power
point can supply is 20A and 240
Watts. Exceeding these limits will result in a blown fuse.
Always keep the power point caps closed when not being used.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driver Controls
25

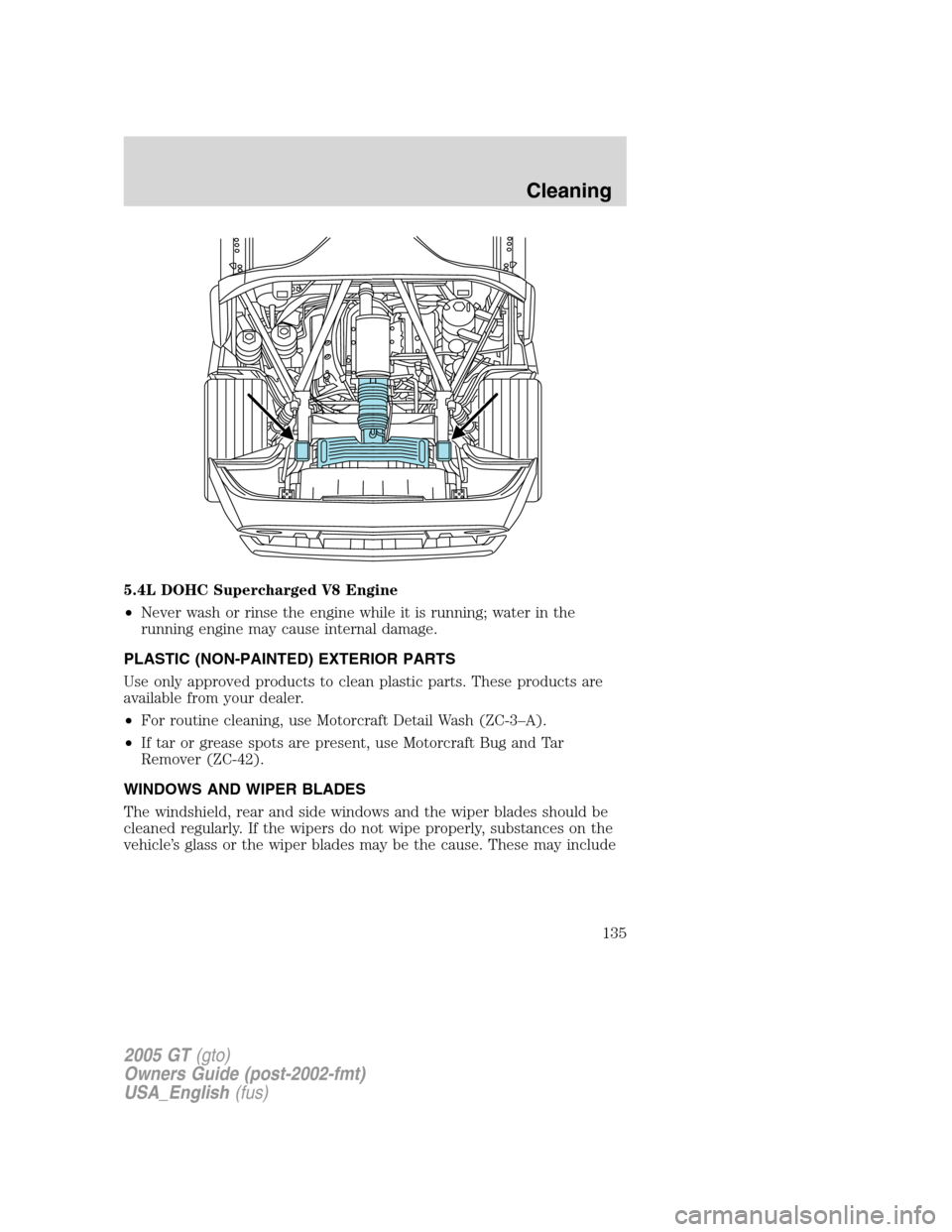

Page 135 of 200
5.4L DOHC Supercharged V8 Engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your dealer.
• For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
• If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Cleaning
135
Page 196 of 200
T
Tilt steering wheel ......................25
Tires .......................................66–67
alignment ..................................87
care ............................................84
checking the pressure ..............69
inspecting and inflating ...........68
label ...........................................84
replacing ....................................71
rotating ......................................88
sidewall information .................80
snow tires and chains ..............89
terminology ...............................67
tire grades .................................67
treadwear ............................66, 84
Towing ...................................89, 94 recreational towing ...................94
trailer towing ......................89, 94
Transmission lubricant specifications ..........170
manual operation ....................102
Trunk remote release ..........................31 Turn signal ..................................22
V
Vehicle dimensions ...................171
Vehicle Identification Number
(VIN) ..........................................174
Vehicle loading ............................89
Ventilating your vehicle .............98
W
Warning lights (see Lights) .......10
Washer fluid ..............................147
Water, Driving through .............103
Windows
power .........................................26
Windshield washer fluid and
wipers checking and adding fluid .....147
operation ...................................24
replacing wiper blades .............24
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
196
