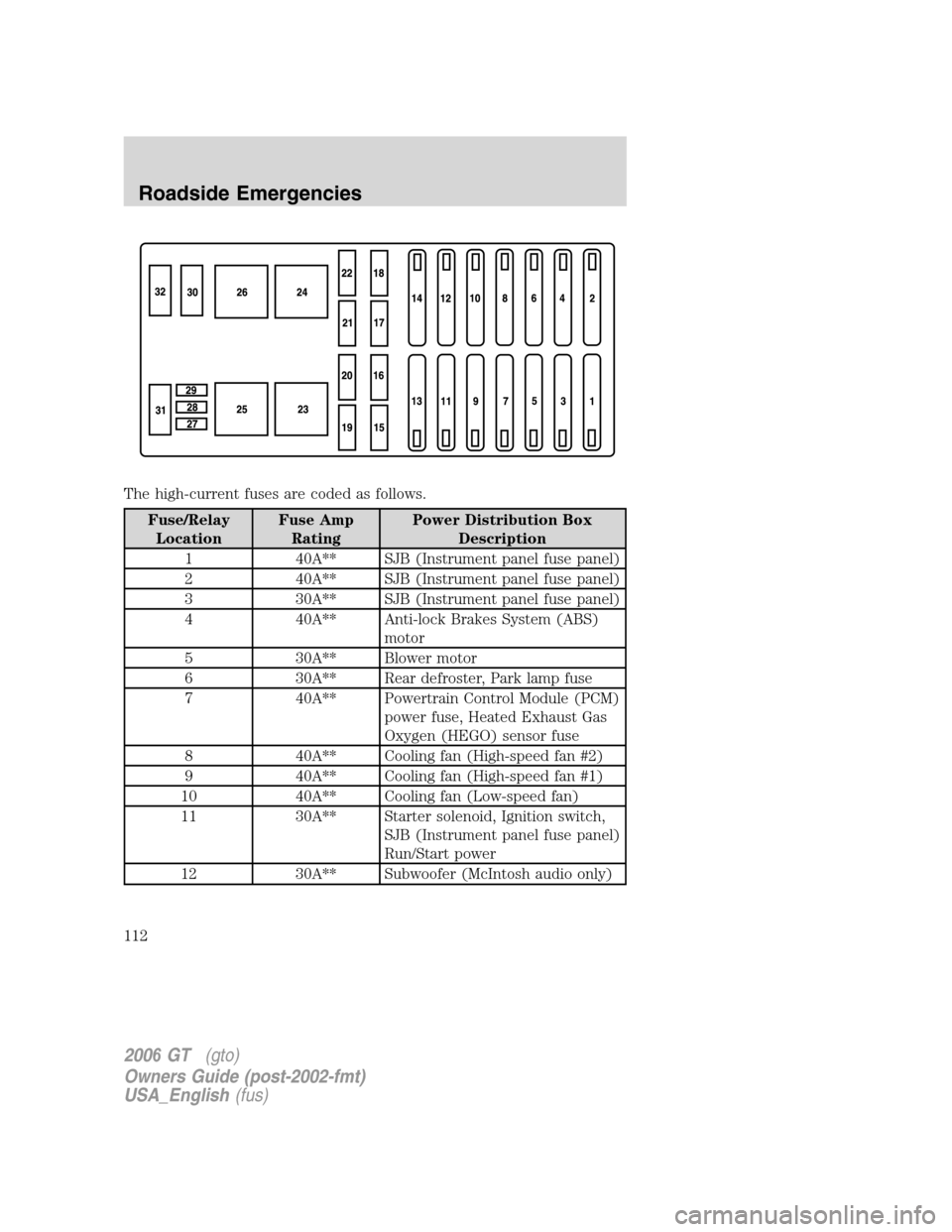

The high-current fuses are coded as follows.
Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
1 40A** SJB (Instrument panel fuse panel)
2 40A** SJB (Instrument panel fuse panel)
3 30A** SJB (Instrument panel fuse panel)
4 40A** Anti-lock Brakes System (ABS) motor
5 30A** Blower motor
6 30A** Rear defroster, Park lamp fuse
7 40A** Powertrain Control Module (PCM) power fuse, Heated Exhaust Gas
Oxygen (HEGO) sensor fuse
8 40A** Cooling fan (High-speed fan #2)
9 40A** Cooling fan (High-speed fan #1)
10 40A** Cooling fan (Low-speed fan)
11 30A** Starter solenoid, Ignition switch, SJB (Instrument panel fuse panel)
Run/Start power
12 30A** Subwoofer (McIntosh audio only)
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
112

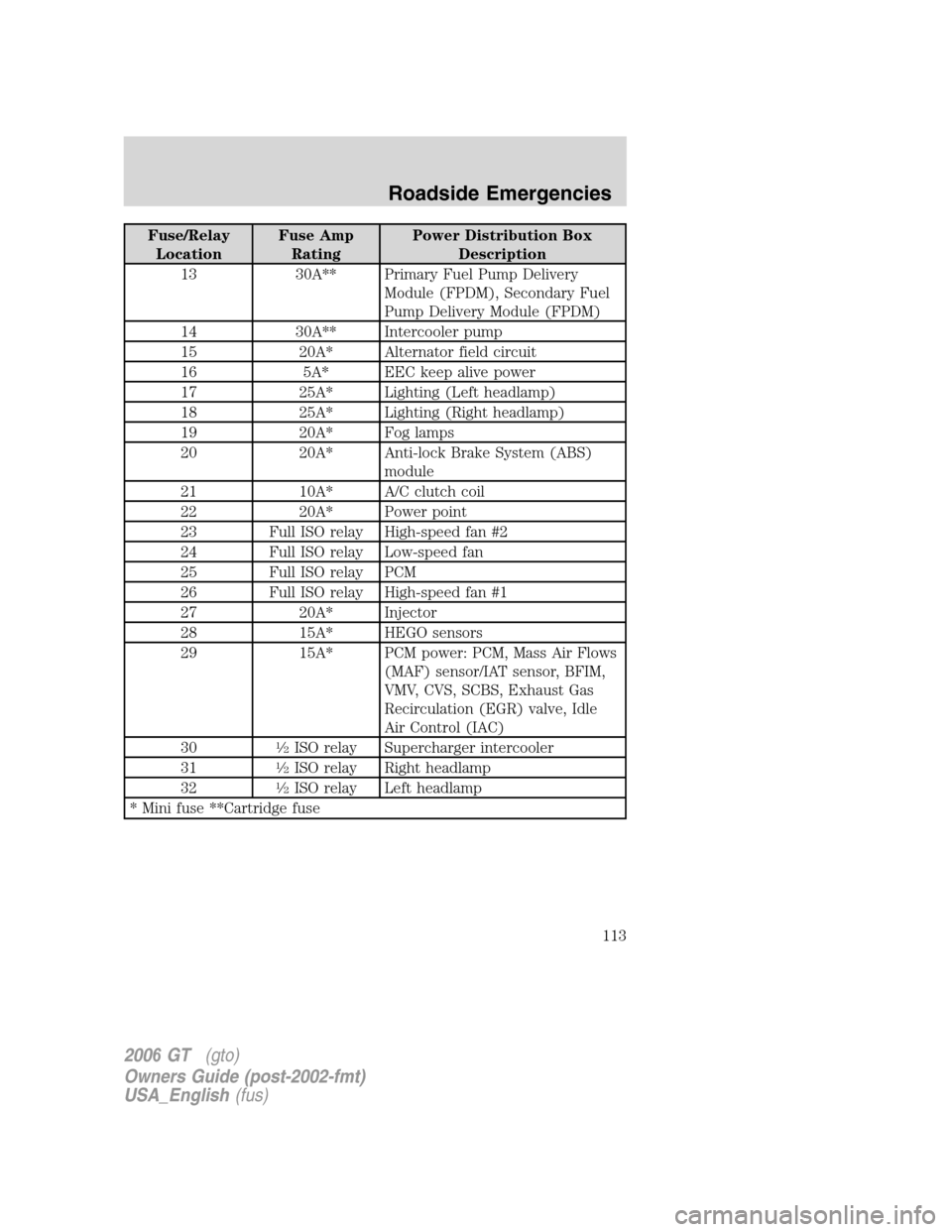

Fuse/RelayLocation Fuse Amp
Rating Power Distribution Box
Description
13 30A** Primary Fuel Pump Delivery Module (FPDM), Secondary Fuel
Pump Delivery Module (FPDM)
14 30A** Intercooler pump
15 20A* Alternator field circuit
16 5A* EEC keep alive power
17 25A* Lighting (Left headlamp)
18 25A* Lighting (Right headlamp)
19 20A* Fog lamps
20 20A* Anti-lock Brake System (ABS) module
21 10A* A/C clutch coil
22 20A* Power point
23 Full ISO relay High-speed fan #2
24 Full ISO relay Low-speed fan
25 Full ISO relay PCM
26 Full ISO relay High-speed fan #1
27 20A* Injector
28 15A* HEGO sensors
29 15A* PCM power: PCM, Mass Air Flows (MAF) sensor/IAT sensor, BFIM,
VMV, CVS, SCBS, Exhaust Gas
Recirculation (EGR) valve, Idle
Air Control (IAC)
30
12ISO relay Supercharger intercooler
31
12ISO relay Right headlamp
32
12ISO relay Left headlamp
* Mini fuse **Cartridge fuse
2006 GT (gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Roadside Emergencies
113
