headlamp FORD GT 2018 User Guide

Protected Components
Fuse Rating
Fuse or Relay
Number
Electronic door system.
20A 2
24
Right headlamp.
20A 2
25
1 J-case low profile fuse.
2 Mini fuse.

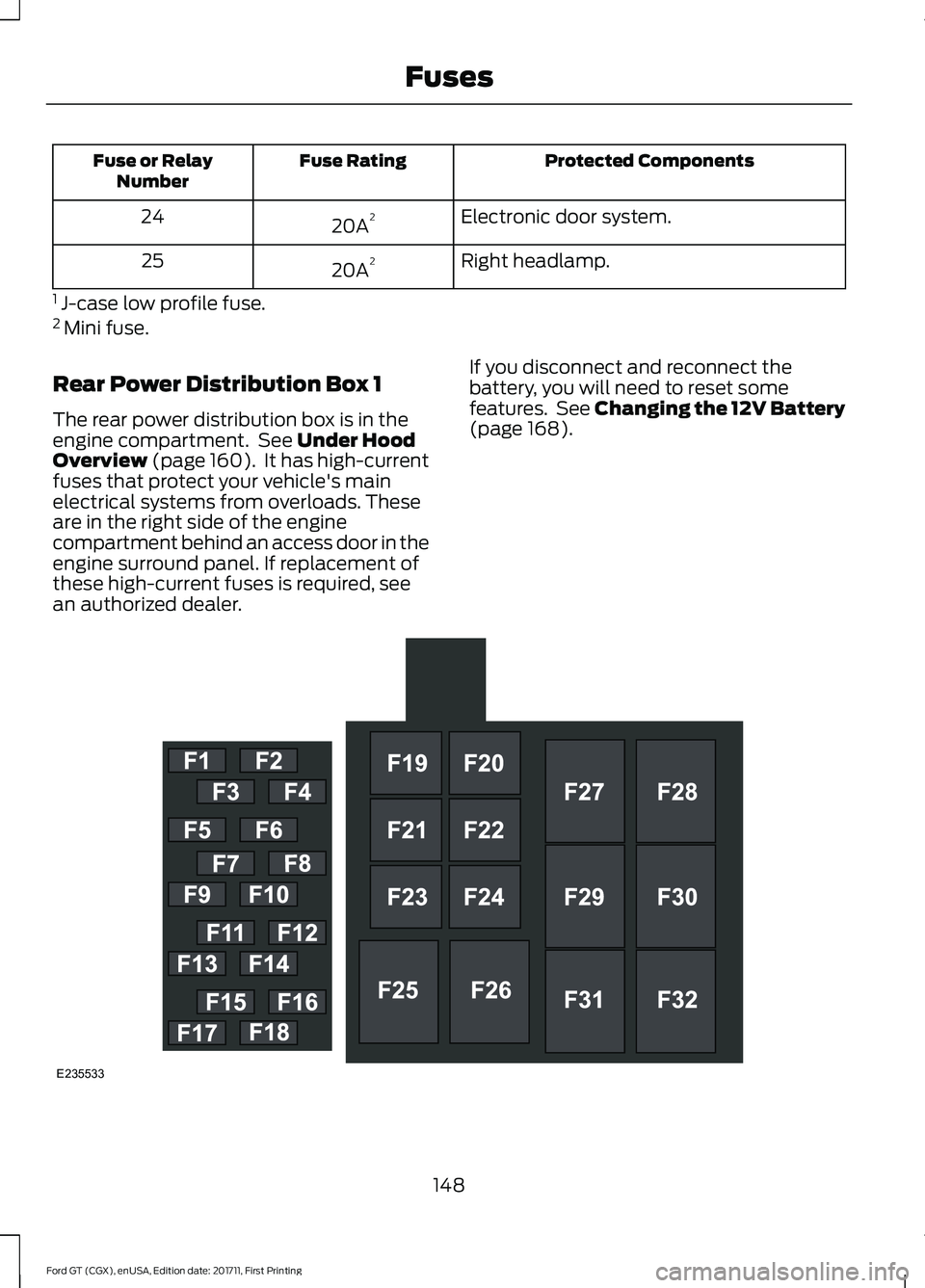

Rear Power Distribution Box 1
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 160). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If replacement of
these high-current fuses is required, see
an authorized dealer. If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
168).
148
Ford GT (CGX), enUSA, Edition date: 201711, First Printing FusesE235533

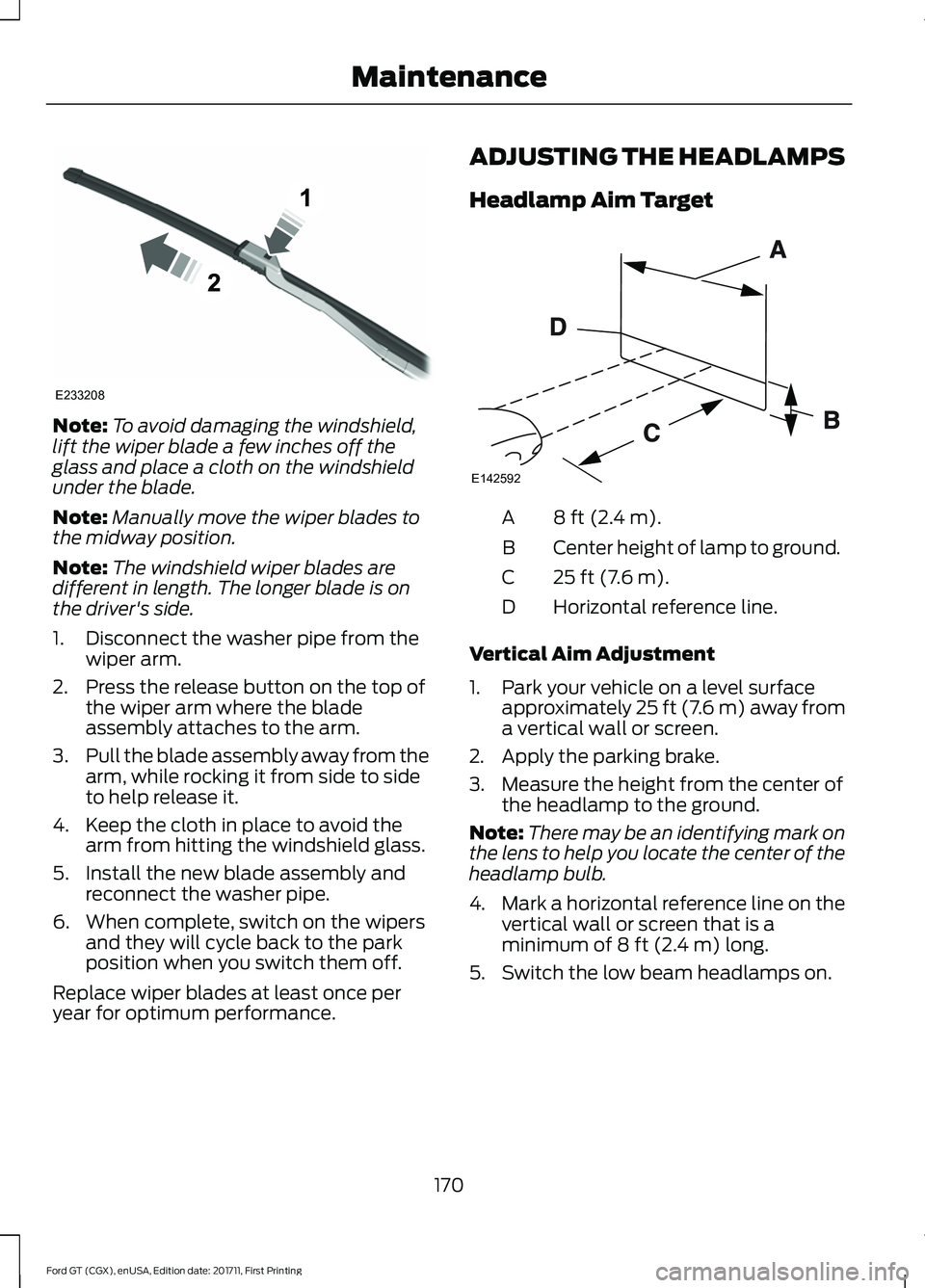

Note:
To avoid damaging the windshield,
lift the wiper blade a few inches off the
glass and place a cloth on the windshield
under the blade.
Note: Manually move the wiper blades to
the midway position.
Note: The windshield wiper blades are
different in length. The longer blade is on
the driver's side.
1. Disconnect the washer pipe from the wiper arm.
2. Press the release button on the top of the wiper arm where the blade
assembly attaches to the arm.
3. Pull the blade assembly away from the
arm, while rocking it from side to side
to help release it.
4. Keep the cloth in place to avoid the arm from hitting the windshield glass.
5. Install the new blade assembly and reconnect the washer pipe.
6. When complete, switch on the wipers and they will cycle back to the park
position when you switch them off.
Replace wiper blades at least once per
year for optimum performance. ADJUSTING THE HEADLAMPS
Headlamp Aim Target
8 ft (2.4 m).
A
Center height of lamp to ground.
B
25 ft (7.6 m).
C
Horizontal reference line.
D
Vertical Aim Adjustment
1. Park your vehicle on a level surface approximately 25 ft (7.6 m) away from
a vertical wall or screen.
2. Apply the parking brake.
3. Measure the height from the center of the headlamp to the ground.
Note: There may be an identifying mark on
the lens to help you locate the center of the
headlamp bulb.
4. Mark a horizontal reference line on the
vertical wall or screen that is a
minimum of
8 ft (2.4 m) long.
5. Switch the low beam headlamps on.
170
Ford GT (CGX), enUSA, Edition date: 201711, First Printing MaintenanceE233208 E142592

6.
There is a distinct change from light to
dark in the left-hand portion of the
headlamp beam pattern. Position the
top edge of this cut-off 2 in (5 cm)
below the horizontal reference line. 7.
Locate and remove the plug in the front
of the wheel liner. Place wheels in the
straight ahead position. Use a ½ inch
socket wrench to adjust vertical
alignment (A).
Note: To see a clearer light pattern while
adjusting one headlamp, block the light
from the other headlamp.
8. Switch the low beam headlamps off. CHANGING A BULB
LED Lamps
All exterior and interior lamps on the GT
are LED.
These lamps operate at a high voltage.
Contact an authorized dealer if they fail.
CHANGING THE ENGINE AIR
FILTER
Please see an authorized dealer.
171
Ford GT (CGX), enUSA, Edition date: 201711, First Printing MaintenanceE209825 E250917

A
A/C
See: Climate Control.......................................... 80
About This Manual...........................................5 Ford GT Concierge Phone Numbers................5
ABS See: Brakes.............................................................. 111
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................... 111
Accessories.....................................................273
Accessories See: Replacement Parts
Recommendation............................................ 10
Adjusting the Headlamps..........................170 Headlamp Aim Target....................................... 170
Adjusting the Pedals.....................................56
Adjusting the Steering Wheel....................52
Airbag Disposal...............................................39
Air Conditioning See: Climate Control.......................................... 80
Air Filter See: Changing the Engine Air Filter...............171
Alarm See: Anti-Theft Alarm......................................... 51
Anti-Theft Alarm
.............................................51
Arming the Alarm.................................................. 51
Disarming the Alarm............................................ 51
Appendices....................................................288
Apps..................................................................247 ........................................................................\
........... 247
At a Glance........................................................14
Audible Warnings and Indicators.............69 Headlamps On Warning Chime..................... 69
Keyless Warning Alert........................................ 69
Audio Control
...................................................53
Seek, Next or Previous........................................ 53
Audio System
.................................................212
Audio Unit........................................................212
Autolamps........................................................59
Automatic Climate Control
.........................81
Automatic Transmission...........................106
Brake-Shift Interlock......................................... 108
If Your Vehicle Gets Stuck In Mud or Snow................................................................... 110
SelectShift™ Automatic Transmission................................................... 107Understanding the Positions of Your
Automatic Transmission............................ 106
Automatic Transmission Fluid Check.............................................................166
Auxiliary Power Points.................................88 12 Volt DC Power Point...................................... 88
Location................................................................... 88
B
Battery See: Changing the 12V Battery...................... 168
Bonnet Lock See: Opening and Closing the Hood............157
Booster Seats
..................................................22
Types of Booster Seats...................................... 23
Brake Fluid Check.........................................166
Brakes..................................................................111 General Information............................................ 111
Breaking-In......................................................134 Cold Engine Operation..................................... 134
Hot Engine Shut down..................................... 134
C
Cabin Air Filter.................................................85
California Proposition 65...............................9
Capacities and Specifications
...............209
Specifications...................................................... 210
Car Wash See: Cleaning the Exterior................................ 172
Catalytic Converter
......................................103
On-Board Diagnostics (OBD-II)................... 104
Readiness for Inspection and Maintenance (I/M) Testing................................................... 104
Changing a Bulb.............................................171 LED Lamps............................................................. 171
Changing a Fuse
...........................................155
Fuses....................................................................... 155
Changing a Road Wheel
...........................202
Important Information for Lifting or
Jacking.............................................................. 202
Changing the 12V Battery..........................168 Battery Charger and Maintainer................... 168
Battery Management System....................... 169
Changing the Engine Air Filter...................171
Changing the Wiper Blades......................169
Checking the Wiper Blades......................169
315
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Index

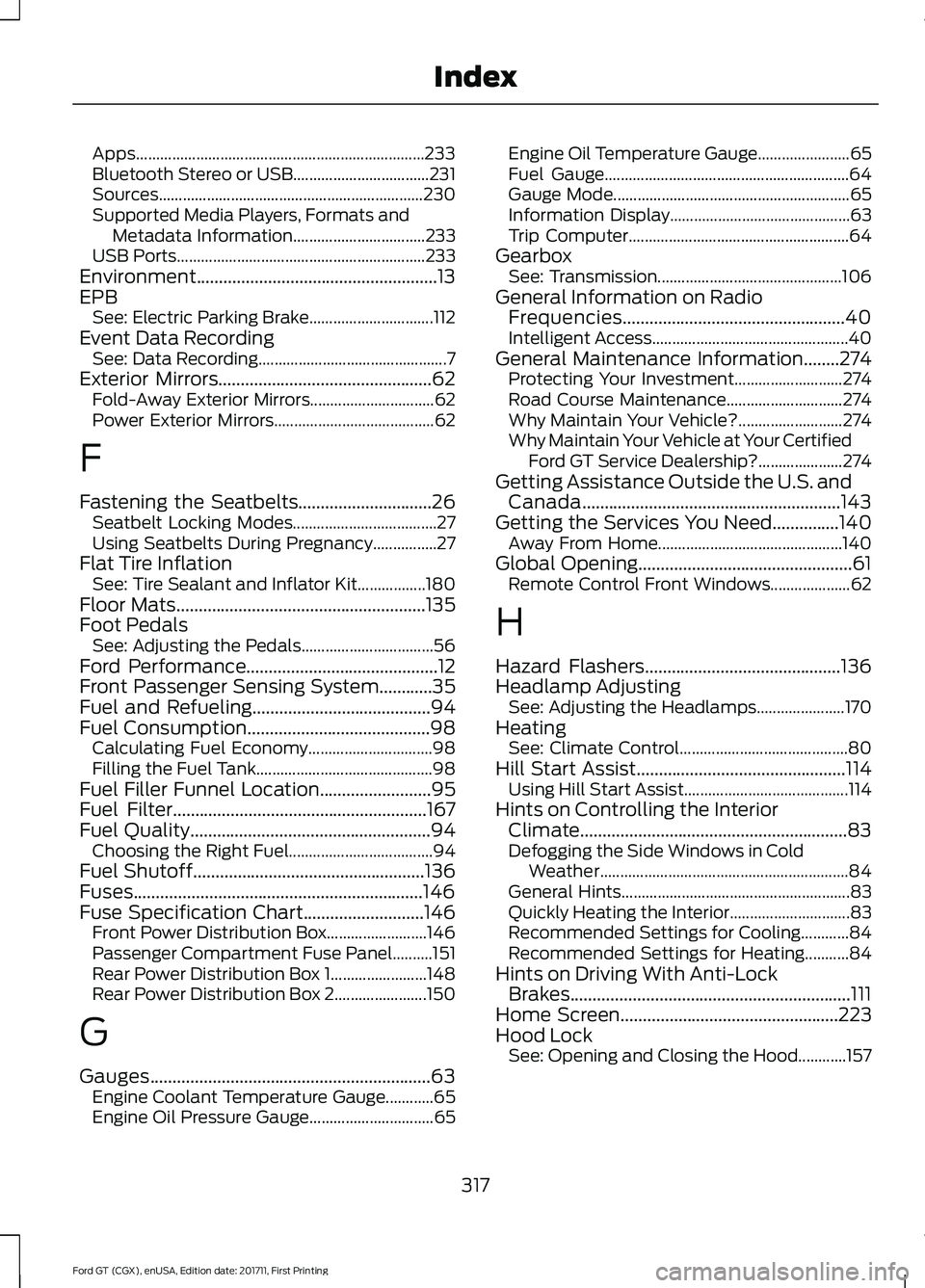

Apps........................................................................\
233
Bluetooth Stereo or USB.................................. 231
Sources.................................................................. 230
Supported Media Players, Formats and Metadata Information................................. 233
USB Ports.............................................................. 233
Environment......................................................13
EPB See: Electric Parking Brake............................... 112
Event Data Recording See: Data Recording............................................... 7
Exterior Mirrors................................................62
Fold-Away Exterior Mirrors............................... 62
Power Exterior Mirrors........................................ 62
F
Fastening the Seatbelts..............................26 Seatbelt Locking Modes.................................... 27
Using Seatbelts During Pregnancy................27
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................180
Floor Mats
........................................................135
Foot Pedals See: Adjusting the Pedals................................. 56
Ford Performance...........................................12
Front Passenger Sensing System............35
Fuel and Refueling
........................................94
Fuel Consumption.........................................98 Calculating Fuel Economy............................... 98
Filling the Fuel Tank............................................ 98
Fuel Filler Funnel Location.........................95
Fuel Filter.........................................................167
Fuel Quality
......................................................94
Choosing the Right Fuel.................................... 94
Fuel Shutoff
....................................................136
Fuses.................................................................146
Fuse Specification Chart...........................146 Front Power Distribution Box......................... 146
Passenger Compartment Fuse Panel..........151
Rear Power Distribution Box 1........................ 148
Rear Power Distribution Box 2....................... 150
G
Gauges...............................................................63 Engine Coolant Temperature Gauge............65
Engine Oil Pressure Gauge............................... 65Engine Oil Temperature Gauge.......................
65
Fuel Gauge............................................................. 64
Gauge Mode........................................................... 65
Information Display............................................. 63
Trip Computer....................................................... 64
Gearbox See: Transmission.............................................. 106
General Information on Radio Frequencies..................................................40
Intelligent Access................................................. 40
General Maintenance Information........274 Protecting Your Investment........................... 274
Road Course Maintenance............................. 274
Why Maintain Your Vehicle?.......................... 274
Why Maintain Your Vehicle at Your Certified Ford GT Service Dealership?..................... 274
Getting Assistance Outside the U.S. and Canada..........................................................143
Getting the Services You Need...............140 Away From Home.............................................. 140
Global Opening................................................61 Remote Control Front Windows.................... 62
H
Hazard Flashers
............................................136
Headlamp Adjusting See: Adjusting the Headlamps...................... 170
Heating See: Climate Control.......................................... 80
Hill Start Assist...............................................114 Using Hill Start Assist......................................... 114
Hints on Controlling the Interior Climate............................................................83
Defogging the Side Windows in Cold Weather.............................................................. 84
General Hints......................................................... 83
Quickly Heating the Interior.............................. 83
Recommended Settings for Cooling............84
Recommended Settings for Heating...........84
Hints on Driving With Anti-Lock Brakes...............................................................111
Home Screen.................................................223
Hood Lock See: Opening and Closing the Hood............157
317
Ford GT (CGX), enUSA, Edition date: 201711, First Printing Index
