relay FORD GT 2019 Owners Manual

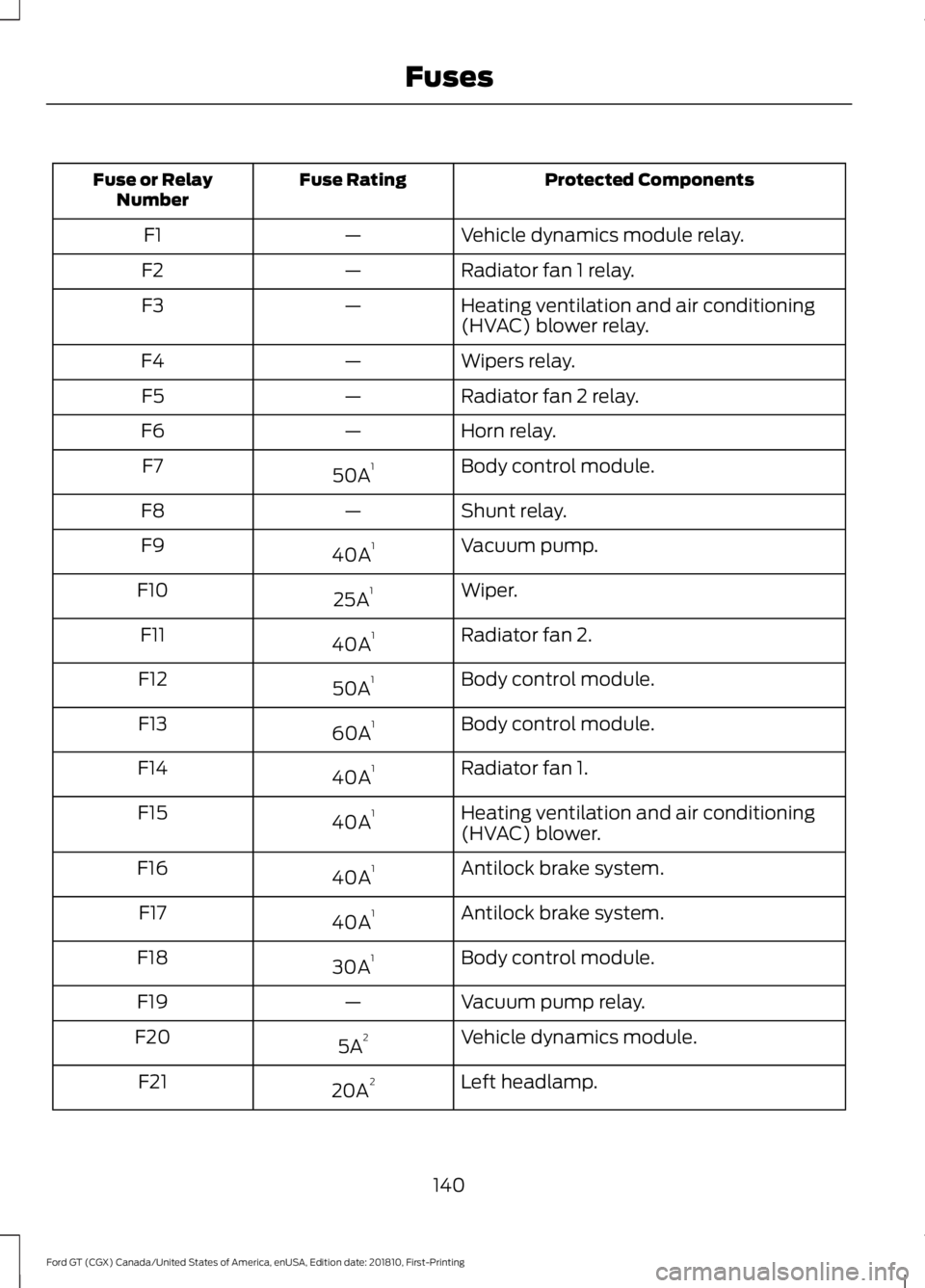

Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle dynamics module relay.
—
F1
Radiator fan 1 relay.
—
F2
Heating ventilation and air conditioning
(HVAC) blower relay.
—
F3
Wipers relay.
—
F4
Radiator fan 2 relay.
—
F5
Horn relay.
—
F6
Body control module.
50A 1
F7
Shunt relay.
—
F8
Vacuum pump.
40A 1
F9
Wiper.
25A 1
F10
Radiator fan 2.
40A 1
F11
Body control module.
50A 1
F12
Body control module.
60A 1
F13
Radiator fan 1.
40A 1
F14
Heating ventilation and air conditioning
(HVAC) blower.
40A 1
F15
Antilock brake system.
40A 1
F16
Antilock brake system.
40A 1
F17
Body control module.
30A 1
F18
Vacuum pump relay.
—
F19
Vehicle dynamics module.
5A 2
F20
Left headlamp.
20A 2
F21
140
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

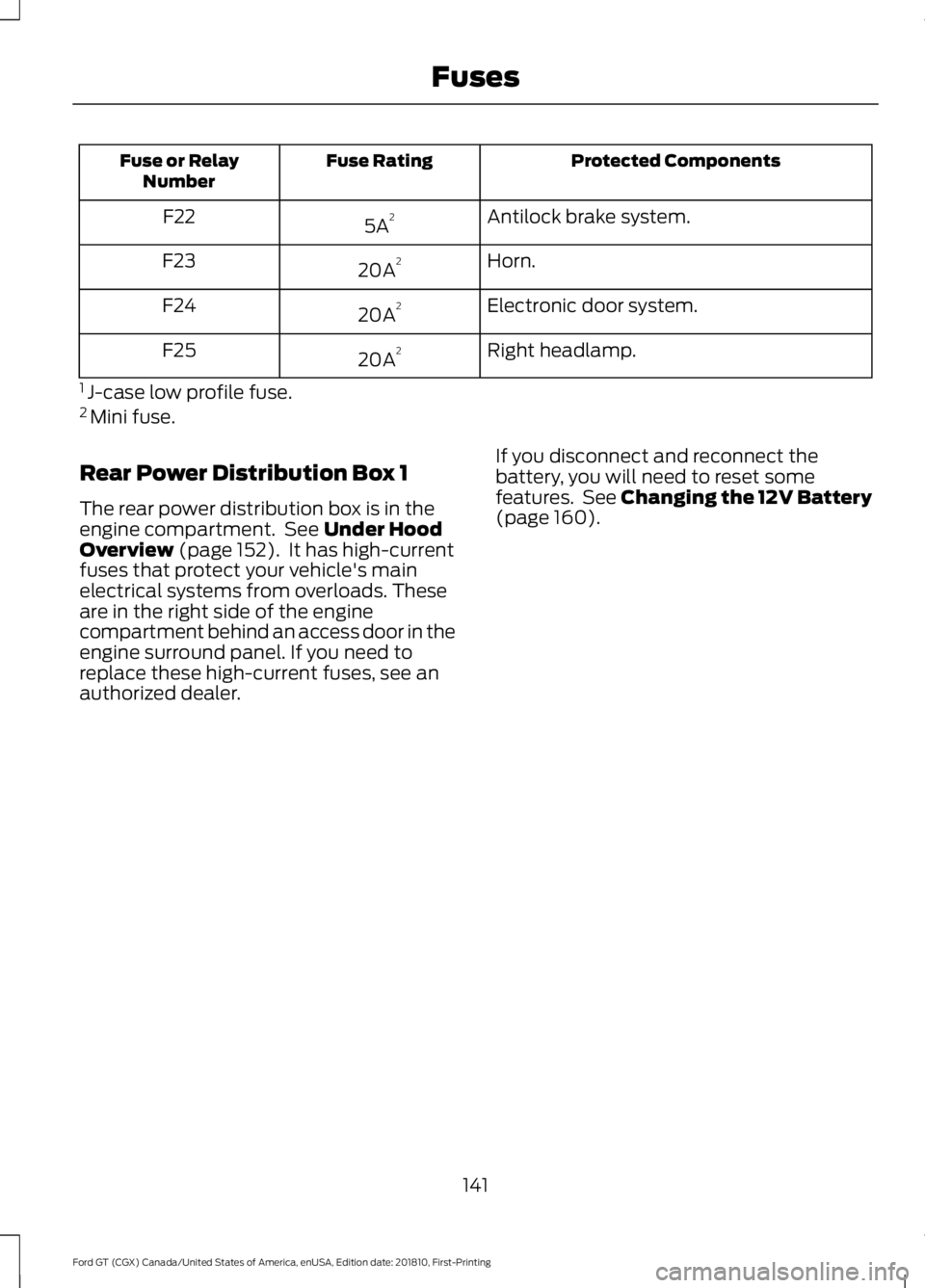

Protected Components
Fuse Rating
Fuse or Relay
Number
Antilock brake system.
5A 2
F22
Horn.
20A 2
F23
Electronic door system.
20A 2
F24
Right headlamp.
20A 2
F25
1 J-case low profile fuse.
2 Mini fuse.
Rear Power Distribution Box 1
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 152). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you will need to reset some
features. See Changing the 12V Battery
(page
160).
141
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

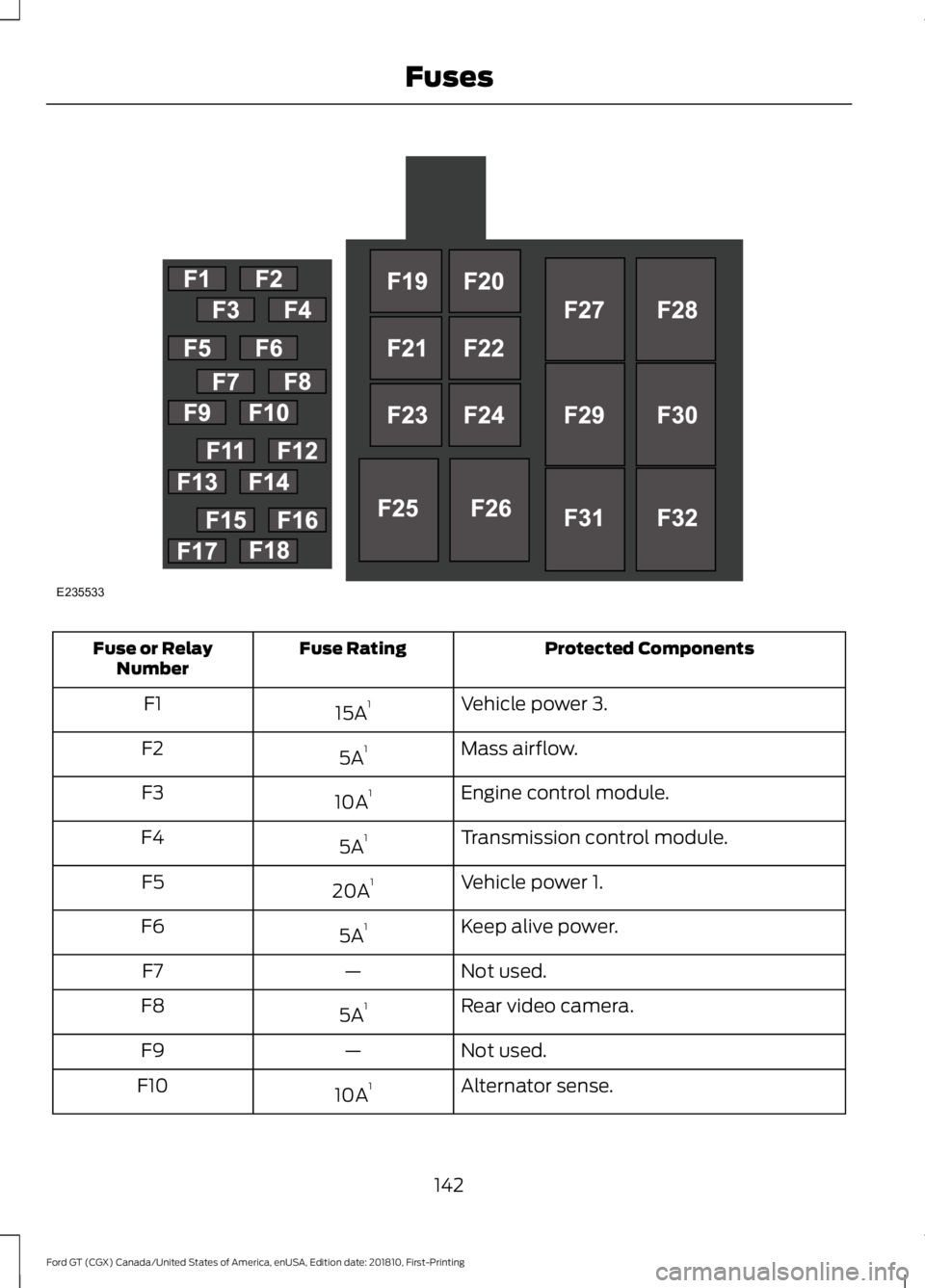

Protected Components
Fuse Rating
Fuse or Relay
Number
Vehicle power 3.
15A 1
F1
Mass airflow.
5A 1
F2
Engine control module.
10A 1
F3
Transmission control module.
5A 1
F4
Vehicle power 1.
20A 1
F5
Keep alive power.
5A 1
F6
Not used.
—
F7
Rear video camera.
5A 1
F8
Not used.
—
F9
Alternator sense.
10A 1
F10
142
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE235533

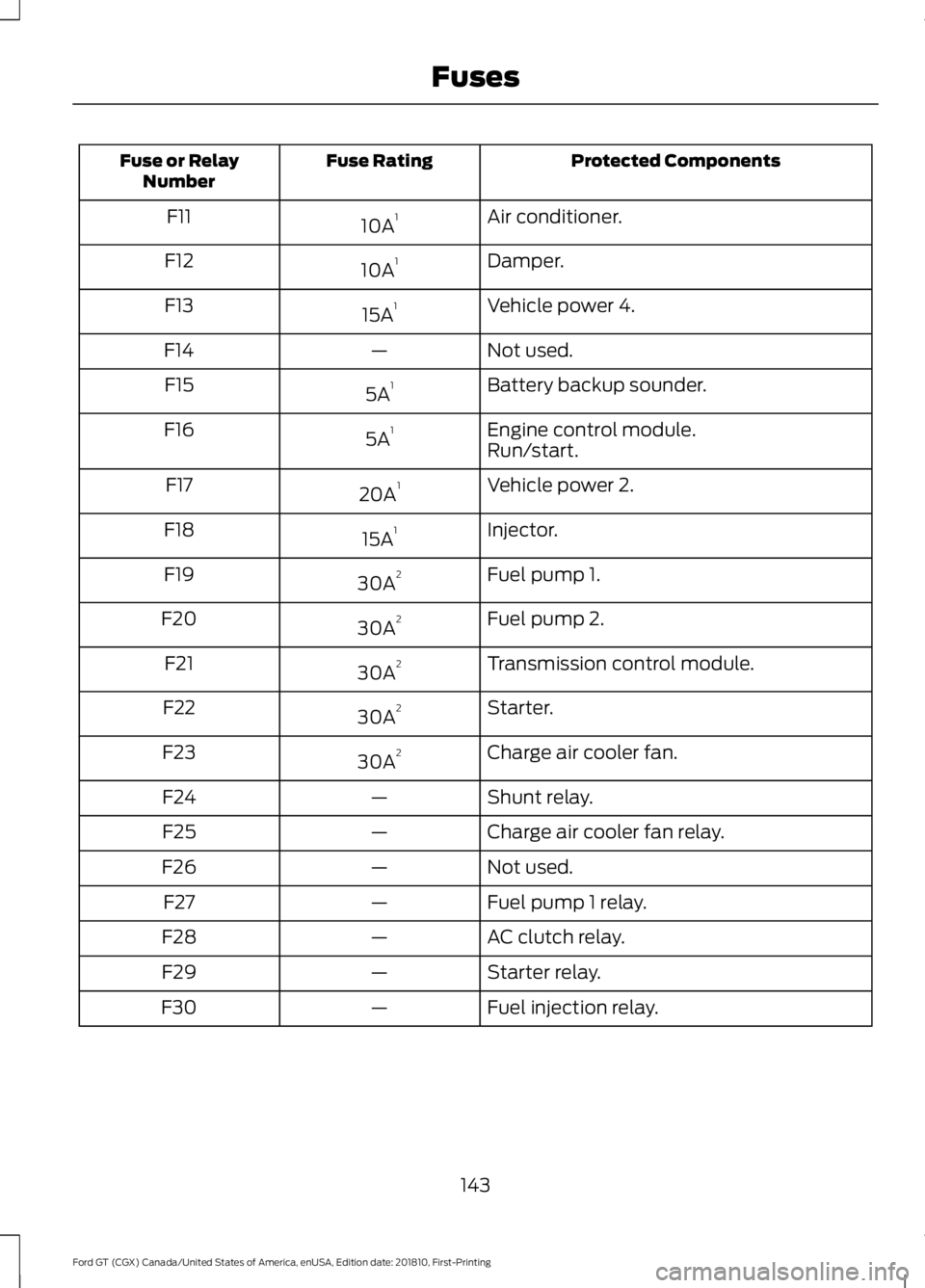

Protected Components
Fuse Rating
Fuse or Relay
Number
Air conditioner.
10A 1
F11
Damper.
10A 1
F12
Vehicle power 4.
15A 1
F13
Not used.
—
F14
Battery backup sounder.
5A 1
F15
Engine control module.
5A 1
F16
Run/start.
Vehicle power 2.
20A 1
F17
Injector.
15A 1
F18
Fuel pump 1.
30A 2
F19
Fuel pump 2.
30A 2
F20
Transmission control module.
30A 2
F21
Starter.
30A 2
F22
Charge air cooler fan.
30A 2
F23
Shunt relay.
—
F24
Charge air cooler fan relay.
—
F25
Not used.
—
F26
Fuel pump 1 relay.
—
F27
AC clutch relay.
—
F28
Starter relay.
—
F29
Fuel injection relay.
—
F30
143
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

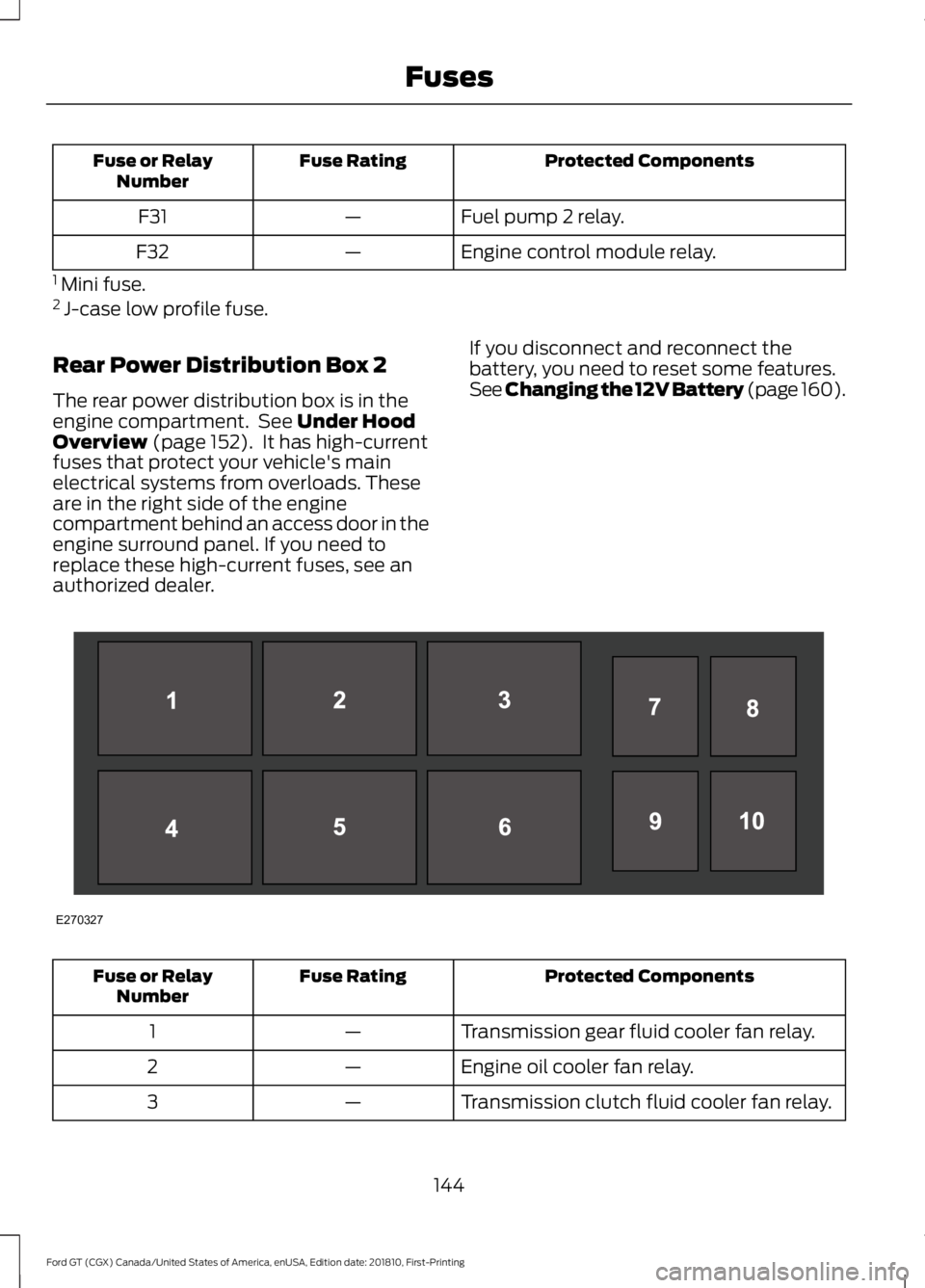

Protected Components
Fuse Rating
Fuse or Relay
Number
Fuel pump 2 relay.
—
F31
Engine control module relay.
—
F32
1 Mini fuse.
2 J-case low profile fuse.
Rear Power Distribution Box 2
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 152). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 160). Protected Components
Fuse Rating
Fuse or Relay
Number
Transmission gear fluid cooler fan relay.
—
1
Engine oil cooler fan relay.
—
2
Transmission clutch fluid cooler fan relay.
—
3
144
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE270327

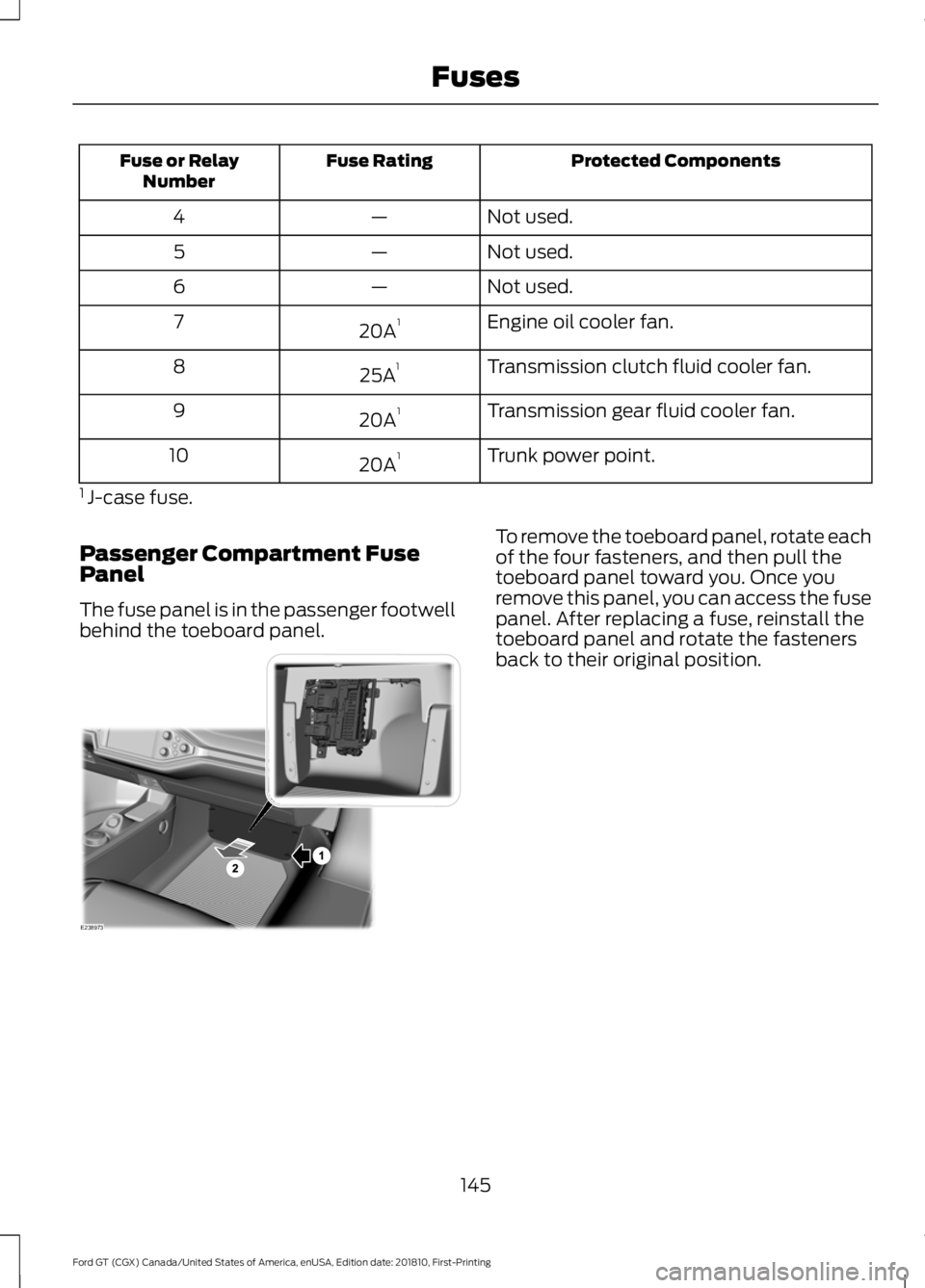

Protected Components
Fuse Rating
Fuse or Relay
Number
Not used.
—
4
Not used.
—
5
Not used.
—
6
Engine oil cooler fan.
20A 1
7
Transmission clutch fluid cooler fan.
25A 1
8
Transmission gear fluid cooler fan.
20A 1
9
Trunk power point.
20A 1
10
1 J-case fuse.
Passenger Compartment Fuse
Panel
The fuse panel is in the passenger footwell
behind the toeboard panel. To remove the toeboard panel, rotate each
of the four fasteners, and then pull the
toeboard panel toward you. Once you
remove this panel, you can access the fuse
panel. After replacing a fuse, reinstall the
toeboard panel and rotate the fasteners
back to their original position.
145
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE238973

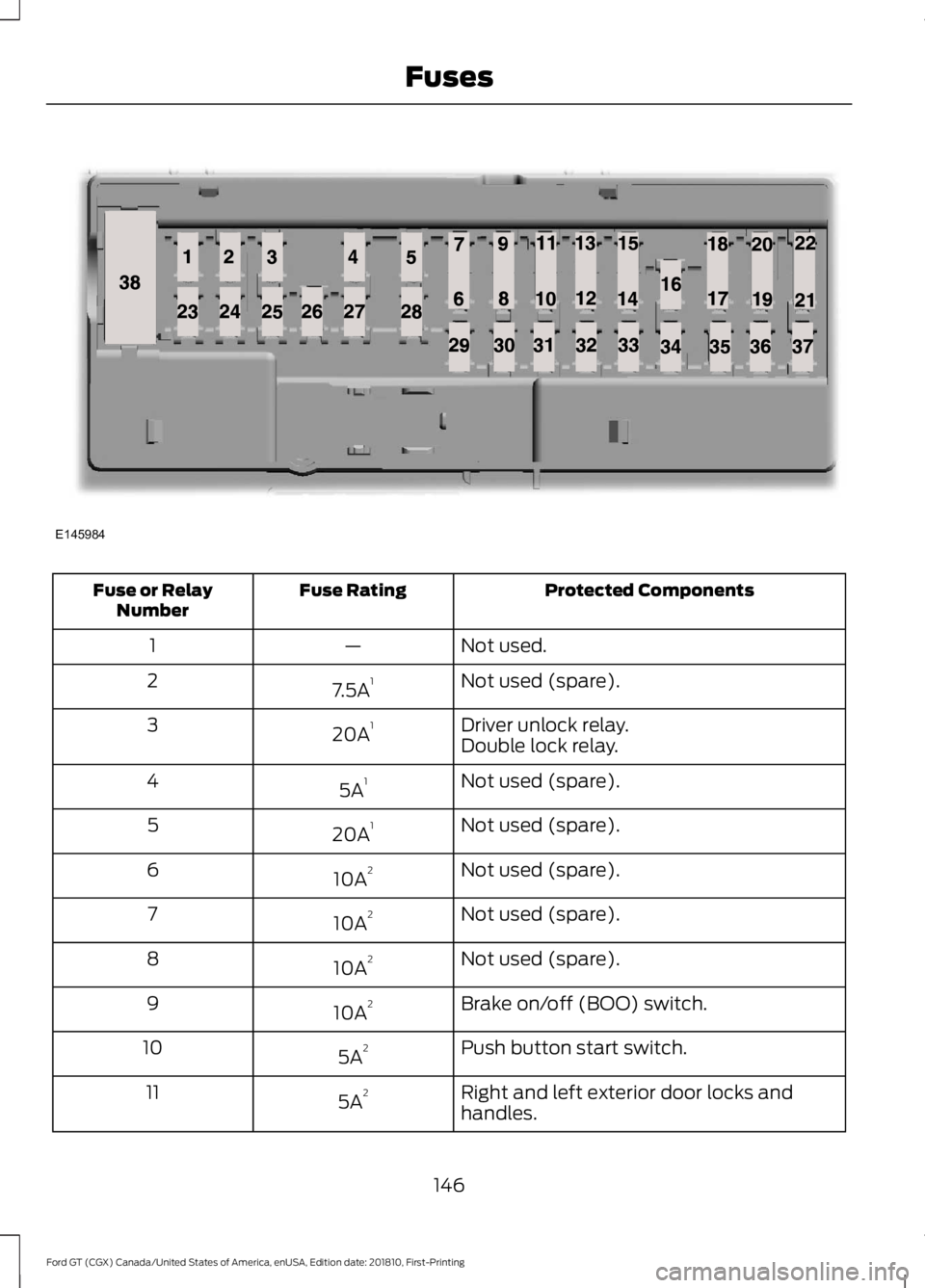

Protected Components
Fuse Rating
Fuse or Relay
Number
Not used.
—
1
Not used (spare).
7.5A 1
2
Driver unlock relay.
20A 1
3
Double lock relay.
Not used (spare).
5A 1
4
Not used (spare).
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Brake on/off (BOO) switch.
10A 2
9
Push button start switch.
5A 2
10
Right and left exterior door locks and
handles.
5A 2
11
146
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing FusesE145984

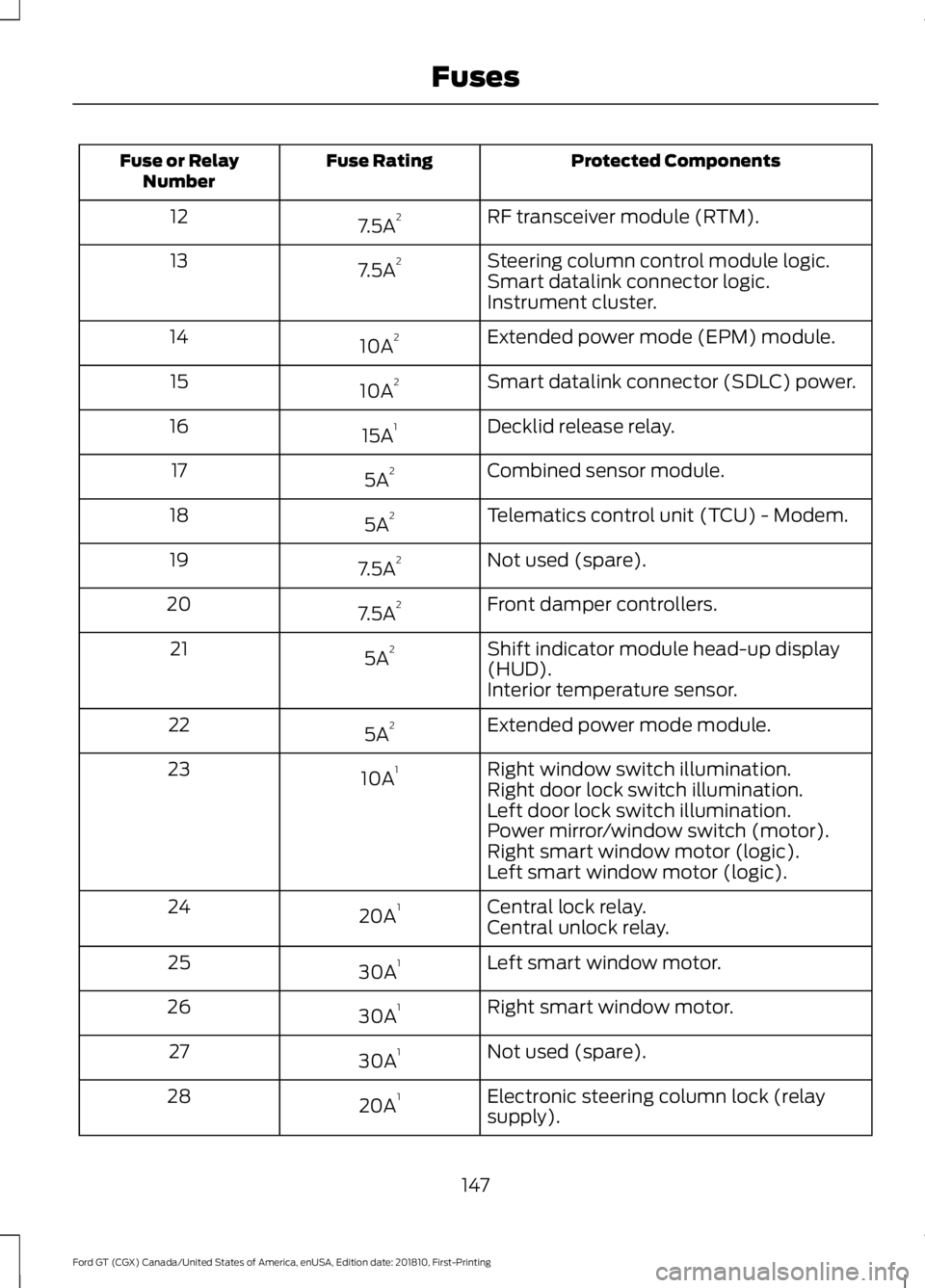

Protected Components
Fuse Rating
Fuse or Relay
Number
RF transceiver module (RTM).
7.5A 2
12
Steering column control module logic.
7.5A 2
13
Smart datalink connector logic.
Instrument cluster.
Extended power mode (EPM) module.
10A 2
14
Smart datalink connector (SDLC) power.
10A 2
15
Decklid release relay.
15A 1
16
Combined sensor module.
5A 2
17
Telematics control unit (TCU) - Modem.
5A 2
18
Not used (spare).
7.5A 2
19
Front damper controllers.
7.5A 2
20
Shift indicator module head-up display
(HUD).
5A 2
21
Interior temperature sensor.
Extended power mode module.
5A 2
22
Right window switch illumination.
10A 1
23
Right door lock switch illumination.
Left door lock switch illumination.
Power mirror/window switch (motor).
Right smart window motor (logic).
Left smart window motor (logic).
Central lock relay.
20A 1
24
Central unlock relay.
Left smart window motor.
30A 1
25
Right smart window motor.
30A 1
26
Not used (spare).
30A 1
27
Electronic steering column lock (relay
supply).
20A 1
28
147
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201810, First-Printing Fuses

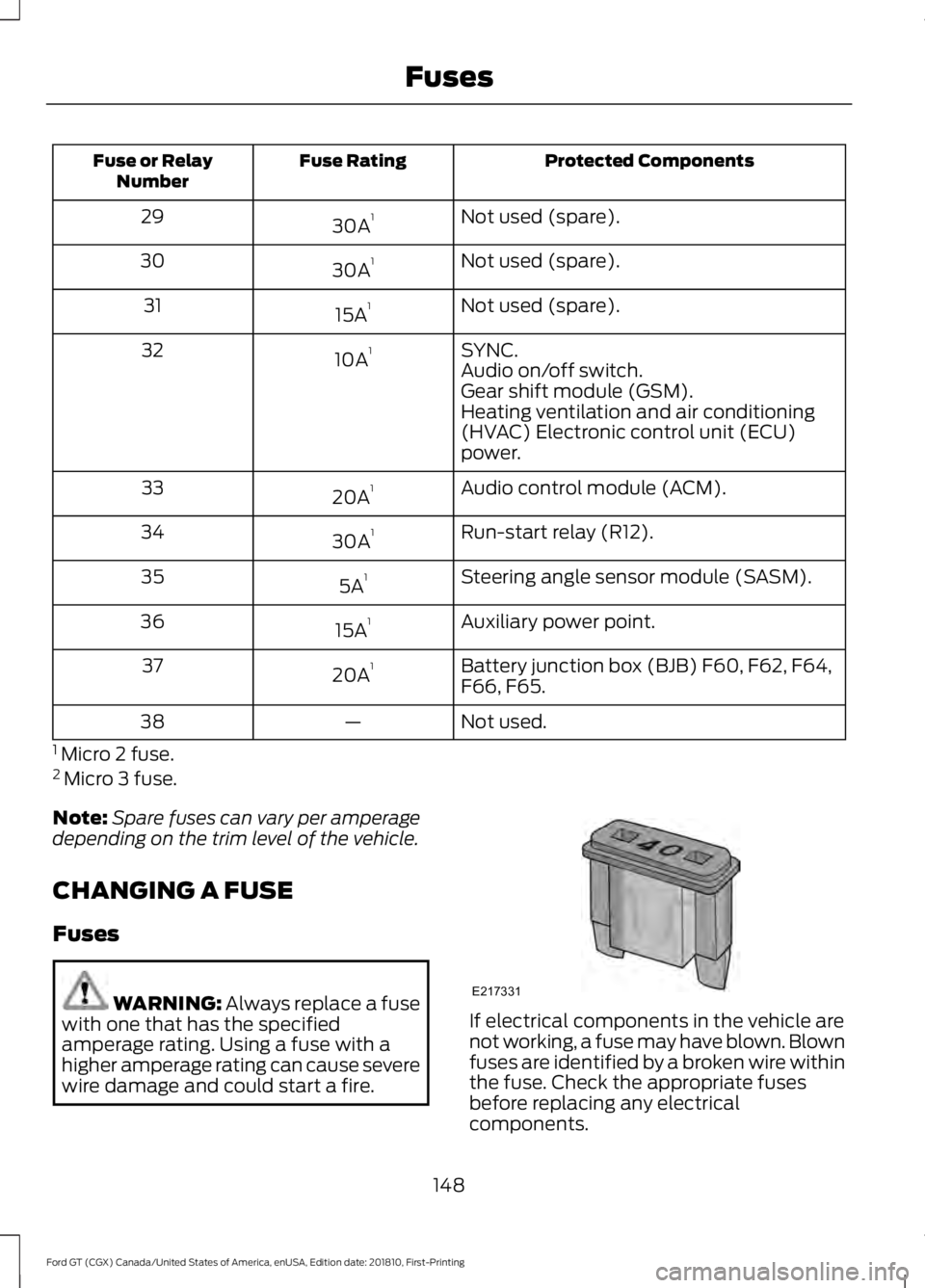

Protected Components
Fuse Rating
Fuse or Relay
Number
Not used (spare).
30A 1
29
Not used (spare).
30A 1
30
Not used (spare).
15A 1
31
SYNC.
10A 1
32
Audio on/off switch.
Gear shift module (GSM).
Heating ventilation and air conditioning
(HVAC) Electronic control unit (ECU)
power.
Audio control module (ACM).
20A 1
33
Run-start relay (R12).
30A 1
34
Steering angle sensor module (SASM).
5A 1
35
Auxiliary power point.
15A 1
36
Battery junction box (BJB) F60, F62, F64,
F66, F65.
20A 1
37
Not used.
—
38
1 Micro 2 fuse.
2 Micro 3 fuse.
Note: Spare fuses can vary per amperage
depending on the trim level of the vehicle.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
