engine coolant FORD GT 2020 Owner's Manual

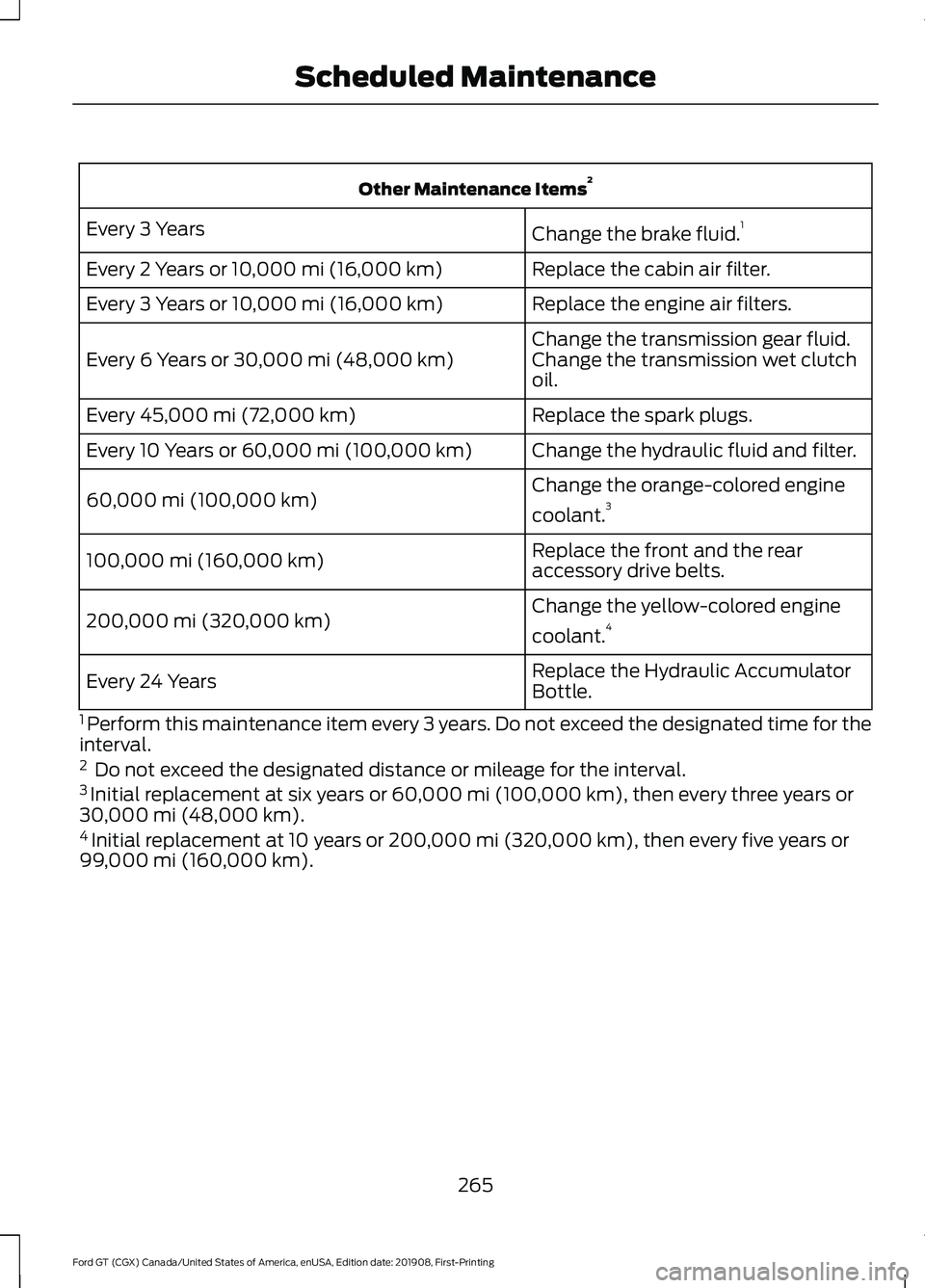

Other Maintenance Items
2
Change the brake fluid. 1
Every 3 Years
Replace the cabin air filter.
Every 2 Years or 10,000 mi (16,000 km)
Replace the engine air filters.
Every 3 Years or
10,000 mi (16,000 km)
Change the transmission gear fluid.
Every 6 Years or
30,000 mi (48,000 km) Change the transmission wet clutch oil.
Replace the spark plugs.
Every
45,000 mi (72,000 km)
Change the hydraulic fluid and filter.
Every 10 Years or
60,000 mi (100,000 km)
Change the orange-colored engine
coolant.3
60,000 mi (100,000 km)
Replace the front and the rear
accessory drive belts.
100,000 mi (160,000 km)
Change the yellow-colored engine
coolant.4
200,000 mi (320,000 km)
Replace the Hydraulic Accumulator
Bottle.
Every 24 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for the
interval.
2 Do not exceed the designated distance or mileage for the interval.
3 Initial replacement at six years or
60,000 mi (100,000 km), then every three years or
30,000 mi (48,000 km).
4 Initial replacement at 10 years or
200,000 mi (320,000 km), then every five years or
99,000 mi (160,000 km).
265
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 201908, First-Printing Scheduled Maintenance

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 2,500 mi (4,000 km).
Engine Air Filter and Cabin Air
Filter Replacement
The life of the engine air filter and cabin air
filter is dependent on exposure to dusty
and dirty conditions. Vehicles operated in
these conditions require frequent
inspection and replacement of the engine
air filter and cabin air filter.
Operating at High Speeds and
Track Days
Your vehicle is capable of sustained high
speeds and track day driving. Your GT has
electronic controls to reduce power and
limit the RPM to reduce powertrain
temperatures if operating temperatures
are exceeded.
Before Operating Your Vehicle at High
Speeds:
•
Verify your tires have the correct
pressures See Technical
Specifications (page 206).
• Inspect wheels and tires for wear and
damage. Replace any damaged wheels
and tires.
• Check and set lug nut torque. See
Technical Specifications (page 206).
• Verify fluid levels for oil, coolant, brake,
and hydraulic fluid. See Maintenance
(page
157).
• Change the oil and filter prior to use on
the track.
After Operating Your vehicle at High
Speeds and Track Day Driving, Do the
Following:
• Set tire pressures to specification.
• Check and set lug nut torque. See
Technical Specifications (page 206).
• Check all fluid levels.
• If you drive your car for an extended
period of time at high speed or on the
track for an extended time, change the
oil and filter.
SCHEDULED MAINTENANCE
RECORD
After the scheduled maintenance services
are performed, record the Repair Order #,
Distance and Engine Hours in the boxes
provided.
