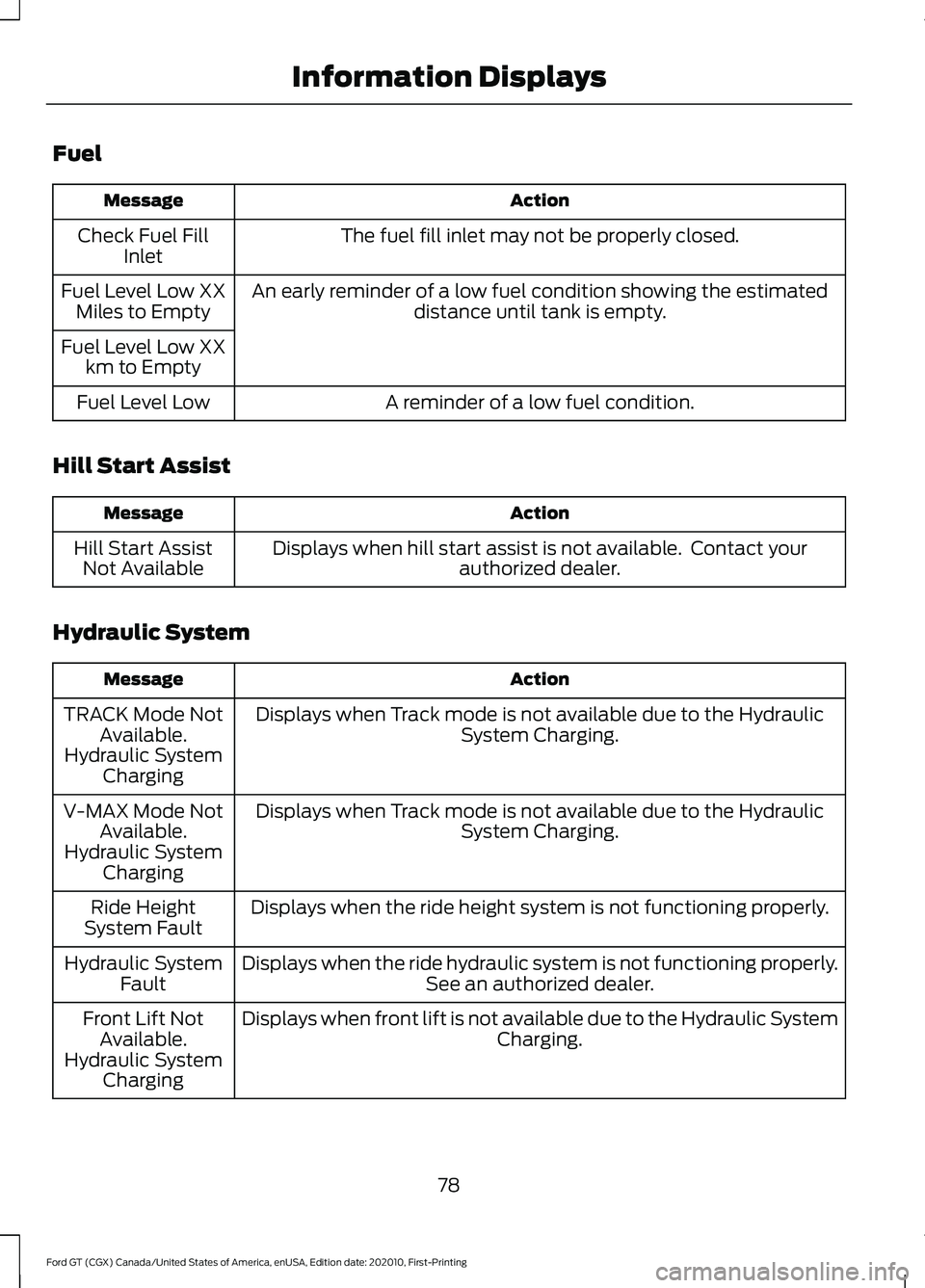

Fuel
Action
Message
The fuel fill inlet may not be properly closed.
Check Fuel Fill
Inlet
An early reminder of a low fuel condition showing the estimated distance until tank is empty.
Fuel Level Low XX
Miles to Empty
Fuel Level Low XX km to Empty
A reminder of a low fuel condition.
Fuel Level Low
Hill Start Assist Action
Message
Displays when hill start assist is not available. Contact your authorized dealer.
Hill Start Assist
Not Available
Hydraulic System Action
Message
Displays when Track mode is not available due to the Hydraulic System Charging.
TRACK Mode Not
Available.
Hydraulic System Charging
Displays when Track mode is not available due to the Hydraulic System Charging.
V-MAX Mode Not
Available.
Hydraulic System Charging
Displays when the ride height system is not functioning properly.
Ride Height
System Fault
Displays when the ride hydraulic system is not functioning properly. See an authorized dealer.
Hydraulic System
Fault
Displays when front lift is not available due to the Hydraulic System Charging.
Front Lift Not
Available.
Hydraulic System Charging
78
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Information Displays

Keys and Intelligent Access
Action
Message
The system does not detect a key in your vehicle. See Keyless
Starting (page 89).
No Key Detected
You pressed the start/stop button to switch off the engine and yourvehicle does not detect your intelligent access key inside your vehicle.
Restart Now or
Key is Needed
There is a problem with your vehicle ’s starting system. See an
authorized dealer for service.
Starting System
Fault
You have successfully programmed an intelligent access key to the system.
Key Program
Successful
You have failed to program an intelligent access key to the system.
Key Program
Failure
You have programmed the maximum number of keys to the system.
Max Number of
Keys Learned
You have not programmed enough keys to the system.
Not Enough Keys
Learned
The key battery is low. Change the battery as soon as possible.
Key Battery Low
Replace Soon
Maintenance Action
Message
Stop your vehicle as soon as safely possible and turn off the engine.
Check the oil level. If the warning stays on or continues to come onwith your engine running, contact an authorized dealer as soon as possible.
Low Engine Oil
Pressure
The brake fluid level is low, inspect the brake system immediately.See
Brake Fluid Check (page 162).
Brake Fluid Level
Low
The brake system needs servicing. Stop your vehicle in a safe place. Contact an authorized dealer.
Check Brake
System
79
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Information Displays

Action
Message
The brake pads need replacement. Contact an authorized dealer.
Ceramic Brakes
Replace All Brake Pads
Your vehicle is still in Transport or Factory mode. This may not allowsome features to operate properly. See an authorized dealer.
Transport Mode
Contact Dealer
Factory Mode
Contact Dealer
Park Brake Action
Message
Displays if you attempt to release the electric parking brake manu-ally without pressing the brake pedal.
To Release: Press
Brake and Switch
Displays if you must manually release the electric parking brake.
Park Brake Use
Switch to Release
Displays if you have not fully applied the electric parking brake.
Park Brake Not
Applied
Displays if you have not fully released the electric parking brake.
Park Brake Not
Released
Displays if the electric parking brake system enters a special modeused to allow service of the rear brakes. Contact an authorized dealer.
Park Brake Main-
tenance Mode
Displays if the electric park brake system detects a condition thatrequires service. Some functionality may still be available. See an authorized dealer.
Park Brake Limited
Function Service Required
Displays if the electric parking brake system detects a conditionthat requires service. See an authorized dealer.
Park Brake
Malfunction
Service Now
Displays if the parking brake is set, the engine is running and you
drive the vehicle more than 3 mph (5 km/h). If the warning stays
on after you release the parking brake, contact an authorized dealer.
Park Brake On
80
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Information Displays

Remote Start
Action
Message
A reminder to apply the brake and push the start button to driveyour vehicle after a remote start.
To Drive: Press
Brake and Start Button
Starting System Action
Message
There is a problem with your vehicle ’s starting system. See an
authorized dealer for service.
Starting System
Fault
Steering System Action
Message
The steering lock system has detected a condition that requiresservice. See an authorized dealer.
Steering Lock
Malfunction
Service Now
You need to turn your steering wheel when starting your vehicle to unlock your steering column.
Steering Col. Lock
Turn Wheel while Starting vehicle
Tire Pressure Monitoring System Action
Message
One or more tires on your vehicle has low tire pressure. See Tire
Pressure Monitoring System (page 199).
Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If the warningstays on or continues to come on, contact an authorized dealer. See
Tire Pressure Monitoring System (page 199).
Tire Pressure
Monitor Fault
A tire pressure sensor is malfunctioning. See
Tire Pressure
Monitoring System (page 199). If the warning stays on or continues to come on, contact an authorized dealer as soon as possible.
Tire Pressure
Sensor Fault
81
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Information Displays

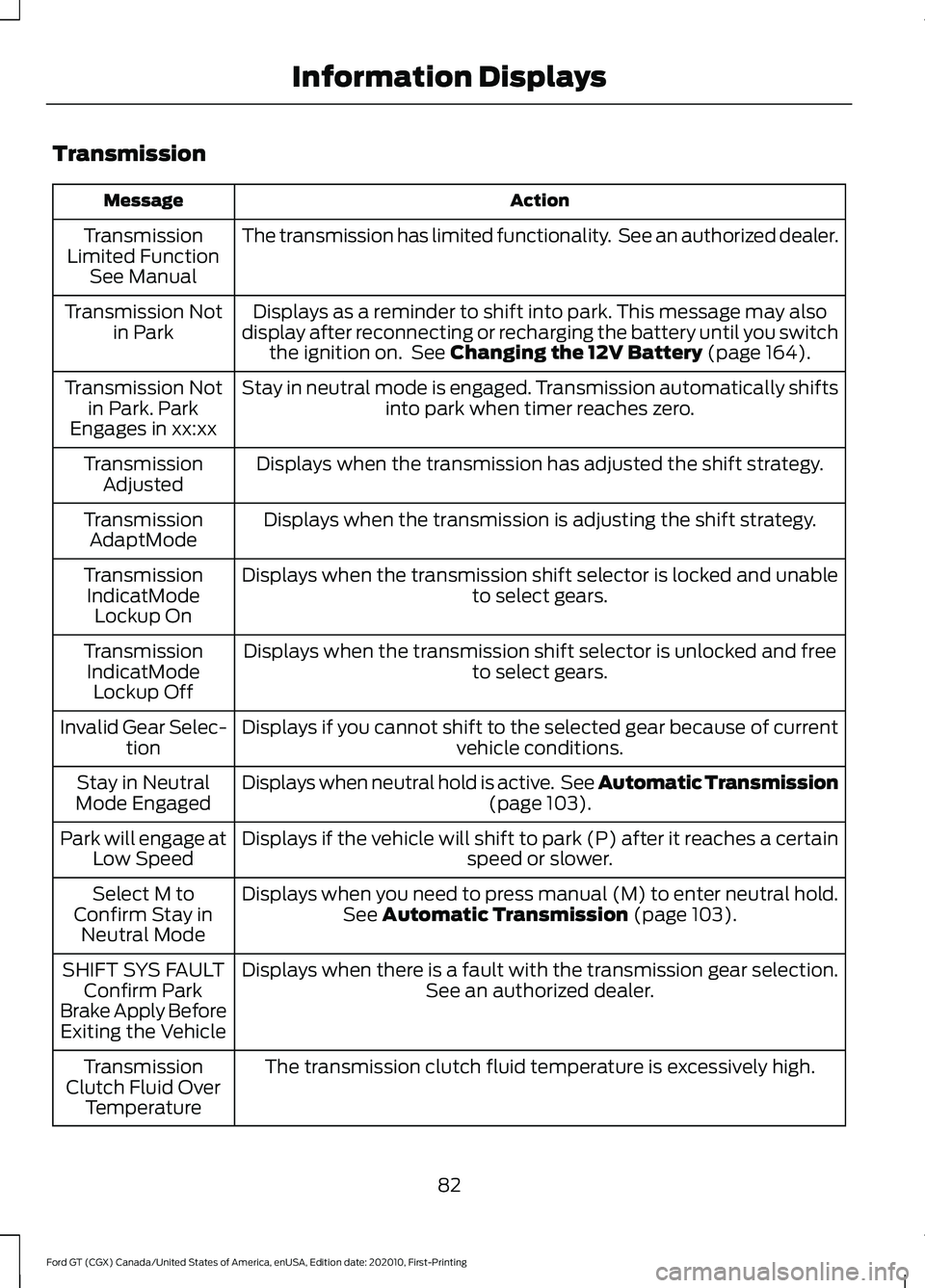

Transmission
Action
Message
The transmission has limited functionality. See an authorized dealer.
Transmission
Limited Function See Manual
Displays as a reminder to shift into park. This message may also
display after reconnecting or recharging the battery until you switch the ignition on. See Changing the 12V Battery (page 164).
Transmission Not
in Park
Stay in neutral mode is engaged. Transmission automatically shifts into park when timer reaches zero.
Transmission Not
in Park. Park
Engages in xx:xx
Displays when the transmission has adjusted the shift strategy.
Transmission
Adjusted
Displays when the transmission is adjusting the shift strategy.
Transmission
AdaptMode
Displays when the transmission shift selector is locked and unable to select gears.
Transmission
IndicatMode Lockup On
Displays when the transmission shift selector is unlocked and free to select gears.
Transmission
IndicatMode Lockup Off
Displays if you cannot shift to the selected gear because of current vehicle conditions.
Invalid Gear Selec-
tion
Displays when neutral hold is active. See Automatic Transmission (page
103).
Stay in Neutral
Mode Engaged
Displays if the vehicle will shift to park (P) after it reaches a certain speed or slower.
Park will engage at
Low Speed
Displays when you need to press manual (M) to enter neutral hold.See
Automatic Transmission (page 103).
Select M to
Confirm Stay in Neutral Mode
Displays when there is a fault with the transmission gear selection. See an authorized dealer.
SHIFT SYS FAULT
Confirm Park
Brake Apply Before Exiting the Vehicle
The transmission clutch fluid temperature is excessively high.
Transmission
Clutch Fluid Over Temperature
82
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Information Displays

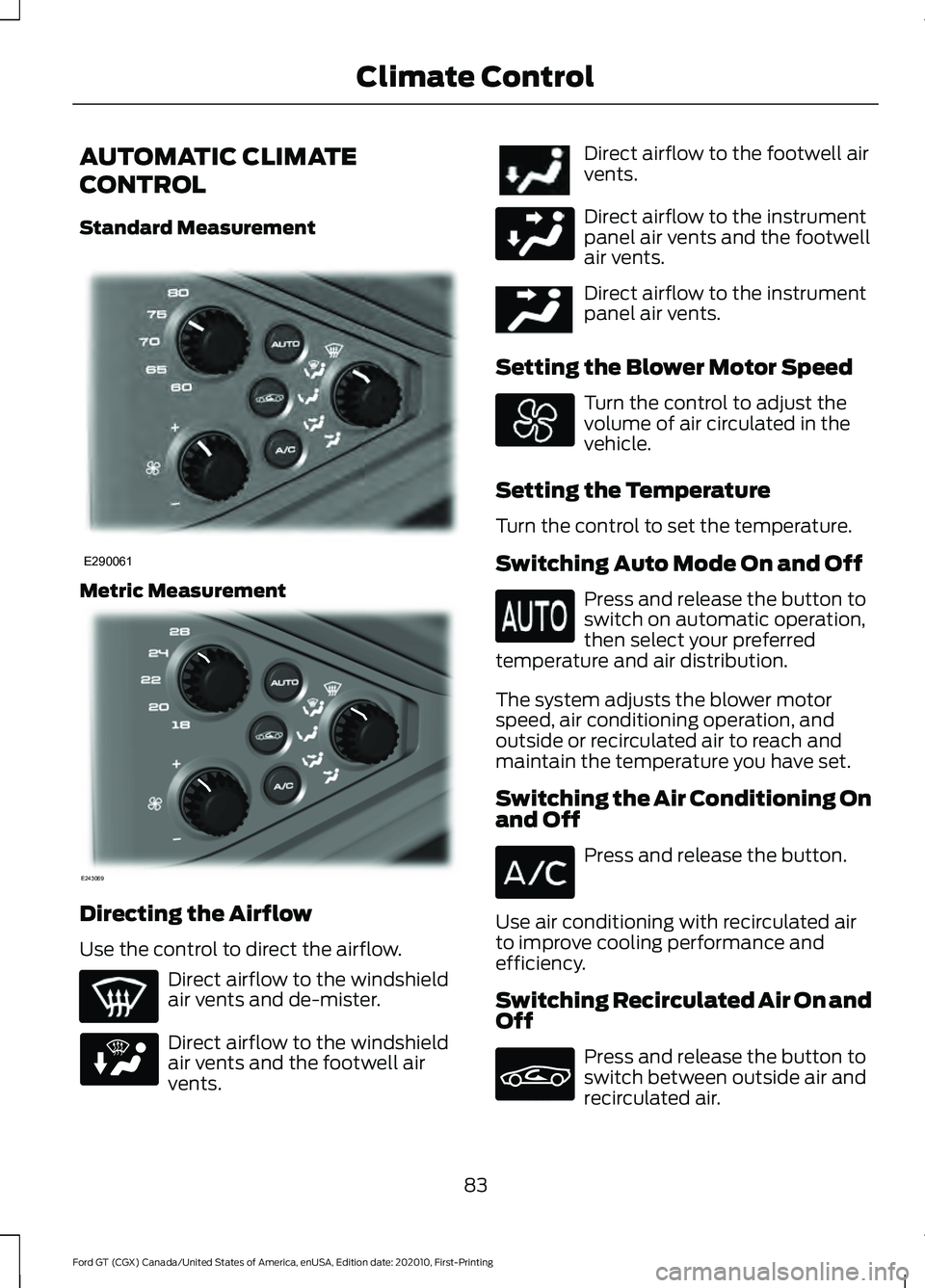

AUTOMATIC CLIMATE
CONTROL
Standard Measurement
Metric Measurement
Directing the Airflow
Use the control to direct the airflow.
Direct airflow to the windshield
air vents and de-mister.
Direct airflow to the windshield
air vents and the footwell air
vents. Direct airflow to the footwell air
vents.
Direct airflow to the instrument
panel air vents and the footwell
air vents.
Direct airflow to the instrument
panel air vents.
Setting the Blower Motor Speed Turn the control to adjust the
volume of air circulated in the
vehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching Auto Mode On and Off Press and release the button to
switch on automatic operation,
then select your preferred
temperature and air distribution.
The system adjusts the blower motor
speed, air conditioning operation, and
outside or recirculated air to reach and
maintain the temperature you have set.
Switching the Air Conditioning On
and Off Press and release the button.
Use air conditioning with recirculated air
to improve cooling performance and
efficiency.
Switching Recirculated Air On and
Off Press and release the button to
switch between outside air and
recirculated air.
83
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Climate ControlE290061 E243069 E244097 E290058

The air currently in the passenger
compartment recirculates. This may
reduce the time needed to cool the interior,
when used with A/C, and reduce unwanted
odors from entering your vehicle.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:
Prolonged use of recirculated air may
cause the windows to fog up.
Note: You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.
Note: To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.
Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.
Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.
Automatic Climate Control
Note: Adjusting the settings when your
vehicle interior is extremely hot or cold is
not necessary.
Note: The system adjusts to heat or cool
the interior to the temperature you select
as quickly as possible.
Note: For the system to function efficiently,
the instrument panel and side air vents
should be fully open.
Note: If you select AUTO during cold
outside temperatures, the system directs
air flow to the windshield and side window
air vents. In addition, the blower motor may
run at a slower speed until the engine warms
up. Note:
If you select
AUTO during hot
temperatures and the inside of the vehicle
is hot, the system uses recirculated air to
maximize interior cooling. Blower motor
speed may also reduce until the air cools.
Quickly Heating the Interior
1. Press and release
AUTO.
2. Adjust the temperature function to the
setting you prefer.
Recommended Settings for
Heating
1. Press and release
AUTO.
2. Adjust the temperature function to the
setting you prefer. Use
72°F (22°C) as
a starting point, then adjust the setting
as necessary.
Quickly Cooling the Interior
1. Press and release
AUTO.
2. Press and release
A/C if is not lit.
3. Adjust the temperature function to the
setting you prefer.
Note: To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.
Recommended Settings for
Cooling
1. Press and release
AUTO.
2. Adjust the temperature function to the
setting you prefer. Use
72°F (22°C) as
a starting point, then adjust the setting
as necessary.
Defogging the Side Windows in
Cold Weather
1. Direct airflow to the windshield air vents and de-mister.
84
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Climate Control

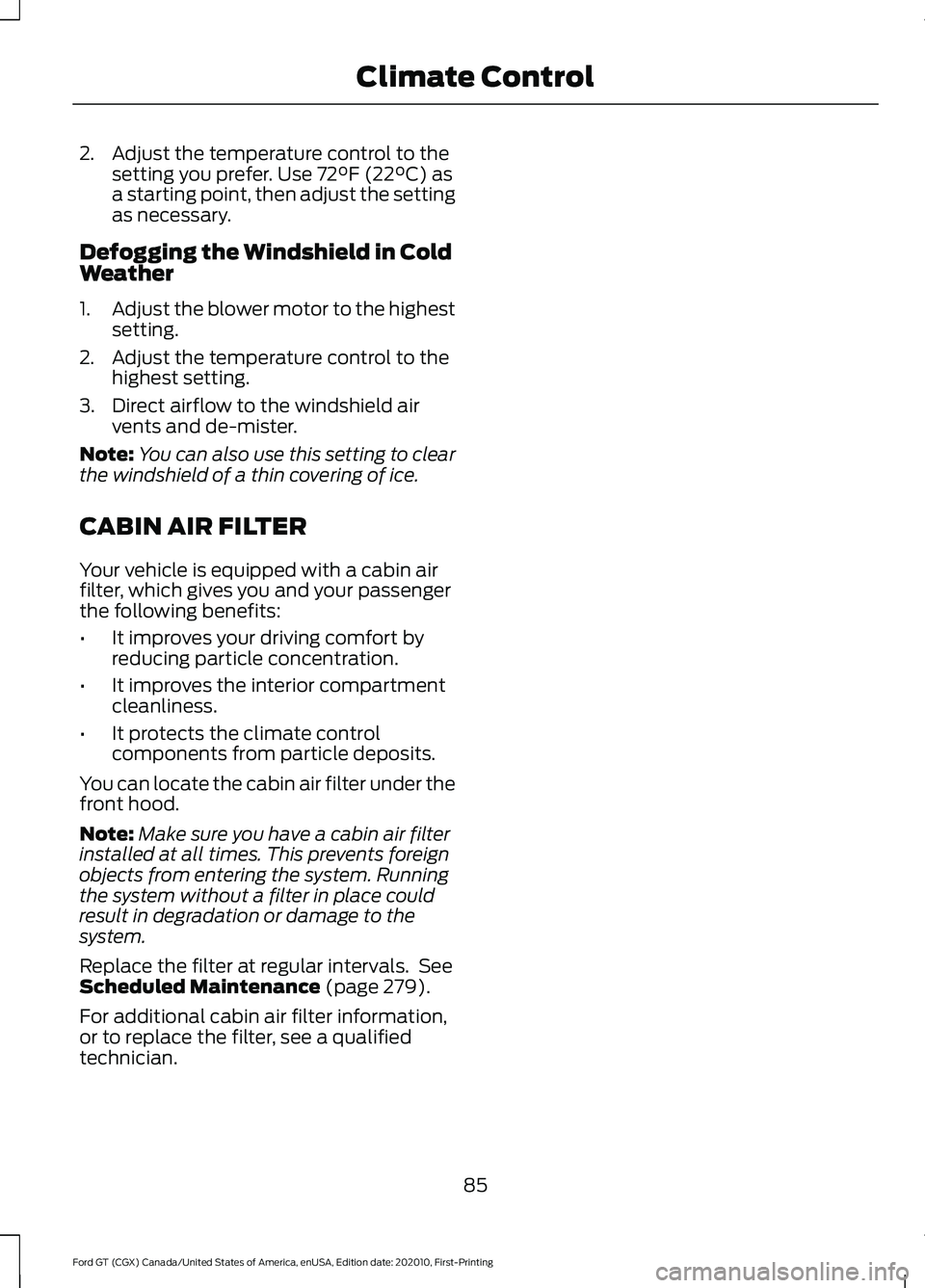

2. Adjust the temperature control to the
setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.
Defogging the Windshield in Cold
Weather
1. Adjust the blower motor to the highest
setting.
2. Adjust the temperature control to the highest setting.
3. Direct airflow to the windshield air vents and de-mister.
Note: You can also use this setting to clear
the windshield of a thin covering of ice.
CABIN AIR FILTER
Your vehicle is equipped with a cabin air
filter, which gives you and your passenger
the following benefits:
• It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
You can locate the cabin air filter under the
front hood.
Note: Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.
Replace the filter at regular intervals. See
Scheduled Maintenance
(page 279).
For additional cabin air filter information,
or to replace the filter, see a qualified
technician.
85
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Climate Control

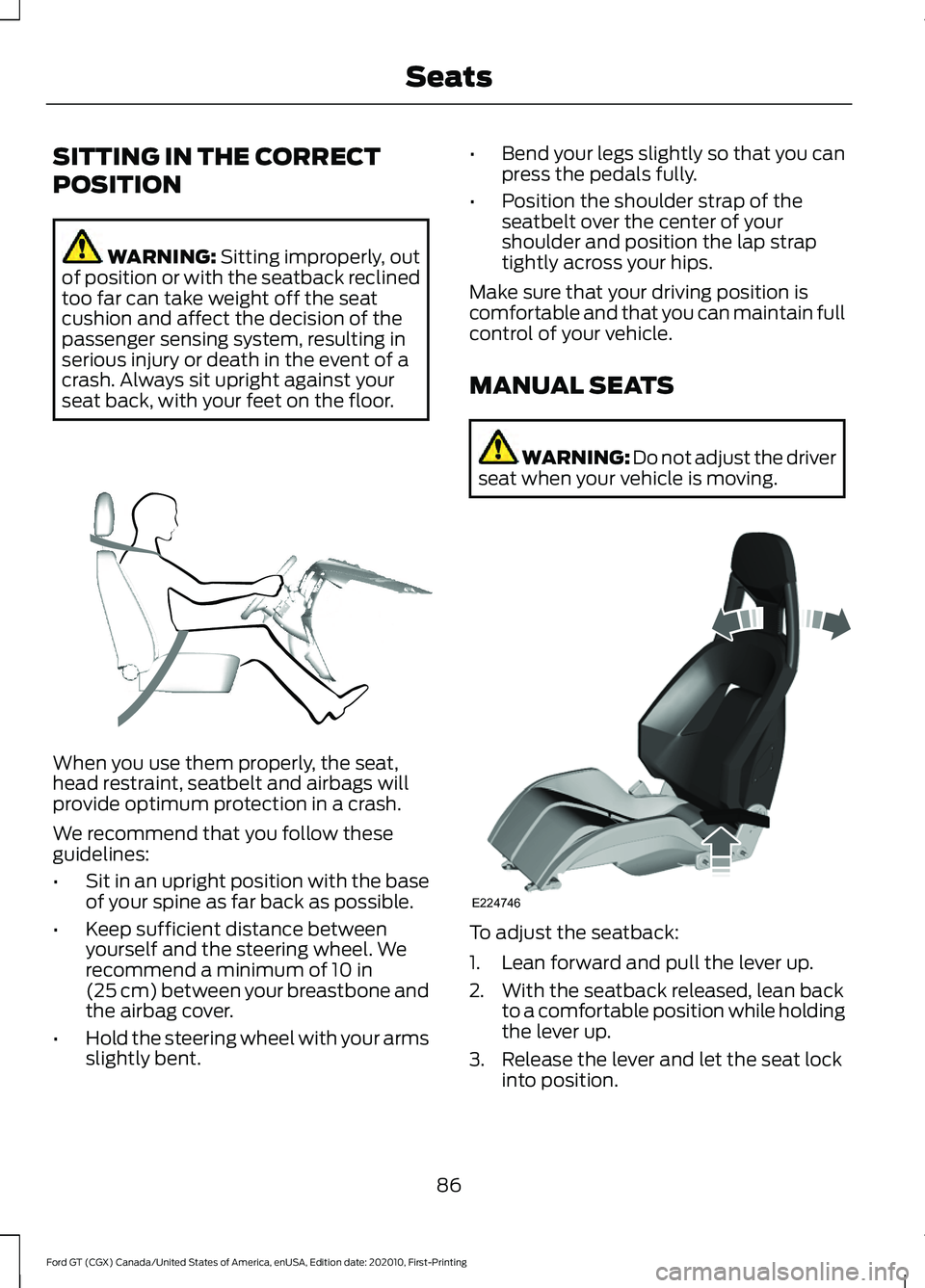

SITTING IN THE CORRECT
POSITION
WARNING: Sitting improperly, out
of position or with the seatback reclined
too far can take weight off the seat
cushion and affect the decision of the
passenger sensing system, resulting in
serious injury or death in the event of a
crash. Always sit upright against your
seat back, with your feet on the floor. When you use them properly, the seat,
head restraint, seatbelt and airbags will
provide optimum protection in a crash.
We recommend that you follow these
guidelines:
•
Sit in an upright position with the base
of your spine as far back as possible.
• Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of
10 in
(25 cm) between your breastbone and
the airbag cover.
• Hold the steering wheel with your arms
slightly bent. •
Bend your legs slightly so that you can
press the pedals fully.
• Position the shoulder strap of the
seatbelt over the center of your
shoulder and position the lap strap
tightly across your hips.
Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.
MANUAL SEATS WARNING: Do not adjust the driver
seat when your vehicle is moving. To adjust the seatback:
1. Lean forward and pull the lever up.
2. With the seatback released, lean back
to a comfortable position while holding
the lever up.
3. Release the lever and let the seat lock into position.
86
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing SeatsE68595 E224746

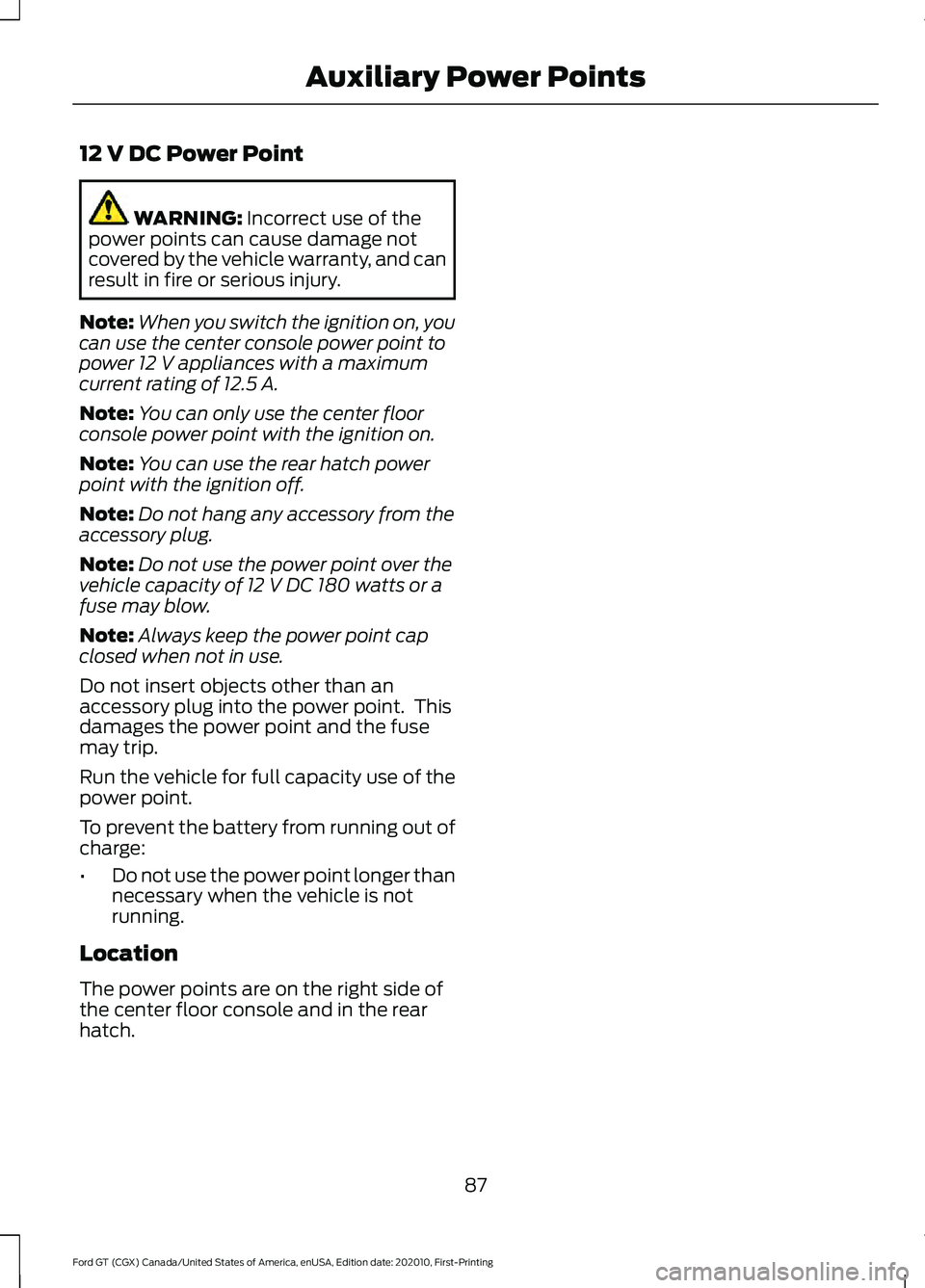

12 V DC Power Point
WARNING: Incorrect use of the
power points can cause damage not
covered by the vehicle warranty, and can
result in fire or serious injury.
Note: When you switch the ignition on, you
can use the center console power point to
power
12 V appliances with a maximum
current rating of 12.5 A.
Note: You can only use the center floor
console power point with the ignition on.
Note: You can use the rear hatch power
point with the ignition off.
Note: Do not hang any accessory from the
accessory plug.
Note: Do not use the power point over the
vehicle capacity of
12 V DC 180 watts or a
fuse may blow.
Note: Always keep the power point cap
closed when not in use.
Do not insert objects other than an
accessory plug into the power point. This
damages the power point and the fuse
may trip.
Run the vehicle for full capacity use of the
power point.
To prevent the battery from running out of
charge:
• Do not use the power point longer than
necessary when the vehicle is not
running.
Location
The power points are on the right side of
the center floor console and in the rear
hatch.
87
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Auxiliary Power Points
