fuse chart FORD GT 2021 Owners Manual

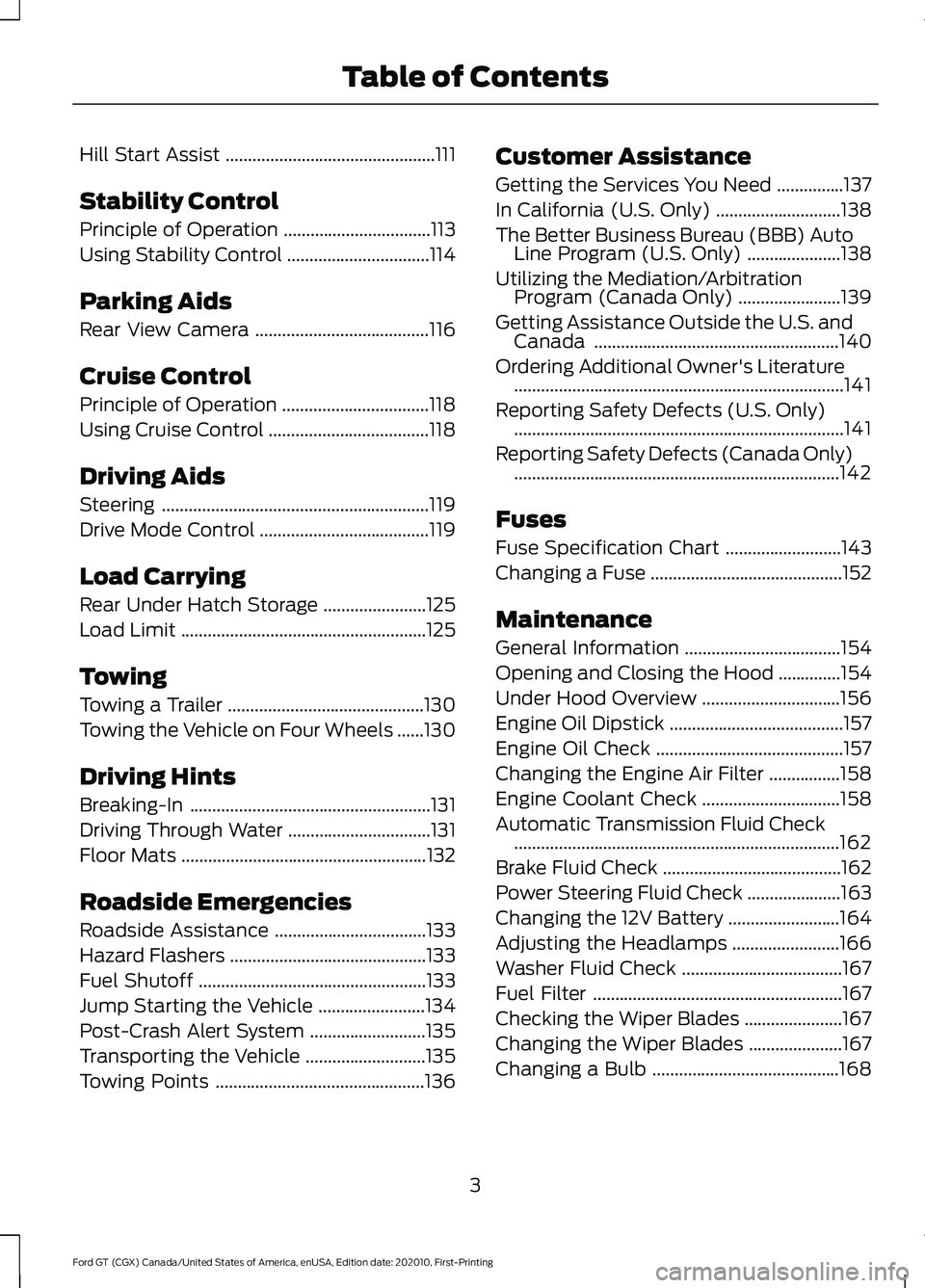

Hill Start Assist
...............................................111
Stability Control
Principle of Operation .................................
113
Using Stability Control ................................
114
Parking Aids
Rear View Camera .......................................
116
Cruise Control
Principle of Operation .................................
118
Using Cruise Control ....................................
118
Driving Aids
Steering ............................................................
119
Drive Mode Control ......................................
119
Load Carrying
Rear Under Hatch Storage .......................
125
Load Limit .......................................................
125
Towing
Towing a Trailer ............................................
130
Towing the Vehicle on Four Wheels ......
130
Driving Hints
Breaking-In ......................................................
131
Driving Through Water ................................
131
Floor Mats .......................................................
132
Roadside Emergencies
Roadside Assistance ..................................
133
Hazard Flashers ............................................
133
Fuel Shutoff ...................................................
133
Jump Starting the Vehicle ........................
134
Post-Crash Alert System ..........................
135
Transporting the Vehicle ...........................
135
Towing Points ...............................................
136Customer Assistance
Getting the Services You Need
...............
137
In California (U.S. Only) ............................
138
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) .....................
138
Utilizing the Mediation/Arbitration Program (Canada Only) .......................
139
Getting Assistance Outside the U.S. and Canada .......................................................
140
Ordering Additional Owner's Literature ........................................................................\
..
141
Reporting Safety Defects (U.S. Only) ........................................................................\
..
141
Reporting Safety Defects (Canada Only) ........................................................................\
.
142
Fuses
Fuse Specification Chart ..........................
143
Changing a Fuse ...........................................
152
Maintenance
General Information ...................................
154
Opening and Closing the Hood ..............
154
Under Hood Overview ...............................
156
Engine Oil Dipstick .......................................
157
Engine Oil Check ..........................................
157
Changing the Engine Air Filter ................
158
Engine Coolant Check ...............................
158
Automatic Transmission Fluid Check ........................................................................\
.
162
Brake Fluid Check ........................................
162
Power Steering Fluid Check .....................
163
Changing the 12V Battery .........................
164
Adjusting the Headlamps ........................
166
Washer Fluid Check ....................................
167
Fuel Filter ........................................................
167
Checking the Wiper Blades ......................
167
Changing the Wiper Blades .....................
167
Changing a Bulb ..........................................
168
3
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Table of Contents

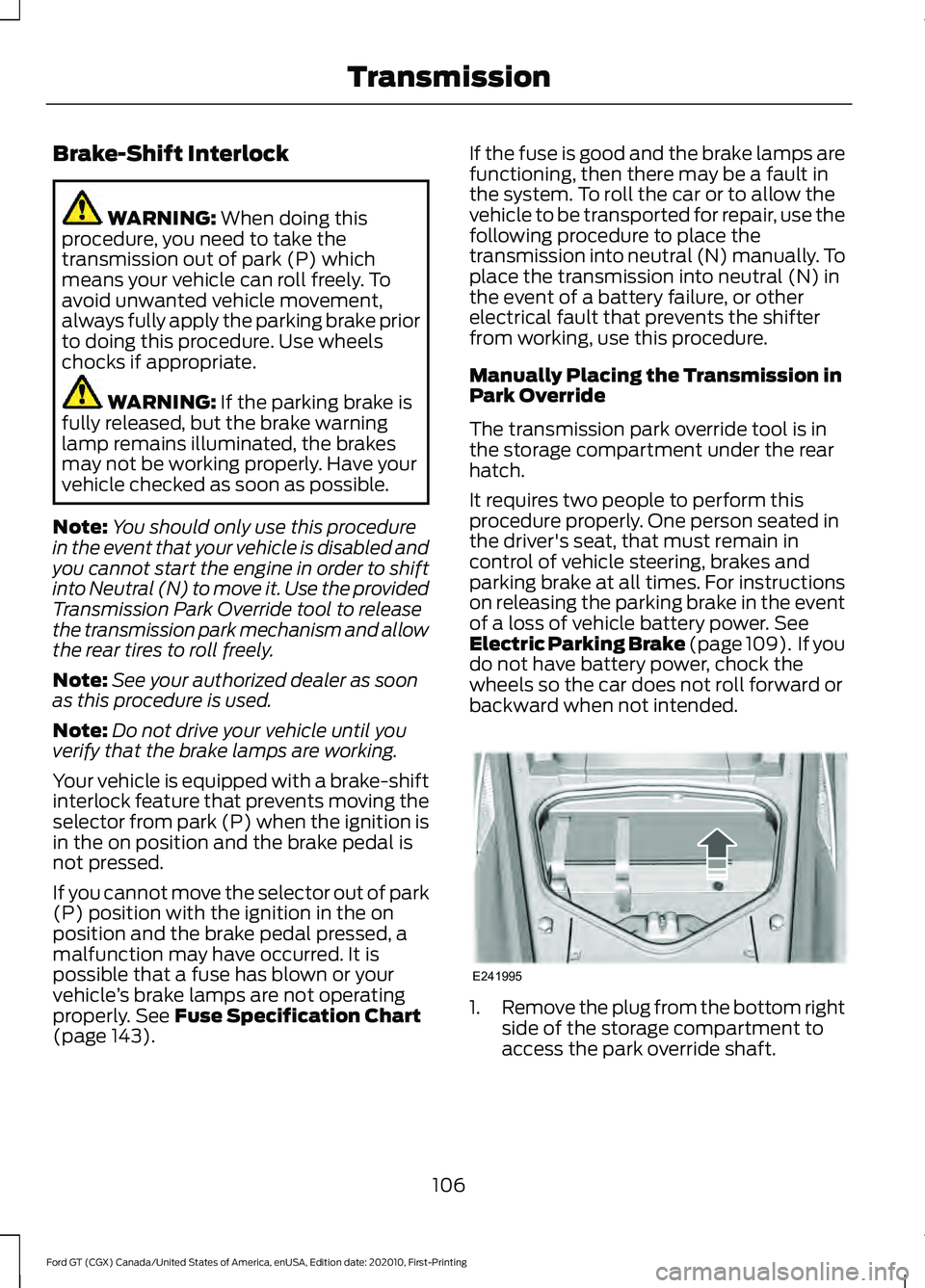

Brake-Shift Interlock
WARNING: When doing this
procedure, you need to take the
transmission out of park (P) which
means your vehicle can roll freely. To
avoid unwanted vehicle movement,
always fully apply the parking brake prior
to doing this procedure. Use wheels
chocks if appropriate. WARNING:
If the parking brake is
fully released, but the brake warning
lamp remains illuminated, the brakes
may not be working properly. Have your
vehicle checked as soon as possible.
Note: You should only use this procedure
in the event that your vehicle is disabled and
you cannot start the engine in order to shift
into Neutral (N) to move it. Use the provided
Transmission Park Override tool to release
the transmission park mechanism and allow
the rear tires to roll freely.
Note: See your authorized dealer as soon
as this procedure is used.
Note: Do not drive your vehicle until you
verify that the brake lamps are working.
Your vehicle is equipped with a brake-shift
interlock feature that prevents moving the
selector from park (P) when the ignition is
in the on position and the brake pedal is
not pressed.
If you cannot move the selector out of park
(P) position with the ignition in the on
position and the brake pedal pressed, a
malfunction may have occurred. It is
possible that a fuse has blown or your
vehicle ’s brake lamps are not operating
properly.
See Fuse Specification Chart
(page 143). If the fuse is good and the brake lamps are
functioning, then there may be a fault in
the system. To roll the car or to allow the
vehicle to be transported for repair, use the
following procedure to place the
transmission into neutral (N) manually. To
place the transmission into neutral (N) in
the event of a battery failure, or other
electrical fault that prevents the shifter
from working, use this procedure.
Manually Placing the Transmission in
Park Override
The transmission park override tool is in
the storage compartment under the rear
hatch.
It requires two people to perform this
procedure properly. One person seated in
the driver's seat, that must remain in
control of vehicle steering, brakes and
parking brake at all times. For instructions
on releasing the parking brake in the event
of a loss of vehicle battery power.
See
Electric Parking Brake (page 109). If you
do not have battery power, chock the
wheels so the car does not roll forward or
backward when not intended. 1.
Remove the plug from the bottom right
side of the storage compartment to
access the park override shaft.
106
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing TransmissionE241995

FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The front power distribution box is under
the front hood. See
Under Hood
Overview (page 156). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high-current fuses next to the front
power distribution box. If you need to
replace these high-current fuses, see an
authorized dealer.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 164
). Protected Components
Fuse
Rating
Fuse or
Relay
Number
Vehicle dynamics module relay.
—
F1
Radiator fan 1 relay.
—
F2
Heating ventilation and air conditioning blower relay.
—
F3
143
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing FusesE235532

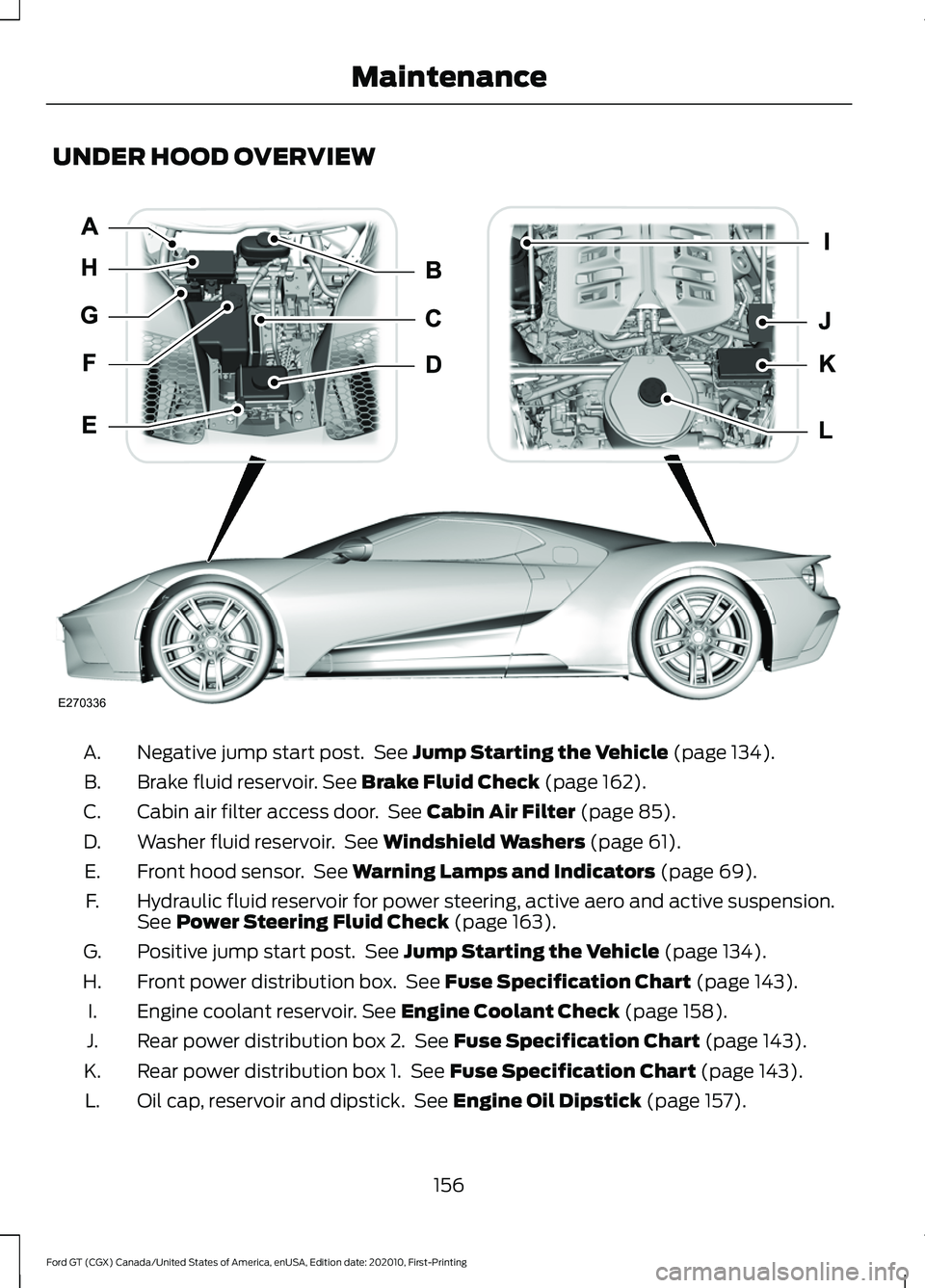

UNDER HOOD OVERVIEW
Negative jump start post. See Jump Starting the Vehicle (page 134).
A.
Brake fluid reservoir.
See Brake Fluid Check (page 162).
B.
Cabin air filter access door. See
Cabin Air Filter (page 85).
C.
Washer fluid reservoir. See
Windshield Washers (page 61).
D.
Front hood sensor. See
Warning Lamps and Indicators (page 69).
E.
Hydraulic fluid reservoir for power steering, active aero and active suspension.
See
Power Steering Fluid Check (page 163).
F.
Positive jump start post. See
Jump Starting the Vehicle (page 134).
G.
Front power distribution box. See
Fuse Specification Chart (page 143).
H.
Engine coolant reservoir.
See Engine Coolant Check (page 158).
I.
Rear power distribution box 2. See
Fuse Specification Chart (page 143).
J.
Rear power distribution box 1. See
Fuse Specification Chart (page 143).
K.
Oil cap, reservoir and dipstick. See
Engine Oil Dipstick (page 157).
L.
156
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing MaintenanceE270336

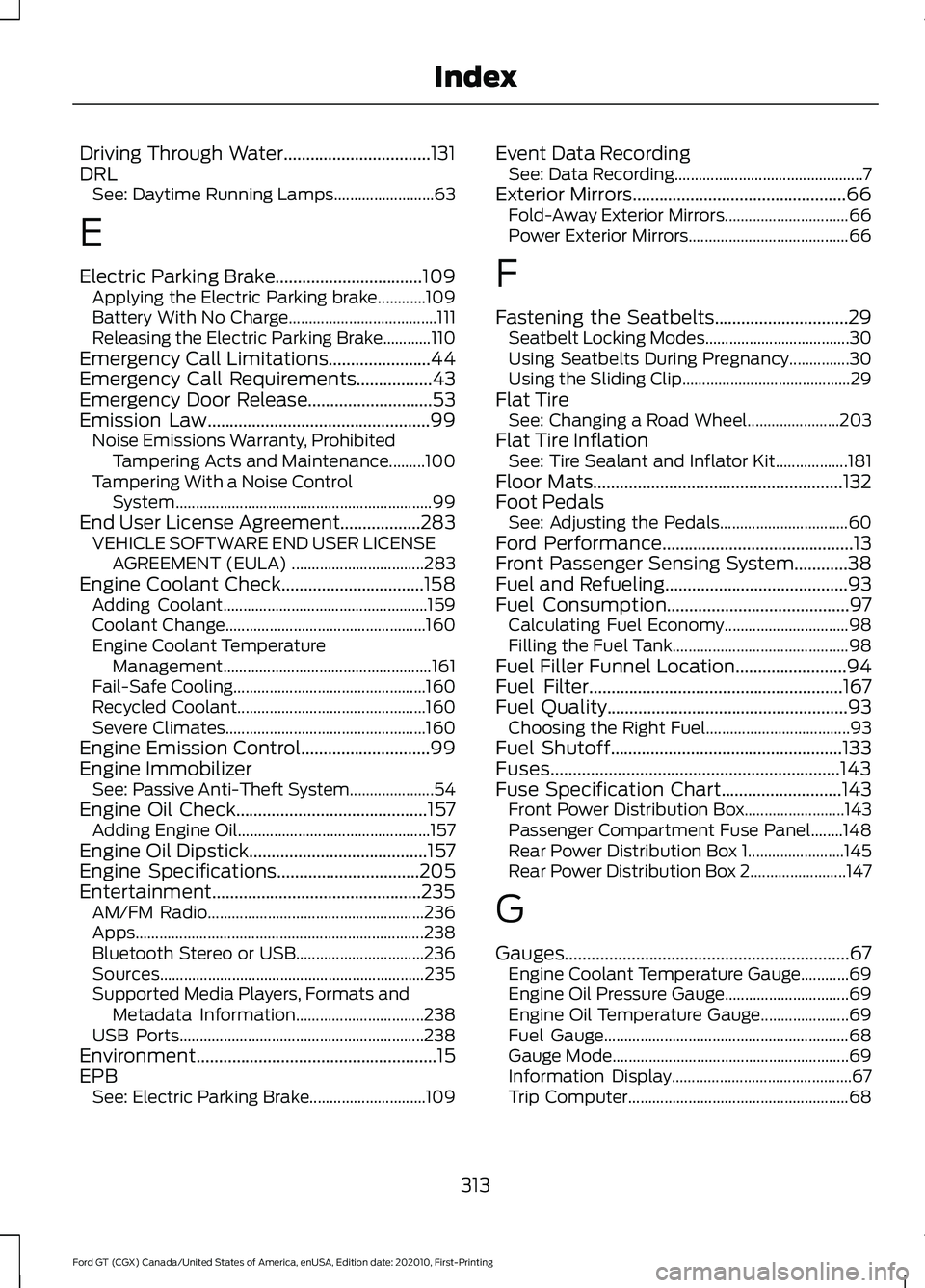

Driving Through Water.................................131
DRL
See: Daytime Running Lamps......................... 63
E
Electric Parking Brake.................................109 Applying the Electric Parking brake............109
Battery With No Charge..................................... 111
Releasing the Electric Parking Brake............110
Emergency Call Limitations.......................44
Emergency Call Requirements.................43
Emergency Door Release............................53
Emission Law..................................................99 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance.........100
Tampering With a Noise Control System................................................................ 99
End User License Agreement..................283 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 283
Engine Coolant Check................................158 Adding Coolant................................................... 159
Coolant Change.................................................. 160
Engine Coolant Temperature Management.................................................... 161
Fail-Safe Cooling................................................ 160
Recycled Coolant............................................... 160
Severe Climates.................................................. 160
Engine Emission Control.............................99
Engine Immobilizer See: Passive Anti-Theft System..................... 54
Engine Oil Check...........................................157 Adding Engine Oil................................................ 157
Engine Oil Dipstick........................................157
Engine Specifications
................................205
Entertainment...............................................235 AM/FM Radio...................................................... 236
Apps........................................................................\
238
Bluetooth Stereo or USB................................ 236
Sources.................................................................. 235
Supported Media Players, Formats and Metadata Information................................ 238
USB Ports............................................................. 238
Environment
......................................................15
EPB See: Electric Parking Brake............................. 109Event Data Recording
See: Data Recording............................................... 7
Exterior Mirrors
................................................66
Fold-Away Exterior Mirrors............................... 66
Power Exterior Mirrors........................................ 66
F
Fastening the Seatbelts
..............................29
Seatbelt Locking Modes.................................... 30
Using Seatbelts During Pregnancy...............30
Using the Sliding Clip.......................................... 29
Flat Tire See: Changing a Road Wheel....................... 203
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................. 181
Floor Mats
........................................................132
Foot Pedals See: Adjusting the Pedals................................ 60
Ford Performance
...........................................13
Front Passenger Sensing System............38
Fuel and Refueling.........................................93
Fuel Consumption.........................................97 Calculating Fuel Economy............................... 98
Filling the Fuel Tank............................................ 98
Fuel Filler Funnel Location.........................94
Fuel Filter.........................................................167
Fuel Quality
......................................................93
Choosing the Right Fuel.................................... 93
Fuel Shutoff....................................................133
Fuses.................................................................143
Fuse Specification Chart...........................143 Front Power Distribution Box......................... 143
Passenger Compartment Fuse Panel........148
Rear Power Distribution Box 1........................ 145
Rear Power Distribution Box 2........................ 147
G
Gauges................................................................67 Engine Coolant Temperature Gauge............69
Engine Oil Pressure Gauge............................... 69
Engine Oil Temperature Gauge...................... 69
Fuel Gauge............................................................. 68
Gauge Mode........................................................... 69
Information Display............................................. 67
Trip Computer....................................................... 68
313
Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202010, First-Printing Index
