display FORD GT 2022 Owner's Manual

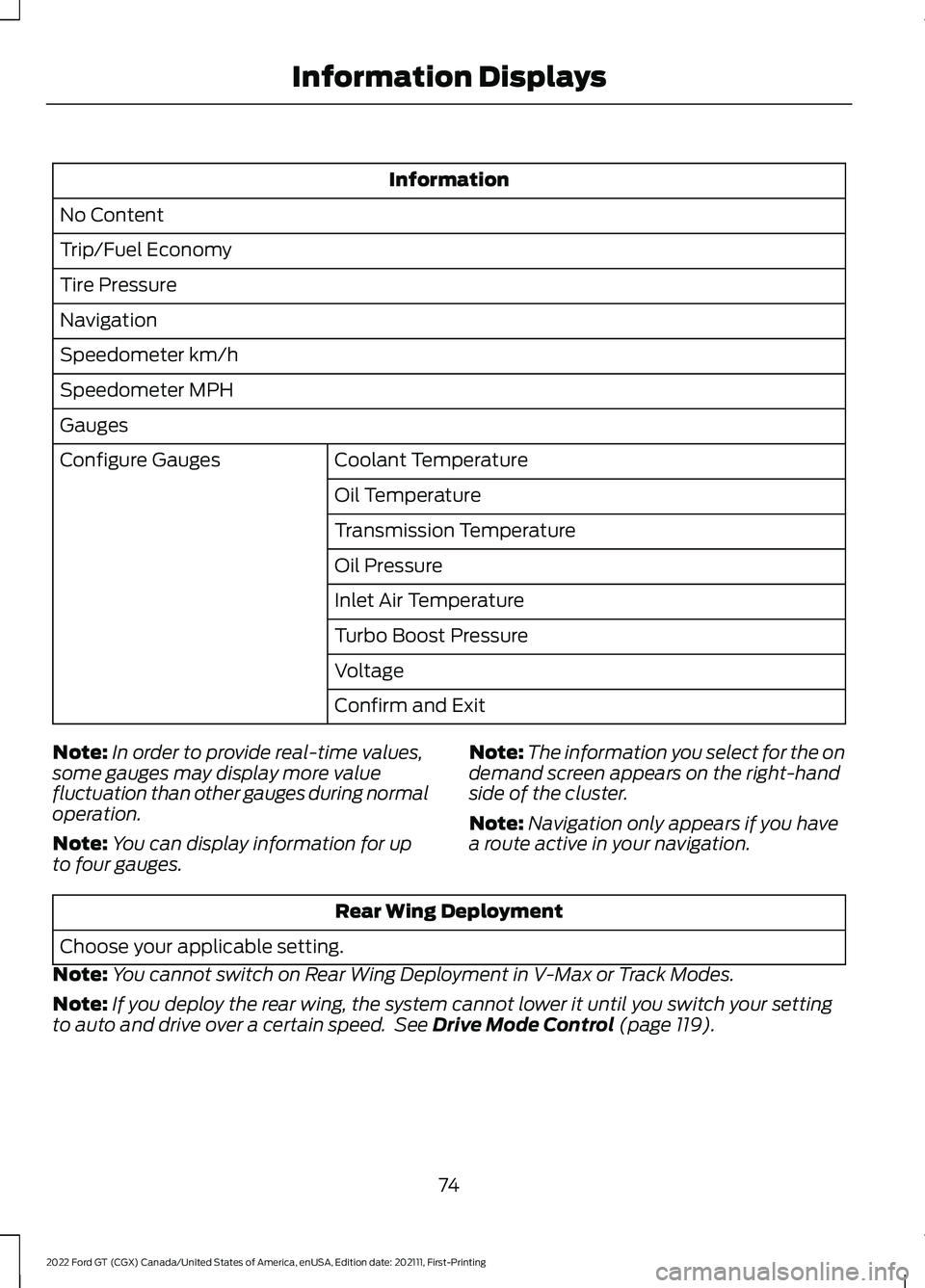

Information
No Content
Trip/Fuel Economy
Tire Pressure
Navigation
Speedometer km/h
Speedometer MPH
Gauges Coolant Temperature
Configure Gauges
Oil Temperature
Transmission Temperature
Oil Pressure
Inlet Air Temperature
Turbo Boost Pressure
Voltage
Confirm and Exit
Note: In order to provide real-time values,
some gauges may display more value
fluctuation than other gauges during normal
operation.
Note: You can display information for up
to four gauges. Note:
The information you select for the on
demand screen appears on the right-hand
side of the cluster.
Note: Navigation only appears if you have
a route active in your navigation. Rear Wing Deployment
Choose your applicable setting.
Note: You cannot switch on Rear Wing Deployment in V-Max or Track Modes.
Note: If you deploy the rear wing, the system cannot lower it until you switch your setting
to auto and drive over a certain speed. See Drive Mode Control (page 119).
74
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

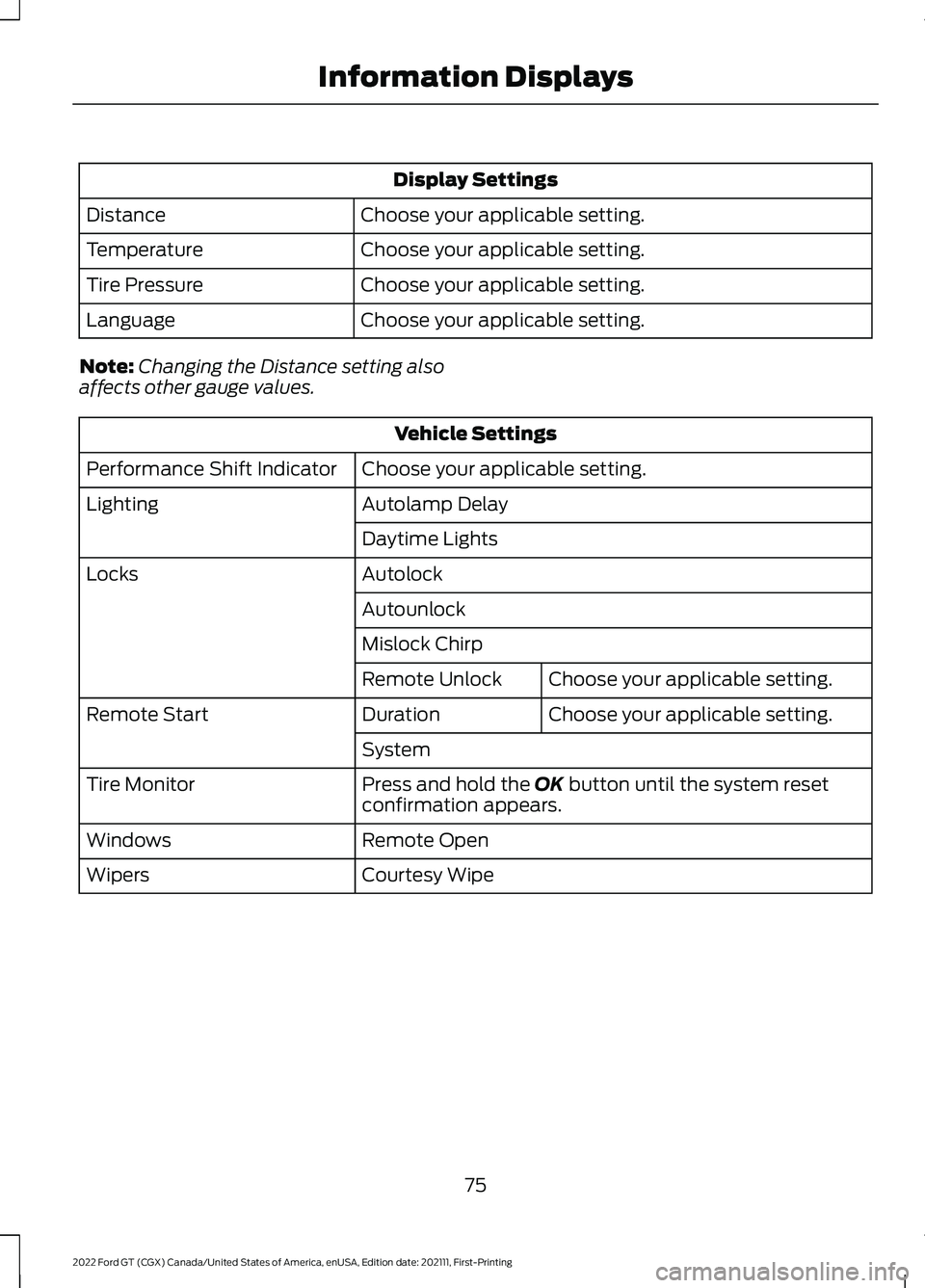

Display Settings
Choose your applicable setting.
Distance
Choose your applicable setting.
Temperature
Choose your applicable setting.
Tire Pressure
Choose your applicable setting.
Language
Note: Changing the Distance setting also
affects other gauge values. Vehicle Settings
Choose your applicable setting.
Performance Shift Indicator
Autolamp Delay
Lighting
Daytime Lights
Autolock
Locks
Autounlock
Mislock ChirpChoose your applicable setting.
Remote Unlock
Choose your applicable setting.
Duration
Remote Start
System
Press and hold the OK button until the system reset
confirmation appears.
Tire Monitor
Remote Open
Windows
Courtesy Wipe
Wipers
75
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

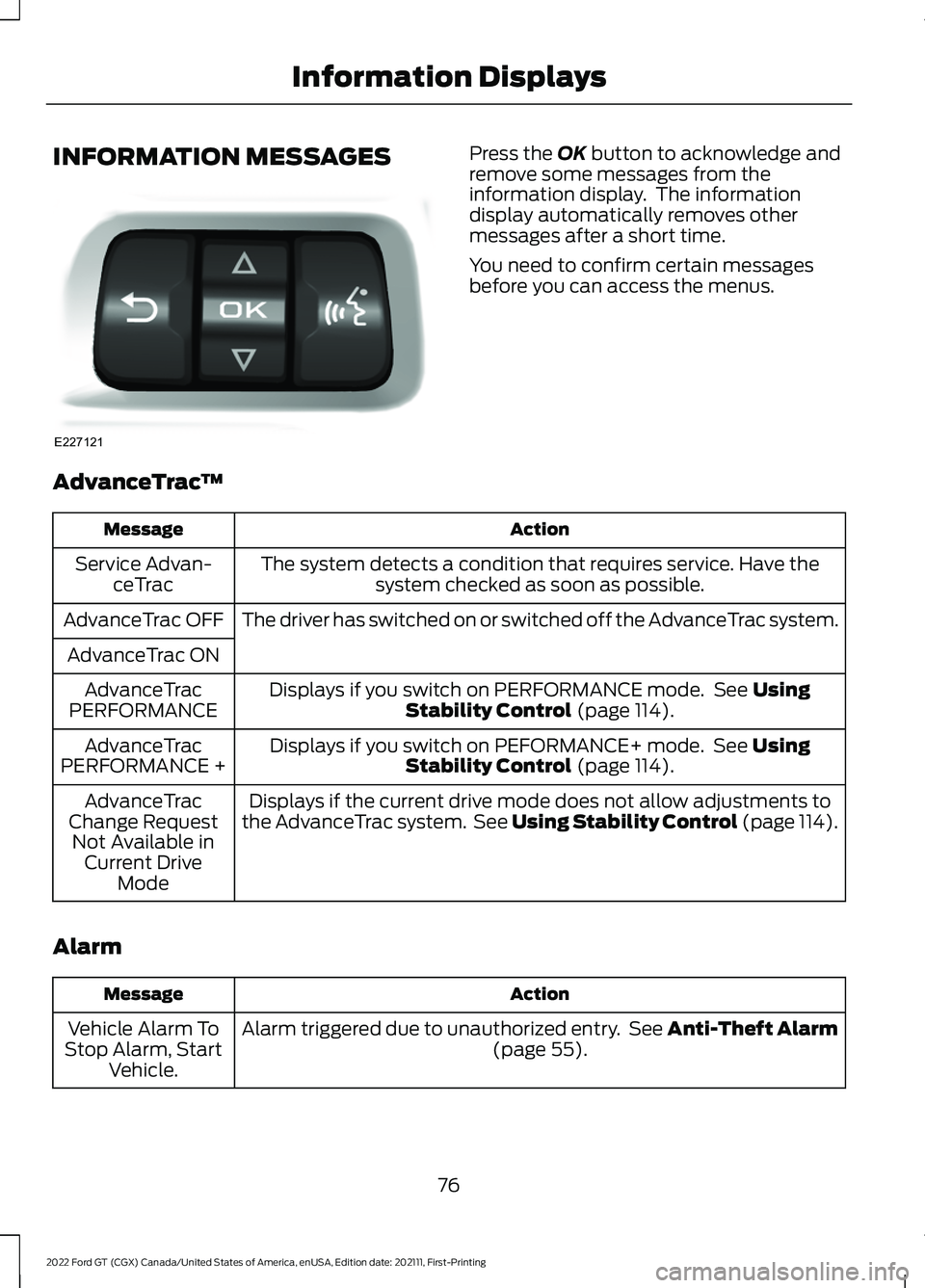

INFORMATION MESSAGES Press the OK button to acknowledge and
remove some messages from the
information display. The information
display automatically removes other
messages after a short time.
You need to confirm certain messages
before you can access the menus.
AdvanceTrac ™ Action
Message
The system detects a condition that requires service. Have thesystem checked as soon as possible.
Service Advan-
ceTrac
The driver has switched on or switched off the AdvanceTrac system.
AdvanceTrac OFF
AdvanceTrac ON Displays if you switch on PERFORMANCE mode. See
Using
Stability Control (page 114).
AdvanceTrac
PERFORMANCE
Displays if you switch on PEFORMANCE+ mode. See
Using
Stability Control (page 114).
AdvanceTrac
PERFORMANCE +
Displays if the current drive mode does not allow adjustments to
the AdvanceTrac system. See Using Stability Control (page 114).
AdvanceTrac
Change Request Not Available in Current Drive Mode
Alarm Action
Message
Alarm triggered due to unauthorized entry. See Anti-Theft Alarm (page
55).
Vehicle Alarm To
Stop Alarm, Start Vehicle.
76
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information DisplaysE227121

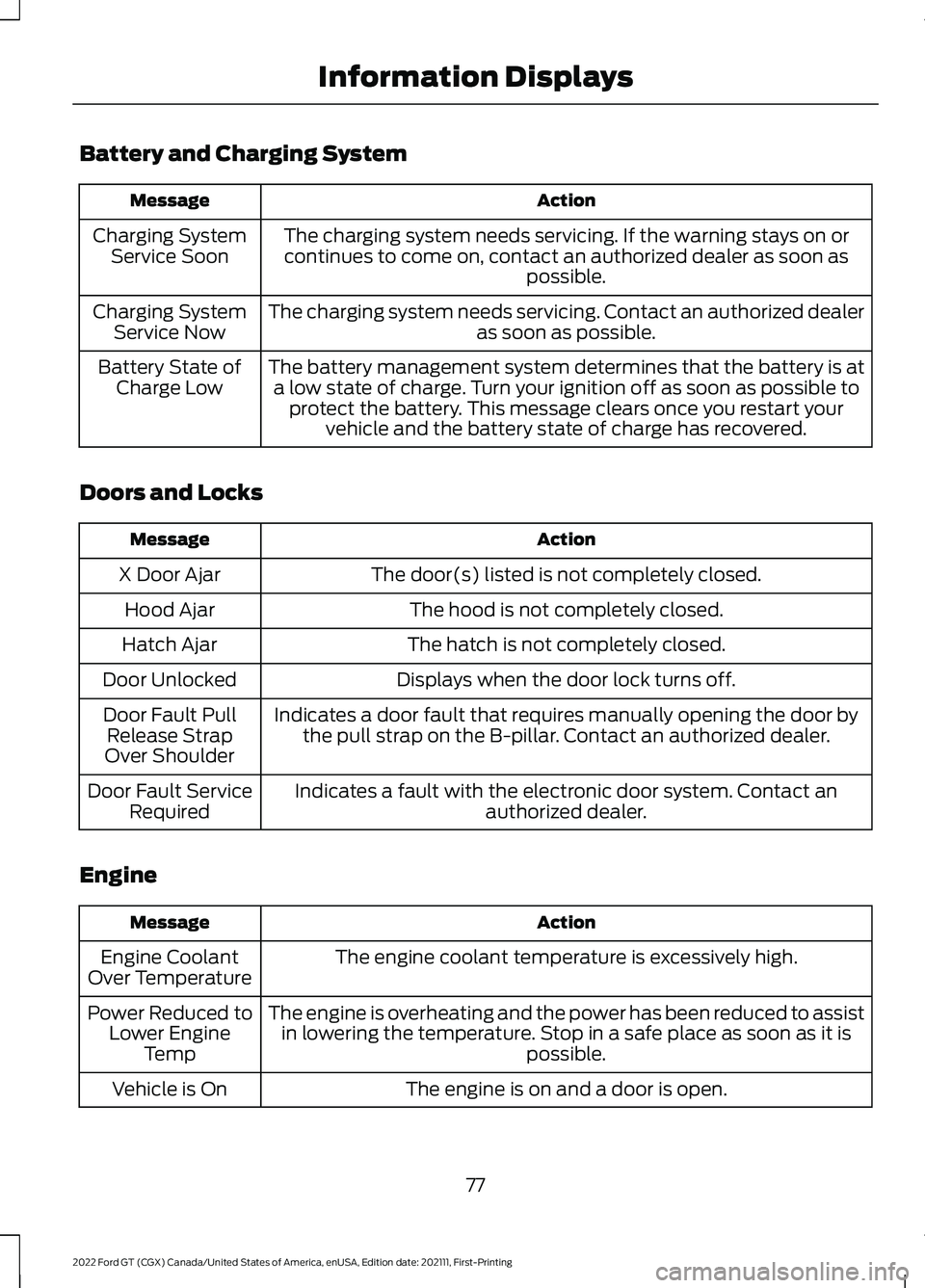

Battery and Charging System
Action
Message
The charging system needs servicing. If the warning stays on orcontinues to come on, contact an authorized dealer as soon as possible.
Charging System
Service Soon
The charging system needs servicing. Contact an authorized dealer as soon as possible.
Charging System
Service Now
The battery management system determines that the battery is ata low state of charge. Turn your ignition off as soon as possible to protect the battery. This message clears once you restart your vehicle and the battery state of charge has recovered.
Battery State of
Charge Low
Doors and Locks Action
Message
The door(s) listed is not completely closed.
X Door Ajar
The hood is not completely closed.
Hood Ajar
The hatch is not completely closed.
Hatch Ajar
Displays when the door lock turns off.
Door Unlocked
Indicates a door fault that requires manually opening the door bythe pull strap on the B-pillar. Contact an authorized dealer.
Door Fault Pull
Release Strap
Over Shoulder
Indicates a fault with the electronic door system. Contact an authorized dealer.
Door Fault Service
Required
Engine Action
Message
The engine coolant temperature is excessively high.
Engine Coolant
Over Temperature
The engine is overheating and the power has been reduced to assistin lowering the temperature. Stop in a safe place as soon as it is possible.
Power Reduced to
Lower Engine Temp
The engine is on and a door is open.
Vehicle is On
77
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

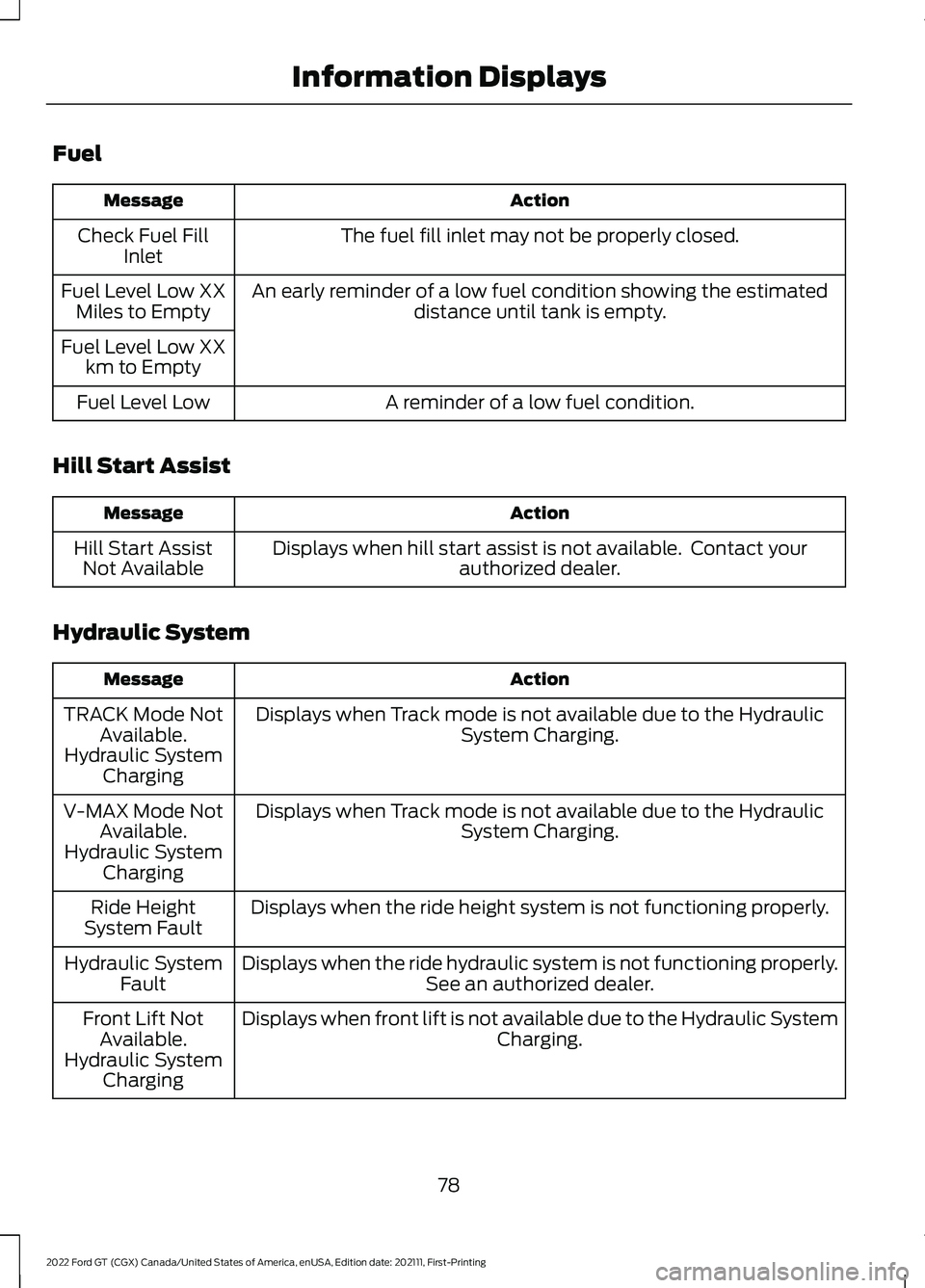

Fuel
Action
Message
The fuel fill inlet may not be properly closed.
Check Fuel Fill
Inlet
An early reminder of a low fuel condition showing the estimated distance until tank is empty.
Fuel Level Low XX
Miles to Empty
Fuel Level Low XX km to Empty
A reminder of a low fuel condition.
Fuel Level Low
Hill Start Assist Action
Message
Displays when hill start assist is not available. Contact your authorized dealer.
Hill Start Assist
Not Available
Hydraulic System Action
Message
Displays when Track mode is not available due to the Hydraulic System Charging.
TRACK Mode Not
Available.
Hydraulic System Charging
Displays when Track mode is not available due to the Hydraulic System Charging.
V-MAX Mode Not
Available.
Hydraulic System Charging
Displays when the ride height system is not functioning properly.
Ride Height
System Fault
Displays when the ride hydraulic system is not functioning properly. See an authorized dealer.
Hydraulic System
Fault
Displays when front lift is not available due to the Hydraulic System Charging.
Front Lift Not
Available.
Hydraulic System Charging
78
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

Keys and Intelligent Access
Action
Message
The system does not detect a key in your vehicle. See Keyless
Starting (page 89).
No Key Detected
You pressed the start/stop button to switch off the engine and yourvehicle does not detect your intelligent access key inside your vehicle.
Restart Now or
Key is Needed
There is a problem with your vehicle ’s starting system. See an
authorized dealer for service.
Starting System
Fault
You have successfully programmed an intelligent access key to the system.
Key Program
Successful
You have failed to program an intelligent access key to the system.
Key Program
Failure
You have programmed the maximum number of keys to the system.
Max Number of
Keys Learned
You have not programmed enough keys to the system.
Not Enough Keys
Learned
The key battery is low. Change the battery as soon as possible.
Key Battery Low
Replace Soon
Maintenance Action
Message
Stop your vehicle as soon as safely possible and turn off the engine.
Check the oil level. If the warning stays on or continues to come onwith your engine running, contact an authorized dealer as soon as possible.
Low Engine Oil
Pressure
The brake fluid level is low, inspect the brake system immediately.See
Brake Fluid Check (page 162).
Brake Fluid Level
Low
The brake system needs servicing. Stop your vehicle in a safe place. Contact an authorized dealer.
Check Brake
System
79
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

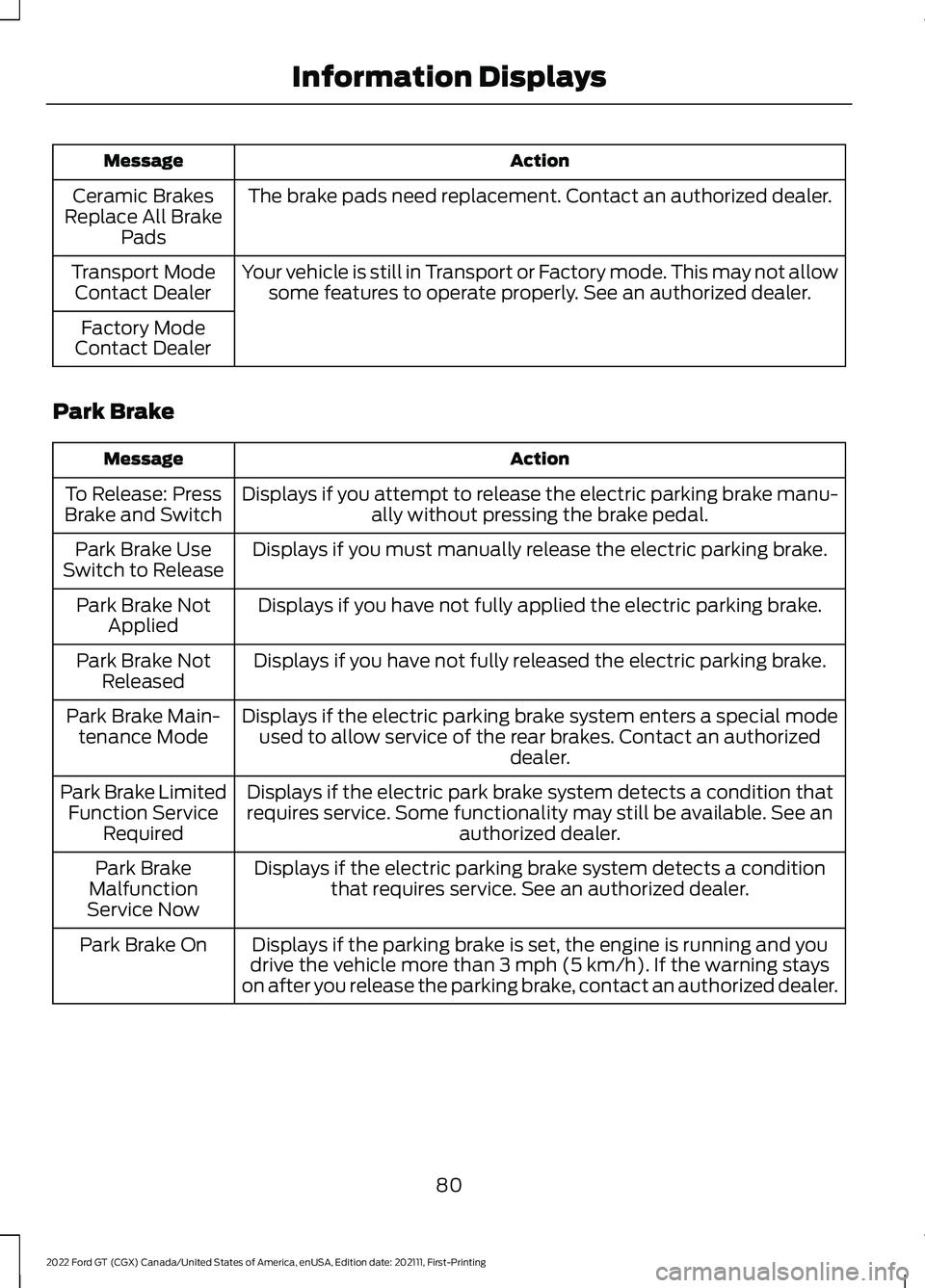

Action
Message
The brake pads need replacement. Contact an authorized dealer.
Ceramic Brakes
Replace All Brake Pads
Your vehicle is still in Transport or Factory mode. This may not allowsome features to operate properly. See an authorized dealer.
Transport Mode
Contact Dealer
Factory Mode
Contact Dealer
Park Brake Action
Message
Displays if you attempt to release the electric parking brake manu-ally without pressing the brake pedal.
To Release: Press
Brake and Switch
Displays if you must manually release the electric parking brake.
Park Brake Use
Switch to Release
Displays if you have not fully applied the electric parking brake.
Park Brake Not
Applied
Displays if you have not fully released the electric parking brake.
Park Brake Not
Released
Displays if the electric parking brake system enters a special modeused to allow service of the rear brakes. Contact an authorized dealer.
Park Brake Main-
tenance Mode
Displays if the electric park brake system detects a condition thatrequires service. Some functionality may still be available. See an authorized dealer.
Park Brake Limited
Function Service Required
Displays if the electric parking brake system detects a conditionthat requires service. See an authorized dealer.
Park Brake
Malfunction
Service Now
Displays if the parking brake is set, the engine is running and you
drive the vehicle more than 3 mph (5 km/h). If the warning stays
on after you release the parking brake, contact an authorized dealer.
Park Brake On
80
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

Remote Start
Action
Message
A reminder to apply the brake and push the start button to driveyour vehicle after a remote start.
To Drive: Press
Brake and Start Button
Starting System Action
Message
There is a problem with your vehicle ’s starting system. See an
authorized dealer for service.
Starting System
Fault
Steering System Action
Message
The steering lock system has detected a condition that requiresservice. See an authorized dealer.
Steering Lock
Malfunction
Service Now
You need to turn your steering wheel when starting your vehicle to unlock your steering column.
Steering Col. Lock
Turn Wheel while Starting vehicle
Tire Pressure Monitoring System Action
Message
One or more tires on your vehicle has low tire pressure. See Tire
Pressure Monitoring System (page 199).
Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If the warningstays on or continues to come on, contact an authorized dealer. See
Tire Pressure Monitoring System (page 199).
Tire Pressure
Monitor Fault
A tire pressure sensor is malfunctioning. See
Tire Pressure
Monitoring System (page 199). If the warning stays on or continues to come on, contact an authorized dealer as soon as possible.
Tire Pressure
Sensor Fault
81
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

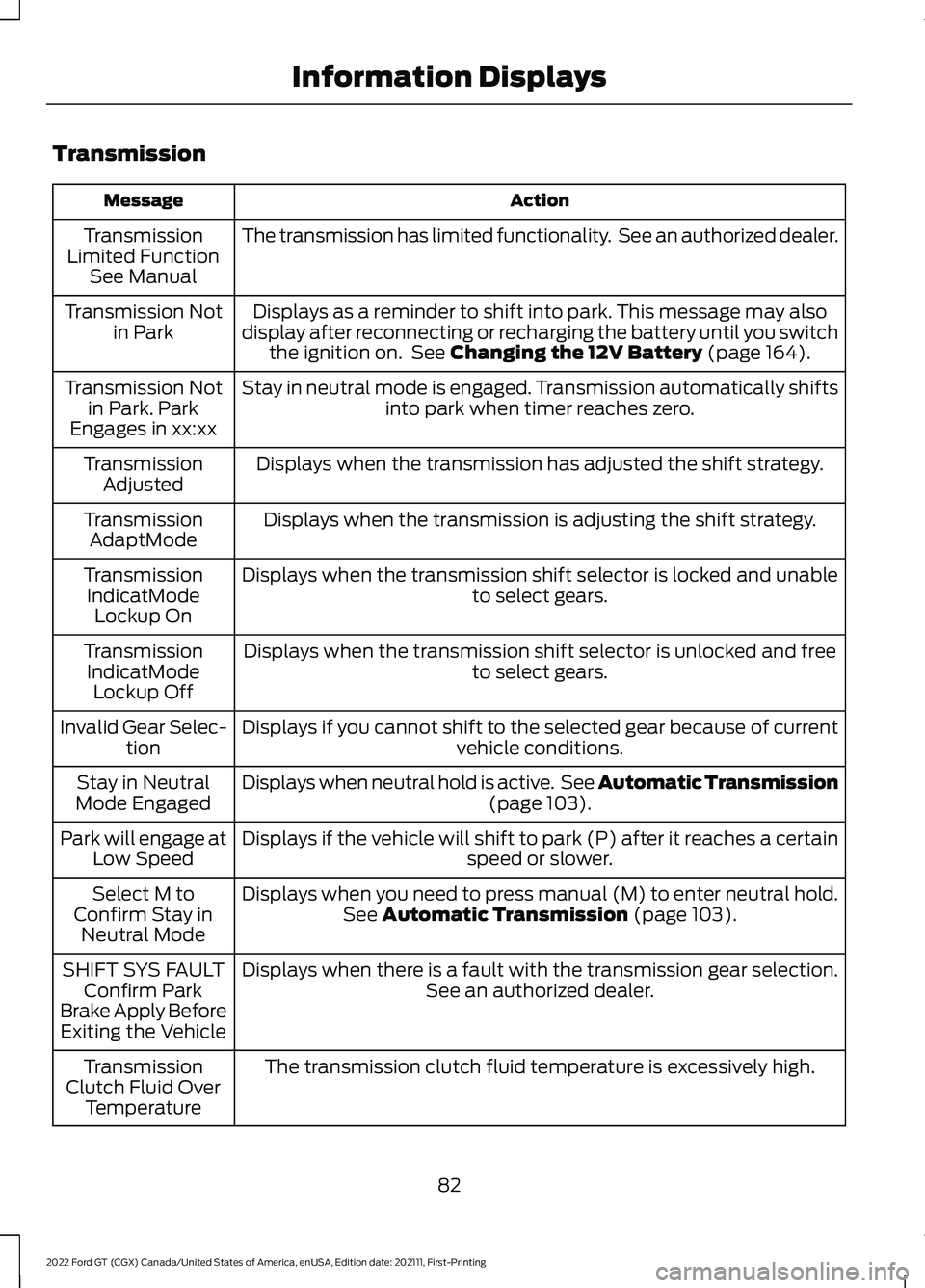

Transmission
Action
Message
The transmission has limited functionality. See an authorized dealer.
Transmission
Limited Function See Manual
Displays as a reminder to shift into park. This message may also
display after reconnecting or recharging the battery until you switch the ignition on. See Changing the 12V Battery (page 164).
Transmission Not
in Park
Stay in neutral mode is engaged. Transmission automatically shifts into park when timer reaches zero.
Transmission Not
in Park. Park
Engages in xx:xx
Displays when the transmission has adjusted the shift strategy.
Transmission
Adjusted
Displays when the transmission is adjusting the shift strategy.
Transmission
AdaptMode
Displays when the transmission shift selector is locked and unable to select gears.
Transmission
IndicatMode Lockup On
Displays when the transmission shift selector is unlocked and free to select gears.
Transmission
IndicatMode Lockup Off
Displays if you cannot shift to the selected gear because of current vehicle conditions.
Invalid Gear Selec-
tion
Displays when neutral hold is active. See Automatic Transmission (page
103).
Stay in Neutral
Mode Engaged
Displays if the vehicle will shift to park (P) after it reaches a certain speed or slower.
Park will engage at
Low Speed
Displays when you need to press manual (M) to enter neutral hold.See
Automatic Transmission (page 103).
Select M to
Confirm Stay in Neutral Mode
Displays when there is a fault with the transmission gear selection. See an authorized dealer.
SHIFT SYS FAULT
Confirm Park
Brake Apply Before Exiting the Vehicle
The transmission clutch fluid temperature is excessively high.
Transmission
Clutch Fluid Over Temperature
82
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Information Displays

3. Hold the fuel pump nozzle in position
B when refueling. Holding the fuel
nozzle in position A can affect the flow
of fuel and shut off the fuel nozzle
before the fuel tank is full. 4. Operate the fuel pump nozzle within
the area shown. 5.
Slightly raise the fuel pump nozzle and
then slowly remove it.
6. Fully close the fuel tank filler door.
Note: Do not attempt to start the engine
if you have filled the fuel tank with incorrect
fuel. Incorrect fuel use can cause damage
not covered by the vehicle Warranty. Have
your vehicle checked immediately.
System Warnings (If Equipped)
If the fuel filler inlet does not fully close a
warning message appears in the
information display.
1. Stop your vehicle as soon as it is safe to do so and switch the engine off. 2.
Shift into park (P) or neutral (N). Apply
the parking brake.
3. Fully open the fuel filler door.
4. Check the fuel filler inlet and the area around it for any items or debris that
may be obstructing its movement.
5. Fully insert a fuel pump nozzle or the fuel filler funnel provided with your
vehicle into the fuel filler inlet. This
action should dislodge any debris that
may be preventing the fuel filler inlet
from fully closing.
6. Fully close the fuel filler door.
Note: If this action corrects the problem
the message may not immediately reset. If
the message remains and a warning lamp
illuminates, have your vehicle checked as
soon as possible.
FUEL CONSUMPTION
The advertised capacity is the indicated
capacity and the empty reserve combined.
Indicated capacity is the difference in the
amount of fuel in the fuel tank and when
the fuel gauge indicates empty.
See
Capacities and Specifications
(page 205).
Note: The amount of fuel in the empty
reserve varies and should not be relied upon
to increase driving range.
Note: When refueling your vehicle after the
fuel gauge indicates empty, you might not
be able to refuel the full amount of the
advertised capacity due to the empty
reserve still present in the fuel tank.
97
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuel and RefuelingE228357 E119081
