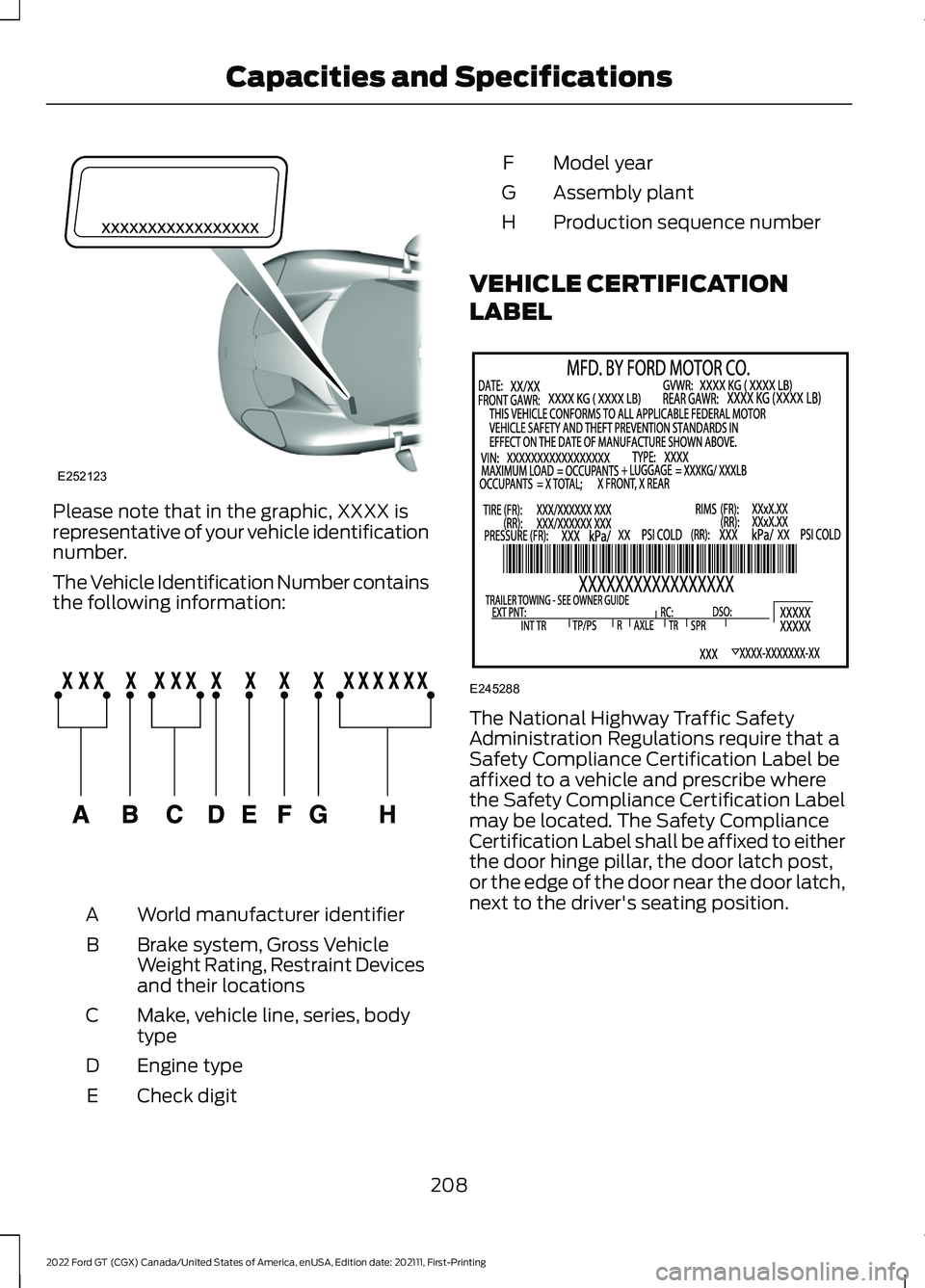

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information:
World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E Model year
F
Assembly plant
G
Production sequence number
H
VEHICLE CERTIFICATION
LABEL The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.
208
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Capacities and SpecificationsE252123 E142477 E245288

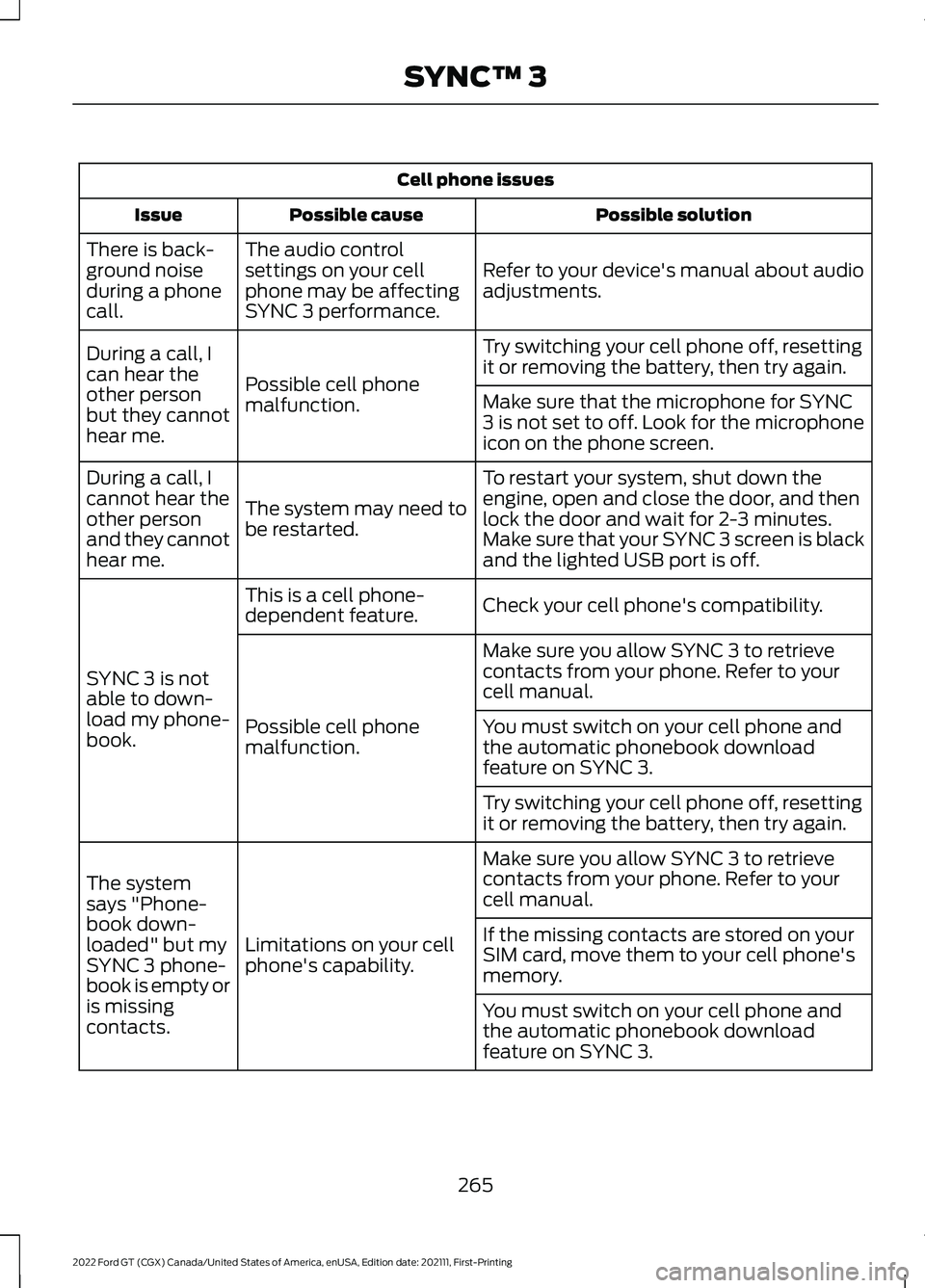

Cell phone issues
Possible solution
Possible cause
Issue
Refer to your device's manual about audio
adjustments.
The audio control
settings on your cell
phone may be affecting
SYNC 3 performance.
There is back-
ground noise
during a phone
call.
Try switching your cell phone off, resetting
it or removing the battery, then try again.
Possible cell phone
malfunction.
During a call, I
can hear the
other person
but they cannot
hear me.
Make sure that the microphone for SYNC
3 is not set to off. Look for the microphone
icon on the phone screen.
To restart your system, shut down the
engine, open and close the door, and then
lock the door and wait for 2-3 minutes.
Make sure that your SYNC 3 screen is black
and the lighted USB port is off.
The system may need to
be restarted.
During a call, I
cannot hear the
other person
and they cannot
hear me.
Check your cell phone's compatibility.
This is a cell phone-
dependent feature.
SYNC 3 is not
able to down-
load my phone-
book. Make sure you allow SYNC 3 to retrieve
contacts from your phone. Refer to your
cell manual.
Possible cell phone
malfunction. You must switch on your cell phone and
the automatic phonebook download
feature on SYNC 3.
Try switching your cell phone off, resetting
it or removing the battery, then try again.
Make sure you allow SYNC 3 to retrieve
contacts from your phone. Refer to your
cell manual.
Limitations on your cell
phone's capability.
The system
says "Phone-
book down-
loaded" but my
SYNC 3 phone-
book is empty or
is missing
contacts. If the missing contacts are stored on your
SIM card, move them to your cell phone's
memory.
You must switch on your cell phone and
the automatic phonebook download
feature on SYNC 3.
265
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing SYNC™ 3

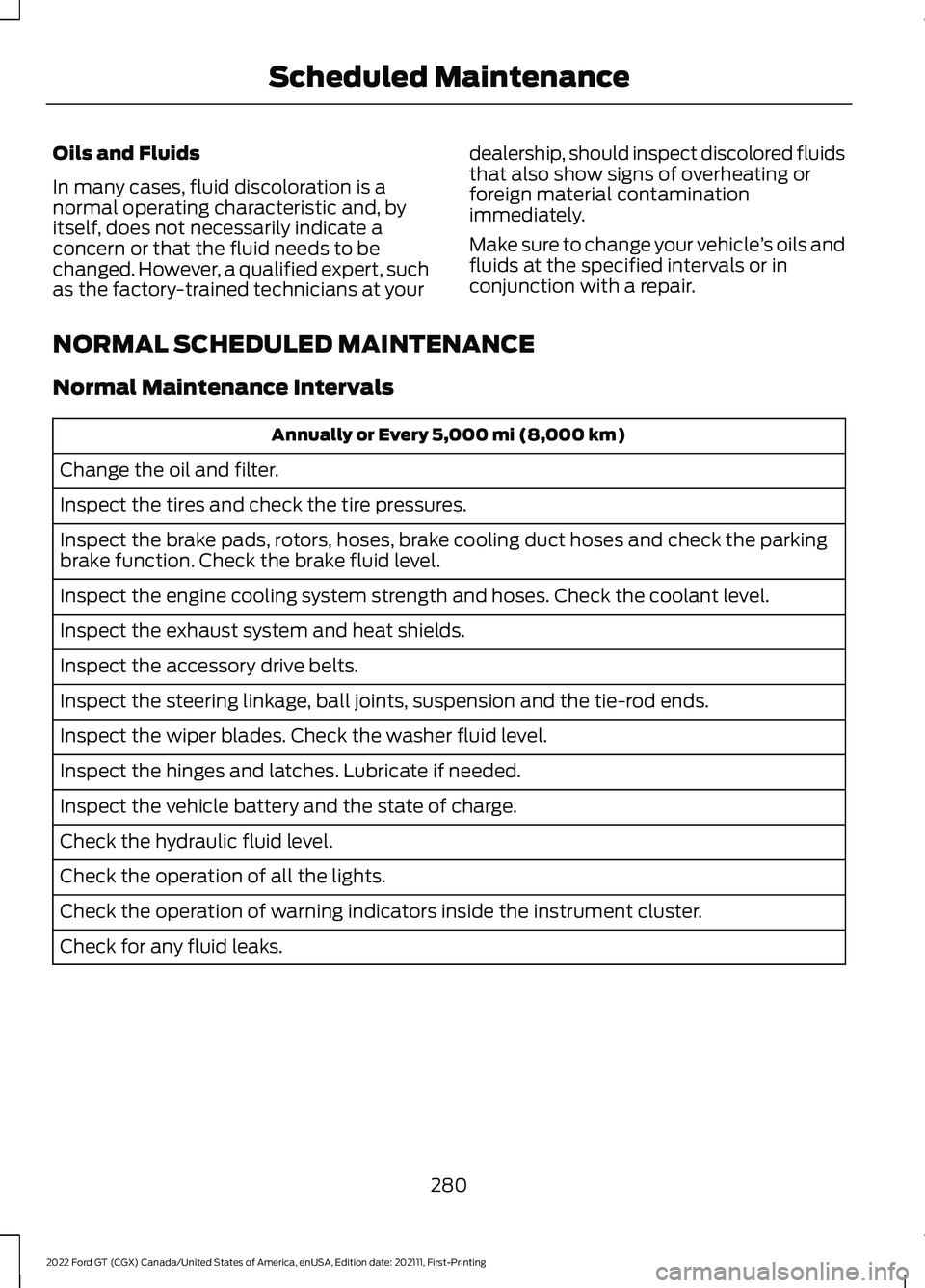

Oils and Fluids
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle
’s oils and
fluids at the specified intervals or in
conjunction with a repair.
NORMAL SCHEDULED MAINTENANCE
Normal Maintenance Intervals Annually or Every 5,000 mi (8,000 km)
Change the oil and filter.
Inspect the tires and check the tire pressures.
Inspect the brake pads, rotors, hoses, brake cooling duct hoses and check the parking
brake function. Check the brake fluid level.
Inspect the engine cooling system strength and hoses. Check the coolant level.
Inspect the exhaust system and heat shields.
Inspect the accessory drive belts.
Inspect the steering linkage, ball joints, suspension and the tie-rod ends.
Inspect the wiper blades. Check the washer fluid level.
Inspect the hinges and latches. Lubricate if needed.
Inspect the vehicle battery and the state of charge.
Check the hydraulic fluid level.
Check the operation of all the lights.
Check the operation of warning indicators inside the instrument cluster.
Check for any fluid leaks.
280
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Scheduled Maintenance

9
911 Assist...........................................................43
A
A/C
See: Climate Control........................................... 83
About This Manual...........................................5
ABS See: Brakes........................................................... 108
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 109
Accessories....................................................278
Accessories See: Replacement Parts
Recommendation............................................. 11
Adjustable Pedals.........................................60
Adjusting the Headlamps.........................166
Adjusting the Pedals....................................60
Adjusting the Steering Wheel...................56
Airbag Disposal...............................................42
Air Conditioning See: Climate Control........................................... 83
Air Filter See: Changing the Engine Air Filter.............158
Alarm See: Anti-Theft Alarm........................................ 55
Anti-Theft Alarm
............................................55
Appendices....................................................283
Apps..................................................................252
At a Glance........................................................16
Audible Warnings and Indicators..............72
Audio Control
...................................................57
Audio System.................................................216
Audio Unit........................................................216
Autolamps........................................................63
Automatic Climate Control
........................83
Automatic Transmission...........................103
Automatic Transmission Fluid Check.............................................................162
Auxiliary Power Points..................................87
B
Battery See: Changing the 12V Battery...................... 164Body Styling Kits..........................................180
Bonnet Lock
See: Opening and Closing the Hood...........154
Booster Seats..................................................24
Brake Fluid Check.........................................162
Brakes...............................................................108 General Information.......................................... 108
Breaking-In.......................................................131
C
Cabin Air Filter.................................................85
Capacities and Specifications.................210
Car Wash See: Cleaning the Exterior................................ 173
Catalytic Converter
.....................................100
Changing a Bulb...........................................168
Changing a Fuse............................................152
Changing a Road Wheel...........................203
Changing the 12V Battery
..........................164
Changing the Engine Air Filter.................158
Changing the Wiper Blades
.....................168
Checking the Wiper Blades.......................167
Child Restraint and Seatbelt Maintenance.................................................33
Child Restraint Positioning
.........................26
Child Safety.......................................................19
General Information............................................. 19
Cleaning Leather Seats...............................177
Cleaning Products
.........................................172
Cleaning the Engine.....................................174
Cleaning the Exterior....................................173
Cleaning the Instrument Panel and Instrument Cluster Lens..........................176
Cleaning the Interior.....................................175
Cleaning the Wheels....................................177
Cleaning the Windows and Wiper Blades
.............................................................175
Climate Control..............................................83
Coolant Check See: Engine Coolant Check............................ 158
Crash Sensors and Airbag Indicator
.........41
Cruise Control..................................................57
Principle of Operation........................................ 118
Cruise control See: Using Cruise Control................................. 118
Cup Holders
.....................................................88
Customer Assistance..................................137
311
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Index

D
Data Recording..................................................7
Daytime Running Lamps.............................63
Declaration of Conformity.......................308
Declaration of Conformity - Vehicles With: SYNC 3.............................................308
Direction Indicators
.......................................64
Doors and Locks.............................................50
Drive Mode Control.......................................58
Driver and Passenger Airbags....................37
Driver and Passenger Knee Airbags
.........41
Driving Aids......................................................119
Driving at High Speed................................203
Driving Hints.....................................................131
Driving Through Water.................................131
DRL See: Daytime Running Lamps......................... 63
E
Electric Parking Brake.................................109
Emergency Call Limitations.......................44
Emergency Call Requirements
.................43
Emergency Door Release............................53
Emission Law..................................................99
End User License Agreement..................283
Engine Coolant Check................................158
Engine Emission Control.............................99
Engine Immobilizer See: Passive Anti-Theft System..................... 54
Engine Oil Check...........................................157
Engine Oil Dipstick........................................157
Engine Specifications
................................205
Entertainment...............................................235
Environment
......................................................15
EPB See: Electric Parking Brake............................. 109
Event Data Recording See: Data Recording............................................... 7
Exterior Mirrors
................................................66
F
Fastening the Seatbelts
..............................29
Flat Tire See: Changing a Road Wheel....................... 203Flat Tire Inflation
See: Tire Sealant and Inflator Kit.................. 181
Floor Mats
........................................................132
Foot Pedals See: Adjusting the Pedals................................ 60
Ford Performance
...........................................13
Front Passenger Sensing System............38
Fuel and Refueling.........................................93
Fuel Consumption.........................................97
Fuel Filler Funnel Location.........................94
Fuel Filter.........................................................167
Fuel Quality
......................................................93
Fuel Shutoff....................................................133
Fuses.................................................................143
Fuse Specification Chart...........................143
G
Gauges................................................................67
Gearbox See: Transmission.............................................. 103
General Information on Radio Frequencies...................................................45
General Maintenance Information........279
Getting Assistance Outside the U.S. and Canada..........................................................140
Getting the Services You Need................137
Global Opening...............................................65
H
Hazard Flashers.............................................133
Headlamp Adjusting See: Adjusting the Headlamps..................... 166
Heating See: Climate Control........................................... 83
Hill Start Assist................................................111
Hints on Controlling the Interior Climate...........................................................84
Hints on Driving With Anti-Lock Brakes............................................................109
Home Screen.................................................227
Hood Lock See: Opening and Closing the Hood...........154
Horn....................................................................58
312
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Index

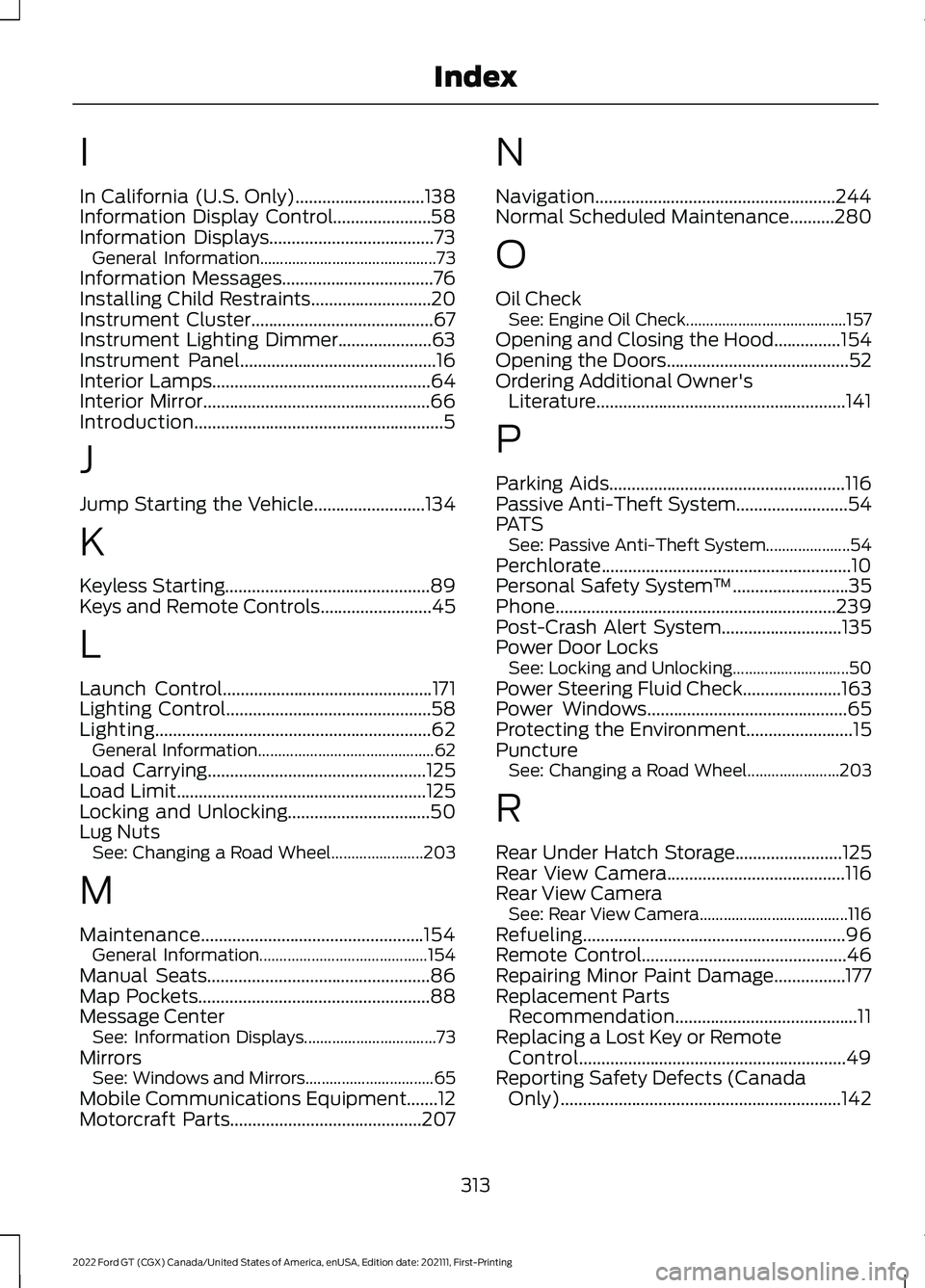

I
In California (U.S. Only).............................138
Information Display Control......................58
Information Displays.....................................73
General Information............................................ 73
Information Messages..................................76
Installing Child Restraints...........................20
Instrument Cluster.........................................67
Instrument Lighting Dimmer.....................63
Instrument Panel
............................................16
Interior Lamps.................................................64
Interior Mirror...................................................66
Introduction........................................................5
J
Jump Starting the Vehicle.........................134
K
Keyless Starting..............................................89
Keys and Remote Controls.........................45
L
Launch Control
...............................................171
Lighting Control..............................................58
Lighting..............................................................62 General Information............................................ 62
Load Carrying.................................................125
Load Limit........................................................125
Locking and Unlocking................................50
Lug Nuts See: Changing a Road Wheel....................... 203
M
Maintenance..................................................154 General Information.......................................... 154
Manual Seats
..................................................86
Map Pockets....................................................88
Message Center See: Information Displays................................. 73
Mirrors See: Windows and Mirrors................................ 65
Mobile Communications Equipment
.......12
Motorcraft Parts...........................................207 N
Navigation......................................................244
Normal Scheduled Maintenance..........280
O
Oil Check
See: Engine Oil Check........................................ 157
Opening and Closing the Hood...............154
Opening the Doors
.........................................52
Ordering Additional Owner's Literature........................................................141
P
Parking Aids
.....................................................116
Passive Anti-Theft System.........................54
PATS See: Passive Anti-Theft System..................... 54
Perchlorate........................................................10
Personal Safety System ™
..........................35
Phone...............................................................239
Post-Crash Alert System...........................135
Power Door Locks See: Locking and Unlocking............................. 50
Power Steering Fluid Check
......................163
Power Windows.............................................65
Protecting the Environment........................15
Puncture See: Changing a Road Wheel....................... 203
R
Rear Under Hatch Storage........................125
Rear View Camera........................................116
Rear View Camera See: Rear View Camera..................................... 116
Refueling...........................................................96
Remote Control
..............................................46
Repairing Minor Paint Damage................177
Replacement Parts Recommendation.........................................11
Replacing a Lost Key or Remote Control............................................................49
Reporting Safety Defects (Canada Only)...............................................................142
313
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Index
