climate control FORD GT 2022 Owners Manual

Lighting Control
.............................................58
Adjustable Pedals
Adjusting the Pedals ...................................
60
Wipers and Washers
Windshield Wipers .........................................
61
Windshield Washers .....................................
61
Lighting
General Information .....................................
62
Lighting Control .............................................
62
Autolamps .......................................................
63
Instrument Lighting Dimmer ....................
63
Daytime Running Lamps ............................
63
Direction Indicators ......................................
64
Interior Lamps ................................................
64
Windows and Mirrors
Power Windows ............................................
65
Global Opening ..............................................
65
Exterior Mirrors ...............................................
66
Interior Mirror ..................................................
66
Instrument Cluster
Gauges ...............................................................
67
Warning Lamps and Indicators ...............
69
Audible Warnings and Indicators .............
72
Information Displays
General Information .....................................
73
Information Messages .................................
76
Climate Control
Automatic Climate Control .......................
83
Hints on Controlling the Interior Climate ........................................................................\
..
84
Cabin Air Filter ................................................
85Seats
Sitting in the Correct Position
..................
86
Manual Seats .................................................
86
Auxiliary Power Points
Auxiliary Power Points .................................
87
Storage Compartments
Cup Holders ....................................................
88
Map Pockets ...................................................
88
Under Seat Storage .....................................
88
Starting and Stopping the Engine
General Information ....................................
89
Keyless Starting .............................................
89
Steering Wheel Lock ...................................
90
Starting the Engine ......................................
90
Fuel and Refueling
Safety Precautions .......................................
93
Fuel Quality .....................................................
93
Fuel Filler Funnel Location ........................
94
Running Out of Fuel .....................................
94
Refueling ..........................................................
96
Fuel Consumption ........................................
97
Engine Emission Control
Emission Law .................................................
99
Catalytic Converter ....................................
100
Transmission
Automatic Transmission ..........................
103
Brakes
General Information ...................................
108
Hints on Driving With Anti-Lock Brakes ........................................................................\
109
Electric Parking Brake ................................
109
2
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Table of Contents

To read data recorded by an event data
recorder, special equipment is required,
and access to the vehicle or the event data
recorder is needed. In addition to the
vehicle manufacturer, other parties, such
as law enforcement, that have such special
equipment, can read the information if they
have access to the vehicle or the event
data recorder.
Comfort, Convenience and
Entertainment Data
Your vehicle has electronic control units
that have the ability to store data based
on your personalized settings. The data is
stored locally in the vehicle or on devices
that you connect to it, for example, a USB
drive or digital music player. You can delete
some of this data and also choose whether
to share it through the services to which
you subscribe. See Settings (page 253).
Comfort and Convenience Data
Data recorded includes, for example:
• Seat and steering wheel position.
• Climate control settings.
• Radio presets.
Entertainment Data
Data recorded includes, for example:
• Music, videos or album art.
• Contacts and corresponding address
book entries.
• Navigation destinations.
Services That We Provide
If you use our services, we collect and use
data, for example account information,
vehicle location and driving characteristics,
that could identify you. We transmit this
data through a dedicated, protected
connection. We only collect and use data to enable your use of our services to which
you have subscribed, with your consent or
where permitted by law. For additional
information, see the terms and conditions
of the services to which you have
subscribed.
Services That Third Parties
Provide
We recommend that you review the terms
and conditions and data privacy
information for any services to which you
subscribe. We take no responsibility for
services that third parties provide.
Vehicles With a Modem
The modem has a SIM. The modem
periodically sends messages to stay
connected to the cell phone network.
These messages could include information
that identifies your vehicle, the SIM and the
electronic serial number of the modem.
Cell phone network service providers could
have access to additional information, for
example cell phone network tower
identification.
Note:
The modem continues to send this
information unless you have all added value
services deactivated. Contact the Ford
Customer Relationship Center. Refer to the
regional Ford website for contact
information.
Note: The service can be unavailable or
interrupted for a number of reasons, for
example environmental or topographical
conditions and data plan coverage.
9
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Introduction

INSTRUMENT PANEL
Lighting control. See Lighting Control (page 62).
A
Left direction indicator. See
Direction Indicators (page 64).
B
Left paddle shifter. See
Automatic Transmission (page 103).
C
Drive mode control. See
Drive Mode Control (page 119).
D
High beam switch. See
Lighting Control (page 62).
E
Instrument cluster.
See Gauges (page 67).
F
Windshield washers. See
Windshield Washers (page 61).
G
Windshield wipers.
See Windshield Wipers (page 61).
H
Right paddle shifter. See
Automatic Transmission (page 103).
I
Right direction indicator. See
Direction Indicators (page 64).
J
Audio on and off button. See
Audio Unit (page 216).
K
SYNC 3. See
General Information (page 217).
L
Climate controls. See
Automatic Climate Control (page 83).
M
16
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing At a GlanceE243664

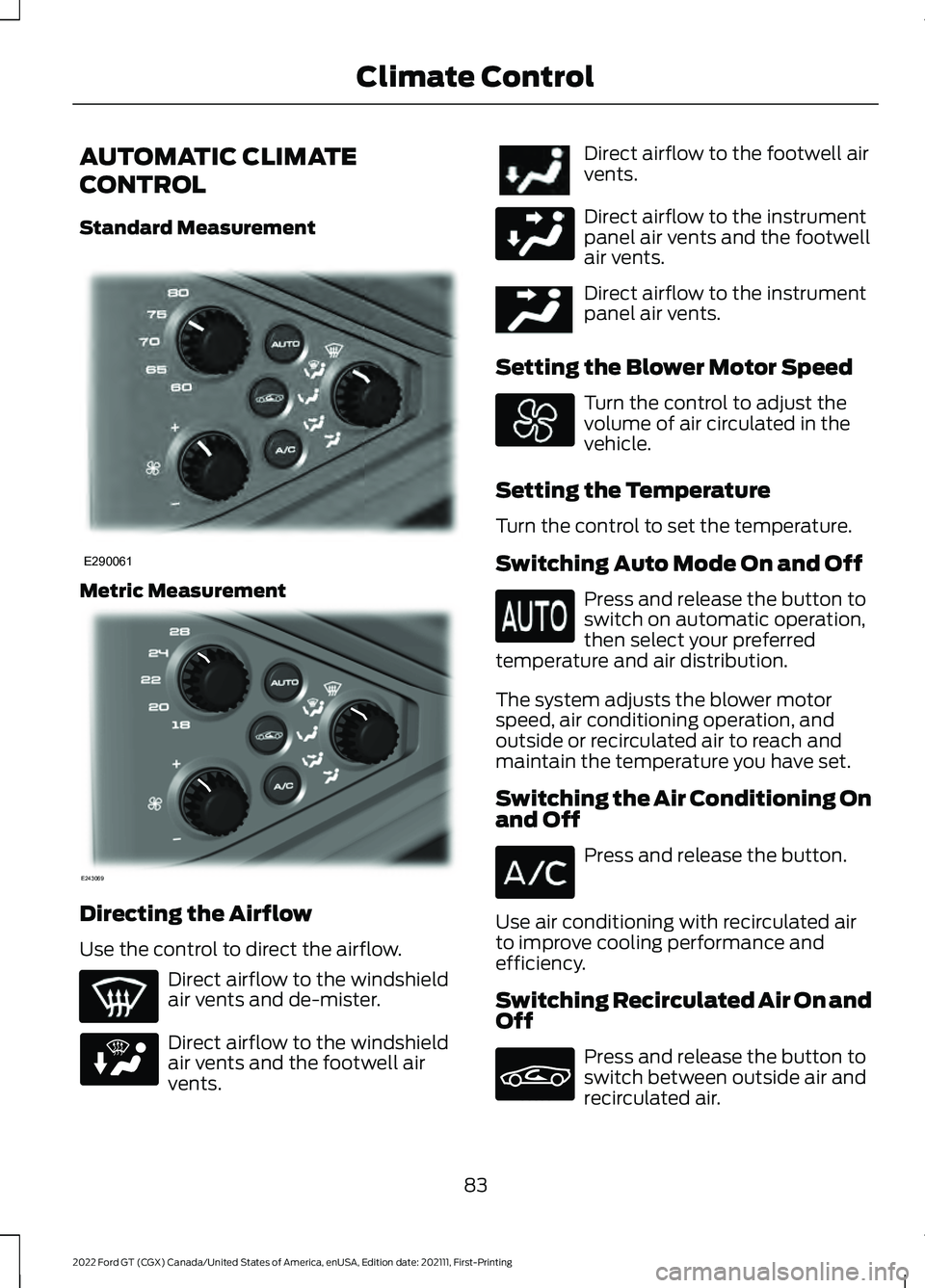

AUTOMATIC CLIMATE
CONTROL
Standard Measurement
Metric Measurement
Directing the Airflow
Use the control to direct the airflow.
Direct airflow to the windshield
air vents and de-mister.
Direct airflow to the windshield
air vents and the footwell air
vents. Direct airflow to the footwell air
vents.
Direct airflow to the instrument
panel air vents and the footwell
air vents.
Direct airflow to the instrument
panel air vents.
Setting the Blower Motor Speed Turn the control to adjust the
volume of air circulated in the
vehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching Auto Mode On and Off Press and release the button to
switch on automatic operation,
then select your preferred
temperature and air distribution.
The system adjusts the blower motor
speed, air conditioning operation, and
outside or recirculated air to reach and
maintain the temperature you have set.
Switching the Air Conditioning On
and Off Press and release the button.
Use air conditioning with recirculated air
to improve cooling performance and
efficiency.
Switching Recirculated Air On and
Off Press and release the button to
switch between outside air and
recirculated air.
83
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Climate ControlE290061 E243069 E244097 E290058

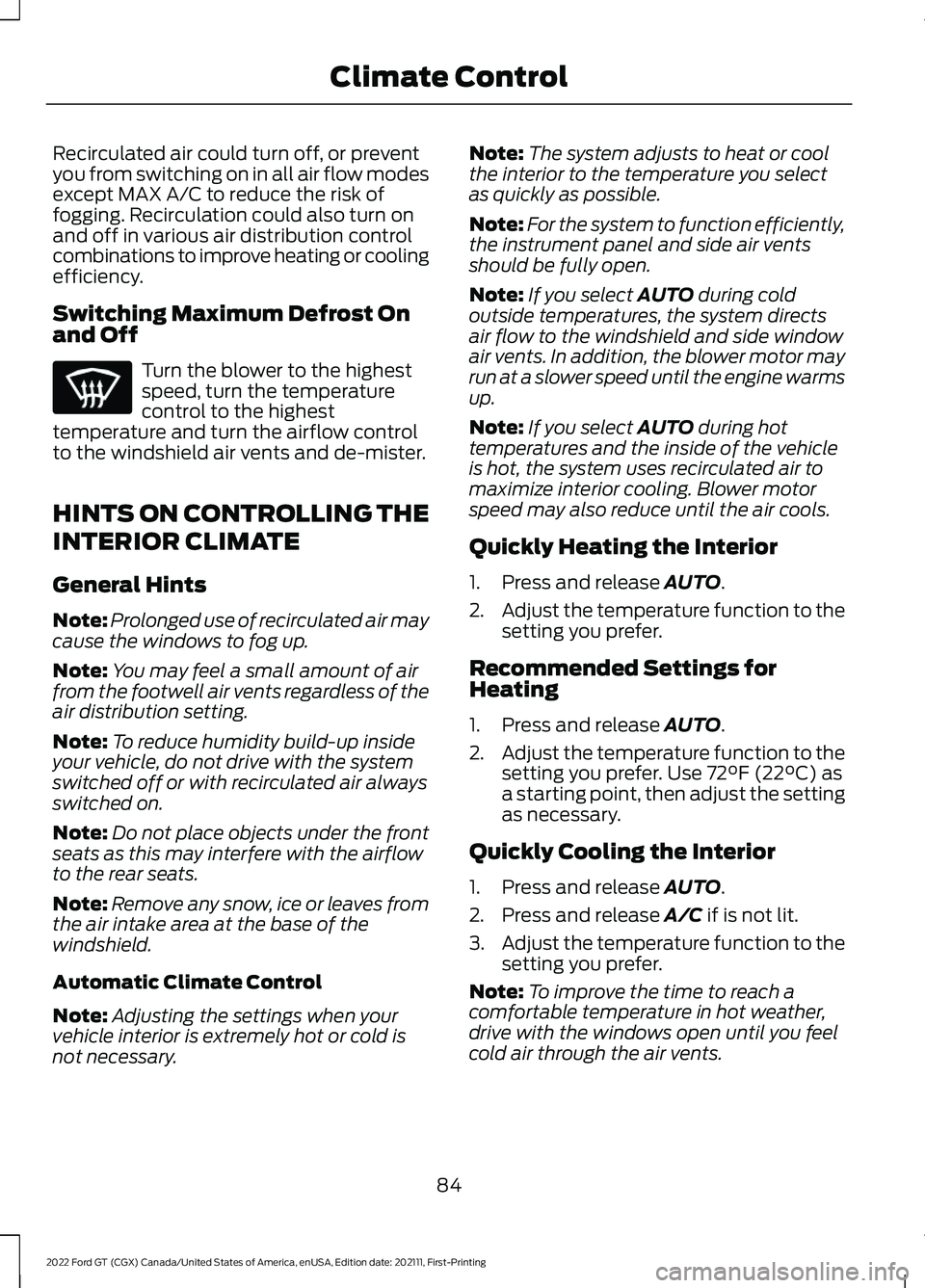

Recirculated air could turn off, or prevent
you from switching on in all air flow modes
except MAX A/C to reduce the risk of
fogging. Recirculation could also turn on
and off in various air distribution control
combinations to improve heating or cooling
efficiency.
Switching Maximum Defrost On
and Off
Turn the blower to the highest
speed, turn the temperature
control to the highest
temperature and turn the airflow control
to the windshield air vents and de-mister.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note: Prolonged use of recirculated air may
cause the windows to fog up.
Note: You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.
Note: To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.
Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.
Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.
Automatic Climate Control
Note: Adjusting the settings when your
vehicle interior is extremely hot or cold is
not necessary. Note:
The system adjusts to heat or cool
the interior to the temperature you select
as quickly as possible.
Note: For the system to function efficiently,
the instrument panel and side air vents
should be fully open.
Note: If you select AUTO during cold
outside temperatures, the system directs
air flow to the windshield and side window
air vents. In addition, the blower motor may
run at a slower speed until the engine warms
up.
Note: If you select
AUTO during hot
temperatures and the inside of the vehicle
is hot, the system uses recirculated air to
maximize interior cooling. Blower motor
speed may also reduce until the air cools.
Quickly Heating the Interior
1. Press and release
AUTO.
2. Adjust the temperature function to the
setting you prefer.
Recommended Settings for
Heating
1. Press and release
AUTO.
2. Adjust the temperature function to the
setting you prefer. Use
72°F (22°C) as
a starting point, then adjust the setting
as necessary.
Quickly Cooling the Interior
1. Press and release
AUTO.
2. Press and release
A/C if is not lit.
3. Adjust the temperature function to the
setting you prefer.
Note: To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.
84
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Climate Control

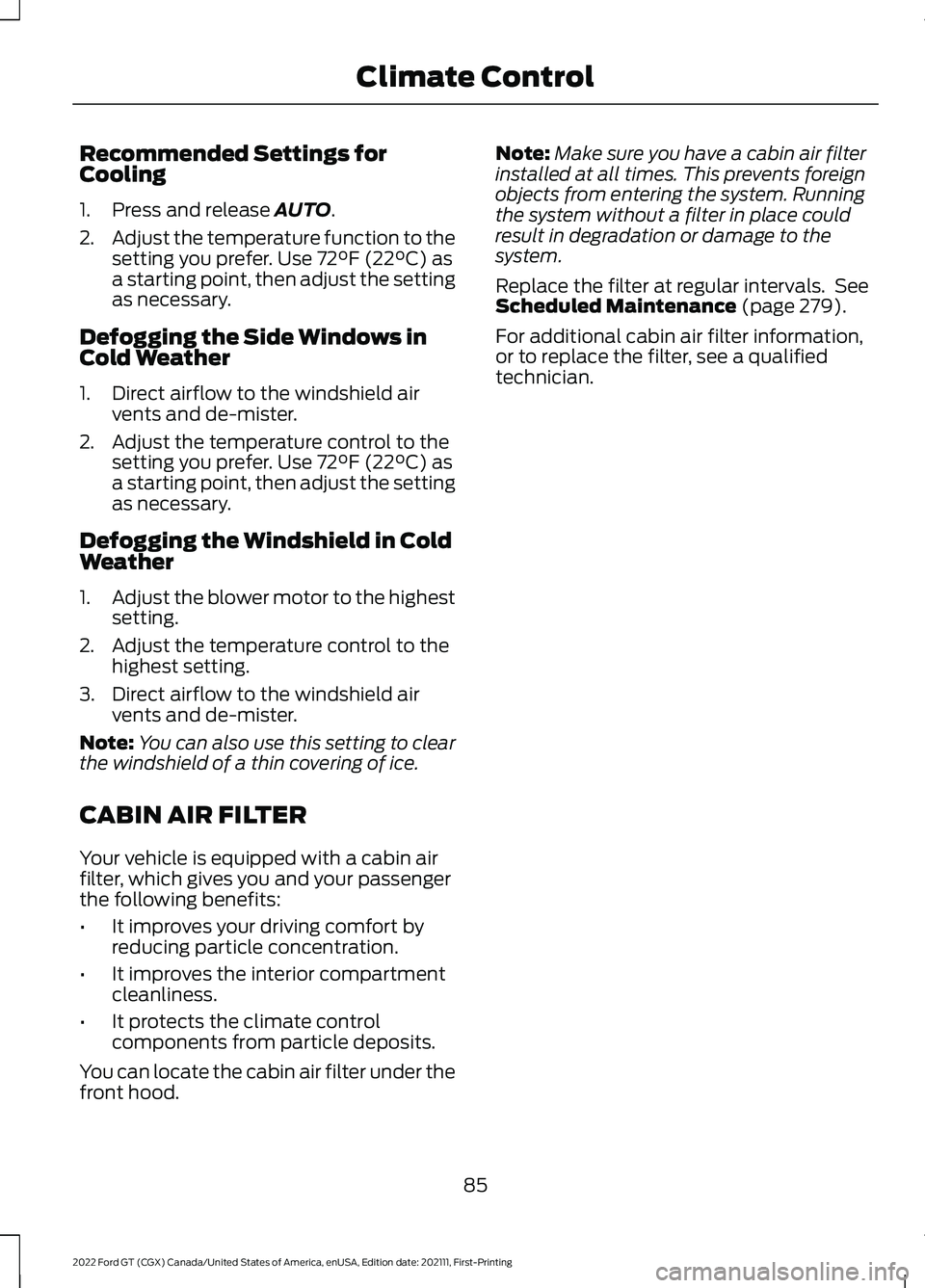

Recommended Settings for
Cooling
1. Press and release AUTO.
2. Adjust the temperature function to the
setting you prefer. Use
72°F (22°C) as
a starting point, then adjust the setting
as necessary.
Defogging the Side Windows in
Cold Weather
1. Direct airflow to the windshield air vents and de-mister.
2. Adjust the temperature control to the setting you prefer. Use
72°F (22°C) as
a starting point, then adjust the setting
as necessary.
Defogging the Windshield in Cold
Weather
1. Adjust the blower motor to the highest
setting.
2. Adjust the temperature control to the highest setting.
3. Direct airflow to the windshield air vents and de-mister.
Note: You can also use this setting to clear
the windshield of a thin covering of ice.
CABIN AIR FILTER
Your vehicle is equipped with a cabin air
filter, which gives you and your passenger
the following benefits:
• It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
You can locate the cabin air filter under the
front hood. Note:
Make sure you have a cabin air filter
installed at all times. This prevents foreign
objects from entering the system. Running
the system without a filter in place could
result in degradation or damage to the
system.
Replace the filter at regular intervals. See
Scheduled Maintenance
(page 279).
For additional cabin air filter information,
or to replace the filter, see a qualified
technician.
85
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Climate Control

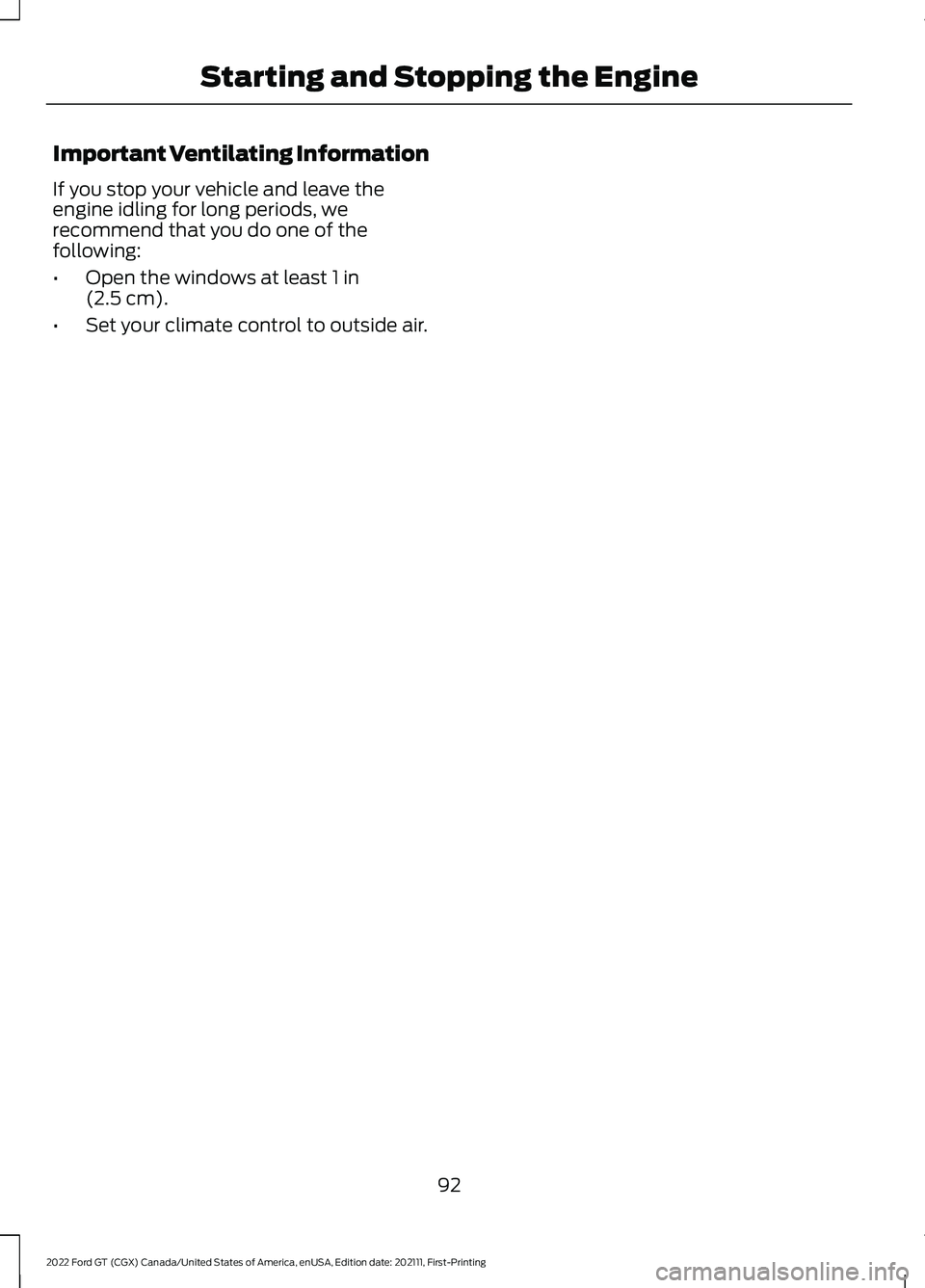

Important Ventilating Information
If you stop your vehicle and leave the
engine idling for long periods, we
recommend that you do one of the
following:
•
Open the windows at least 1 in
(2.5 cm).
• Set your climate control to outside air.
92
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Starting and Stopping the Engine

Alloy and carbon fiber wheels are coated
with a paint finish. To maintain their
condition we recommend that you:
•
Clean the wheels weekly using
Motorcraft Wheel and Tire Cleaner or
a gentle soap solution. Apply to the
wheel only using manufacturer's
instructions.
• Use a soft sponge to remove deposits
of dirt and brake dust accumulation.
• Rinse thoroughly with a strong stream
of water when you have completed the
cleaning process.
• To remove tar and grease, use
Motorcraft Bug and Tar Remover.
VEHICLE STORAGE
At Ford, we fully understand that many
Ford Performance vehicles will see only
occasional operation and that many of the
vehicles, especially in northern climates,
may be stored for an extended period
during the winter months. If you plan on
storing your vehicle for 30 days or more,
read the following maintenance
recommendations to make sure your
vehicle stays in good operating condition.
We engineer and test all motor vehicles
and their components for reliable, regular
driving. Under various conditions,
long-term storage may lead to degraded
engine performance or failure unless you
use specific precautions to preserve engine
components.
General
Note: Do not park your vehicle in facilities
that use parking platforms or elevators that
lift your vehicle. The vehicle Warranty may
not cover damage caused to your vehicle as
a result of using this type of equipment. •
Store all vehicles inside a garage or
building in a dry, ventilated place.
• Protect from sunlight, if possible. Use
a soft, breathable vehicle cover.
Body
• Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing
and the underside of front fenders.
• Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents.
Wing
Note: When storing your vehicle longer than
72 hours without engine operation, place
the wing in the deployed position.
• Turn your ignition to on.
• Activate track mode.
• After you enable track mode, return to
normal mode. See Drive Mode
Control (page 119).
• Turn your ignition to off.
Engine
• Change the engine oil and filter prior to
storage because used engine oil
contains contaminates which may
cause engine damage.
• Start the engine every 15 days for a
minimum of 15 minutes. Run at fast
idle with the climate controls set to
defrost until the engine reaches normal
operating temperature.
178
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Vehicle Care

U.S. Department of
Transportation Tire quality
grades: The U.S. Department of
Transportation requires Ford
Motor Company to give you the
following information about tire
grades exactly as the government
has written it.
Treadwear
The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded 150
would wear 1 ½ times as well on
the government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of their
use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.
Traction AA A B C WARNING:
The traction
grade assigned to this tire is
based on straight-ahead braking
traction tests, and does not
include acceleration, cornering,
hydroplaning or peak traction
characteristics. The traction grades, from highest
to lowest are AA, A, B, and C. The
grades represent the tire
’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.
Temperature A B C WARNING:
The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
The temperature grades are A
(the highest), B and C,
representing the tire ’s resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled conditions
on a specified indoor laboratory
test wheel. Sustained high
temperature can cause the
material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden
tire failure. The grade C
corresponds to a level of
performance which all passenger
car tires must meet under the
188
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Wheels and Tires

USING VOICE RECOGNITION
The SYNC 3 system allows you to use voice
commands to control features like audio
and climate controls. By using voice
commands, you can keep your hands on
the wheel and your eyes on the road.
You can access each feature controlled by
SYNC 3 through a variety of commands. To activate the SYNC 3 voice
commands push the voice
button on the steering wheel and
wait for the prompt.
___ is a dynamic listing, meaning that it can
be the name of anything, such as artist, the
name of contact or number. The context
and the description of the command tell
you what to say for this dynamic option.
There are some commands that work for
every feature, these commands are: Action and Description
Voice Command
Brings you to the main menu.
Main Menu
Returns you to the previous screen.
Go back
Ends the voice session.
Cancel
Gives you a list of possible voice commands.
List of Commands
You can name any feature and the system gives a list of
commands available for the feature. For example, you could
say:
___ List of Commands
Phone List of Commands
Navigation List of Commands
You can use this command to view the next page of options on
any screen where multiple pages of choices are given.
Next Page
You can use this command to view the previous page of options
on any screen where multiple pages of choices are given.
Previous Page
Gives you available commands you can use on the current
screen.
Help
Included here are some of the most
popular commands for each SYNC 3
feature. Audio Voice Commands
___ is a dynamic listing, meaning that for
audio voice commands it can be the name
of a Sirius channel or a channel number, a
radio frequency number, or the name of an
artist, album, song or a genre.
228
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing SYNC™ 3E142599
