fuse FORD GT 2022 Owners Manual

Hill Start Assist
...............................................111
Stability Control
Principle of Operation .................................
113
Using Stability Control ................................
114
Parking Aids
Rear View Camera .......................................
116
Cruise Control
Principle of Operation .................................
118
Using Cruise Control ....................................
118
Driving Aids
Steering ............................................................
119
Drive Mode Control ......................................
119
Load Carrying
Rear Under Hatch Storage .......................
125
Load Limit .......................................................
125
Towing
Towing a Trailer ............................................
130
Towing the Vehicle on Four Wheels ......
130
Driving Hints
Breaking-In ......................................................
131
Driving Through Water ................................
131
Floor Mats .......................................................
132
Roadside Emergencies
Roadside Assistance ..................................
133
Hazard Flashers ............................................
133
Fuel Shutoff ...................................................
133
Jump Starting the Vehicle ........................
134
Post-Crash Alert System ..........................
135
Transporting the Vehicle ...........................
135
Towing Points ...............................................
136Customer Assistance
Getting the Services You Need
...............
137
In California (U.S. Only) ............................
138
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) .....................
138
Utilizing the Mediation/Arbitration Program (Canada Only) .......................
139
Getting Assistance Outside the U.S. and Canada .......................................................
140
Ordering Additional Owner's Literature ........................................................................\
..
141
Reporting Safety Defects (U.S. Only) ........................................................................\
..
141
Reporting Safety Defects (Canada Only) ........................................................................\
.
142
Fuses
Fuse Specification Chart ..........................
143
Changing a Fuse ...........................................
152
Maintenance
General Information ...................................
154
Opening and Closing the Hood ..............
154
Under Hood Overview ...............................
156
Engine Oil Dipstick .......................................
157
Engine Oil Check ..........................................
157
Changing the Engine Air Filter ................
158
Engine Coolant Check ...............................
158
Automatic Transmission Fluid Check ........................................................................\
.
162
Brake Fluid Check ........................................
162
Power Steering Fluid Check .....................
163
Changing the 12V Battery .........................
164
Adjusting the Headlamps ........................
166
Washer Fluid Check ....................................
167
Fuel Filter ........................................................
167
Checking the Wiper Blades ......................
167
Changing the Wiper Blades ....................
168
Changing a Bulb ..........................................
168
3
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Table of Contents

PRINCIPLE OF OPERATION
WARNING: Airbags do not inflate
slowly or gently, and the risk of injury
from a deploying airbag is the greatest
close to the trim covering the airbag
module. WARNING:
All occupants of your
vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death. WARNING: Always use appropriate
child restraints. Failure to follow this
could seriously increase the risk of injury
or death. WARNING:
Never place your arm
over the airbag module as a deploying
airbag can result in serious arm fractures
or other injuries. WARNING: Airbags can kill or injure
a child in a child restraint. Never place a
rear-facing child restraint in front of an
active airbag. WARNING:
Do not attempt to
service, repair, or modify the airbag
supplemental restraint systems or its
fuses as you could be seriously injured
or killed. Contact your authorized dealer
as soon as possible. WARNING:
Several airbag system
components get hot after inflation. To
reduce the risk of injury, do not touch
them after inflation. WARNING:
If the airbag has
deployed, the airbag will not function
again and must be replaced
immediately. If the airbag is not replaced,
the unrepaired area will increase the risk
of injury in a crash.
The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and
right front passenger from certain upper
body injuries. Airbags do not inflate slowly;
there is a risk of injury from a deploying
airbag.
Note: You will hear a loud bang and see a
cloud of harmless powdery residue if an
airbag deploys. This is normal.
The airbags inflate and deflate rapidly
upon activation. After airbag deployment,
it is normal to notice a smoke-like, powdery
residue or smell the burnt propellant. This
may consist of cornstarch, talcum powder
(to lubricate the bag) or sodium
compounds (for example, baking soda)
that result from the combustion process
that inflates the airbag. Small amounts of
sodium hydroxide may be present which
may irritate the skin and eyes, but none of
the residue is toxic.
Though the system is designed to help
reduce serious injuries, contact with a
deploying airbag may also cause abrasions
or swelling. Temporary hearing loss is also
a possibility as a result of the noise
associated with a deploying airbag.
Because airbags must inflate rapidly and
with considerable force, there is the risk of
death or serious injuries such as fractures,
facial and eye injuries or internal injuries,
particularly to occupants who are not
36
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Supplementary Restraints System

If the airbag readiness light is lit, do the
following:
The driver and adult passenger should
check for objects interfering with the seat.
If there are objects interfering with the seat,
take the following steps to remove the
obstruction:
•
Pull the vehicle over.
• Switch the ignition off.
• Driver and adult passenger should
check for any objects interfering with
the seat.
• Remove the obstruction(s) (if found).
• Restart the vehicle.
• Wait at least two minutes and verify
that the airbag readiness light is no
longer illuminated.
• If the airbag readiness light remains
illuminated, this may or may not be a
problem due to the front passenger
sensing system.
Do not attempt to repair or service the
system. Take your vehicle immediately to
an authorized dealer.
If it is necessary to modify an advanced
front airbag system to accommodate a
person with disabilities, contact the Ford
GT Concierge.
SIDE AIRBAGS WARNING: To reduce risk of injury,
do not obstruct or place objects in the
deployment path of the airbag. WARNING:
Do not lean your head
on the door. The side airbag could injure
you as it deploys from the B-pillar. WARNING:
Do not attempt to
service, repair, or modify the airbag
supplemental restraint systems or its
fuses on a vehicle containing air bags as
you could be seriously injured or killed.
Contact your authorized dealer as soon
as possible. WARNING:
If the side airbag has
deployed, the airbag will not function
again. The side airbag system (including
the seat) must be inspected as soon as
possible. If the airbag is not replaced, the
unrepaired area will increase the risk of
injury in a crash.
The side airbags are near the B-pillar. In
certain sideways crashes, the airbag on the
side affected by the crash will be inflated.
The airbag was designed to inflate
between the door panel and occupant to
further enhance the protection provided
occupants in side impact crashes.
The system consists of the following:
• An embossed side panel indicating that
side airbags are on your vehicle.
• Side airbags near the B-pillar.
• Front passenger sensing system. ·Crash sensors and monitoring
system with readiness indicator.
See Crash Sensors and Airbag
Indicator
(page 41).
Note: The passenger sensing system will
deactivate the passenger side airbag (near
the B-pillar) if it detects an empty,
unbuckled passenger seat.
40
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Supplementary Restraints SystemE67017

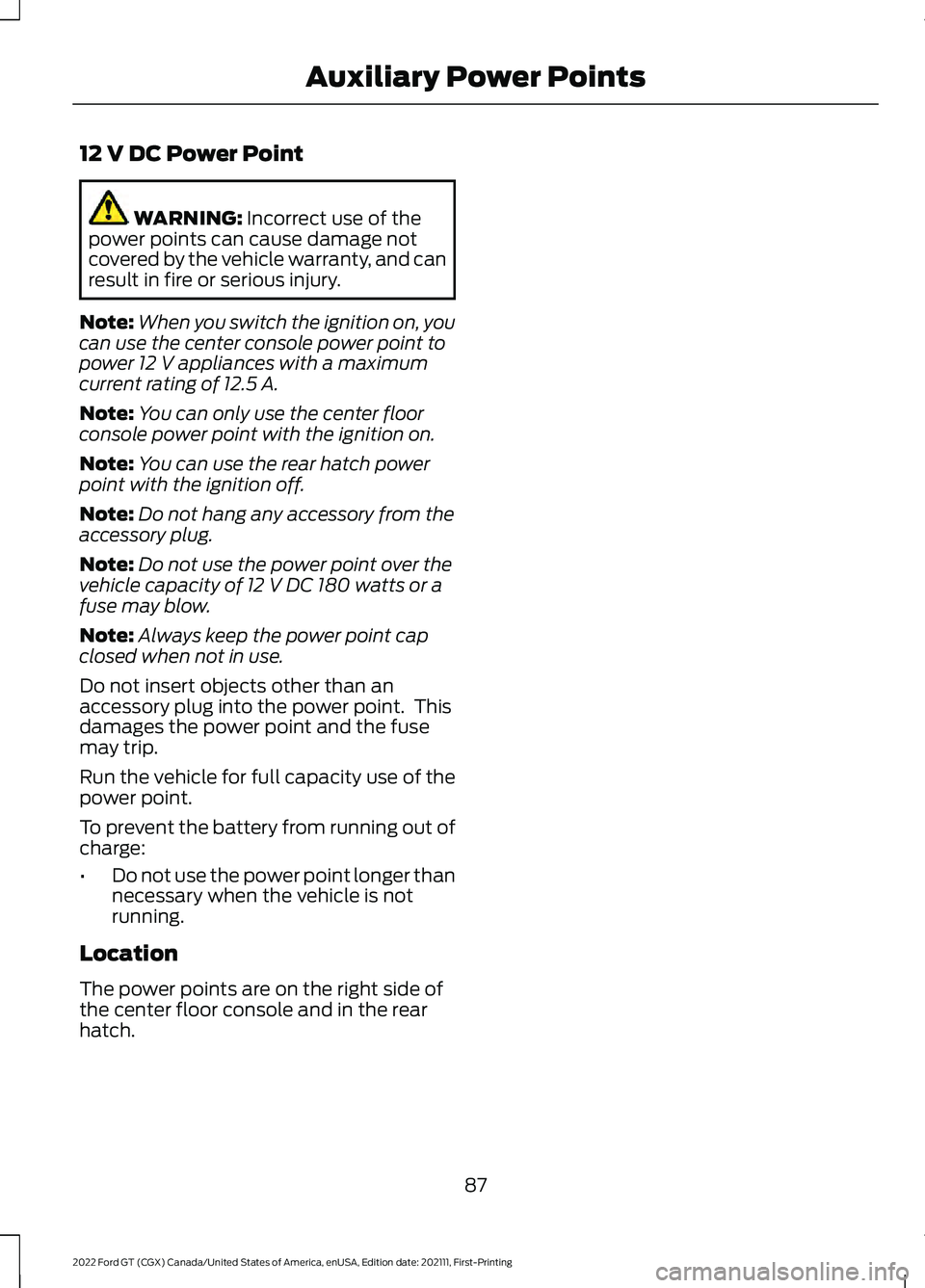

12 V DC Power Point
WARNING: Incorrect use of the
power points can cause damage not
covered by the vehicle warranty, and can
result in fire or serious injury.
Note: When you switch the ignition on, you
can use the center console power point to
power
12 V appliances with a maximum
current rating of 12.5 A.
Note: You can only use the center floor
console power point with the ignition on.
Note: You can use the rear hatch power
point with the ignition off.
Note: Do not hang any accessory from the
accessory plug.
Note: Do not use the power point over the
vehicle capacity of
12 V DC 180 watts or a
fuse may blow.
Note: Always keep the power point cap
closed when not in use.
Do not insert objects other than an
accessory plug into the power point. This
damages the power point and the fuse
may trip.
Run the vehicle for full capacity use of the
power point.
To prevent the battery from running out of
charge:
• Do not use the power point longer than
necessary when the vehicle is not
running.
Location
The power points are on the right side of
the center floor console and in the rear
hatch.
87
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Auxiliary Power Points

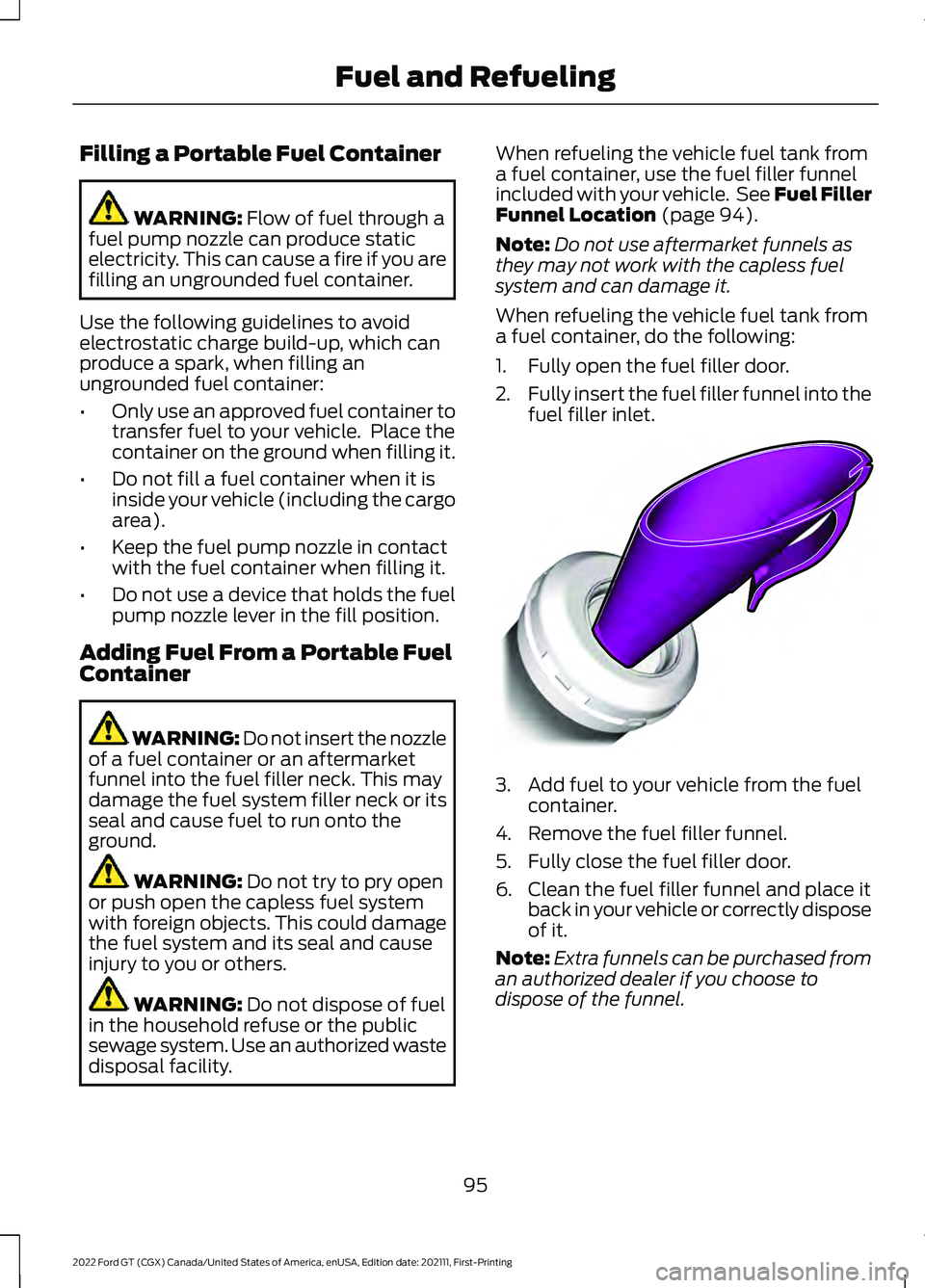

Filling a Portable Fuel Container
WARNING: Flow of fuel through a
fuel pump nozzle can produce static
electricity. This can cause a fire if you are
filling an ungrounded fuel container.
Use the following guidelines to avoid
electrostatic charge build-up, which can
produce a spark, when filling an
ungrounded fuel container:
• Only use an approved fuel container to
transfer fuel to your vehicle. Place the
container on the ground when filling it.
• Do not fill a fuel container when it is
inside your vehicle (including the cargo
area).
• Keep the fuel pump nozzle in contact
with the fuel container when filling it.
• Do not use a device that holds the fuel
pump nozzle lever in the fill position.
Adding Fuel From a Portable Fuel
Container WARNING: Do not insert the nozzle
of a fuel container or an aftermarket
funnel into the fuel filler neck. This may
damage the fuel system filler neck or its
seal and cause fuel to run onto the
ground. WARNING:
Do not try to pry open
or push open the capless fuel system
with foreign objects. This could damage
the fuel system and its seal and cause
injury to you or others. WARNING:
Do not dispose of fuel
in the household refuse or the public
sewage system. Use an authorized waste
disposal facility. When refueling the vehicle fuel tank from
a fuel container, use the fuel filler funnel
included with your vehicle. See Fuel Filler
Funnel Location
(page 94).
Note: Do not use aftermarket funnels as
they may not work with the capless fuel
system and can damage it.
When refueling the vehicle fuel tank from
a fuel container, do the following:
1. Fully open the fuel filler door.
2. Fully insert the fuel filler funnel into the
fuel filler inlet. 3. Add fuel to your vehicle from the fuel
container.
4. Remove the fuel filler funnel.
5. Fully close the fuel filler door.
6. Clean the fuel filler funnel and place it back in your vehicle or correctly dispose
of it.
Note: Extra funnels can be purchased from
an authorized dealer if you choose to
dispose of the funnel.
95
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuel and RefuelingE157452

Brake-Shift Interlock
WARNING: When doing this
procedure, you need to take the
transmission out of park (P) which
means your vehicle can roll freely. To
avoid unwanted vehicle movement,
always fully apply the parking brake prior
to doing this procedure. Use wheels
chocks if appropriate. WARNING:
If the parking brake is
fully released, but the brake warning
lamp remains illuminated, the brakes
may not be working properly. Have your
vehicle checked as soon as possible.
Note: You should only use this procedure
in the event that your vehicle is disabled and
you cannot start the engine in order to shift
into Neutral (N) to move it. Use the provided
Transmission Park Override tool to release
the transmission park mechanism and allow
the rear tires to roll freely.
Note: See your authorized dealer as soon
as this procedure is used.
Note: Do not drive your vehicle until you
verify that the brake lamps are working.
Your vehicle is equipped with a brake-shift
interlock feature that prevents moving the
selector from park (P) when the ignition is
in the on position and the brake pedal is
not pressed.
If you cannot move the selector out of park
(P) position with the ignition in the on
position and the brake pedal pressed, a
malfunction may have occurred. It is
possible that a fuse has blown or your
vehicle ’s brake lamps are not operating
properly.
See Fuse Specification Chart
(page 143). If the fuse is good and the brake lamps are
functioning, then there may be a fault in
the system. To roll the car or to allow the
vehicle to be transported for repair, use the
following procedure to place the
transmission into neutral (N) manually. To
place the transmission into neutral (N) in
the event of a battery failure, or other
electrical fault that prevents the shifter
from working, use this procedure.
Manually Placing the Transmission in
Park Override
The transmission park override tool is in
the storage compartment under the rear
hatch.
It requires two people to perform this
procedure properly. One person seated in
the driver's seat, that must remain in
control of vehicle steering, brakes and
parking brake at all times. For instructions
on releasing the parking brake in the event
of a loss of vehicle battery power.
See
Electric Parking Brake (page 109). If you
do not have battery power, chock the
wheels so the car does not roll forward or
backward when not intended. 1.
Remove the plug from the bottom right
side of the storage compartment to
access the park override shaft.
106
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing TransmissionE241995

FUSE SPECIFICATION CHART
Front Power Distribution Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The front power distribution box is under
the front hood. See
Under Hood
Overview (page 156). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. There
are also high-current fuses next to the front
power distribution box. If you need to
replace these high-current fuses, see an
authorized dealer.
If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 164
). Protected Components
Fuse
Rating
Fuse or
Relay
Number
Vehicle dynamics module relay.
—
F1
Radiator fan 1 relay.
—
F2
Heating ventilation and air conditioning blower relay.
—
F3
143
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE235532

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Wipers relay.
—
F4
Radiator fan 2 relay.
—
F5
Horn relay.
—
F6
Body control module.
50 A 1
F7
Shunt.
—
F8
Vacuum pump.
40 A 1
F9
Wiper.
25 A 1
F10
Radiator fan 2.
40 A 1
F11
Body control module.
50 A 1
F12
Body control module.
60 A 1
F13
Radiator fan 1.
40 A 1
F14
Heating ventilation and air conditioning blower.
40 A 1
F15
Anti-lock brake system.
40 A 1
F16
Anti-lock brake system.
40 A 1
F17
Body control module.
30 A 1
F18
Vacuum pump relay.
—
F19
Vehicle dynamics module.
5 A 2
F20
Left-hand headlamp.
20 A 2
F21
Anti-lock brake system.
5 A 2
F22
Horn.
20 A 2
F23
144
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Electronic door system.
20 A 2
F24
Right-hand headlamp.
20 A 2
F25
1 J-case fuse.
2 Mini fuse.
Rear Power Distribution Box 1
The rear power distribution box is in the
engine compartment. See Under Hood
Overview (page 156). It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right-hand side of the engine
compartment behind an access door in the
engine surround panel. If you need to
replace these high-current fuses, see an
authorized dealer. If you disconnect and reconnect the
battery, you need to reset some features.
See Changing the 12V Battery (page 164
).
145
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing FusesE235533

Protected Components
Fuse
Rating
Fuse or
Relay
Number
Vehicle power 3.
15 A 1
F1
Mass airflow.
5 A 1
F2
Engine control module.
10 A 1
F3
Transmission control module.
5 A 1
F4
Vehicle power 1.
20 A 1
F5
Keep alive power.
5 A 1
F6
Not used.
—
F7
Rear video camera.
5 A 1
F8
Not used.
—
F9
Alternator sense.
10 A 1
F10
Air conditioner.
10 A 1
F11
Damper.
10 A 1
F12
Vehicle power 4.
20 A 1
F13
Not used.
—
F14
Not used.
—
F15
Engine control module.
5 A 1
F16
Run/start.
Vehicle power 2.
20 A 1
F17
Injector.
15 A 1
F18
Fuel pump 1.
30 A 2
F19
Fuel pump 2.
30 A 2
F20
146
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Fuses
