technical specifications FORD GT 2022 Owners Manual

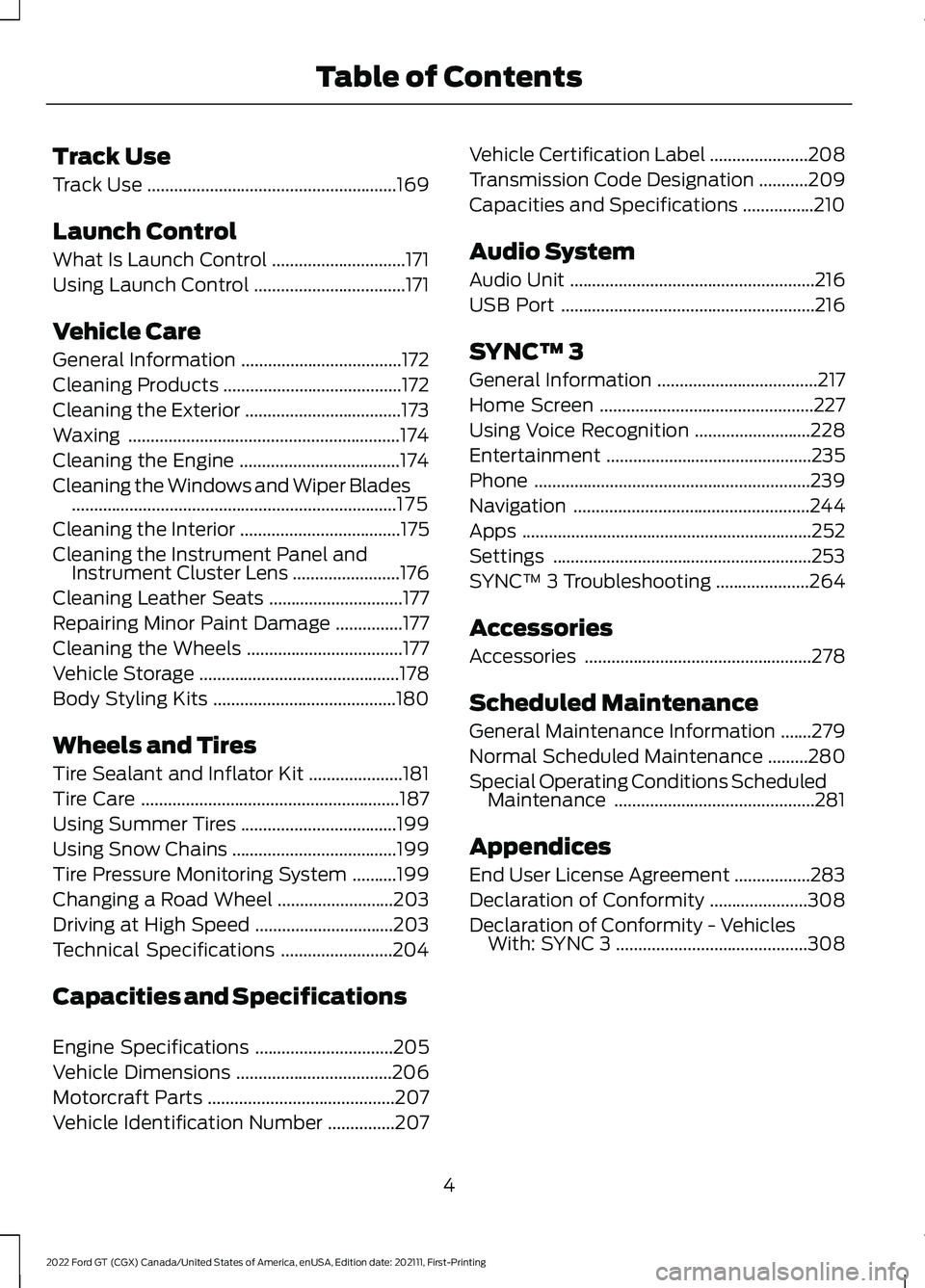

Track Use
Track Use
........................................................169
Launch Control
What Is Launch Control ..............................
171
Using Launch Control ..................................
171
Vehicle Care
General Information ....................................
172
Cleaning Products ........................................
172
Cleaning the Exterior ...................................
173
Waxing .............................................................
174
Cleaning the Engine ....................................
174
Cleaning the Windows and Wiper Blades ........................................................................\
.
175
Cleaning the Interior ....................................
175
Cleaning the Instrument Panel and Instrument Cluster Lens ........................
176
Cleaning Leather Seats ..............................
177
Repairing Minor Paint Damage ...............
177
Cleaning the Wheels ...................................
177
Vehicle Storage .............................................
178
Body Styling Kits .........................................
180
Wheels and Tires
Tire Sealant and Inflator Kit .....................
181
Tire Care ..........................................................
187
Using Summer Tires ...................................
199
Using Snow Chains .....................................
199
Tire Pressure Monitoring System ..........
199
Changing a Road Wheel ..........................
203
Driving at High Speed ...............................
203
Technical Specifications .........................
204
Capacities and Specifications
Engine Specifications ...............................
205
Vehicle Dimensions ...................................
206
Motorcraft Parts ..........................................
207
Vehicle Identification Number ...............
207Vehicle Certification Label
......................
208
Transmission Code Designation ...........
209
Capacities and Specifications ................
210
Audio System
Audio Unit .......................................................
216
USB Port .........................................................
216
SYNC™ 3
General Information ....................................
217
Home Screen ................................................
227
Using Voice Recognition ..........................
228
Entertainment ..............................................
235
Phone ..............................................................
239
Navigation .....................................................
244
Apps .................................................................
252
Settings ..........................................................
253
SYNC™ 3 Troubleshooting .....................
264
Accessories
Accessories ...................................................
278
Scheduled Maintenance
General Maintenance Information .......
279
Normal Scheduled Maintenance .........
280
Special Operating Conditions Scheduled Maintenance .............................................
281
Appendices
End User License Agreement .................
283
Declaration of Conformity ......................
308
Declaration of Conformity - Vehicles With: SYNC 3 ...........................................
308
4
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Table of Contents

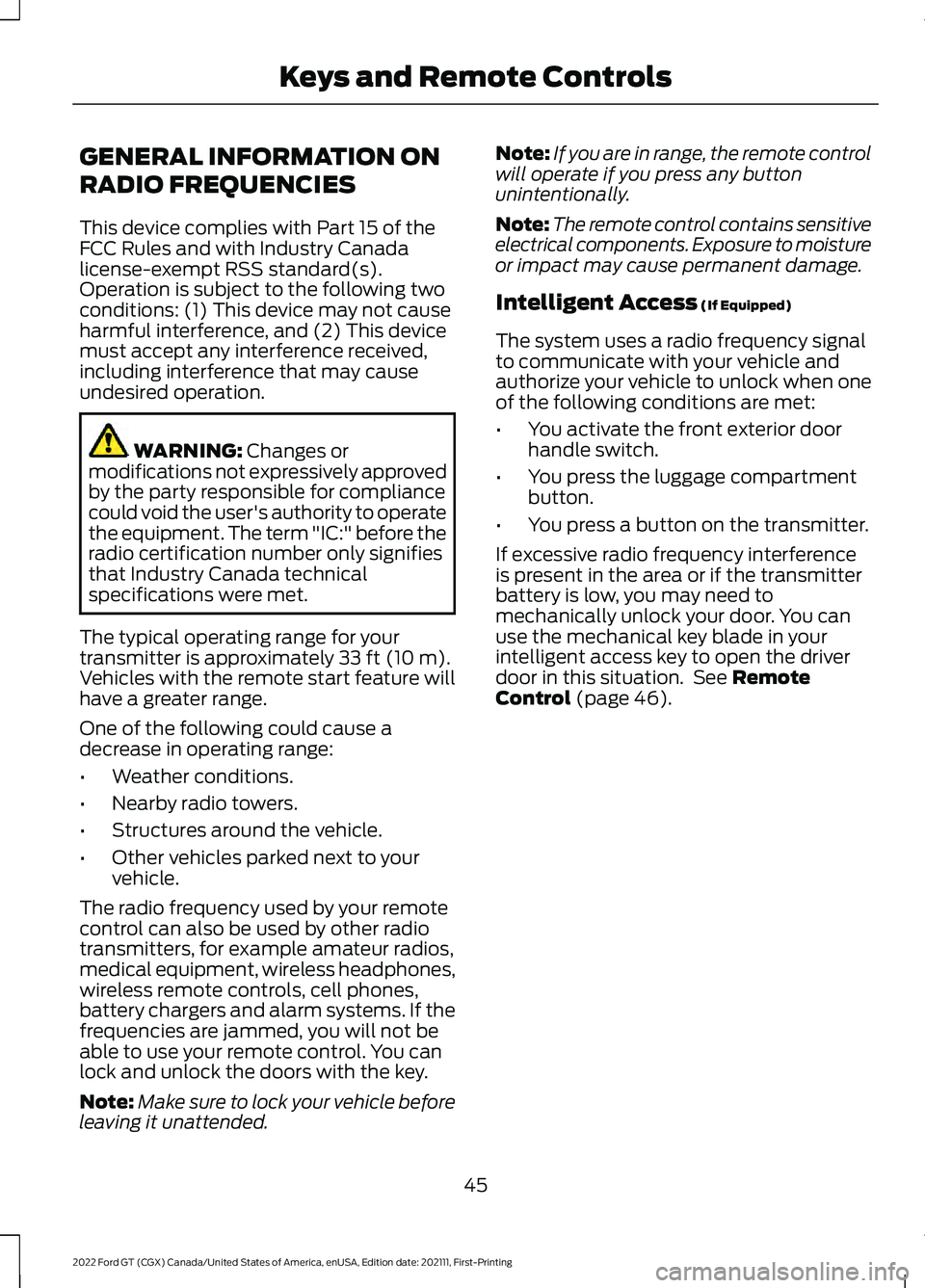

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.
One of the following could cause a
decrease in operating range:
• Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended. Note:
If you are in range, the remote control
will operate if you press any button
unintentionally.
Note: The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.
Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 46).
45
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Keys and Remote Controls

WARNING: If the tire pressure
monitor sensor becomes damaged it
may not function. Each tire should be checked
monthly when cold and inflated
to the inflation pressure
recommended by the vehicle manufacturer
on the vehicle placard or tire inflation
pressure label. (If your vehicle has tires of
a different size than the size indicated on
the vehicle placard or tire inflation pressure
label, you should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the
vehicle ’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver ’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale. Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale flashes for
approximately one minute and then
remains illuminated. This sequence
continues upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
This device complies with Part 15 of the
FCC Rules and with Licence exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
•
This device may not cause harmful
interference, and
• This device must accept any
interference received, including
interference that may cause undesired
operation. WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
200
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Wheels and Tires

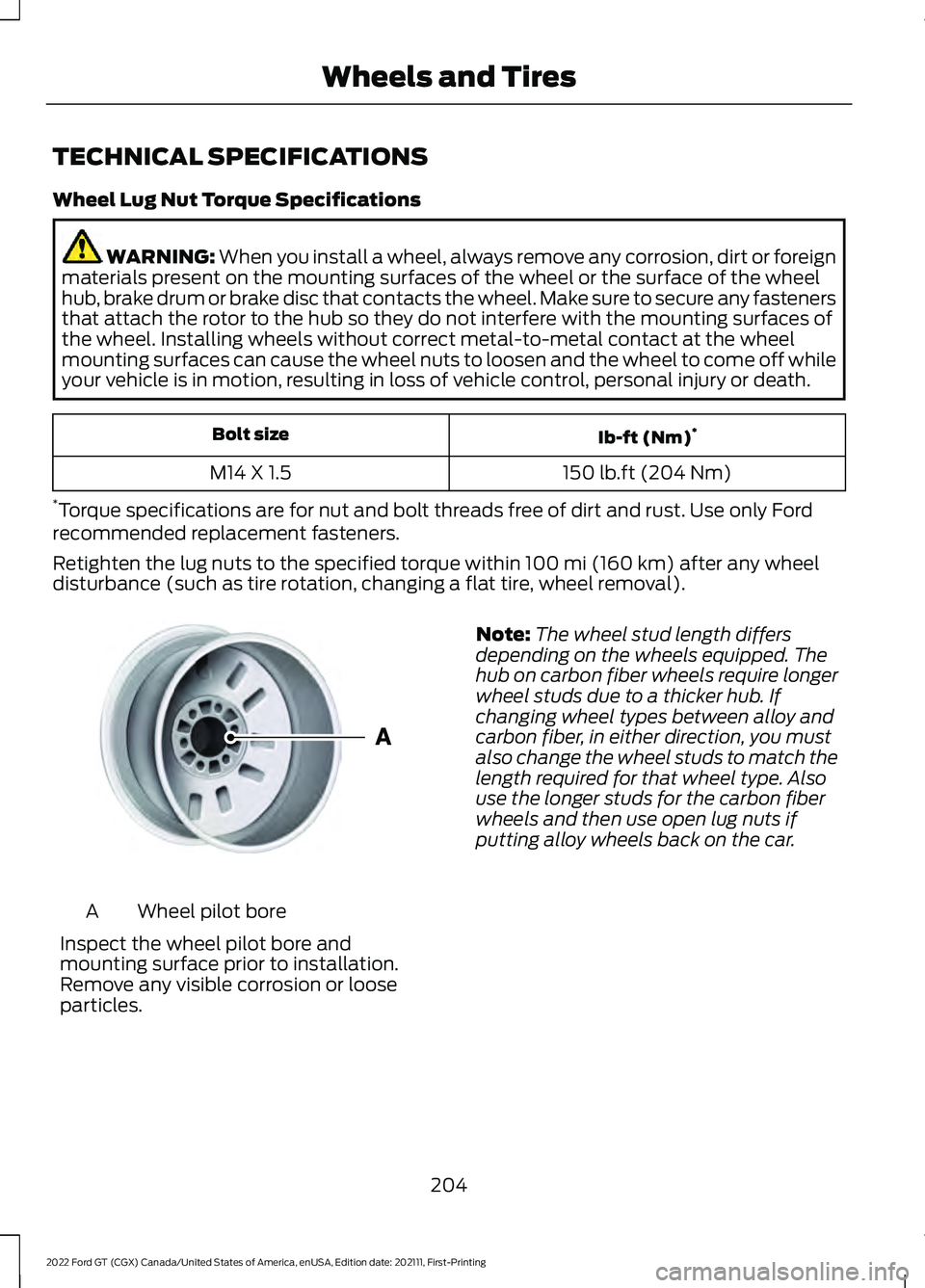

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING: When you install a wheel, always remove any corrosion, dirt or foreign
materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death. Ib-ft (Nm)
*
Bolt size
150 lb.ft (204 Nm)
M14 X 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 mi (160 km) after any wheel
disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles. Note:
The wheel stud length differs
depending on the wheels equipped. The
hub on carbon fiber wheels require longer
wheel studs due to a thicker hub. If
changing wheel types between alloy and
carbon fiber, in either direction, you must
also change the wheel studs to match the
length required for that wheel type. Also
use the longer studs for the carbon fiber
wheels and then use open lug nuts if
putting alloy wheels back on the car.
204
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Wheels and TiresE145950

Operating at High Speeds and
Track Days
Your vehicle is capable of sustained high
speeds and track day driving. Your GT has
electronic controls to reduce power and
limit the RPM to reduce powertrain
temperatures if operating temperatures
are exceeded.
Before Operating Your Vehicle at High
Speeds:
•
Verify your tires have the correct
pressures See Technical
Specifications (page 204).
• Inspect wheels and tires for wear and
damage. Replace any damaged wheels
and tires.
• Check and set lug nut torque. See
Technical Specifications (page 204).
• Verify fluid levels for oil, coolant, brake,
and hydraulic fluid. See Maintenance
(page
154).
• Change the oil and filter prior to use on
the track.
After Operating Your vehicle at High
Speeds and Track Day Driving, Do the
Following:
• Set tire pressures to specification.
• Check and set lug nut torque. See
Technical Specifications (page 204).
• Check all fluid levels.
• If you drive your car for an extended
period of time at high speed or on the
track for an extended time, change the
oil and filter.
282
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Scheduled Maintenance

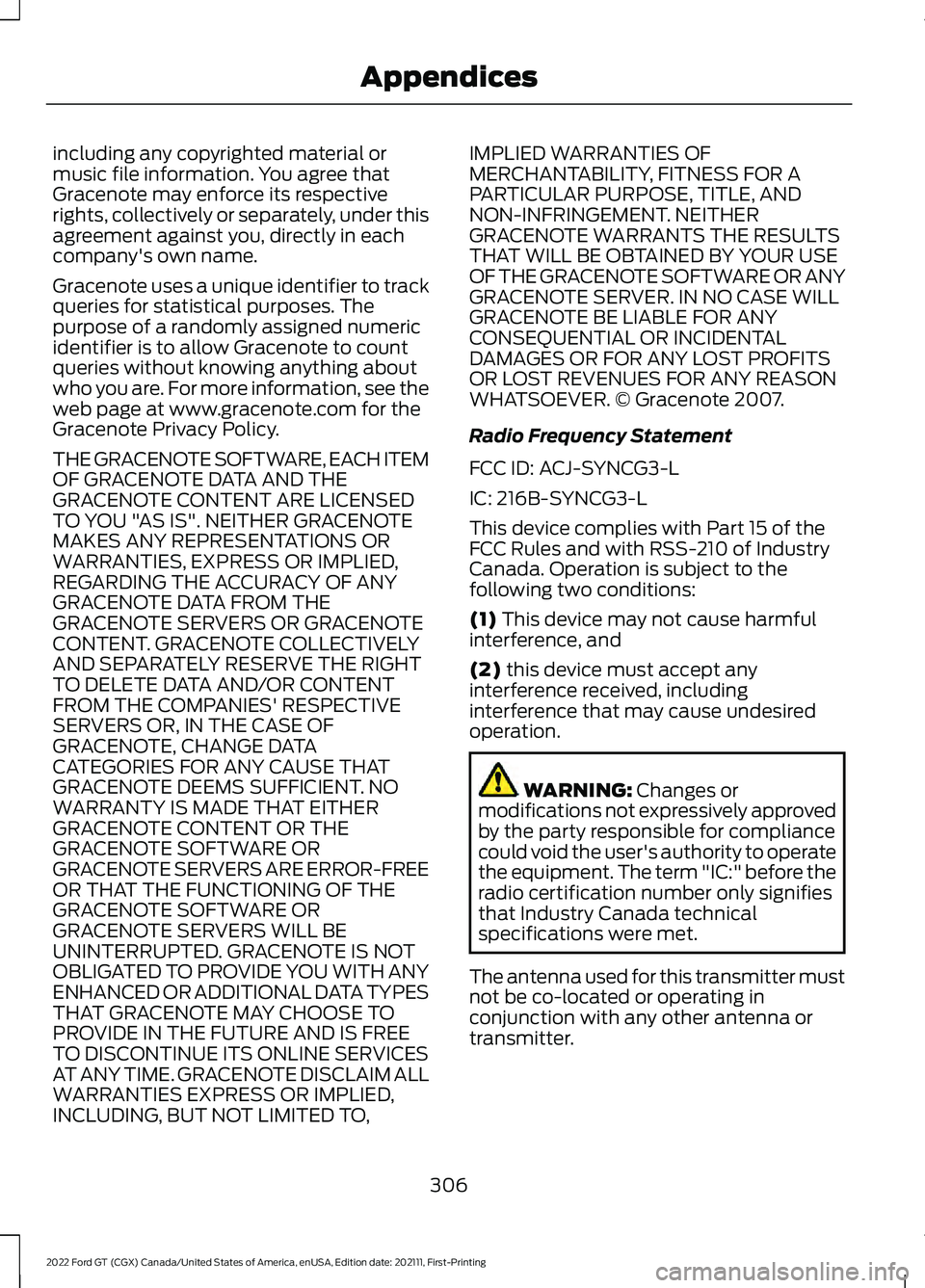

including any copyrighted material or
music file information. You agree that
Gracenote may enforce its respective
rights, collectively or separately, under this
agreement against you, directly in each
company's own name.
Gracenote uses a unique identifier to track
queries for statistical purposes. The
purpose of a randomly assigned numeric
identifier is to allow Gracenote to count
queries without knowing anything about
who you are. For more information, see the
web page at www.gracenote.com for the
Gracenote Privacy Policy.
THE GRACENOTE SOFTWARE, EACH ITEM
OF GRACENOTE DATA AND THE
GRACENOTE CONTENT ARE LICENSED
TO YOU "AS IS". NEITHER GRACENOTE
MAKES ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED,
REGARDING THE ACCURACY OF ANY
GRACENOTE DATA FROM THE
GRACENOTE SERVERS OR GRACENOTE
CONTENT. GRACENOTE COLLECTIVELY
AND SEPARATELY RESERVE THE RIGHT
TO DELETE DATA AND/OR CONTENT
FROM THE COMPANIES' RESPECTIVE
SERVERS OR, IN THE CASE OF
GRACENOTE, CHANGE DATA
CATEGORIES FOR ANY CAUSE THAT
GRACENOTE DEEMS SUFFICIENT. NO
WARRANTY IS MADE THAT EITHER
GRACENOTE CONTENT OR THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS ARE ERROR-FREE
OR THAT THE FUNCTIONING OF THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE
TO DISCONTINUE ITS ONLINE SERVICES
AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
Radio Frequency Statement
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING:
Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
306
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Appendices

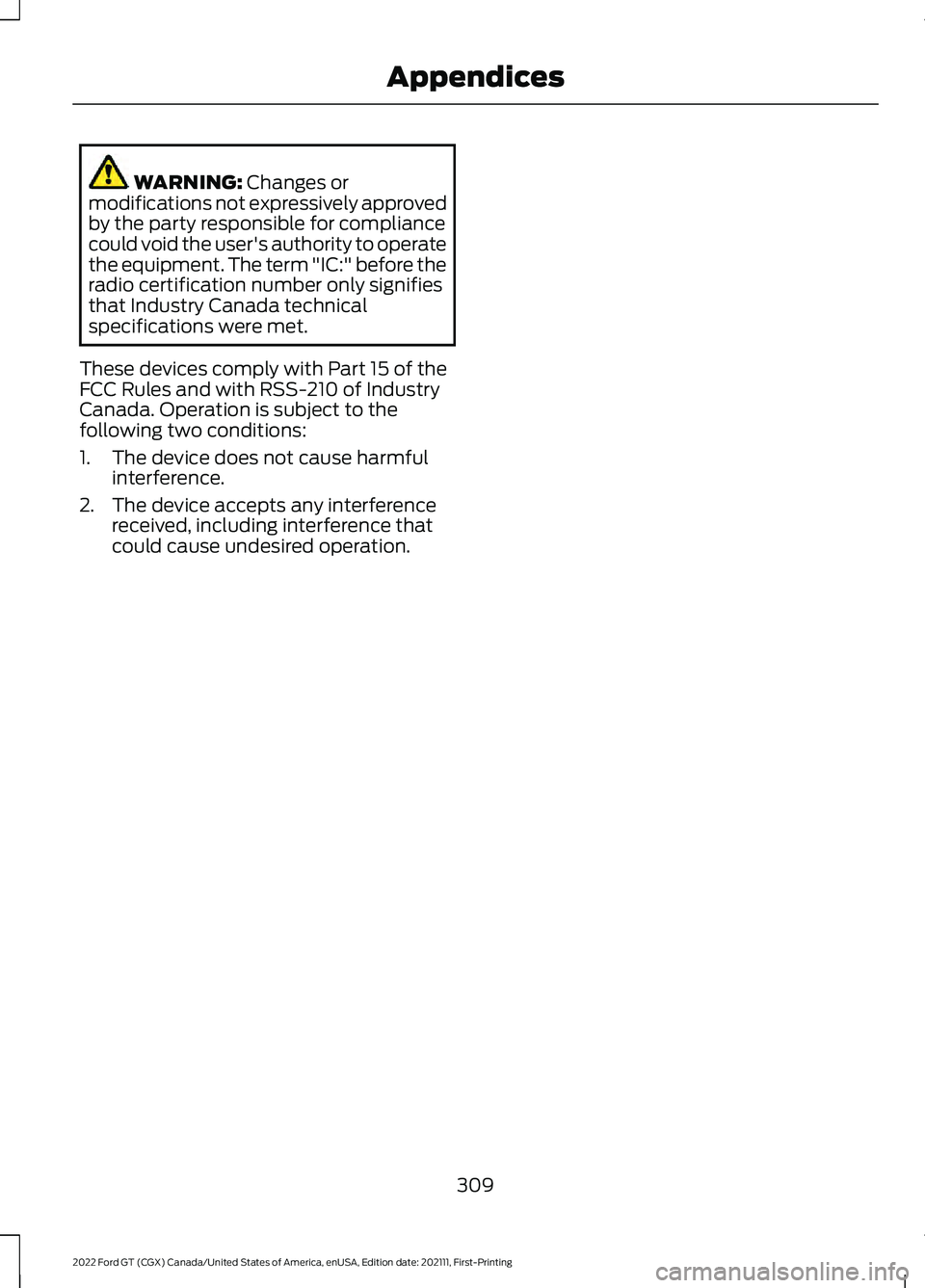

WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
These devices comply with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
1. The device does not cause harmful interference.
2. The device accepts any interference received, including interference that
could cause undesired operation.
309
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Appendices

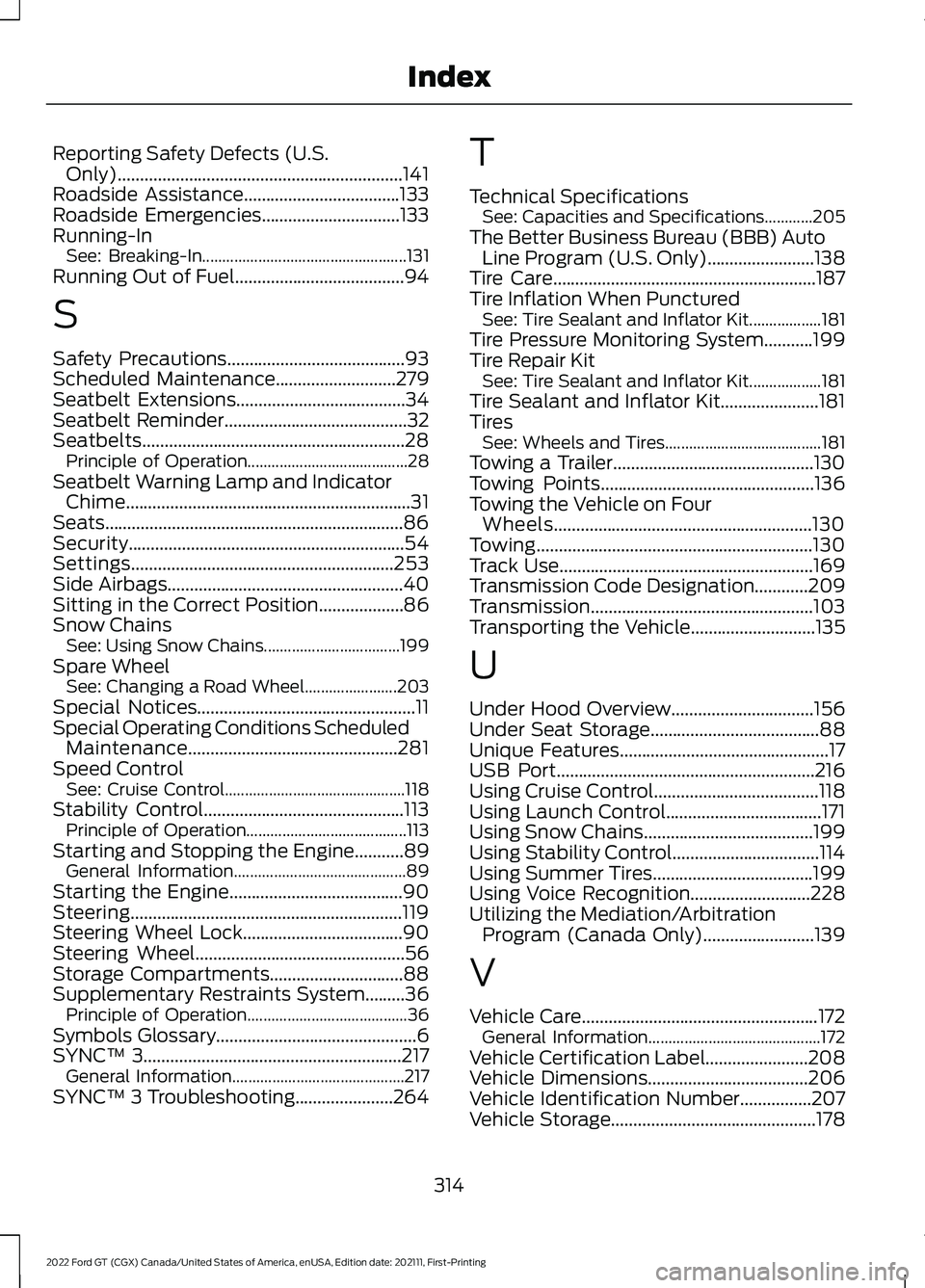

Reporting Safety Defects (U.S.
Only)................................................................141
Roadside Assistance...................................133
Roadside Emergencies...............................133
Running-In See: Breaking-In................................................... 131
Running Out of Fuel......................................94
S
Safety Precautions
........................................93
Scheduled Maintenance...........................279
Seatbelt Extensions......................................34
Seatbelt Reminder.........................................32
Seatbelts...........................................................28 Principle of Operation........................................ 28
Seatbelt Warning Lamp and Indicator Chime................................................................31
Seats...................................................................86
Security..............................................................54
Settings...........................................................253
Side Airbags
.....................................................40
Sitting in the Correct Position...................86
Snow Chains See: Using Snow Chains.................................. 199
Spare Wheel See: Changing a Road Wheel....................... 203
Special Notices
.................................................11
Special Operating Conditions Scheduled Maintenance...............................................281
Speed Control See: Cruise Control............................................. 118
Stability Control
.............................................113
Principle of Operation........................................ 113
Starting and Stopping the Engine...........89 General Information........................................... 89
Starting the Engine.......................................90
Steering.............................................................119
Steering Wheel Lock
....................................90
Steering Wheel...............................................56
Storage Compartments..............................88
Supplementary Restraints System.........36 Principle of Operation........................................ 36
Symbols Glossary
.............................................6
SYNC™ 3..........................................................217
General Information........................................... 217
SYNC™ 3 Troubleshooting......................264 T
Technical Specifications
See: Capacities and Specifications............205
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)........................138
Tire Care
...........................................................187
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................. 181
Tire Pressure Monitoring System...........199
Tire Repair Kit See: Tire Sealant and Inflator Kit.................. 181
Tire Sealant and Inflator Kit......................181
Tires See: Wheels and Tires....................................... 181
Towing a Trailer.............................................130
Towing Points
................................................136
Towing the Vehicle on Four Wheels..........................................................130
Towing..............................................................130
Track Use.........................................................169
Transmission Code Designation............209
Transmission..................................................103
Transporting the Vehicle
............................135
U
Under Hood Overview................................156
Under Seat Storage......................................88
Unique Features...............................................17
USB Port
..........................................................216
Using Cruise Control.....................................118
Using Launch Control...................................171
Using Snow Chains......................................199
Using Stability Control.................................114
Using Summer Tires....................................199
Using Voice Recognition
...........................228
Utilizing the Mediation/Arbitration Program (Canada Only).........................139
V
Vehicle Care
.....................................................172
General Information........................................... 172
Vehicle Certification Label.......................208
Vehicle Dimensions
....................................206
Vehicle Identification Number................207
Vehicle Storage..............................................178
314
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Index

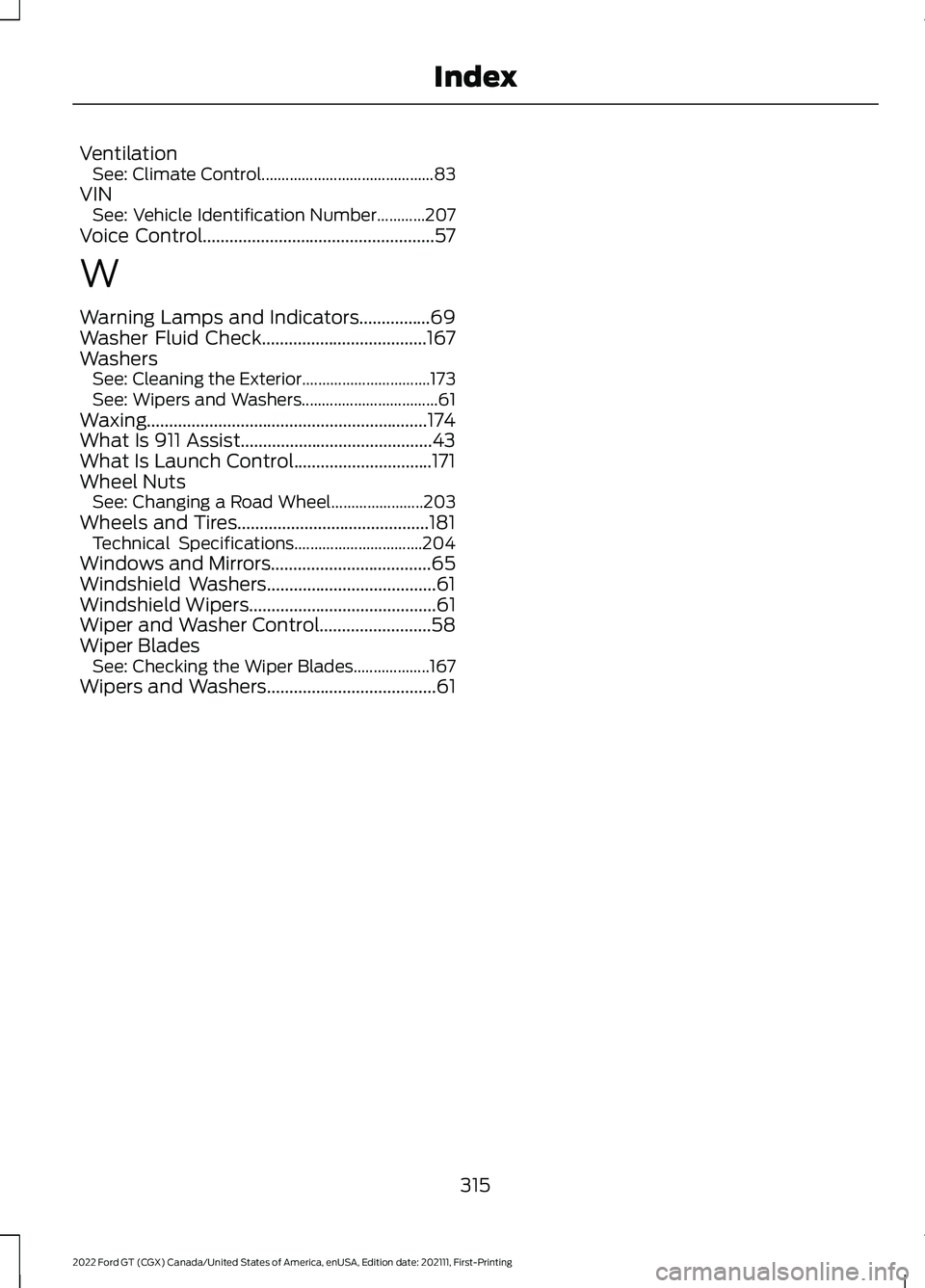

Ventilation
See: Climate Control........................................... 83
VIN See: Vehicle Identification Number............207
Voice Control....................................................57
W
Warning Lamps and Indicators................69
Washer Fluid Check.....................................167
Washers See: Cleaning the Exterior................................ 173
See: Wipers and Washers.................................. 61
Waxing...............................................................174
What Is 911 Assist...........................................43
What Is Launch Control...............................171
Wheel Nuts See: Changing a Road Wheel....................... 203
Wheels and Tires...........................................181 Technical Specifications................................ 204
Windows and Mirrors....................................65
Windshield Washers......................................61
Windshield Wipers..........................................61
Wiper and Washer Control.........................58
Wiper Blades See: Checking the Wiper Blades................... 167
Wipers and Washers
......................................61
315
2022 Ford GT (CGX) Canada/United States of America, enUSA, Edition date: 202111, First-Printing Index
