Vehicles without tyre repair kit or
run flat tyres
Your vehicle jack, wheel brace, screw-in
towing eye and wheel trim remover are
located in the spare wheel well.

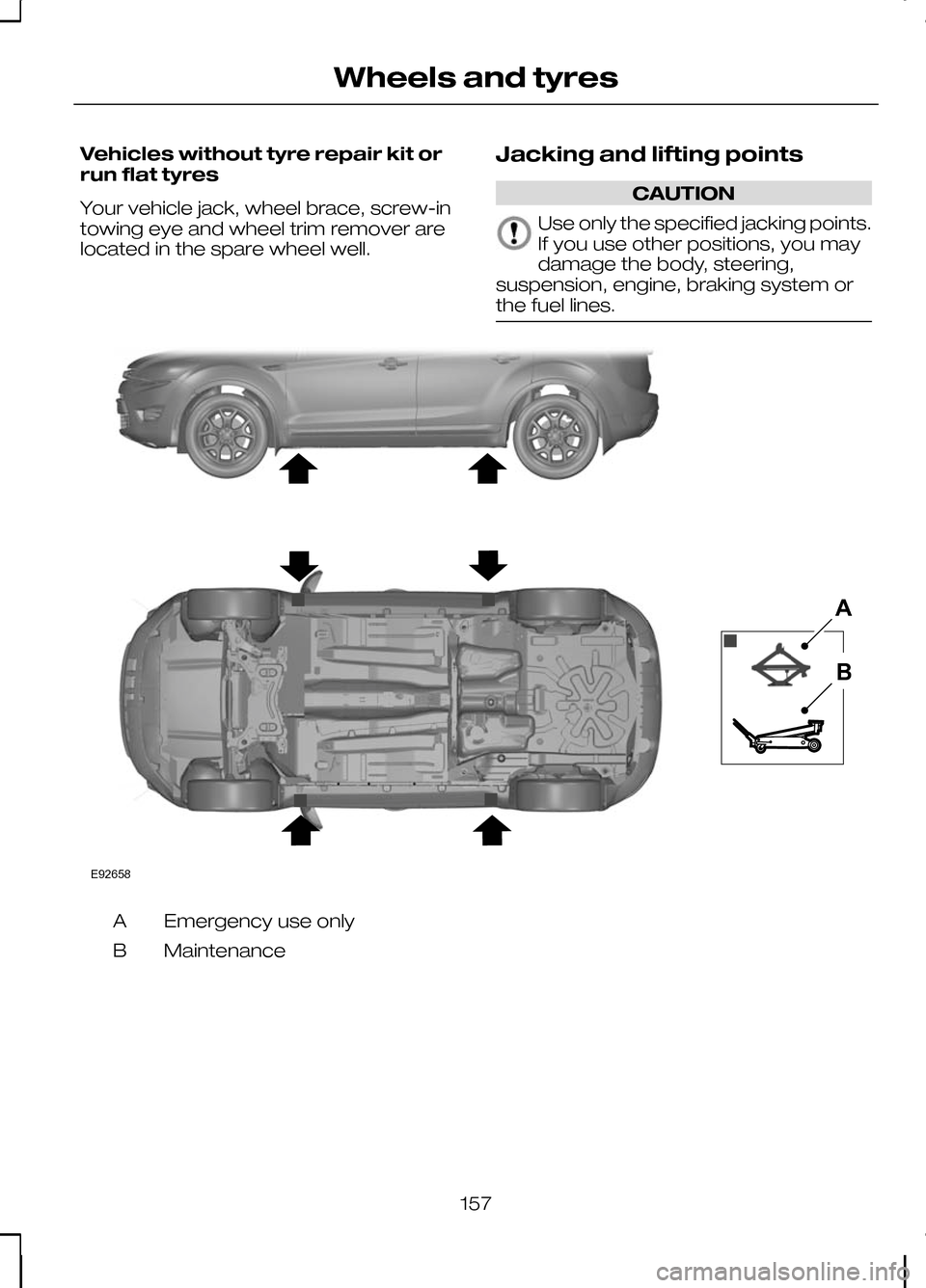

Jacking and lifting points CAUTION
Use only the specified jacking points.
If you use other positions, you may
damage the body, steering,
suspension, engine, braking system or
the fuel lines. Emergency use only
A
Maintenance
B
157
Wheels and tyresE92658AB
Page 160 of 226

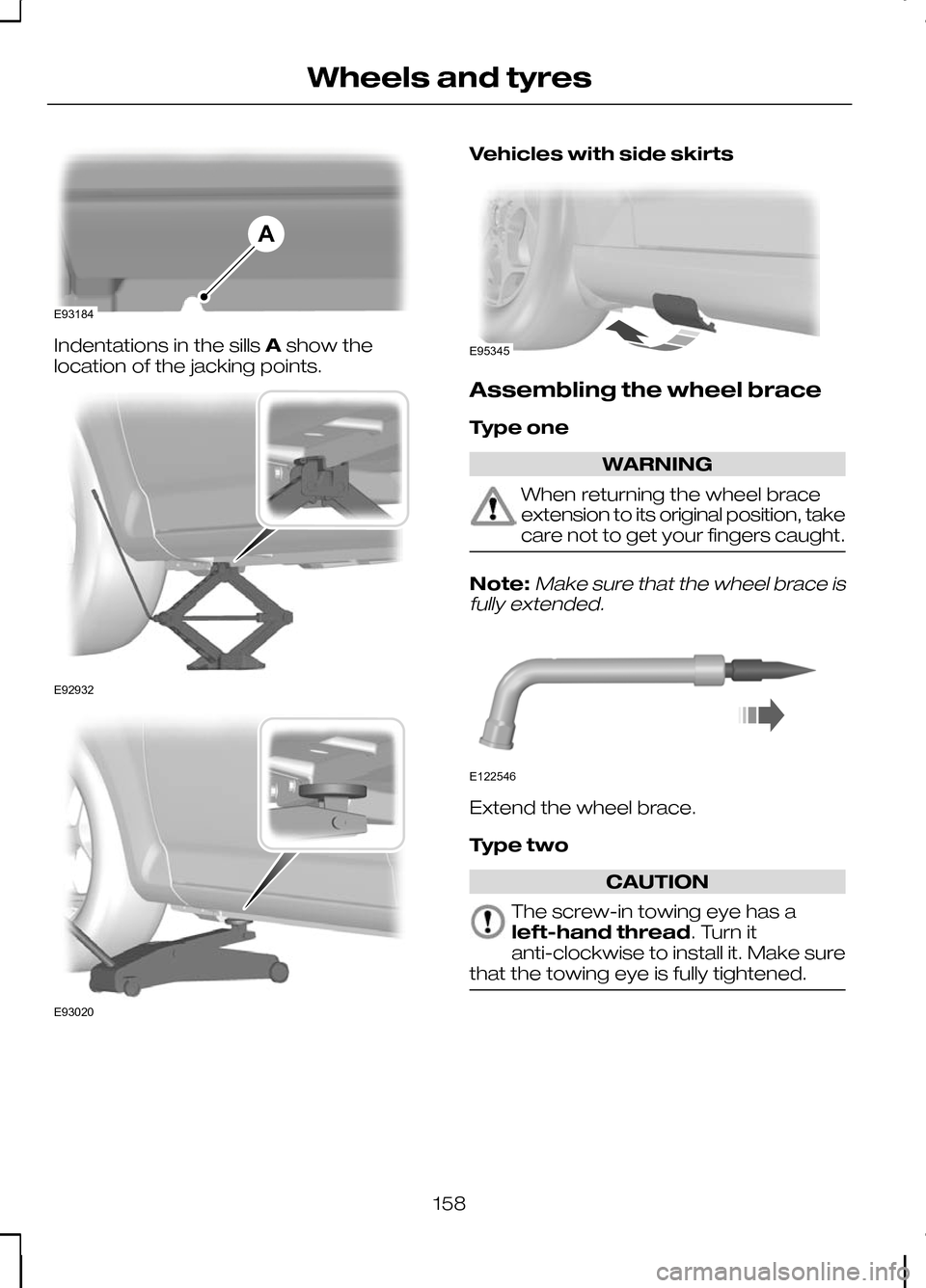

Indentations in the sills
Ashow the
location of the jacking points. Vehicles with side skirts
Assembling the wheel brace
Type one
WARNING
When returning the wheel brace
extension to its original position, take
care not to get your fingers caught.
Note:Make sure that the wheel brace is
fully extended. Extend the wheel brace.
Type two
CAUTION
The screw-in towing eye has a
left-hand thread. Turn it
anti-clockwise to install it. Make sure
that the towing eye is fully tightened. 158
Wheels and tyresE93184A E92932 E93020 E95345 E122546
Page 218 of 226
Booster cables
See: Using booster cables........................154
Booster cushions.....................................19 Booster cushion (Group 3)..........................19
Booster seat (Group 2)................................19
Brake and clutch fluid check...............149
Brakes......................................................112 Principle of operation..................................112
Bulb changing See: Changing a bulb..................................52
Bulb specification chart..........................58
