Child safety seat
Secure children that weigh between 13
and 18 kilograms in a child safety seat
(Group 1) in the rear seat.
CHILD SEAT POSITIONING
Vehicles with under floor
storage
WARNINGS
When you are using a child seat with
a support leg, make sure that you
install the foam spacer correctly
inside the storage compartment and that
you position the cover correctly. WARNINGS
If the foam spacer is damaged or
missing, remove the storage
compartment cover and extend the
leg to the base of the compartment. All vehicles
WARNING
When fitting a child seat using the
vehicle seat belts make sure the
belts are not slack.
CAUTION
When using a child seat on a rear
seat, make sure that the child seat
rests tightly against the vehicle seat.
It may be necessary to lift or remove the
head restraint. See Head restraints
(page 90). Note:When using a child seat on a front
seat, it may prove difficult to tighten the lap section of the seat belt without slackremaining. If this is the case, adjust theseatback to the fully upright position and
raise the height of the seat. See Seats
(page 90). Mass group categories
Seating positions
III
II
I
0+
0
22 - 36 kg
15 - 25 kg
9 - 18 kg
Up to 13
kg
Up to 10
kg
UF¹
UF¹
UF¹
X
X
Front passenger seat
with airbag ON
U¹
U¹
U¹
U¹
U¹
Front passenger seat
with airbag OFF
17
Child safetyE68920

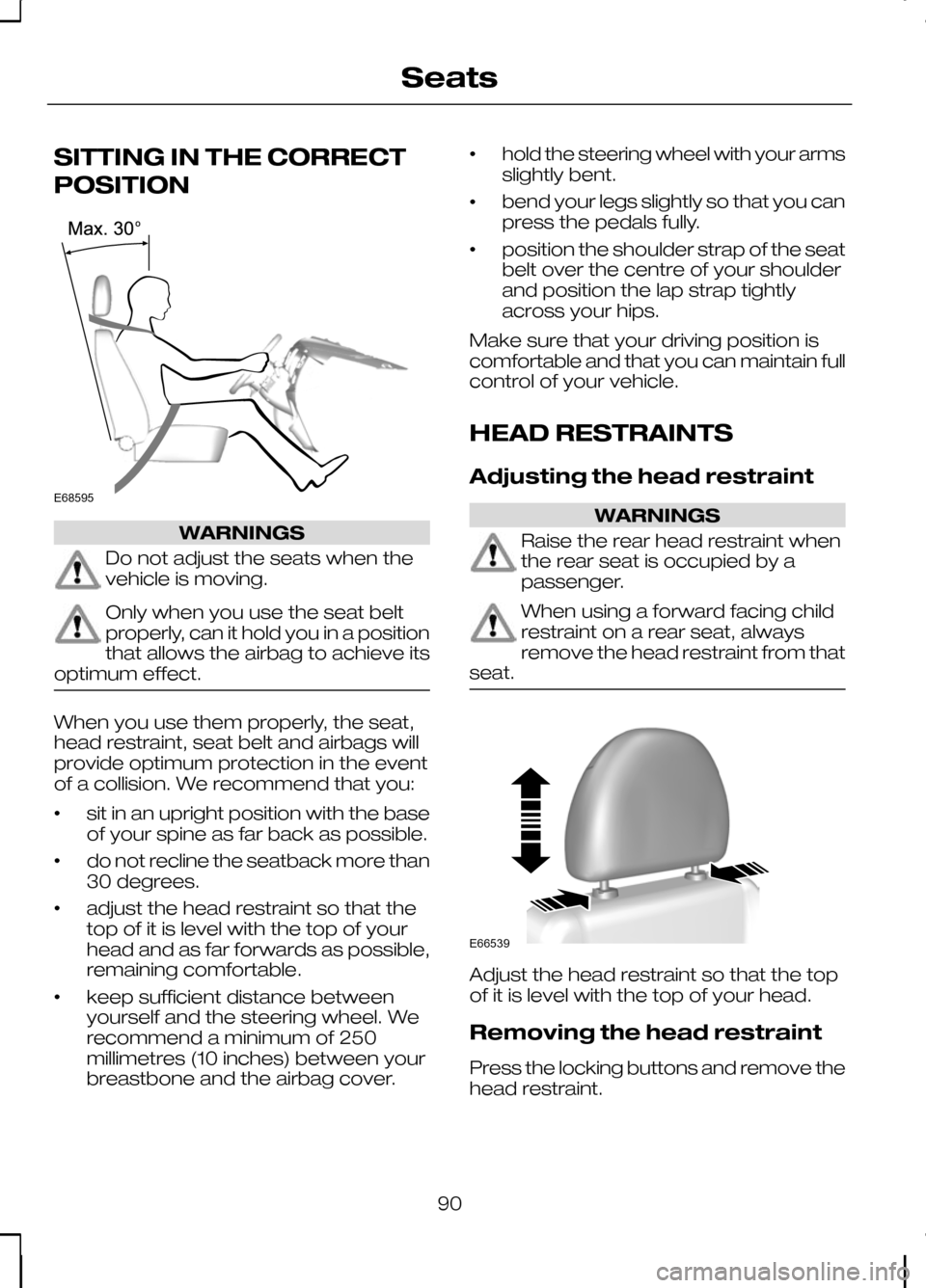

SITTING IN THE CORRECT
POSITION
WARNINGS
Do not adjust the seats when the
vehicle is moving.
Only when you use the seat belt
properly, can it hold you in a position
that allows the airbag to achieve its
optimum effect. When you use them properly, the seat,
head restraint, seat belt and airbags will
provide optimum protection in the event
of a collision. We recommend that you:
•
sit in an upright position with the base
of your spine as far back as possible.
• do not recline the seatback more than
30 degrees.
• adjust the head restraint so that the
top of it is level with the top of your
head and as far forwards as possible,
remaining comfortable.
• keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 250
millimetres (10 inches) between your
breastbone and the airbag cover. •
hold the steering wheel with your arms
slightly bent.
• bend your legs slightly so that you can
press the pedals fully.
• position the shoulder strap of the seat
belt over the centre of your shoulder
and position the lap strap tightly
across your hips.
Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.
HEAD RESTRAINTS
Adjusting the head restraint WARNINGS
Raise the rear head restraint when
the rear seat is occupied by a
passenger.
When using a forward facing child
restraint on a rear seat, always
remove the head restraint from that
seat. Adjust the head restraint so that the top
of it is level with the top of your head.
Removing the head restraint
Press the locking buttons and remove the
head restraint.
90
SeatsE68595 E66539

CAUTIONS
Do not exceed the maximum power
output. If you do, the LED will flash
twice. Remove the plug and re-insert
it. If the LED flashes 3 or 4 times, have
the system checked by a properly
trained technician.
Note:You can use the socket to power
230 volt appliances that have a maximum rating of 150 watts. STORAGE COMPARTMENTS
Front storage compartment
Note:
Avoid keeping heat-sensitive
objects and liquids in the front storage compartment.
Storage area under the rear
seats 98
Convenience featuresE98199 E99181 E99182
