Kuga 1 FORD KUGA 2011 1.G Wiring Diagram User Guide

Temperature
Code
100°C
WA
125°C
WK
150°C
WE
Wire Color Code
Color
Code
Black
BK
Brown
BN
Blue
BU
Green
GN
Gray
GY
Light green
LG
Natural
NA
Orange
OG
Pink
PK
Red
RD
Silver
SR
Purple
VT
White
WH
Yellow
YE
2011.0 Kuga 100-00-7
100-00- 7
General Information
100-00- 7
DESCRIPTION AND OPERATION

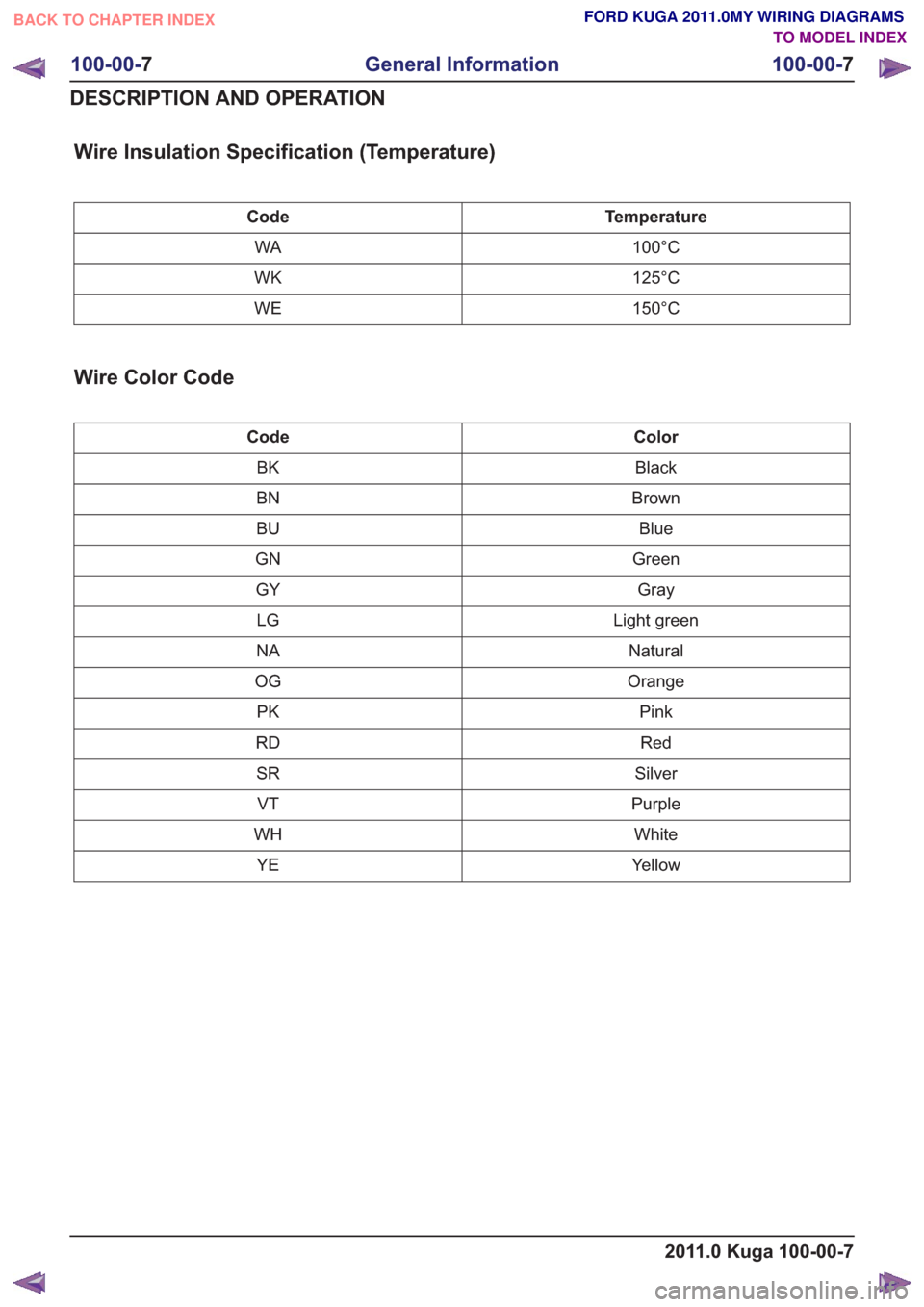

Wire Insulation Specification (Temperature)
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

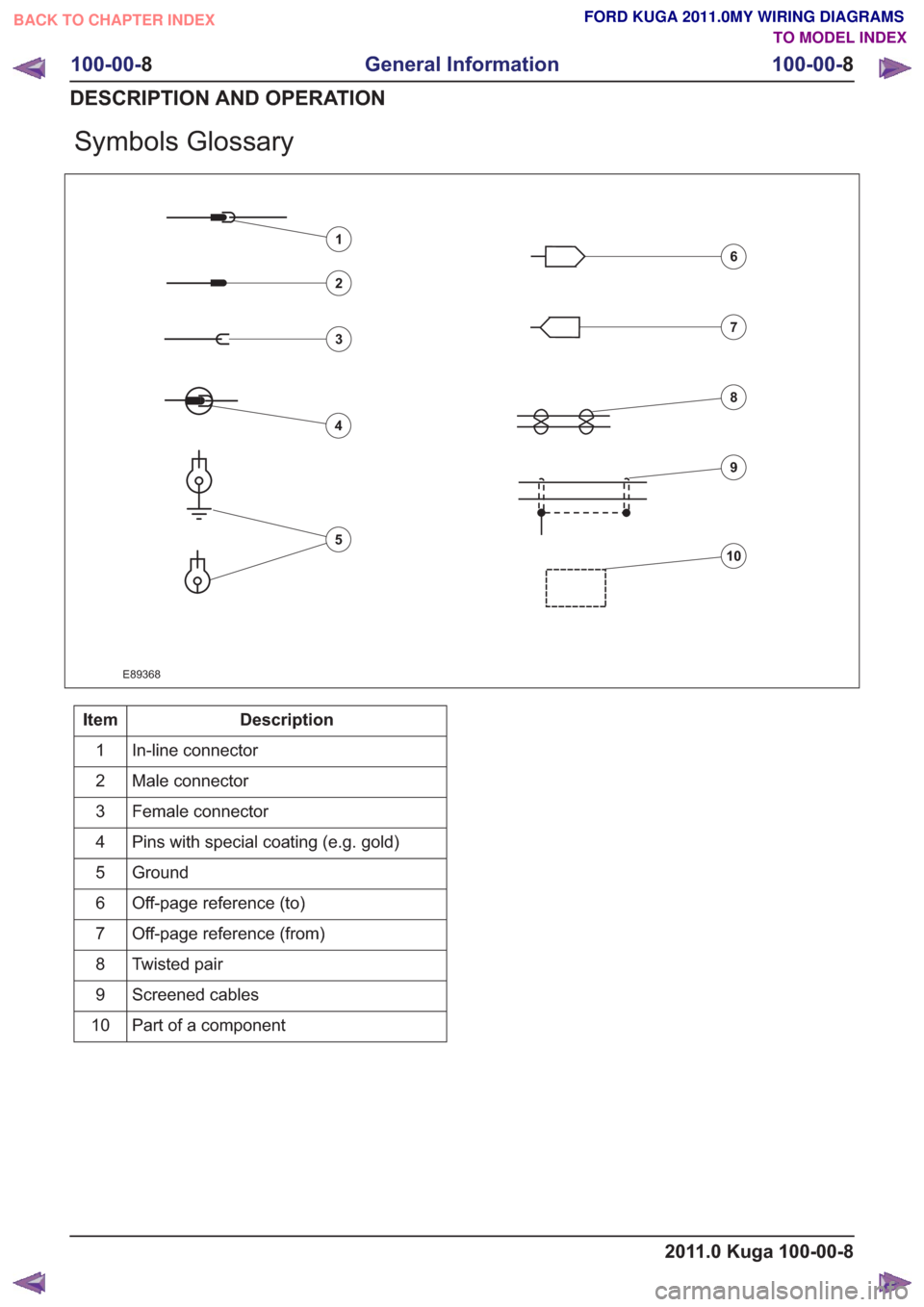

Symbols Glossary
E89368
1
2
3
4
5
6
7
8
9
10
Description
Item
In-line connector
1
Male connector
2
Female connector
3
Pins with special coating (e.g. gold)
4
Ground
5
Off-page reference (to)
6
Off-page reference (from)
7
Twisted pair
8
Screened cables
9
Part of a component
10
2011.0 Kuga 100-00-8
100-00- 8
General Information
100-00- 8
DESCRIPTION AND OPERATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

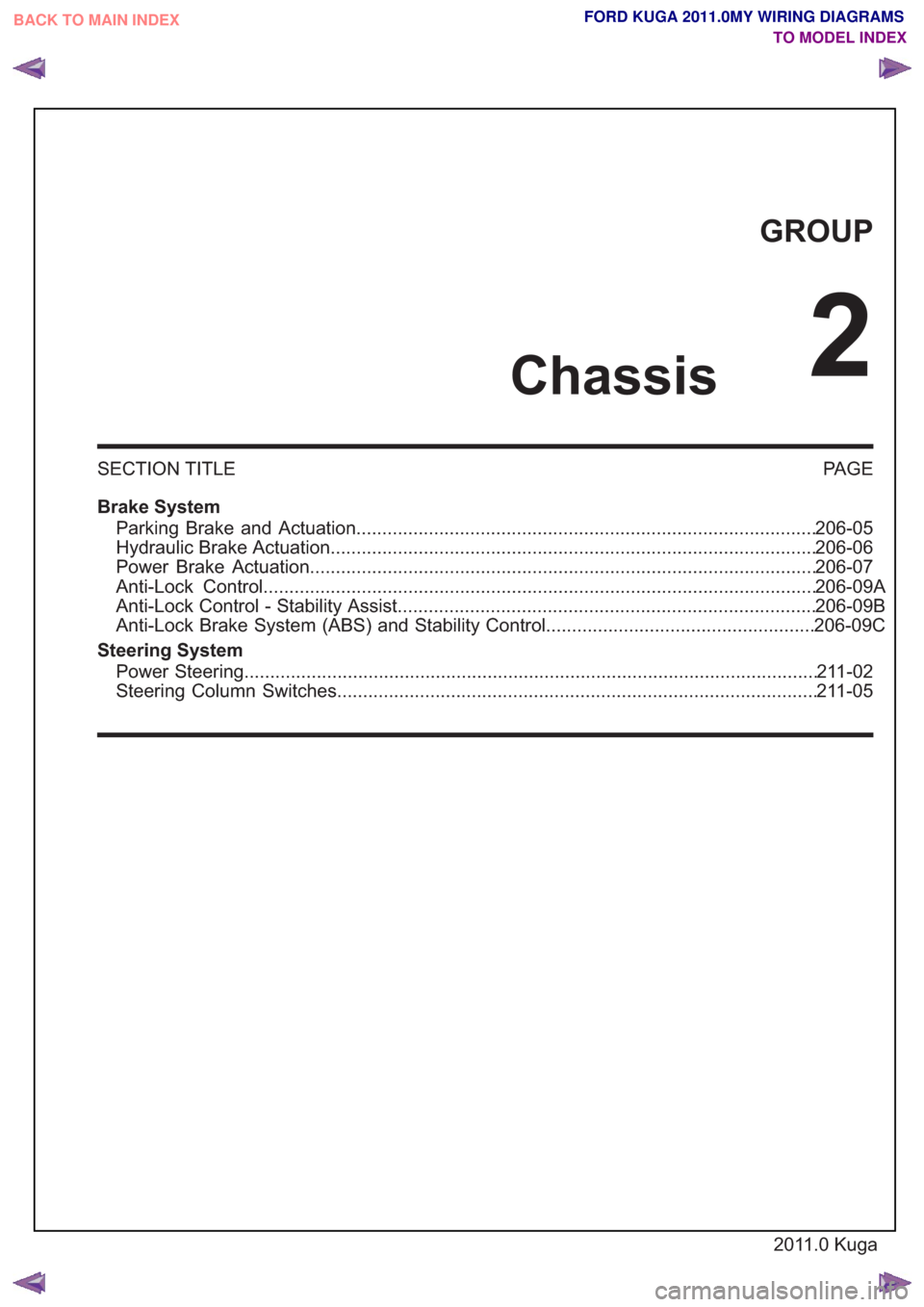

GROUP
Chassis
2
SECTION TITLEPAGE
Brake System Parking Brake and Actuation...............................................................\
..........................206-05
Hydraulic Brake Actuation...............................................................\
...............................206-06
Power Brake Actuation...............................................................\
...................................206-07
Anti-Lock Control.................................................................\
..........................................206- 09A
Anti-Lock Control - Stability Assist..................................................................\
...............206-09B
Anti-Lock Brake System (ABS) and Stability Control....................................................206-09C
Steering System Power Steering................................................................\
...............................................211 -02
Steering Column Switches................................................................\
.............................211-05
2011.0 Kuga
BACK TO MAIN INDEX
TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

SECTION 206-05 Parking Brake and Actuation
VEHICLE APPLICATION:2011.0 Kuga
PA G E
CONTENTS
ELECTRICAL CONNECTORS
206-05-2
Parking Brake Switch ........................................................................\
..................................
206-05-2
Parking Brake Switch ........................................................................\
..................................
206-05-1
Parking Brake and Actuation
206-05- 1
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Parking Brake Switch (G1240673)
Parking Brake Switch (G1226596)
12
4S7T-14489-VAA
C931
TO Z-HANDBRAKE SWITCH
HARNESS 14014 PIN 1 => 31S-GE44C BK-RD 0.75 WA
31S-GE44ABK-RDWA0.75
201

1.0 Kuga
206-05- 2
Parking Brake and Actuation
206-05-2
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

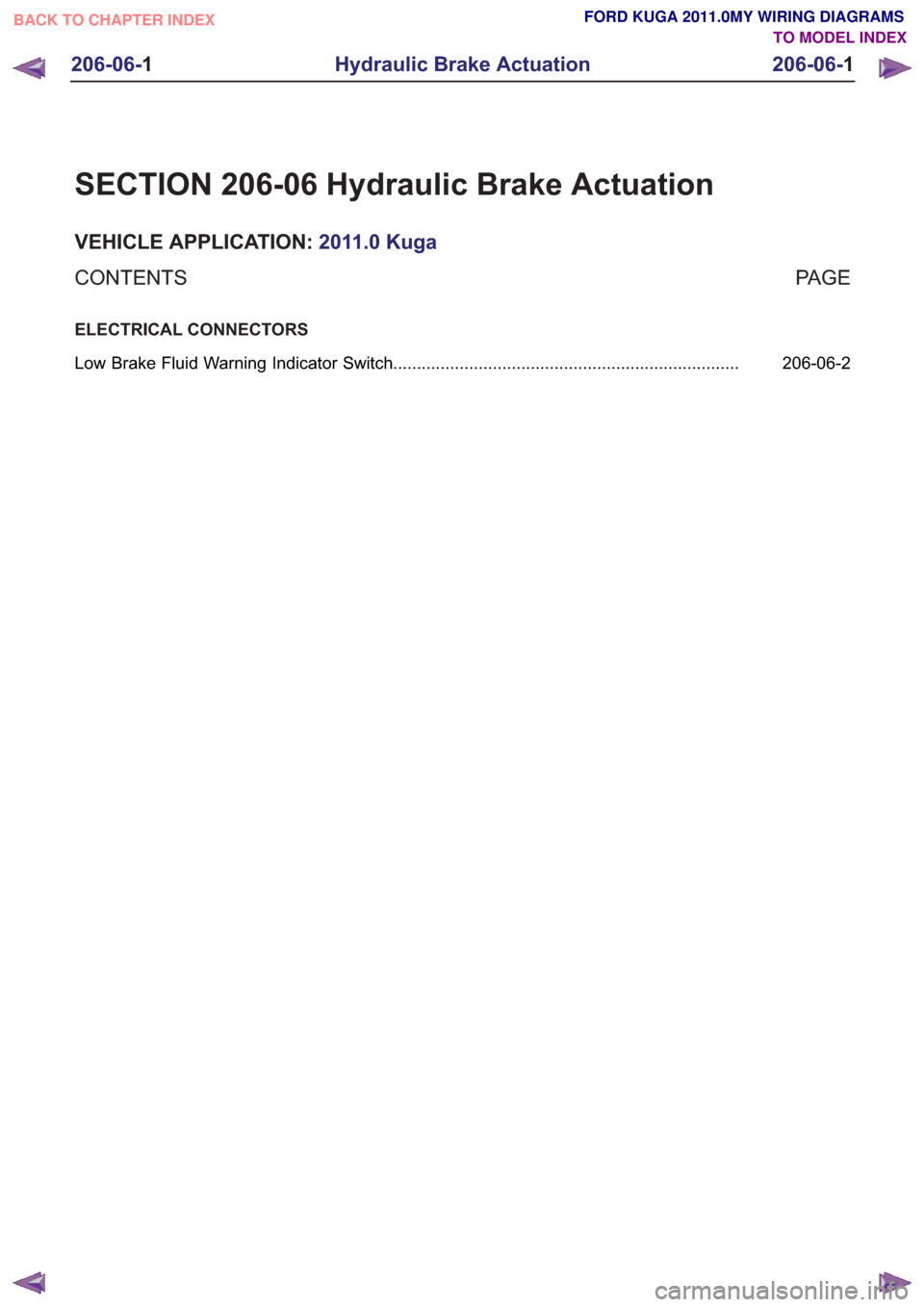

SECTION 206-06 Hydraulic Brake Actuation
VEHICLE APPLICATION:2011.0 Kuga
PA G E
CONTENTS
ELECTRICAL CONNECTORS
206-06-2
Low Brake Fluid Warning Indicator Switch ........................................................................\
.
206-06-1
Hydraulic Brake Actuation
206-06- 1
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Low Brake Fluid Warning Indicator Switch (G1226597)
12
XR3T-14A464-AA
C810
TO BRAKE FLUID LEVEL SWITCH
HARNESS 14K733 PIN 1 => 91-GC7B BK-BU 1.0 WA
PIN 1 => 91-GC7A BK-BU 1.0 WA
91-GC7BK-BUWA0.50
31S-GC6BK-YEWA0.50
201

1.0 Kuga
206-06- 2
Hydraulic Brake Actuation
206-06-2
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

SECTION 206-07 Power Brake Actuation
VEHICLE APPLICATION:2011.0 Kuga
PA G E
CONTENTS
ELECTRICAL CONNECTORS
206-07-2
Brake Vacuum Pump ........................................................................\
..................................
206-07-2
Brake Vacuum Switch ........................................................................\
.................................
206-07-1
Power Brake Actuation
206-07- 1
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Brake Vacuum Pump (G1240674)
2197BG-14A624-VBB
C852
TO VACUUM PUMP
HARNESS 14K733
31-GC11BKWA2.5
15-GC11GN-YEWA2.5
Brake Vacuum Switch (G1240675)
21
6M5T-14A464-GFA
C862
TO VACUUM SWITCH
HARNESS 14K733
31S-GC13BK-BUWA0.50
31-GC13BKWA0.50
201

1.0 Kuga
206-07- 2
Power Brake Actuation
206-07-2
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

SECTION 206-09A Anti-Lock Control
VEHICLE APPLICATION:2011.0 Kuga
PA G E
CONTENTS
ELECTRICAL CONNECTORS
206-09A-2
Anti-Lock Brake System (ABS) Module ........................................................................\
......
206-09A-3
Front Wheel Speed Sensor LH........................................................................\
...................
206-09A-3
Front Wheel Speed Sensor RH........................................................................\
..................
206-09A-3
Rear Wheel Speed Sensor LH ........................................................................\
...................
206-09A-3
Rear Wheel Speed Sensor RH ........................................................................\
...................
206-09A-1
Anti-Lock Control
206-09A- 1
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS
