Index FORD KUGA 2011 1.G Workshop Manual

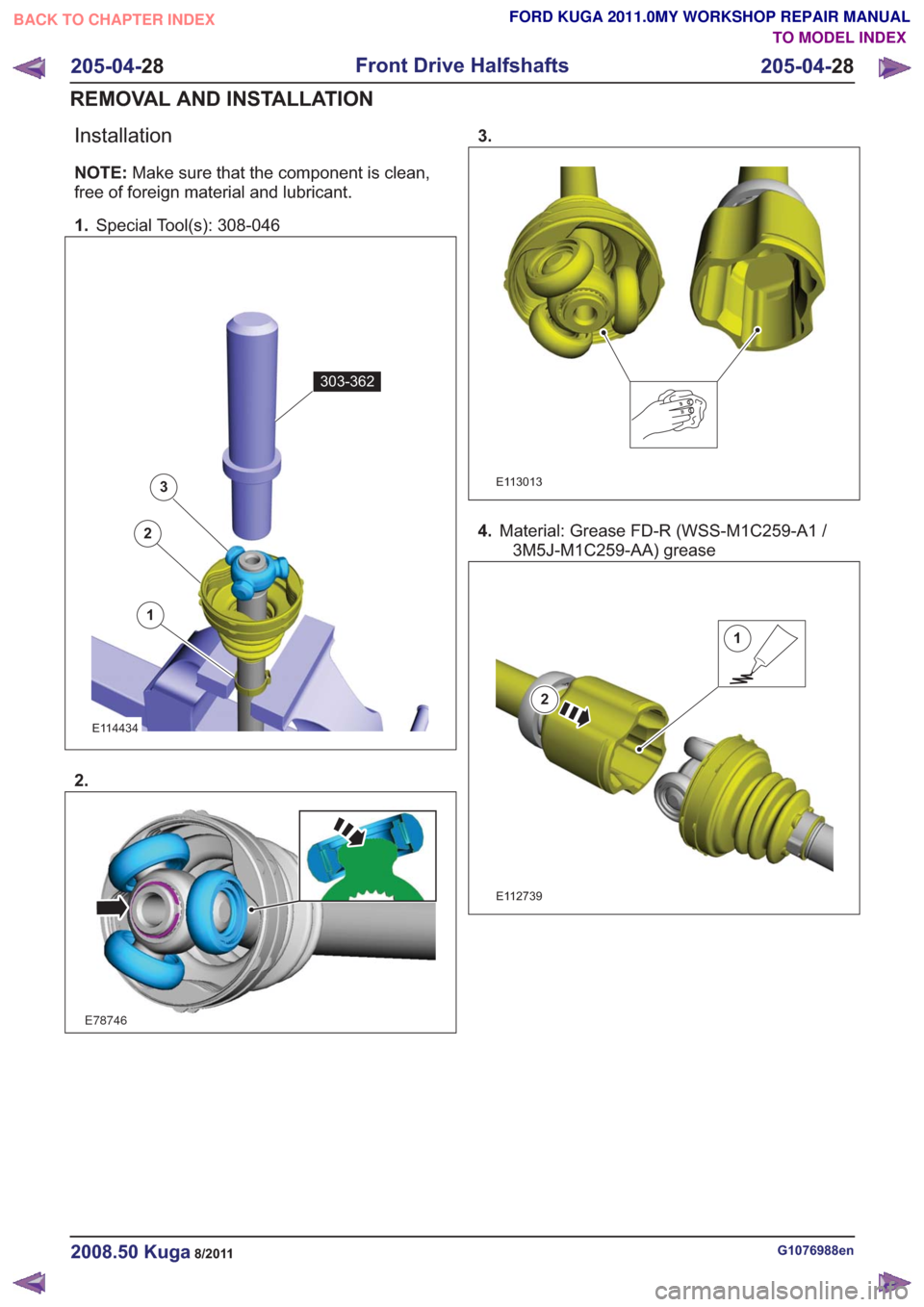

Installation
NOTE:Make sure that the component is clean,
free of foreign material and lubricant.
1. Special Tool(s): 308-046
303-362
1
2
3
E114434
2.
E78746
3.
E113013
4.Material: Grease FD-R (WSS-M1C259-A1 /
3M5J-M1C259-AA) grease
1
2
E112739
G1076988en2008.50 Kuga8/2011
205-04- 28
Front Drive Halfshafts
205-04- 28
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

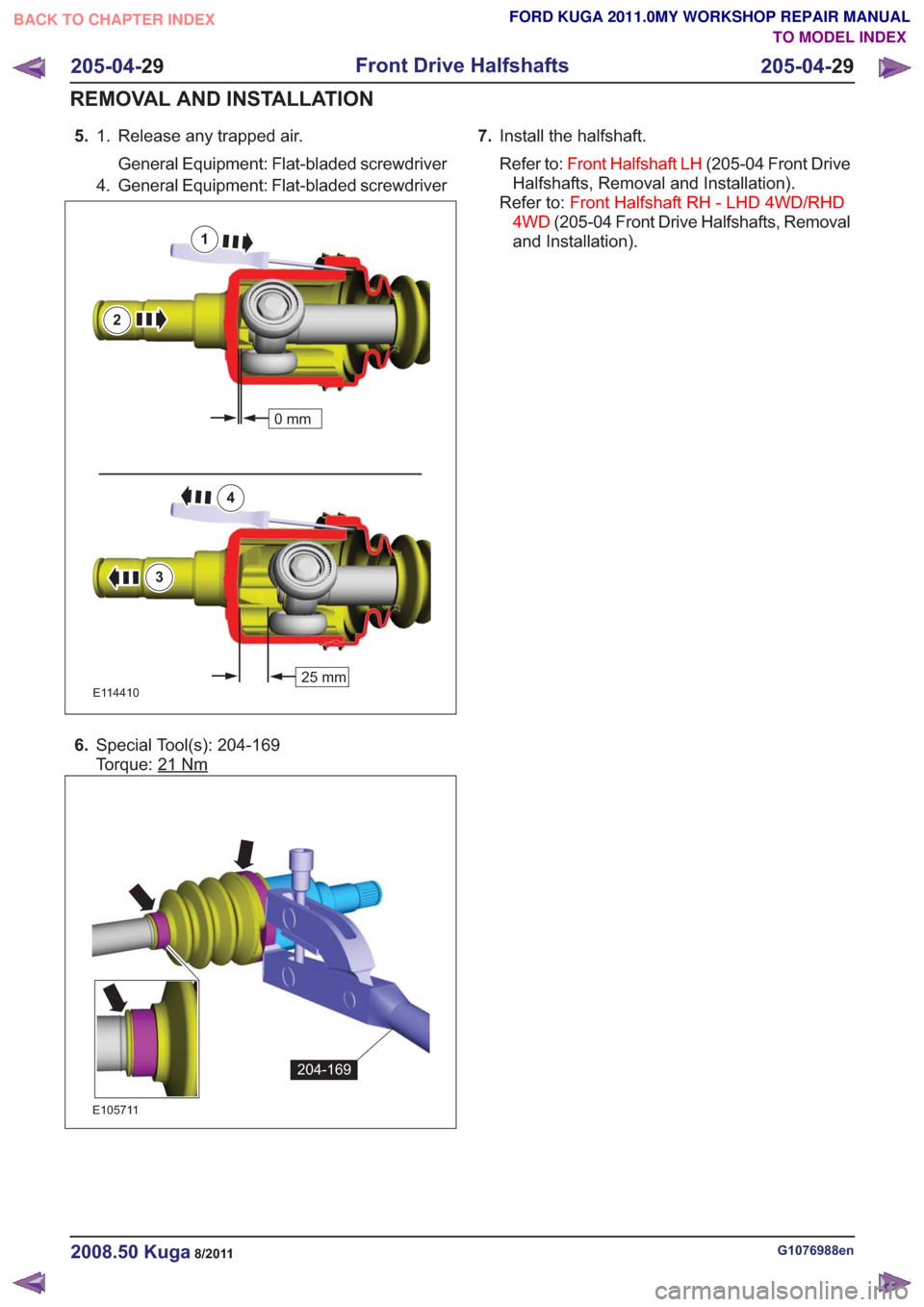

5.Release any trapped air.
General Equipment: Flat-bladed screwdriver
1.
4. General Equipment: Flat-bladed screwdriver
25 mm
0mm
1
2
25 mm
0mm
3
4
E114410
6.
Special Tool(s): 204-169
Torque: 21
Nm
204-169204-169
E105711
7.Install the halfshaft.
Refer to: Front Halfshaft LH (205-04 Front Drive
Halfshafts, Removal and Installation).
Refer to: Front Halfshaft RH - LHD 4WD/RHD
4WD (205-04 Front Drive Halfshafts, Removal
and Installation).
G1076988en2008.50 Kuga8/2011
205-04- 29
Front Drive Halfshafts
205-04- 29
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

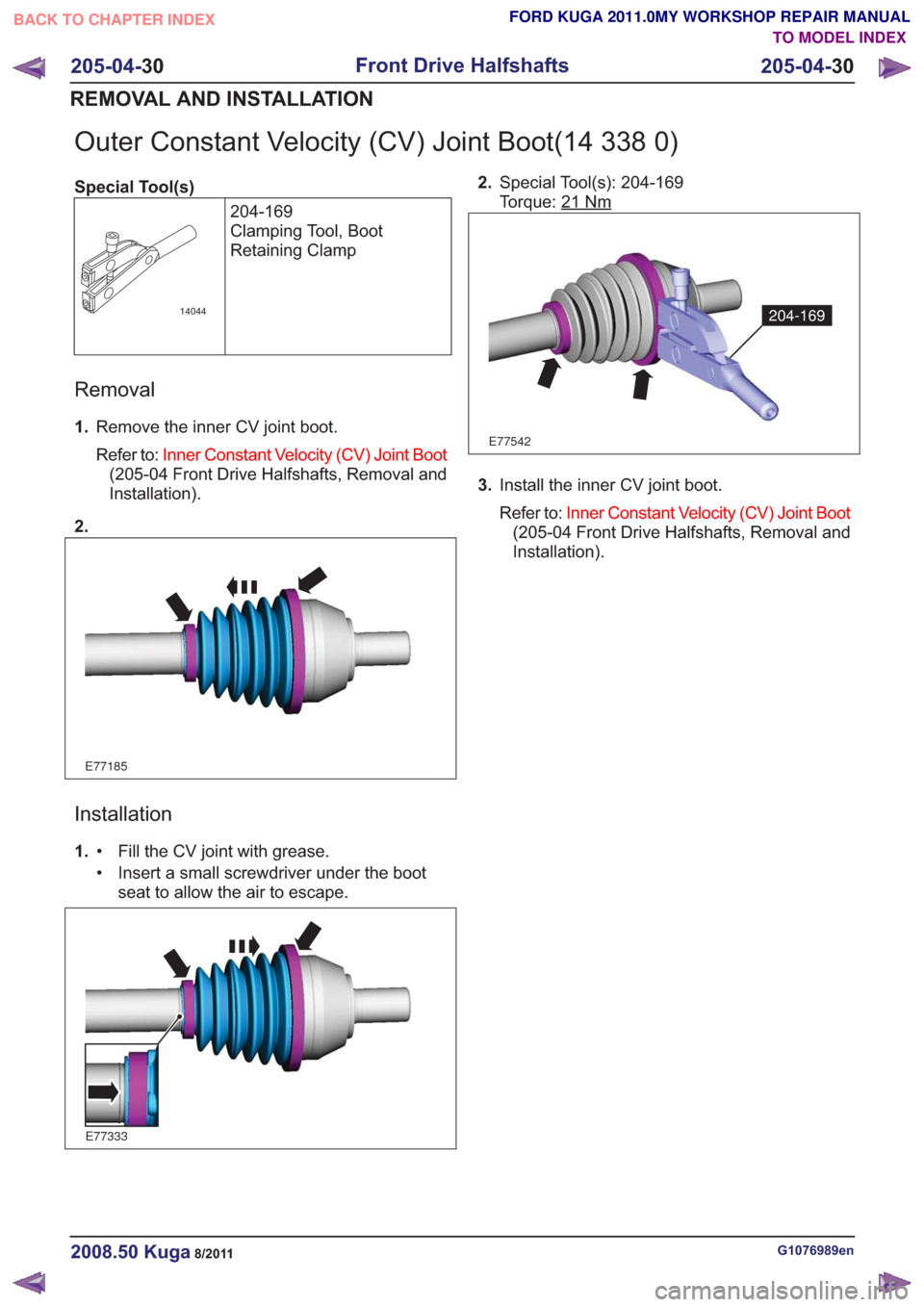

Outer Constant Velocity (CV) Joint Boot(14 338 0)
Special Tool(s)204-169
Clamping Tool, Boot
Retaining Clamp
14044
Removal
1.Remove the inner CV joint boot.
Refer to: Inner Constant Velocity (CV) Joint Boot
(205-04 Front Drive Halfshafts, Removal and
Installation).
2.
E77185
Installation
1. Fill the CV joint with grease.
•
• Insert a small screwdriver under the boot
seat to allow the air to escape.
E77333
2.Special Tool(s): 204-169
Torque: 21
Nm
E77542
204-169
3.Install the inner CV joint boot.
Refer to: Inner Constant Velocity (CV) Joint Boot
(205-04 Front Drive Halfshafts, Removal and
Installation).
G1076989en2008.50 Kuga8/2011
205-04- 30
Front Drive Halfshafts
205-04- 30
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

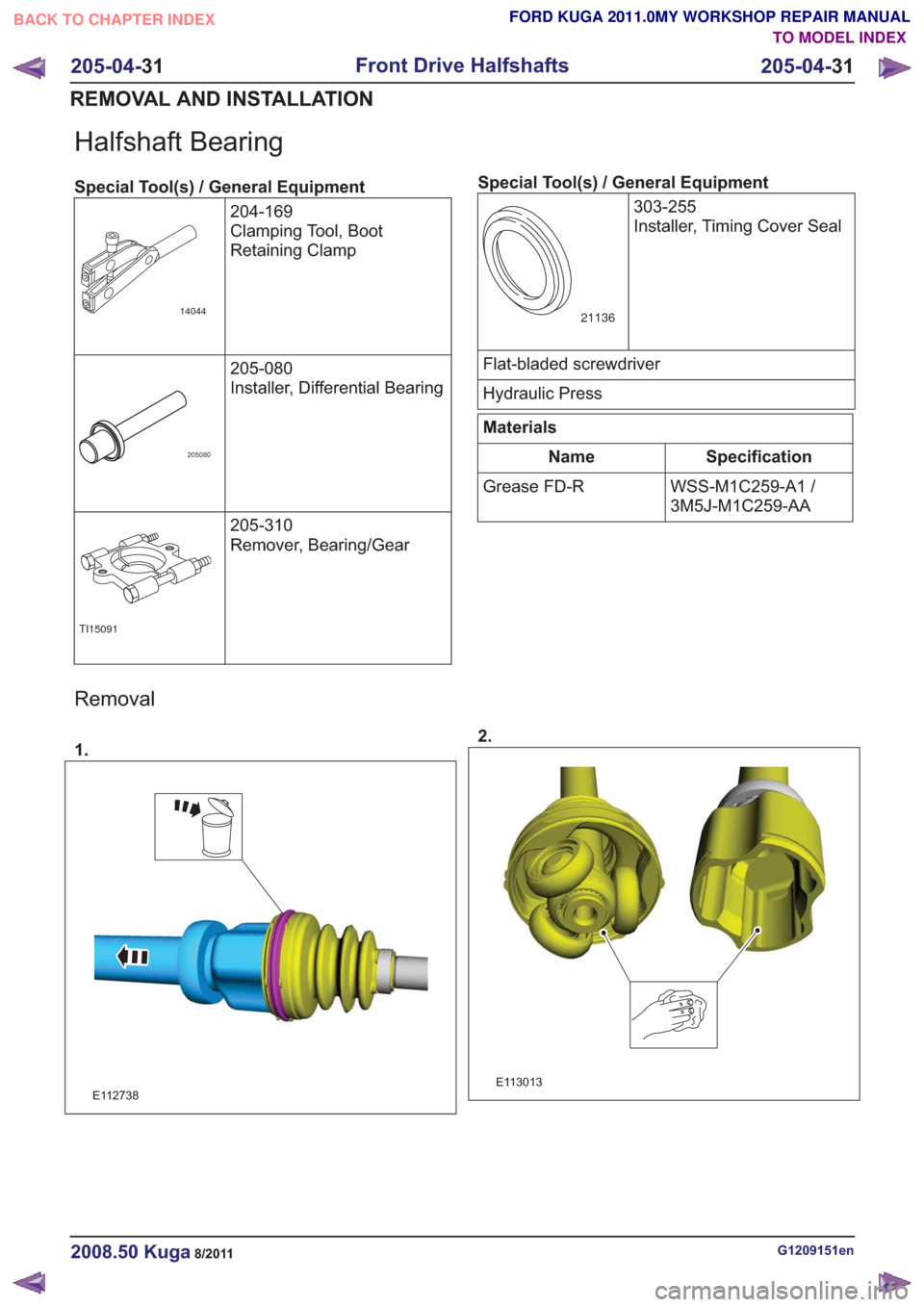

Halfshaft Bearing
Special Tool(s) / General Equipment204-169
Clamping Tool, Boot
Retaining Clamp
14044
205-080
Installer, Differential Bearing
205080
205-310
Remover, Bearing/Gear
TI15091
Special Tool(s) / General Equipment303-255
Installer, Timing Cover Seal
21136
Flat-bladed screwdriver
Hydraulic Press
Materials
Specification
Name
WSS-M1C259-A1 /
3M5J-M1C259-AA
Grease FD-R
Removal
1.
E112738
2.
E113013
G1209151en2008.50 Kuga8/2011
205-04-
31
Front Drive Halfshafts
205-04- 31
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

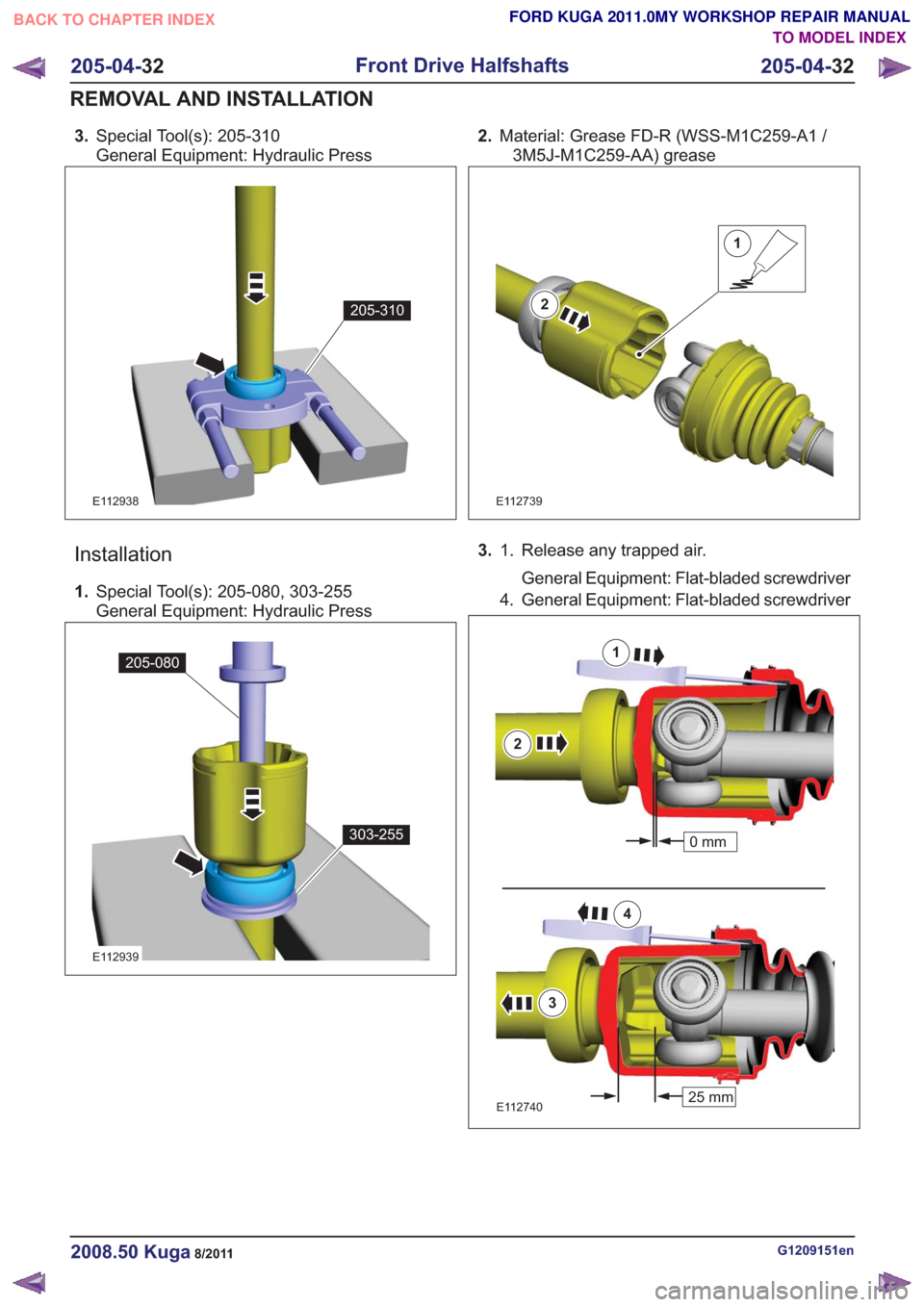

3.Special Tool(s): 205-310
General Equipment: Hydraulic Press
205-310205-310
E112938
Installation
1.Special Tool(s): 205-080, 303-255
General Equipment: Hydraulic Press
205-080
303-255
205-080
303-255
E112939
2.Material: Grease FD-R (WSS-M1C259-A1 /
3M5J-M1C259-AA) grease
1
2
E112739
3. Release any trapped air.
General Equipment: Flat-bladed screwdriver
1.
4. General Equipment: Flat-bladed screwdriver
25 mm
0mm
1
2
25 mm
0mm
3
4
E112740
G1209151en2008.50 Kuga8/2011
205-04-
32
Front Drive Halfshafts
205-04- 32
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

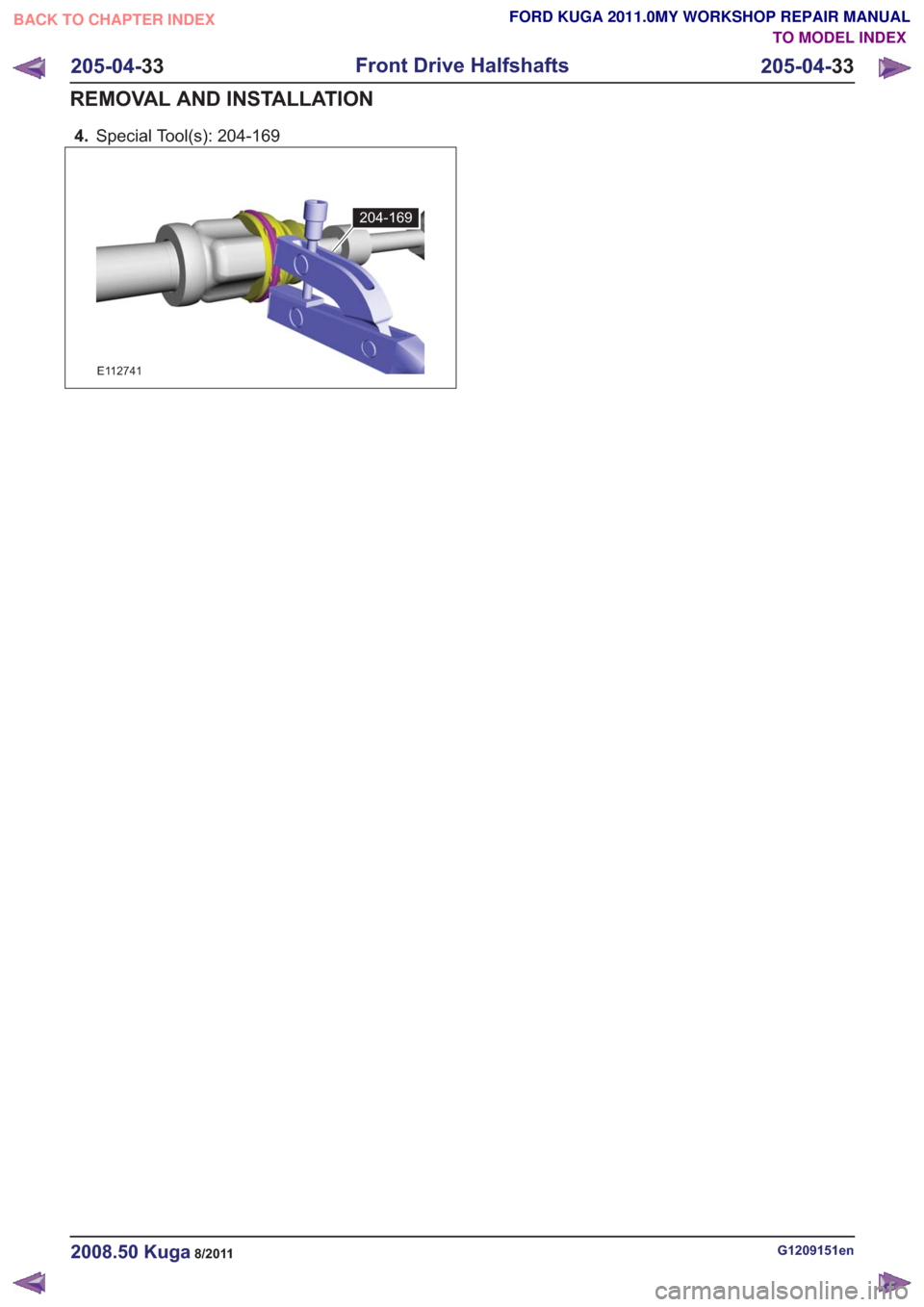

4.Special Tool(s): 204-169
204-169204-169
E112741
G1209151en2008.50 Kuga8/2011
205-04- 33
Front Drive Halfshafts
205-04- 33
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

SECTION 205-05 Rear Drive Halfshafts
VEHICLE APPLICATION:2008.50 Kuga
PA G E
CONTENTS
REMOVAL AND INSTALLATION
205-05-2
Rear Halfshaft ........................................................................\
.............................................
205-05-1
Rear Drive Halfshafts
205-05- 1
.
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Rear Halfshaft
Special Tool(s) / General Equipment308-759
Remover, Rear Driveshaft
E100143
Cable Ties
Special Tool(s) / General EquipmentTire Lever
Transmission Jack
Materials
Specification
Name
WSK-M2G349-A8 /
9U7J-M2G349-AA
Sealant LGN
Removal
1.
On both sides.
Refer to: Wheel and Tire (204-04 Wheels and
Tires, Removal and Installation).
2. On both sides.
E101661
3.Refer to: Lifting(100-02 Jacking and Lifting,
Description and Operation).
4. WARNING: Make sure that no load is placed on the brake hose.
On both sides.
General Equipment: Cable Ties
E100132
5.On both sides.
Refer to: Spring(204-02 Rear Suspension,
Removal and Installation).
6. On both sides.
x4x4
E101639
7.On both sides.
E101640
G1058429en2008.50 Kuga8/2011
205-05- 2
Rear Drive Halfshafts
205-05- 2
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

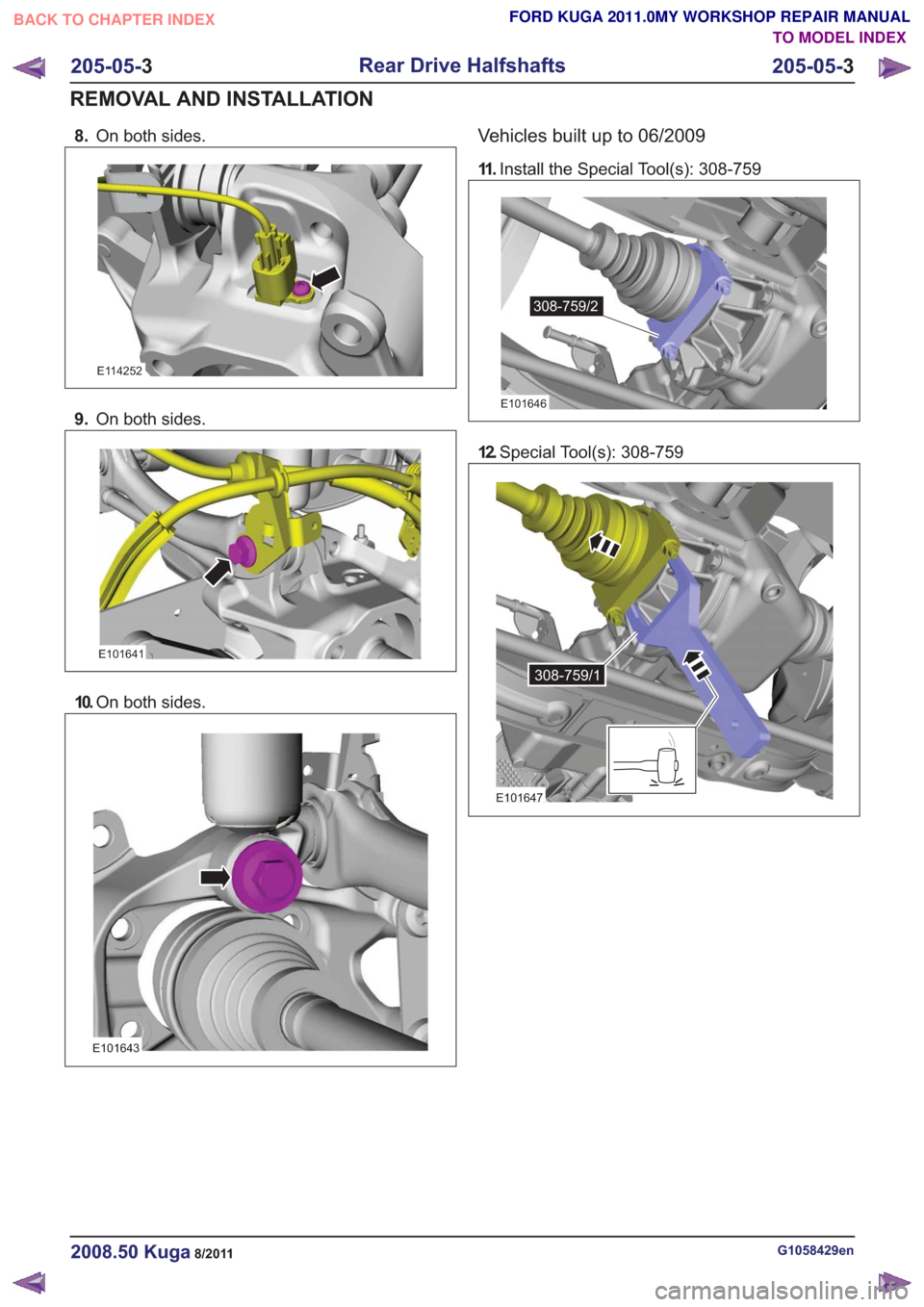

8.On both sides.
E114252
9.On both sides.
E101641
10.On both sides.
E101643
Vehicles built up to 06/2009
11 .Install the Special Tool(s): 308-759
308-759/2308-759/2
E101646
12.Special Tool(s): 308-759
308-759/1308-759/1
E101647
G1058429en2008.50 Kuga8/2011
205-05- 3
Rear Drive Halfshafts
205-05- 3
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

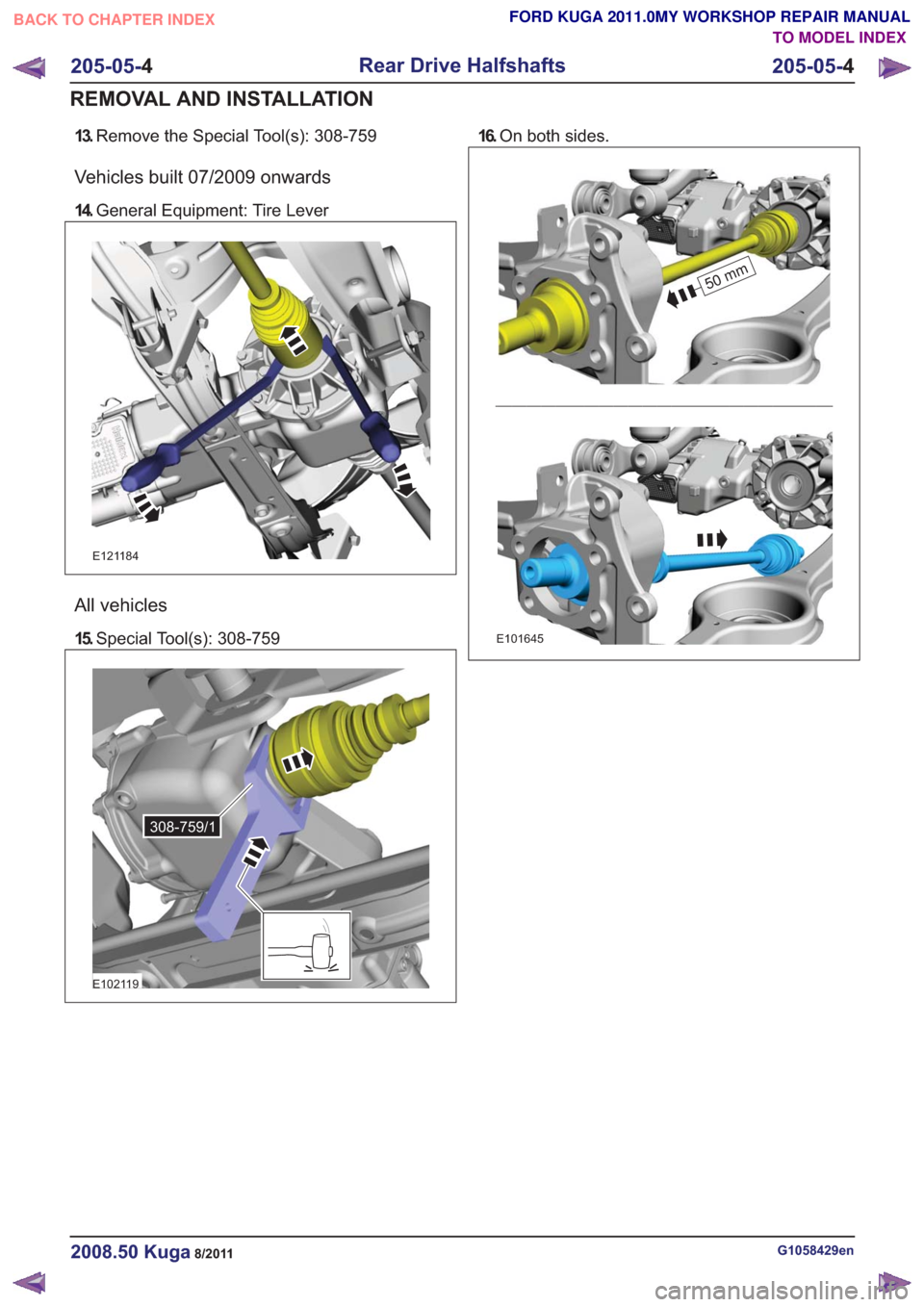

13.Remove the Special Tool(s): 308-759
Vehicles built 07/2009 onwards
14.General Equipment: Tire Lever
E121184
All vehicles
15.Special Tool(s): 308-759
308-759/1308-759/1
E102119
16.On both sides.
50 mm50 mm
E101645
G1058429en2008.50 Kuga8/2011
205-05- 4
Rear Drive Halfshafts
205-05- 4
REMOVAL AND INSTALLATION
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
