FORD MONDEO 1993 Service Repair Manual

12•30 Wiring diagrams

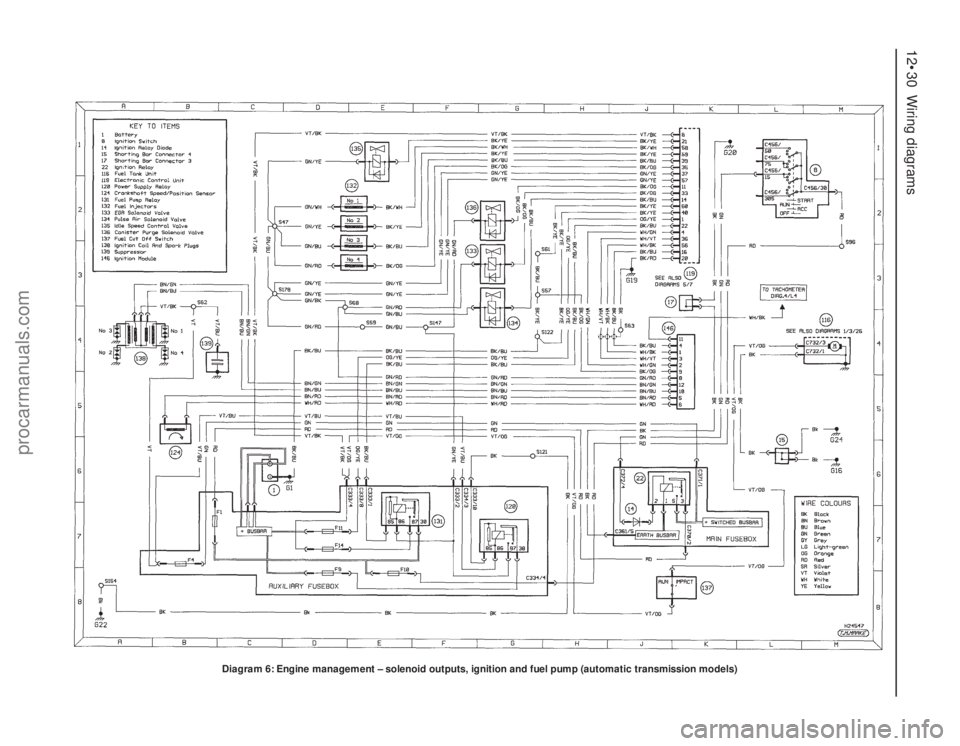

Diagram 6: Engine management – solenoid outputs, ignition and fuel pump (automatic transmission models)
procarmanuals.com

Wiring diagrams 12•31
12

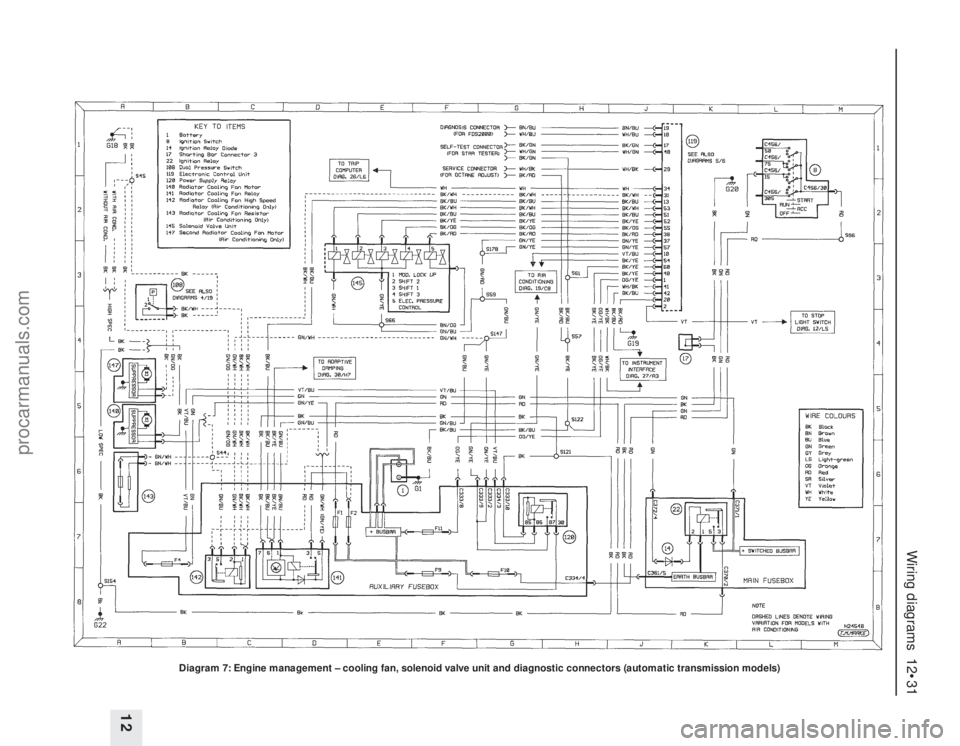

Diagram 7: Engine management – cooling fan, solenoid valve unit and diagnostic connectors (automatic transmission models)
procarmanuals.com

12•32 Wiring diagrams

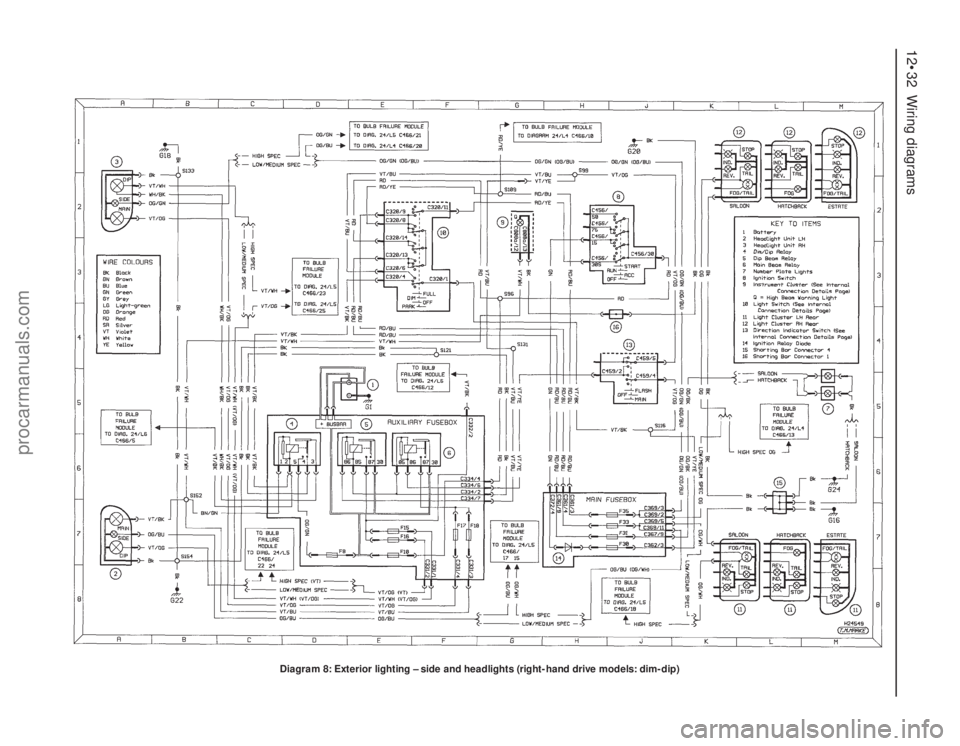

Diagram 8: Exterior lighting – side and headlights (right-hand drive models: dim-dip)
procarmanuals.com

Wiring diagrams 12•33
12

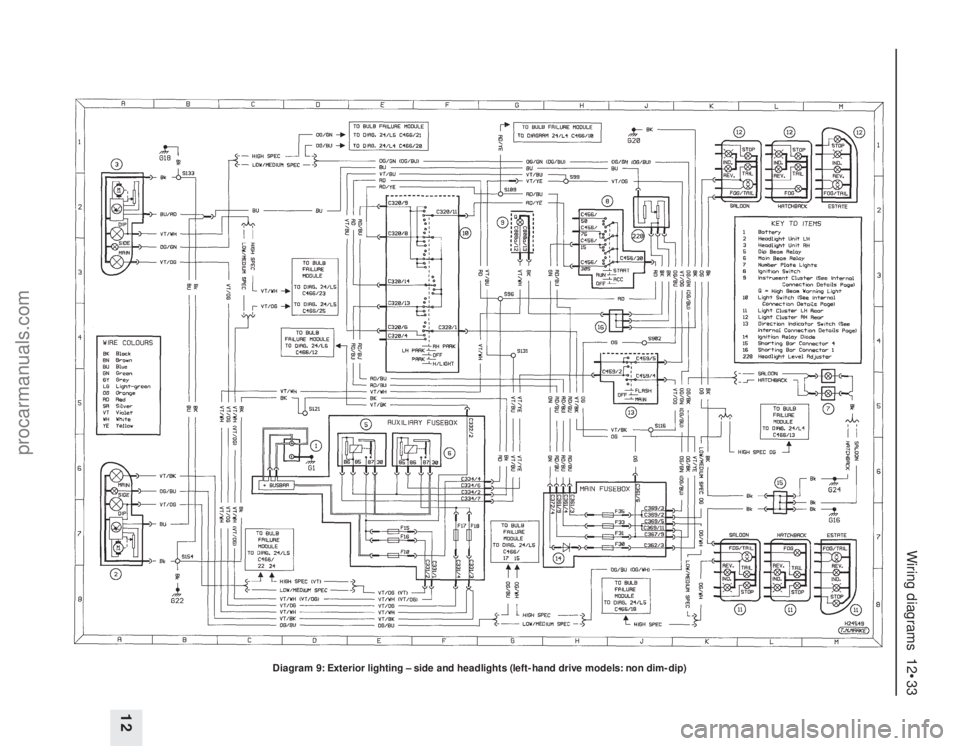

Diagram 9: Exterior lighting – side and headlights (left-hand drive models: non dim-dip)
procarmanuals.com

12•34 Wiring diagrams

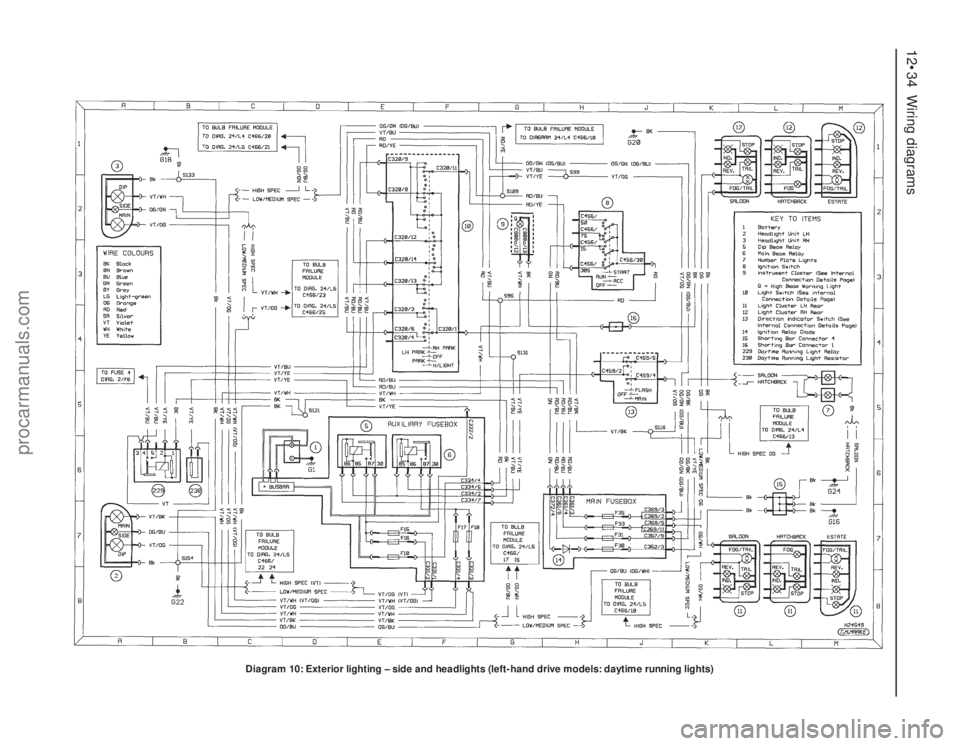

Diagram 10: Exterior lighting – side and headlights (left-hand drive models: daytime running lights)
procarmanuals.com

Wiring diagrams 12•35
12

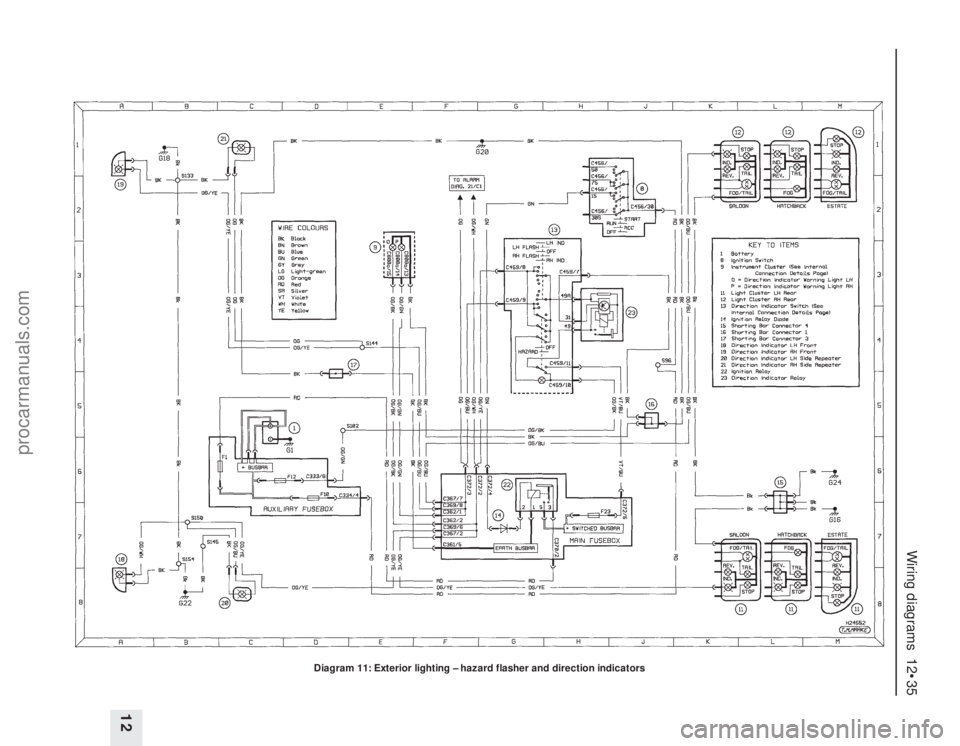

Diagram 11: Exterior lighting – hazard flasher and direction indicators
procarmanuals.com

12•36 Wiring diagrams

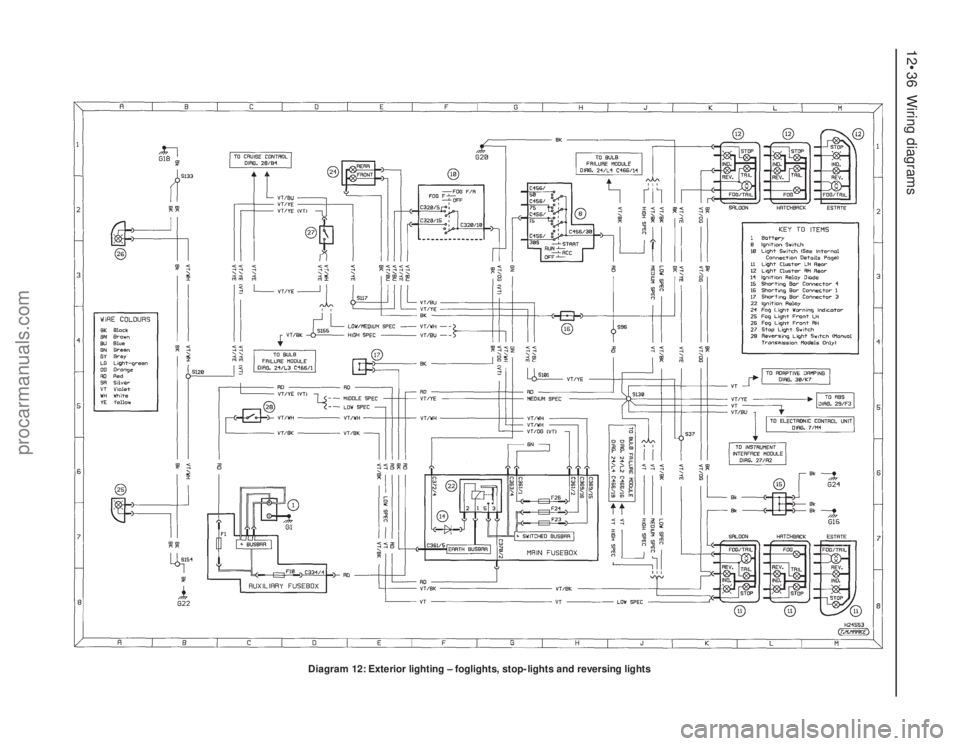

Diagram 12: Exterior lighting – foglights, stop-lights and reversing lights
procarmanuals.com

Wiring diagrams 12•37
12

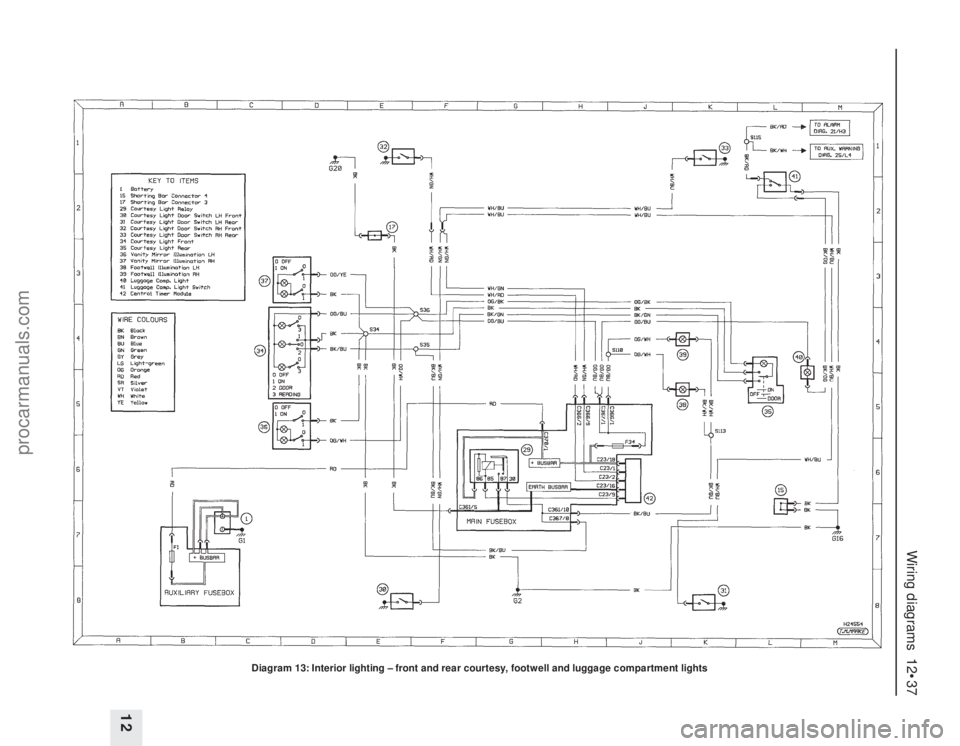

Diagram 13: Interior lighting – front and rear courtesy, footwell and luggage compartment lights
procarmanuals.com

12•38 Wiring diagrams
Diagram 14: Interior lighting – torch, glovebox and engine compartment lights
procarmanuals.com

Wiring diagrams 12•39
12
Diagram 15: Interior illumination
procarmanuals.com
