Blower and air distribution
The amount of air and air distributioncan be set manually using thebuttons. The settings are indicatedin the display. See Manual climatecontrol (page 81). To return to AUTOmode, press the AUTO button.
Switching the airconditioning on and off
Press the A/C button to switch theair conditioning on and off. ECOappears in the display when the airconditioning is switched off. A/Cappears in the display when the airconditioning is switched on.
Switching the automaticclimate control on and off
Note: Switching the automaticclimate control off is recommendedonly when driving with the windowsand/or sunroof open. This ensuresthat the automatic function does notwork against the additional air flowthrough the windows and/or sunroof.
Press OFF to switch off theautomatic climate control. Thesettings remain stored. The heating,ventilation and air conditioningsystem is switched off andrecirculated air is selected.
Press OFF or AUTO to switch thesystem back on. If another button ispressed, the stored settings will bechanged accordingly when thesystem is switched on.
85
Climate controlE72155 E72156 E72157

Downloaded from www.Manualslib.com manuals search engine HEATED WINDOWS AND
MIRRORS

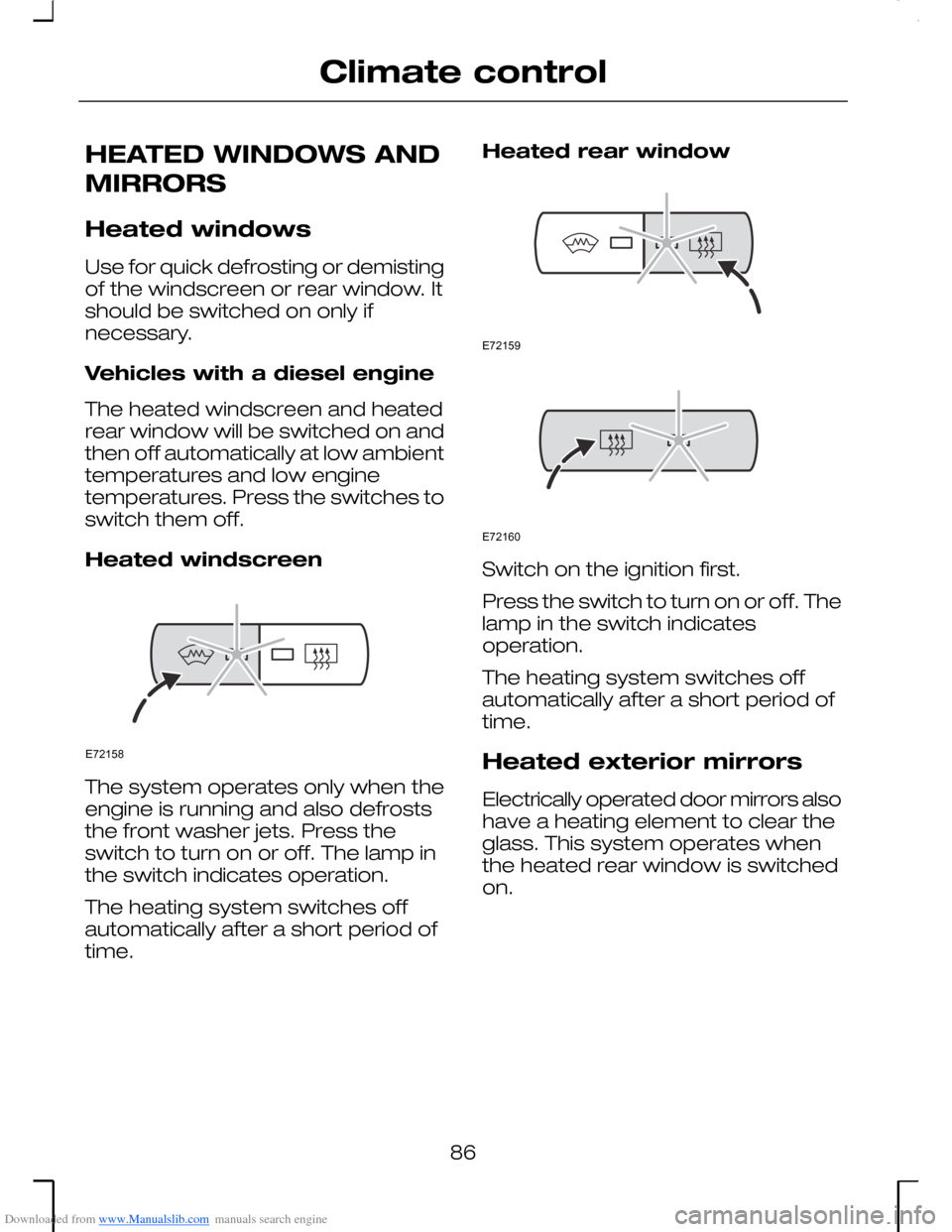

Heated windows
Use for quick defrosting or demistingof the windscreen or rear window. Itshould be switched on only ifnecessary.
Vehicles with a diesel engine
The heated windscreen and heatedrear window will be switched on andthen off automatically at low ambienttemperatures and low enginetemperatures. Press the switches toswitch them off.
Heated windscreen
The system operates only when theengine is running and also defroststhe front washer jets. Press theswitch to turn on or off. The lamp inthe switch indicates operation.
The heating system switches offautomatically after a short period oftime.
Heated rear window
Switch on the ignition first.
Press the switch to turn on or off. Thelamp in the switch indicatesoperation.
The heating system switches offautomatically after a short period oftime.
Heated exterior mirrors
Electrically operated door mirrors alsohave a heating element to clear theglass. This system operates whenthe heated rear window is switchedon.
86
Climate controlE72158 E72159 E72160

Downloaded from www.Manualslib.com manuals search engine AUXILIARY HEATER
The auxiliary heater aids in warmingthe engine and the interiorcompartment. It is integrated into thecooling system and is automaticallyswitched on or off depending uponthe coolant temperature.
It is possible that when theprogrammable auxiliary heater isactivated, exhaust fumes may comefrom under the sides of the vehicle.This is normal.
ELECTRIC SUNROOF
WARNING
Before operating the electricsunroof you should verify it isfree of obstructions and ensure thatchildren and/or pets are not in theproximity of the sunroof opening.Failure to do so could result in seriouspersonal injury. It is the primaryresponsibility of the supervising adultsto never leave a child unattended ina vehicle and to never leave the keysin an unattended vehicle.
Note: When the switches areoperated often during a short periodof time, the system might becomeinoperable for a certain time toprevent damage due to overheating.
Note: The electric sunroof isconnected to the vehicle’s globalopening and closing feature. SeeGlobal opening and closing (page 40).
There are two ways of opening thesunroof – the rear of the sunroof liftsopen or the sunroof opens from thefront, sliding back under the roof. Thesunroof opens and closes whilst theswitch is pressed.
Switch on the ignition to operate theelectric sunroof.
87
Climate controlE72187

Downloaded from www.Manualslib.com manuals search engine Opening and closing thesunroof
Press to closeA
Press to openB
Tilting the sunroof
Press to openA
Press to closeB
Opening and closing thesunroof automatically
Momentarily press the open or closebutton to open or close the sunroofautomatically. Press the button asecond time to stop the sunroofopening or closing.
Sunroof anti-trapprotection
WARNINGS
Anti-trap protection is not activeduring the sunroof relearningfunction and when the sunroof is insafety mode. Make sure that thereare no obstacles in the way of theclosing sunroof.
Careless closing of the electricsunroof can override theanti-trap protection and causeinjuries.
88
Climate controlE72188 E72185BA E72189 E72185BA

Downloaded from www.Manualslib.com manuals search engine The electric sunroof is equipped withanti-trap protection. The sunroof willstop automatically while closing andreverse some distance if there is anobstacle in the way.
To override anti-trap protection whenthere is a resistance, e. g. in thewinter, proceed as follows:
Close the sunroof twice until itreaches the resistance and let itreverse. Close the sunroof a thirdtime to the resistance. Briefly releasethe switch and press againimmediately. The sunroof will overridethe resistance and can then beclosed fully.
Sunroof safety mode
If the system detects a malfunction,it enters a safety mode. The sunroofwill move for only about 0.5 secondsat a time and then stop again. Closethe sunroof by pressing the buttonagain when the sunroof stopsmoving. When the rear of the sunroofis lifted, lift the rear all the way andthen close the sunroof. Have thesystem checked by an expertimmediately.
Sunroof relearning
In case the sunroof no longer closesproperly, follow this relearningprocedure:
•Tilt the rear of the sunroof as faras possible. Release the button.
•Press and hold the same buttonagain for 30 seconds until you seethe sunroof move.
•Release the button andimmediately press and hold itagain. The sunroof will close, openfully and then close again. Do notrelease the button before thesunroof has reached the closedposition for the second time.
If the button is not pressedcontinuously, the relearning functionwill be interrupted. Start theprocedure once more from thebeginning.
89
Climate control

Downloaded from www.Manualslib.com manuals search engine Press the + button repeatedly to raisethe temperature. Pressing the –button repeatedly will lower thetemperature. The number ofilluminated lights beside the buttonindicates the selected step. Theheater setting is indicated in red, thecooler setting in blue. When no lightis illuminated, the ventilation of theseat is switched off.
Recommended settings
Use step 1 or 2 for ventilation of theseat with a comfortable temperaturefor longer periods. The steps 4 and5 are only recommended for shortperiods with a high difference intemperature.
When the seat is being ventilated, theheater may be switched onautomatically. This is to prevent theflow of air becoming uncomfortablycool.
The air in the vehicle interior is usedto ventilate the seats. The coolingeffect therefore depends on thetemperature of the vehicle interior.Switch on the air conditioning ifnecessary and set the air distributionto the footwell. See Climate control(page 80).
96
Seats

Downloaded from www.Manualslib.com manuals search engine Auxiliary fuse box
Circuits protectedFuse
Conventional headlamps: 7.5 A; Xenon headlamps: 20 A16/18
Automatic transmission: 10 A17
Auxiliary heater (Diesel): 20 A; Battery Backed−up Sounder (ST):7.5 A23
Diode electronic module34
Diode air conditioning35
Diode engine cooling fan36
HO2S sensor37
Engine Control Valves/Vehicle Speed Sensor40
Engine management Duratec engines: 10 A; Duratorq engines:15 A42
Central fuse box
Circuits protectedFuse
Audio system or audio system and instrument cluster69
Trailer – max. 20 A fuse74
Instrument cluster78
Reversing lamps80
Sensors for passenger airbag and automatic climate control81
Daytime running lamps88
Trailer – max. 20 A fuse92
Brake lamps93
License plate lamps97
Symbols in the fuse box
See Owner’s handbook
Airbag
ABS
Dipped beam
Main beam or headlamps
