air conditioning FORD MONDEO 2006 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF
OPERATION
Outside air
Always keep the air intakes forwardof the front windscreen free of snow,leaves etc., to allow the system tofunction effectively.
Recirculated air
Note: It is not recommended to userecirculated air for more than 30minutes as there is no air exchangeand the windows may mist up.
When recirculated air is selected, onlythe air currently in the passengercompartment will be circulated.Outside air will not enter the vehicle.
Fresh air filter/activecarbon filter
The fresh air filter removes mostpotentially harmful particles such aspollen, industrial fallout and road dustfrom the air entering the vehicle’sinterior. The active carbon filterremoves odours.
In an automatic car wash, you shouldswitch off the ventilation blower toprevent the filter collecting waxdeposits.
Blower
The blower motor may emit noises.
Heating
The heating depends upon thecoolant temperature and is thereforeonly effective when the engine iswarm.
Air conditioning
Note: The air conditioning systemonly operates when the temperatureis above +5 ºC, the engine is runningand the blower is switched on.Operating the air conditioning leadsto higher fuel consumption.
The air is directed through thecoolant heat exchanger where it iscooled if the air conditioning isswitched on. In addition, humidity isextracted from the air to help keepthe windows free of mist.
The resulting condensation isdirected to the outside of the vehicle.It is therefore quite normal if younotice a small pool of waterunderneath the parked vehicle.
General notes oncontrolling the climate inthe vehicle’s interior
Close all the windows completely.
To warm the interior effectively, directthe heated air to the footwell area. Incold or humid weather, direct someof the air towards the frontwindscreen and side windows.
To cool the interior effectively, directthe cooled air towards the face level.
80
Climate control

Downloaded from www.Manualslib.com manuals search engine Rapid windowdefrosting/demisting
As long as the button is selected,recirculated air cannot be selectedand the air conditioning cannot beswitched off. The blower speed andtemperature are set to maximumperformance automatically andcannot be adjusted manually.
If the button is pressed again, thesystem returns to the previoussetting.
Switching the airconditioning on and off
To switch on/off the cooling effect,press the A/C button. A/C isindicated in the display when thecooling effect is switched on.
Recirculated air
Press the button to toggle betweenoutside air and recirculated interiorair. The light in the button indicatesoperation.
Switching the climatecontrol system on and off
Note: This setting is recommendedonly when driving with the windowsand/or sunroof open.
82
Climate controlE70446 E70447 E70448 E70449

Downloaded from www.Manualslib.com manuals search engine Press the OFF button to switch offthe entire system. The climate controlsystem is switched off andrecirculated air is selected.
If the ON button is pressed, thesystem returns to the previoussettings.
If another button is pressed, thestored settings will be changedaccordingly when the system isswitched on.
Permanent comfortsettings
Set the temperature and the blowerspeed to suit individual requirements.Switch on the air conditioning. Therecommended air distribution settingis footwell or face level.
Rapid heating of the vehicleinterior
Press the button and select a highblower setting as soon as the enginehas reached operating temperature.
Rapid cooling of the vehicleinterior
At high external tempertures, switchthe air conditioning and the bloweron. Set the temperature control tocold. Set the air distribution to suitindividual requirements. Therecommended air distribution settingis face level.
83
Climate controlE70450 E70451 E70452

Downloaded from www.Manualslib.com manuals search engine In very humid weather and tomaximize the cooling effect, alsoswitch on the recirculated air and setthe blower to high speed.
AUTOMATIC CLIMATE
CONTROL
Note: Note: The automatic climatecontrol system can be operated viathe navigation system touchsceen.See separate handbook.
The temperature, amount anddistribution of the air flow arecontrolled automatically and adjustedaccording to the driving and weatherconditions. The recommendedsystem settings for all seasons are22 °C and AUTO mode (the airconditioning is switched on). Theindividual settings can be adjusted asnecessary. Avoid adjusting thesettings when the vehicle interior isextremely hot or cold. The automaticclimate control system adjusts to thecurrent circumstances automatically.For the system to function properly,the side and centre vents should befully open.
Pressing the AUTO button onceswitches on the AUTO mode.
Setting the temperature
Reduces temperatureBlue
Increases temperatureRed
The temperature can be set between16 °C and 28 °C in steps of 0.5 °Cusing the buttons. In position LO(below 16 °C) the system will switchto permanent cooling, in HI (above28 °C) to permanent heating, and notregulate a stable temperature.
84
Climate controlE70453 E72153 E72154

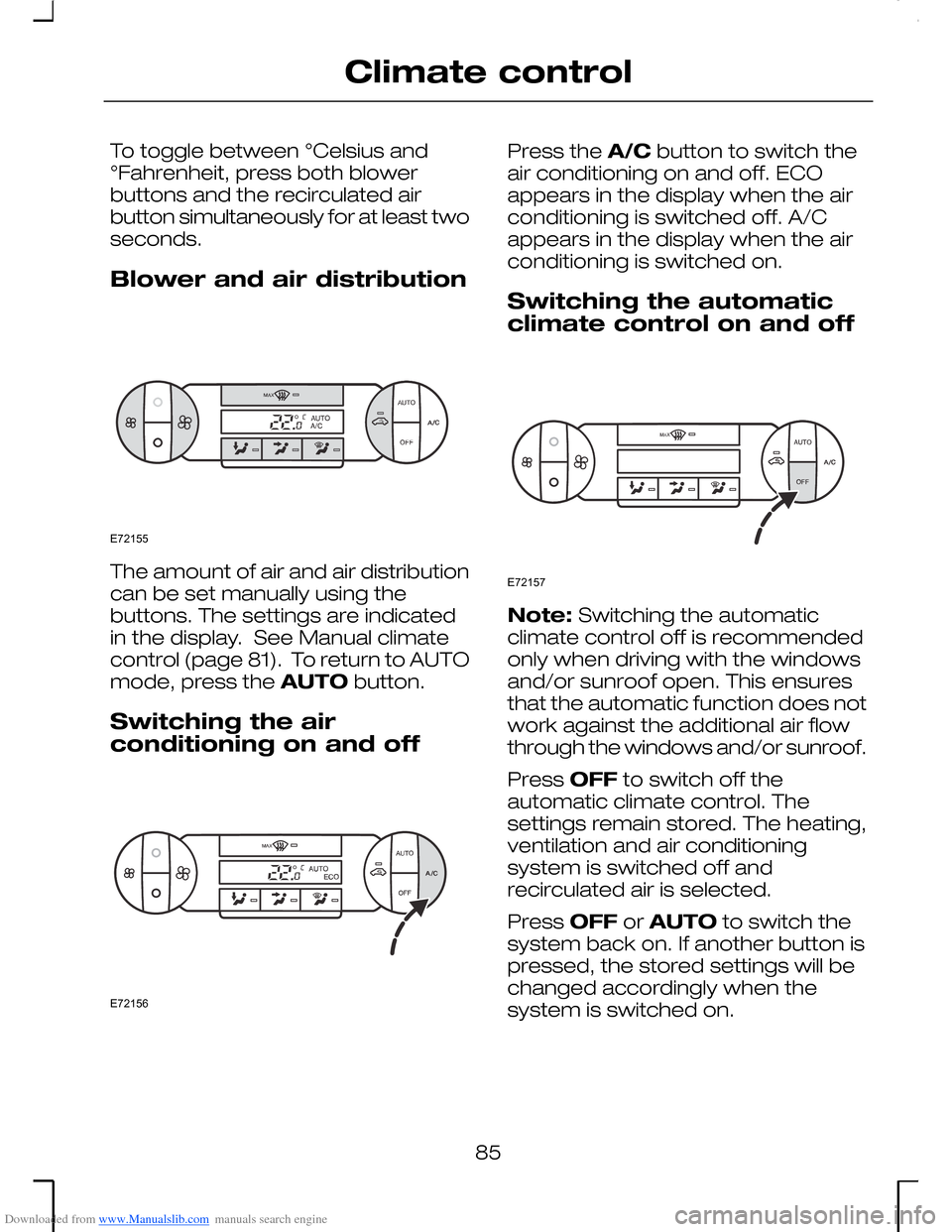

Downloaded from www.Manualslib.com manuals search engine To toggle between °Celsius and°Fahrenheit, press both blowerbuttons and the recirculated airbutton simultaneously for at least twoseconds.
Blower and air distribution
The amount of air and air distributioncan be set manually using thebuttons. The settings are indicatedin the display. See Manual climatecontrol (page 81). To return to AUTOmode, press the AUTO button.
Switching the airconditioning on and off
Press the A/C button to switch theair conditioning on and off. ECOappears in the display when the airconditioning is switched off. A/Cappears in the display when the airconditioning is switched on.
Switching the automaticclimate control on and off
Note: Switching the automaticclimate control off is recommendedonly when driving with the windowsand/or sunroof open. This ensuresthat the automatic function does notwork against the additional air flowthrough the windows and/or sunroof.
Press OFF to switch off theautomatic climate control. Thesettings remain stored. The heating,ventilation and air conditioningsystem is switched off andrecirculated air is selected.
Press OFF or AUTO to switch thesystem back on. If another button ispressed, the stored settings will bechanged accordingly when thesystem is switched on.
85
Climate controlE72155 E72156 E72157

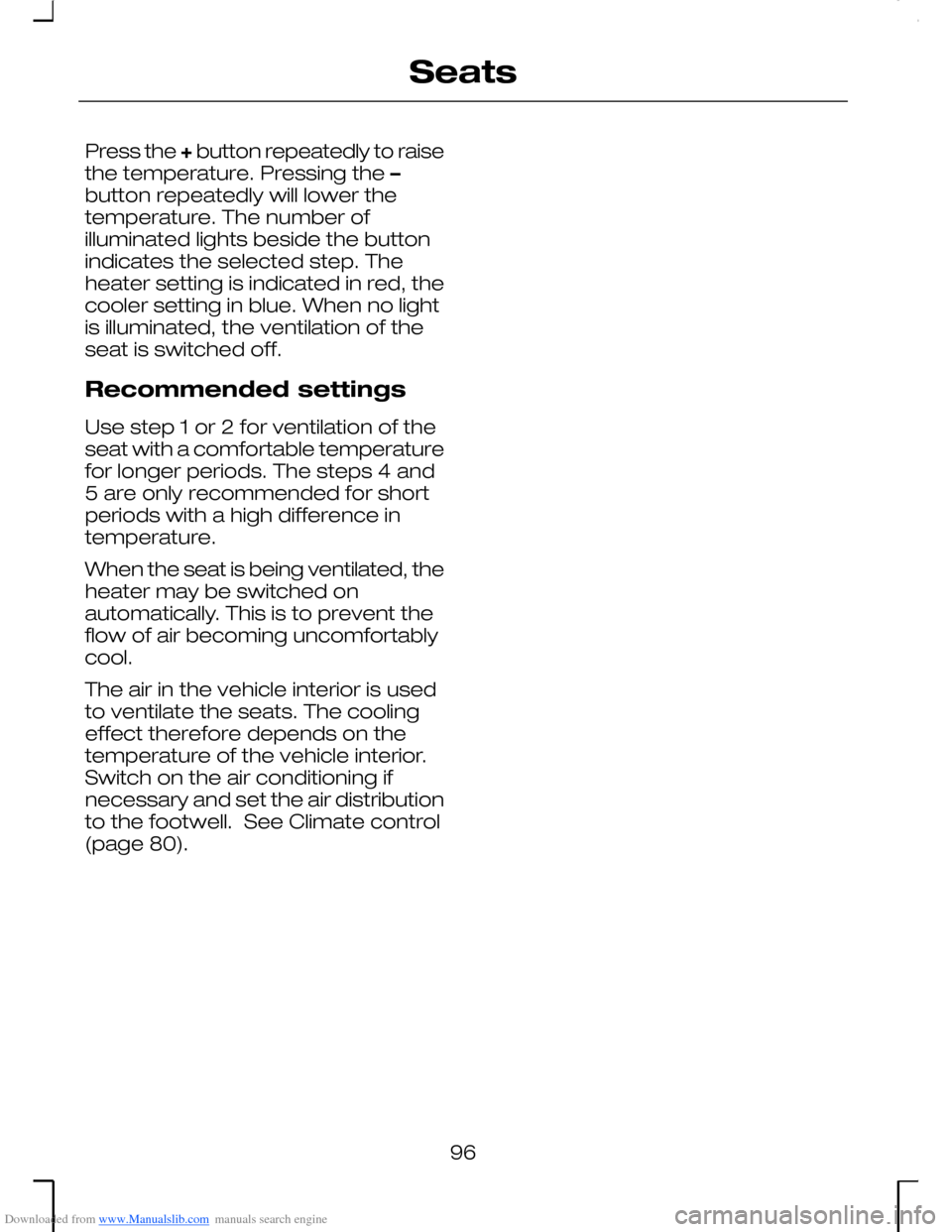

Downloaded from www.Manualslib.com manuals search engine Press the + button repeatedly to raisethe temperature. Pressing the –button repeatedly will lower thetemperature. The number ofilluminated lights beside the buttonindicates the selected step. Theheater setting is indicated in red, thecooler setting in blue. When no lightis illuminated, the ventilation of theseat is switched off.
Recommended settings
Use step 1 or 2 for ventilation of theseat with a comfortable temperaturefor longer periods. The steps 4 and5 are only recommended for shortperiods with a high difference intemperature.
When the seat is being ventilated, theheater may be switched onautomatically. This is to prevent theflow of air becoming uncomfortablycool.
The air in the vehicle interior is usedto ventilate the seats. The coolingeffect therefore depends on thetemperature of the vehicle interior.Switch on the air conditioning ifnecessary and set the air distributionto the footwell. See Climate control(page 80).
96
Seats

Downloaded from www.Manualslib.com manuals search engine Auxiliary fuse box
Circuits protectedFuse
Conventional headlamps: 7.5 A; Xenon headlamps: 20 A16/18
Automatic transmission: 10 A17
Auxiliary heater (Diesel): 20 A; Battery Backed−up Sounder (ST):7.5 A23
Diode electronic module34
Diode air conditioning35
Diode engine cooling fan36
HO2S sensor37
Engine Control Valves/Vehicle Speed Sensor40
Engine management Duratec engines: 10 A; Duratorq engines:15 A42
Central fuse box
Circuits protectedFuse
Audio system or audio system and instrument cluster69
Trailer – max. 20 A fuse74
Instrument cluster78
Reversing lamps80
Sensors for passenger airbag and automatic climate control81
Daytime running lamps88
Trailer – max. 20 A fuse92
Brake lamps93
License plate lamps97
Symbols in the fuse box
See Owner’s handbook
Airbag
ABS
Dipped beam
Main beam or headlamps
138
Fuses

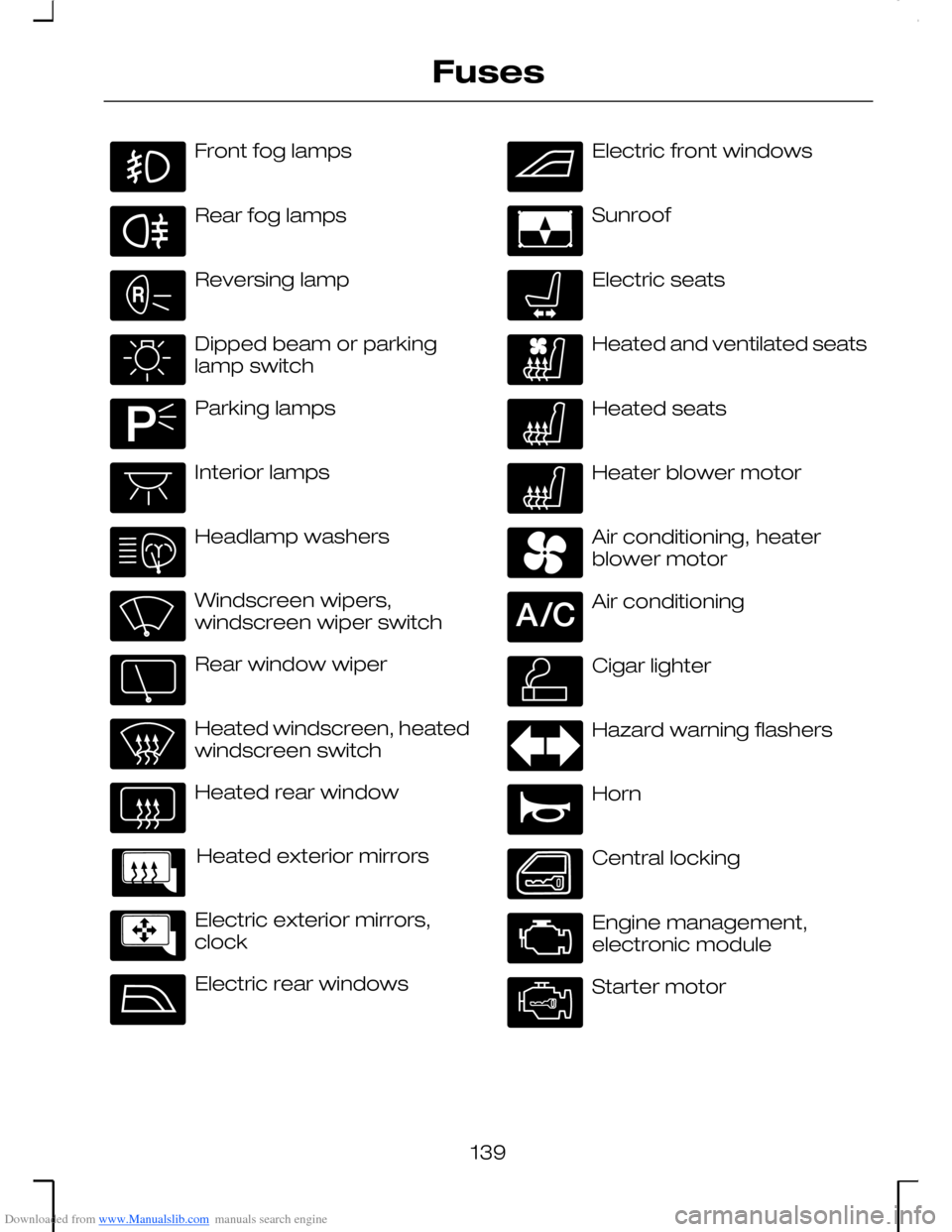

Downloaded from www.Manualslib.com manuals search engine Front fog lamps
Rear fog lamps
Reversing lamp
Dipped beam or parkinglamp switch
Parking lamps
Interior lamps
Headlamp washers
Windscreen wipers,windscreen wiper switch
Rear window wiper
Heated windscreen, heatedwindscreen switch
Heated rear window
Heated exterior mirrors
Electric exterior mirrors,clock
Electric rear windows
Electric front windows
Sunroof
Electric seats
Heated and ventilated seats
Heated seats
Heater blower motor
Air conditioning, heaterblower motor
Air conditioning
Cigar lighter
Hazard warning flashers
Horn
Central locking
Engine management,electronic module
Starter motor
139
Fuses

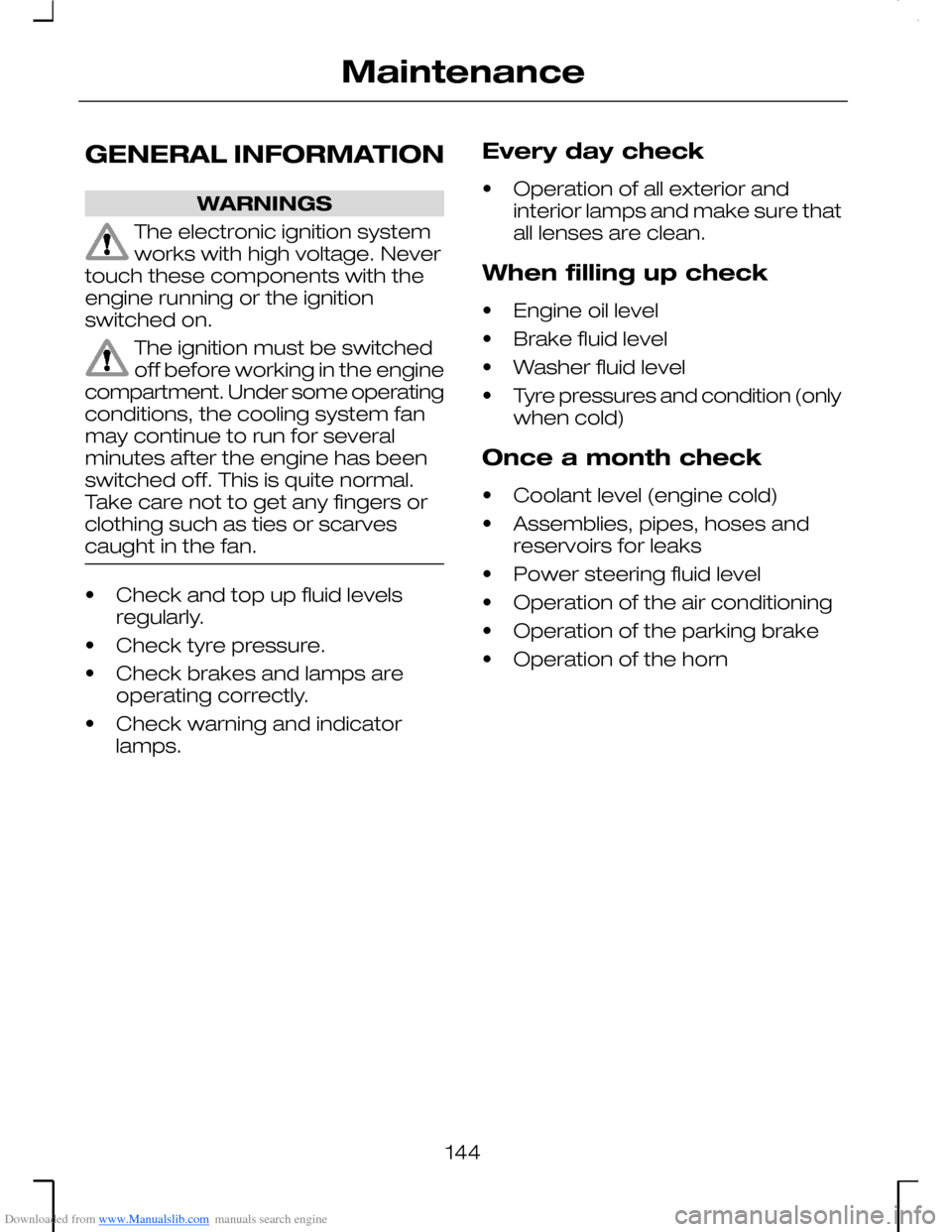

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
WARNINGS
The electronic ignition systemworks with high voltage. Nevertouch these components with theengine running or the ignitionswitched on.
The ignition must be switchedoff before working in the enginecompartment. Under some operatingconditions, the cooling system fanmay continue to run for severalminutes after the engine has beenswitched off. This is quite normal.Take care not to get any fingers orclothing such as ties or scarvescaught in the fan.
•Check and top up fluid levelsregularly.
•Check tyre pressure.
•Check brakes and lamps areoperating correctly.
•Check warning and indicatorlamps.
Every day check
•Operation of all exterior andinterior lamps and make sure thatall lenses are clean.
When filling up check
•Engine oil level
•Brake fluid level
•Washer fluid level
•Tyre pressures and condition (onlywhen cold)
Once a month check
•Coolant level (engine cold)
•Assemblies, pipes, hoses andreservoirs for leaks
•Power steering fluid level
•Operation of the air conditioning
•Operation of the parking brake
•Operation of the horn
144
Maintenance

Downloaded from www.Manualslib.com manuals search engine A
About this handbook........................5Adjusting the headlamps...............55Vehicles with Xenon headlamps.......55
Adjusting the steering wheel.........46Adjusting the windscreen washerjets....................................................51Air vents.............................................81Airbag warning lamp.......................31Alarm.................................................44Approach lamps..............................66Arming the alarm.............................44Alarm......................................................44Automatic arming delay.....................44Interior sensors....................................44
Arming the engine immobiliser.....43Ashtray..............................................98Front ashtray........................................98Rear ashtray.........................................98
Audible warnings andindicators........................................76Frost.......................................................76Lights on................................................76Overspeed............................................77Parking aid............................................76Seat belt reminder...............................77
Audio control...................................46Mode......................................................47Seek.......................................................47Volume..................................................46
Automatic climate control.............84Blower and air distribution..................85Setting the temperature.....................84Switching the air conditioning on andoff.......................................................85Switching the automatic climatecontrol on and off............................85
Automatic transmission fluidcheck............................................152
Automatic transmission................110Drive modes (5-speedtransmission)...................................116Driving with an automatictransmission.....................................114Emergency park position releaselever...................................................116Gear selection.....................................110
Auxiliary heater................................87Auxiliary power sockets.................99Estate....................................................99
B
Battery care....................................158Booster cushions.............................21Integrated booster cushion................21Vario child safety seat.........................23
Brake and clutch fluid check.......152Brakes..............................................118Principle of operation.........................118
C
Cargo nets......................................126Catalytic converter........................103Driving with a catalytic converter.....103Parking.................................................103
187
Index
