reset FORD MONDEO 2006 2.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Window anti-trapprotection
WARNINGS
Anti-trap protection is not activewhile the electric windowmemory is being reset. Make surethat there are no obstacles in the wayof the closing window.
Careless closing of the electricwindows can override theanti-trap protection and causeinjuries.
All electric windows are equippedwith anti-trap protection. Thewindows will stop automatically whileclosing and reverse some distanceif there is an obstacle in the way.
To override anti-trap protection whenthere is a resistance, e. g. in thewinter, proceed as follows:
Close the window twice until itreaches the resistance and let itreverse. Close the window a thirdtime to the resistance. Briefly releasethe switch and press againimmediately. The window will overridethe resistance and can then beclosed fully.
Resetting the electricwindow memory
After the battery has beendisconnected from the vehicle it isnecessary to reset the memoryseparately for each window:
Press button B until the window isfully closed. Release the button andpress it again immediately.
The window will close automaticallyif the resetting procedure has beendone correctly. Repeat theprocedure if the window does notclose automatically.
68
Windows and mirrorsE72185BA

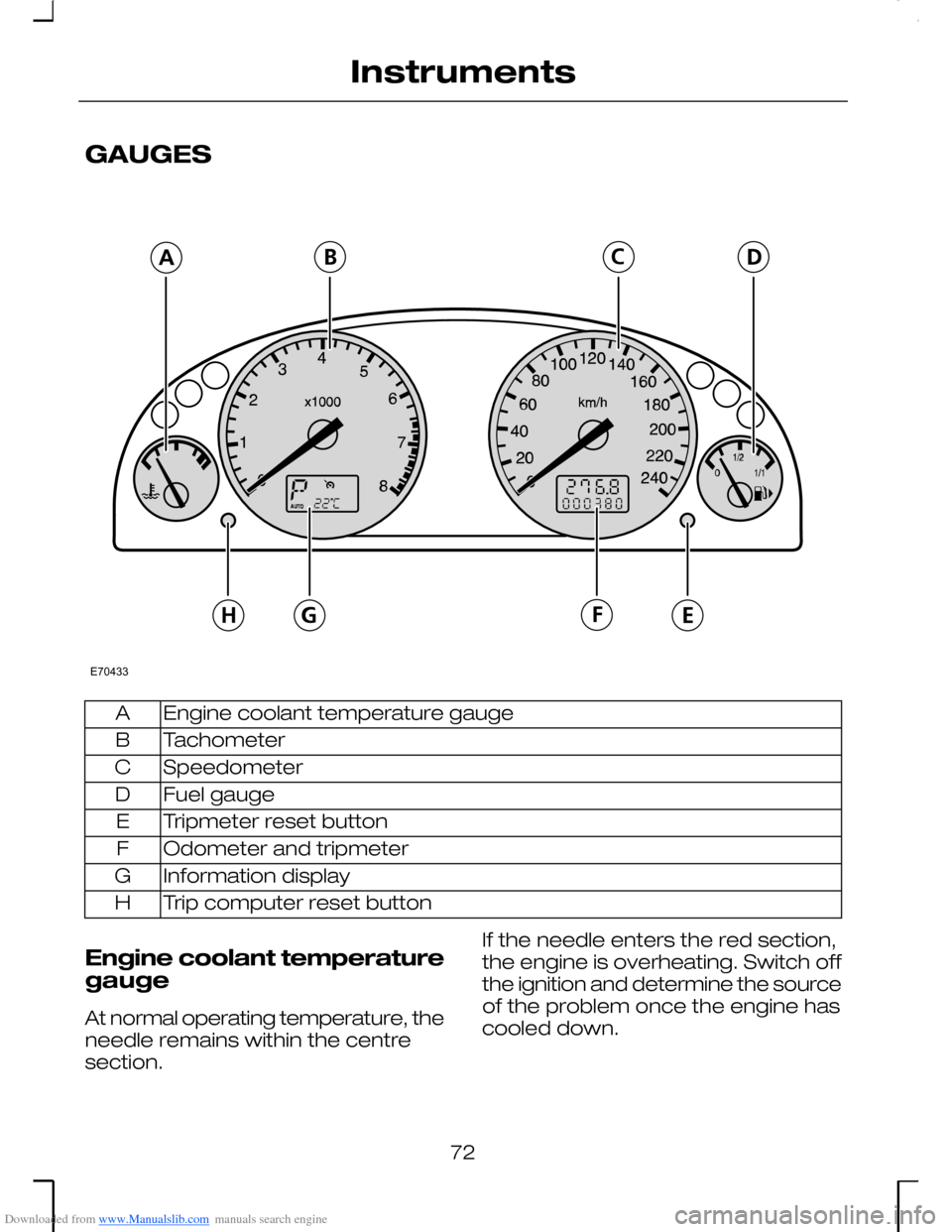

Downloaded from www.Manualslib.com manuals search engine GAUGES
Engine coolant temperature gaugeA
TachometerB
SpeedometerC
Fuel gaugeD
Tripmeter reset buttonE
Odometer and tripmeterF
Information displayG
Trip computer reset buttonH
Engine coolant temperaturegauge
At normal operating temperature, theneedle remains within the centresection.
If the needle enters the red section,the engine is overheating. Switch offthe ignition and determine the sourceof the problem once the engine hascooled down.
72
InstrumentsE70433

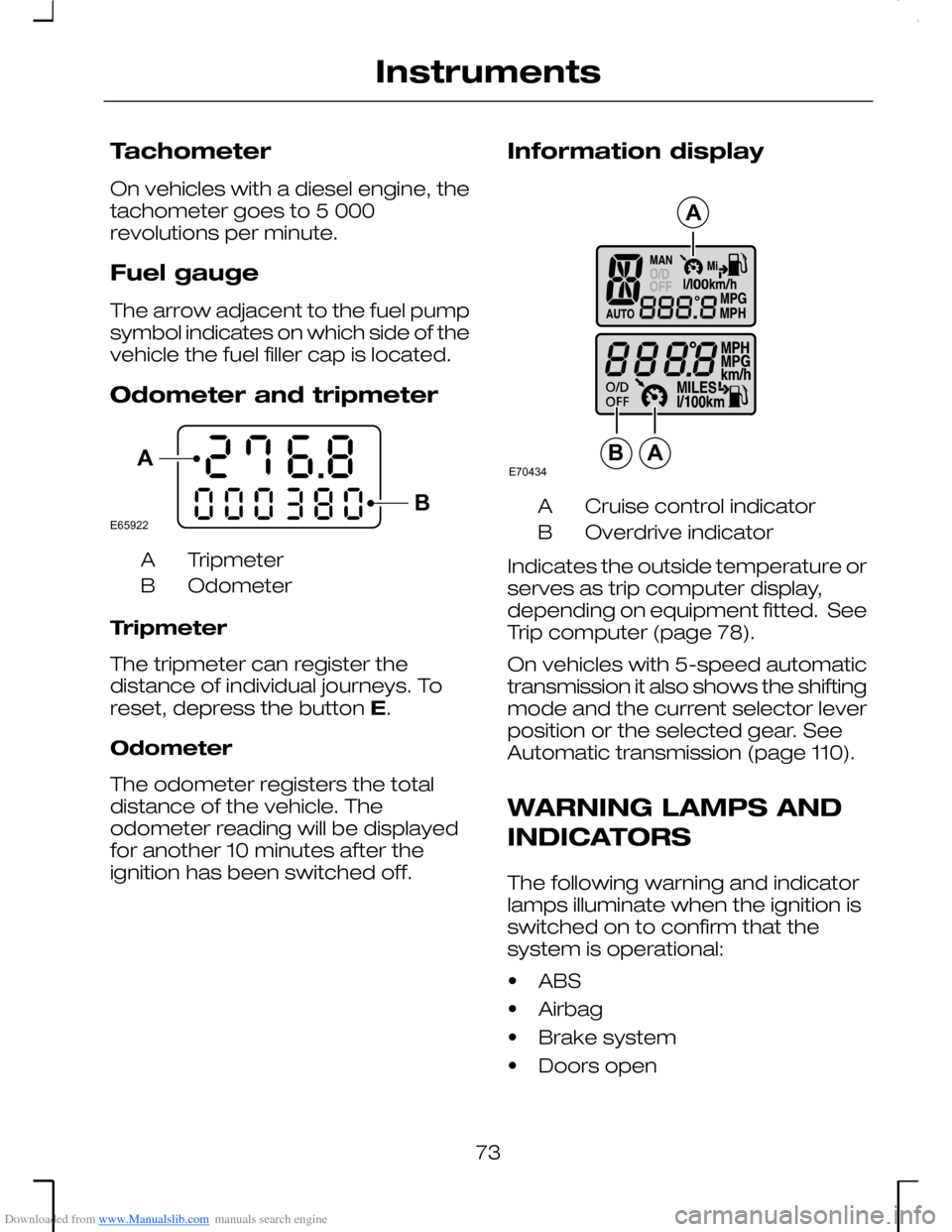

Downloaded from www.Manualslib.com manuals search engine Tachometer
On vehicles with a diesel engine, thetachometer goes to 5 000revolutions per minute.
Fuel gauge
The arrow adjacent to the fuel pumpsymbol indicates on which side of thevehicle the fuel filler cap is located.
Odometer and tripmeter
TripmeterA
OdometerB
Tripmeter
The tripmeter can register thedistance of individual journeys. Toreset, depress the button E.
Odometer
The odometer registers the totaldistance of the vehicle. Theodometer reading will be displayedfor another 10 minutes after theignition has been switched off.
Information display
Cruise control indicatorA
Overdrive indicatorB
Indicates the outside temperature orserves as trip computer display,depending on equipment fitted. SeeTrip computer (page 78).
On vehicles with 5-speed automatictransmission it also shows the shiftingmode and the current selector leverposition or the selected gear. SeeAutomatic transmission (page 110).
WARNING LAMPS AND
INDICATORS
The following warning and indicatorlamps illuminate when the ignition isswitched on to confirm that thesystem is operational:
•ABS
•Airbag
•Brake system
•Doors open
73
InstrumentsE65922BA AABE70434

Downloaded from www.Manualslib.com manuals search engine TRIP COMPUTER
The following functions are availablewhen the ignition is on:
•Outside air temperature
•Remaining fuel range
•Average fuel consumption
•Instantaneous fuel consumption(depending on country)
•Average speed
Info button
WARNING
For road safety reasons, set andreset the functions only whilstthe vehicle is stationary.
Press to change between functions.You will hear an audible signal everytime you press the button.
Reset button
Press the button briefly to togglebetween metric and imperial units.
The functions average fuelconsumption and average speed canbe individually reset by holding thereset button for two seconds whilethe desired function is selected.
Outside air temperature
78
Information displaysE70435 E70436 E70437 E70438

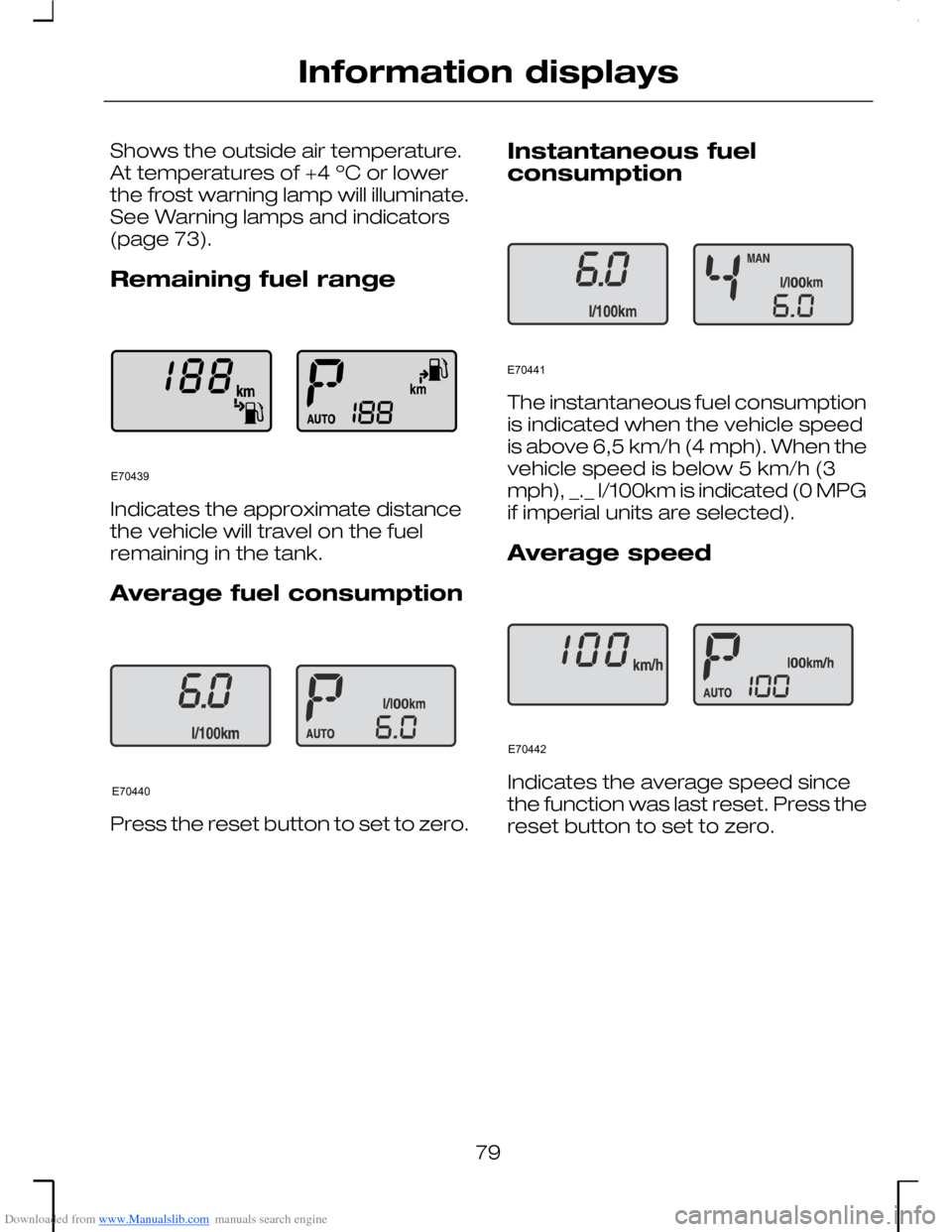

Downloaded from www.Manualslib.com manuals search engine Shows the outside air temperature.At temperatures of +4 ºC or lowerthe frost warning lamp will illuminate.See Warning lamps and indicators(page 73).
Remaining fuel range
Indicates the approximate distancethe vehicle will travel on the fuelremaining in the tank.
Average fuel consumption
Press the reset button to set to zero.
Instantaneous fuelconsumption
The instantaneous fuel consumptionis indicated when the vehicle speedis above 6,5 km/h (4 mph). When thevehicle speed is below 5 km/h (3mph), _._ l/100km is indicated (0 MPGif imperial units are selected).
Average speed
Indicates the average speed sincethe function was last reset. Press thereset button to set to zero.
79
Information displaysE70439 E70440 E70441 E70442

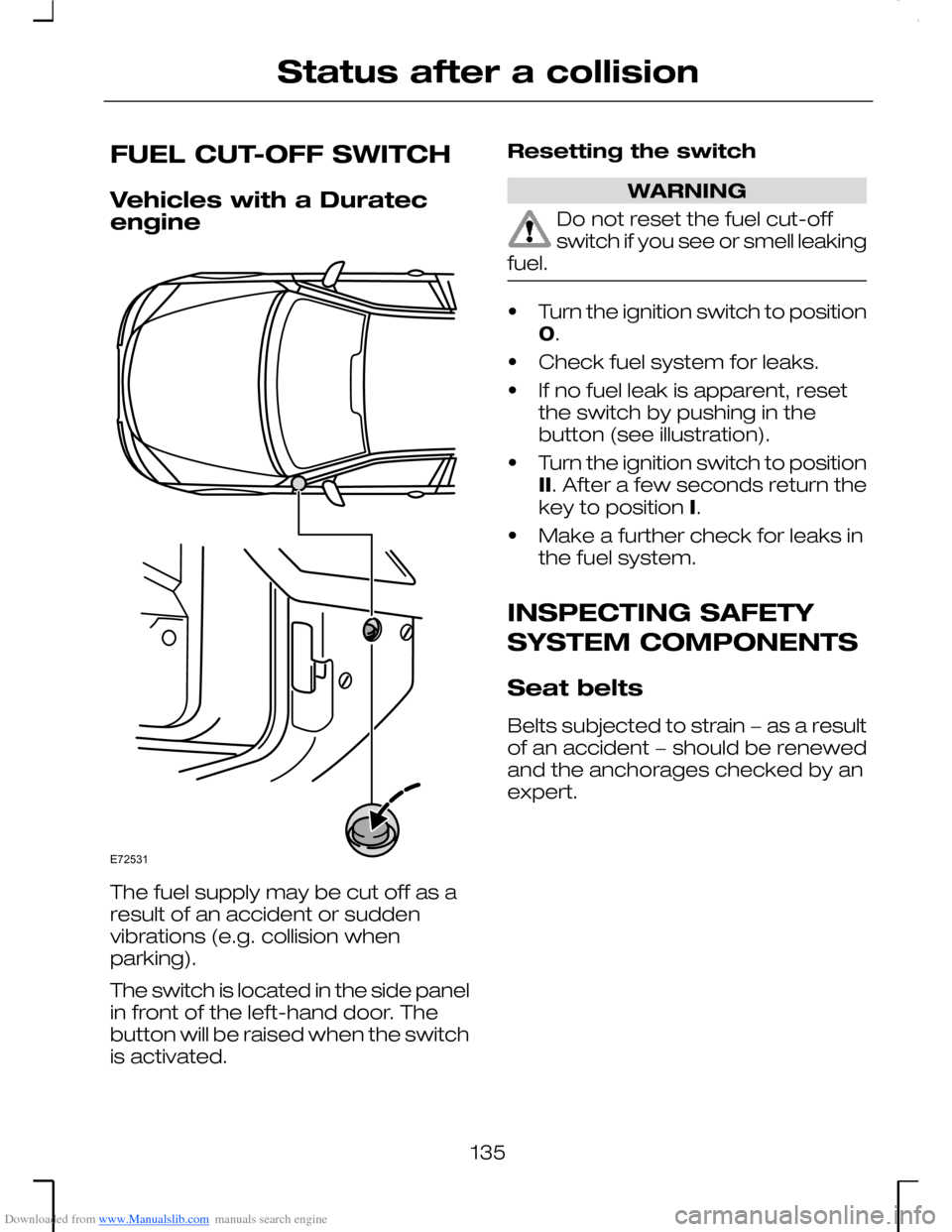

Downloaded from www.Manualslib.com manuals search engine FUEL CUT-OFF SWITCH
Vehicles with a Duratecengine
The fuel supply may be cut off as aresult of an accident or suddenvibrations (e.g. collision whenparking).
The switch is located in the side panelin front of the left-hand door. Thebutton will be raised when the switchis activated.
Resetting the switch
WARNING
Do not reset the fuel cut-offswitch if you see or smell leakingfuel.
•Turn the ignition switch to position0.
•Check fuel system for leaks.
•If no fuel leak is apparent, resetthe switch by pushing in thebutton (see illustration).
•Turn the ignition switch to positionII. After a few seconds return thekey to position I.
•Make a further check for leaks inthe fuel system.
INSPECTING SAFETY
SYSTEM COMPONENTS
Seat belts
Belts subjected to strain − as a resultof an accident − should be renewedand the anchorages checked by anexpert.
135
Status after a collisionE72531
