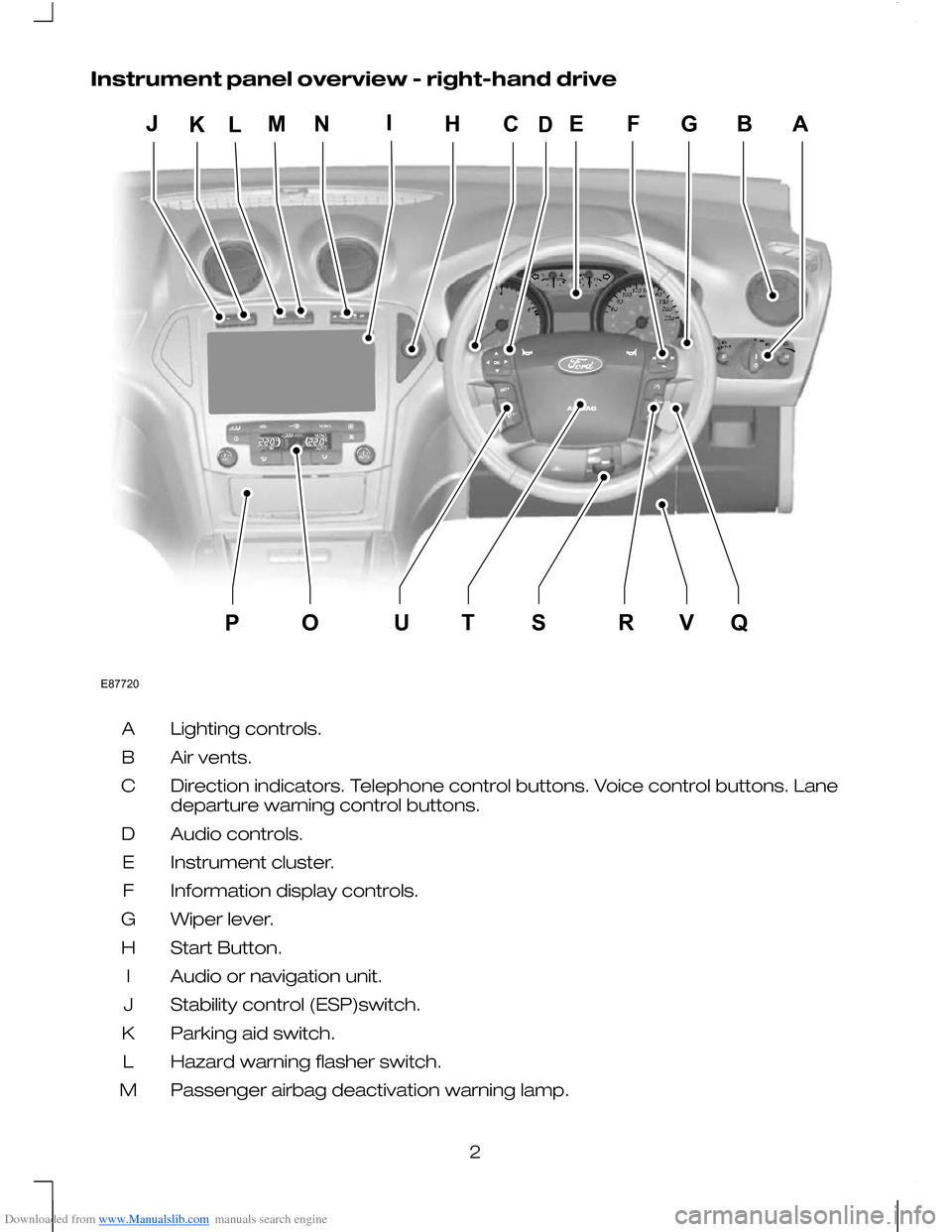

Downloaded from www.Manualslib.com manuals search engine Instrument panel overview - right-hand drive
Lighting controls.
A
Air vents.
B
Direction indicators. Telephone control buttons. Voice control buttons. Lane
departure warning control buttons.
C
Audio controls.
D
Instrument cluster.
E
Information display controls.
F
Wiper lever.
G
Start Button.
H
Audio or navigation unit.
I
Stability control (ESP)switch.
J
Parking aid switch.
K
Hazard warning flasher switch.
L
Passenger airbag deactivation warning lamp.
M
2E87720EFGBAMLHCIOQUTSRVPJKND
Page 5 of 16

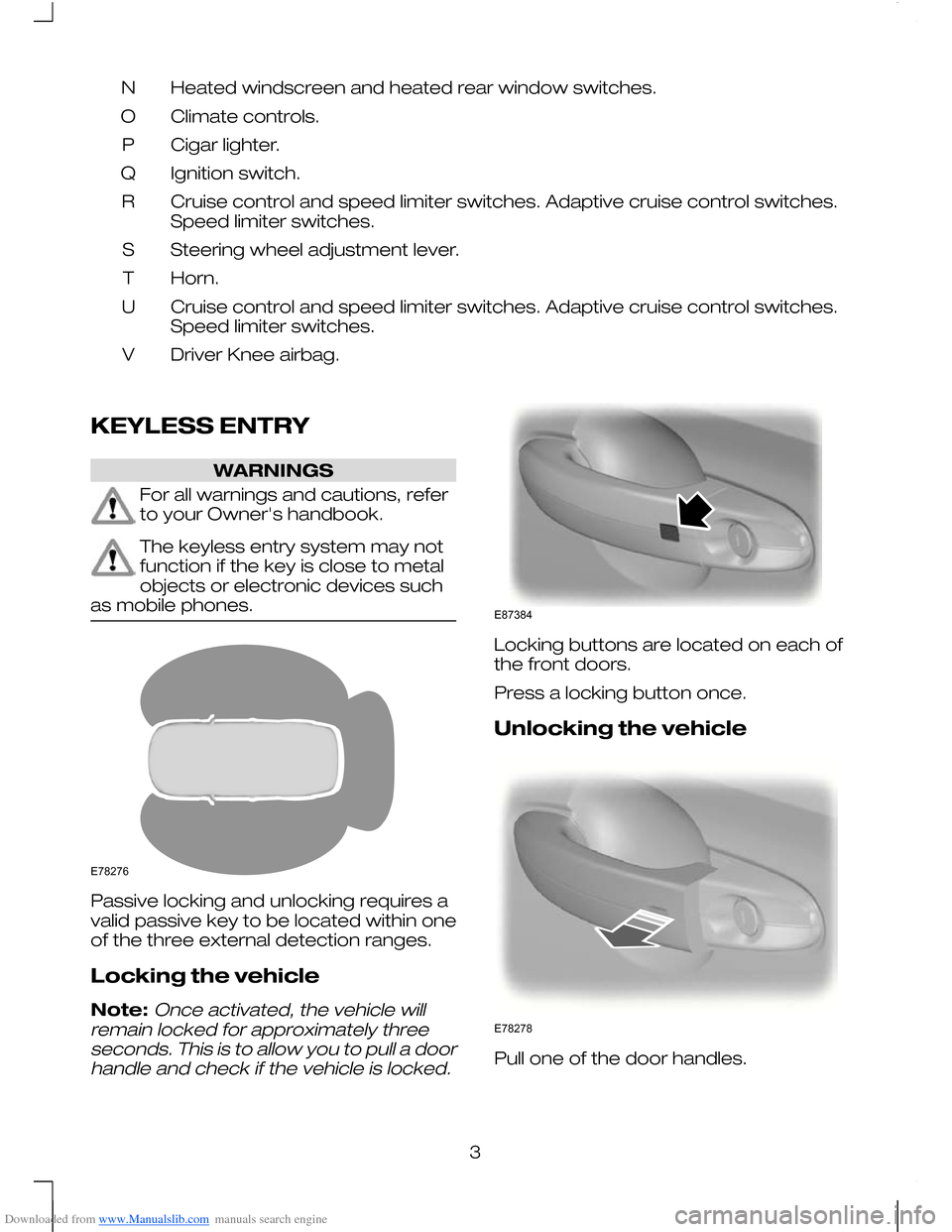

Downloaded from www.Manualslib.com manuals search engine Heated windscreen and heated rear window switches.
N
Climate controls.
O
Cigar lighter.
P
Ignition switch.
Q
Cruise control and speed limiter switches. Adaptive cruise control switches.
Speed limiter switches.
R
Steering wheel adjustment lever.
S
Horn.
T
Cruise control and speed limiter switches. Adaptive cruise control switches.
Speed limiter switches.
U
Driver Knee airbag.
V
KEYLESS ENTRY WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The keyless entry system may not
function if the key is close to metal
objects or electronic devices such
as mobile phones. Passive locking and unlocking requires a
valid passive key to be located within one
of the three external detection ranges.
Locking the vehicle
Note:Once activated, the vehicle will
remain locked for approximately three seconds. This is to allow you to pull a doorhandle and check if the vehicle is locked. Locking buttons are located on each of
the front doors.
Press a locking button once.
Unlocking the vehicle
Pull one of the door handles.
3E78276 E87384 E78278
Page 7 of 16

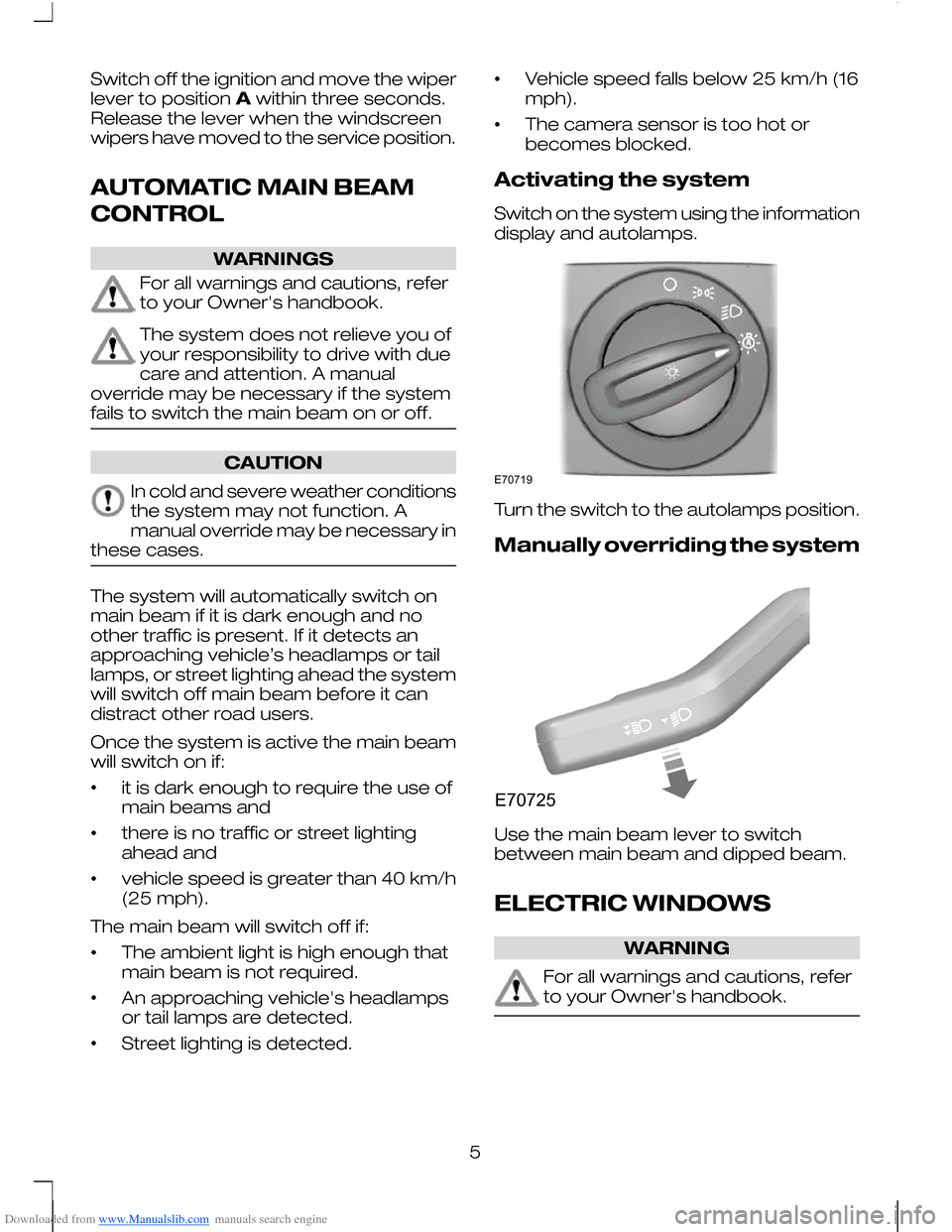

Downloaded from www.Manualslib.com manuals search engine Switch off the ignition and move the wiper
lever to positionAwithin three seconds.
Release the lever when the windscreen
wipers have moved to the service position.
AUTOMATIC MAIN BEAM
CONTROL
WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The system does not relieve you of
your responsibility to drive with due
care and attention. A manual
override may be necessary if the system
fails to switch the main beam on or off.
CAUTION
In cold and severe weather conditions
the system may not function. A
manual override may be necessary in
these cases.
The system will automatically switch on
main beam if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead the system
will switch off main beam before it can
distract other road users.
Once the system is active the main beam
will switch on if:
• it is dark enough to require the use of
main beams and
• there is no traffic or street lighting
ahead and
• vehicle speed is greater than 40 km/h
(25 mph).
The main beam will switch off if:
• The ambient light is high enough that
main beam is not required.
• An approaching vehicle's headlamps
or tail lamps are detected.
• Street lighting is detected. •
Vehicle speed falls below 25 km/h (16
mph).
• The camera sensor is too hot or
becomes blocked.
Activating the system
Switch on the system using the information
display and autolamps.
E70719
Turn the switch to the autolamps position.
Manually overriding the system
E70725
Use the main beam lever to switch
between main beam and dipped beam.
ELECTRIC WINDOWS
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
5
Page 8 of 16

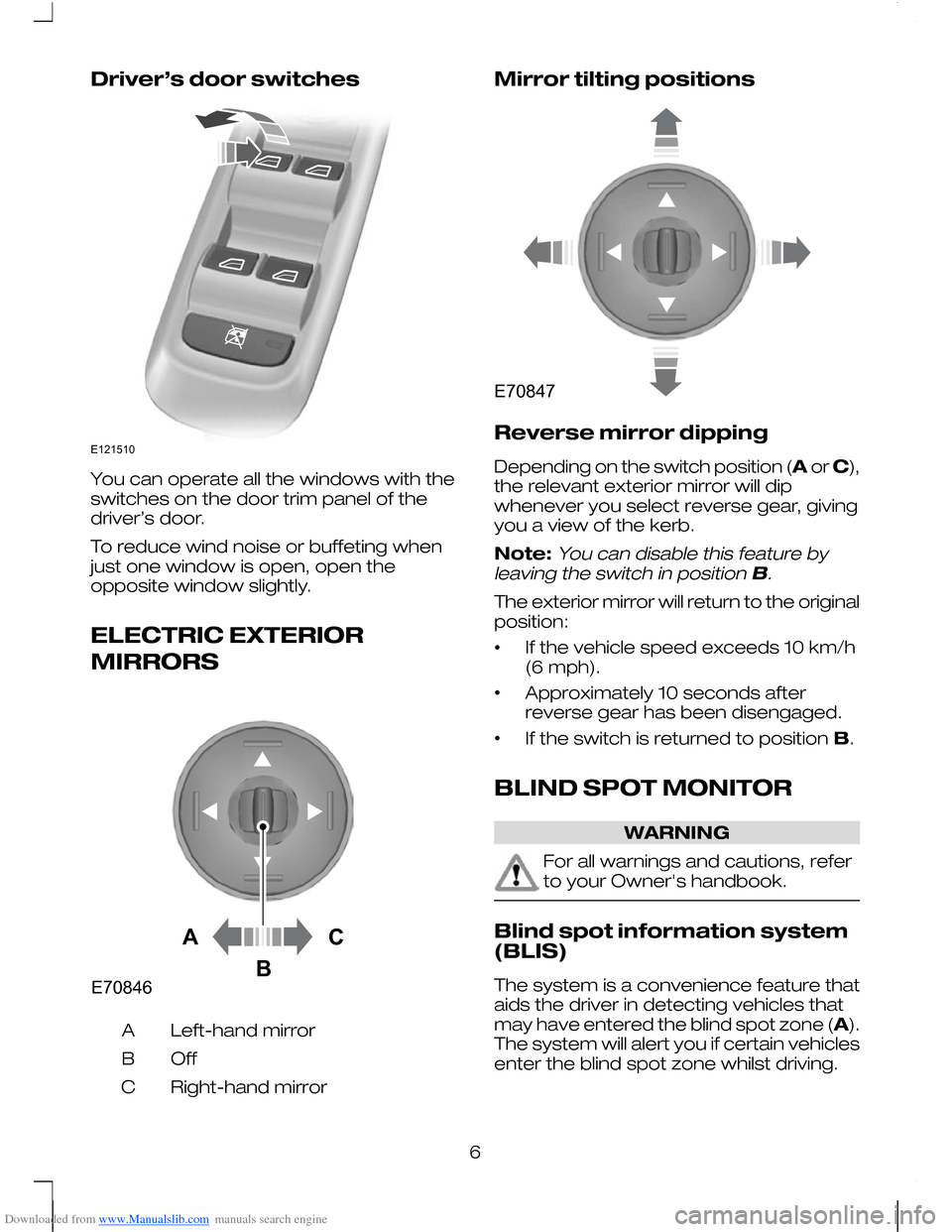

Downloaded from www.Manualslib.com manuals search engine Driver’s door switches
E121510
You can operate all the windows with the
switches on the door trim panel of the
driver’s door.
To reduce wind noise or buffeting when
just one window is open, open the
opposite window slightly.
ELECTRIC EXTERIOR
MIRRORS
AC
B
E70846
Left-hand mirror
A
OffB
Right-hand mirror
C
Mirror tilting positions
E70847
Reverse mirror dipping
Depending on the switch position (A orC),
the relevant exterior mirror will dip
whenever you select reverse gear, giving
you a view of the kerb.
Note:
You can disable this feature by
leaving the switch in position B.
The exterior mirror will return to the original
position:
•If the vehicle speed exceeds 10 km/h
(6 mph).
• Approximately 10 seconds after
reverse gear has been disengaged.
• If the switch is returned to position
B.
BLIND SPOT MONITOR
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Blind spot information system
(BLIS)
The system is a convenience feature that
aids the driver in detecting vehicles that
may have entered the blind spot zone (A).
The system will alert you if certain vehicles
enter the blind spot zone whilst driving.
6
Page 11 of 16

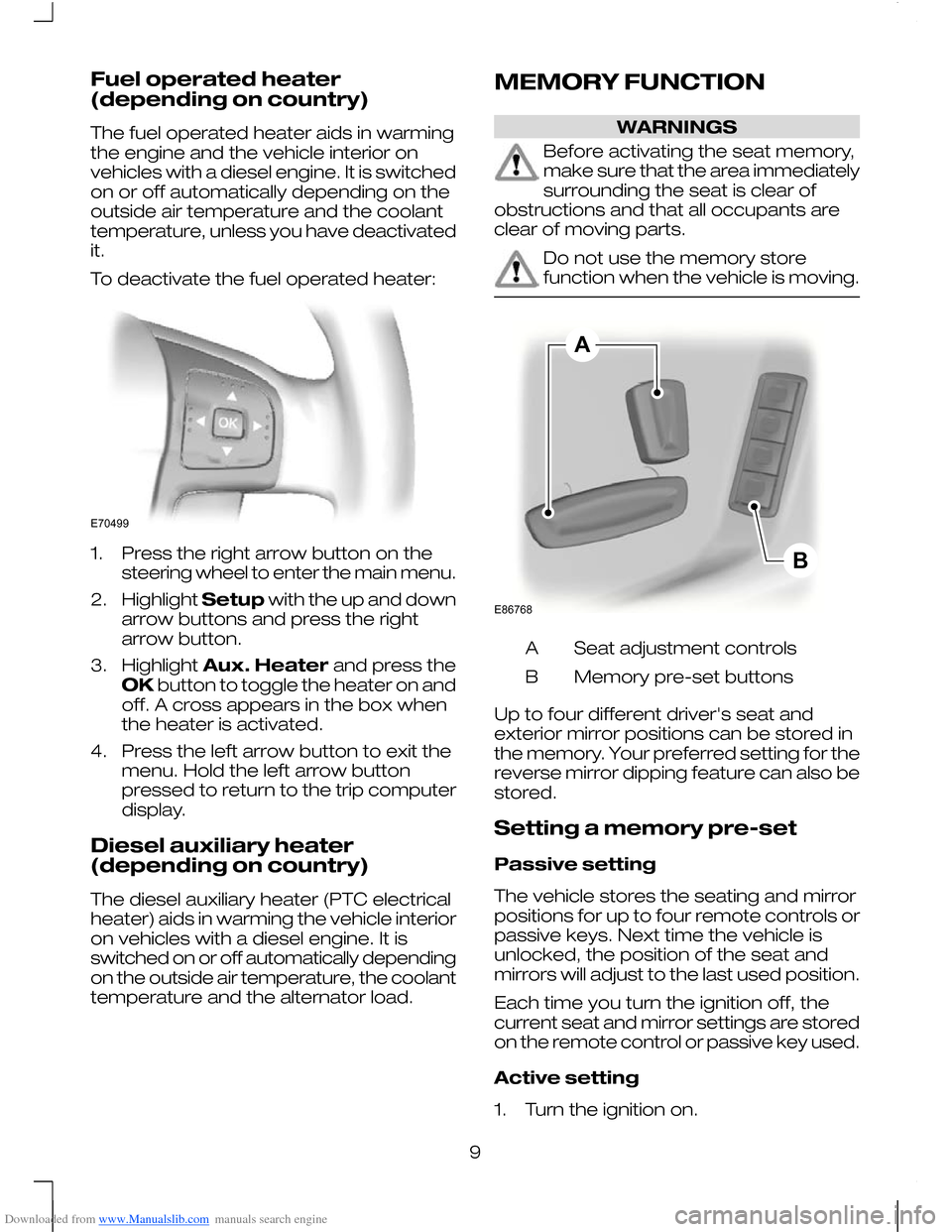

Downloaded from www.Manualslib.com manuals search engine Fuel operated heater
(depending on country)
The fuel operated heater aids in warming
the engine and the vehicle interior on
vehicles with a diesel engine. It is switched
on or off automatically depending on the
outside air temperature and the coolant
temperature, unless you have deactivated
it.
To deactivate the fuel operated heater:
1. Press the right arrow button on the
steering wheel to enter the main menu.
2. Highlight Setupwith the up and down
arrow buttons and press the right
arrow button.
3. Highlight Aux. Heater and press the
OK button to toggle the heater on and
off. A cross appears in the box when
the heater is activated.
4. Press the left arrow button to exit the menu. Hold the left arrow button
pressed to return to the trip computer
display.
Diesel auxiliary heater
(depending on country)
The diesel auxiliary heater (PTC electrical
heater) aids in warming the vehicle interior
on vehicles with a diesel engine. It is
switched on or off automatically depending
on the outside air temperature, the coolant
temperature and the alternator load. MEMORY FUNCTION WARNINGS
Before activating the seat memory,
make sure that the area immediately
surrounding the seat is clear of
obstructions and that all occupants are
clear of moving parts. Do not use the memory store
function when the vehicle is moving.
Seat adjustment controls
A
Memory pre-set buttons
B
Up to four different driver's seat and
exterior mirror positions can be stored in
the memory. Your preferred setting for the
reverse mirror dipping feature can also be
stored.
Setting a memory pre-set
Passive setting
The vehicle stores the seating and mirror
positions for up to four remote controls or
passive keys. Next time the vehicle is
unlocked, the position of the seat and
mirrors will adjust to the last used position.
Each time you turn the ignition off, the
current seat and mirror settings are stored
on the remote control or passive key used.
Active setting
1. Turn the ignition on.
9E70499 ABE86768
Page 14 of 16
Downloaded from www.Manualslib.com manuals search engine Insert the fuel nozzle up to and including
the first notch on the nozzle. Keep it
resting on the cover of the fuel pipe
opening.
WARNING
We recommend that you wait at
least 10 seconds before removing
the fuel nozzle to allow any residual
fuel to drain into the fuel tank. Slightly raise the fuel nozzle to remove it.
USING THE PARKING AID
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Switching the parking aid on
and off
Note:The parking aid switches off
automatically when you start the engine or when you exceed 16 km/h (10 mph).
Note:The front and rear sensors are
always activated or deactivated together.
The parking aid is per default off. To switch
the parking aid on, press the switch in the
instrument panel or select reverse gear.
The light in the switch illuminates when the
parking aid is activated.
To turn it off, press the switch again.
DRIVER ALERT WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The system does not relieve you of
your responsibility to drive with due
care and attention.
Take regular rest breaks as required
and do not wait for the system to
warn you if you feel tired.
CAUTIONS
In cold and severe weather conditions
the system may not function. Rain,
snow, spray and large contrasts in
lighting can all influence the sensor. The system may not operate on roads
with sharp bends or narrow lanes.
The system automatically monitors your
driving behaviour using various inputs
including the front camera sensor.
If the system detects that you are
becoming drowsy or there is a
deterioration in your driving, the system
will alert you.
USING DRIVER ALERT
Switching the system on and off
Activate the system using the information
display.
12E119080 E119081
Page 15 of 16

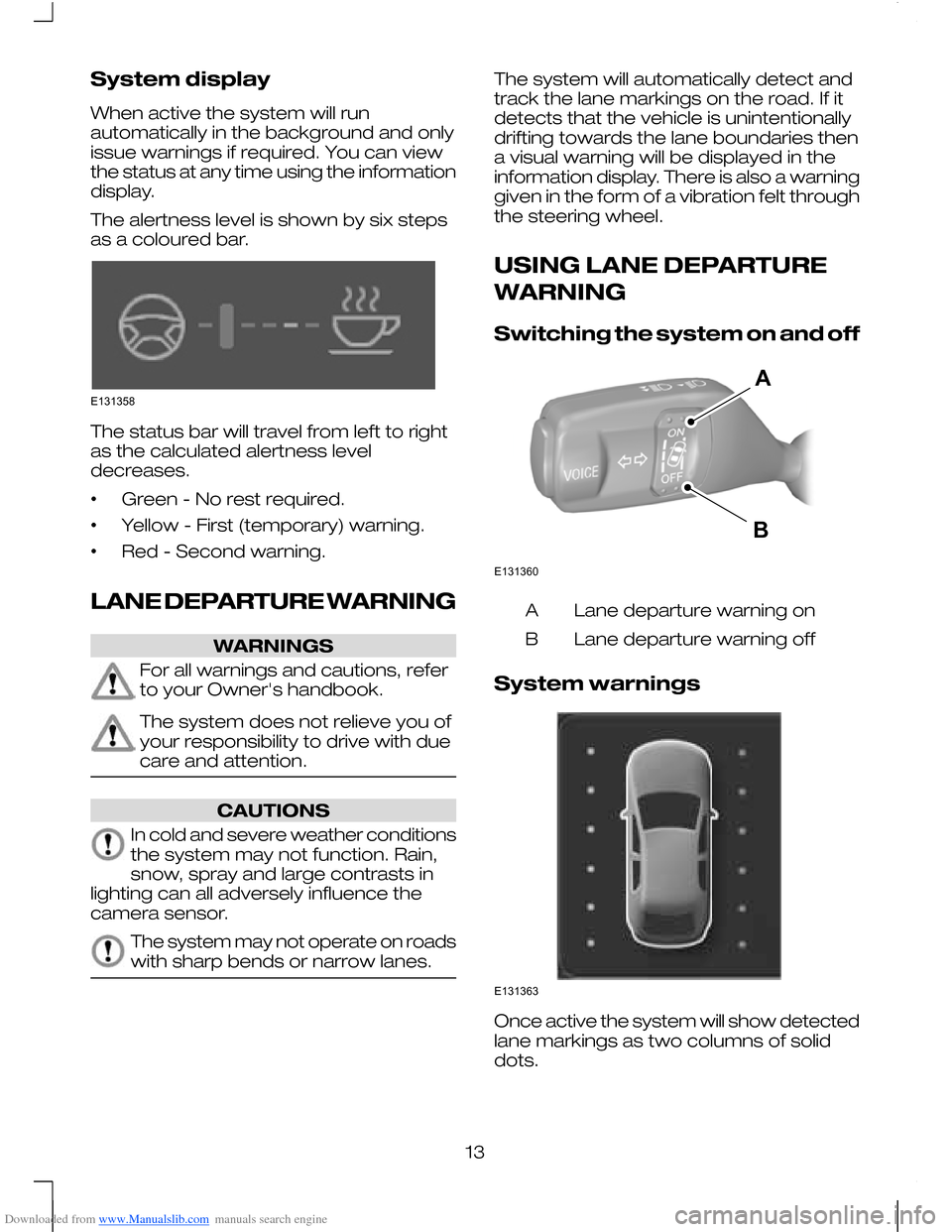

Downloaded from www.Manualslib.com manuals search engine System display
When active the system will run
automatically in the background and only
issue warnings if required. You can view
the status at any time using the information
display.
The alertness level is shown by six steps
as a coloured bar.
The status bar will travel from left to right
as the calculated alertness level
decreases.
•
Green - No rest required.
• Yellow - First (temporary) warning.
• Red - Second warning.
LANE DEPARTURE WARNING WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The system does not relieve you of
your responsibility to drive with due
care and attention.
CAUTIONS
In cold and severe weather conditions
the system may not function. Rain,
snow, spray and large contrasts in
lighting can all adversely influence the
camera sensor. The system may not operate on roads
with sharp bends or narrow lanes. The system will automatically detect and
track the lane markings on the road. If it
detects that the vehicle is unintentionally
drifting towards the lane boundaries then
a visual warning will be displayed in the
information display. There is also a warning
given in the form of a vibration felt through
the steering wheel.
USING LANE DEPARTURE
WARNING
Switching the system on and off
Lane departure warning on
A
Lane departure warning off
B
System warnings Once active the system will show detected
lane markings as two columns of solid
dots.
13E131358 E131360AB E131363
