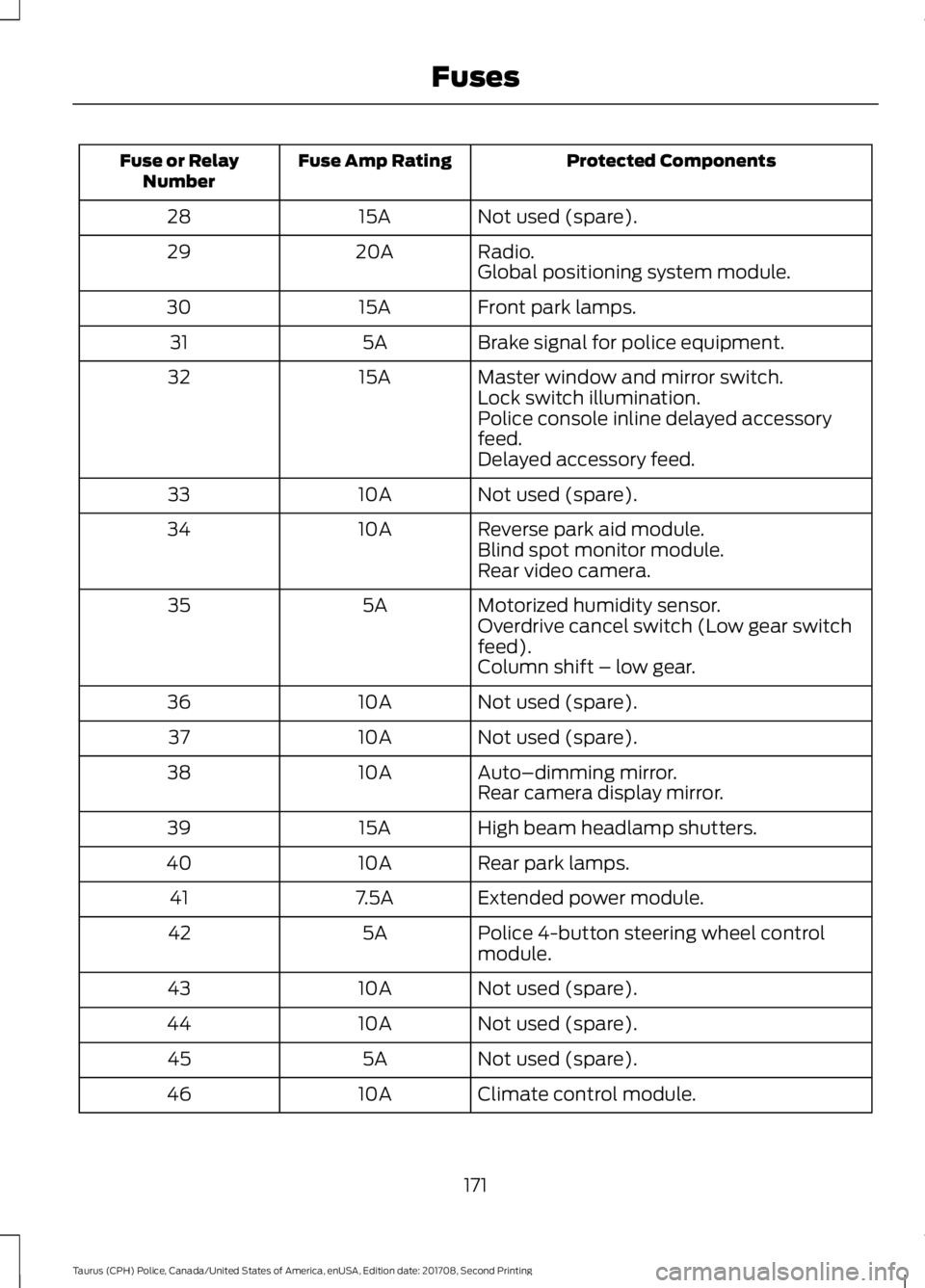

Protected Components
Fuse Amp Rating
Fuse or Relay
Number
Not used (spare).
15A
28
Radio.
20A
29
Global positioning system module.
Front park lamps.
15A
30
Brake signal for police equipment.
5A
31
Master window and mirror switch.
15A
32
Lock switch illumination.
Police console inline delayed accessory
feed.
Delayed accessory feed.
Not used (spare).
10A
33
Reverse park aid module.
10A
34
Blind spot monitor module.
Rear video camera.
Motorized humidity sensor.
5A
35
Overdrive cancel switch (Low gear switch
feed).
Column shift – low gear.
Not used (spare).
10A
36
Not used (spare).
10A
37
Auto–dimming mirror.
10A
38
Rear camera display mirror.
High beam headlamp shutters.
15A
39
Rear park lamps.
10A
40
Extended power module.
7.5A
41
Police 4-button steering wheel control
module.
5A
42
Not used (spare).
10A
43
Not used (spare).
10A
44
Not used (spare).
5A
45
Climate control module.
10A
46
171
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Fuses

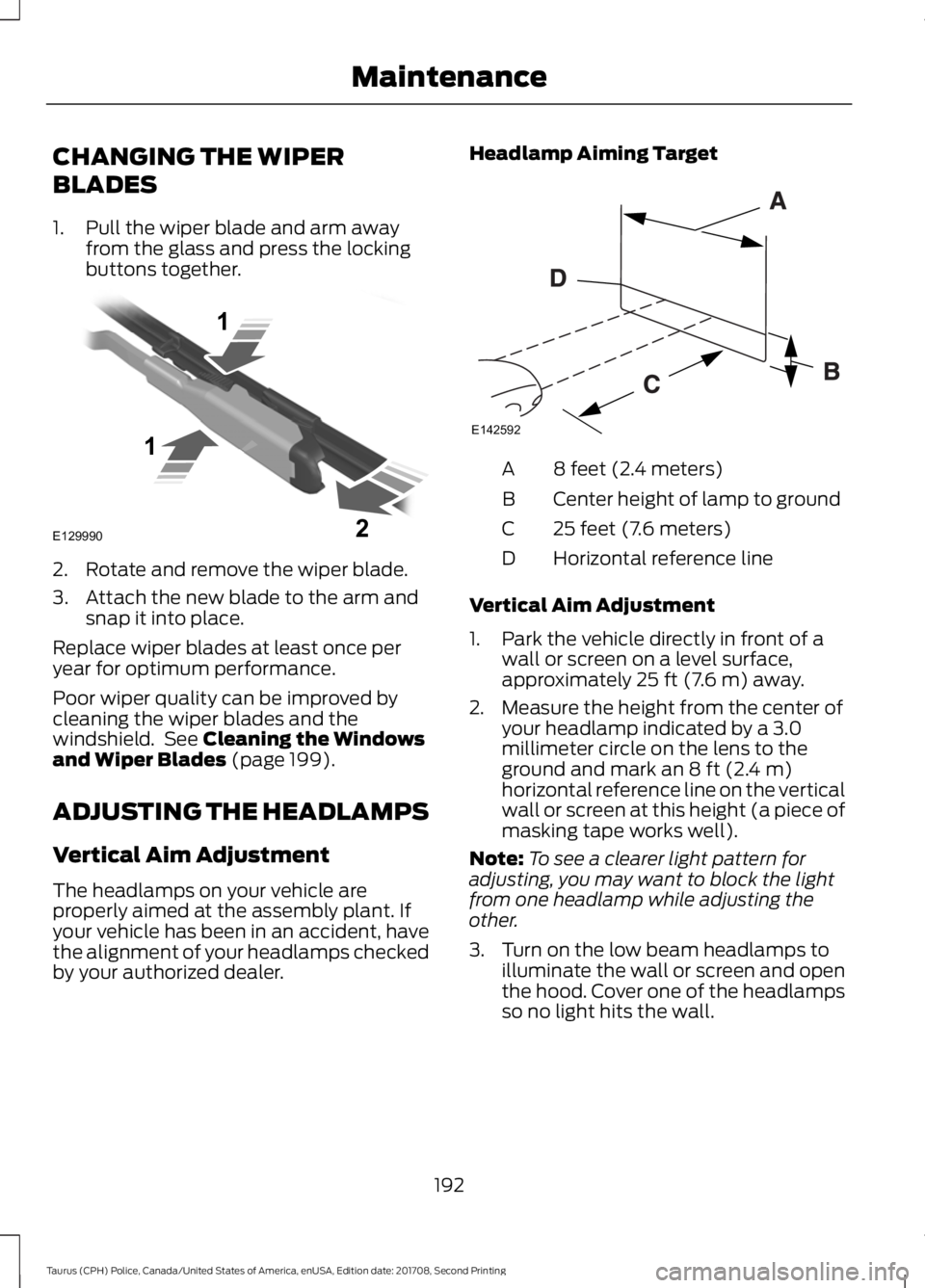

CHANGING THE WIPER
BLADES
1. Pull the wiper blade and arm away
from the glass and press the locking
buttons together. 2. Rotate and remove the wiper blade.
3. Attach the new blade to the arm and
snap it into place.
Replace wiper blades at least once per
year for optimum performance.
Poor wiper quality can be improved by
cleaning the wiper blades and the
windshield. See Cleaning the Windows
and Wiper Blades (page 199).
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, have
the alignment of your headlamps checked
by your authorized dealer. Headlamp Aiming Target
8 feet (2.4 meters)
A
Center height of lamp to ground
B
25 feet (7.6 meters)
C
Horizontal reference line
D
Vertical Aim Adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately
25 ft (7.6 m) away.
2. Measure the height from the center of your headlamp indicated by a 3.0
millimeter circle on the lens to the
ground and mark an
8 ft (2.4 m)
horizontal reference line on the vertical
wall or screen at this height (a piece of
masking tape works well).
Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.
3. Turn on the low beam headlamps to illuminate the wall or screen and open
the hood. Cover one of the headlamps
so no light hits the wall.
192
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing MaintenanceE129990

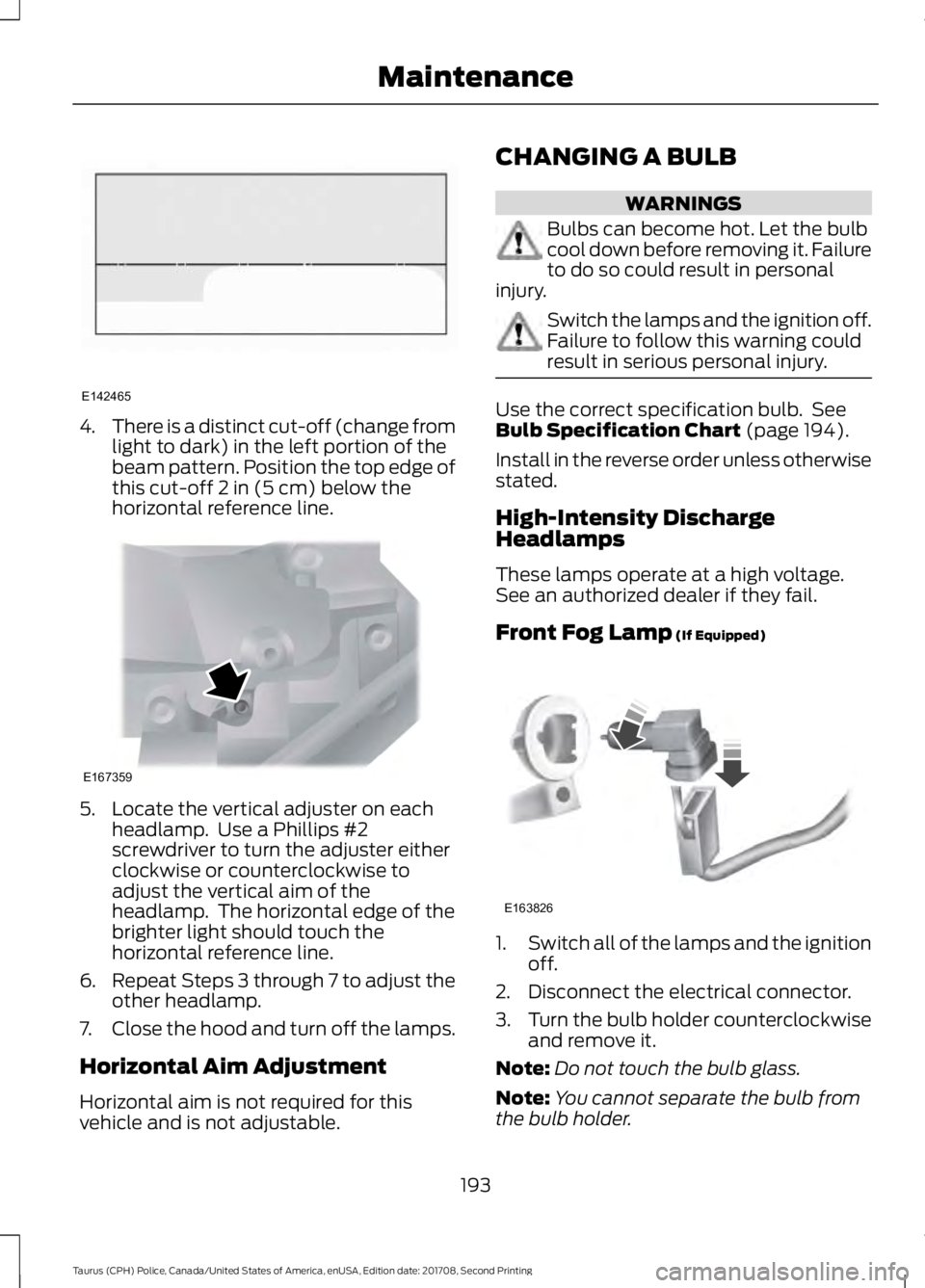

1
1 2 E142592

4.
There is a distinct cut-off (change from
light to dark) in the left portion of the
beam pattern. Position the top edge of
this cut-off 2 in (5 cm) below the
horizontal reference line. 5. Locate the vertical adjuster on each
headlamp. Use a Phillips #2
screwdriver to turn the adjuster either
clockwise or counterclockwise to
adjust the vertical aim of the
headlamp. The horizontal edge of the
brighter light should touch the
horizontal reference line.
6. Repeat Steps 3 through 7 to adjust the
other headlamp.
7. Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this
vehicle and is not adjustable. CHANGING A BULB WARNINGS
Bulbs can become hot. Let the bulb
cool down before removing it. Failure
to do so could result in personal
injury. Switch the lamps and the ignition off.
Failure to follow this warning could
result in serious personal injury.
Use the correct specification bulb. See
Bulb Specification Chart
(page 194).
Install in the reverse order unless otherwise
stated.
High-Intensity Discharge
Headlamps
These lamps operate at a high voltage.
See an authorized dealer if they fail.
Front Fog Lamp
(If Equipped) 1.
Switch all of the lamps and the ignition
off.
2. Disconnect the electrical connector.
3. Turn the bulb holder counterclockwise
and remove it.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
193
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing MaintenanceE142465 E167359 E163826

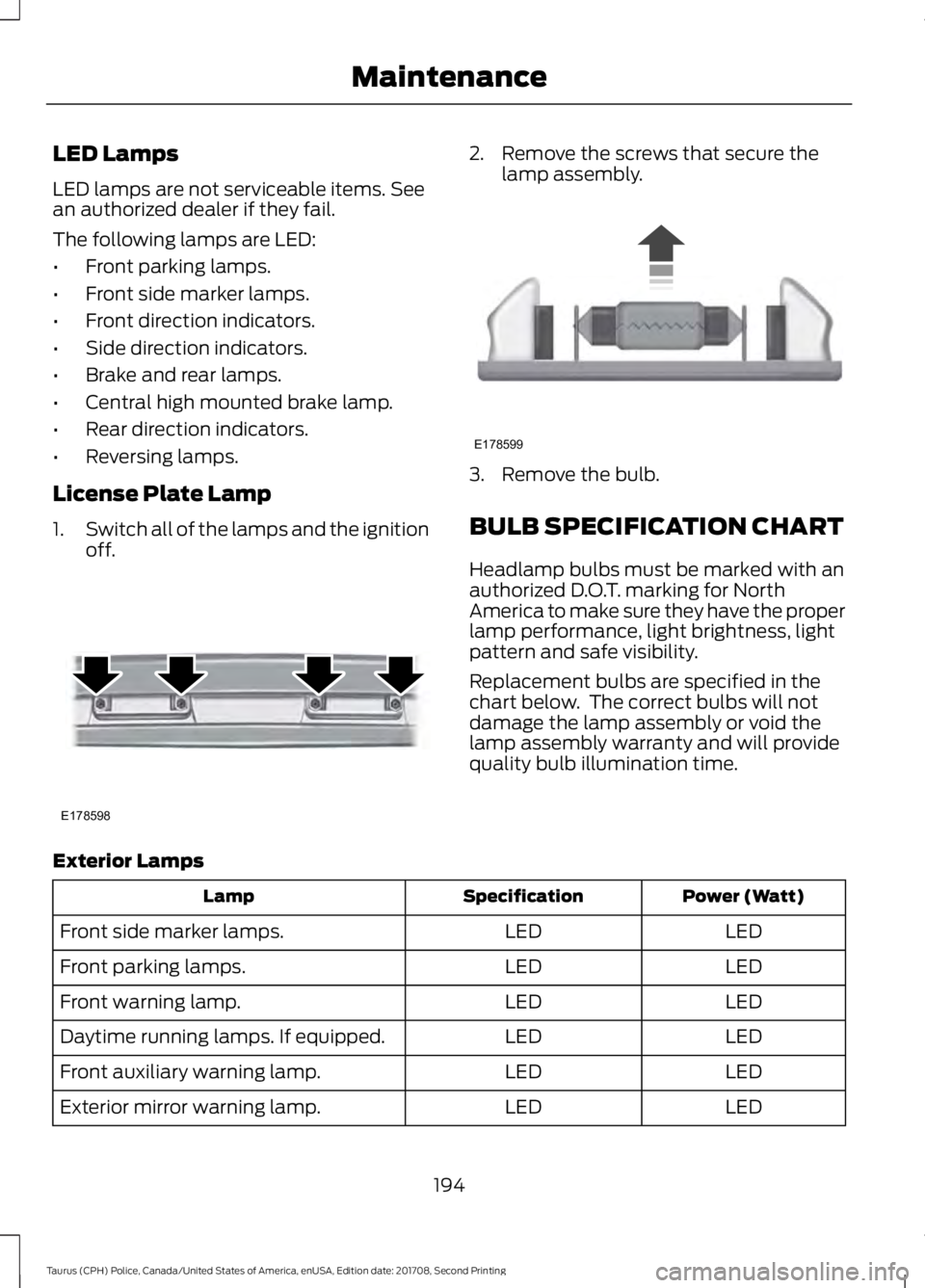

LED Lamps
LED lamps are not serviceable items. See
an authorized dealer if they fail.
The following lamps are LED:
•
Front parking lamps.
• Front side marker lamps.
• Front direction indicators.
• Side direction indicators.
• Brake and rear lamps.
• Central high mounted brake lamp.
• Rear direction indicators.
• Reversing lamps.
License Plate Lamp
1. Switch all of the lamps and the ignition
off. 2. Remove the screws that secure the
lamp assembly. 3. Remove the bulb.
BULB SPECIFICATION CHART
Headlamp bulbs must be marked with an
authorized D.O.T. marking for North
America to make sure they have the proper
lamp performance, light brightness, light
pattern and safe visibility.
Replacement bulbs are specified in the
chart below. The correct bulbs will not
damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb illumination time.
Exterior Lamps Power (Watt)
Specification
Lamp
LED
LED
Front side marker lamps.
LED
LED
Front parking lamps.
LED
LED
Front warning lamp.
LED
LED
Daytime running lamps. If equipped.
LED
LED
Front auxiliary warning lamp.
LED
LED
Exterior mirror warning lamp.
194
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing MaintenanceE178598 E178599

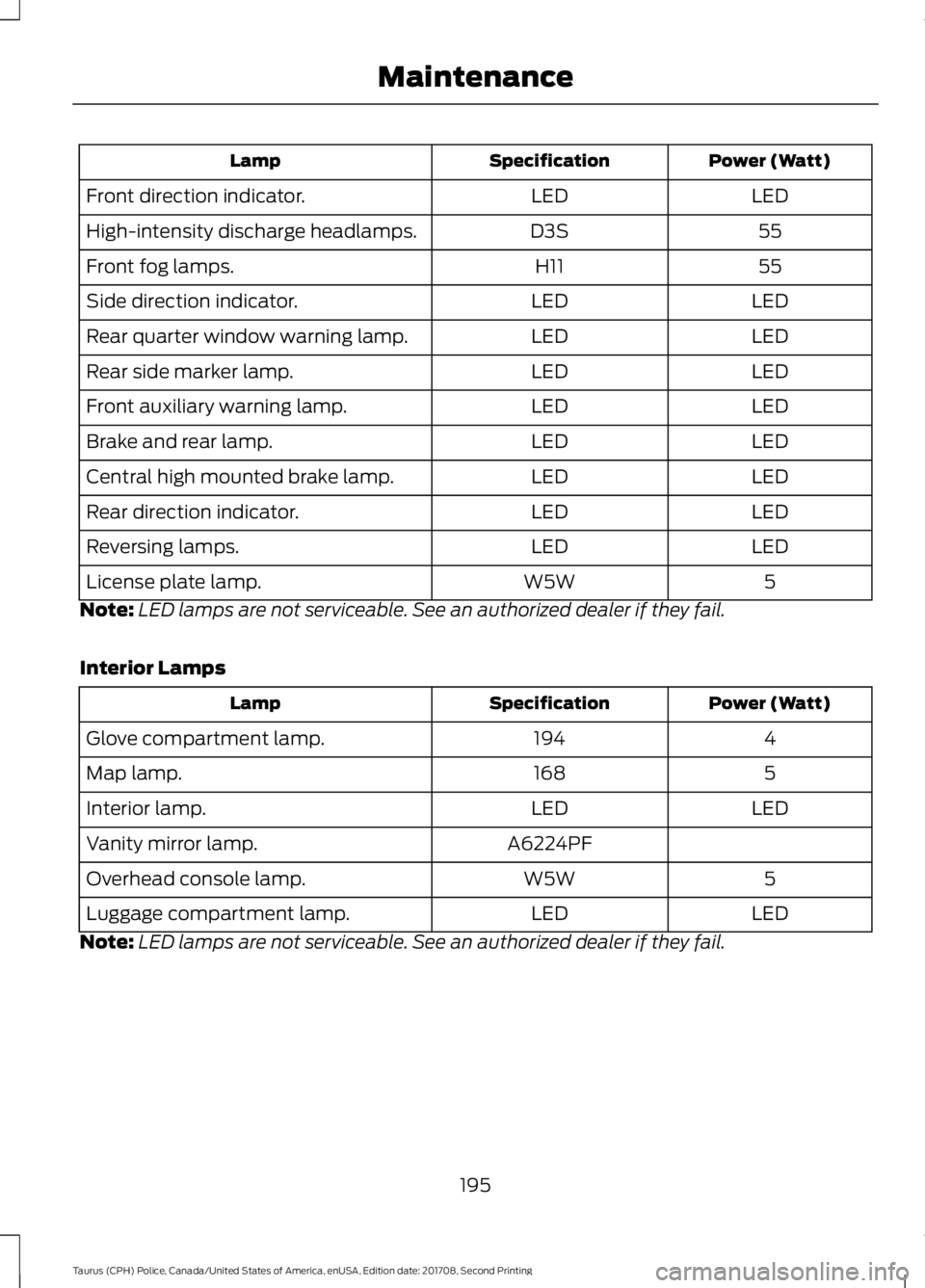

Power (Watt)
Specification
Lamp
LED
LED
Front direction indicator.
55
D3S
High-intensity discharge headlamps.
55
H11
Front fog lamps.
LED
LED
Side direction indicator.
LED
LED
Rear quarter window warning lamp.
LED
LED
Rear side marker lamp.
LED
LED
Front auxiliary warning lamp.
LED
LED
Brake and rear lamp.
LED
LED
Central high mounted brake lamp.
LED
LED
Rear direction indicator.
LED
LED
Reversing lamps.
5
W5W
License plate lamp.
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
Interior Lamps Power (Watt)
Specification
Lamp
4
194
Glove compartment lamp.
5
168
Map lamp.
LED
LED
Interior lamp.
A6224PF
Vanity mirror lamp.
5
W5W
Overhead console lamp.
LED
LED
Luggage compartment lamp.
Note: LED lamps are not serviceable. See an authorized dealer if they fail.
195
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Maintenance

•

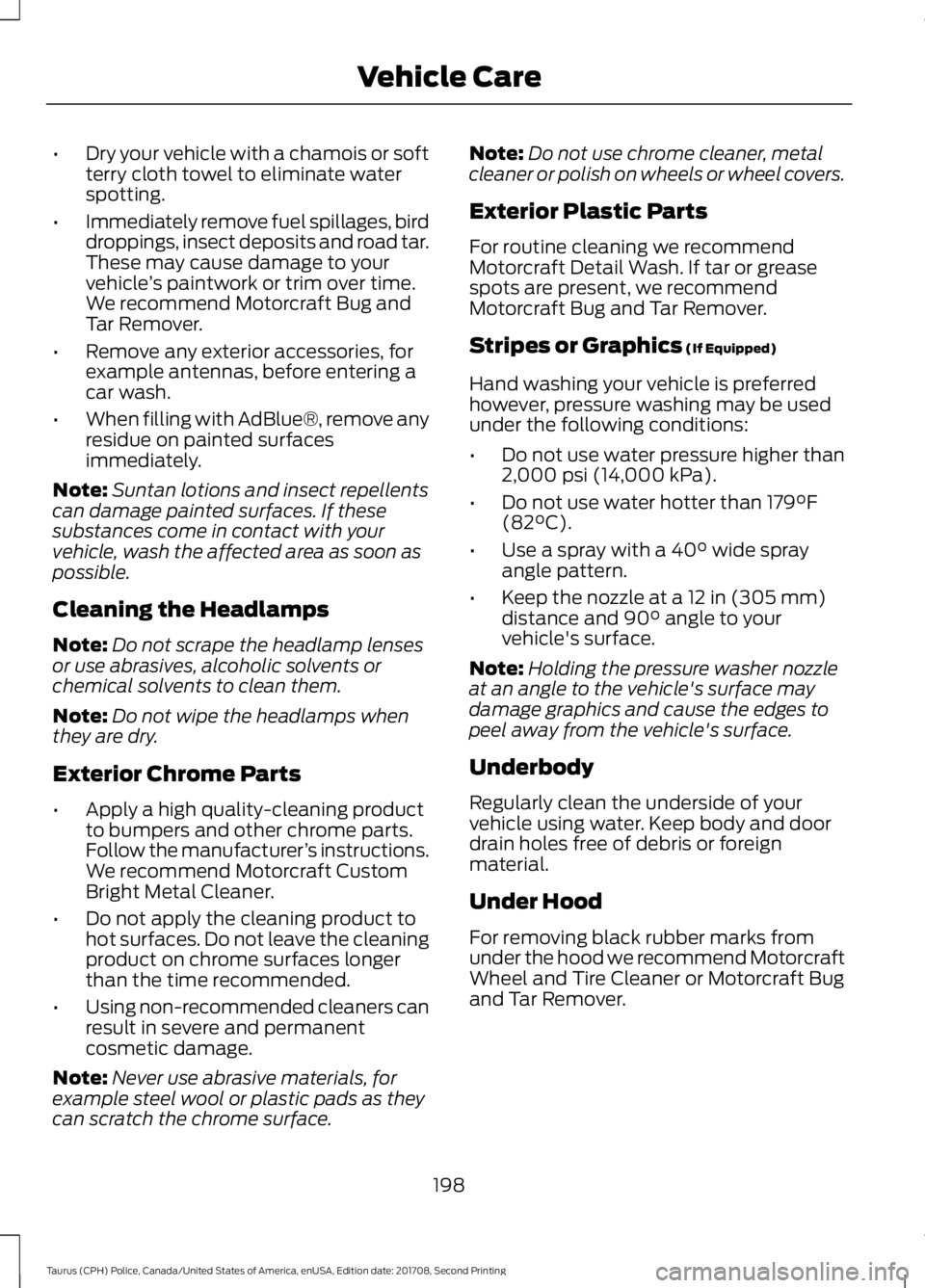

Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.
• Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle ’s paintwork or trim over time.
We recommend Motorcraft Bug and
Tar Remover.
• Remove any exterior accessories, for
example antennas, before entering a
car wash.
• When filling with AdBlue®, remove any
residue on painted surfaces
immediately.
Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.
Cleaning the Headlamps
Note: Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.
Note: Do not wipe the headlamps when
they are dry.
Exterior Chrome Parts
• Apply a high quality-cleaning product
to bumpers and other chrome parts.
Follow the manufacturer ’s instructions.
We recommend Motorcraft Custom
Bright Metal Cleaner.
• Do not apply the cleaning product to
hot surfaces. Do not leave the cleaning
product on chrome surfaces longer
than the time recommended.
• Using non-recommended cleaners can
result in severe and permanent
cosmetic damage.
Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface. Note:
Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.
Exterior Plastic Parts
For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft Bug and Tar Remover.
Stripes or Graphics (If Equipped)
Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:
• Do not use water pressure higher than
2,000 psi (14,000 kPa)
.
• Do not use water hotter than
179°F
(82°C).
• Use a spray with a
40° wide spray
angle pattern.
• Keep the nozzle at a
12 in (305 mm)
distance and 90° angle to your
vehicle's surface.
Note: Holding the pressure washer nozzle
at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.
Underbody
Regularly clean the underside of your
vehicle using water. Keep body and door
drain holes free of debris or foreign
material.
Under Hood
For removing black rubber marks from
under the hood we recommend Motorcraft
Wheel and Tire Cleaner or Motorcraft Bug
and Tar Remover.
198
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Vehicle Care

A
A/C
See: Climate Control........................................... 83
About This Manual...........................................7
ABS See: Brakes............................................................ 119
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 120
Accessories See: Replacement Parts
Recommendation............................................ 12
Adjusting the Headlamps..........................192 Horizontal Aim Adjustment............................ 193
Vertical Aim Adjustment.................................. 192
Adjusting the Pedals.....................................58
Adjusting the Steering Wheel
...................56
Airbag Disposal...............................................49
Air Conditioning See: Climate Control........................................... 83
Air Filter See: Changing the Engine Air Filter.............196
Alarm See: Anti-Theft Alarm........................................ 55
All-Wheel Drive...............................................112
Anti-Theft Alarm
............................................55
Alarm System........................................................ 55
Arming the Alarm................................................. 55
Disarming the Alarm........................................... 55
Triggering the Alarm............................................ 55
Appendices....................................................326
At a Glance........................................................16
Audible Warnings and Indicators..............73 Headlamps On Warning Chime...................... 73
Key in Ignition Warning Chime......................... 73
Parking Brake On Warning Chime.................. 73
Audio Control..................................................56 Auxiliary Steering Wheel Controls.................57
Audio Input Jack...........................................262
Audio System................................................256 General Information......................................... 256
Audio Unit.......................................................257 Menu Structure................................................... 259
Autolamps.........................................................61 Windshield Wiper Activated
Headlamps......................................................... 61Automatic Transmission
...........................109
Automatic Transmission Adaptive
Learning............................................................... 111
Brake-Shift Interlock......................................... 109
If Your Vehicle Gets Stuck In Mud or Snow..................................................................... 111
Understanding the Positions of Your Automatic Transmission............................ 109
Automatic Transmission Fluid Check - 2.0L EcoBoost™........................................185
6F35 Transmission............................................ 185
Automatic Transmission Fluid Check - 3.5L Duratec/3.5L Ecoboost™/
3.7L..................................................................185
6F50/6F55 Transmission............................... 185
Adjusting Automatic Transmission Fluid Levels.................................................................. 187
Checking the fluid level.................................... 187
Moving the Air Filter Assembly (Accessing the Dipstick).................................................... 186
Reinstalling The Air Filter Assembly...........188
Auxiliary Power Points.................................90 12 Volt DC Power Point...................................... 90
Locations................................................................ 90
AWD See: All-Wheel Drive........................................... 112
B
Battery See: Changing the 12V Battery...................... 189
Blind Spot Information System..............130 Switching the System Off and On.................131
System Errors........................................................ 131
System Limitations............................................. 131
Using the System............................................... 130
BLIS See: Blind Spot Information System..........130
Bonnet Lock See: Opening and Closing the Hood............174
Booster Seats..................................................25 Types of Booster Seats...................................... 26
Brake Fluid Check
........................................188
Brakes................................................................119 General Information........................................... 119
Breaking-In......................................................147
Bulb Specification Chart...........................194
353
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index

C
Cabin Air Filter.................................................85
California Proposition 65..............................11
Capacities and Specifications - 2.0L
EcoBoost™.................................................238
Alternative Engine Oil for Extremely Cold Climates............................................................ 241
Specifications..................................................... 238
Capacities and Specifications - 3.5L Duratec.........................................................242
Alternative Engine Oil for Extremely Cold Climates........................................................... 245
Specifications..................................................... 243
Capacities and Specifications - 3.5L Ecoboost™.................................................246
Alternative Engine Oil for Extreme Cold Climates........................................................... 250
Specifications...................................................... 247
Capacities and Specifications - 3.7L.................................................................250
Alternative Engine Oil for Extremely Cold Climates........................................................... 254
Specifications....................................................... 251
Capacities and Specifications................229
Car Wash See: Cleaning the Exterior............................... 197
Catalytic Converter......................................106 On-Board Diagnostics (OBD-II).................... 107
Readiness for Inspection and Maintenance (I/M) Testing.................................................... 107
Center Console................................................91
Console Mounting Plates................................... 91
Universal Top Tray................................................ 91
Changing a Bulb
............................................193
Front Fog Lamp................................................... 193
High-Intensity Discharge Headlamps.........193
LED Lamps............................................................ 194
License Plate Lamp........................................... 194
Changing a Fuse............................................172 Fuses........................................................................\
172
Changing a Road Wheel............................223 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 223
Tire Change Procedure.................................... 224
Changing the 12V Battery..........................189 Battery Management System......................... 191
Changing the Engine Air Filter.................196 Changing the Wiper Blades......................192
Checking the Wiper Blades.......................191
Child Restraint and Seatbelt
Maintenance.................................................34
Child Restraint Positioning
..........................27
Child Safety.......................................................18
General Information............................................. 18
Cleaning Leather Seats..............................201
Cleaning Products
........................................197
Materials................................................................. 197
Cleaning the Engine
....................................199
Cleaning the Exterior...................................197
Cleaning the Headlamps................................. 198
Exterior Chrome Parts...................................... 198
Exterior Plastic Parts......................................... 198
Stripes or Graphics............................................ 198
Underbody............................................................ 198
Under Hood.......................................................... 198
Cleaning the Instrument Panel and Instrument Cluster Lens........................200
Cleaning the Interior
..................................200
Cleaning the Wheels..................................202
Cleaning the Windows and Wiper Blades............................................................199
Climate Control
..............................................83
Coolant Check See: Engine Coolant Check............................. 181
Crash Sensors and Airbag Indicator.......44 Airbags and Police Equipment....................... 45
Cross Traffic Alert.........................................132 False Alerts........................................................... 134
Switching the System Off and On...............134
System Errors....................................................... 134
System Lights, Messages and Audible Alerts................................................................... 133
System Limitations............................................ 134
Using the System................................................ 132
Cruise Control
..................................................57
Principle of Operation....................................... 129
Cruise control See: Using Cruise Control................................ 129
Customer Assistance
..................................156
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
354
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index

Front Passenger Sensing System............39
Fuel and Refueling.........................................97
Fuel Consumption.......................................103
Calculating Fuel Economy.............................. 104
Filling the Fuel Tank.......................................... 104
Fuel Filler Funnel Location.........................99
Fuel Filter
.........................................................189
Fuel Quality - E85..........................................97 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................... 97
Switching Between E85 and Gasoline........98
Fuel Quality - Gasoline................................99 Choosing the Right Fuel.................................... 99
Fuel Shutoff
.....................................................151
Fuses.................................................................163
Fuse Specification Chart...........................163 Passenger Compartment Fuse Panel........168
Power Distribution Box..................................... 163
G
Gauges...............................................................69 Fuel Gauge............................................................. 69
Information Display............................................. 69
Speedometer........................................................ 69
Gearbox See: Transmission.............................................. 109
General Information on Radio Frequencies...................................................50
General Maintenance Information
.......306
Multi-Point Inspection.................................... 308
Owner Checks and Services.......................... 307
Protecting Your Investment.......................... 306
Why Maintain Your Vehicle?......................... 306
Why Maintain Your Vehicle at Your Dealership?.................................................... 306
Getting Assistance Outside the U.S. and Canada..........................................................159
Getting the Services You Need
...............156
Away From Home............................................... 156
H
Handbrake See: Parking Brake............................................. 120
Hazard Flashers
..............................................151
Headlamp Adjusting See: Adjusting the Headlamps...................... 192Headlamp Exit Delay....................................62
Headrest
See: Head Restraints.......................................... 86
Head Restraints
..............................................86
Adjusting the Head Restraint........................... 87
Tilting Head Restraints ...................................... 87
Heated Windows and Mirrors....................85 Heated Exterior Mirror........................................ 85
Heated Rear Window......................................... 85
Heating See: Climate Control........................................... 83
Hill Start Assist..............................................120 Switching the System On and Off.................121
Using Hill Start Assist......................................... 121
Hints on Controlling the Interior Climate...........................................................84
Defogging the Side Windows in Cold Weather.............................................................. 85
General Hints......................................................... 84
Quickly Cooling the Interior.............................. 84
Quickly Heating the Interior............................. 84
Recommended Settings for Cooling............84
Recommended Settings for Heating...........84
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 84
Hints on Driving With Anti-Lock Brakes
............................................................120
Hood Lock See: Opening and Closing the Hood............174
I
Ignition Switch.................................................92
In California (U.S. Only)
..............................157
Information Display Control.......................57
Information Displays.....................................74 General Information............................................ 74
Information Messages
..................................77
AdvanceTrac ™....................................................... 77
Alarm........................................................................\
. 77
AWD........................................................................\
.. 78
Battery and Charging System.......................... 78
Blind Spot Information and Cross Traffic Alert System...................................................... 79
Brake System......................................................... 79
Doors and Locks................................................... 79
Fuel........................................................................\
... 80
356
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index

Maintenance..........................................................80
Park Aid...................................................................
80
Police Engine Idle feature.................................. 81
Power Steering....................................................... 81
Reminder Messages............................................. 81
Seats........................................................................\
. 82
Tire Pressure Monitoring System................... 82
Traction Control.................................................... 82
Installing Child Restraints............................19 Child Seats............................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 22
Using Tether Straps............................................. 24
Instrument Cluster........................................69
Instrument Lighting Dimmer.....................62
Instrument Panel Overview........................16
Interior Lamps
.................................................63
Dome Task Lamp................................................. 63
Front Map Lamps................................................. 63
Interior Luggage Compartment Release............................................................54
Interior Mirror....................................................67 Automatic Dimming Mirror............................... 67
Manual Dimming Mirror..................................... 67
Introduction.........................................................7
J
Jump Starting the Vehicle.........................152 Connecting the Jumper Cables..................... 152
Jump Starting....................................................... 153
Preparing Your Vehicle...................................... 152
Removing the Jumper Cables........................ 153
K
Keys and Remote Controls........................50
L
Lighting Control
..............................................60
Headlamp Flasher................................................ 61
High Beams............................................................ 60
Spot Lamp Control............................................... 61
Lighting..............................................................60 General Information........................................... 60
Load Carrying
.................................................136 Load Limit.......................................................136
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................. 141
Vehicle Loading - with and without a Trailer.................................................................. 136
Locking and Unlocking.................................52 Battery Saver......................................................... 53
Hidden Rear Door Locks.................................... 52
Illuminated Entry.................................................. 53
Illuminated Exit..................................................... 53
Locking and Unlocking the Doors with the Key Blade............................................................ 53
Opening a Rear Door From the Inside..........53
Opening the Luggage Compartment...........53
Power Door Locks................................................ 52
Remote Control..................................................... 52
Lug Nuts See: Changing a Road Wheel........................ 223
M
Maintenance...................................................174 General Information........................................... 174
Manual Climate Control
..............................83
Manual Seats..................................................88 Lumbar Adjustment........................................... 89
Moving the Seat Backward and Forward.............................................................. 88
Recline Adjustment............................................ 88
Media Hub......................................................263
Message Center See: Information Displays................................. 74
Mirrors See: Heated Windows and Mirrors................85
See: Windows and Mirrors................................ 65
Mobile Communications Equipment.......13
Motorcraft Parts - 2.0L EcoBoost™..................................................231
Motorcraft Parts - 3.5L Duratec.............233
Motorcraft Parts - 3.5L Ecoboost™.................................................234
Motorcraft Parts - 3.7L...............................235
N
Normal Scheduled Maintenance
..........309
Intelligent Oil-Life Monitor™........................ 309
357
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index
