Page 271 of 395

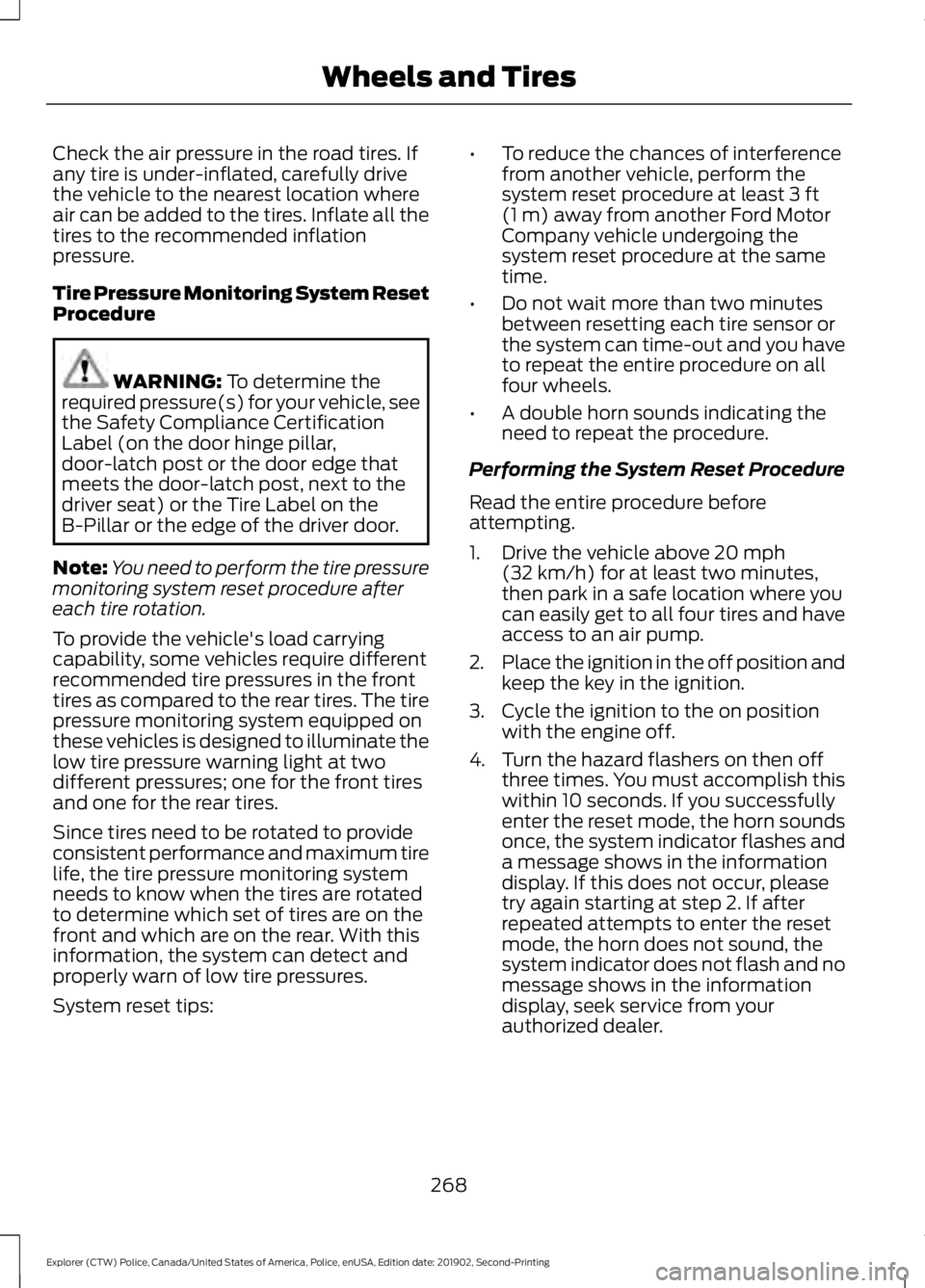

FORD POLICE INTERCEPTOR 2020  Owners Manual Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive
the vehicle to the nearest location where
air can be added to the tires. Inflate all the
tires to the recommend

Page 272 of 395

FORD POLICE INTERCEPTOR 2020  Owners Manual 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following clockwise order: Left front -
driver side

Page 273 of 395

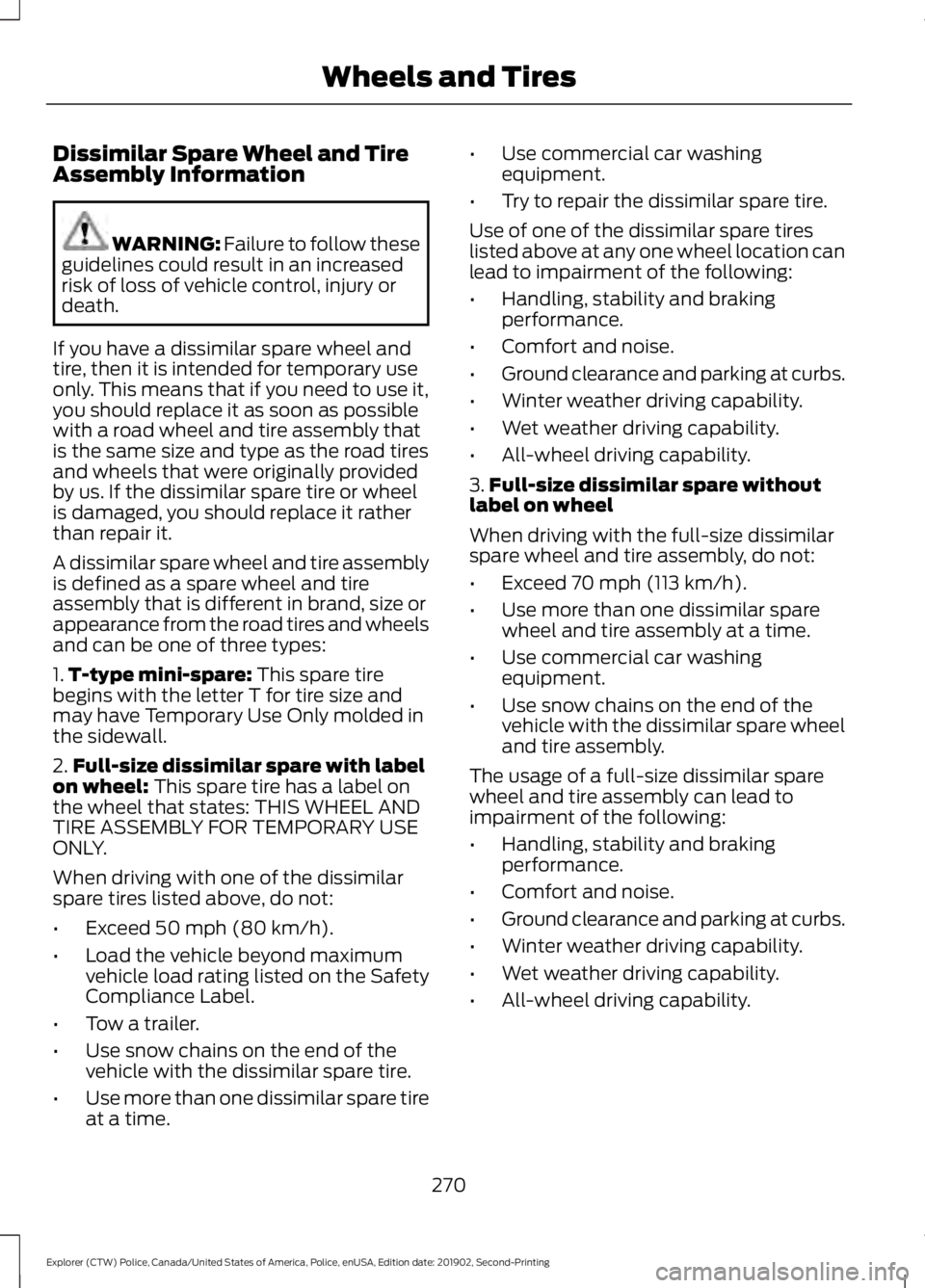

FORD POLICE INTERCEPTOR 2020  Owners Manual Dissimilar Spare Wheel and Tire
Assembly Information
WARNING: Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
If you have a dissimilar

Page 274 of 395

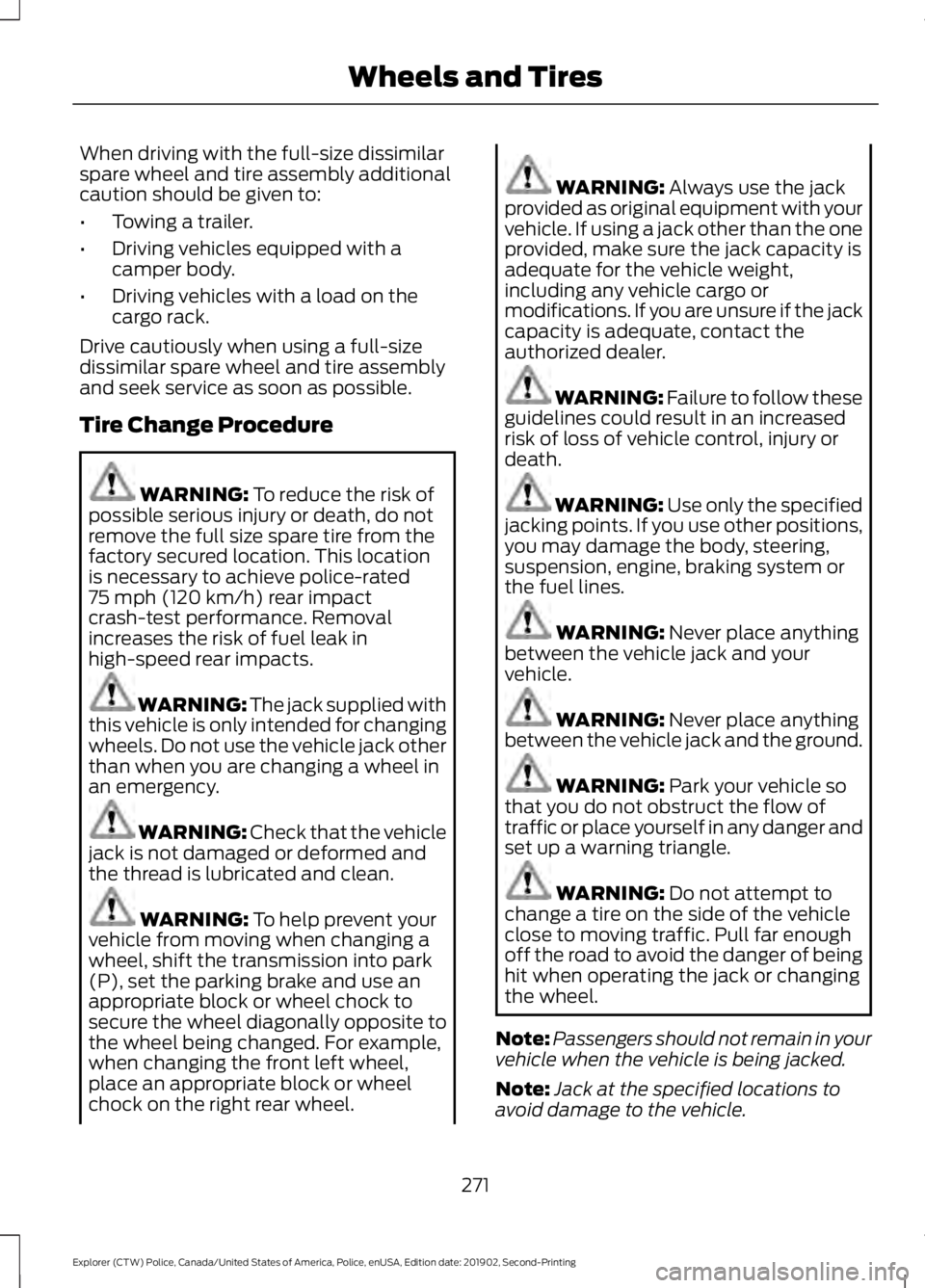

FORD POLICE INTERCEPTOR 2020  Owners Manual When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•
Towing a trailer.
• Driving vehicles equipped with a
camper body.
• Driving vehi

Page 275 of 395

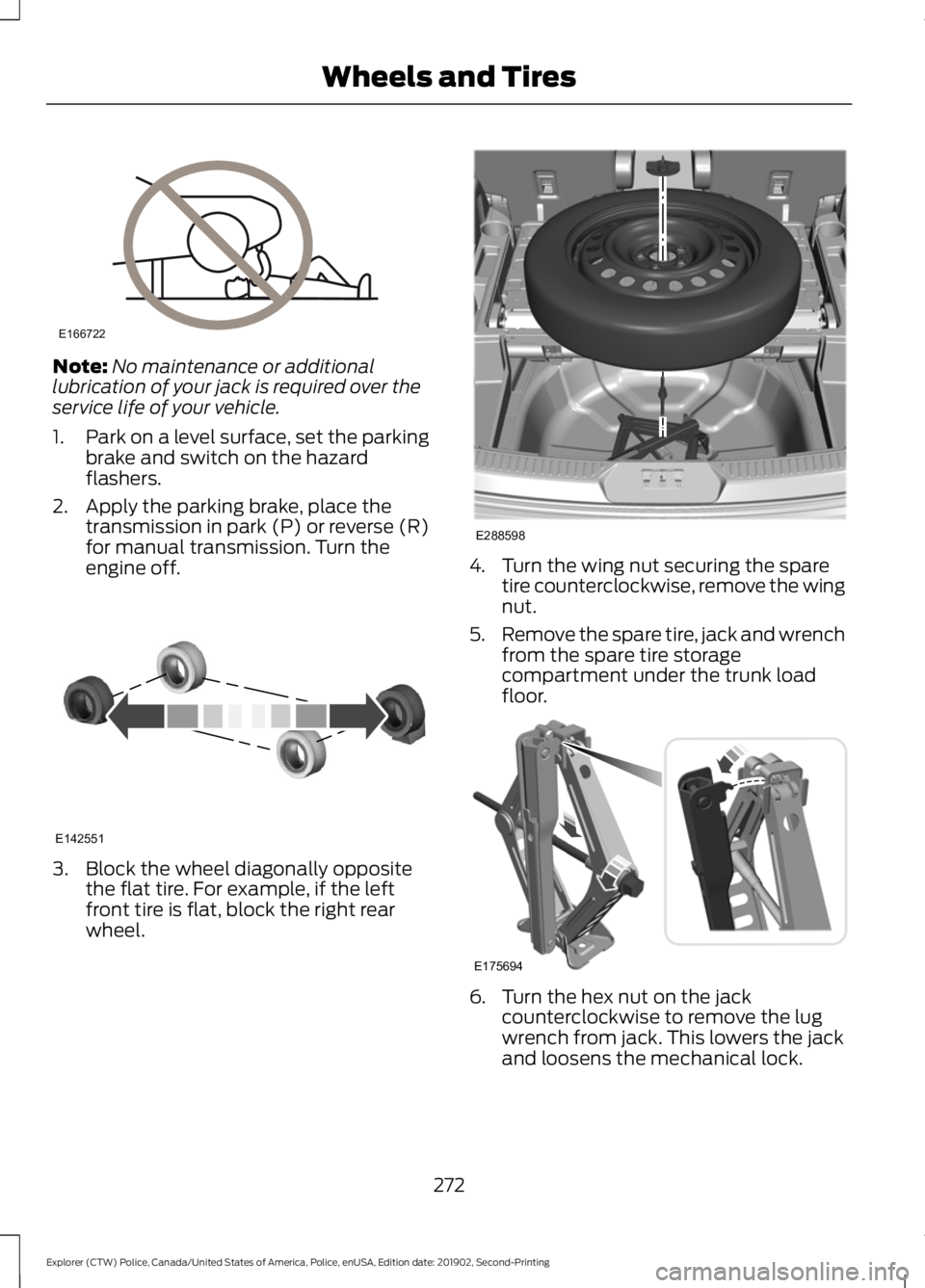

FORD POLICE INTERCEPTOR 2020  Owners Manual Note:
No maintenance or additional
lubrication of your jack is required over the
service life of your vehicle.
1. Park on a level surface, set the parking
brake and switch on the hazard
flashers.
2. A

Page 276 of 395

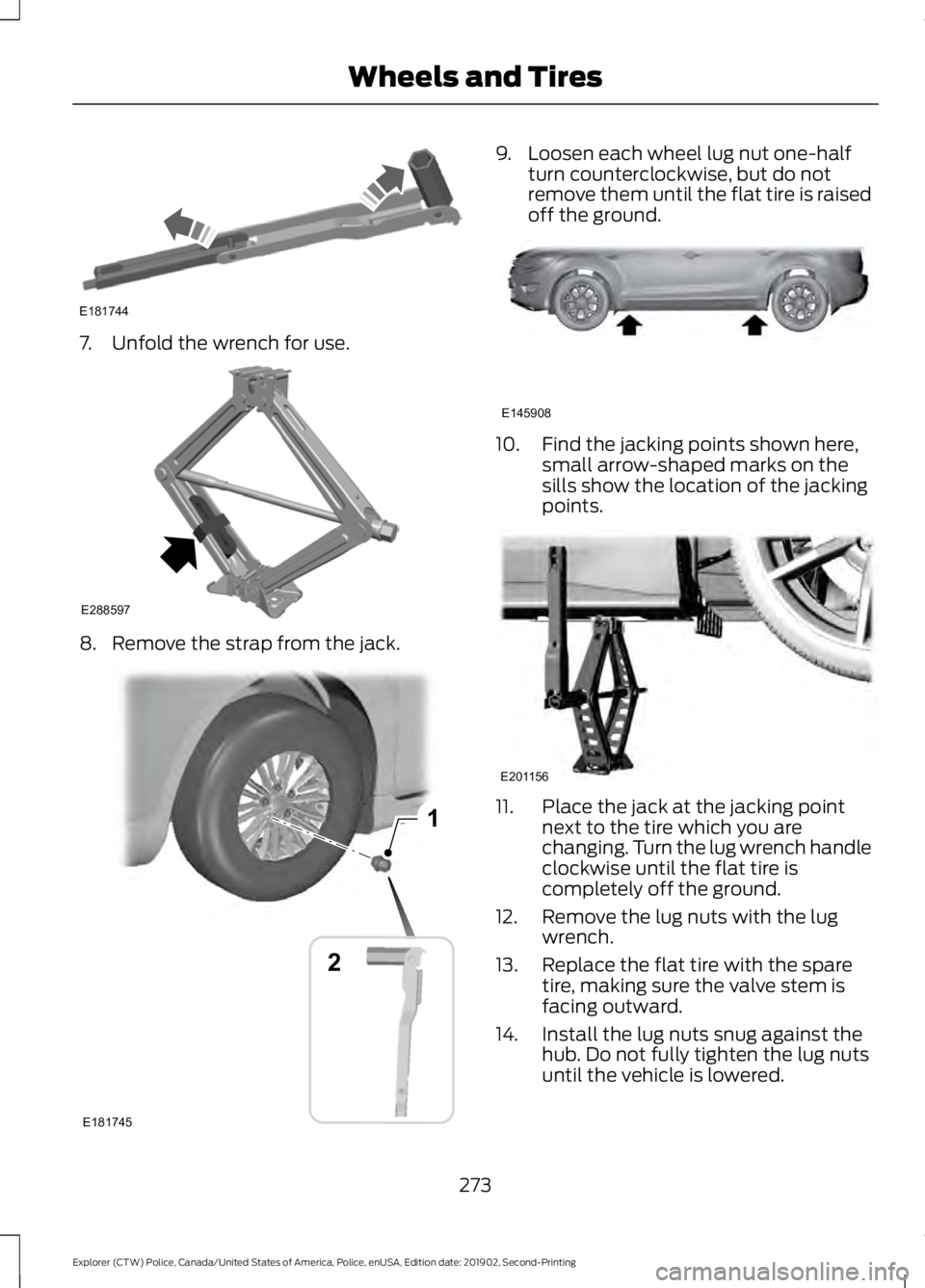

FORD POLICE INTERCEPTOR 2020  Owners Manual 7. Unfold the wrench for use.
8. Remove the strap from the jack. 9. Loosen each wheel lug nut one-half
turn counterclockwise, but do not
remove them until the flat tire is raised
off the ground. 10. F

Page 277 of 395

FORD POLICE INTERCEPTOR 2020  Owners Manual 15. Turn the wrench handle
counterclockwise to lower the vehicle
completely.16.
Remove the jack and fully tighten the
lug nuts in the order shown.  See
Technical Specifications (page
275).
17. Remove

Page 278 of 395

FORD POLICE INTERCEPTOR 2020  Owners Manual 5. Locate the front cargo tie-down in the
opposite rear corner of the cargo area.
Thread the retainer strap through the
tie-down and pull tight. 6. Secure by tying a 2-half hitch knot.
TECHNICAL SPECI

Page 279 of 395

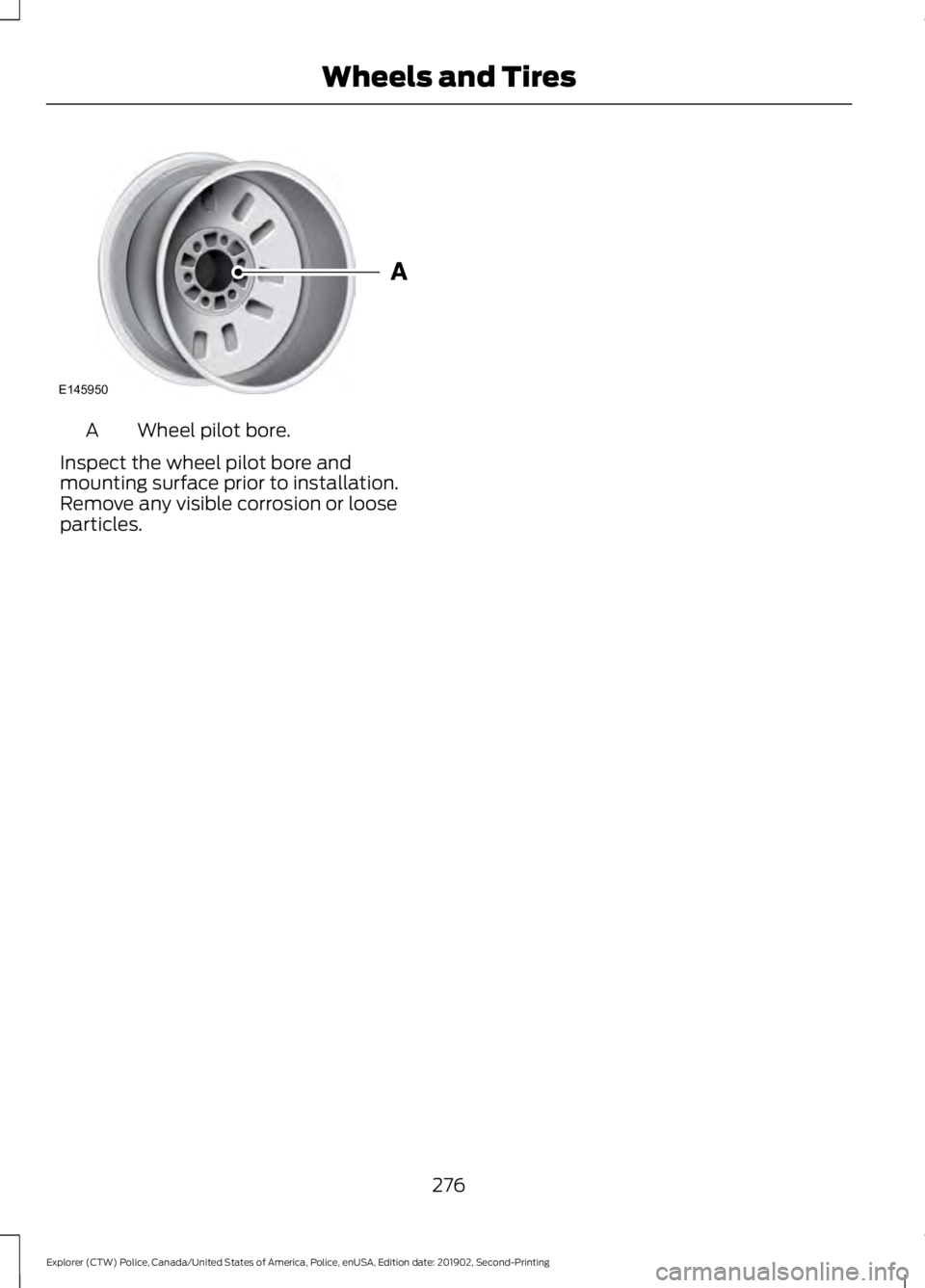

FORD POLICE INTERCEPTOR 2020  Owners Manual Wheel pilot bore.
A
Inspect the wheel pilot bore and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
276
Explorer (CTW) Police, Canada/United States of America

Page 280 of 395

FORD POLICE INTERCEPTOR 2020  Owners Manual ENGINE SPECIFICATIONS - 3.0L
3.0L
Engine
180 in³ (2,956 cm³)
Displacement.
Minimum 87 octane
Fuel type.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
0.028–0.031 in (0.7–0.8 mm)
Spark
