Page 281 of 375

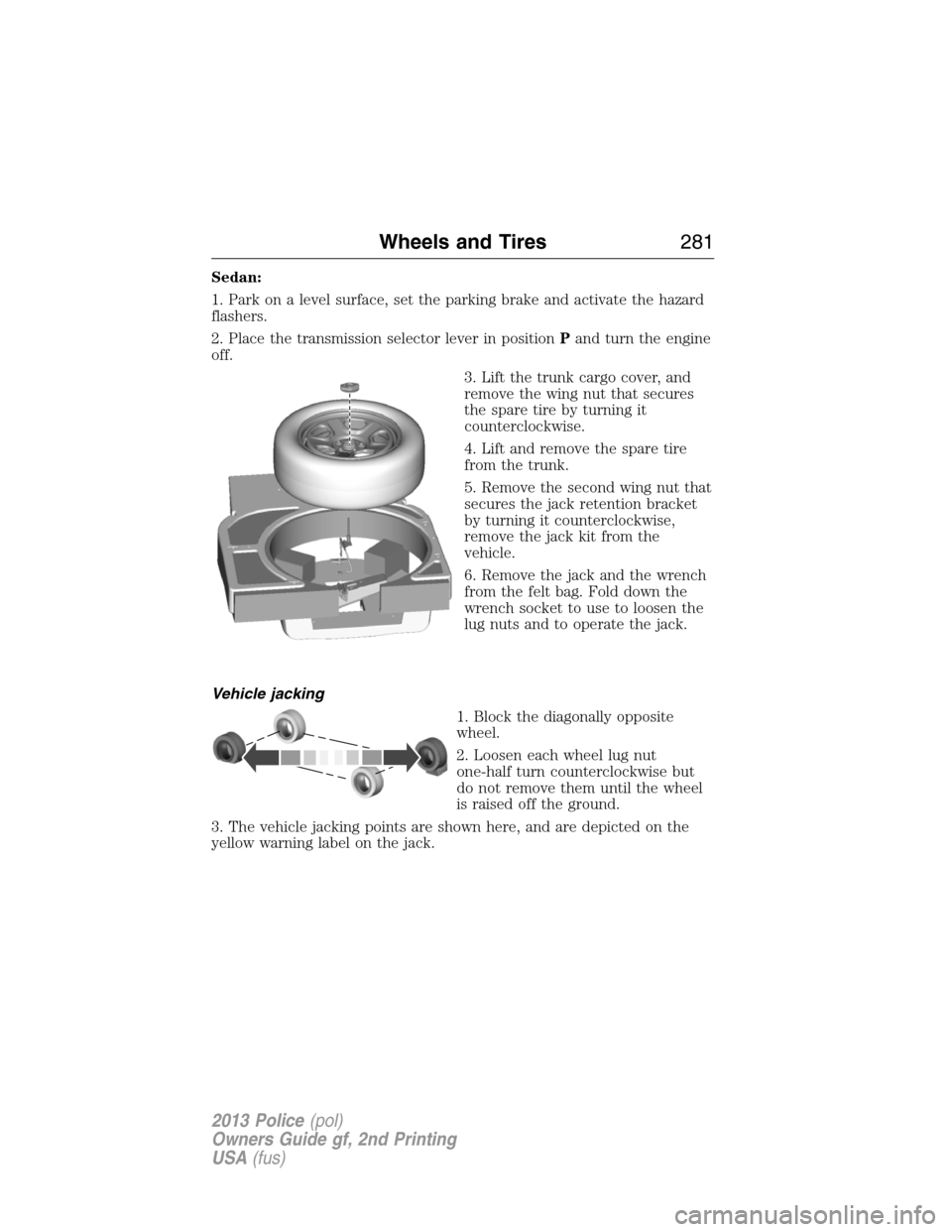

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Sedan:
1. Park on a level surface, set the parking brake and activate the hazard
flashers.
2. Place the transmission selector lever in positionPand turn the engine
off.
3. Lift the trunk cargo cover,

Page 282 of 375

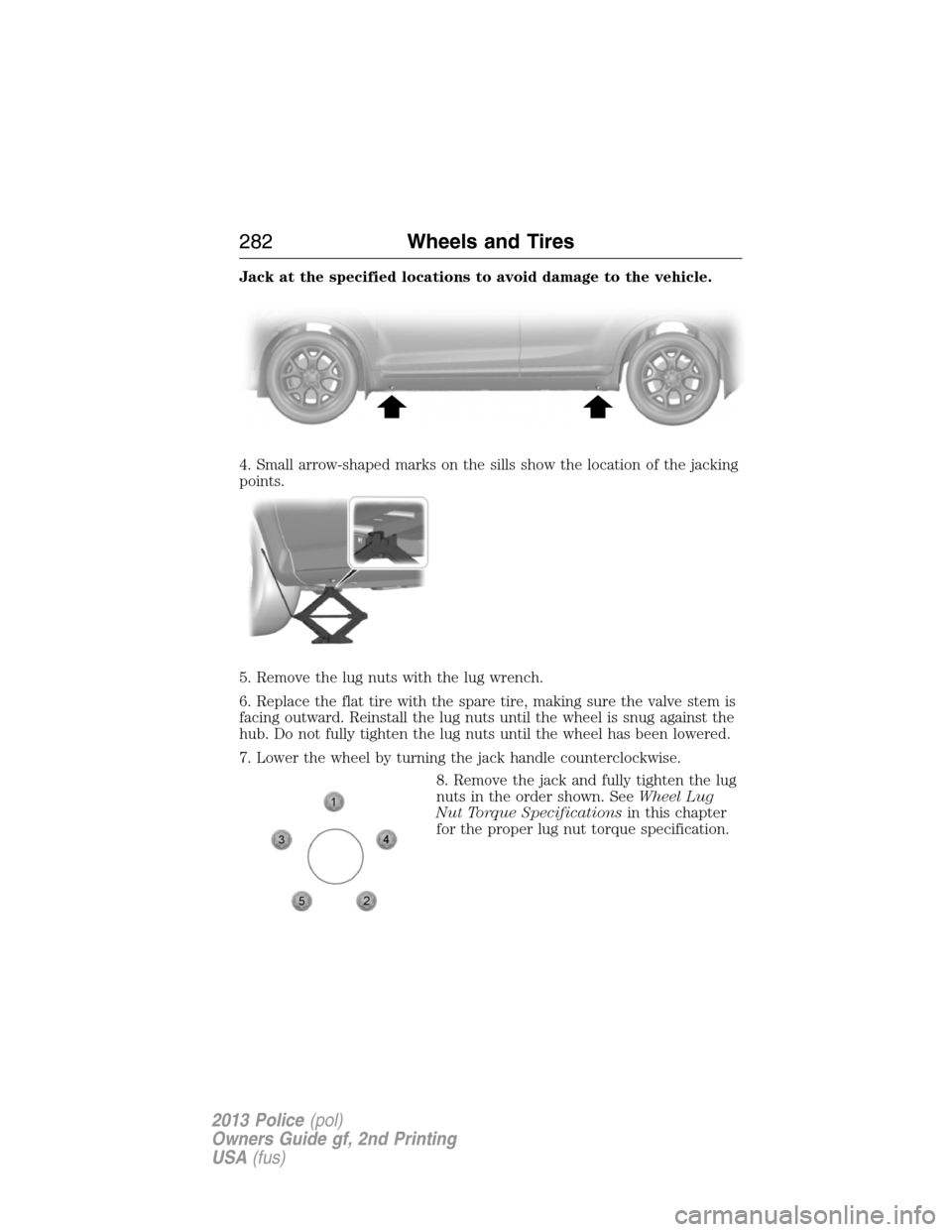

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Jack at the specified locations to avoid damage to the vehicle.
4. Small arrow-shaped marks on the sills show the location of the jacking
points.
5. Remove the lug nuts with the lug wrench.
6. Replace

Page 283 of 375

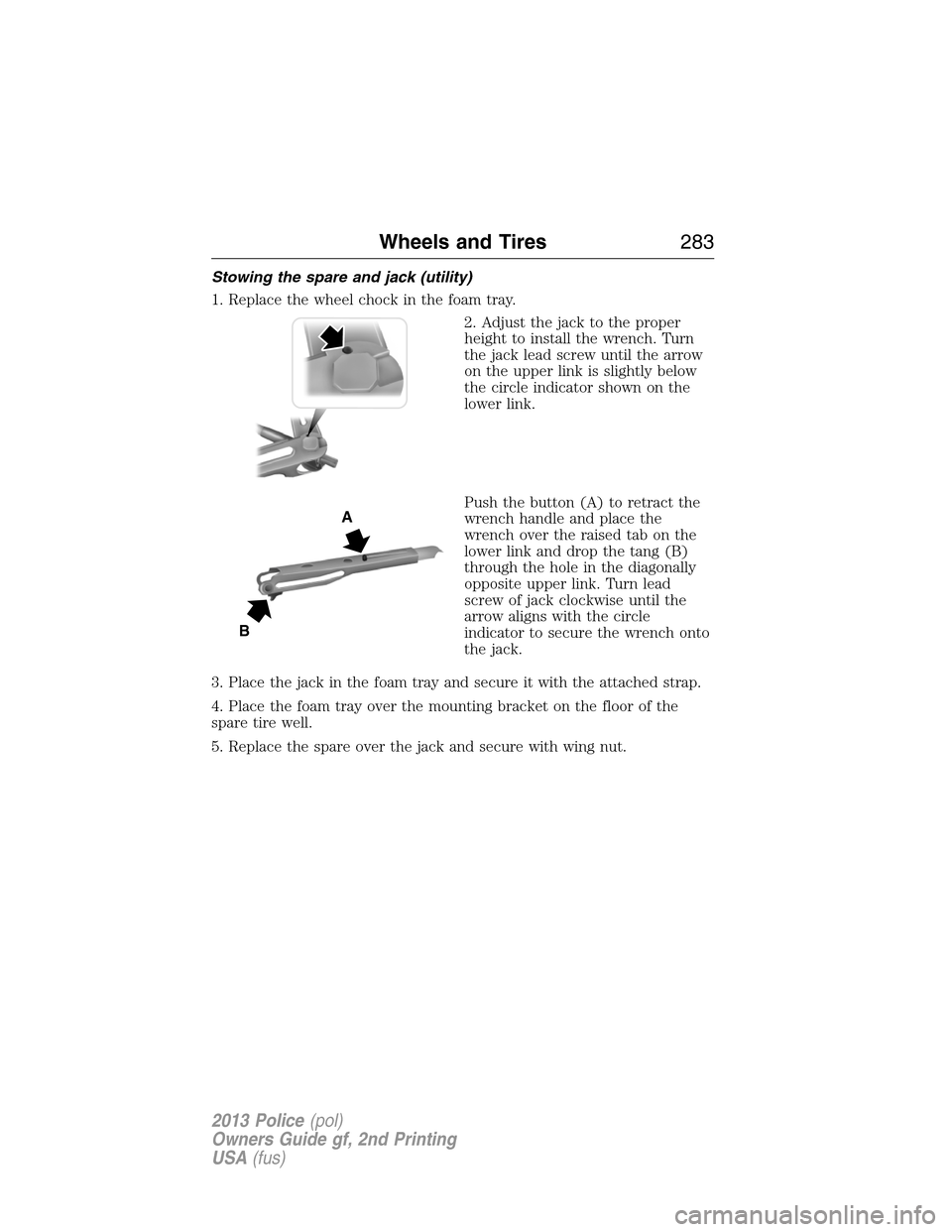

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Stowing the spare and jack (utility)
1. Replace the wheel chock in the foam tray.
2. Adjust the jack to the proper
height to install the wrench. Turn
the jack lead screw until the arrow
on the upper l

Page 284 of 375

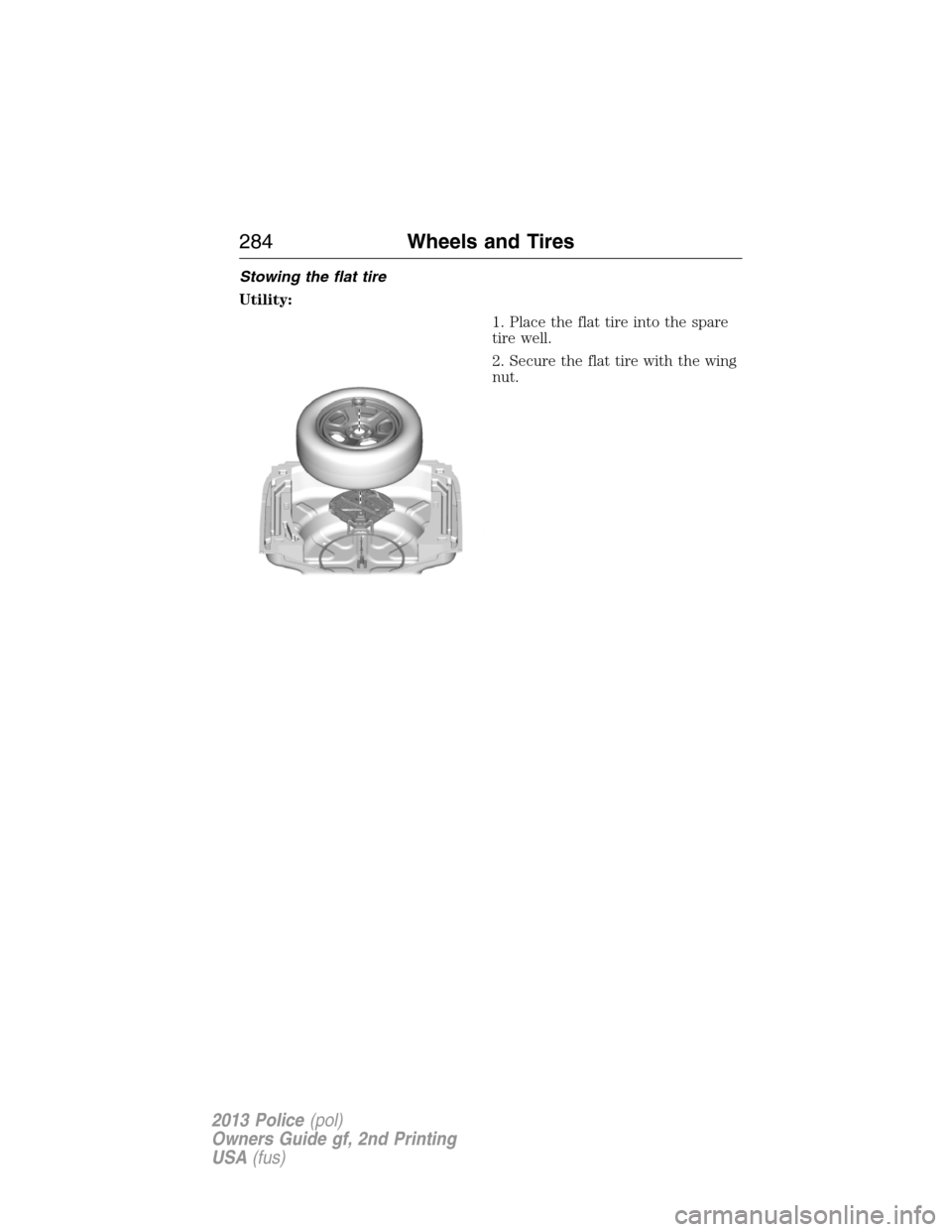

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Stowing the flat tire
Utility:
1. Place the flat tire into the spare
tire well.
2. Secure the flat tire with the wing
nut.
284Wheels and Tires
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

Page 285 of 375

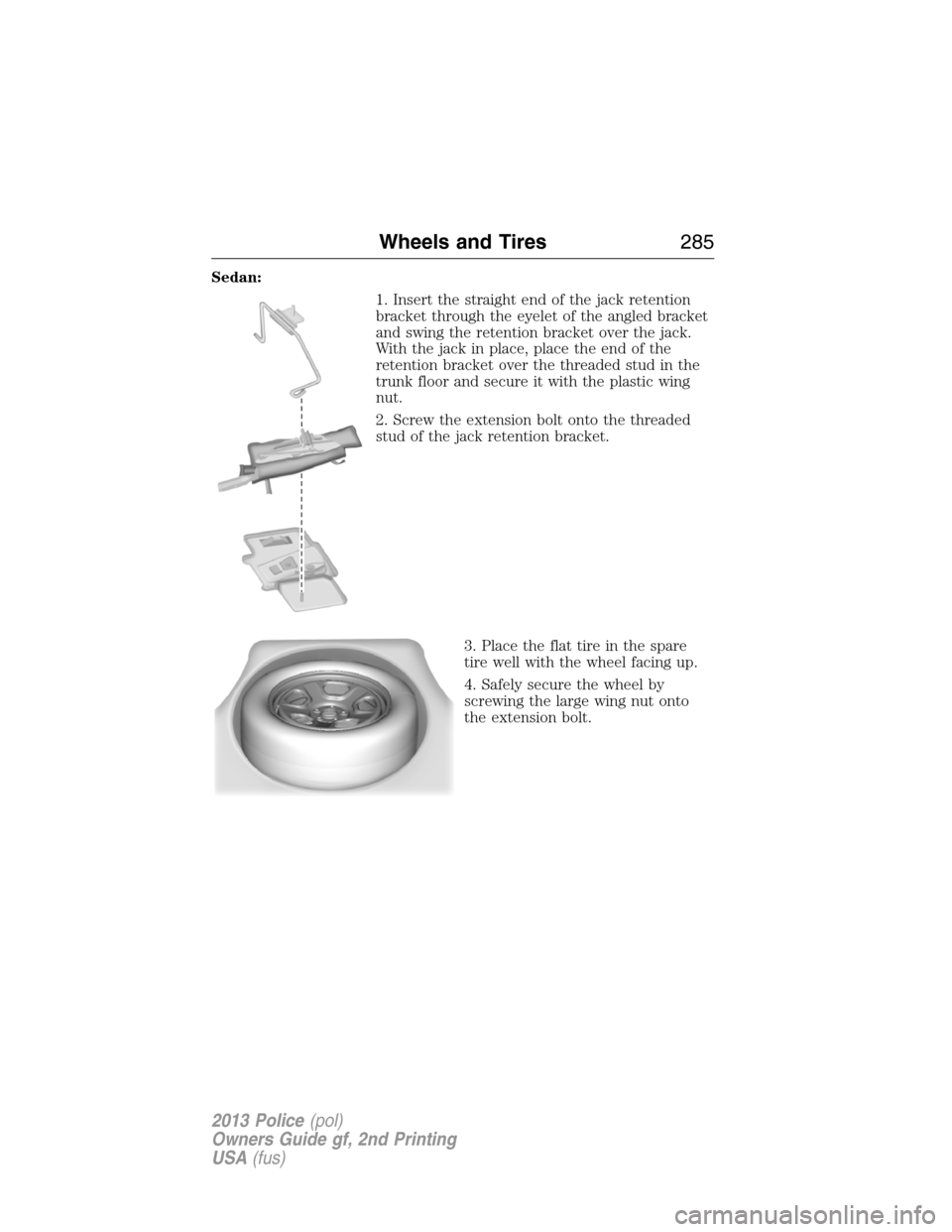

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Sedan:
1. Insert the straight end of the jack retention
bracket through the eyelet of the angled bracket
and swing the retention bracket over the jack.
With the jack in place, place the end of the
ret

Page 286 of 375

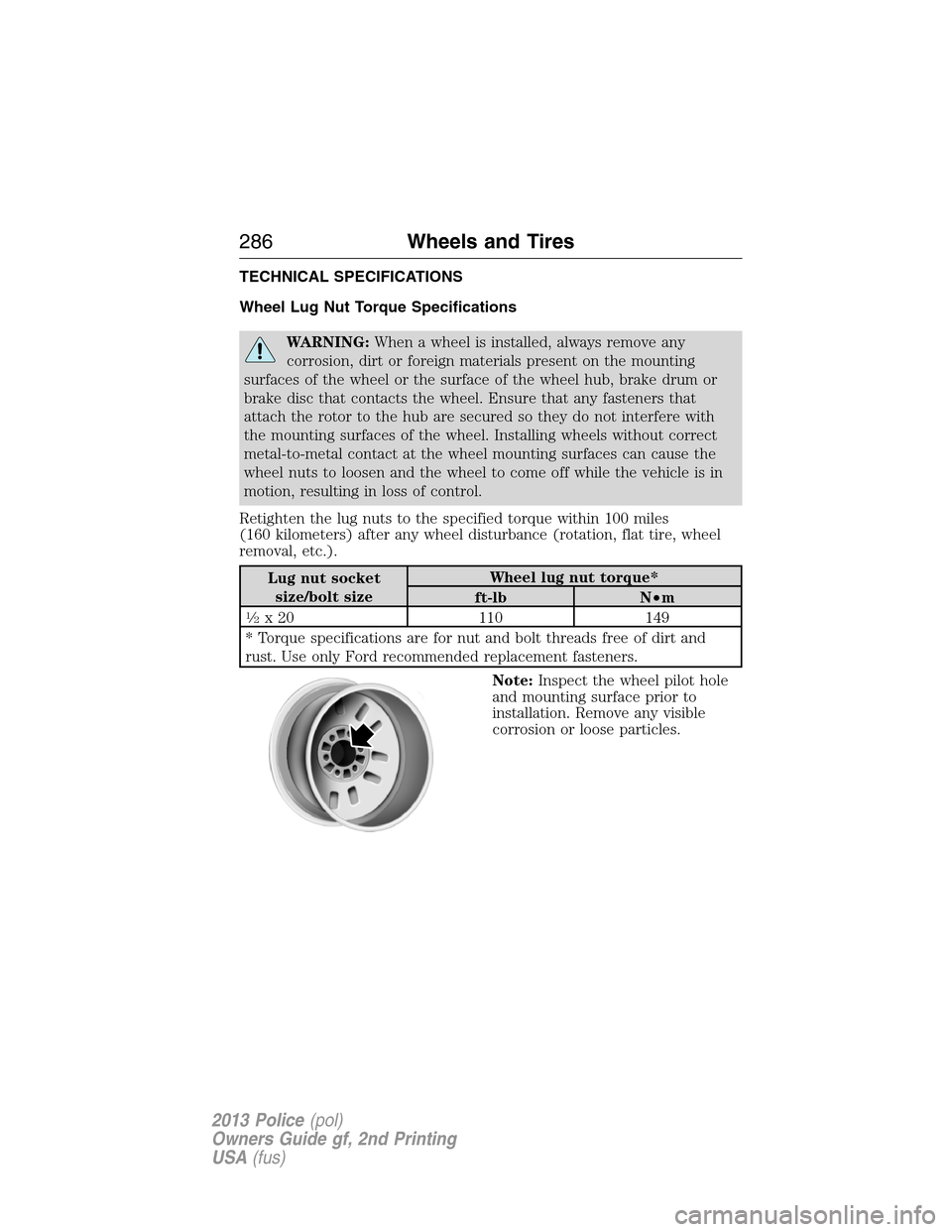

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or

Page 287 of 375

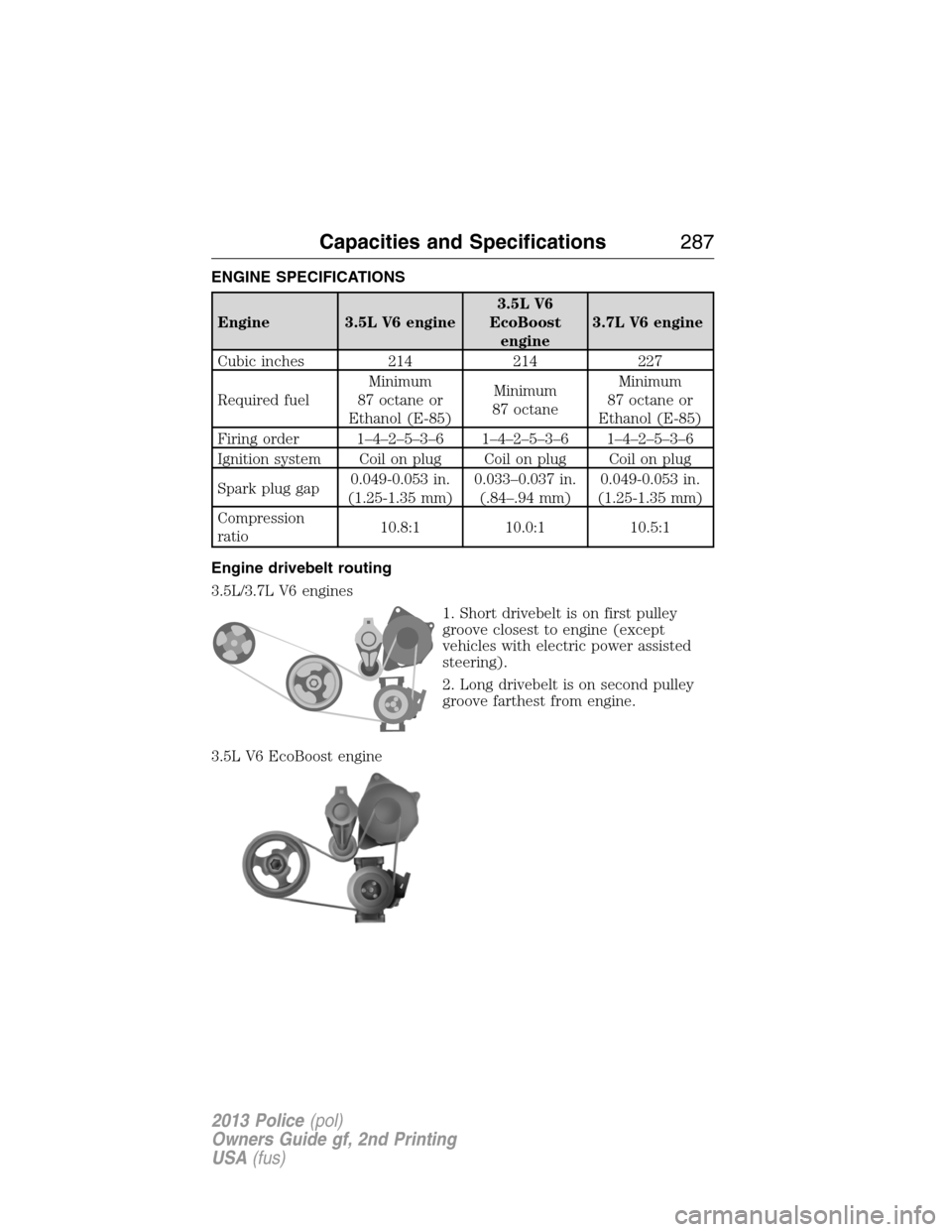

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual ENGINE SPECIFICATIONS
Engine 3.5L V6 engine3.5L V6
EcoBoost
engine3.7L V6 engine
Cubic inches 214 214 227
Required fuelMinimum
87 octane or
Ethanol (E-85)Minimum
87 octaneMinimum
87 octane or
Ethanol

Page 288 of 375

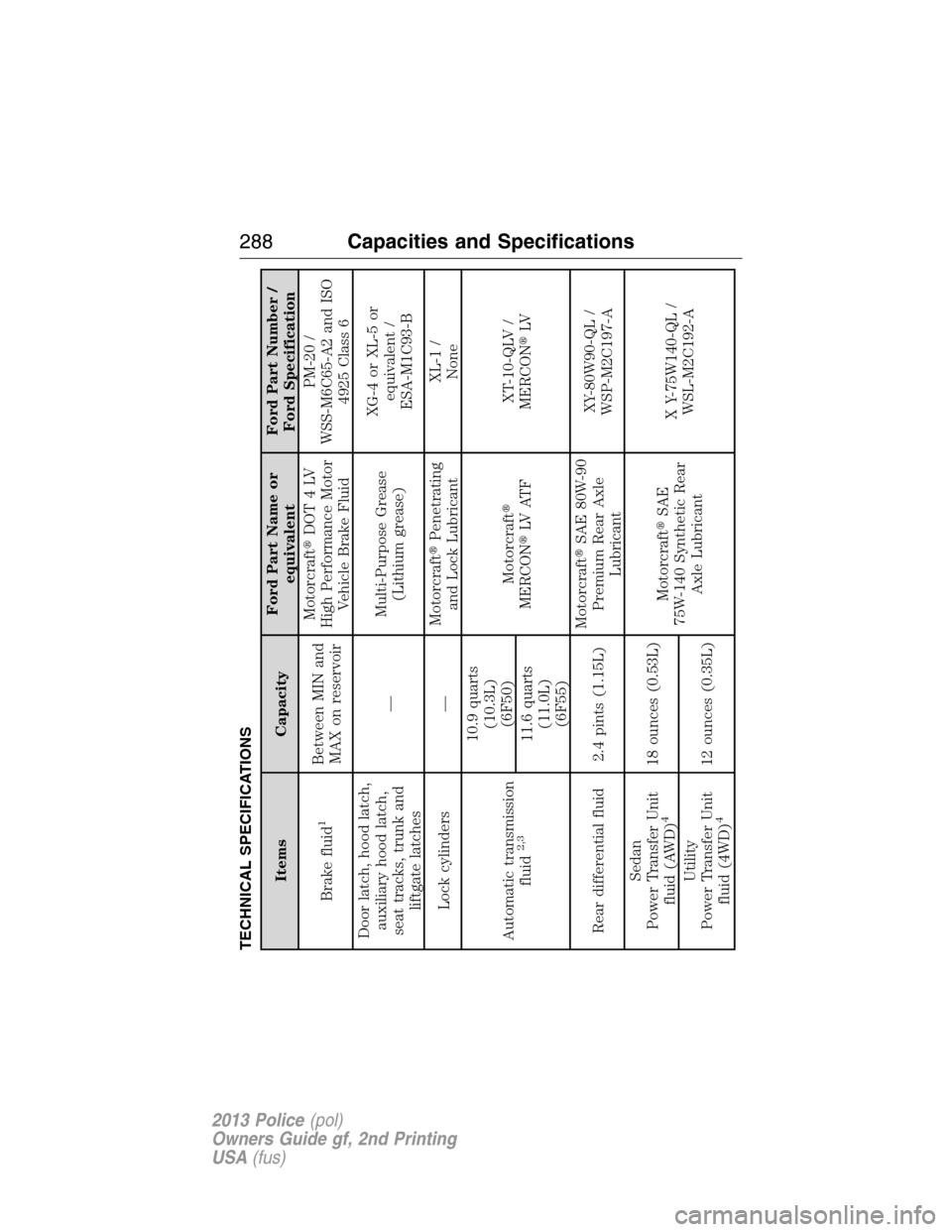

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual TECHNICAL SPECIFICATIONS
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraftDOT4LV
High Performance Motor
Vehicle

Page 289 of 375

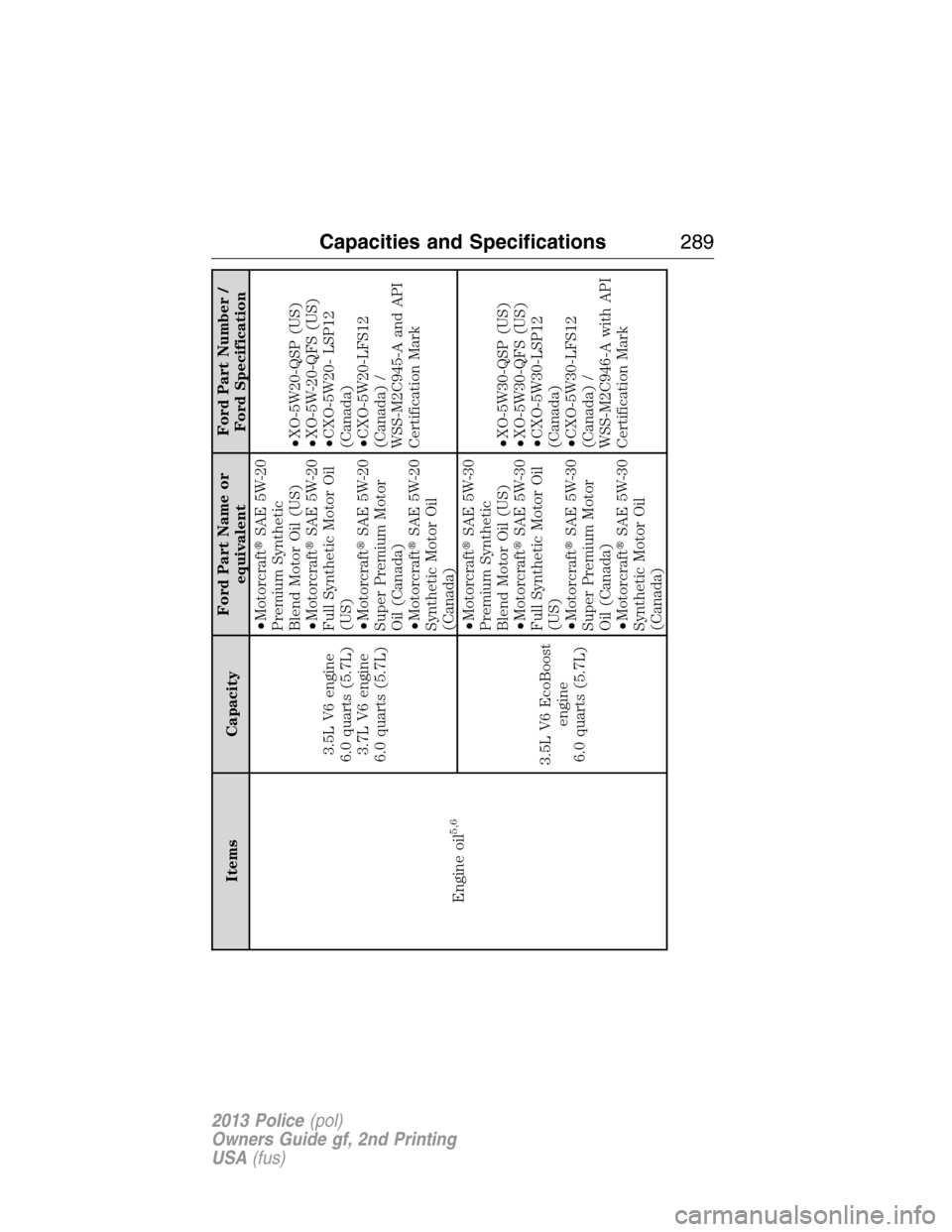

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil
5,6
3.5L V6 engine
6.0 quarts (5.7L)
3.7L V6 engine
6.0 quarts (5.7L)•MotorcraftSAE 5W-20
Premium Syntheti

Page 290 of 375

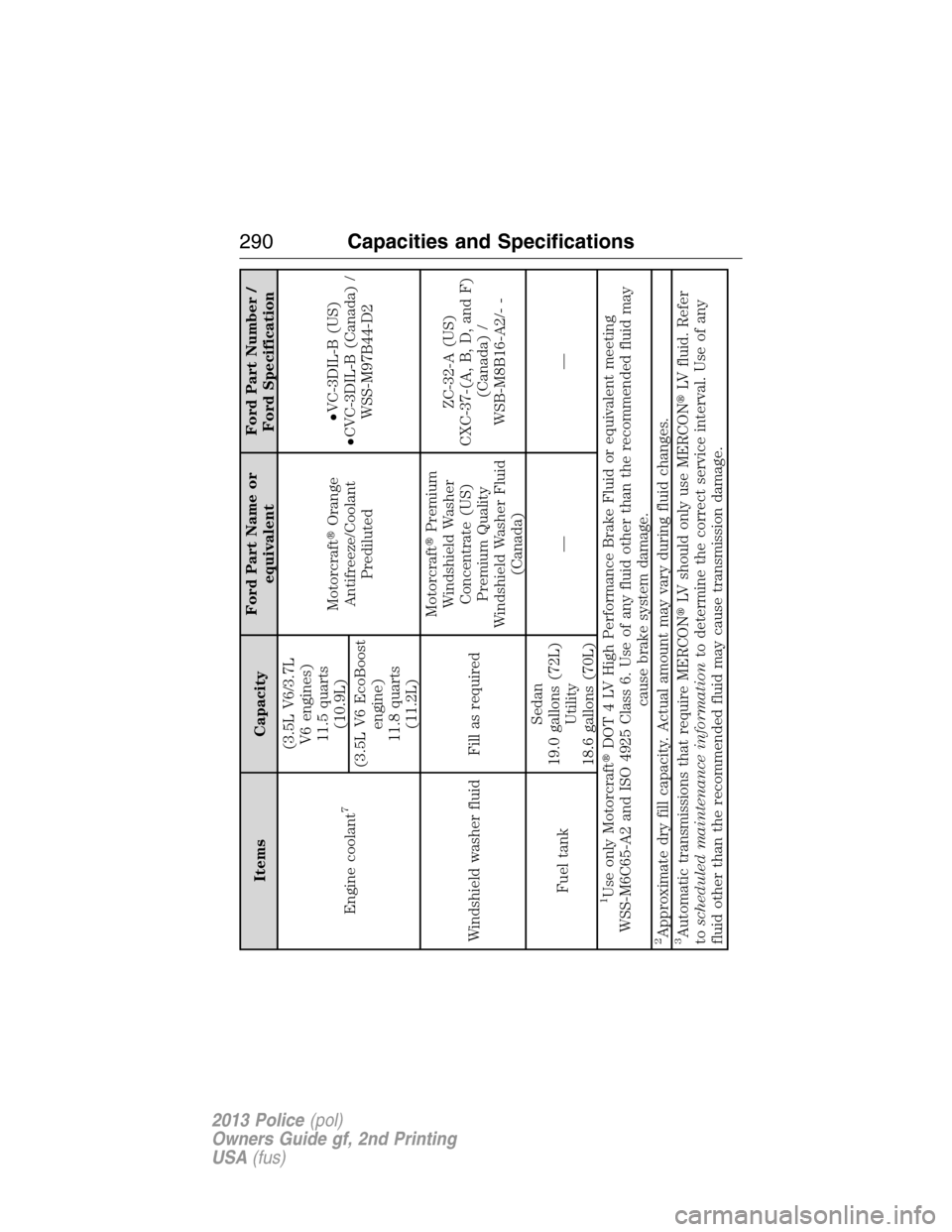

FORD POLICE INTERCEPTOR SEDAN 2013 1.G Owners Manual Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant
7
(3.5L V6/3.7L
V6 engines)
11.5 quarts
(10.9L)MotorcraftOrange
Antifreeze/Coolant
Prediluted•VC-3DIL-
