Page 6 of 375

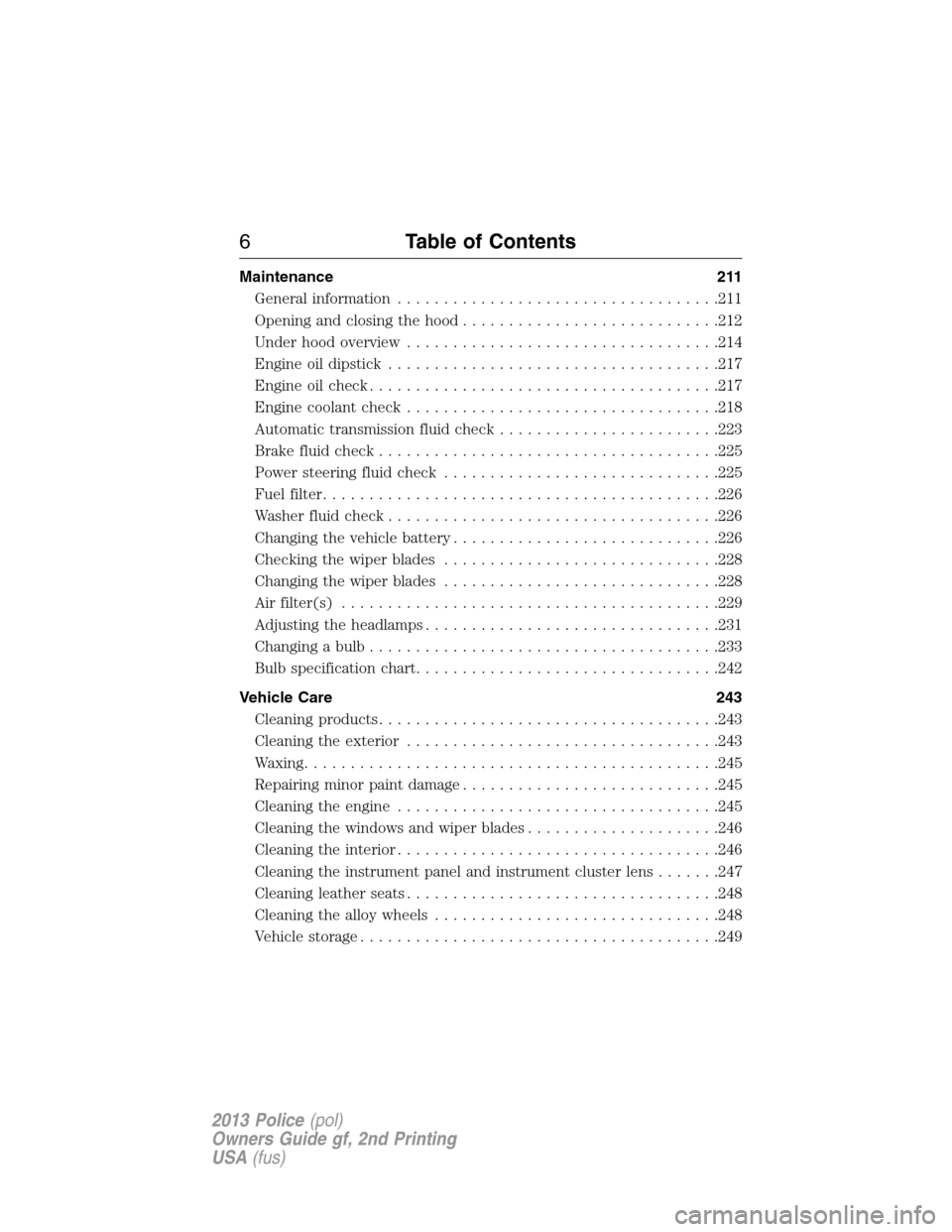

Maintenance 211
General information...................................211
Opening and closing the hood............................212
Under hood overview..................................214
Engine oil dipstick....................................217
Engine oil check......................................217
Engine coolant check..................................218
Automatic transmission fluid check........................223
Brake fluid check.....................................225
Power steering fluid check..............................225
Fuel filter...........................................226
Washer fluid check....................................226
Changing the vehicle battery.............................226
Checking the wiper blades..............................228
Changing the wiper blades..............................228
Air filter(s).........................................229
Adjusting the headlamps................................231
Changing a bulb......................................233
Bulb specification chart.................................242
Vehicle Care 243
Cleaning products.....................................243
Cleaning the exterior..................................243
Waxing.............................................245
Repairing minor paint damage............................245
Cleaning the engine...................................245
Cleaning the windows and wiper blades.....................246
Cleaning the interior...................................246
Cleaning the instrument panel and instrument cluster lens.......247
Cleaning leather seats..................................248
Cleaning the alloy wheels...............................248
Vehicle storage.......................................249
6Table of Contents
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 69 of 375

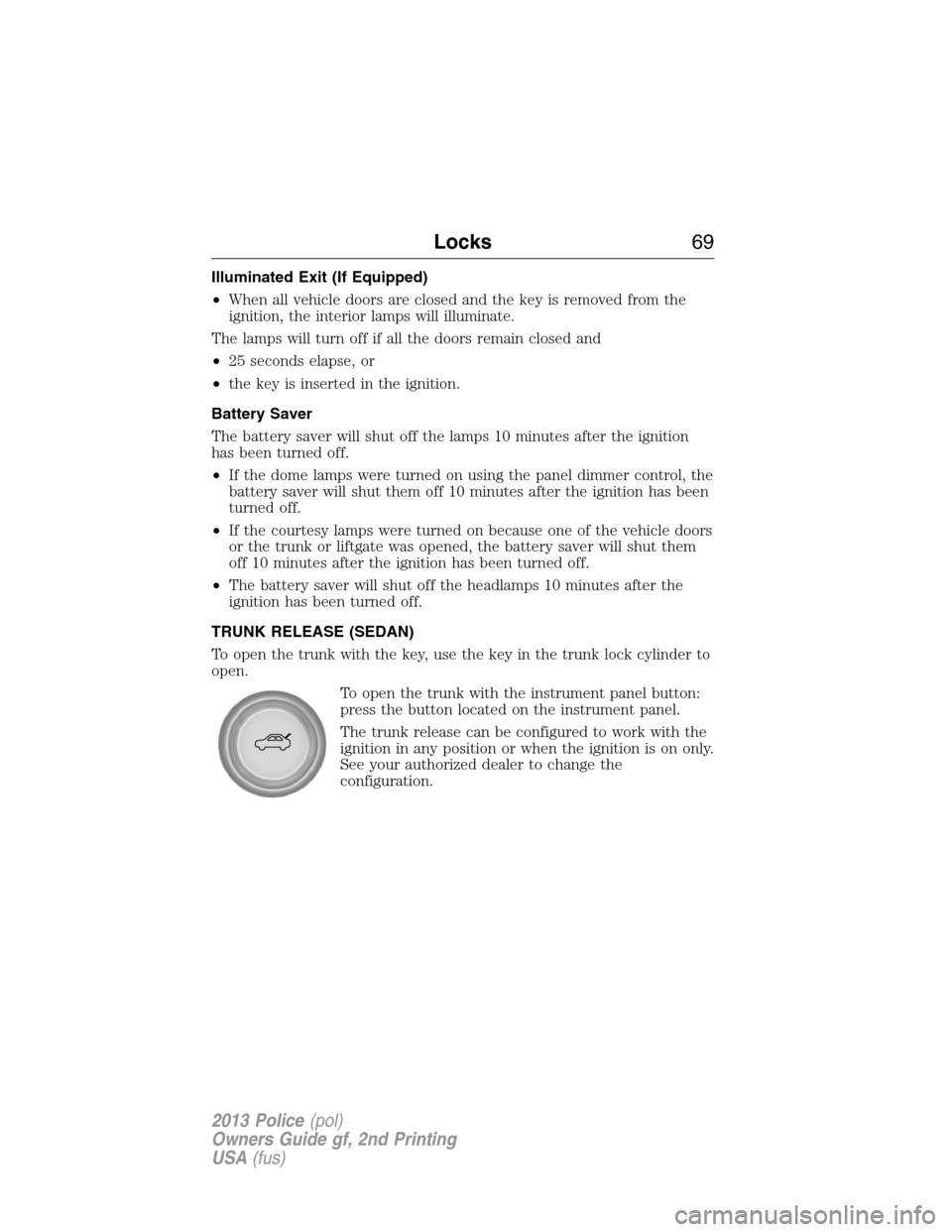

Illuminated Exit (If Equipped)
•When all vehicle doors are closed and the key is removed from the
ignition, the interior lamps will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
Battery Saver
The battery saver will shut off the lamps 10 minutes after the ignition
has been turned off.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned off.
•If the courtesy lamps were turned on because one of the vehicle doors
or the trunk or liftgate was opened, the battery saver will shut them
off 10 minutes after the ignition has been turned off.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned off.
TRUNK RELEASE (SEDAN)
To open the trunk with the key, use the key in the trunk lock cylinder to
open.
To open the trunk with the instrument panel button:
press the button located on the instrument panel.
The trunk release can be configured to work with the
ignition in any position or when the ignition is on only.
See your authorized dealer to change the
configuration.
Locks69
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 79 of 375

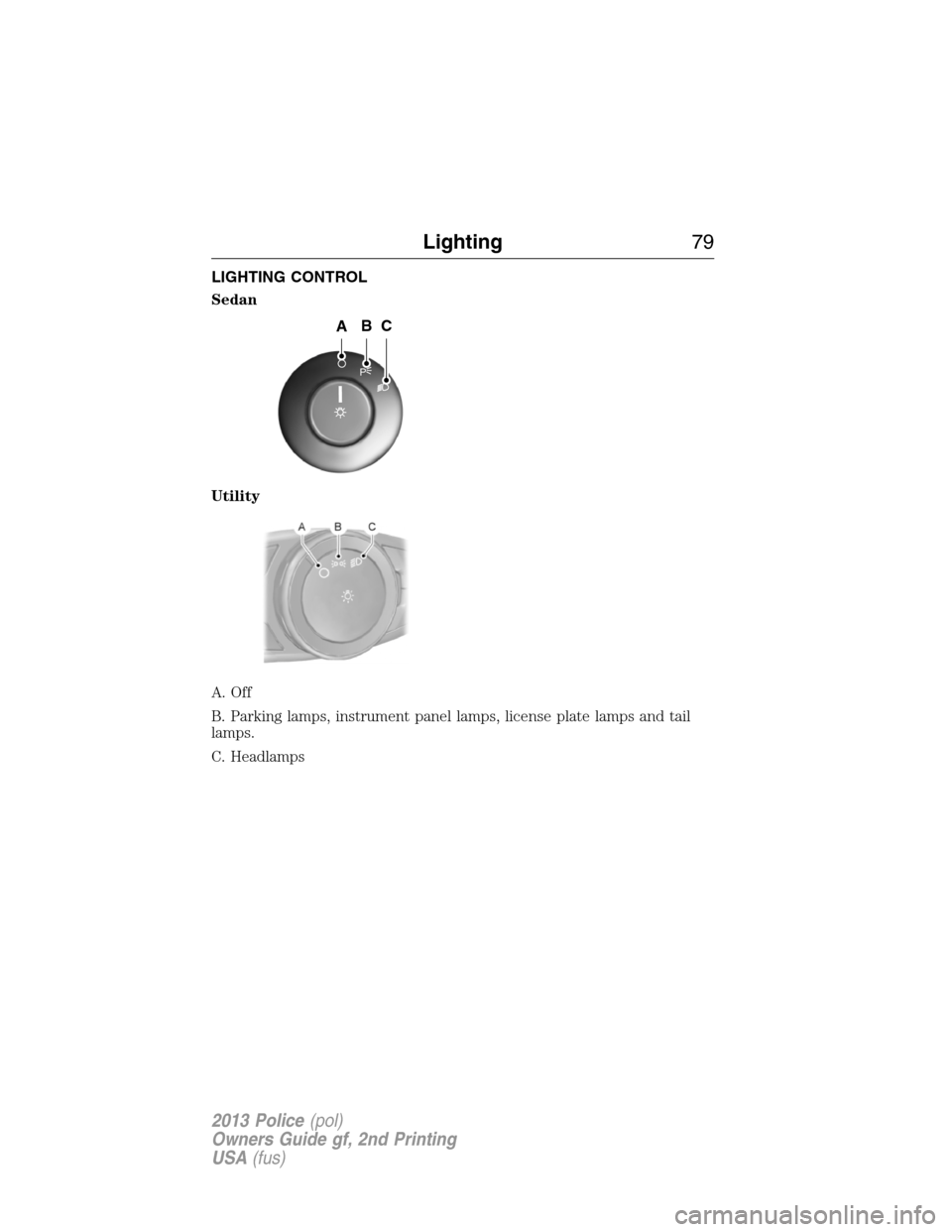

LIGHTING CONTROL
Sedan
Utility
A. Off
B. Parking lamps, instrument panel lamps, license plate lamps and tail
lamps.
C. Headlamps
P
ABC
Lighting79
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 81 of 375

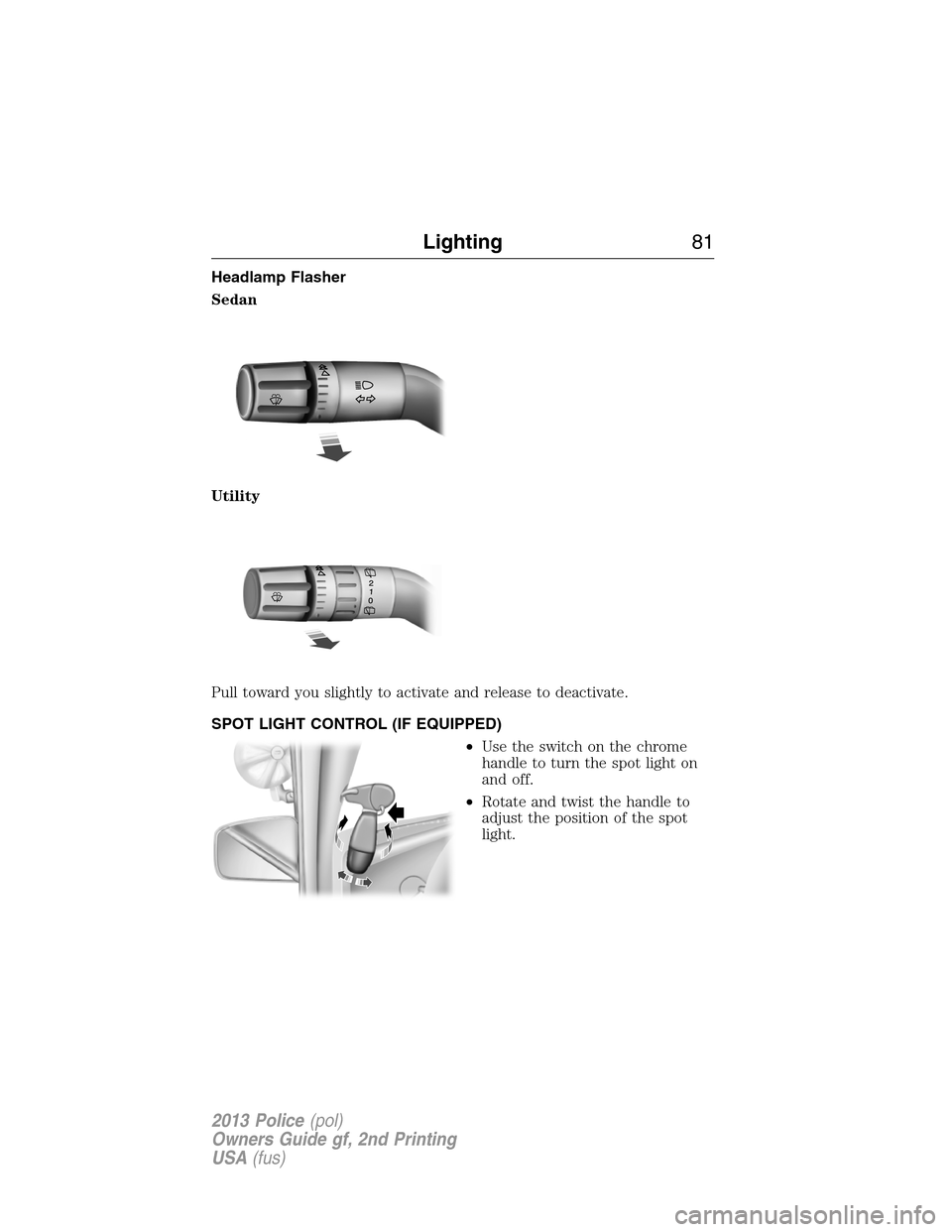

Headlamp Flasher
Sedan
Utility
Pull toward you slightly to activate and release to deactivate.
SPOT LIGHT CONTROL (IF EQUIPPED)
•Use the switch on the chrome
handle to turn the spot light on
and off.
•Rotate and twist the handle to
adjust the position of the spot
light.
Lighting81
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 83 of 375

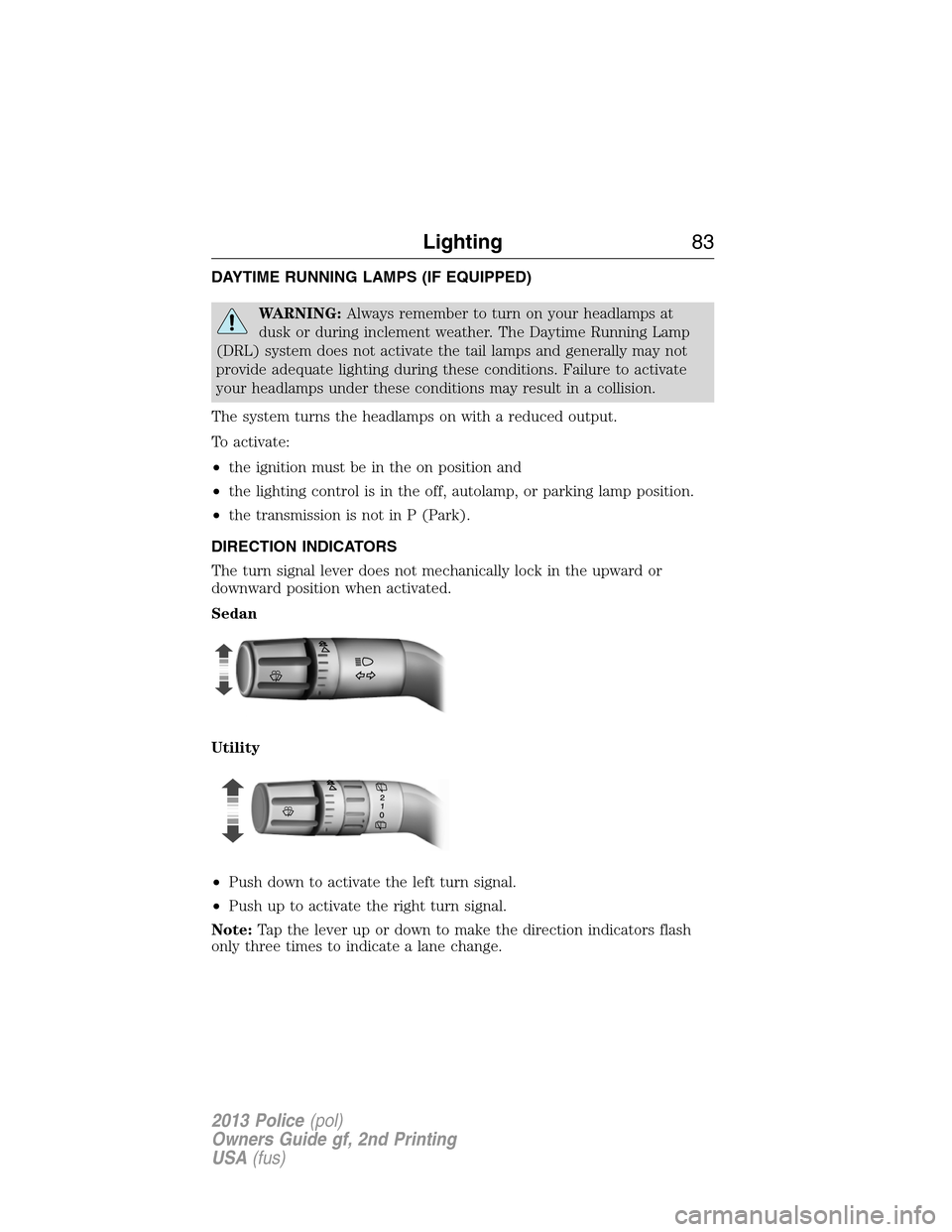

DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
The system turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the lighting control is in the off, autolamp, or parking lamp position.
•the transmission is not in P (Park).
DIRECTION INDICATORS
The turn signal lever does not mechanically lock in the upward or
downward position when activated.
Sedan
Utility
•Push down to activate the left turn signal.
•Push up to activate the right turn signal.
Note:Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
Lighting83
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 94 of 375

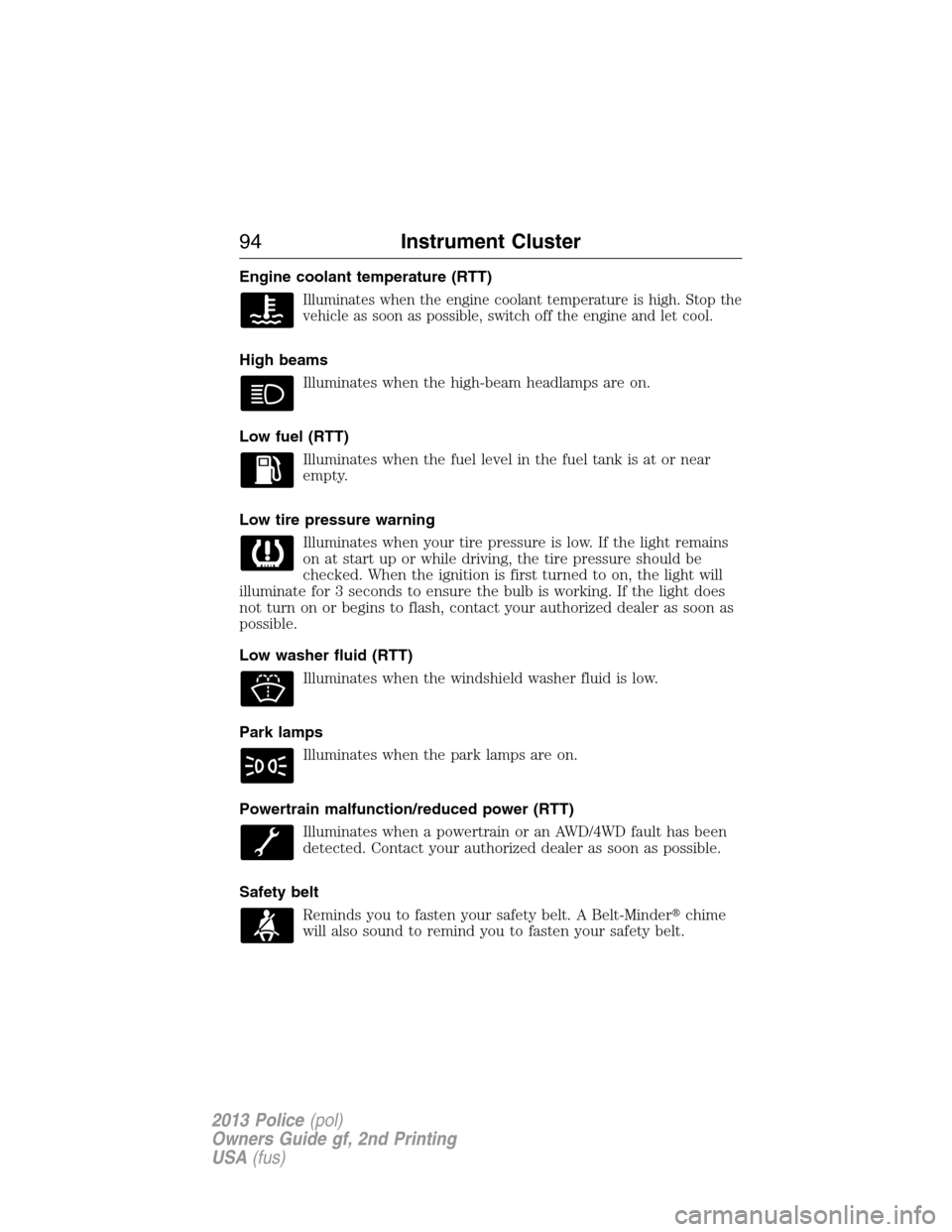

Engine coolant temperature (RTT)
Illuminates when the engine coolant temperature is high. Stop the
vehicle as soon as possible, switch off the engine and let cool.
High beams
Illuminates when the high-beam headlamps are on.
Low fuel (RTT)
Illuminates when the fuel level in the fuel tank is at or near
empty.
Low tire pressure warning
Illuminates when your tire pressure is low. If the light remains
on at start up or while driving, the tire pressure should be
checked. When the ignition is first turned to on, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn on or begins to flash, contact your authorized dealer as soon as
possible.
Low washer fluid (RTT)
Illuminates when the windshield washer fluid is low.
Park lamps
Illuminates when the park lamps are on.
Powertrain malfunction/reduced power (RTT)
Illuminates when a powertrain or an AWD/4WD fault has been
detected. Contact your authorized dealer as soon as possible.
Safety belt
Reminds you to fasten your safety belt. A Belt-Minderchime
will also sound to remind you to fasten your safety belt.
94Instrument Cluster
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 96 of 375

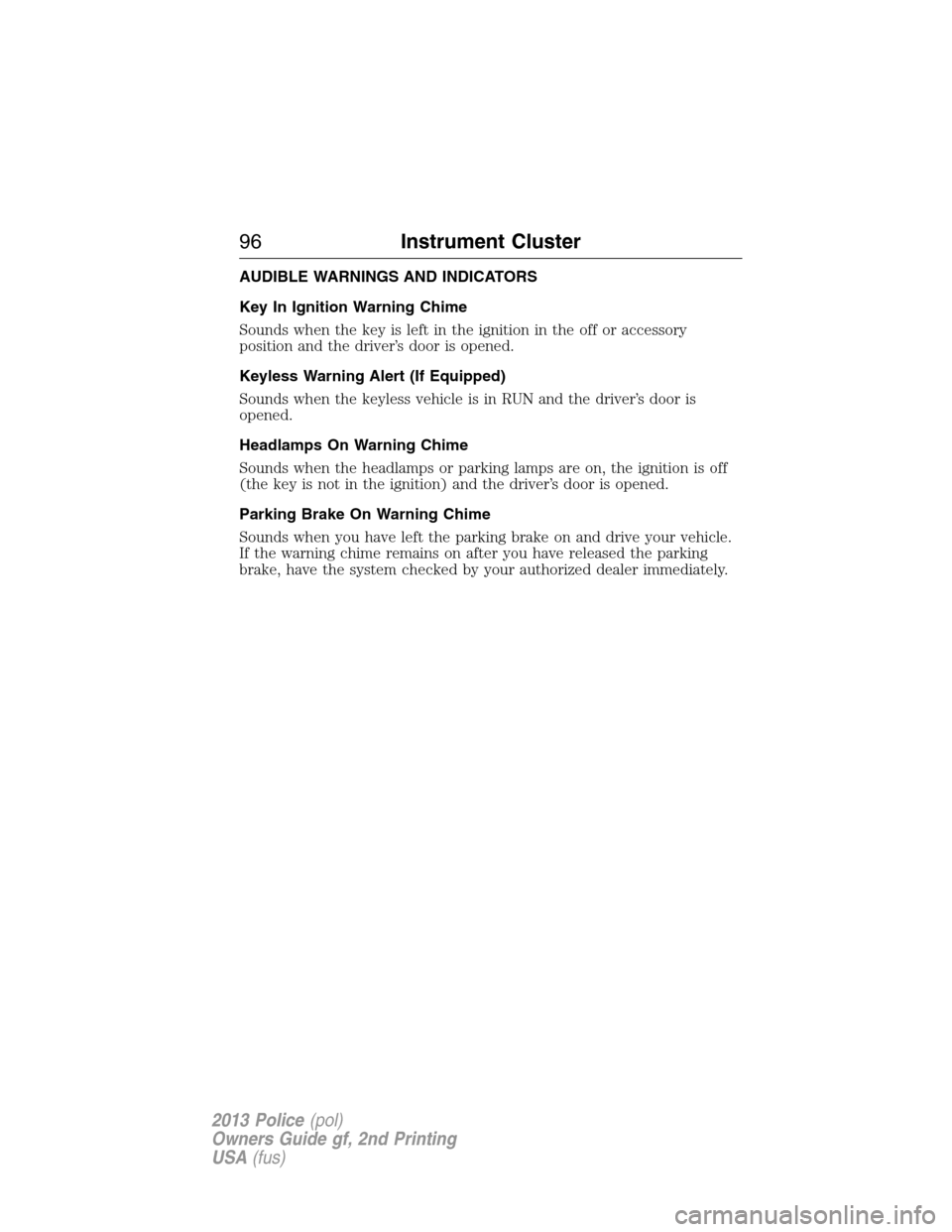

AUDIBLE WARNINGS AND INDICATORS
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Keyless Warning Alert (If Equipped)
Sounds when the keyless vehicle is in RUN and the driver’s door is
opened.
Headlamps On Warning Chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(the key is not in the ignition) and the driver’s door is opened.
Parking Brake On Warning Chime
Sounds when you have left the parking brake on and drive your vehicle.
If the warning chime remains on after you have released the parking
brake, have the system checked by your authorized dealer immediately.
96Instrument Cluster
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 128 of 375

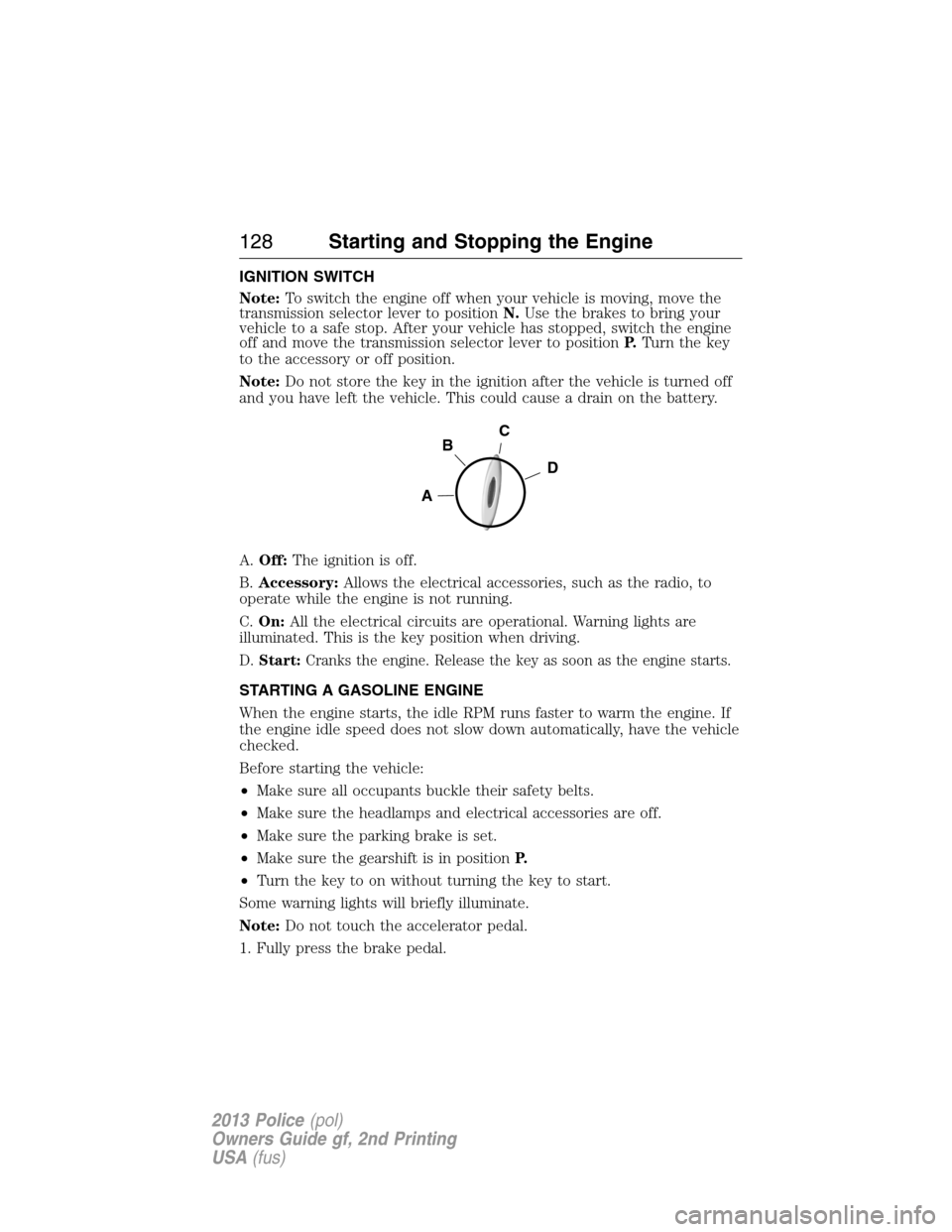

IGNITION SWITCH
Note:To switch the engine off when your vehicle is moving, move the
transmission selector lever to positionN.Use the brakes to bring your
vehicle to a safe stop. After your vehicle has stopped, switch the engine
off and move the transmission selector lever to positionP.Turn the key
to the accessory or off position.
Note:Do not store the key in the ignition after the vehicle is turned off
and you have left the vehicle. This could cause a drain on the battery.
A.Off:The ignition is off.
B.Accessory:Allows the electrical accessories, such as the radio, to
operate while the engine is not running.
C.On:All the electrical circuits are operational. Warning lights are
illuminated. This is the key position when driving.
D.Start:Cranks the engine. Release the key as soon as the engine starts.
STARTING A GASOLINE ENGINE
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
•Make sure all occupants buckle their safety belts.
•Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is set.
•Make sure the gearshift is in positionP.
•Turn the key to on without turning the key to start.
Some warning lights will briefly illuminate.
Note:Do not touch the accelerator pedal.
1. Fully press the brake pedal.
C
D
B
A
128Starting and Stopping the Engine
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 163 of 375

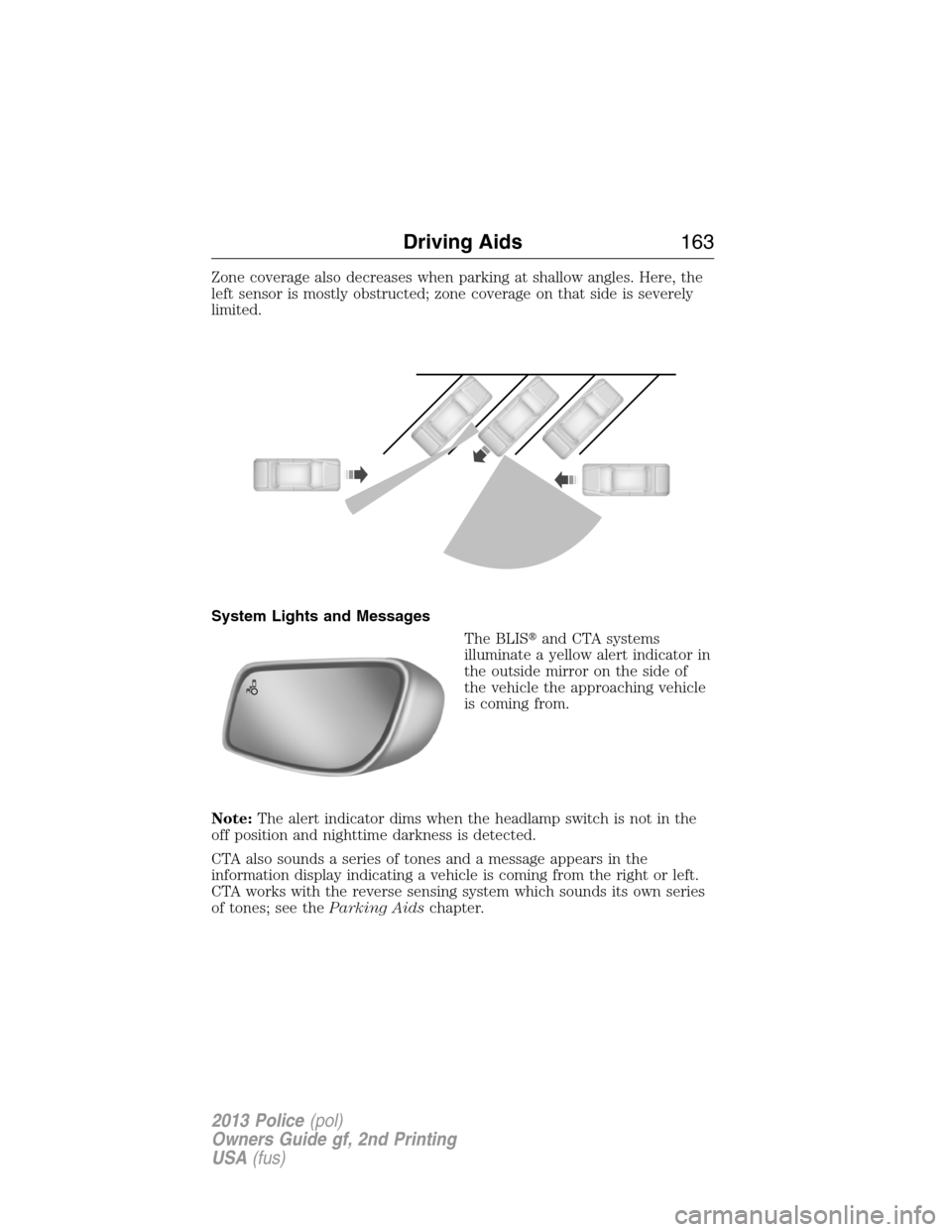

Zone coverage also decreases when parking at shallow angles. Here, the
left sensor is mostly obstructed; zone coverage on that side is severely
limited.
System Lights and Messages
The BLISand CTA systems
illuminate a yellow alert indicator in
the outside mirror on the side of
the vehicle the approaching vehicle
is coming from.
Note:The alert indicator dims when the headlamp switch is not in the
off position and nighttime darkness is detected.
CTA also sounds a series of tones and a message appears in the
information display indicating a vehicle is coming from the right or left.
CTA works with the reverse sensing system which sounds its own series
of tones; see theParking Aidschapter.
Driving Aids163
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
Page 208 of 375

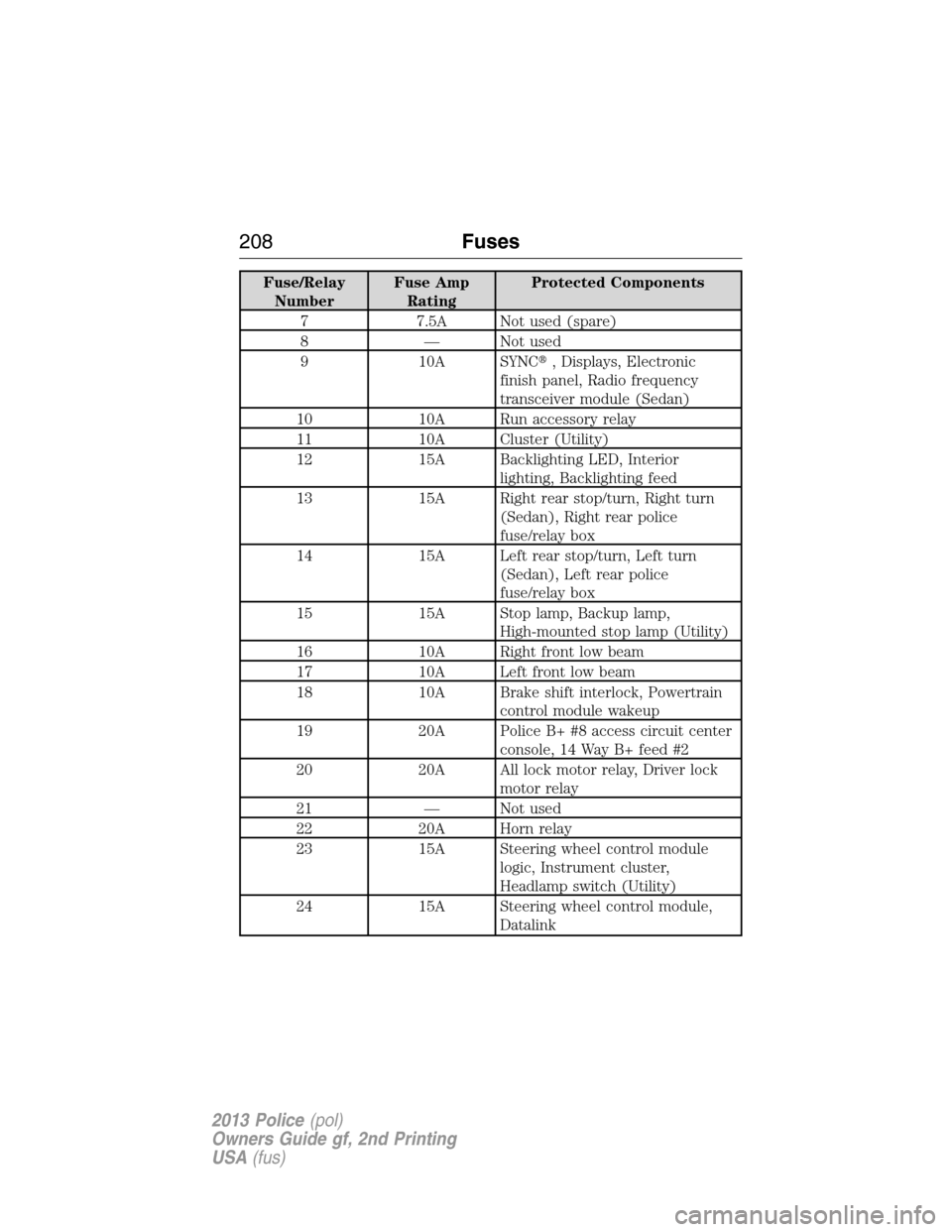

Fuse/Relay
NumberFuse Amp
RatingProtected Components
7 7.5A Not used (spare)
8 — Not used
9 10A SYNC, Displays, Electronic
finish panel, Radio frequency
transceiver module (Sedan)
10 10A Run accessory relay
11 10A Cluster (Utility)
12 15A Backlighting LED, Interior
lighting, Backlighting feed
13 15A Right rear stop/turn, Right turn
(Sedan), Right rear police
fuse/relay box
14 15A Left rear stop/turn, Left turn
(Sedan), Left rear police
fuse/relay box
15 15A Stop lamp, Backup lamp,
High-mounted stop lamp (Utility)
16 10A Right front low beam
17 10A Left front low beam
18 10A Brake shift interlock, Powertrain
control module wakeup
19 20A Police B+ #8 access circuit center
console, 14 Way B+ feed #2
20 20A All lock motor relay, Driver lock
motor relay
21 — Not used
22 20A Horn relay
23 15A Steering wheel control module
logic, Instrument cluster,
Headlamp switch (Utility)
24 15A Steering wheel control module,
Datalink
208Fuses
