FORD POLICE INTERCEPTOR SEDAN 2014 1.G Owners Manual

Engine drivebelt routing
2.0L EcoBoost engines
3.5L/3.7L V6 engines
1. Short drivebelt is on first pulley
groove closest to engine (except
vehicles with electric power assisted
steering).
2. Long drivebelt is on second
pulley groove farthest from engine.
300Capacities and Specifications
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

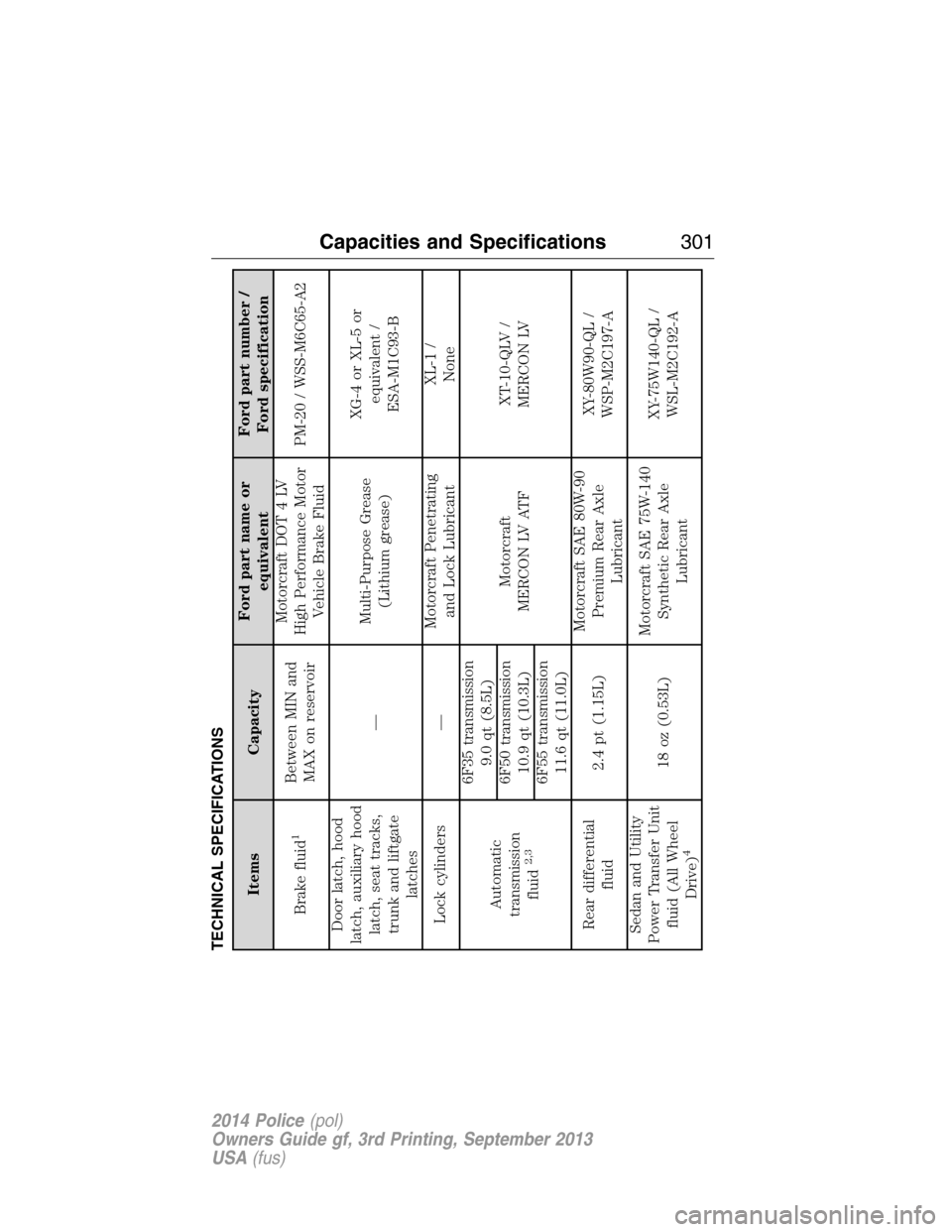

TECHNICAL SPECIFICATIONS
Items CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft DOT 4 LV
High Performance Motor
Vehicle Brake FluidPM-20 / WSS-M6C65-A2
Door latch, hood
latch, auxiliary hood
latch, seat tracks,
trunk and liftgate
latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Automatic
transmission
fluid
2,3
6F35 transmission
9.0 qt (8.5L)
Motorcraft
MERCON LV ATFXT-10-QLV /
MERCON LV 6F50 transmission
10.9 qt (10.3L)
6F55 transmission
11.6 qt (11.0L)
Rear differential
fluid2.4 pt (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Sedan and Utility
Power Transfer Unit
fluid (All Wheel
Drive)
4
18 oz (0.53L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Capacities and Specifications301
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

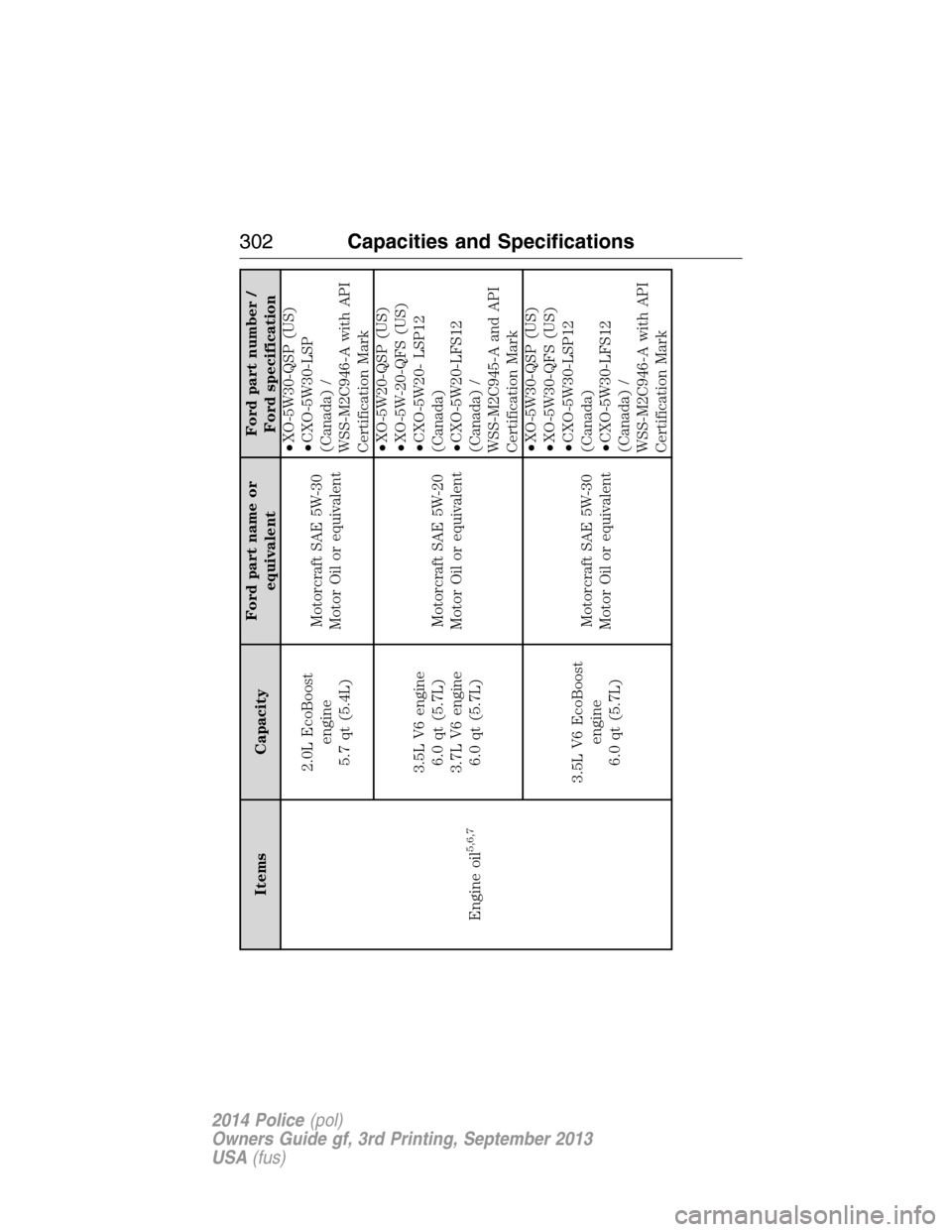

Engine oil
5,6,7
2.0L EcoBoost
engine
5.7 qt (5.4L)Motorcraft SAE 5W-30
Motor Oil or equivalent•XO-5W30-QSP (US)
•CXO-5W30-LSP
(Canada) /
WSS-M2C946-A with API
Certification Mark
3.5L V6 engine
6.0 qt (5.7L)
3.7L V6 engine
6.0 qt (5.7L)Motorcraft SAE 5W-20
Motor Oil or equivalent•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C945-A and API
Certification Mark
3.5L V6 EcoBoost
engine
6.0 qt (5.7L)Motorcraft SAE 5W-30
Motor Oil or equivalent•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12
(Canada)
•CXO-5W30-LFS12
(Canada) /
WSS-M2C946-A with API
Certification Mark
302Capacities and Specifications
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

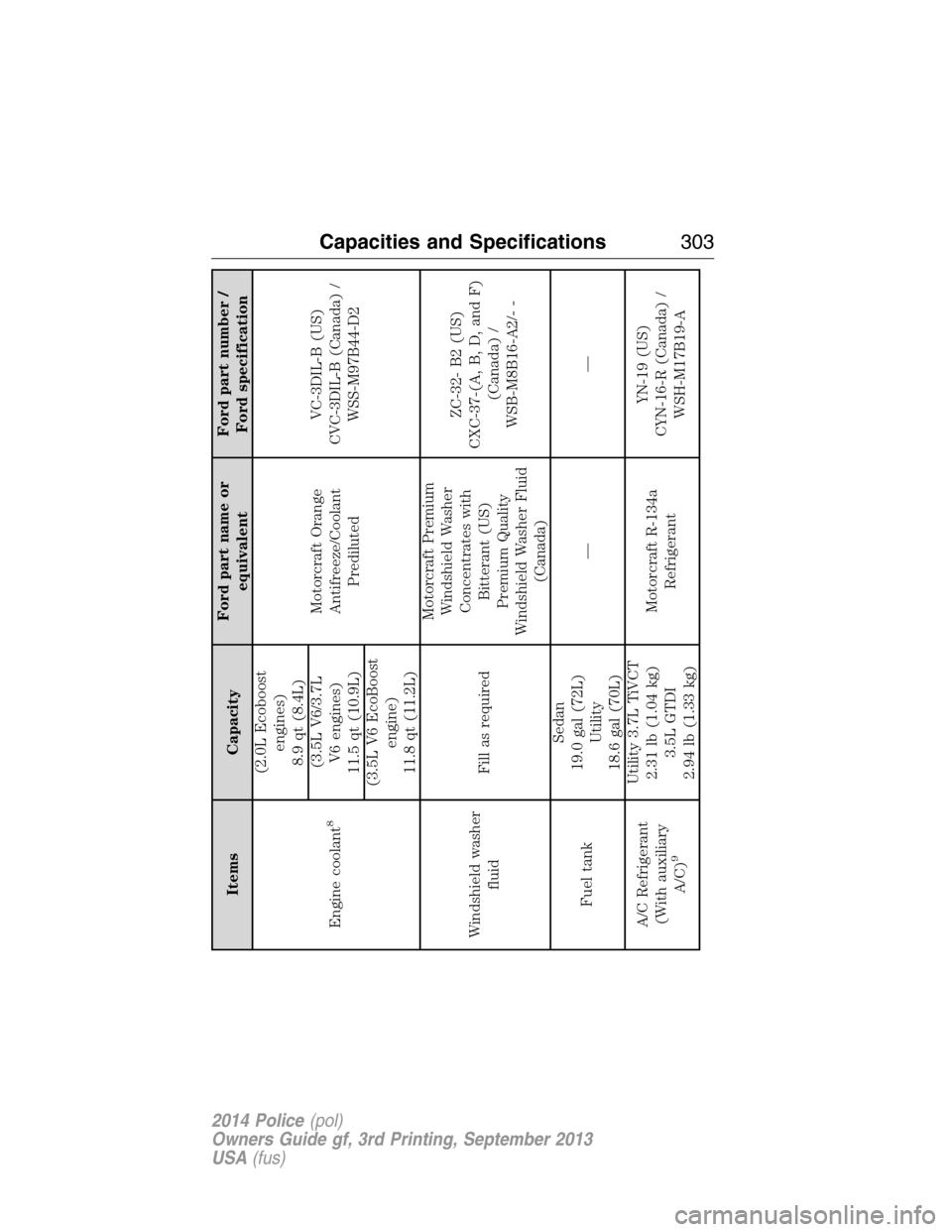

Engine coolant
8
(2.0L Ecoboost
engines)
8.9 qt (8.4L)
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 (3.5L V6/3.7L
V6 engines)
11.5 qt (10.9L)
(3.5L V6 EcoBoost
engine)
11.8 qt (11.2L)
Windshield washer
fluidFill as requiredMotorcraft Premium
Windshield Washer
Concentrates with
Bitterant (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32- B2 (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tankSedan
19.0 gal (72L)
Utility
18.6 gal (70L)——
A/C Refrigerant
(With auxiliary
A/C)
9
Utility 3.7L TiVCT
2.31 lb (1.04 kg)
3.5L GTDI
2.94 lb (1.33 kg)Motorcraft R-134a
RefrigerantYN-19 (US)
CYN-16-R (Canada) /
WSH-M17B19-A
Capacities and Specifications303
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

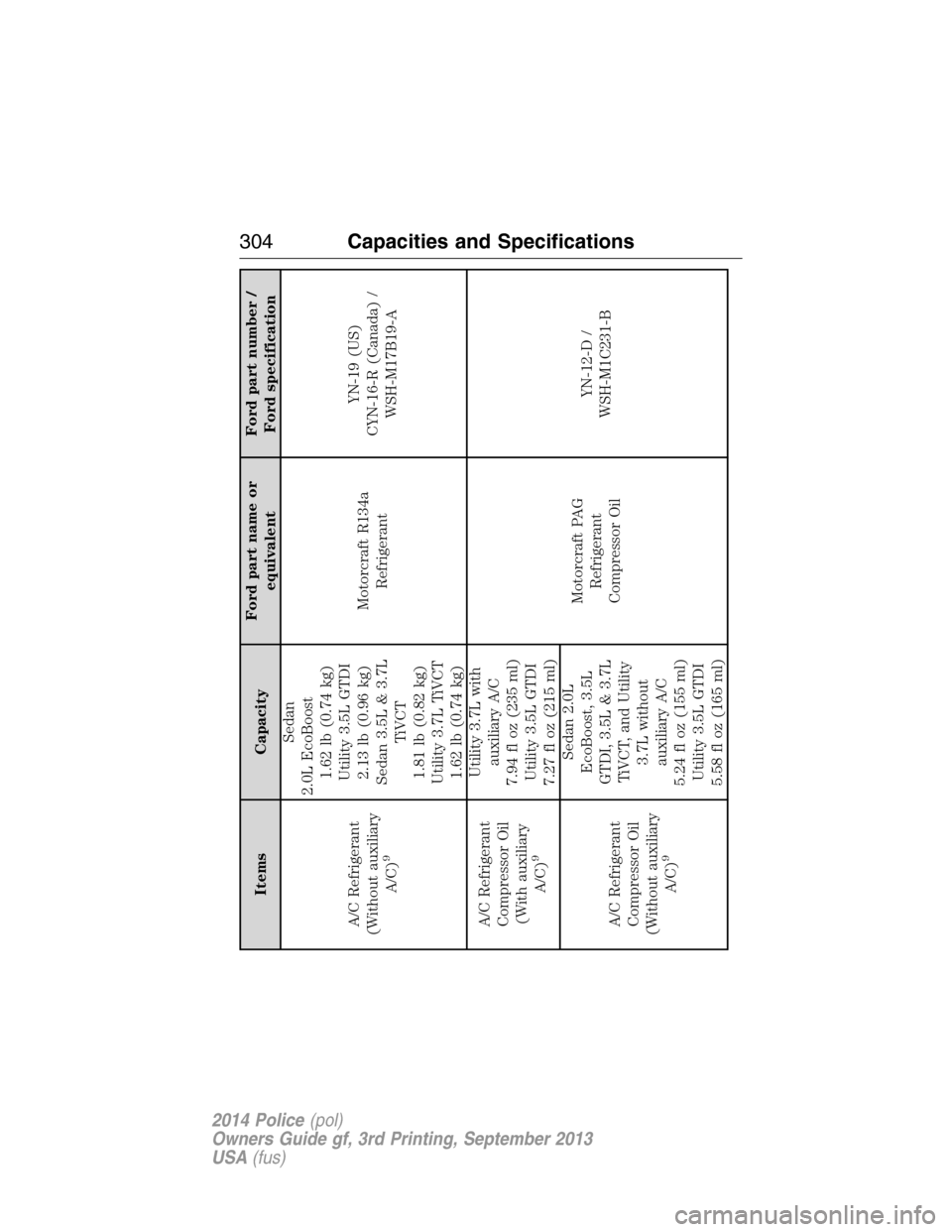

A/C Refrigerant
(Without auxiliary
A/C)
9
Sedan
2.0L EcoBoost
1.62 lb (0.74 kg)
Utility 3.5L GTDI
2.13 lb (0.96 kg)
Sedan 3.5L & 3.7L
TiVCT
1.81 lb (0.82 kg)
Utility 3.7L TiVCT
1.62 lb (0.74 kg)Motorcraft R134a
RefrigerantYN-19 (US)
CYN-16-R (Canada) /
WSH-M17B19-A
A/C Refrigerant
Compressor Oil
(With auxiliary
A/C)
9
Utility 3.7L with
auxiliary A/C
7.94 fl oz (235 ml)
Utility 3.5L GTDI
7.27 fl oz (215 ml)
Motorcraft PAG
Refrigerant
Compressor OilYN-12-D /
WSH-M1C231-B
A/C Refrigerant
Compressor Oil
(Without auxiliary
A/C)
9
Sedan 2.0L
EcoBoost, 3.5L
GTDI, 3.5L & 3.7L
TiVCT, and Utility
3.7L without
auxiliary A/C
5.24 fl oz (155 ml)
Utility 3.5L GTDI
5.58 fl oz (165 ml)
304Capacities and Specifications
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification

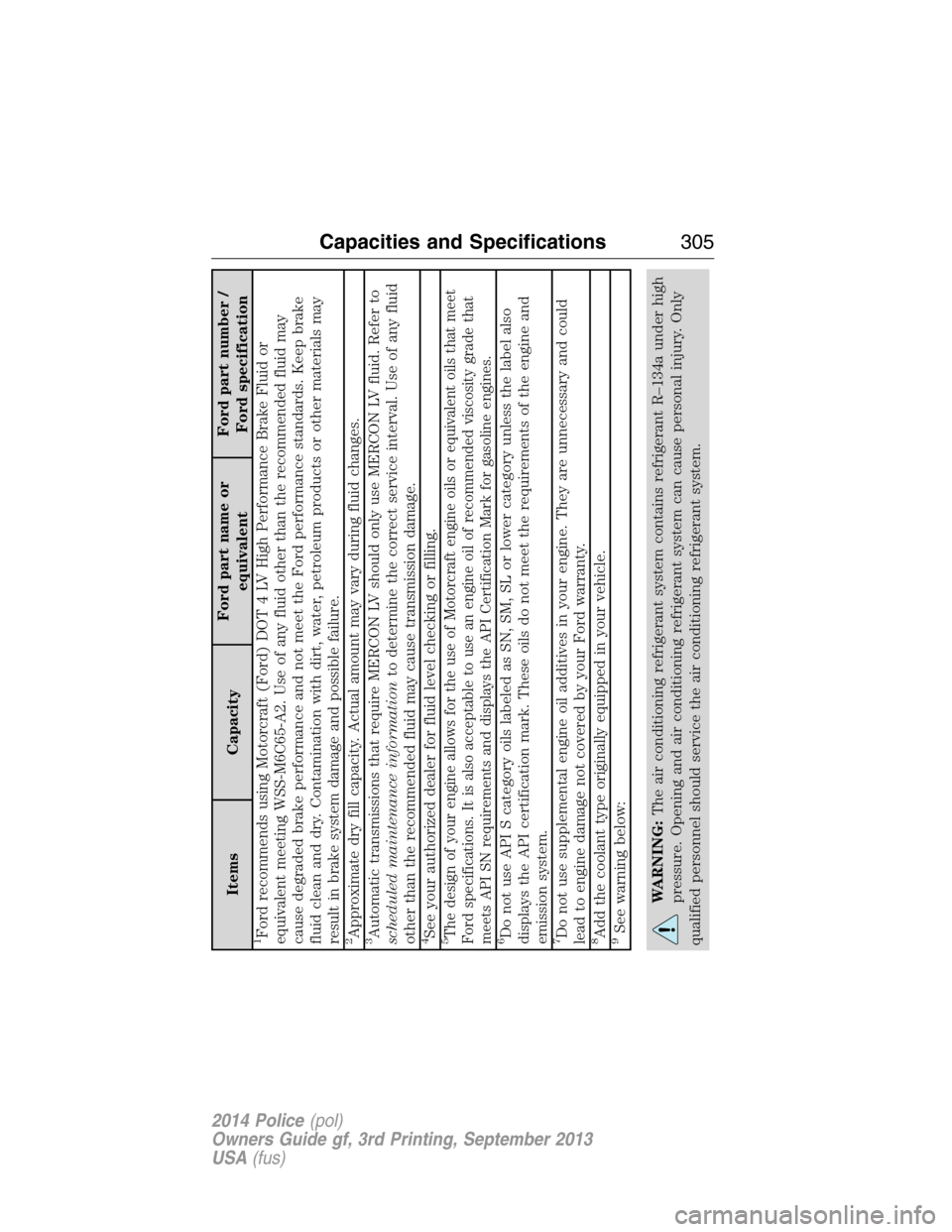

1Ford recommends using Motorcraft (Ford) DOT 4 LV High Performance Brake Fluid or
equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.4See your authorized dealer for fluid level checking or filling.5The design of your engine allows for the use of Motorcraft engine oils or equivalent oils that meet
Ford specifications. It is also acceptable to use an engine oil of recommended viscosity grade that
meets API SN requirements and displays the API Certification Mark for gasoline engines.6Do not use API S category oils labeled as SN, SM, SL or lower category unless the label also
displays the API certification mark. These oils do not meet the requirements of the engine and
emission system.7Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage not covered by your Ford warranty.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING:The air conditioning refrigerant system contains refrigerant R–134a under high
pressure. Opening and air conditioning refrigerant system can cause personal injury. Only
qualified personnel should service the air conditioning refrigerant system.
Capacities and Specifications305
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

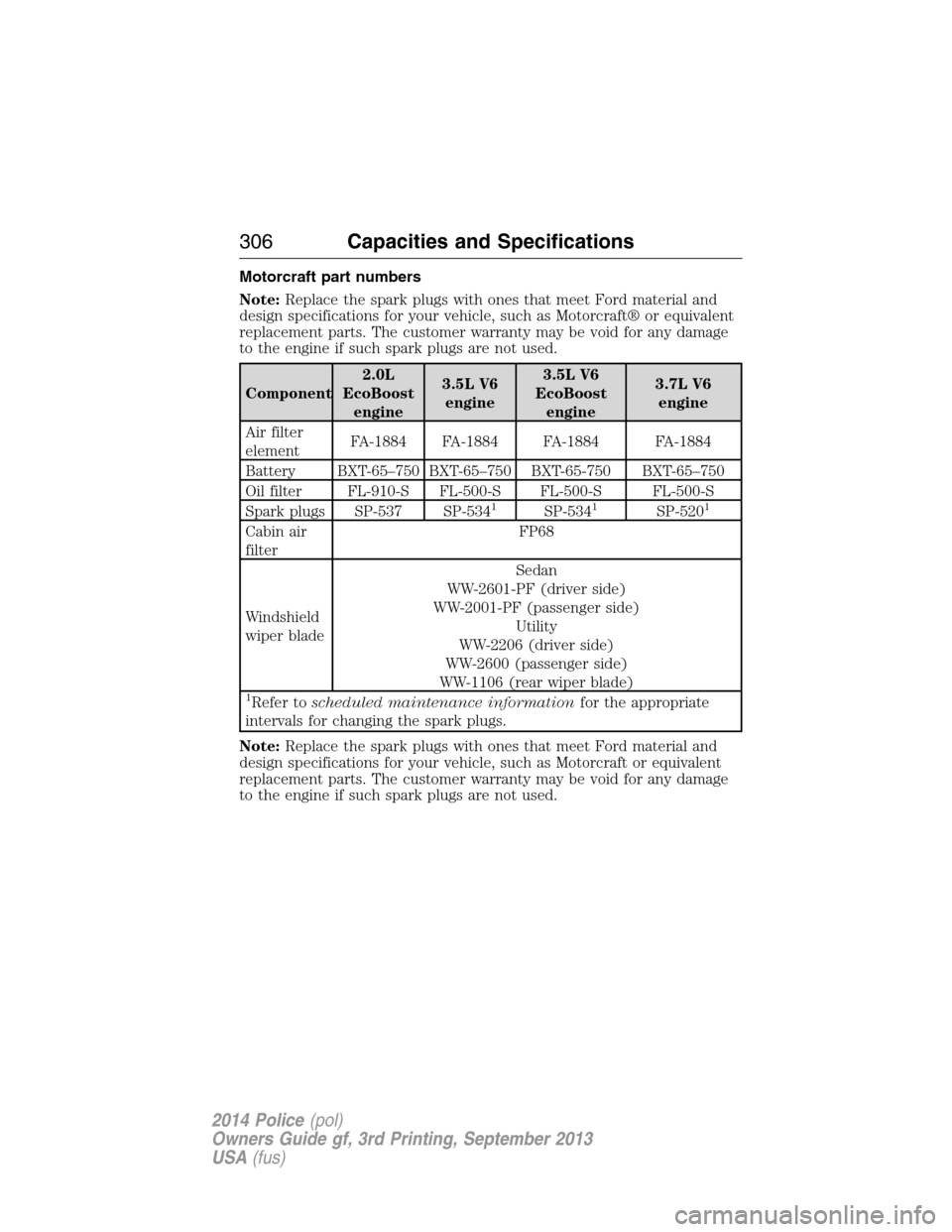

Motorcraft part numbers
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft® or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
Component2.0L
EcoBoost
engine3.5L V6
engine3.5L V6
EcoBoost
engine3.7L V6
engine
Air filter
elementFA-1884 FA-1884 FA-1884 FA-1884
Battery BXT-65–750 BXT-65–750 BXT-65-750 BXT-65–750
Oil filter FL-910-S FL-500-S FL-500-S FL-500-S
Spark plugs SP-537 SP-534
1SP-5341SP-5201
Cabin air
filterFP68
Windshield
wiper bladeSedan
WW-2601-PF (driver side)
WW-2001-PF (passenger side)
Utility
WW-2206 (driver side)
WW-2600 (passenger side)
WW-1106 (rear wiper blade)
1Refer toscheduled maintenance informationfor the appropriate
intervals for changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
306Capacities and Specifications
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

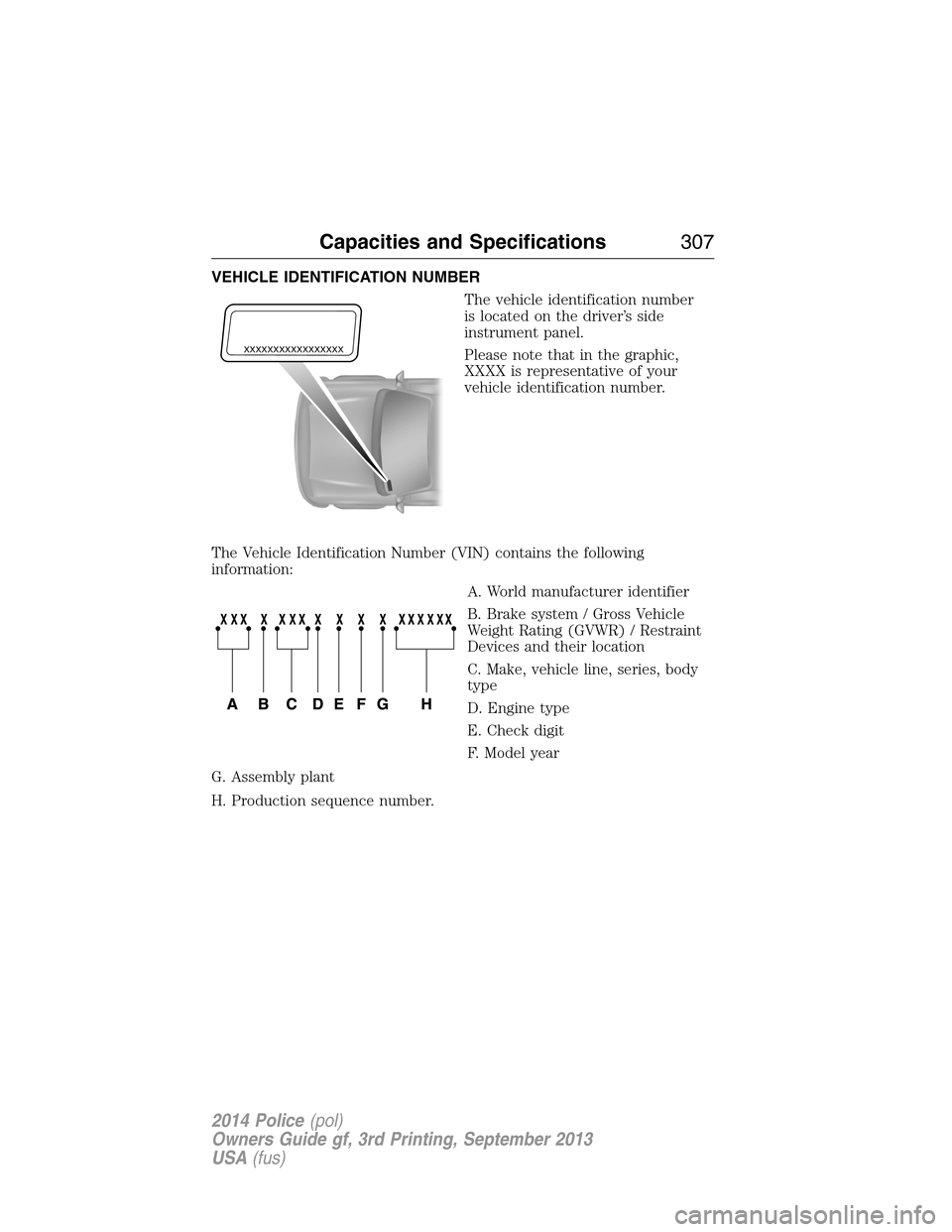

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number
is located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
Capacities and Specifications307
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

VEHICLE CERTIFICATION LABEL
The National Highway Traffic
Safety Administration Regulations
require that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label shall
be affixed to either the door hinge
pillar, the door latch post, or the
edge of the door near the door latch,
next to the driver’s seating position.
TRANSMISSION CODE DESIGNATION
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
6-speed automatic transmission (6F35) 6
6-speed automatic transmission (6F50) J
6-speed automatic transmission (6F55) C
308Capacities and Specifications
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

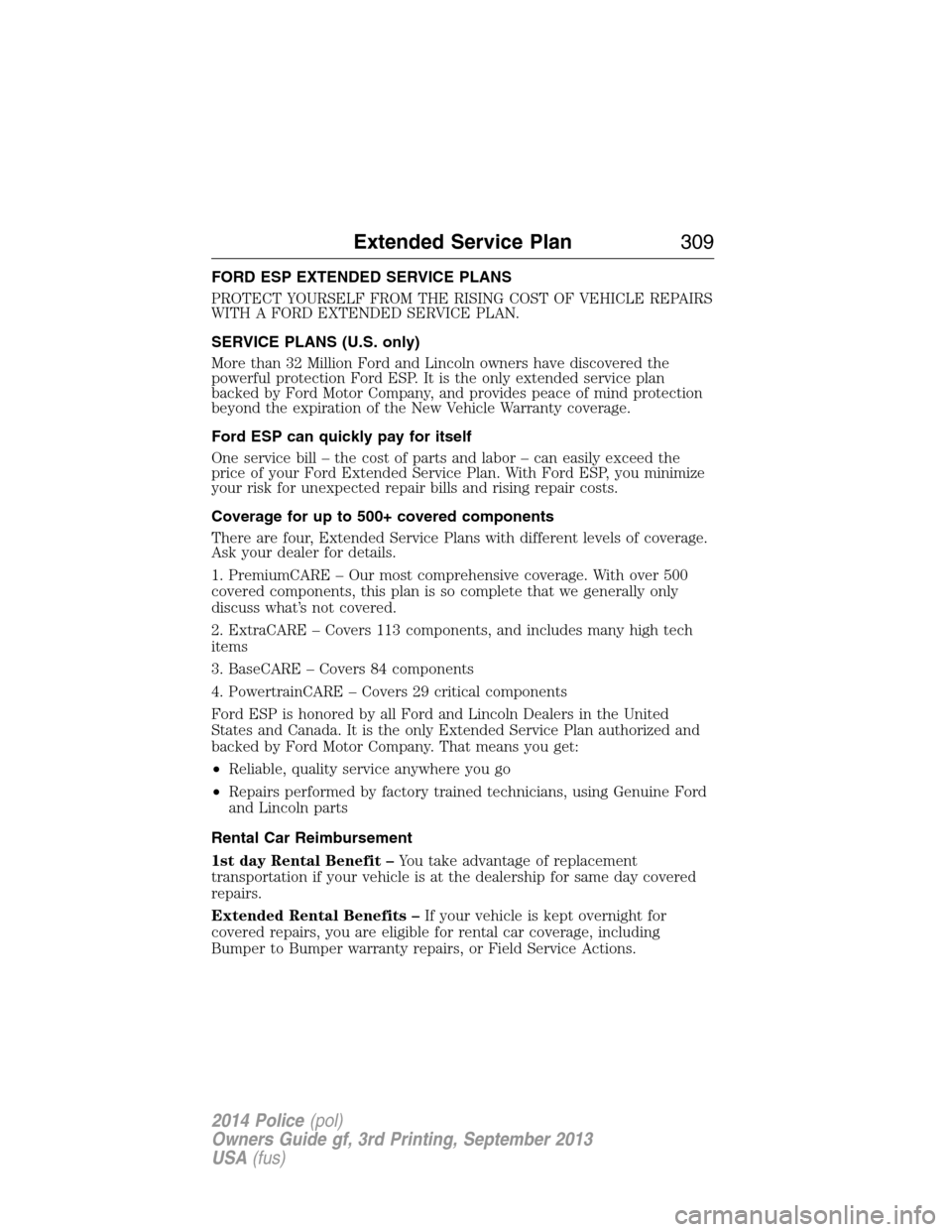

FORD ESP EXTENDED SERVICE PLANS
