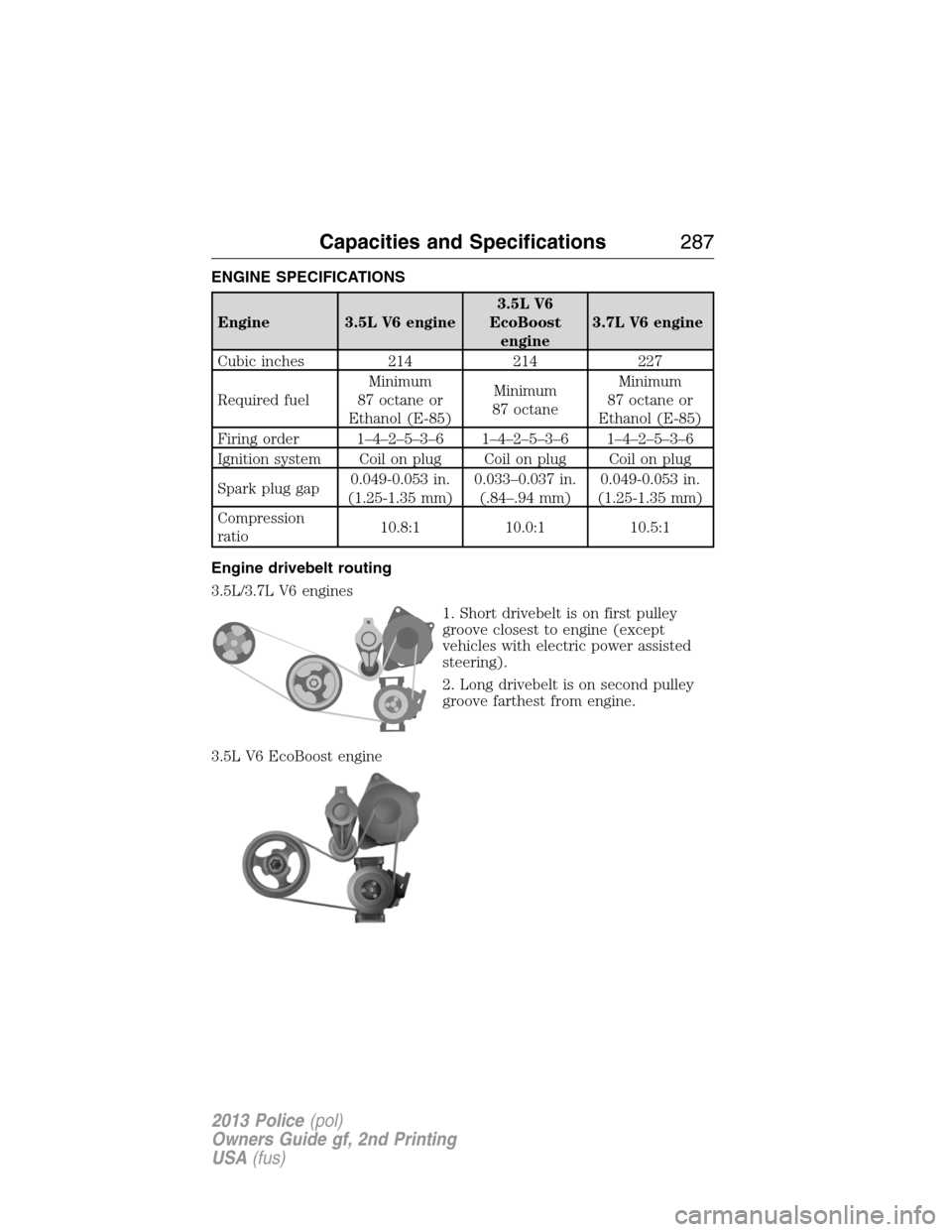

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine3.5L V6
EcoBoost
engine3.7L V6 engine
Cubic inches 214 214 227
Required fuelMinimum
87 octane or
Ethanol (E-85)Minimum
87 octaneMinimum
87 octane or
Ethanol (E-85)
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1–4–2–5–3–6
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.049-0.053 in.
(1.25-1.35 mm)0.033–0.037 in.
(.84–.94 mm)0.049-0.053 in.
(1.25-1.35 mm)
Compression
ratio10.8:1 10.0:1 10.5:1
Engine drivebelt routing
3.5L/3.7L V6 engines
1. Short drivebelt is on first pulley
groove closest to engine (except
vehicles with electric power assisted
steering).
2. Long drivebelt is on second pulley
groove farthest from engine.
3.5L V6 EcoBoost engine
Capacities and Specifications287
