engine coolant FORD POLICE INTERCEPTOR UTILITY 2014 1.G Owner's Manual

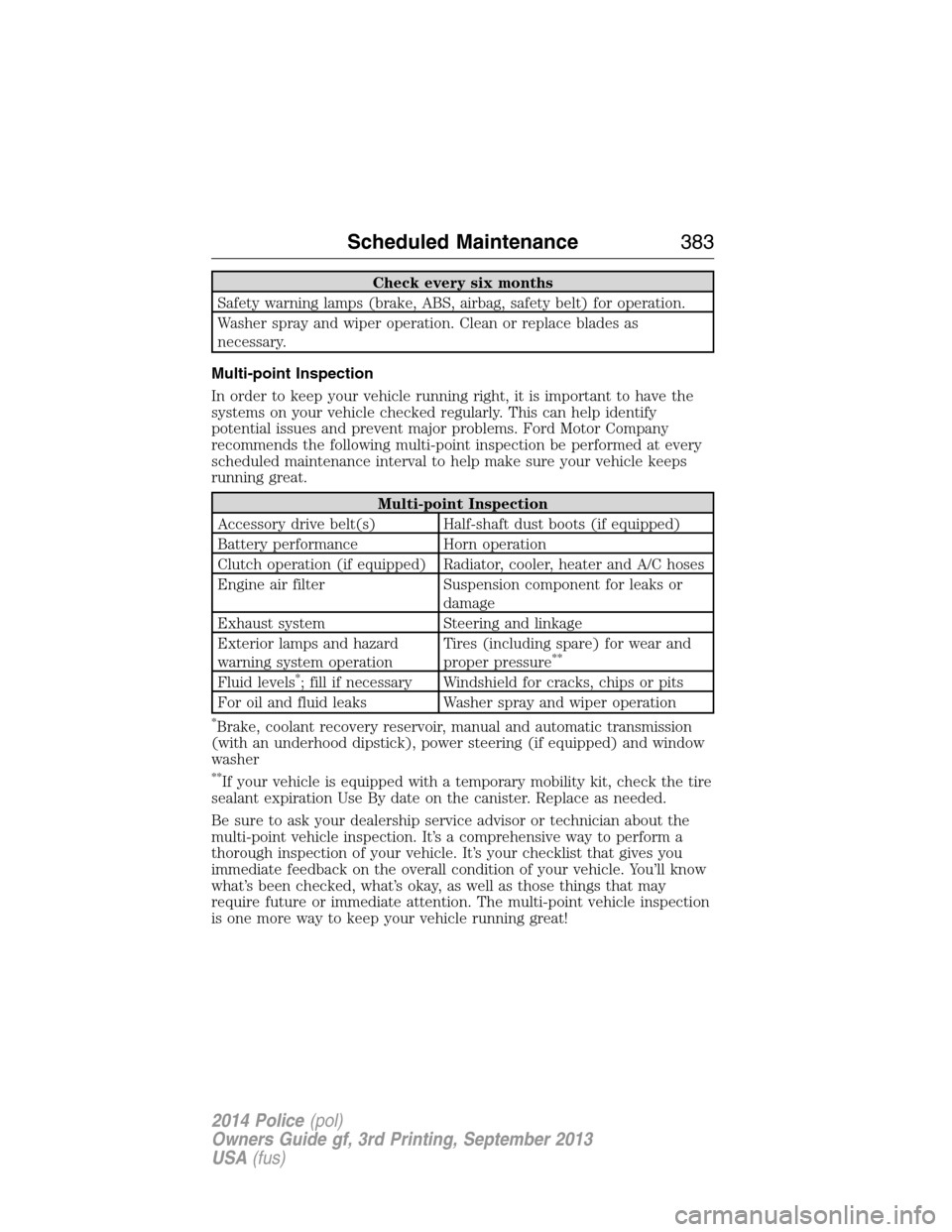

Check every six months
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point Inspection
Accessory drive belt(s) Half-shaft dust boots (if equipped)
Battery performance Horn operation
Clutch operation (if equipped) Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires (including spare) for wear and
proper pressure
**
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, manual and automatic transmission
(with an underhood dipstick), power steering (if equipped) and window
washer
**If your vehicle is equipped with a temporary mobility kit, check the tire
sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
Scheduled Maintenance383
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

Other maintenance items1
Every 20000 miles
(32000 km)Replace cabin air filter (if equipped).
Every 30000 miles
(48000 km)Replace climate-controlled (heated and
cooled) seat filter
2.
Replace engine air filter.
At 100000 miles
(160000 km)Change engine coolant.
3
Every 100000 miles
(160000 km)Replace spark plugs.
Inspect accessory drive belt(s).4
Every 150000 miles
(240000 km)Change automatic transmission fluid.
Replace accessory drive belt(s) if not replaced
within the last 100000 miles (160000 km).
1These maintenance items can be performed within 3000 miles
(4800 kilometers) of the last oil change. Do not exceed the designated
distance for the interval.
2If your vehicle has climate-controlled (heated and cooled) seats.
3Initial replacement at six years or 100000 miles (160000 kilometers),
then every three years or 50000 miles (80000 kilometers).
4After initial inspection, inspect every other oil change until replaced.
Scheduled Maintenance387
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

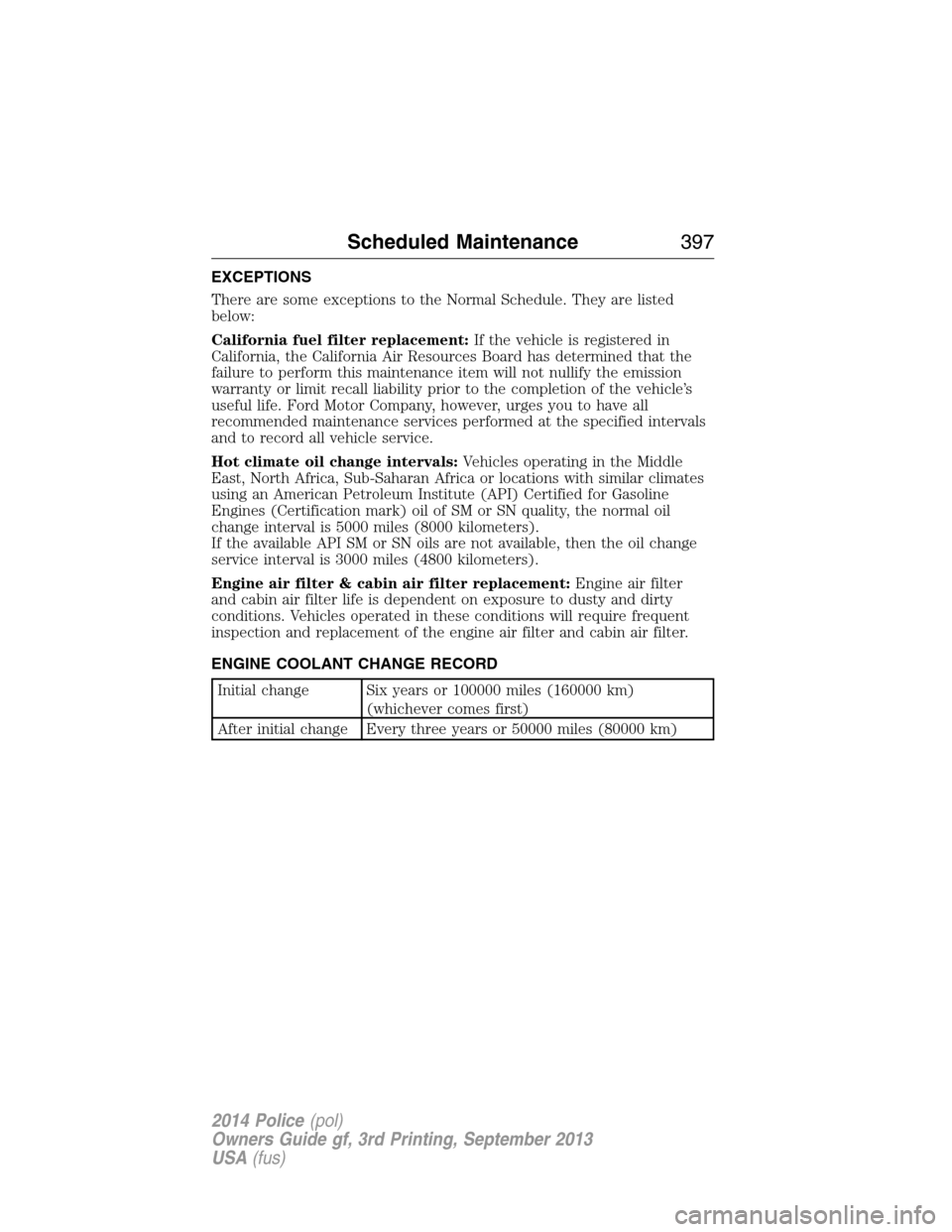

EXCEPTIONS
There are some exceptions to the Normal Schedule. They are listed
below:
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Hot climate oil change intervals:Vehicles operating in the Middle
East, North Africa, Sub-Saharan Africa or locations with similar climates
using an American Petroleum Institute (API) Certified for Gasoline
Engines (Certification mark) oil of SM or SN quality, the normal oil
change interval is 5000 miles (8000 kilometers).
If the available API SM or SN oils are not available, then the oil change
service interval is 3000 miles (4800 kilometers).
Engine air filter & cabin air filter replacement:Engine air filter
and cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change Six years or 100000 miles (160000 km)
(whichever comes first)
After initial change Every three years or 50000 miles (80000 km)
Scheduled Maintenance397
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

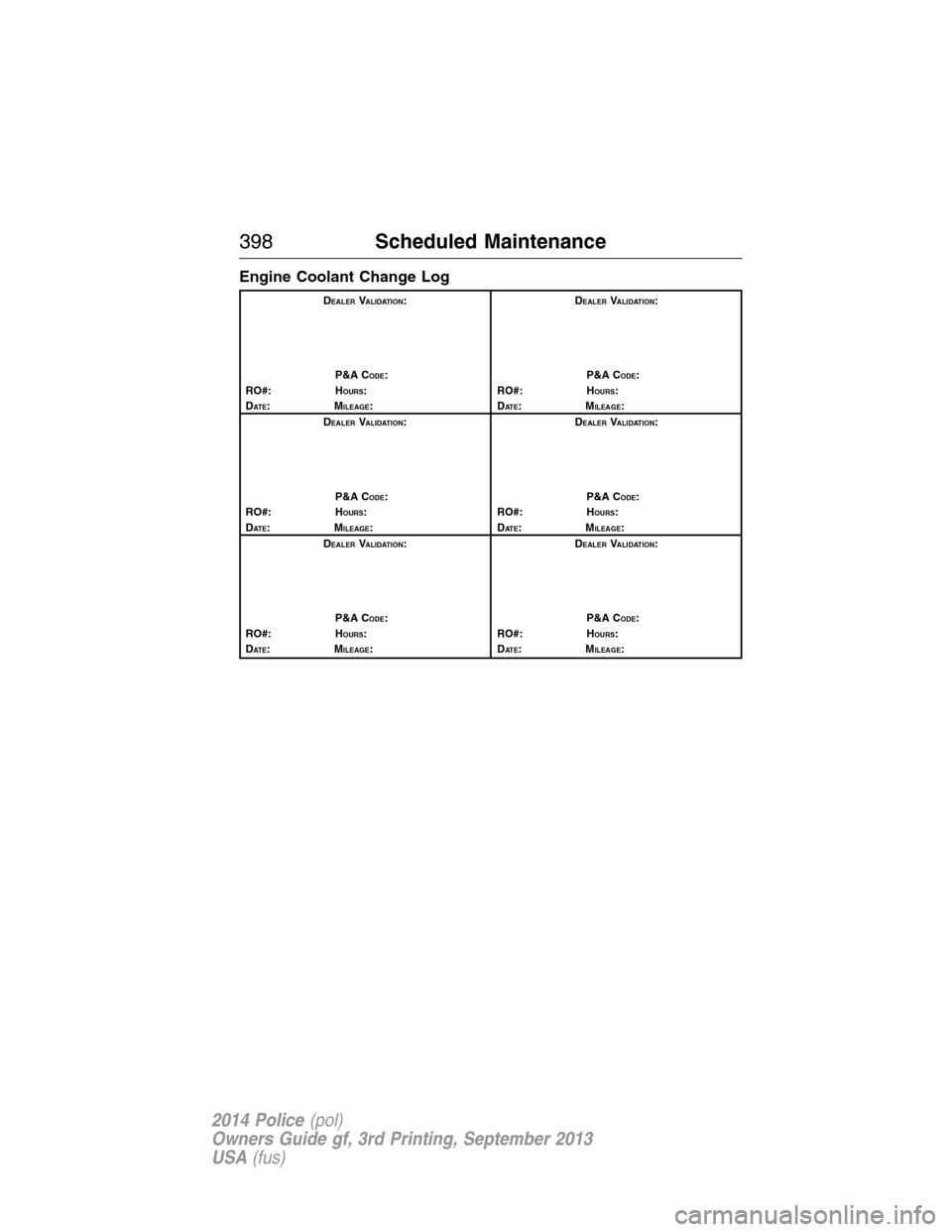

Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
398Scheduled Maintenance
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

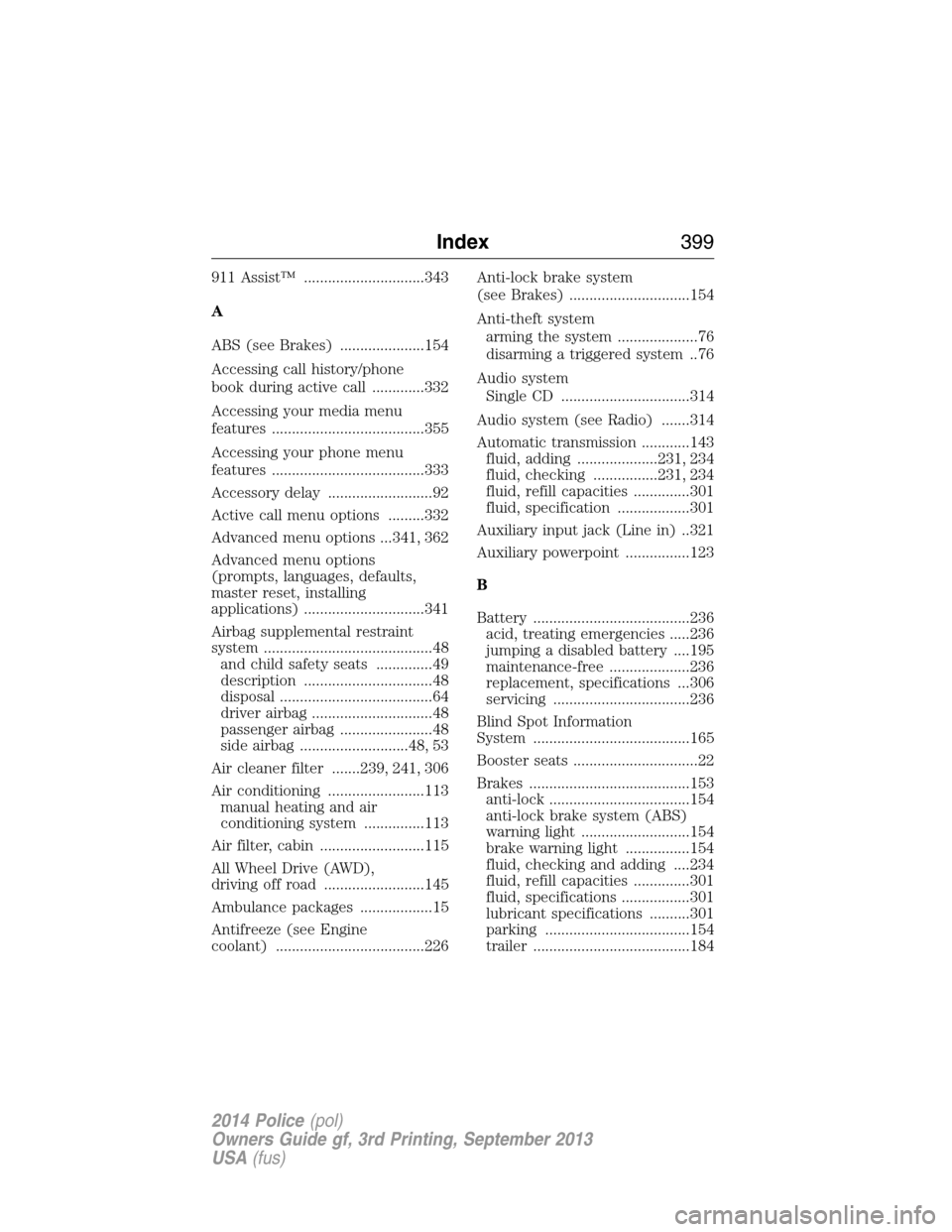

911 Assist™ ..............................343
A
ABS (see Brakes) .....................154
Accessing call history/phone
book during active call .............332
Accessing your media menu
features ......................................355
Accessing your phone menu
features ......................................333
Accessory delay ..........................92
Active call menu options .........332
Advanced menu options ...341, 362
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................341
Airbag supplemental restraint
system ..........................................48
and child safety seats ..............49
description ................................48
disposal ......................................64
driver airbag ..............................48
passenger airbag .......................48
side airbag ...........................48, 53
Air cleaner filter .......239, 241, 306
Air conditioning ........................113
manual heating and air
conditioning system ...............113
Air filter, cabin ..........................115
All Wheel Drive (AWD),
driving off road .........................145
Ambulance packages ..................15
Antifreeze (see Engine
coolant) .....................................226Anti-lock brake system
(see Brakes) ..............................154
Anti-theft system
arming the system ....................76
disarming a triggered system ..76
Audio system
Single CD ................................314
Audio system (see Radio) .......314
Automatic transmission ............143
fluid, adding ....................231, 234
fluid, checking ................231, 234
fluid, refill capacities ..............301
fluid, specification ..................301
Auxiliary input jack (Line in) ..321
Auxiliary powerpoint ................123
B
Battery .......................................236
acid, treating emergencies .....236
jumping a disabled battery ....195
maintenance-free ....................236
replacement, specifications ...306
servicing ..................................236
Blind Spot Information
System .......................................165
Booster seats ...............................22
Brakes ........................................153
anti-lock ...................................154
anti-lock brake system (ABS)
warning light ...........................154
brake warning light ................154
fluid, checking and adding ....234
fluid, refill capacities ..............301
fluid, specifications .................301
lubricant specifications ..........301
parking ....................................154
trailer .......................................184
Index399
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)

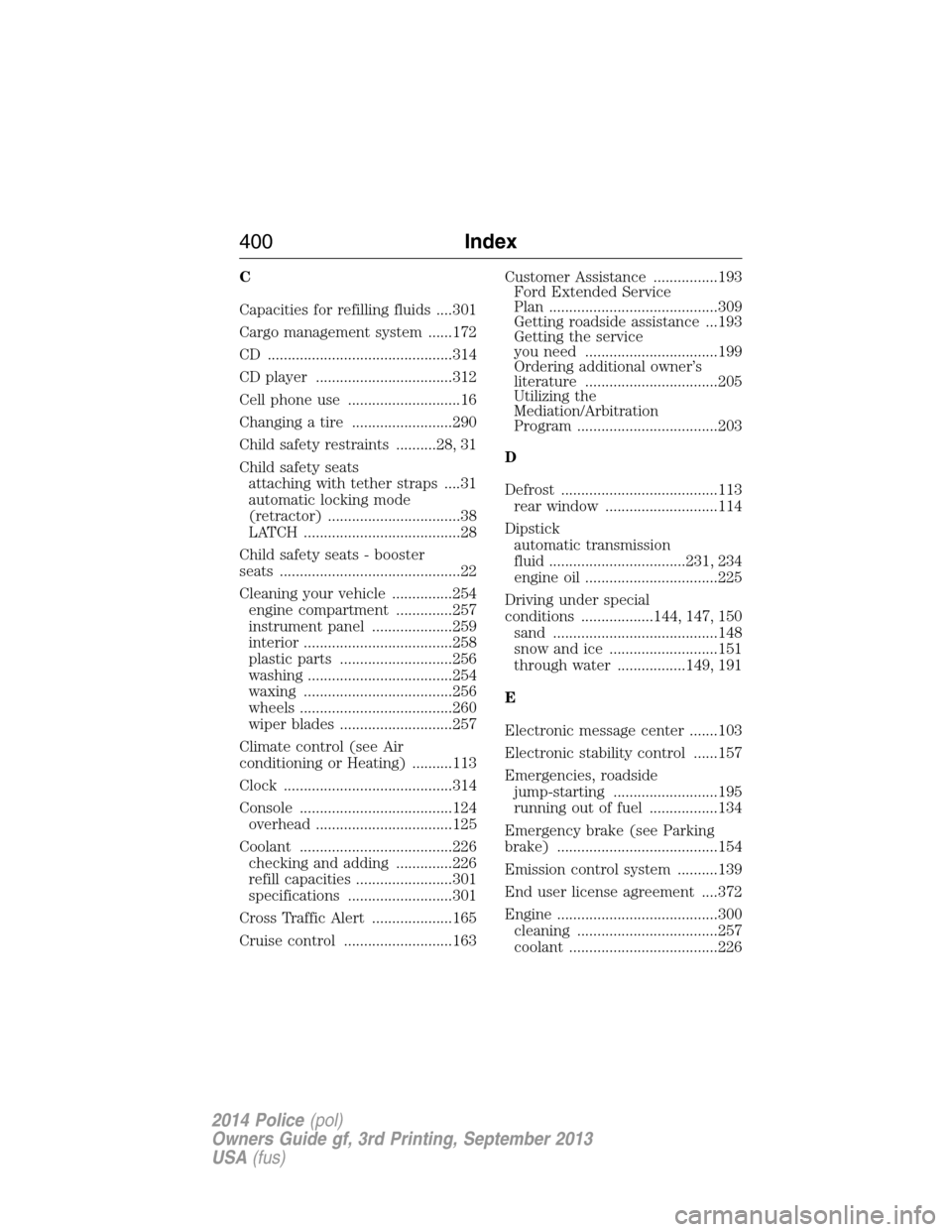

C
Capacities for refilling fluids ....301
Cargo management system ......172
CD ..............................................314
CD player ..................................312
Cell phone use ............................16
Changing a tire .........................290
Child safety restraints ..........28, 31
Child safety seats
attaching with tether straps ....31
automatic locking mode
(retractor) .................................38
LATCH .......................................28
Child safety seats - booster
seats .............................................22
Cleaning your vehicle ...............254
engine compartment ..............257
instrument panel ....................259
interior .....................................258
plastic parts ............................256
washing ....................................254
waxing .....................................256
wheels ......................................260
wiper blades ............................257
Climate control (see Air
conditioning or Heating) ..........113
Clock ..........................................314
Console ......................................124
overhead ..................................125
Coolant ......................................226
checking and adding ..............226
refill capacities ........................301
specifications ..........................301
Cross Traffic Alert ....................165
Cruise control ...........................163Customer Assistance ................193
Ford Extended Service
Plan ..........................................309
Getting roadside assistance ...193
Getting the service
you need .................................199
Ordering additional owner’s
literature .................................205
Utilizing the
Mediation/Arbitration
Program ...................................203
D
Defrost .......................................113
rear window ............................114
Dipstick
automatic transmission
fluid ..................................231, 234
engine oil .................................225
Driving under special
conditions ..................144, 147, 150
sand .........................................148
snow and ice ...........................151
through water .................149, 191
E
Electronic message center .......103
Electronic stability control ......157
Emergencies, roadside
jump-starting ..........................195
running out of fuel .................134
Emergency brake (see Parking
brake) ........................................154
Emission control system ..........139
End user license agreement ....372
Engine ........................................300
cleaning ...................................257
coolant .....................................226
400Index
2014 Police(pol)
Owners Guide gf, 3rd Printing, September 2013
USA(fus)
