FORD POLICE INTERCEPTOR UTILITY 2016 1.G Owners Manual

Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module power.
20A 1
1
Engine emissions (MIL).
20A 1
2
A/C clutch control relay coil.
20A 1
3
VACC.
Ignition coils.
20A 1
4
Not used.
—
5
Not used.
—
6
Not used.
—
7
Not used.
—
8
Not used.
—
9
Heated mirrors.
15A 1
10
Right hand side electronic cooling fan 3
relay.
—
11
Heated rear window.
40A 2
12
Not used.
—
13
Powertrain control module relay.
—
14
Horn relay power.
20A 1
15
A/C clutch relay power.
10A 1
16
Rear heated window and heated mirrors
relay.
—
17
Rear blower motor relay.
—
18
Not used.
—
19
Left hand side cooling fan relay.
—
20
Cooling fans series/parallel relay.
—
21
Electronic fan relay 2.
25A 2
22
Not used.
—
23
168
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
—
24
Not used.
—
25
Anti-lock brake system valves.
30A 2
26
Police power tap #1.
40A 2
27
Not used.
—
28
Run/start relay.
—
29
Not used.
—
30
Electric power-assisted steering.
10A 1
31
Anti-lock brake system module.
10A 1
32
Powertrain control module (ISPR).
10A 1
33
Blind spot information system.
10A 1
34
Rear camera.
Not used.
—
35
Blower motor relay.
—
36
Not used.
—
37
A/C compressor clutch relay.
—
38
Horn relay.
—
39
Not used.
—
40
Rear blower motor.
40A 2
41
Not used.
—
42
Front blower motor.
40A 2
43
Voltage quality module bus.
50A 3
44
Electric fan relay 1.
40A 3
45
Police rear power outlet #1.
50A 3
46
Not used.
—
47
169
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Body control module RP1 bus.
50A 3
48
Not used.
—
49
Body control module RP2 bus.
50A 3
50
Electric fan relay 3.
50A 3
51
Anti-lock brake system pump.
60A 3
52
Police rear power outlet #2.
50A 3
53
Not used.
—
54
Police power tap #3.
40A 2
55
Police power tap #2.
40A 2
56
Not used.
—
57
Not used.
—
58
Passenger seat power.
30A 2
59
Power point #1 (instrument panel).
20A 2
60
Not used.
—
61
Power point #2(instrument panel).
20A 2
62
Fuel pump.
30A 2
63
Not used.
—
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
Not used.
—
68
Not used.
—
69
Trailer tow left-hand and right-hand stop
and direction indicator lamps.
20A
2
70
Not used.
—
71
170
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Police power transfer unit cooler.
20A 2
72
Driver seat power.
30A 2
73
Not used.
—
74
Front wiper motor.
30A 2
75
Not used.
—
76
Not used.
—
77
Not used.
—
78
Starter relay.
30A 2
79
Not used.
—
80
Police start.
5A 1
81
Not used.
—
82
Brake on/off switch.
10A 1
83
Not used.
—
84
Police run/start #2.
20A 1
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
Police run/start #1.
20A 1
89
Not used.
—
90
Not used.
—
91
Police adjustable pedals.
15A 1
92
Alternator sense.
10A 1
93
Rear washer relay.
15A 1
94
Rear wiper relay.
15A 1
95
171
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module relay coil
power.
10A
1
96
Not used.
—
97
Police spot light.
20A 1
98
Trailer tow parking lamp relay.
20A 1
99
1 Micro fuse.
2 M-type fuse.
3 J-type fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located under the
instrument panel to the left of the steering
column. Note:
It may be easier to access the fuse
panel if you remove the finish trim piece. Protected components
Fuse amp rating
Fuse or relay number
Demand lamps.
10A 1
1
Battery saver.
172
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing FusesE145984

Protected components
Fuse amp rating
Fuse or relay number
Police battery saver tap-in (14-way).
Not used.
—
2
Driver unlock relay.
20A 1
3
Police brake on/off tap-in.
5A 1
4
Police battery feed #2.
20A 1
5
Not used.
—
6
Not used.
—
7
Not used.
—
8
Police battery feed #3.
10A 1
9
Not used.
—
10
Rear climate control module.
5A 2
11
Front climate control module.
7.5A 2
12
Instrument cluster.
7.5A 2
13
Smart data link.
Steering column control module.
Not used.
—
14
Smart datalink connector power.
10A 2
15
Not used.
—
16
Electronic finish panel.
5A 2
17
Ignition switch.
5A 2
18
Key inhibit.
Transmission control switch (Police low
gear).
7.5A
2
19
Police SWIM module.
7.5A 2
20
Humidity sensor.
5A 2
21
Occupant classification sensor.
5A 2
22
173
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Delayed accessory power.
10A 1
23
Power windows.
Police D/A tap-in (14-way).
Central lock relay.
20A 1
24
Left-hand front smart window motor.
30A 1
25
Right-hand front smart window motor.
30A 1
26
Not used.
—
27
Police battery feed #1.
20A 1
28
Not used.
—
29
Not used.
—
30
Not used.
—
31
SYNC.
10A 1
32
GPS module.
Display.
Radio.
20A 1
33
Run/start relay.
30A 1
34
Restrain control module.
5A 1
35
EC mirrors.
15A 1
36
Not used.
—
37
Left-hand front window motor.
30A 3
38
Rear power window motors.
1 Micro fuse.
2 Dual micro fuse.
3 Circuit breaker.
174
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Fuses

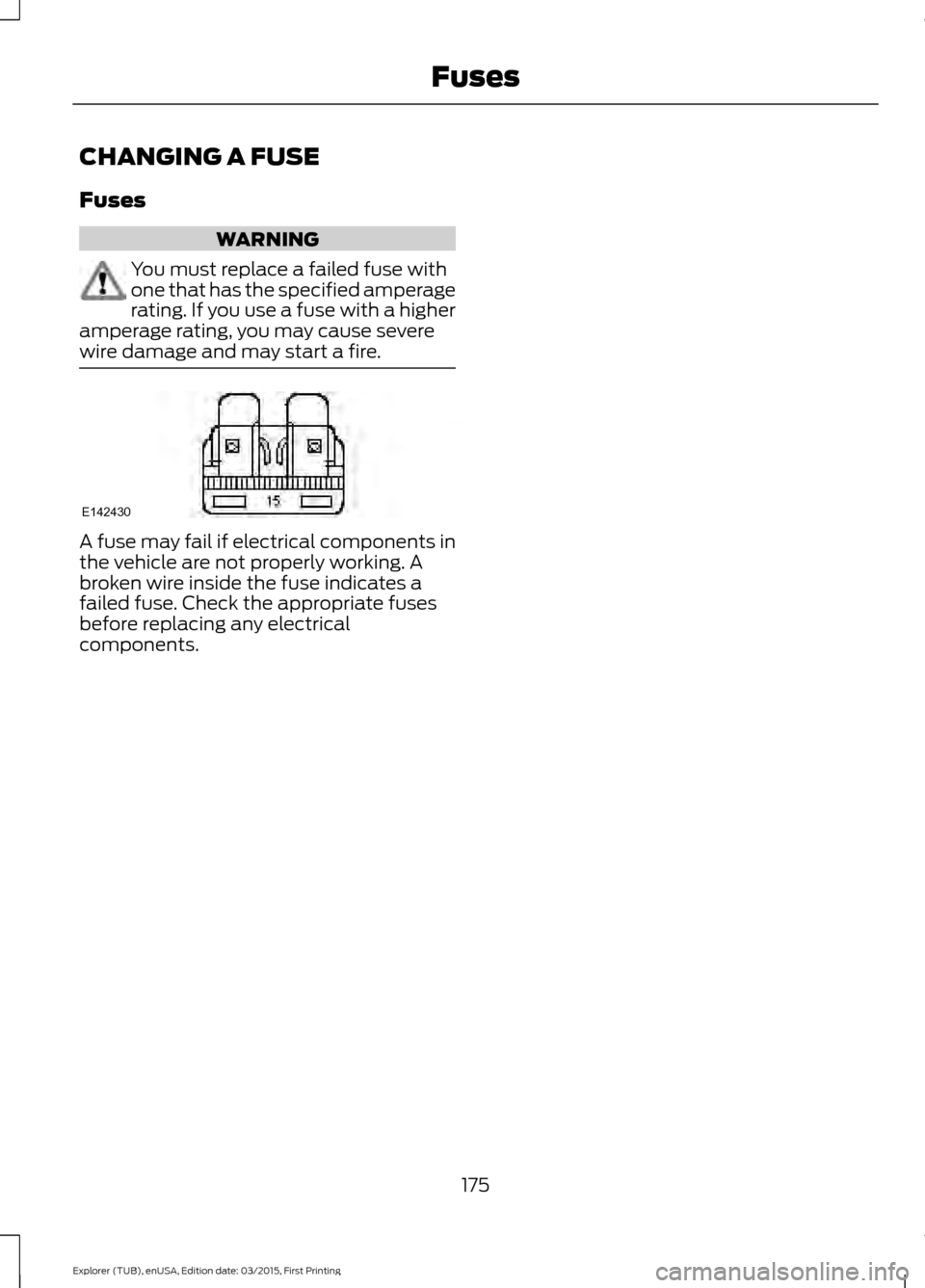

CHANGING A FUSE
Fuses
WARNING
You must replace a failed fuse with
one that has the specified amperage
rating. If you use a fuse with a higher
amperage rating, you may cause severe
wire damage and may start a fire. A fuse may fail if electrical components in
the vehicle are not properly working. A
broken wire inside the fuse indicates a
failed fuse. Check the appropriate fuses
before replacing any electrical
components.
175
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing FusesE142430

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
To help you service your vehicle, we
provide scheduled maintenance
information which makes tracking routine
service easy. See Scheduled
Maintenance (page 296).
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
• Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts. Working with the Engine Off
1.
Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1.
Set the parking brake and shift to park
(P).
2. Block the wheels
176
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing Maintenance

OPENING AND CLOSING THE
HOOD
Opening the Hood
1.
Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.
2. Slightly lift the hood. 3. Move the catch to the left.
177
Explorer (TUB), enUSA, Edition date: 03/2015, First Printing MaintenanceE203008
1 2
E203009
3
